1" 37 Degree x 48" Length JIC Braided Stainless Steel Hose

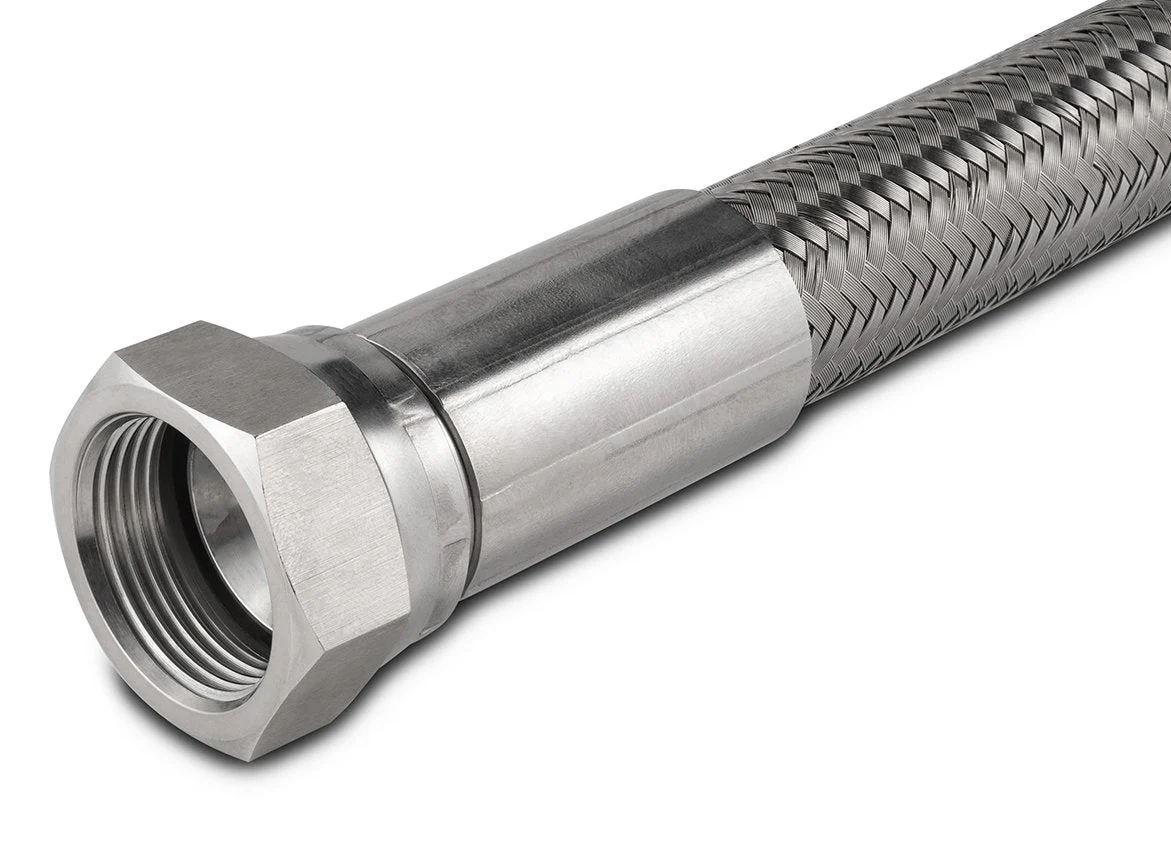

1" 37 Degree JIC Braided Stainless Steel Hose

These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches.

***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used.

Specifications:

Connection Type(s):	1" 37° Female JIC Swivel (1 5/16"-12)
Liner Material	PTFE (Teflon)
Braid Material	304 Stainless Steel
Swivel Material	304 Stainless Steel
Temperature Rating	-65° to 450°F
Pressure Rating	533 PSI
Chemical Resistance	Excellent
Max Bend Radius	9"
