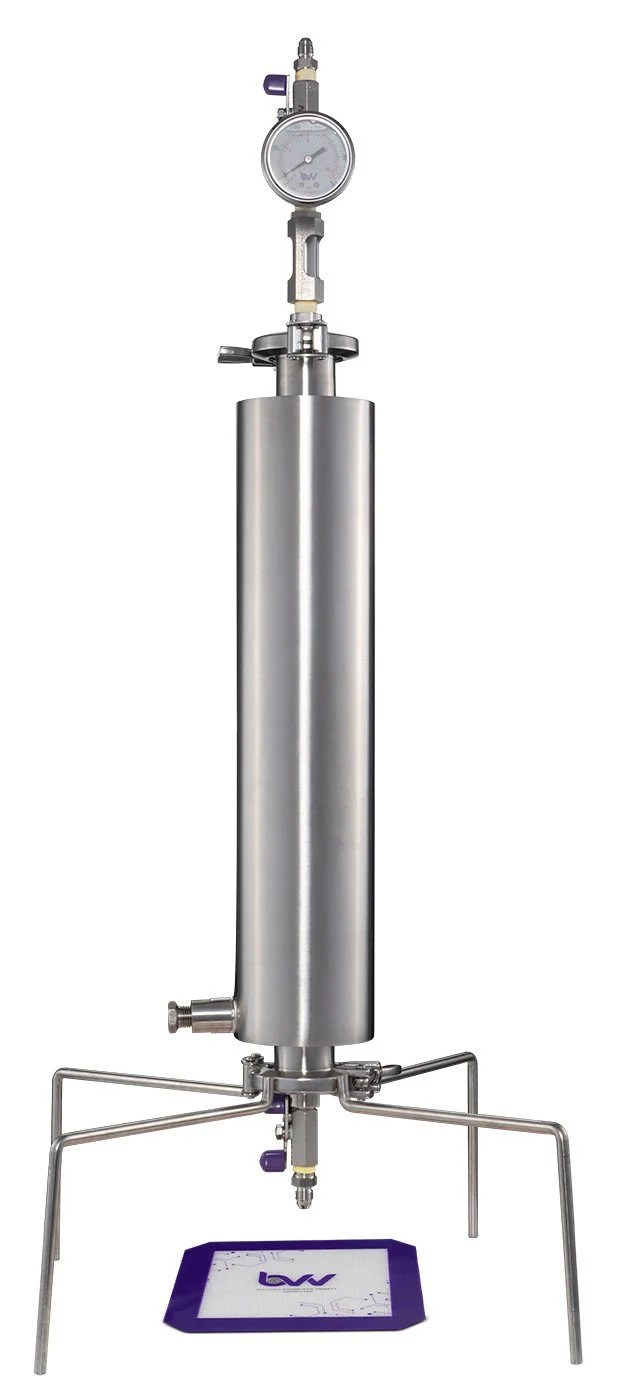

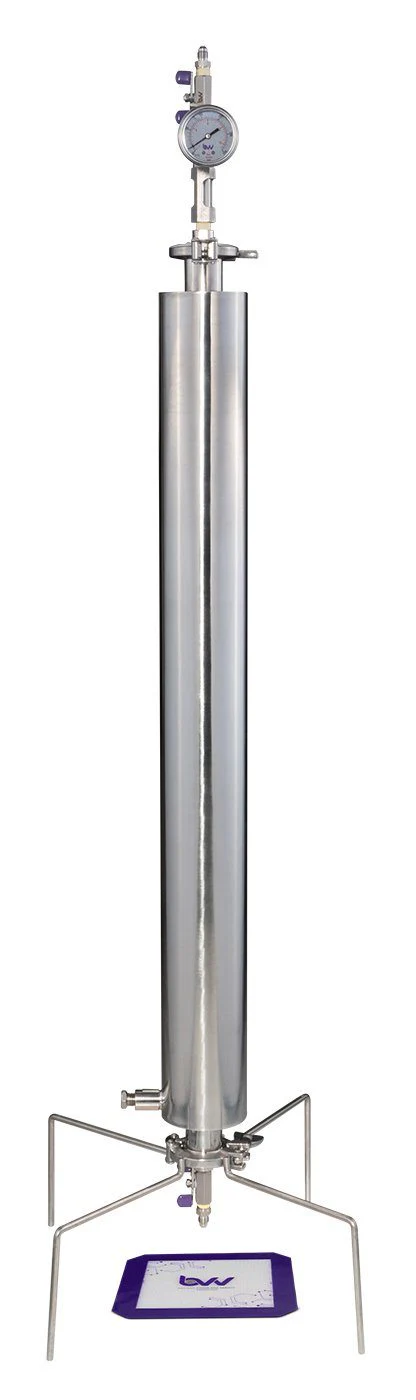

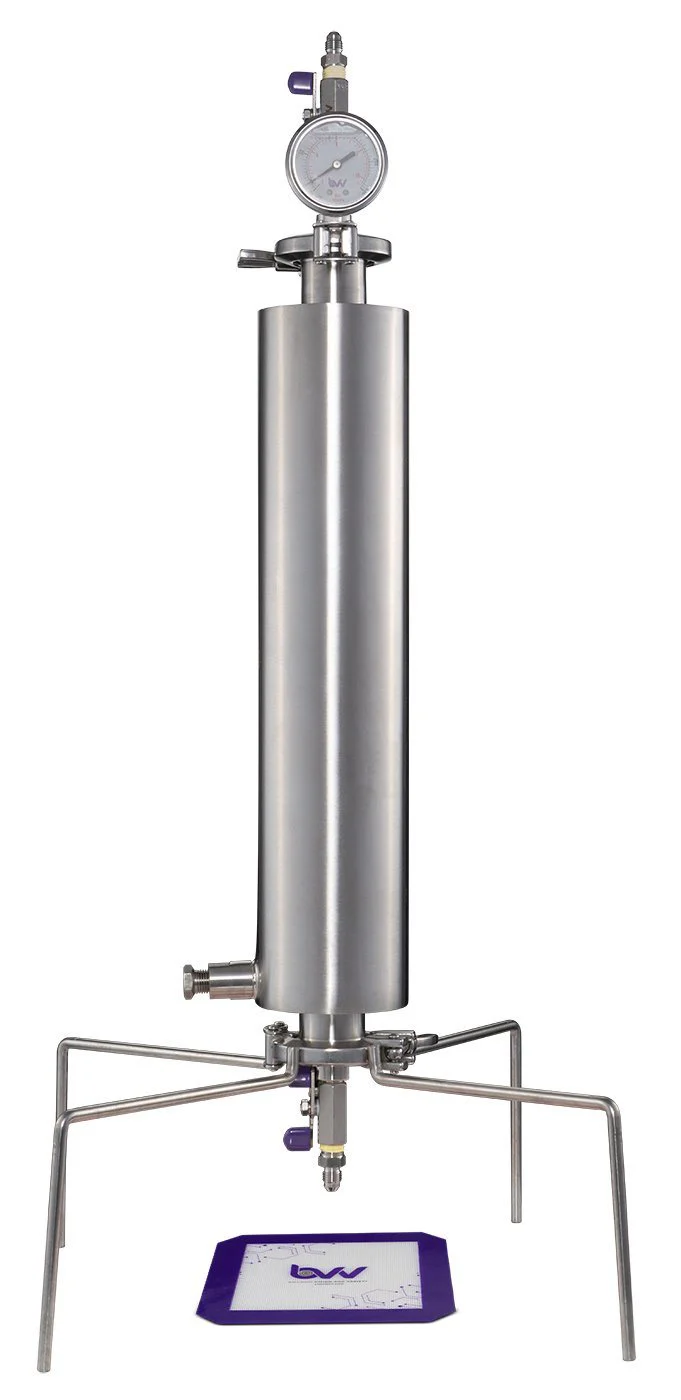

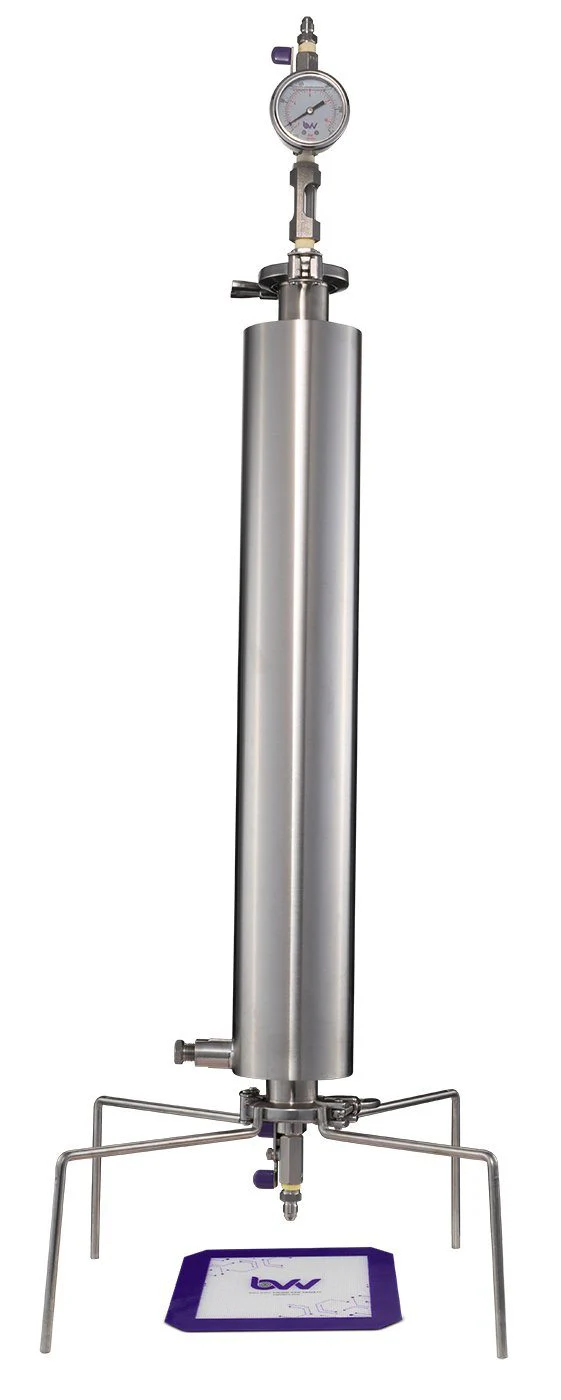

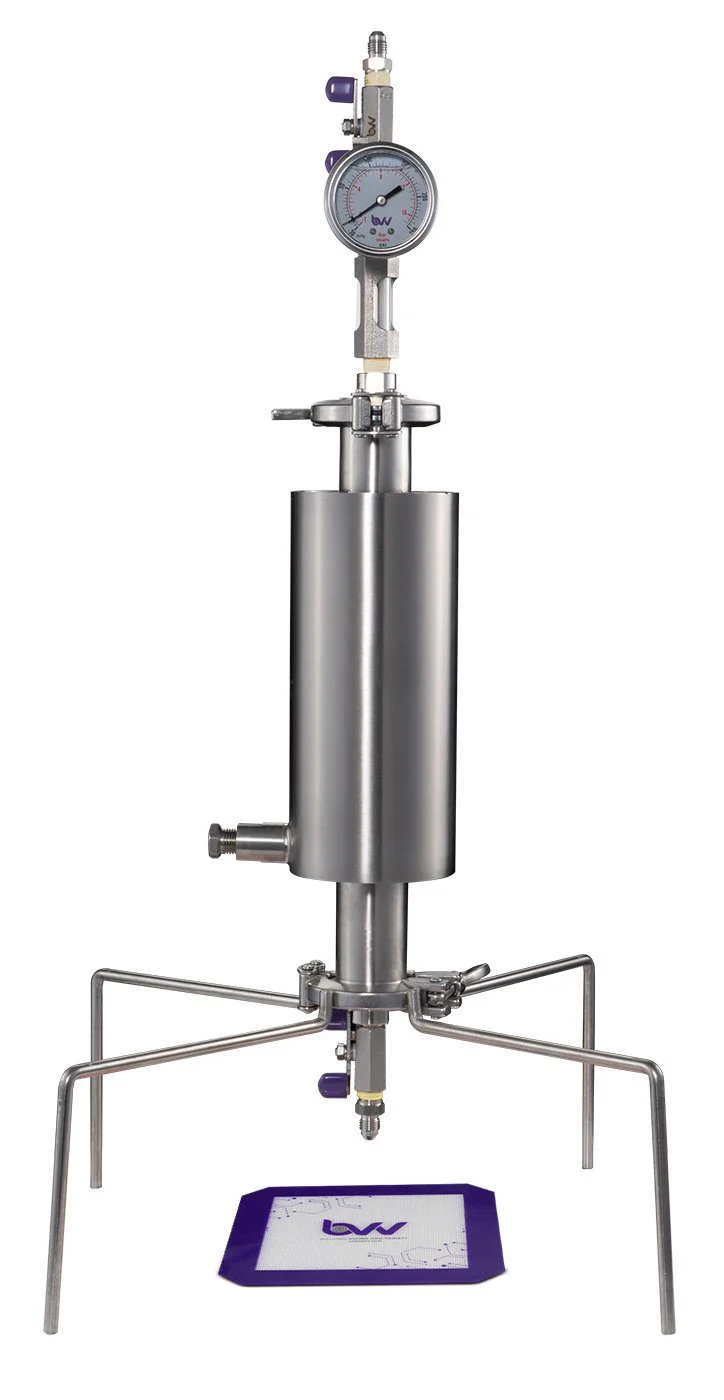

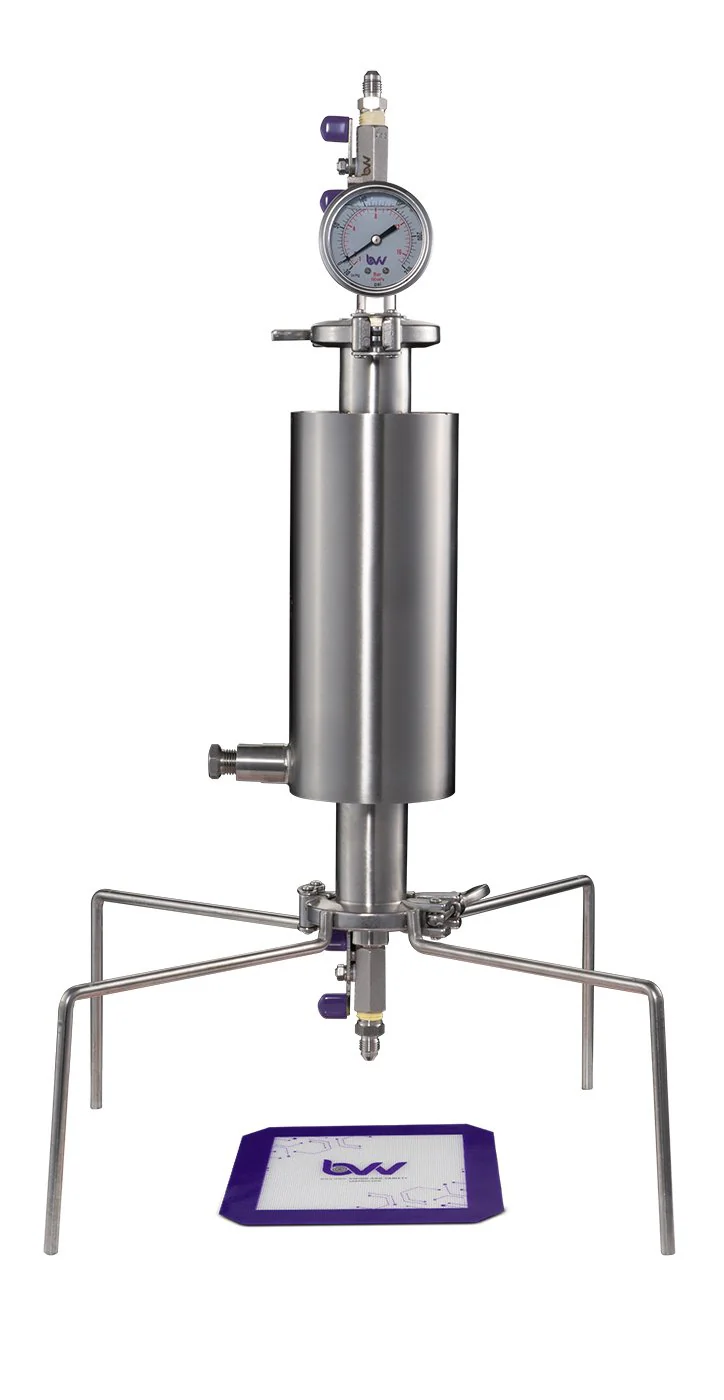

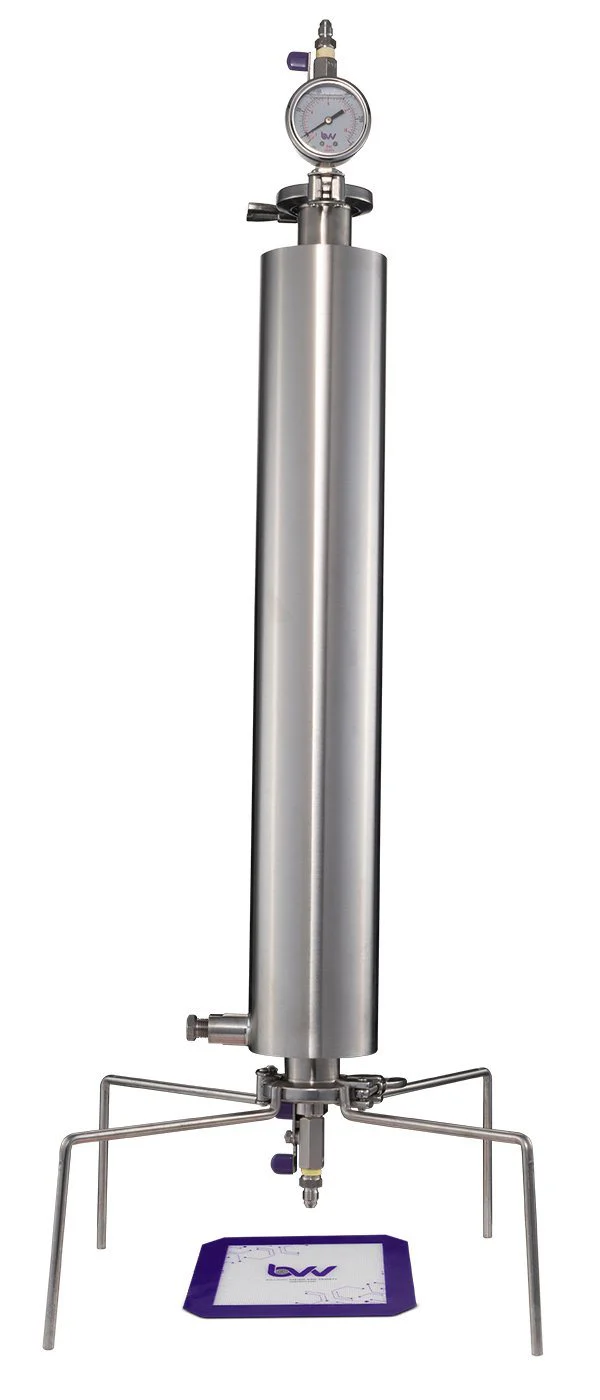

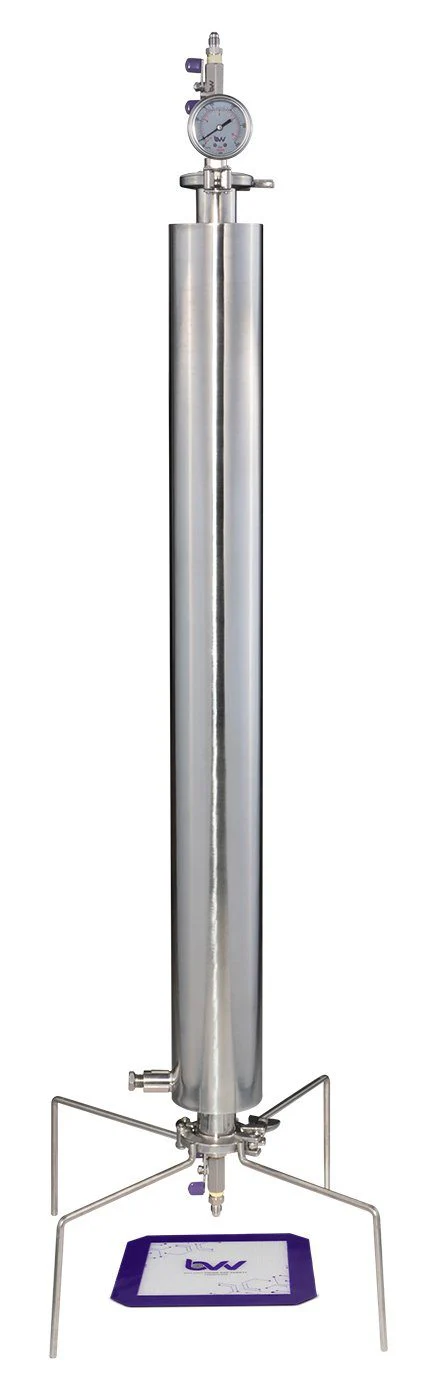

1.5" Dewaxing Closed Column Extractor 90-270g

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. DO NOT USE INDOORS

*Note:  Column capacity may vary depending on the biomass density, moisture content and column packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, heavily dried, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.

Shop Dewaxing Closed Column Extractor

Key Features and Description:

• Dewaxing Spool Included for filter out and coagulating waxes and lipids.

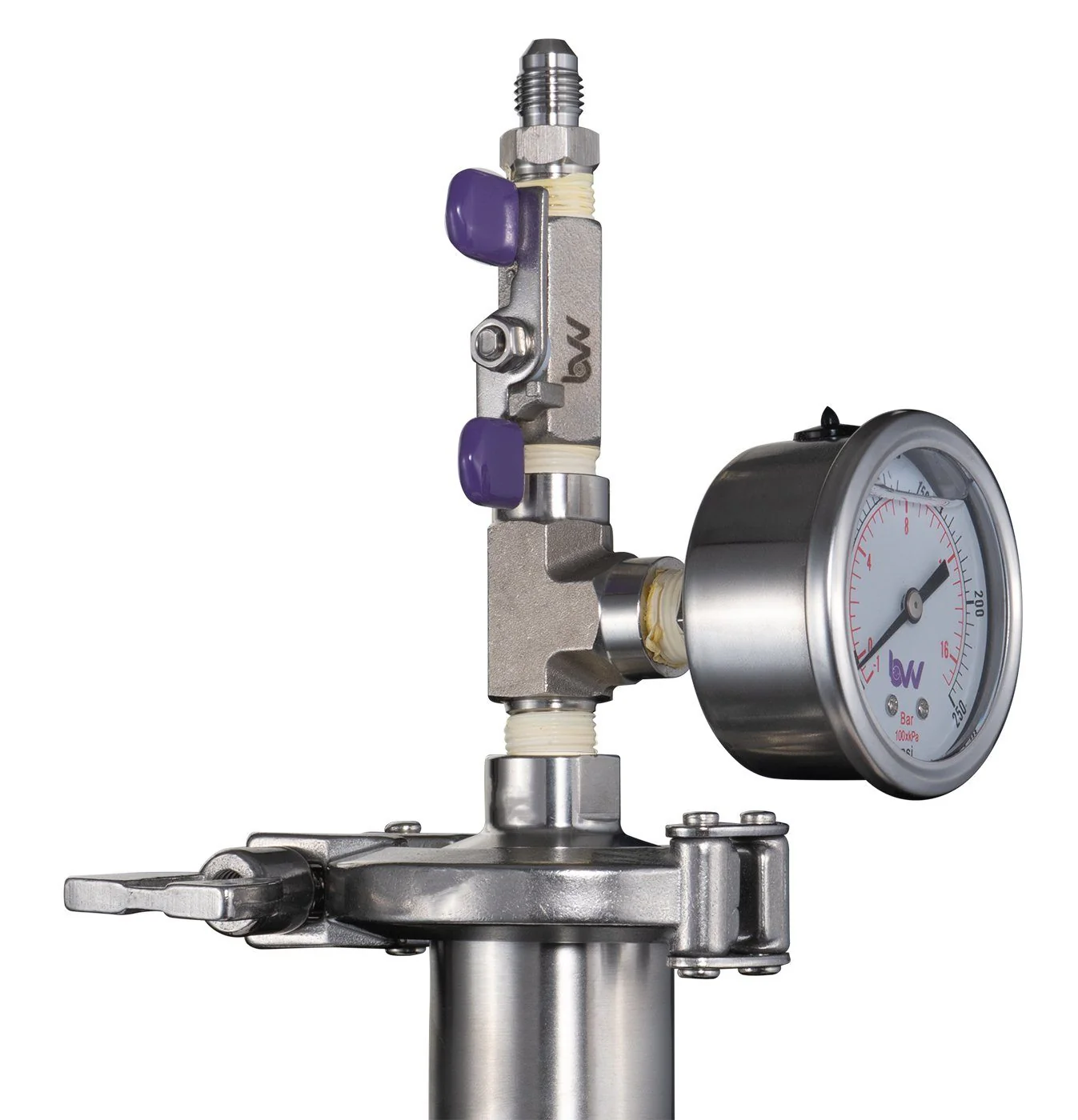

• Compound Gauge with (-30)-160 PSI readout.
• Closed Column Pressure Extractor (Comes with 1 yr. Limited warranty, excludes gaskets and screens)
• This system allows the user to build up solvent pressure by closing the valve, pulling a vacuum and filling the extractor, Extractor will fill about 85% with solvent before the internal pressure will equal the pressure of the can propellant.
• The solvent can will fit into either port with a tip adapter supplied with some butane cans, tip adapter required, not included
• Solvent Soak is expected to be between 30-90 min, but this all depends on material, starting with frozen cans of solvent is recommended
• This system allows the user to soak the material before opening the bottom valve to release the solvent and oil.

---

Professional Kit Adds the following:

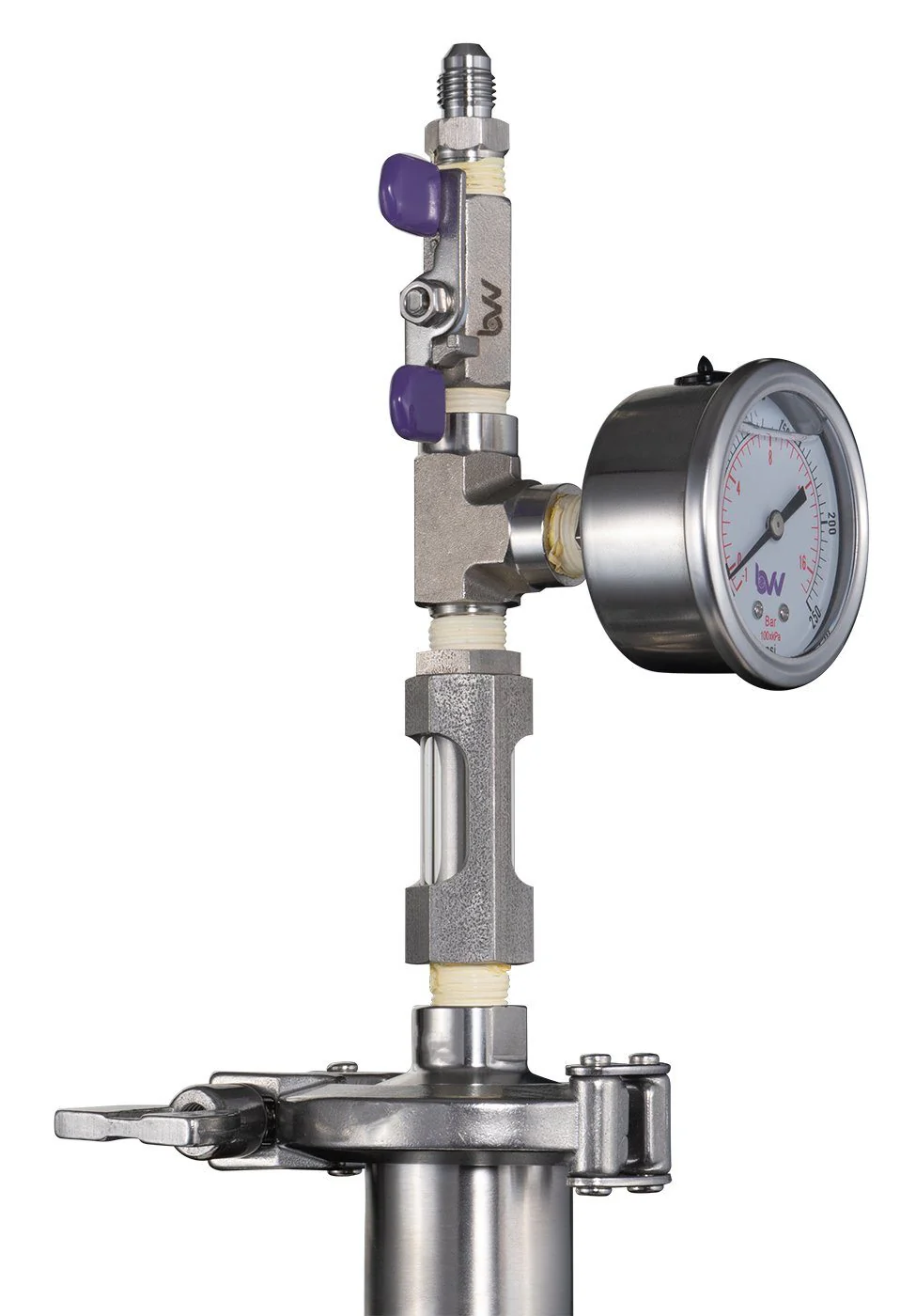

• Compound Gauge
• Sight Glass
• Shower Head

Explorer Kit Automatically Includes:

• 8" x 8" Platinum Cured Silicone Non-Stick Pad

• 1.5" Dewaxer Tri-Clamp 304 Stainless Steel Material Tube

• Dewaxer Spool Sizes Specifications:

• 1.5" x 12" Dewaxer = 90G

• 1.5" x 18" Dewaxer= 135G

• 1.5" x 24" Dewaxer= 180G

• 1.5" x 36" Dewaxer = 270G

• 304 Stainless Steel Flare End Caps with Heavy Duty Stainless Steel Miniature Ball Valves

• 1/4" Stainless Steel MNPT Drain Plug

• (1) 1.5" Standard Pressure Tri-Clamp Clamps

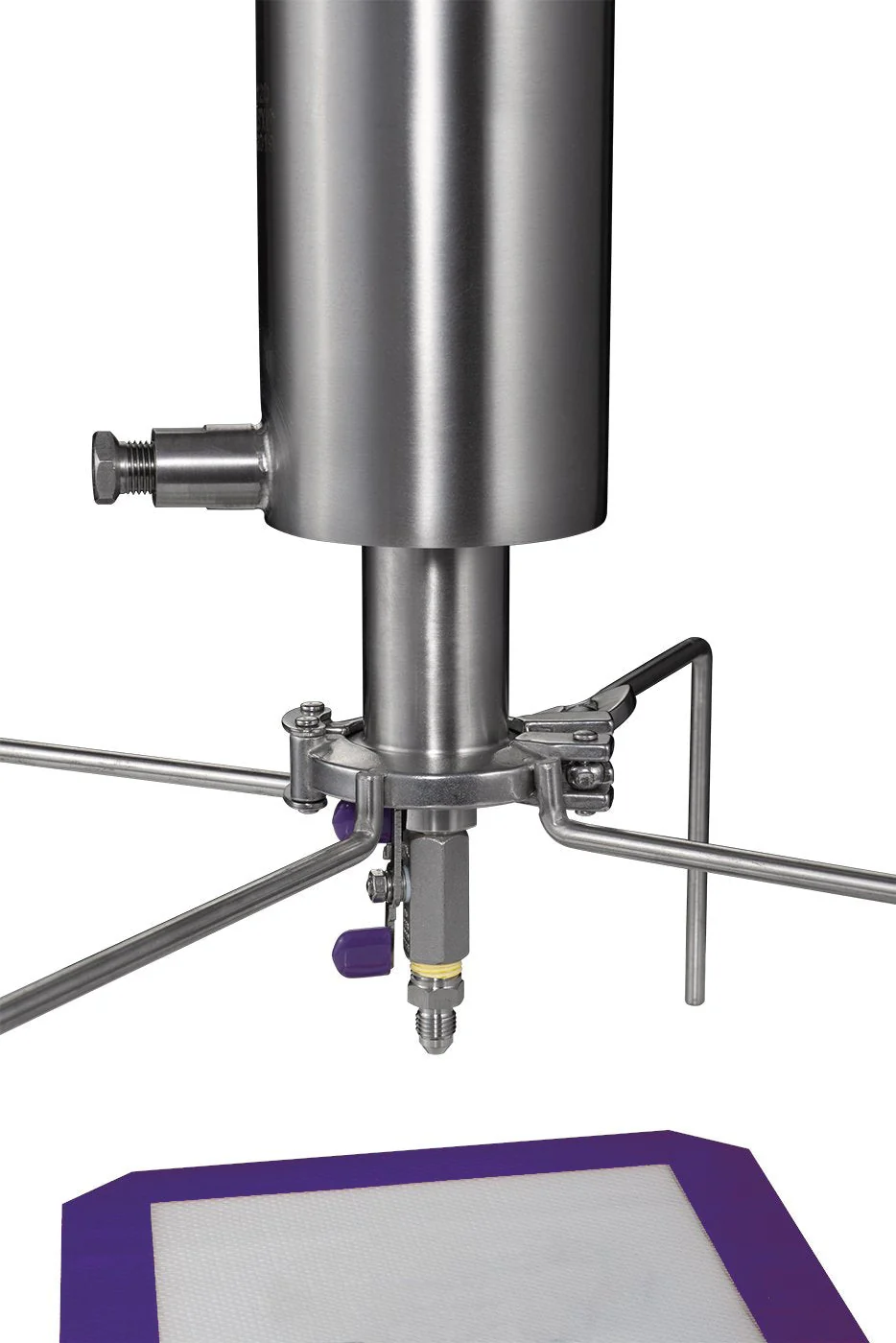

• 1.5" Tri-Clamp Quadpod

• (2) Buna-N Tri-Clamp Gaskets

• Buna-N 100 Mesh (150 Micron) Gasket



***Note: Parts and components can be subject to substitutions. Any substituted parts will have the same function and will be of equal or greater value.****
