10" Pre-Built Hemispherical Lid with BVV 316SS Full Bore Valves

10" Pre-Built Hemispherical Lid with BVV 316SS Full Bore Valves

(This Lid is fully assembled and Nitrogen Tested for Leaks at Best Value Vacs)

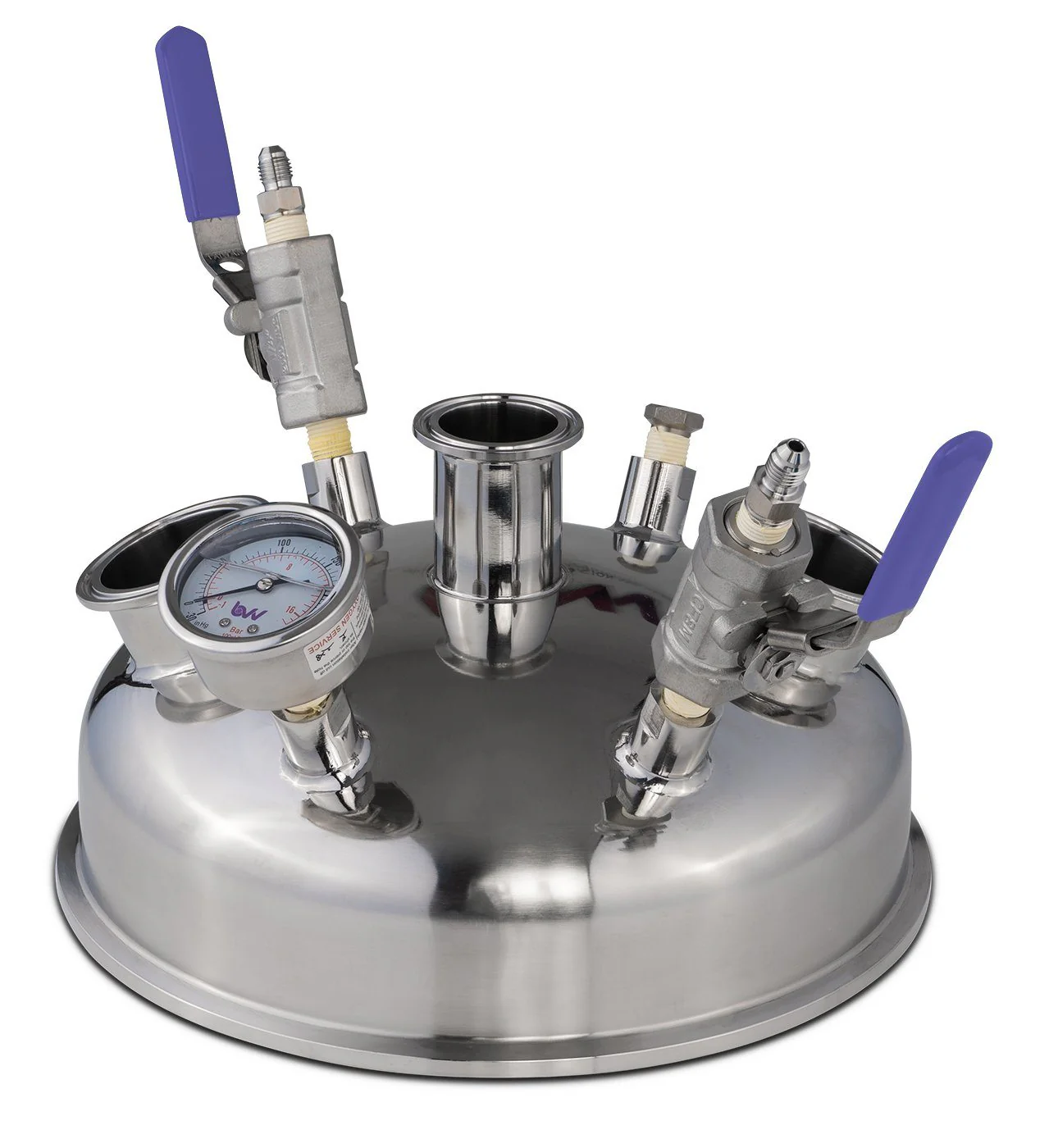

This 10" Best Value Vacs Hemispherical lid is fully assembled and nitrogen tested for leaks at our warehouse. This lid comes with 2 BVV 316SS Full Bore Valves with 1/4" 37° JIC Flares, compound gauge and the 4th hole is plugged to allow for future expansion. These lids are made out of 304 stainless steel and have (1) 1.5" and (2) 2" Tri-Clamp ports with the middle 1.5" port having an extended tube to control solvent flow.

Key Features:

• Pre-built and Nitrogen Tested for Leaks
• BVV 316SS Full Bore Valves with 1/4" 37° JIC -40F to 450F
• 304 High Polish Stainless Steel
• Compound Gauge (-30)-0-(150PSI)

Specifications
Lid Material	304 Stainless Steel
Valve Material	316SS Full Encapsulated PTFE Core - 1/4 Turn
Flare Size	(2)1/4" 37° JIC
Tri-Clamp Size(s)	(1) 1.5" Ports x (2) 2" x 10" Tri-Clamp
Nitrogen Tested	Yes
