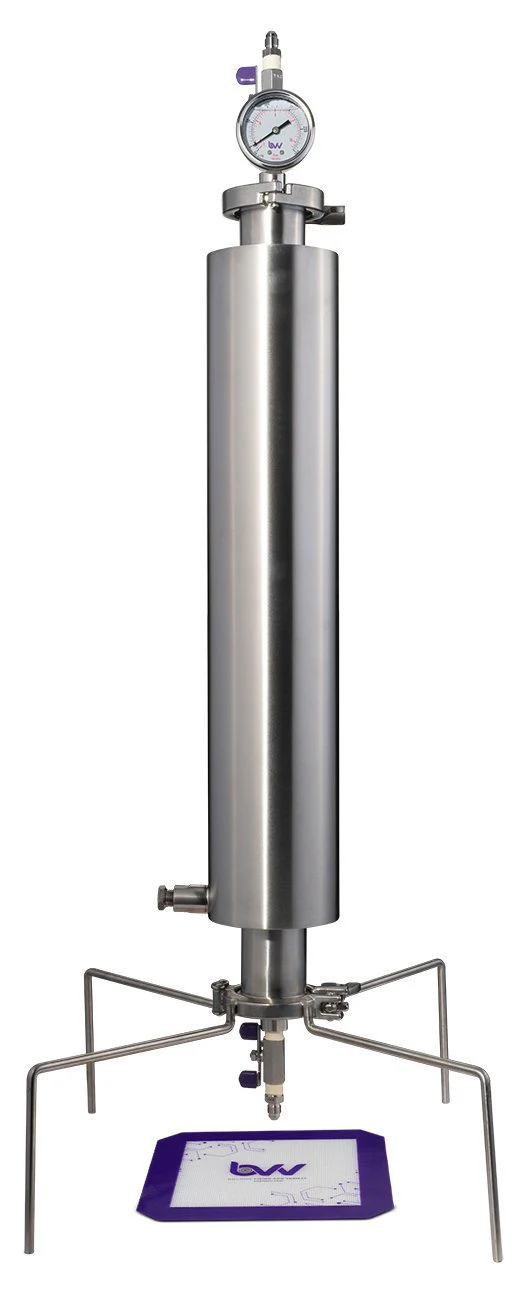

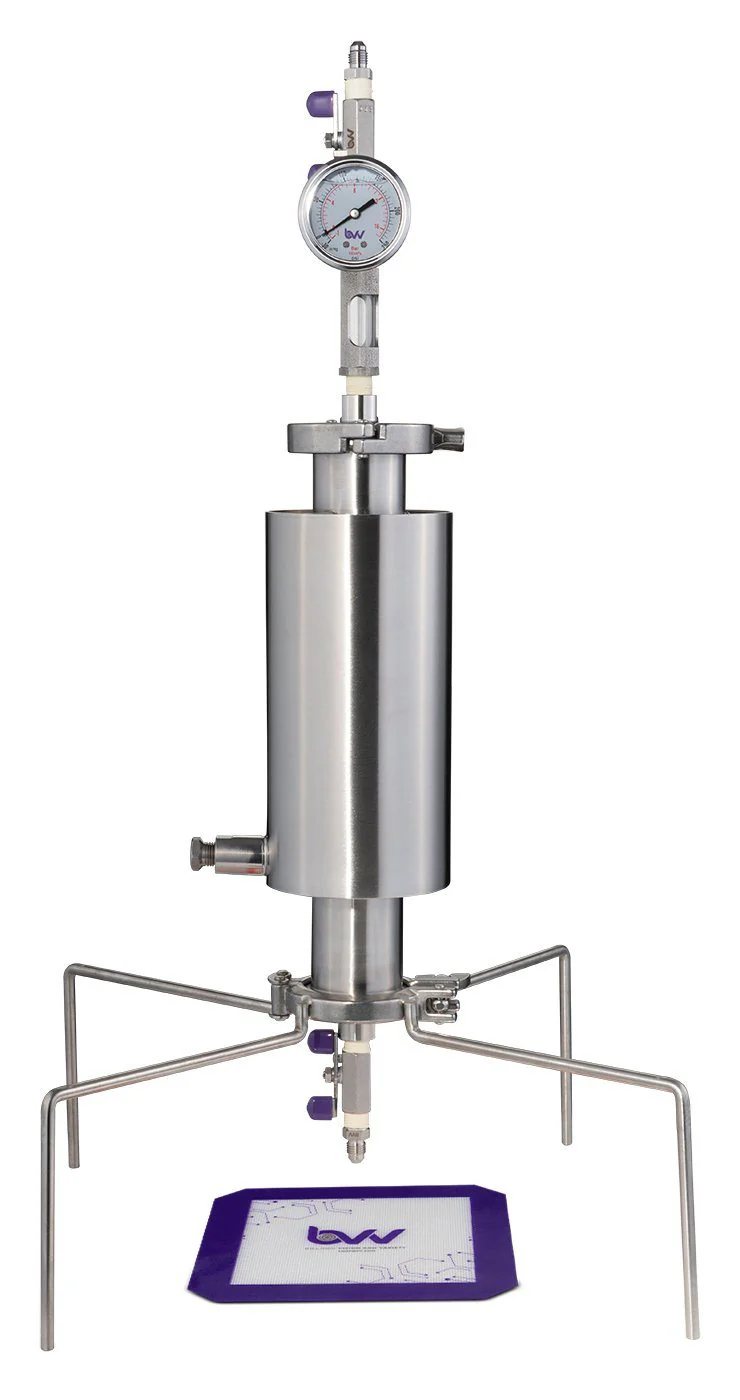

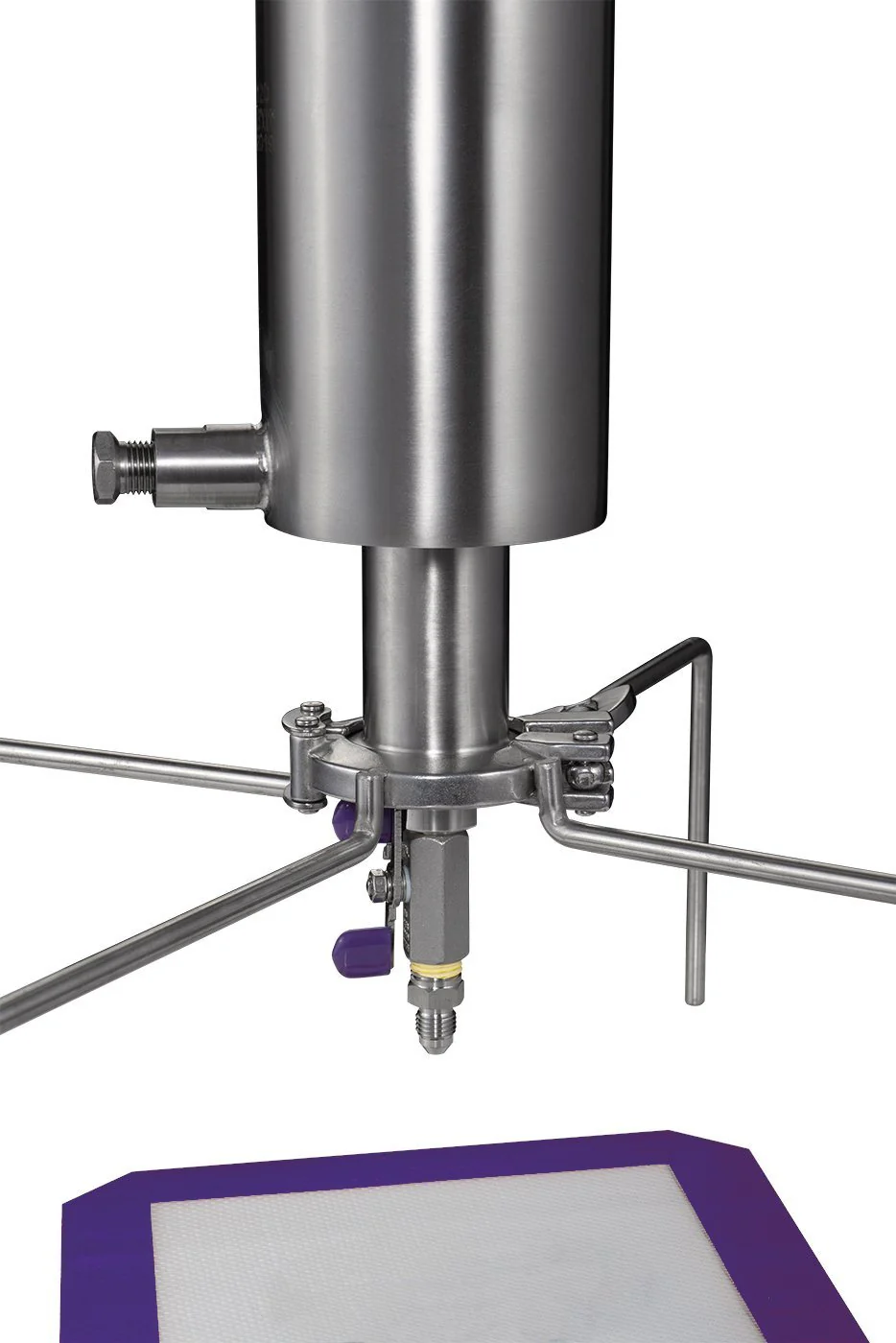

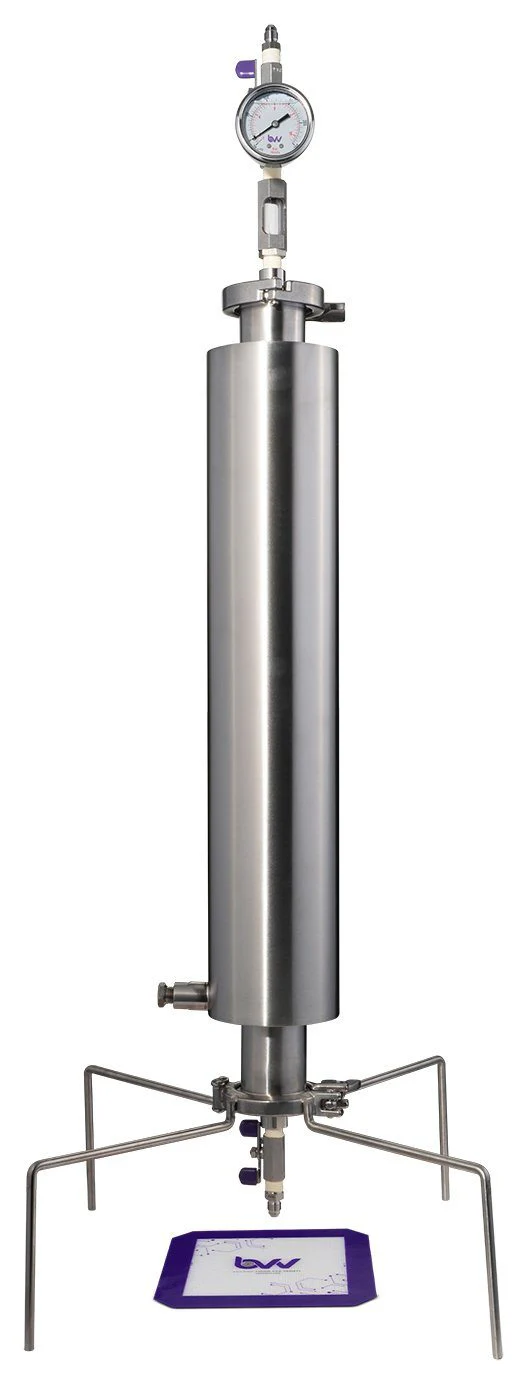

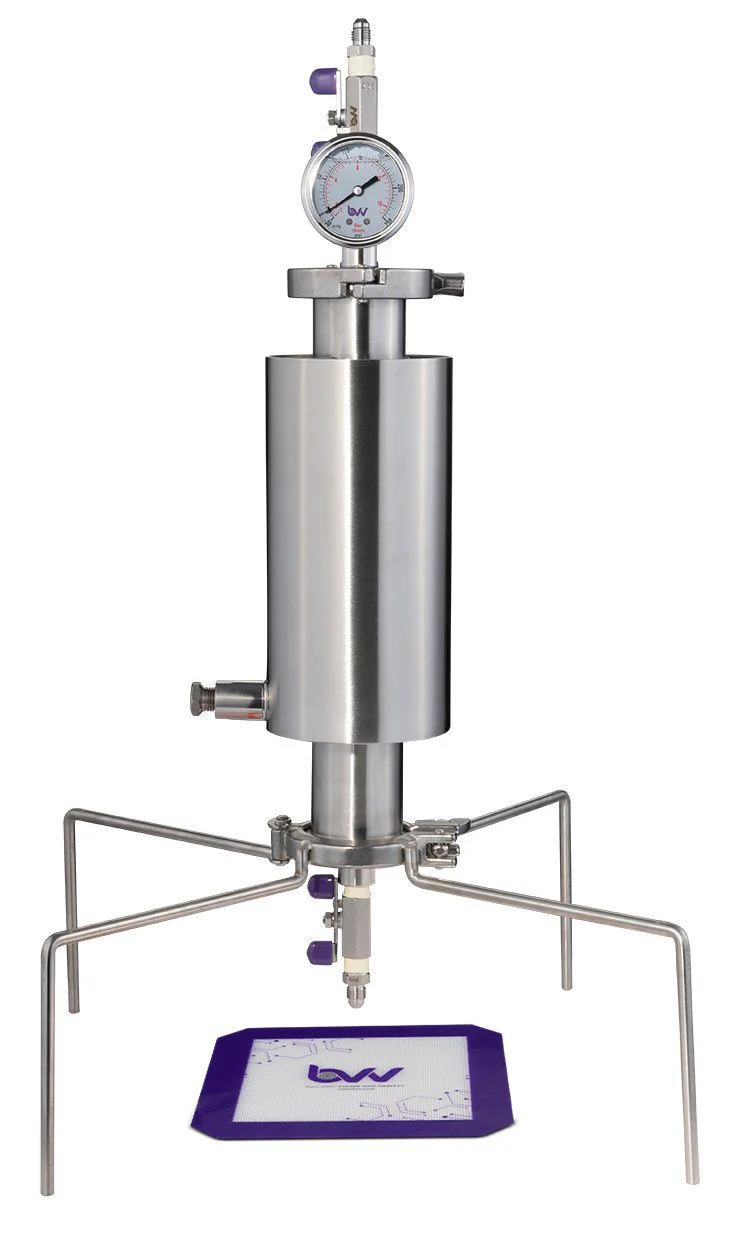

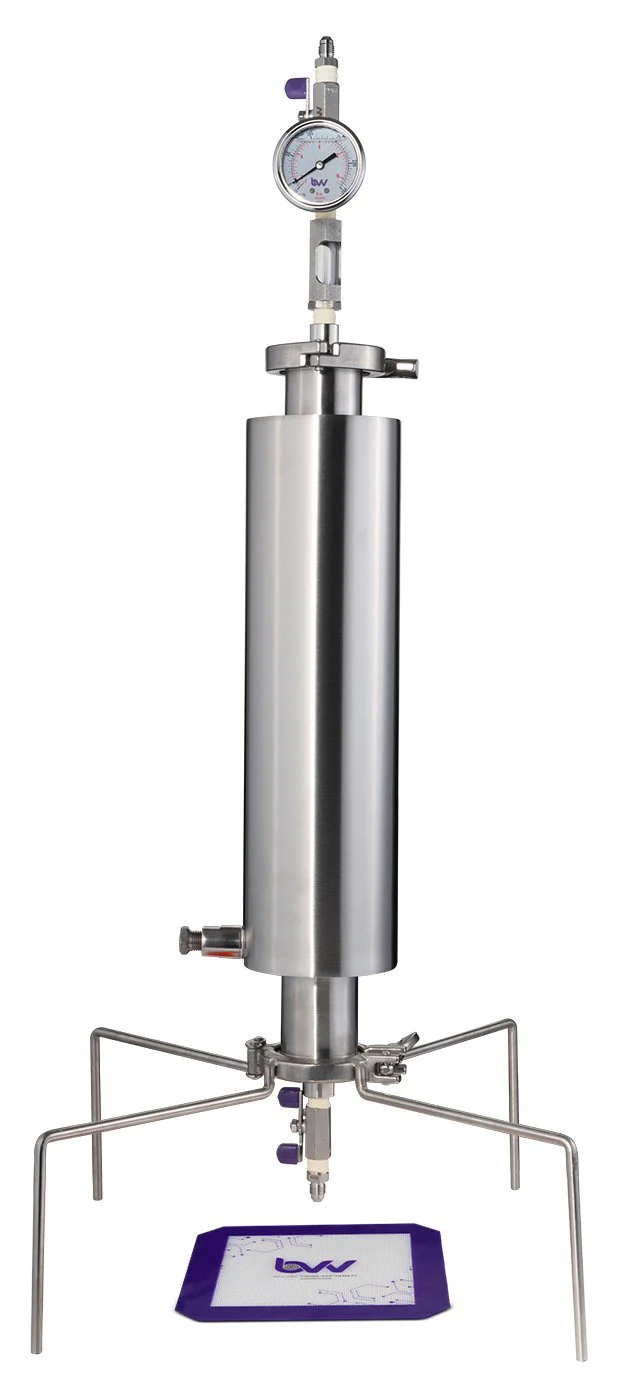

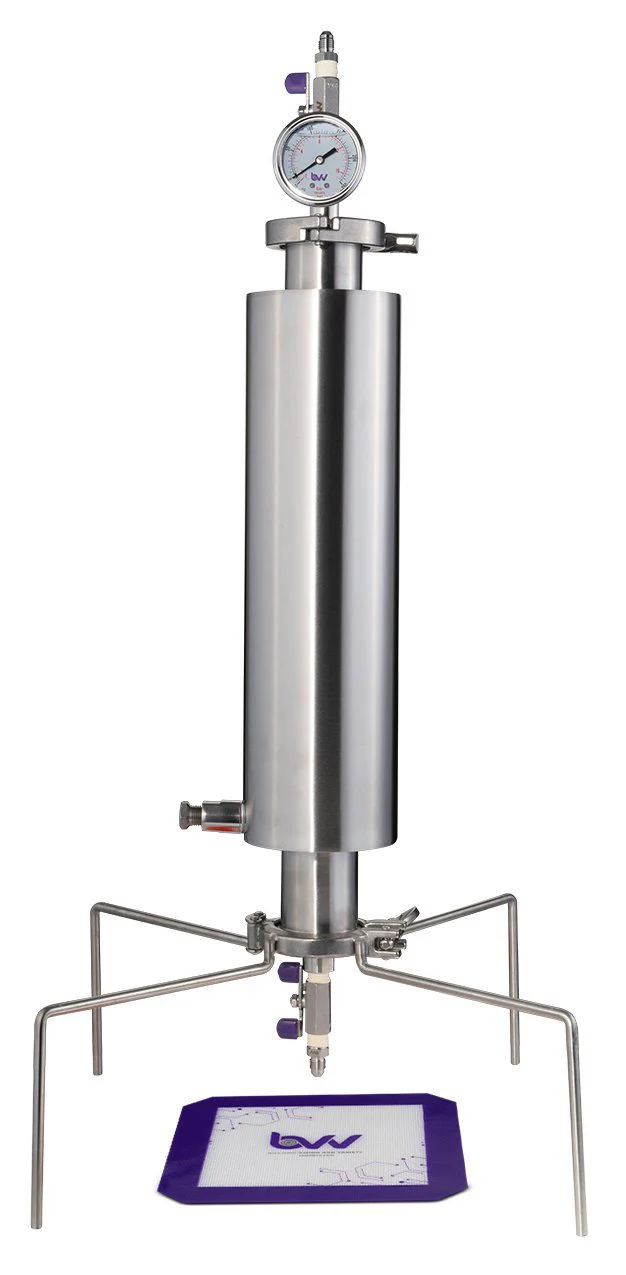

2" Dewaxing Closed Column Extractor 115-200g

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. DO NOT USE INDOORS

*Note:  Column capacity may vary depending on the biomass density, moisture content and column packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, heavily dried, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.

Key Features and Description:

• Dewaxing Spool Included to coagulate fats and lipids to be caught in the filter.
• Compound Gauge with (-30)-160 PSI readout.

• Closed Column Pressure Extractor (Comes with 1 yr. Limited warranty, excludes gaskets and screens)

• This system allows the user to build up solvent pressure by closing the valve, pulling a vacuum and filling the extractor, Extractor will fill about 85% with solvent before the internal pressure will equal the pressure of the can propellant.

• The solvent can will fit into either port with a tip adapter supplied with some butane cans, tip adapter required, not included

• Solvent Soak is expected to be between 30-90 min, but this all depends on material, starting with frozen cans of solvent is recommended

• This system allows the user to soak the material before opening the bottom valve to release the solvent and oil.

---

Professional Kit Adds the following:

• Compound Gauge
• Sight Glass
• Shower Head

Explorer Kit Includes the Following:

• 8" x 8" Platinum Cured Silicone Non-Stick Pad

• 2" Dewaxer Tri-Clamp 304 Stainless Steel Material Tube

• Dewaxer Spool Sizes Specifications:

• 2" x 12" Dewaxer = 115G

• 2" x 18" Dewaxer = 150G

• 2" x 24" Dewaxer = 200G

• 304 Stainless Steel Flare End Caps with Heavy Duty Stainless Steel Miniature Ball Valves

• 1/4" Stainless Steel MNPT Drain Plug

• (1) 2" Standard Pressure Tri-Clamp Clamps

• 2" Tri-Clamp Quadpod

• (1) Buna-N Tri-Clamp Gaskets

• Buna-N 100 Mesh (150 Micron) Gasket

***Note: Parts and components can be subject to substitutions. Any substituted parts will have the same function and will be of equal or greater value.****
