300L 304SS Jacketed Collection and Storage Vessel with Locking Casters

300L 304SS Jacketed Collection and Storage Vessel with Locking Casters

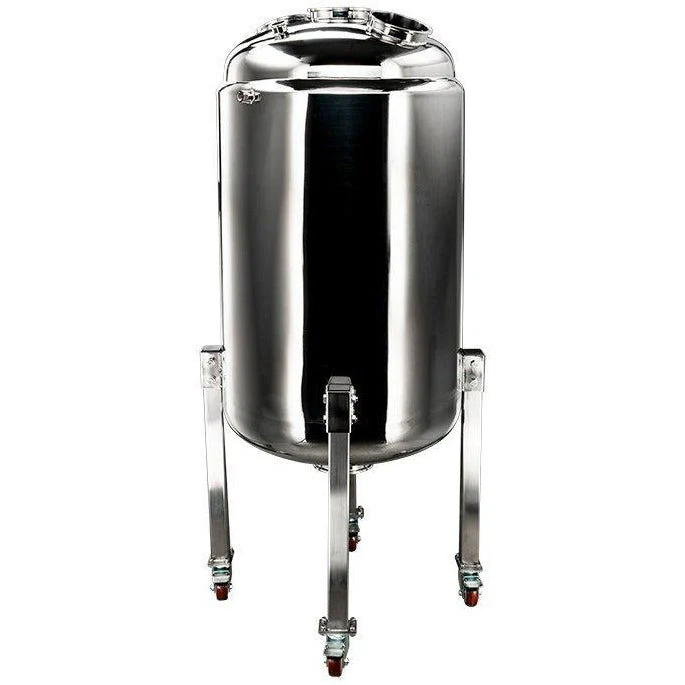

This massive 304 Stainless Steel Jacketed vessel can hold up to 300L of water (~80 gallons) and has a (3) 6" Tri-Clamp, (2) 1.5" Tri-Clamp/ Tri Clover and (1) 1/2" FNPT port on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 43L or 11.5 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.)

Specifications
Material	304 Stainless Steel
Pressure Rating	100 PSI MAX
Connection Type(s):	(3) 6" Tri-Clamp Top Ports
	(2) 1.5" Tri-Clamp Top Ports
	(1) 6" Tri-Clamp Bottom Port
	(2) 1/2" FNPT Outer Jacket Ports
	(1) 1/2" FNPT Top Port

***Note: This item will ship via freight ONLY.
