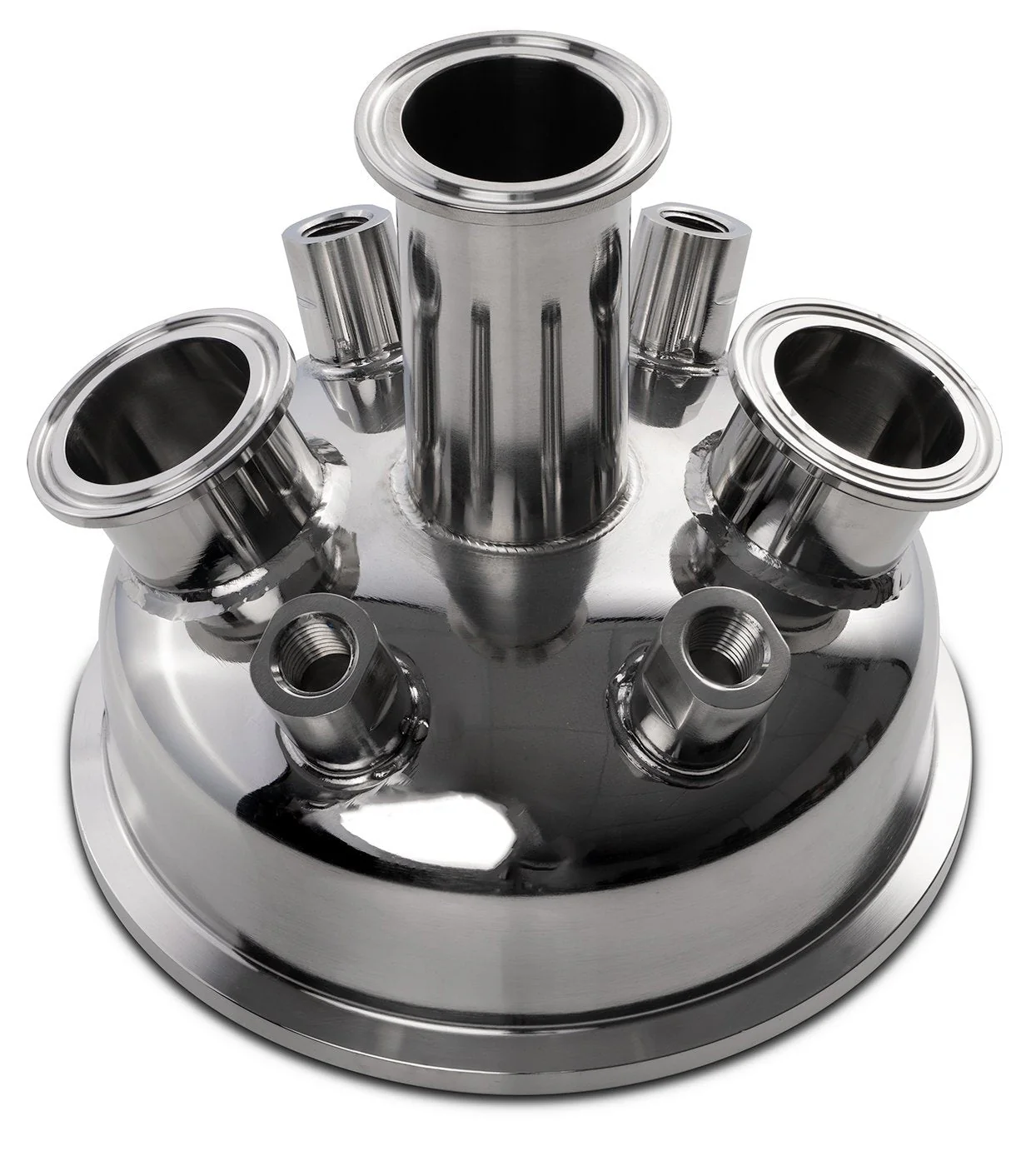

6" Tri-Clamp Hemispherical Extractor Lid

6" Tri-Clamp Tri Clover x (3) 1.5" TriClamp x (4) FNPT Hemispherical Lid

This End Cap comes with Four FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 3" Tube Extension Below the middle port on the lid. These allow the user to adapt and connect a threaded connection to the NPT ports and three 1.5" Tri-Clamp Connections on a 6" Hemispherical Tri-Clamp lid. With this versatile Tri-Clamp Extractor Lid, users can quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection.



Specification
SKU:	600HEL	600HEL-V2
Material:	304 Stainless Steel	304 Stainless Steel
Connection Types:	6" Tri Clamp
	3x 1.5" Tri Clamp (Tube Extension Below Center Port)
	4x 1/4" FNPT	2x 1/4" FNPT
	-	2x 1/2" FNPT
Standard:	3A



BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - Drawing
