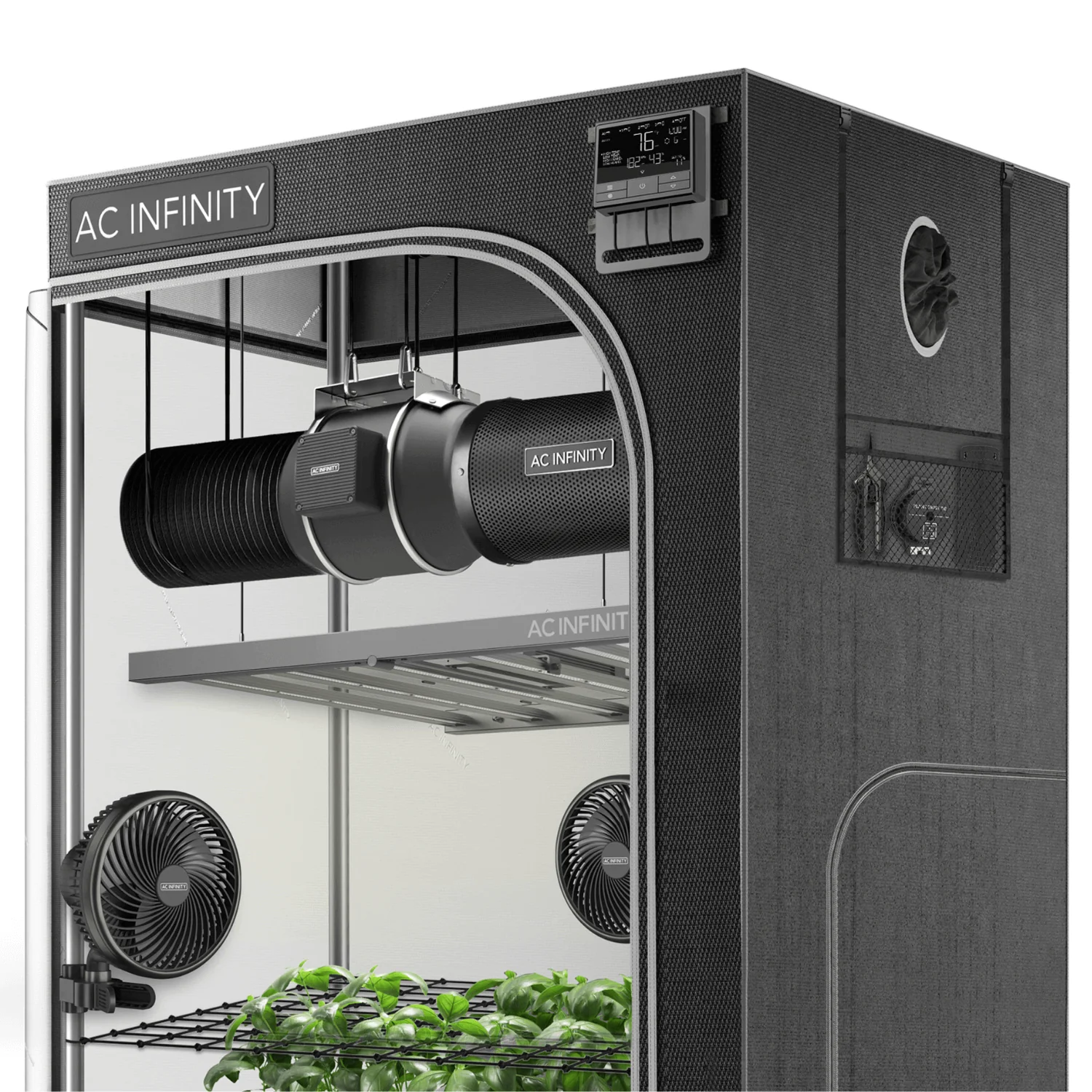

AC Infinity Advance Grow Tent System PRO 4x4, 4-Plant Kit, WiFi-Integrated Controls to Automate Ventilation, Circulation, Full Spectrum LM301H EVO LED Grow Light

Description

Advance Grow Tent Kit: This all-in-one indoor growing system includes intelligent controls and integrated components. The controller enables each fan and light with individual programs to dynamically adjust speed and brightness. Use your mobile device to connect to our app via WiFi to automate and monitor your grow tent climate wherever you are.

Equipped with Essential Tools: This grow tent kit comes with a 6" EC inline fan, a 6" oscillating clip fan, and a 500W full-spectrum bar grow light outfitted with Samsung LM301H EVO LEDs. It also includes a premium 2000D Mylar tent measuring 48”x48”x80”, an Australian carbon filter, ducting, fabric pots, pruning snips, and more.

Product Description: Manage your grow environment and maintain ideal conditions for a successful harvest. The system includes a fan, carbon filter, and ducting to manage your tent’s climate by redistributing heat, humidity, and odor. The oscillating clip-on fan circulates air inside for light breezes to your plants. The grow light frame with algorithmically arranged LM301H EVO diodes radiates LED lighting widely to stimulate natural sunlight and enhance growth. The devices are housed in a high-density Oxford grow tent with a steel frame and Mylar walls.

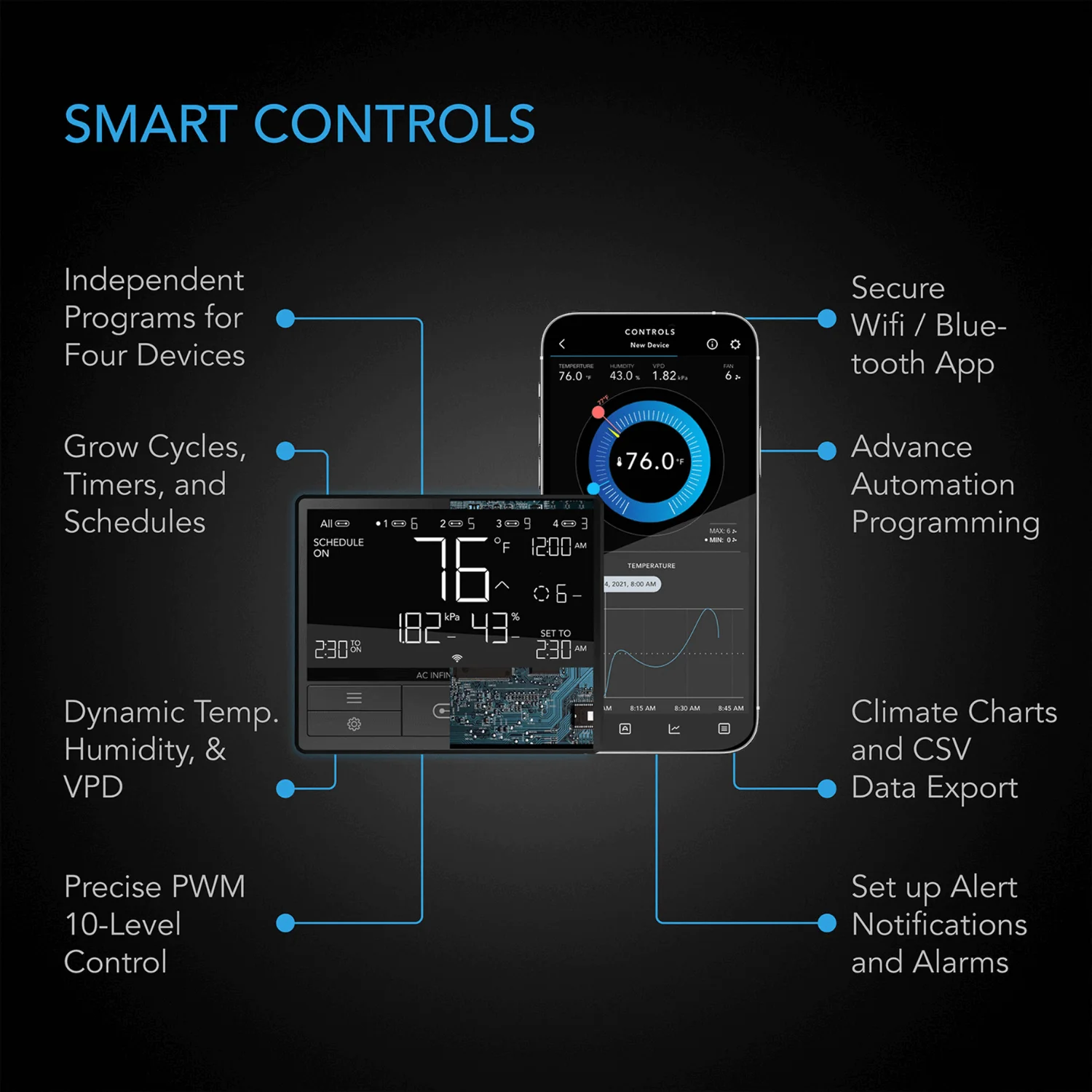

Intelligent Programming: With the CONTROLLER 69 PRO, each device can be programmed independently or together. The central unit sets dynamic activation programs for your grow devices based on VPD levels, temperature, and humidity. Timer, cycle, and scheduling modes add more customization options for a variety of indoor growing uses. Connect to the AC Infinity app via WiFi for remote access, advanced programming, alerts, notifications, and historical data.

Complete Kit: This all-inclusive package assembles all the necessary components to quickly start your indoor grow, removing the guesswork of individual purchases. The complete grow tent kit includes a myriad of components like Advance Grow Tent, Grow Tent Controller, Inline Fan, Commercial Bar LED Grow Light, Oscillating Circulation Clip Fans, Refillable Carbon Filter, Flexible Ducting, Hanging Straps, Rope Clip Hangers, Steel Clamps, Duct Tape, Hook and Loop Ties, Controller Cords, 5-gallon Fabric Pots, Elastic Trellis Netting, Black Wire Twist Ties, and Micro-tip Pruning Shears.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Advance Grow System C44

Product Model: AC-PKC44

UPC Code: 819137024335

Product Manual: Available in PDF format

Product Components: Grow Tent, Inline Fan, Clip Fan, Controller, LED Grow Light, Carbon Filter, Ducting

Product and Mounting Dimensions - Grow Tent

Tent Dimensions: 47.24" x 47.24" x 78.74" (120.0 x 120.0 x 200.0 cm)

Duct Opening Sizes: 4", 8"

Viewing Window Size: 11.81 x 11.81 in. (30.0 x 30.0 cm)

Rear Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)

Side Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)

Mounting Strap Length: 6.49 in. (16.5 cm)

Product Performance and Technical Specs - Grow Tent

Outer Tent Material: Oxford

Inner Tent Material: Mylar

Pole Material: Steel

Pole Thickness: 22 mm

Beam Weight Capacity: 150 lbs.

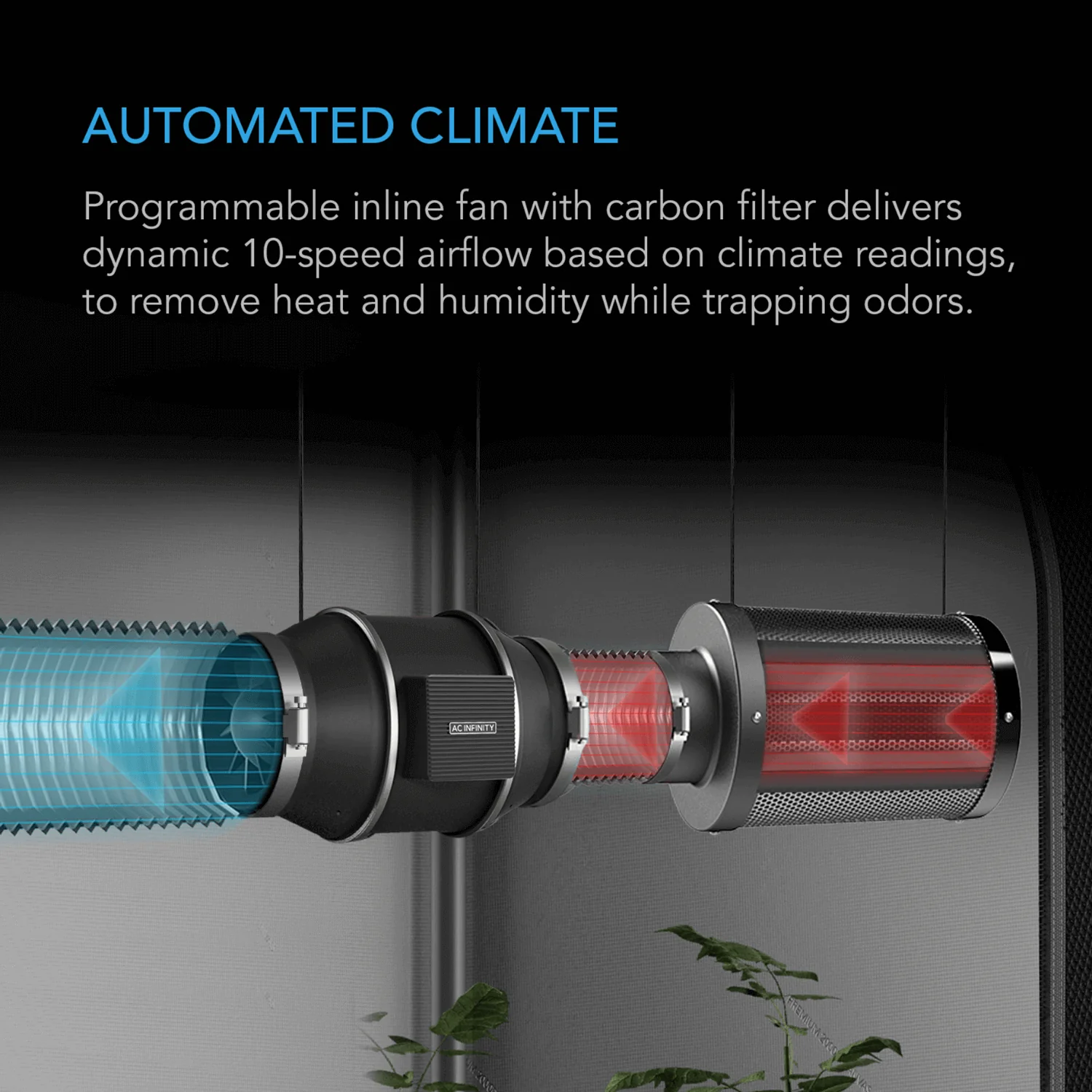

Product and Mounting Dimensions - Inline Fan

Duct Size: 6"

Total Dimensions: 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)

Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)

Screw Hole Size: Ø 0.236 in. (Ø 0.6 cm)

Cord Length to Controller: 240 in. (20 feet)

Cord Length to Plug: 96 in. (8 feet)

Performance and Technical Specs - Inline Fan

Total Airflow: 402 CFM

Total Noise: 32 dBA

Static Pressure: 503 Pa

Voltage: 100-240V AC

Max Power Draw: 70 W

Average Power Usage: 38 W

Current: 0.94 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Certifications: CE and ETL Certified

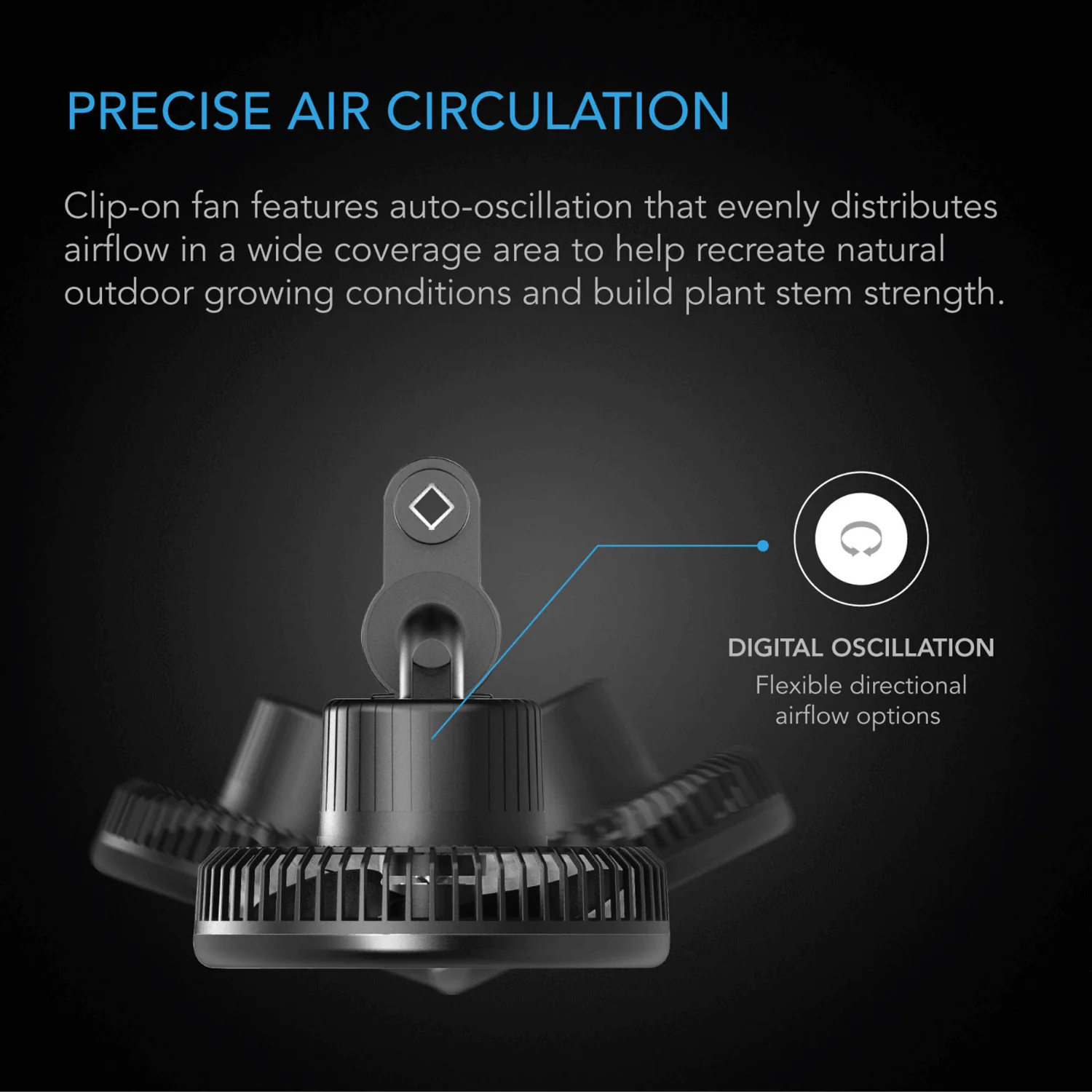

Product and Mounting Dimensions - Clip Fan

Impeller Size: 6.5"

Total Dimensions: 8.74 x 10.47 in. (22.2 x 26.6 cm)

Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs - Clip Fan

Maximum Airflow: 315 CFM

Total Noise: 33 dBA

Static Pressure: 25 Pa

Operating Voltage: 100-240V AC

Power: 8 W

Current: 0.14 A

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Waterproof Rating: IP-44

Rotation Range: 90°

Tilt Angle: 55°

Oscillation: Automatic Oscillation

Fan Bearings: Dual Ball Bearing

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)

Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)

Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)

Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs - Controller

Maximum Devices Controlled: 4

Max Power Supported: 10 W

Programming Temperatures: 32 to 140°F

Operating Voltage: 9 to 18V

Power: 1 W

Current: 0.1 A

Power Input: 12V from Device

Operating Humidity: 35 to 85% RH

Certifications: FCC Certified

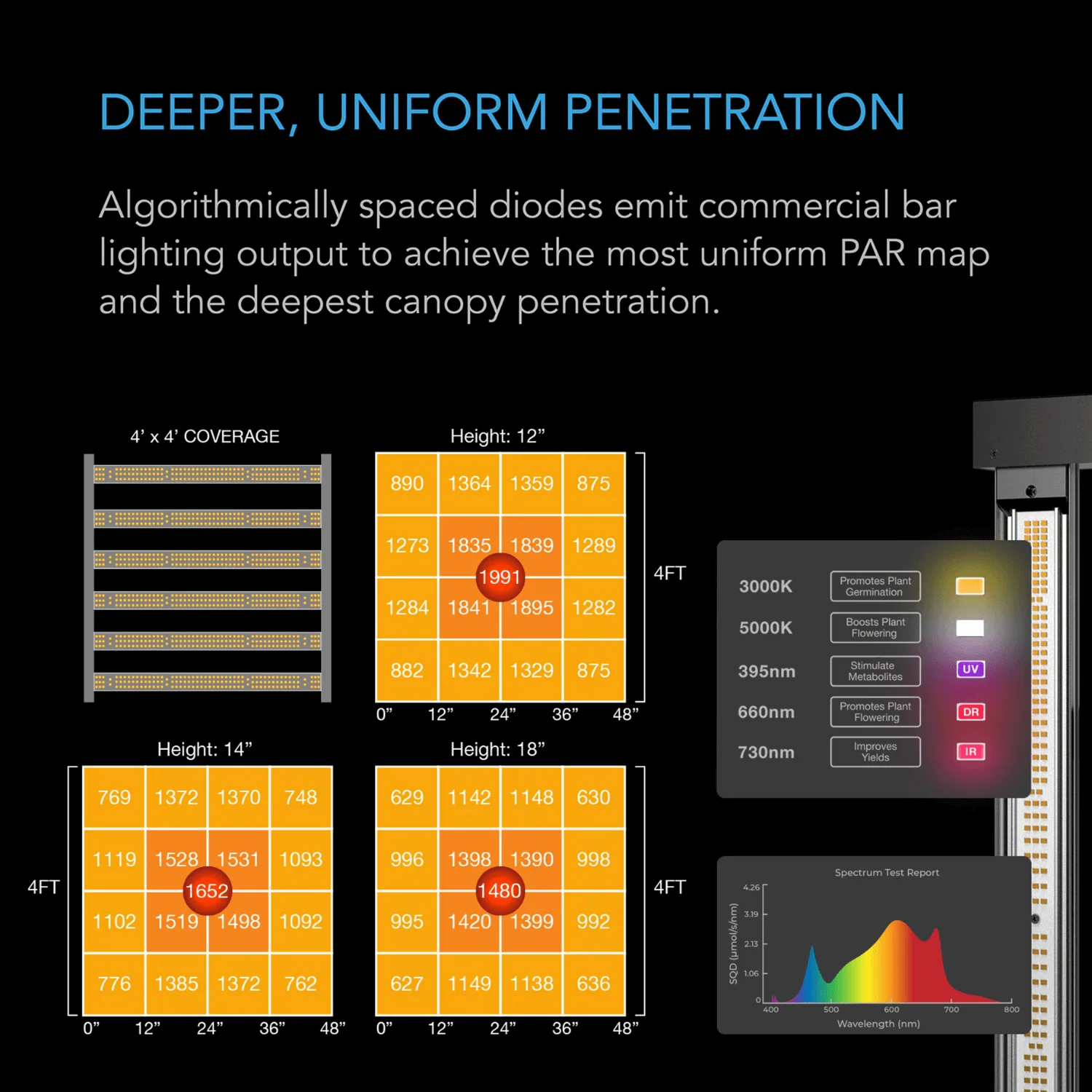

Product and Mounting Dimensions - LED Grow Light

Light Dimensions: 32.28 x 32.67 x 3.38 in. (82.0 x 83.0 x 8.6 cm)

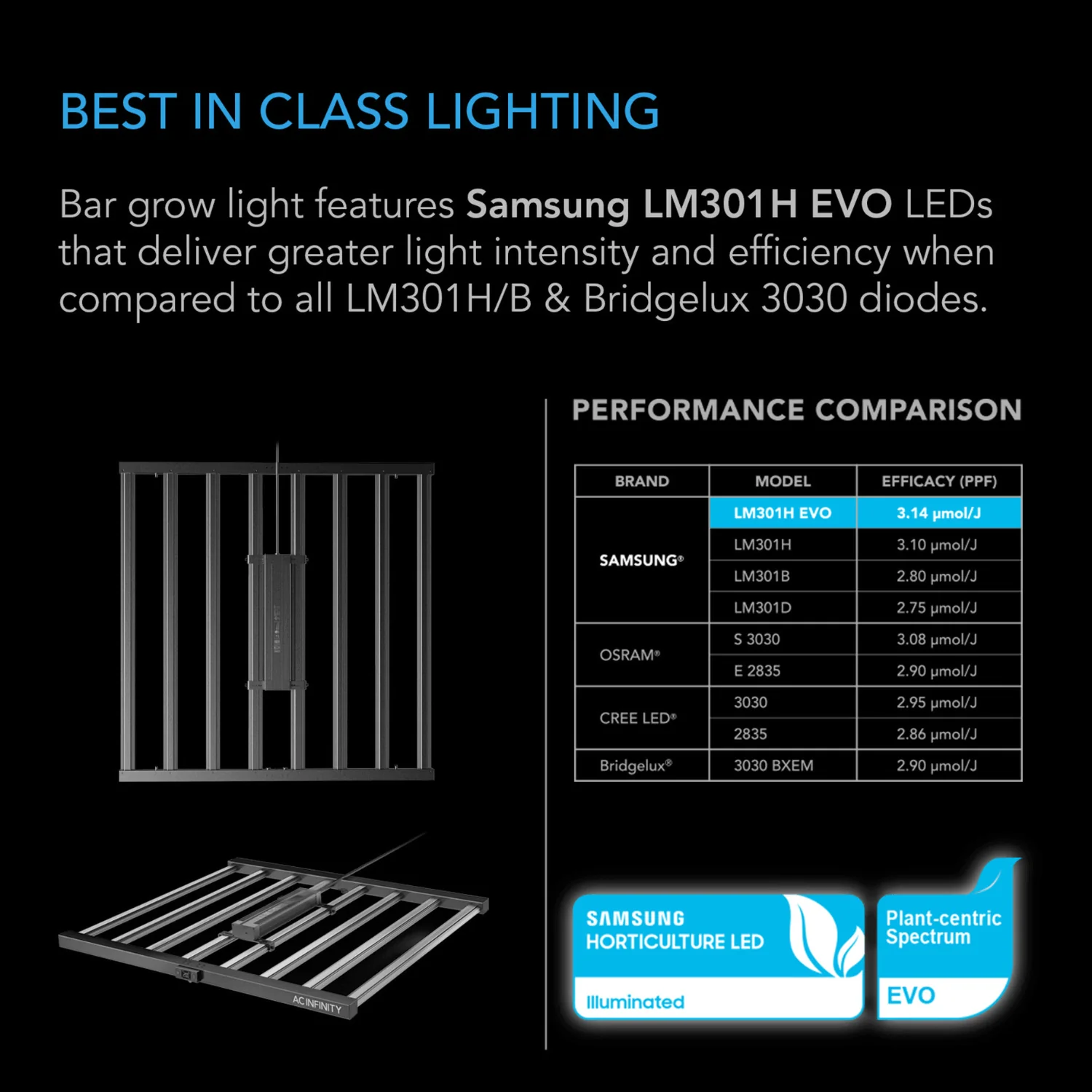

Product Performance and Technical Specs - LED Grow Light

Coverage: 4 x 4 ft.

Diodes: Samsung LM301H EVO

Spectrum: 395nm, 660nm, 730nm, 3000K, 5000K

Chip Count (Total): 1680

Chip Count (EVO 3000K): 1074

Chip Count (EVO 5000K): 540

Chip Count (Seoul 395 nm): 6

Chip Count (OSRAM 660 nm): 54

Chip Count (OSRAM 730 nm): 6

LED Driver: SOSEN-500W

Efficiency (Single Diode): 3.14 µmol/J

PPFD: 1991 PPFD

Wattage: 500 W

Voltage: 100-277V AC

Frequency: 50/60 Hz

Amps: 5.0 A

Controller: Schedule Controller

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Waterproof Rating: IP-65

Life Expectancy: 50,000 Hours

Product and Mounting Dimensions - Carbon Filter

Duct Opening Size: 6"

Total Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)

Flange Length: 1.57 in. (4.0 cm)

Product Performance and Technical Specs - Carbon Filter

Flange Material: Aluminum

Flange Design: Reversible

Mesh Material: Galvanized Steel

Carbon Type: Australian Virgin RC412

Carbon Grade: 1200+ IAV

Carbon Thickness: 38mm

Maximum Airflow: 410 CFM

Product Dimensions - Ducting

Ducting Size: 6 in. (15.2 cm)

Length: 96 in. (8 ft)

Product Performance and Technical Specs - Ducting

Outer Layer: PVC Thermoplastic

Inner Material: Aluminum Foil

Internal Structure: Spiral Steel-Wire

Data Sheets

Download the data sheet: here

Download the CE Certification: here

Download the RoHS Cert.: here

Download the FCC Cert.: here

Download the SAA Cert.: here

Download the ETL Cert.: here

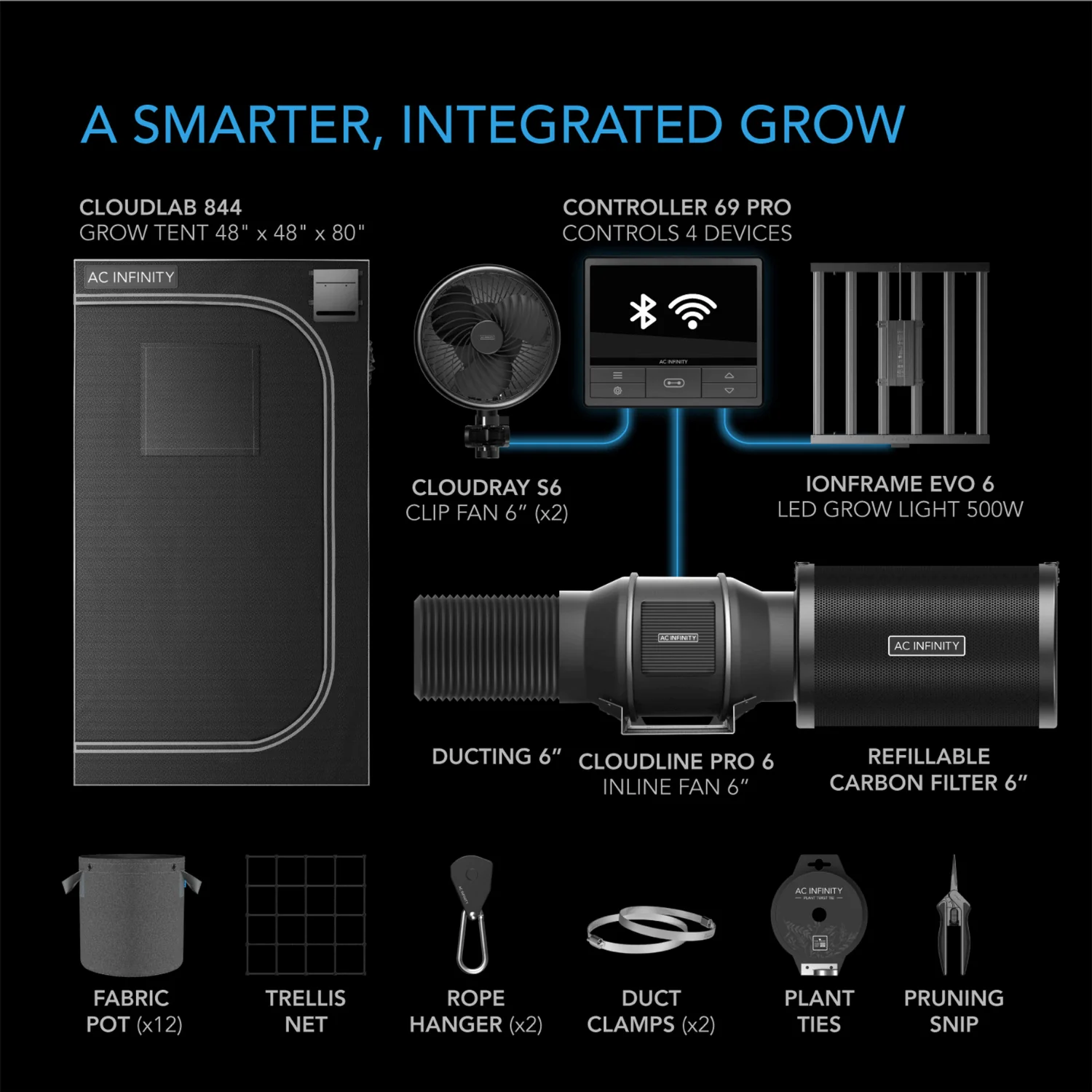

Kit Contents

This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually.

The full grow tent kit will include the following:

CLOUDLAB 844 – Advance Grow Tent 48”x48”x80” (x1)

CONTROLLER 69 PRO – Grow Tent Controller (x1)

CLOUDLINE PRO 6 - Inline Fan 6"" (x1)

IONFRAME EVO6 – Commercial Bar LED Grow Light 500W (x1)

CLOUDRAY S6 – Oscillating Circulation Clip Fan (x2)

Refillable Carbon Filter 6” (x1)

6” Flexible Ducting, 8’ Long (x1)

Hanging Straps (x2)

Rope Clip Hangers (x2)

6” Steel Clamps (x2)

Duct Tape (x1)

Hook and Loop Ties (x10)

UIS Male to Male Controller Cord (x1)

L-Shaped UIS Male to Male Controller Cord (x1)

5-gallon Fabric Pots (x8)

Elastic Trellis Netting 4x4’ (x1)

Black Wire Twist Ties (x1)

Micro-tip Pruning Shears (x1)
