AC Infinity Advance Grow Tent System Pro 5x5, 6-Plant Kit, WiFi-Integrated Controls, Full Spectrum LM301H EVO LED Grow Light

Description

An advanced grow tent kit with smart controls and integrated components to start an indoor growing system.

The controller automates each fan and light with individual programs to dynamically adjust speed and brightness.

Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.

EC inline fan 6”, oscillating clip fan 6”, and 730W full-spectrum bar grow light with Samsung LM301H EVO LEDs.

Premium 2000D Mylar tent measuring 60”x60”x80”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.

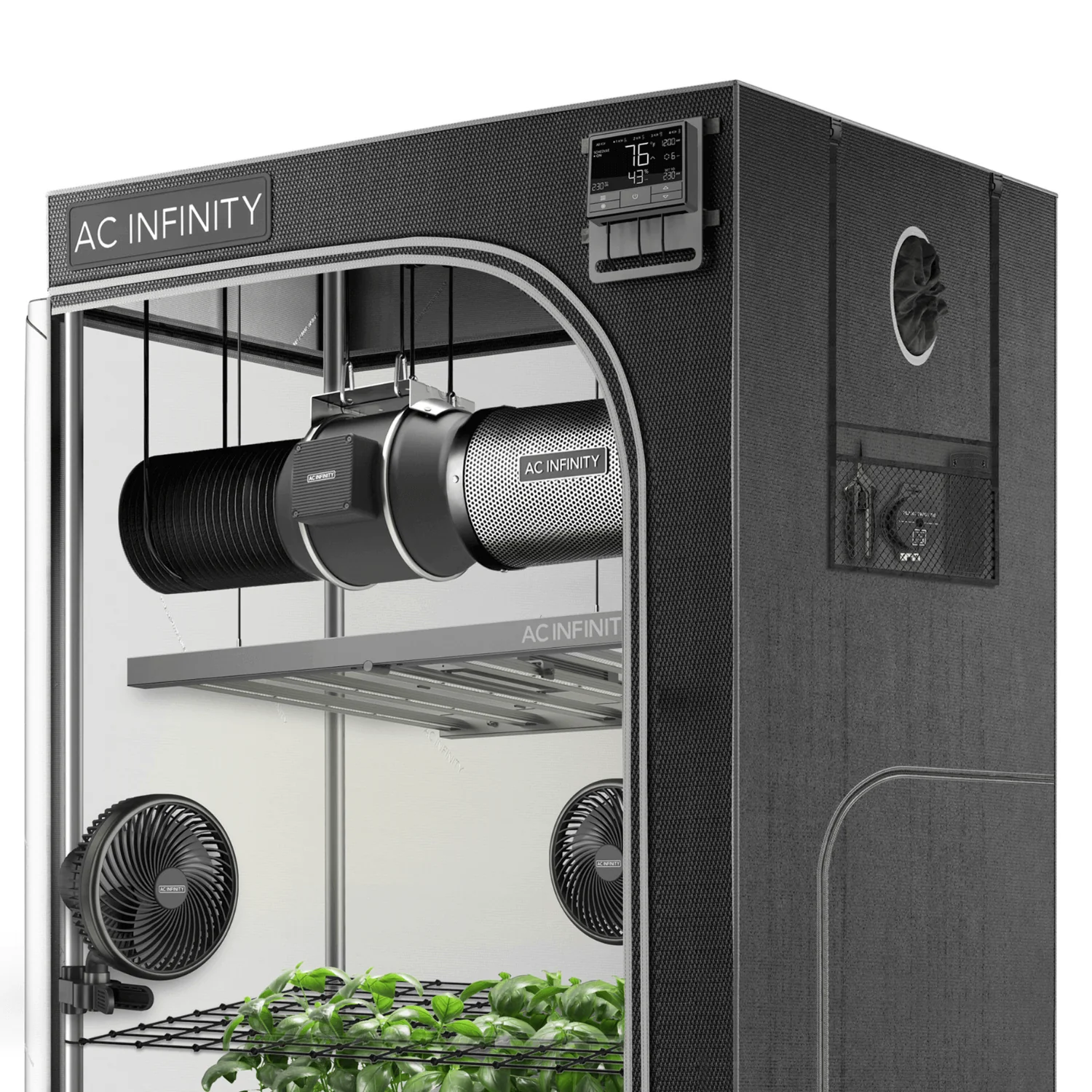

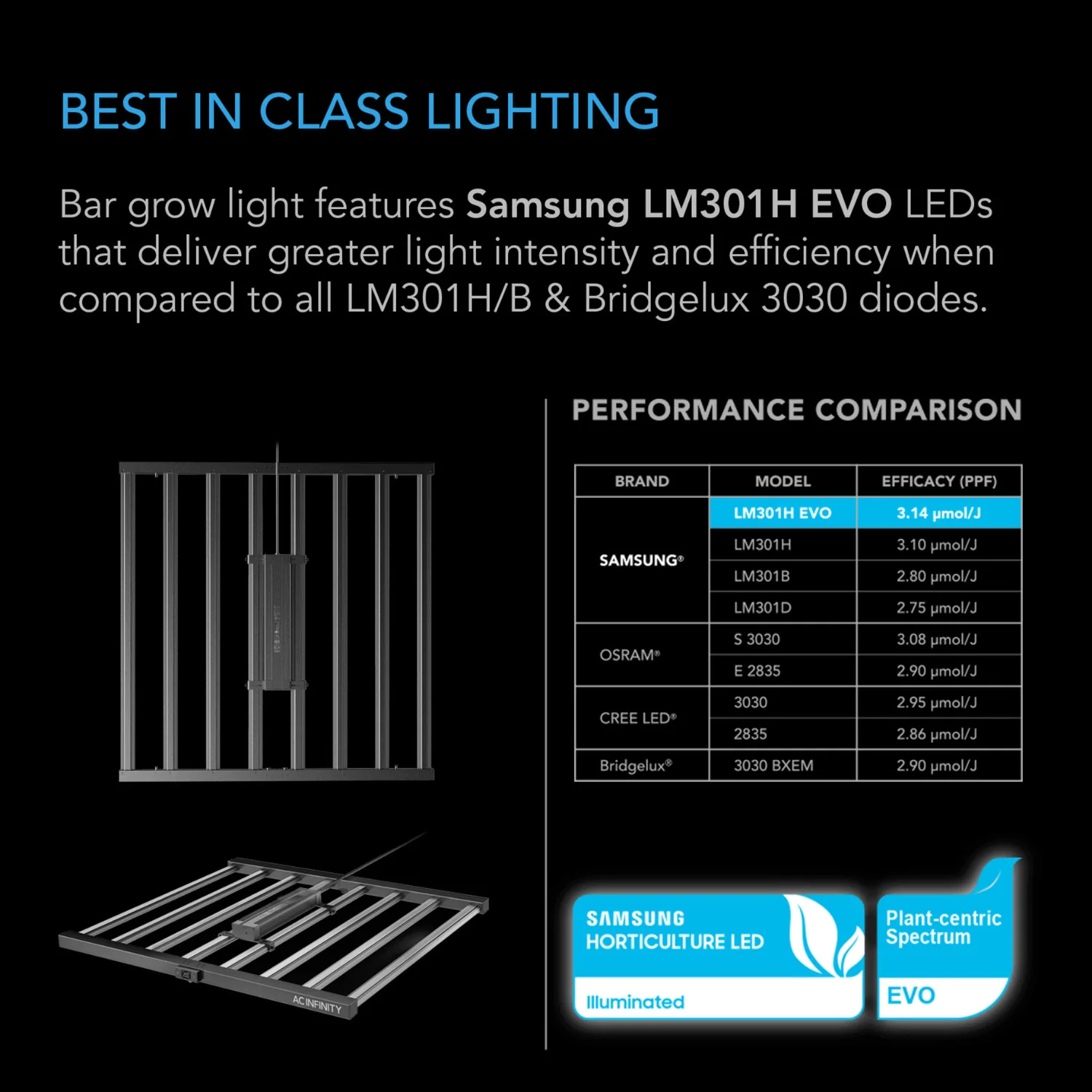

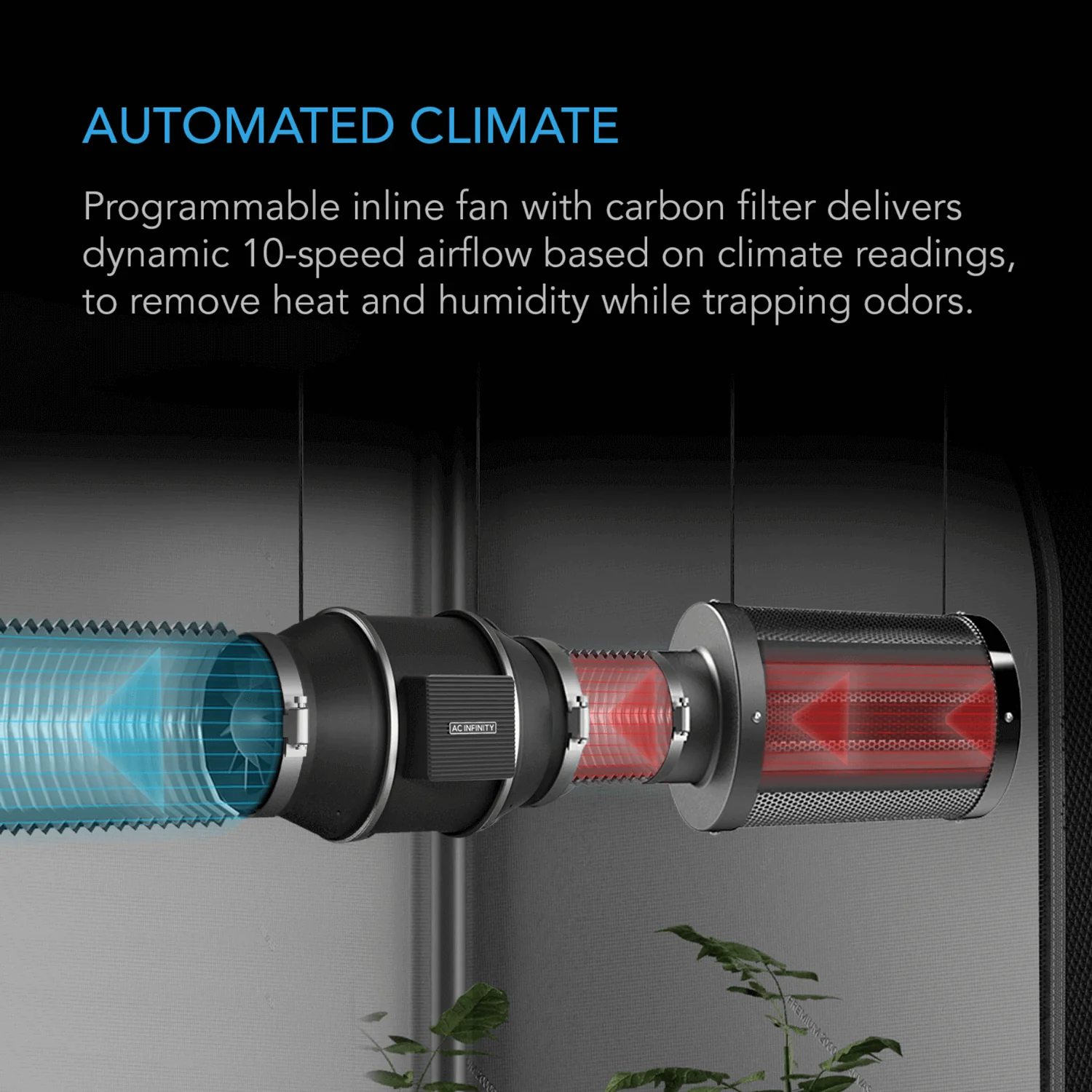

Product Description: An advanced grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated inside with the oscillating clip-on fan to provide light breezes to your plants. Algorithmically arranged LM301H EVO diodes on the grow light frame emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These Samsung LEDs are the best in their class, delivering higher light intensity and greater efficiency per diode than LM301H, LM301B, Bridgelux 3030, and other popular LEDs. The devices are housed in a high-density Oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

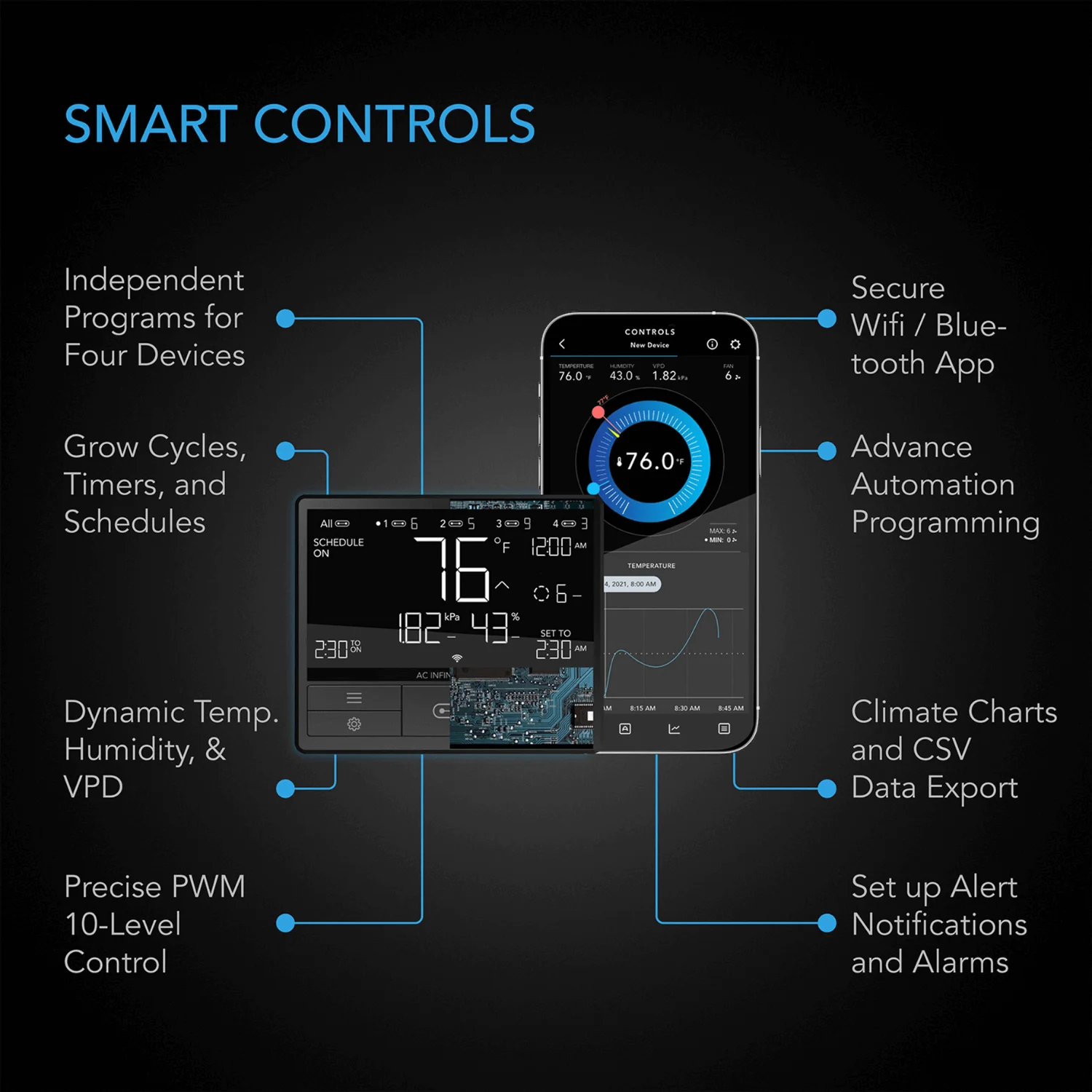

Intelligent Programming: Integrating these components is the CONTROLLER 69 PRO, engineered to provide each device with shared or independent programming. This central control unit can set dynamic programs to activate your grow devices in response to VPD (vapor pressure deficit) levels, in addition to temperature and humidity, to help you further dial into your ideal growing space. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect to the AC Infinity app via WiFi to remotely access your indoor grow system from anywhere outside the boundaries of your home, unlocking advanced programs, alerts, notifications, and historical charts.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: Advance Grow System B55

Product Model: AC-PKB55

UPC Code: 819137024038

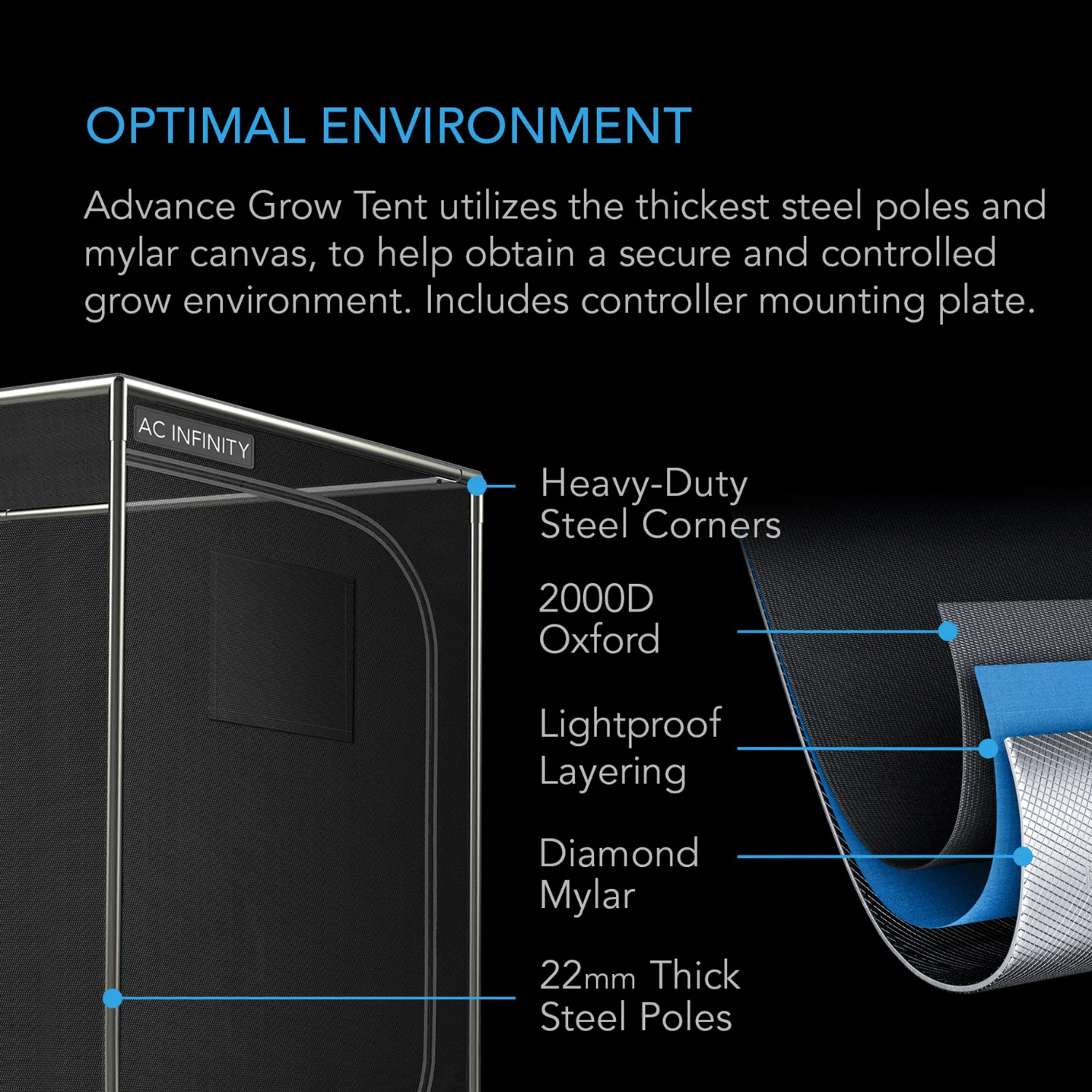

Product and Mounting Dimensions - Grow Tent

Tent Dimensions: 60" x 60" x 80" (152.4 x 152.4 x 203.2 cm)

Duct Opening Sizes: 4", 8"

Viewing Window Size: 11.81" x 11.81" (30 x 30 cm)

Rear Intake Hole Size: 5.90" x 13.77" (15 x 35 cm)

Side Intake Hole Size: 5.90" x 13.77" (15.0 x 35 cm)

Mounting Strap Length: 6.49" (16.5 cm)

Product Performance and Technical Specs - Grow Tent

Outer Tent Material: Oxford

Inner Tent Material: Mylar

Pole Material: Steel

Pole Thickness: 22 mm

Beam Weight Capacity: 150 lbs

Plant Capacity: 6

Product and Mounting Dimensions - Inline Fan

Duct Size: 6"

Total Dimensions: 7.87" x 12.60" x 8.35" (21.2 x 32 x 20 cm)

Mounting Hole-To-Hole Distance: 3.15" x 2.36" (8 x 6 cm)

Screw Hole Size: Ø 0.236" (Ø 0.6 cm)

Cord Length to Controller: 240" (20')

Cord Length to Plug: 96" (8')

Performance and Technical Specs - Inline Fan

Total Airflow: 402 CFM

Total Noise: 32 dBA

Static Pressure: 503 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 64 W

Average Power Usage: 38 W

Current: 1.67 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 ºF

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Product and Mounting Dimensions - Clip Fan

Impeller Size: 6.5"

Total Dimensions: 8.74" x 10.47" (22.2 x 26.6 cm)

Cord Length to Plug: 96" (8')

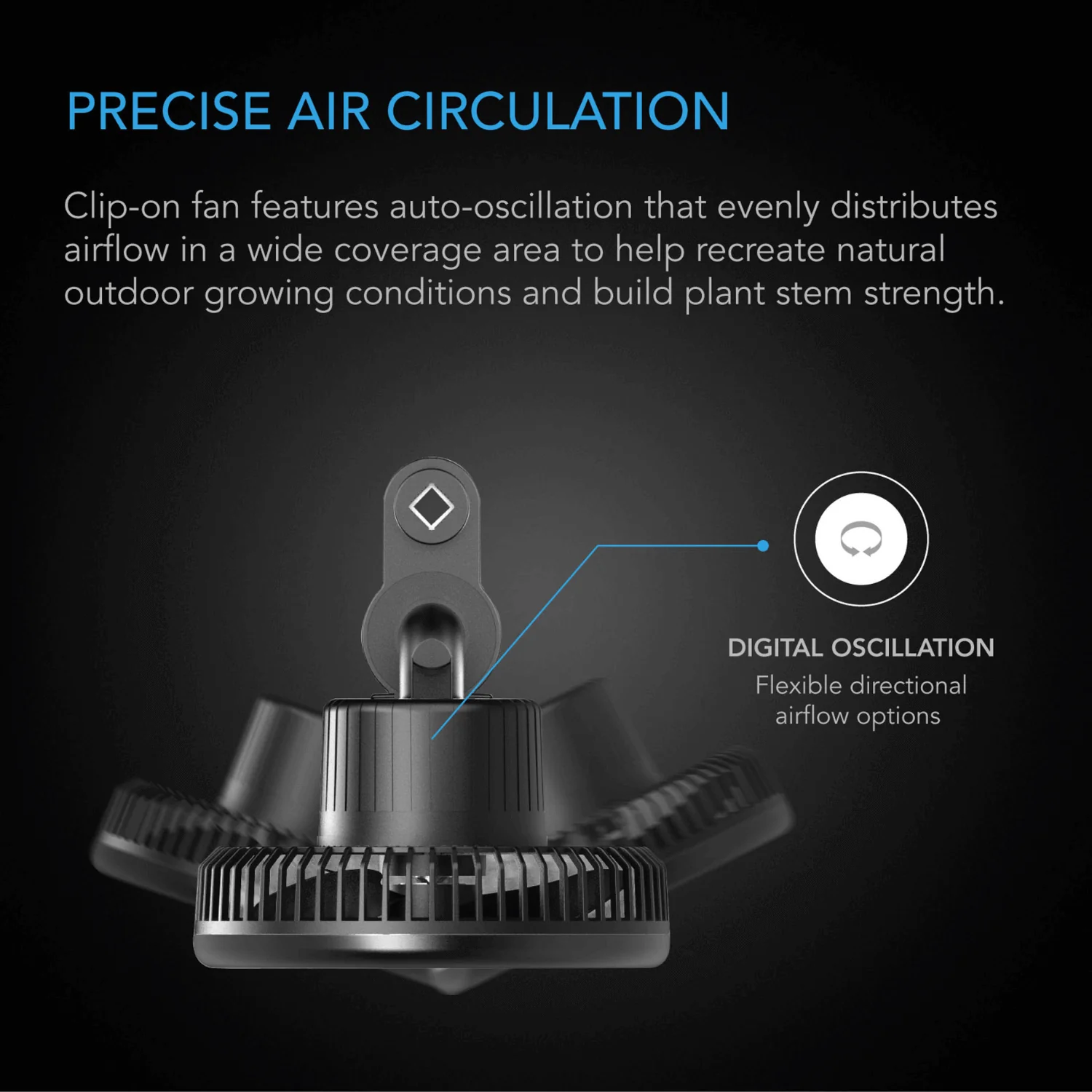

Product Performance and Technical Specs - Clip Fan

Maximum Airflow: 315 CFM

Total Noise: 33 dBA

Static Pressure: 25 Pa

Operating Voltage: 100-240V AC

Power: 8 W

Current: 0.14 A

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 ºF

Waterproof Rating: IP-44

Rotation Range: 90 Degrees

Tilt Angle: 55 Degrees

Oscillation: Automatic Oscillation

Fan Bearings: Dual Ball Bearing

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19" x 2.91" x 1.06" (13.2 x 7.4 x 2.7 cm)

Hole to Hole Distance: 4.71" x 2.64" (12.0 x 6.7 cm)

Screw Hole Size: Ø 0.119" (Ø 0.3 cm)

Display Size: 3.5" x 1.4" (9 x 3.5 cm)

Sensor Probe Length: 144" (12')

Product Performance and Technical Specs - Controller

Maximum Devices Controlled: 4

Max Power Supported: 10 W

Programming Temperatures: 32 to 140 ºF

Operating Voltage: 9 to 18V

Power: 1 W

Current: 0.1 A

Power Input: 12V from Device

Operating Humidity: 35 to 85% RH

Product and Mounting Dimensions - LED Grow Light

Light Dimensions: 44.09" x 44.48" x 3.38" (112 x 113 x 8.6 cm)

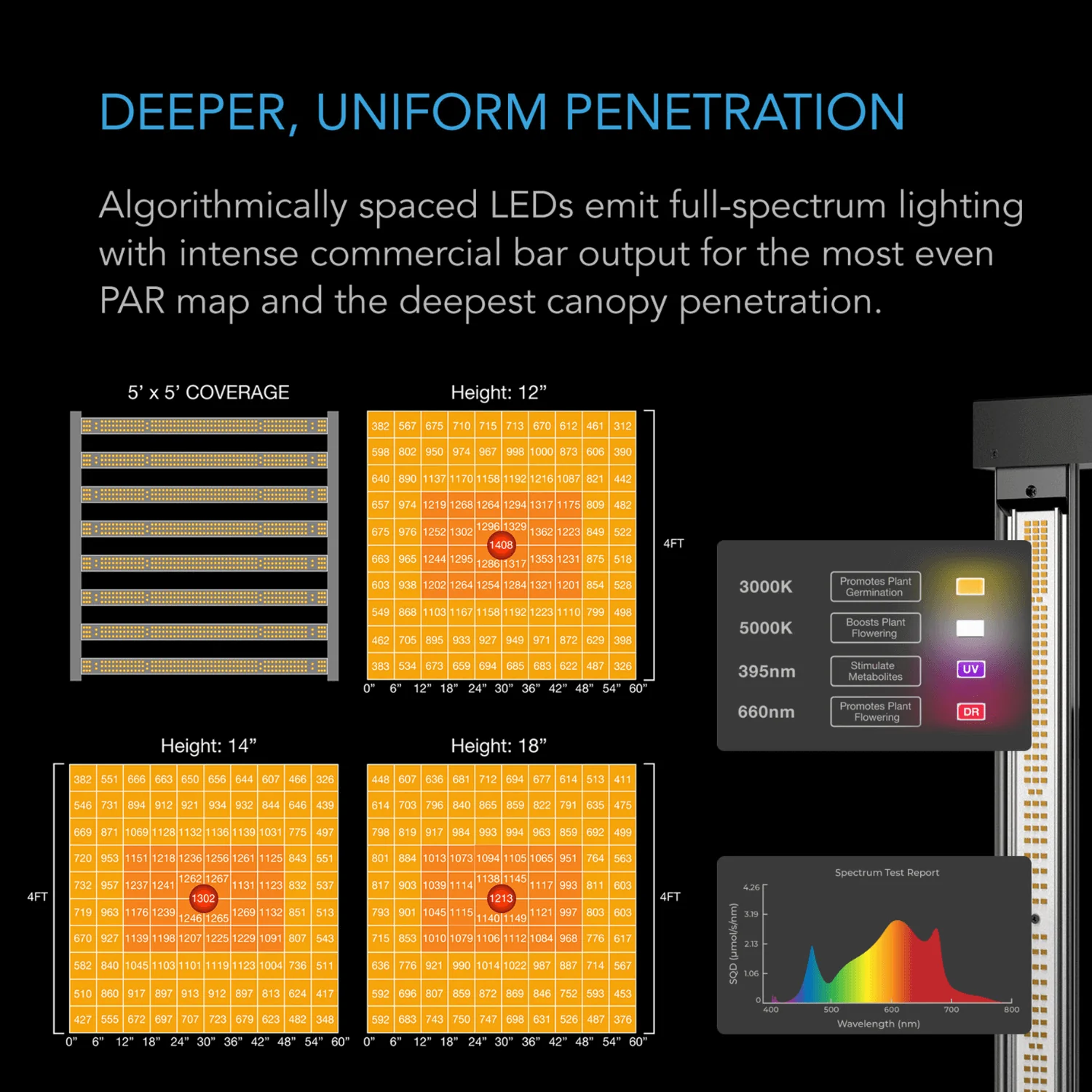

Product Performance and Technical Specs - LED Grow Light

Coverage: 5' x 5'

Diodes: Samsung LM301H EVO

Spectrum: 395nm, 660nm, 3000K, 5000K

Chip Count (Total): 2688

Chip Count (EVO 3000K): 1720

Chip Count (EVO 5000K): 864

Chip Count (Seoul 395 nm): 8

Chip Count (OSRAM 660 nm): 96

LED Driver: SOSEN-320W

Efficiency (Single Diode): 3.14 umol/J

PPFD: 1408 PPFD

Wattage: 730 W

Voltage: 100-277V AC

Frequency: 50/60 Hz

Controller: Schedule Controller

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 ºF

Waterproof Rating: IP-65

Life Expectancy: 50,000 Hours

Product and Mounting Dimensions - Carbon Filter

Duct Opening Size: 6"

Total Dimensions: 15.94" x 8.93" (40.5 x 22.7 cm)

Flange Length: 1.57" (4 cm)

Product Performance and Technical Specs - Carbon Filter

Flange Material: Aluminum

Flange Design: Reversible

Mesh Material: Galvanized Steel

Carbon Type: Australian Virgin RC412

Carbon Grade: 1200+ IAV

Carbon Thickness: 38mm

Maximum Airflow: 410 CFM

Product Dimensions - Ducting

Ducting Size: 6" (15.2 cm)

Length: 96" (8')

Product Performance and Technical Specs - Ducting

Outer Layer: PVC Thermoplastic

Inner Material: Aluminum Foil

Internal Structure: Spiral Steel-Wire

Data Sheets

Download the data sheet: here

Download the CE Certification: here

Download the RoHS Cert.: here

Download the FCC Cert.: here

Download the SAA Cert.: here

Download the ETL Cert.: here

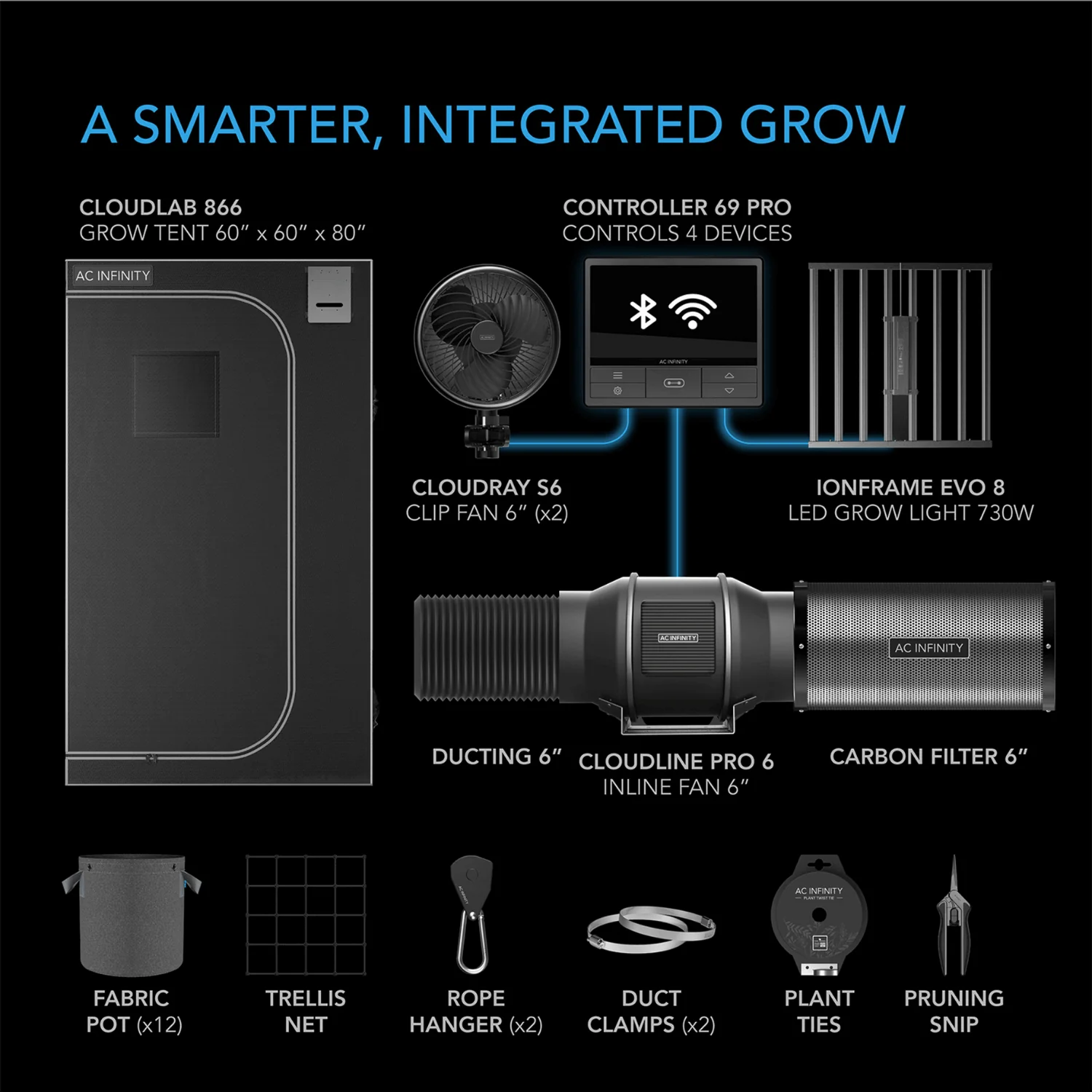

Kit Contents

CLOUDLAB 866 – Advance Grow Tent 60”x60”x80” (x1)

CONTROLLER 69 PRO – Grow Tent Controller (x1)

CLOUDLINE PRO 6 - Inline Fan 6" (x1)

IONFRAME EVO8 – Commercial Bar LED Grow Light 730W (x1)

CLOUDRAY S6 – Oscillating Circulation Clip Fan (x2)

Carbon Filter 6” (x1)

6” Flexible Ducting, 8’ Long (x1)

Hanging Straps (x2)

Rope Clip Hangers (x2)

6” Steel Clamps (x2)

5’ Duct Tape (x1)

Hook and Loop Ties (x10)

6’ UIS Male to Male Controller Cord (x1)

6’ L-Shaped UIS Male to Male Controller Cord (x2)

5-gallon Fabric Pots (x12)

Elastic Trellis Netting 5x5’ (x1)

Black Wire Twist Ties (x1)

Micro-tip Pruning Shears (x1)
