AC Infinity Air Filter Box with High Efficacy Filter, 6-Inch

Description

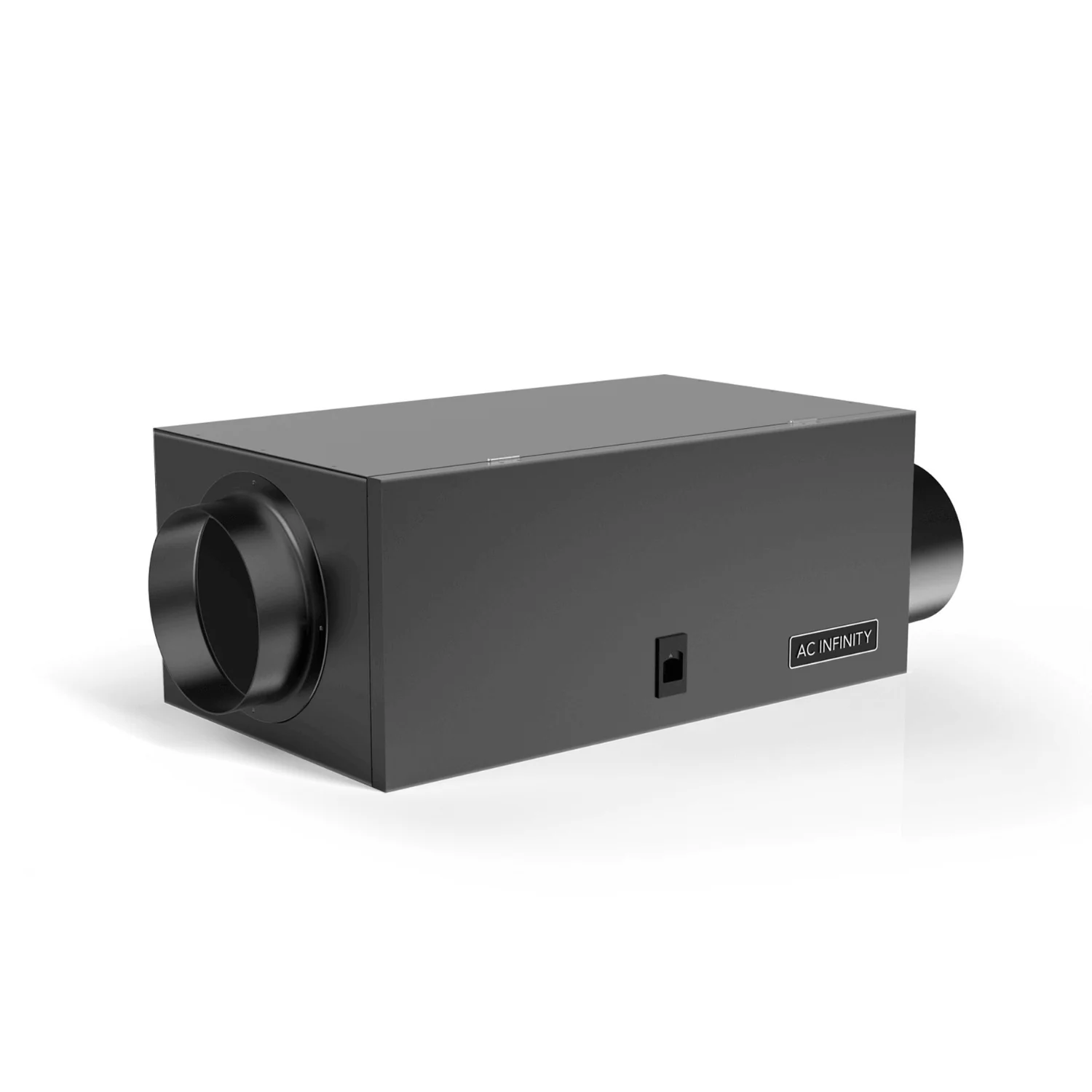

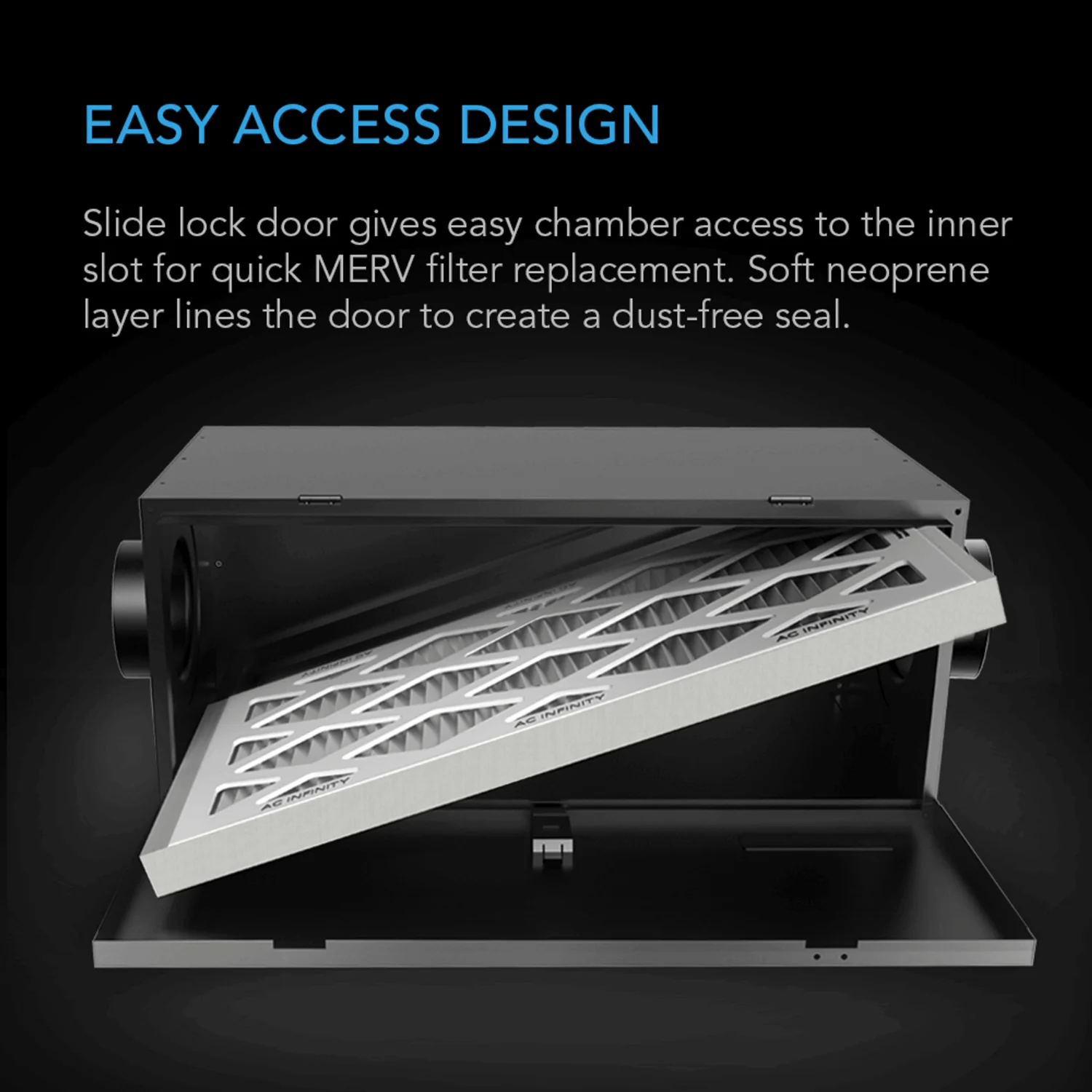

  • Duct Filter Box: This is designed for use with inline fans to circulate fresh air and block dust and odors. It is built with 1mm thick cold-rolled steel and aluminum duct flanges, which allow it to withstand extreme weather. A slide lock door enables easy access to the inner chamber, while a soft neoprene layer creates a dust-free seal.

  • High Efficacy Filter: Included is a standard filter that effectively traps particles like dust, dirt, lint, and odor. The air filter box measures 23.46 x 8.42 x 11.73 inches, fits 6-inch inline fans, accommodates 12 x 20 x 1-inch filters, and provides a maximum circulation of 800 cubic feet per minute.

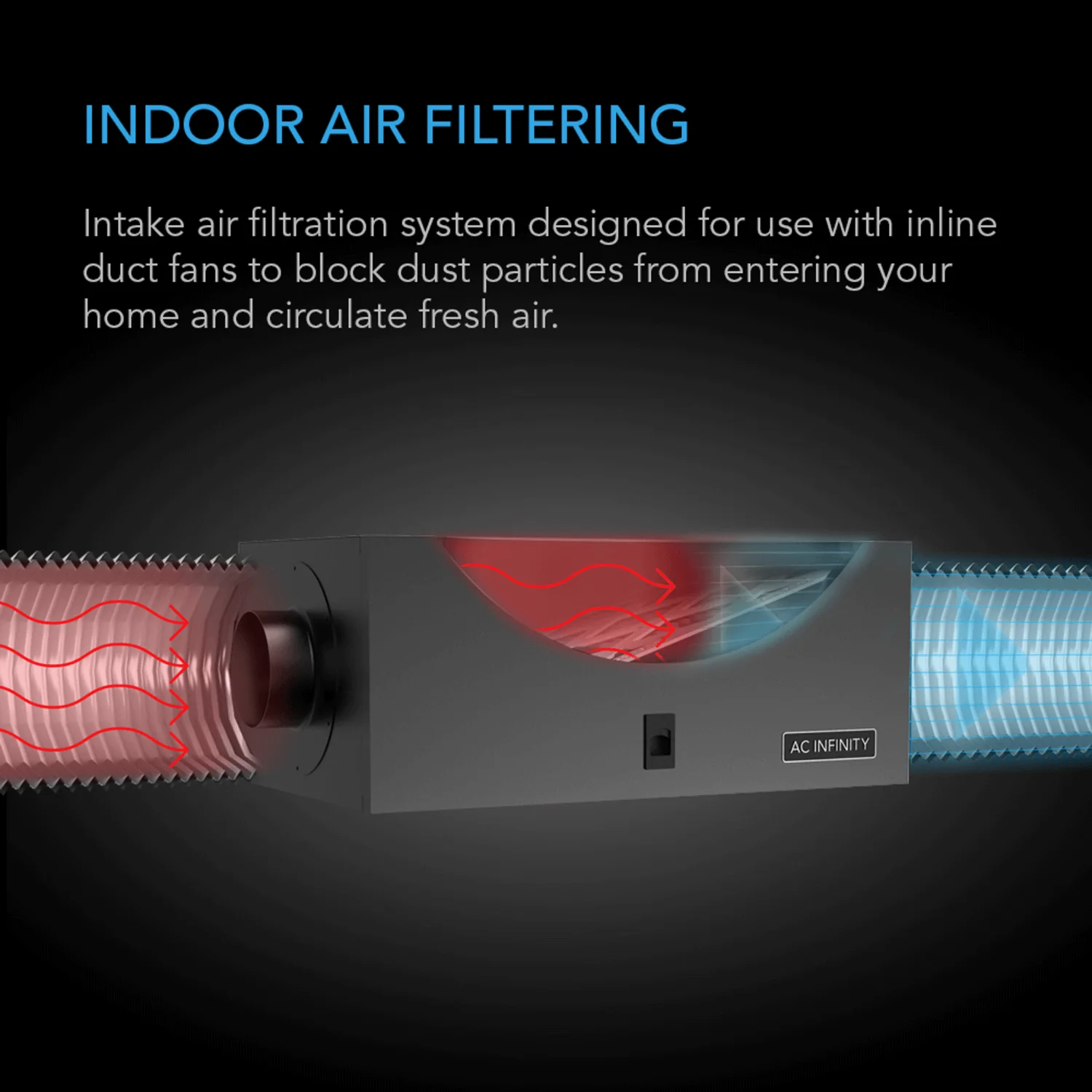

  • Product Description: This is a whole-house air filtration system designed for use with inline duct fans such as the Cloudline Series. It blocks particles like dust and dirt from entering your home in intake applications. The box is built using 1mm thick cold-rolled steel with a matte black powder coating. This combines with aluminum duct flanges to create a sturdy, weather-resistant structure. It features a slide lock for easy access to the inner chamber, with a soft neoprene layer for dust-proof sealing.

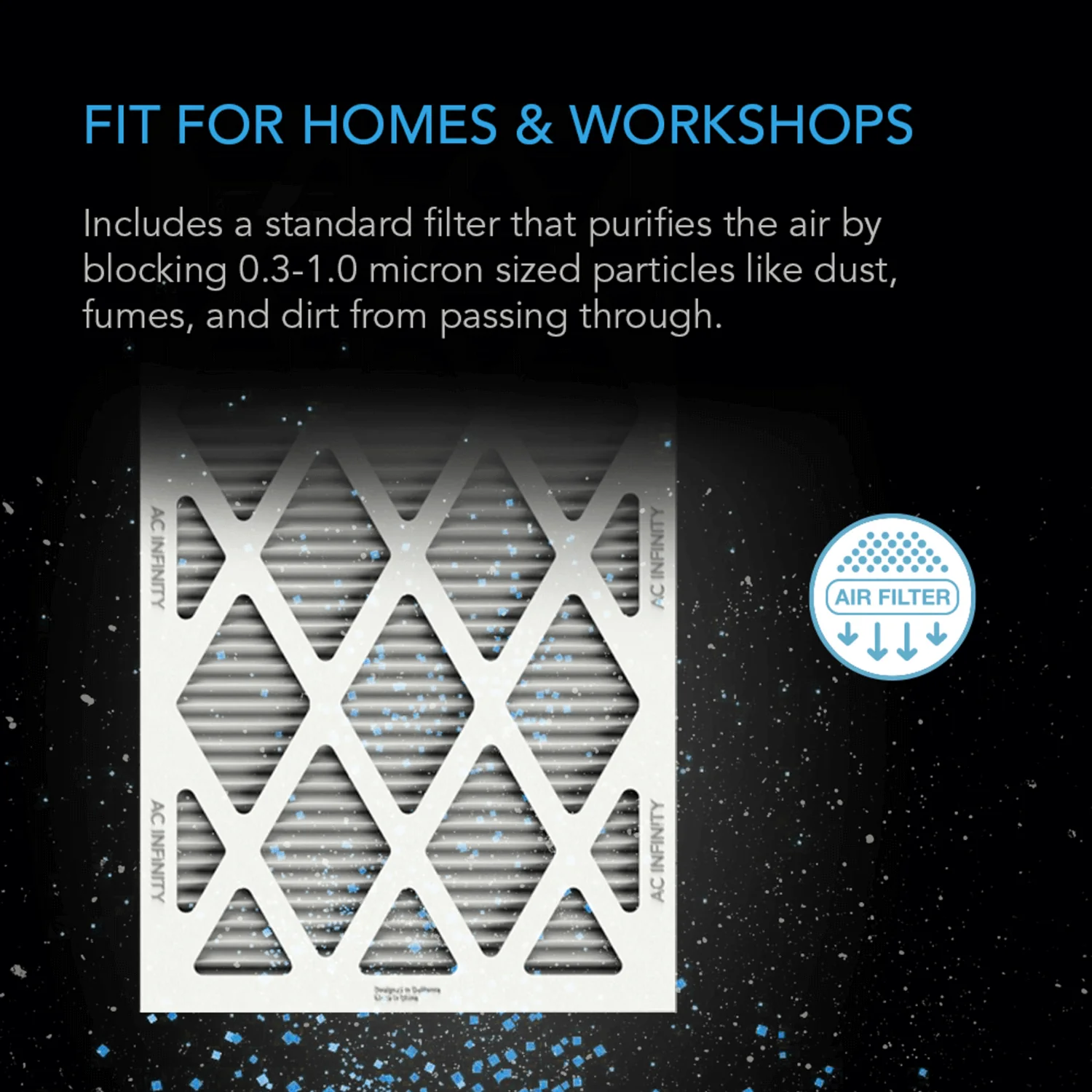

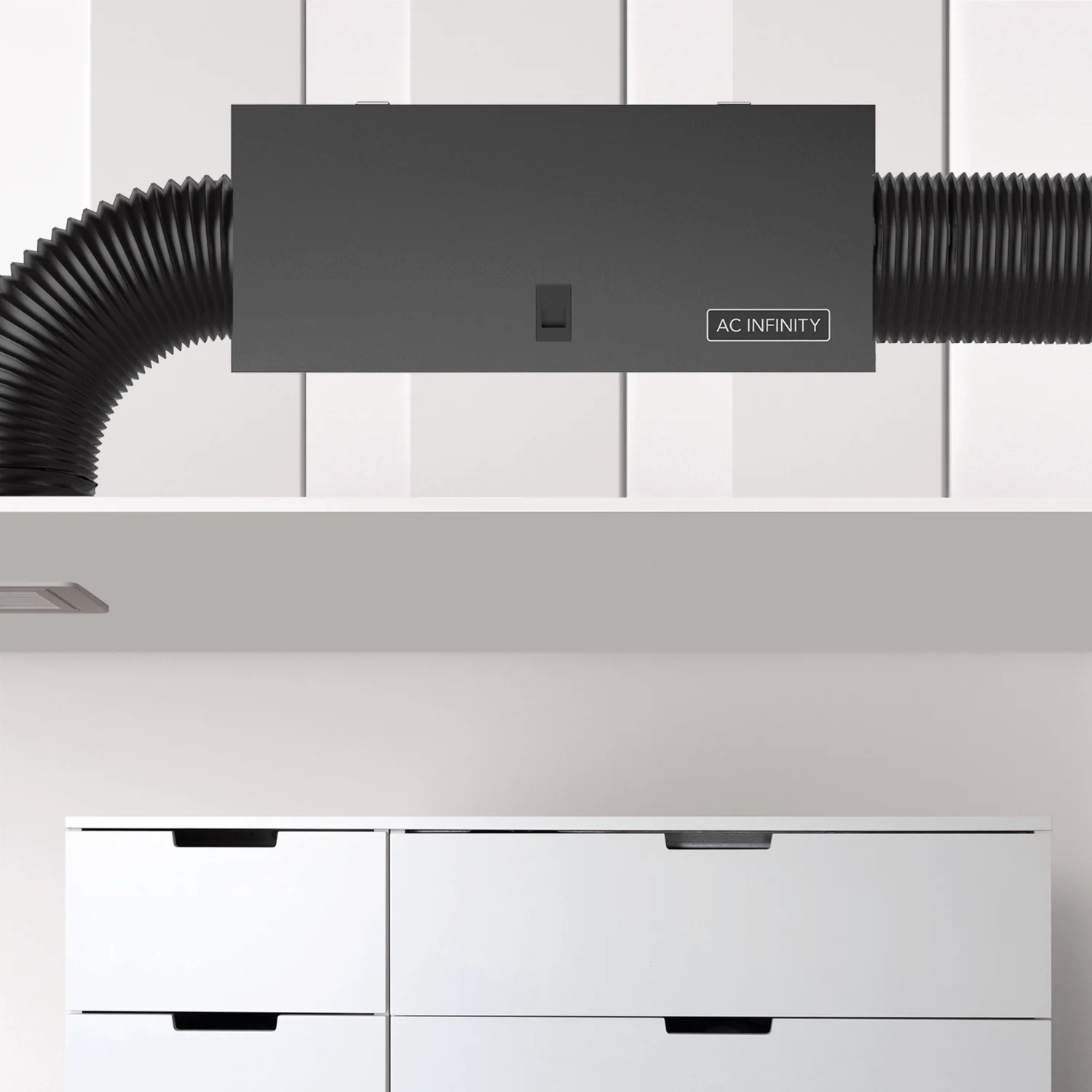

  • Applications: The air filter box accepts standard MERV filter replacements that slide into the inner chamber's filter slot. It comes with a high-efficacy pleated air filter, capable of trapping 0.3-1.0 micron-sized particles such as dust, dirt, lint, and odor. The duct flanges fit with matching sized 6-inch inline fans, enabling streamlined installation. Attaching the air filter box at the start of your ductwork will dramatically reduce airborne particles in your home. Use with a high static pressure fan, such as the Cloudline Series of duct fans, is highly recommended for maximum filtration.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Air Filter Box 6"
  • Product Model: AC-AFB6
  • UPC Code: 819137021709

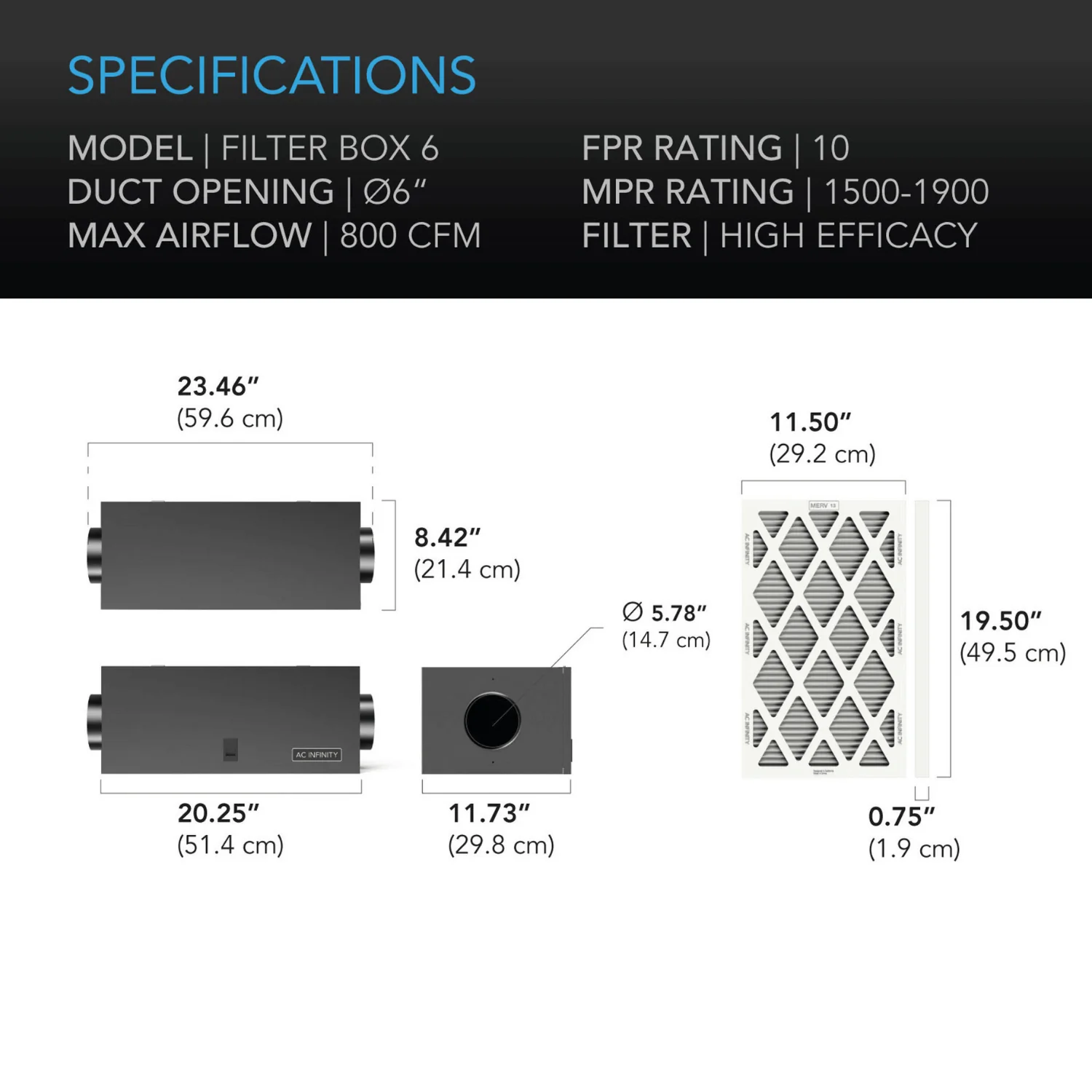

  • Product and Mounting Dimensions
  • Duct Opening Size: Approximately 5.78 inches
  • Total Dimensions: Approximately 23.46 x 8.42 x 11.73 inches
  • Flange Length: Approximately 3.21 inches

  • Product Performance and Technical Specs
  • Box Material: Steel
  • Flange Material: Aluminum
  • Finish: Matte Black
  • Filter Size: Accepts 12 x 20 x 1 inch
  • Minimum Airflow Range: 182-272 cubic feet per minute
  • Maximum Airflow: 800 cubic feet per minute
  • Compatible Fan Models: Cloudline S6, Cloudline T6
    • Data Sheet
  • Download the Product Manual: here
    • $136.99
