AC Infinity Air Filter Box with High Efficacy Filter, 8-Inch

Description

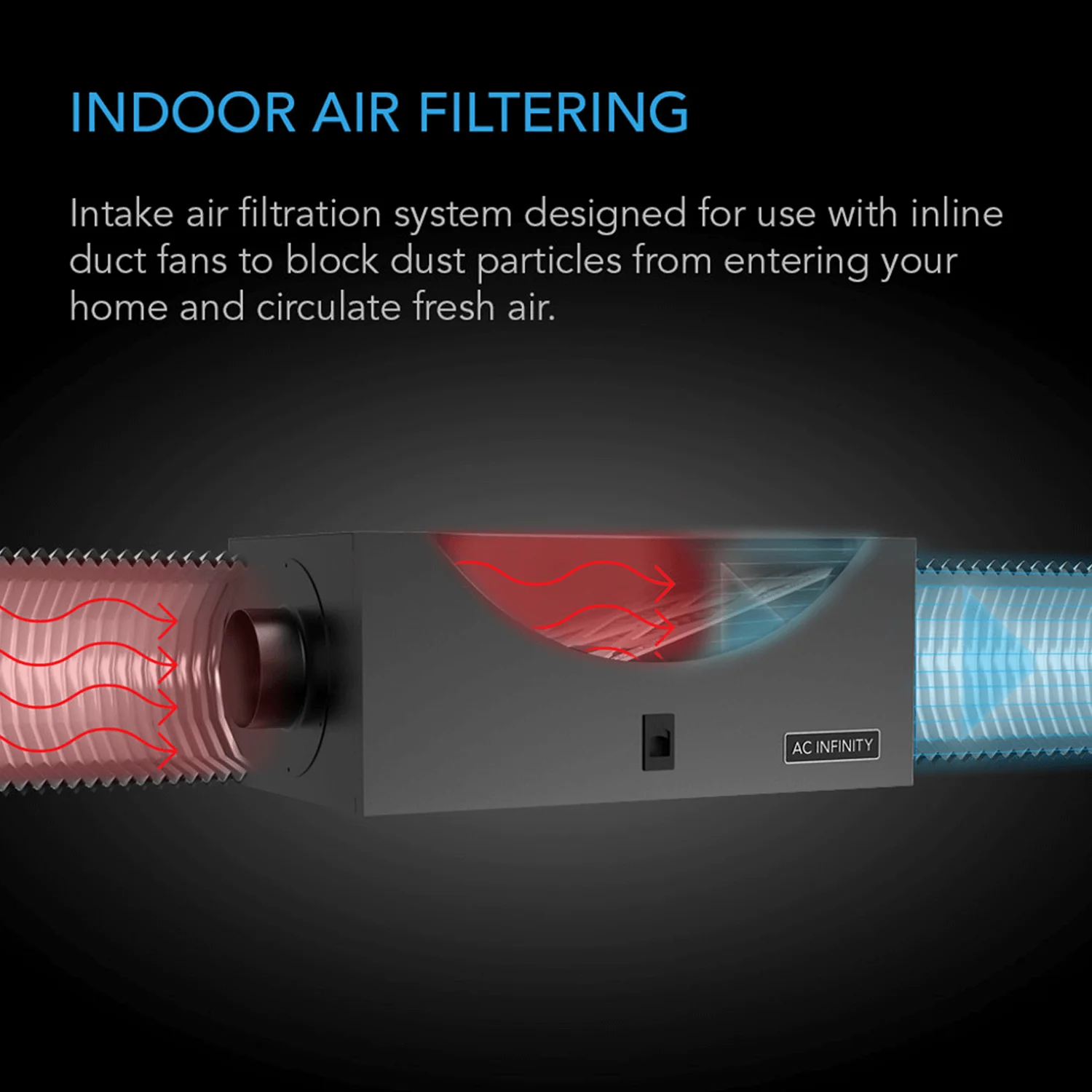

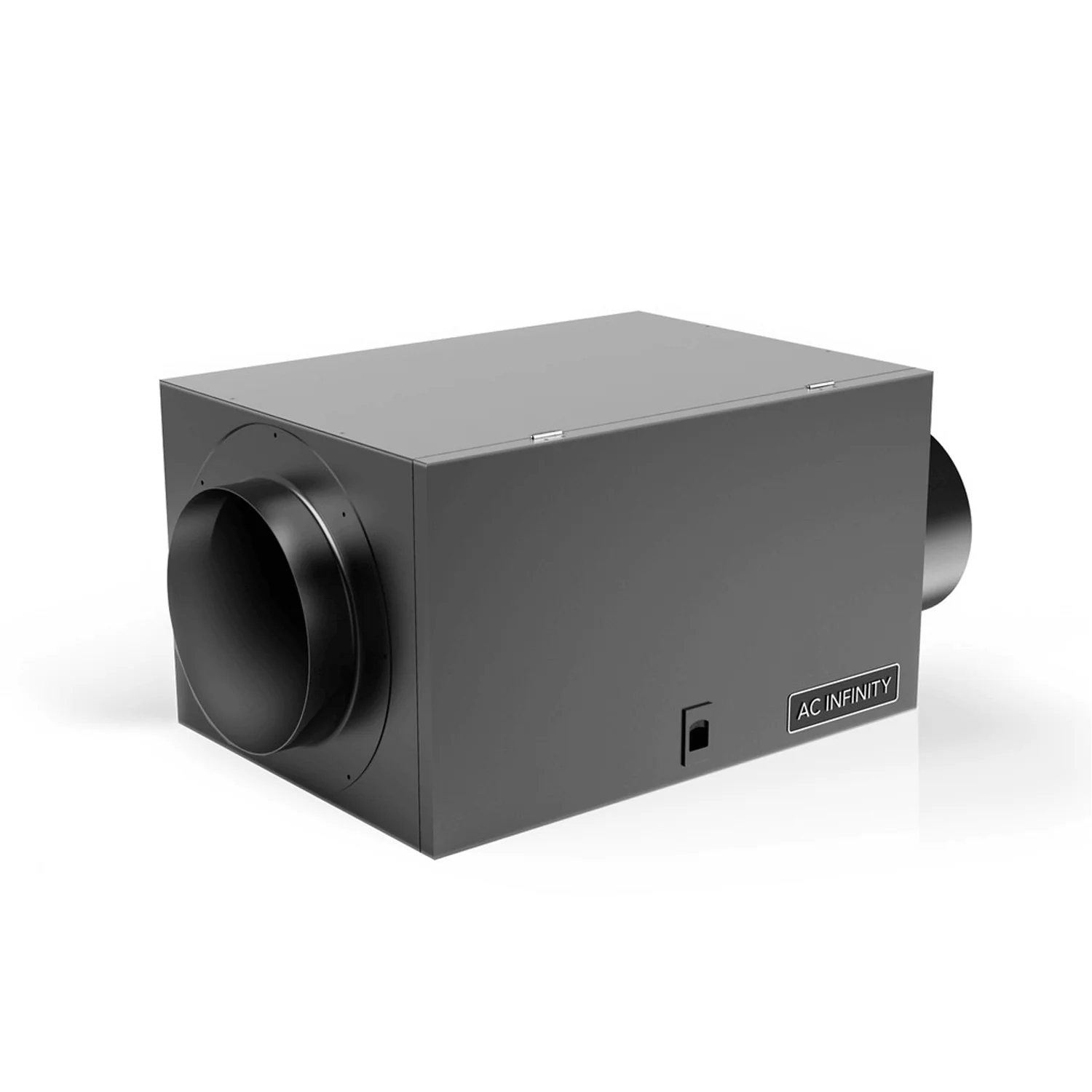

  • Duct Filter Box: Designed to be used with inline fans to circulate fresh air and block dust and odors. The box is built using 1mm thick cold-rolled steel and aluminum duct flanges, ensuring a sturdy build that can withstand extreme weather.

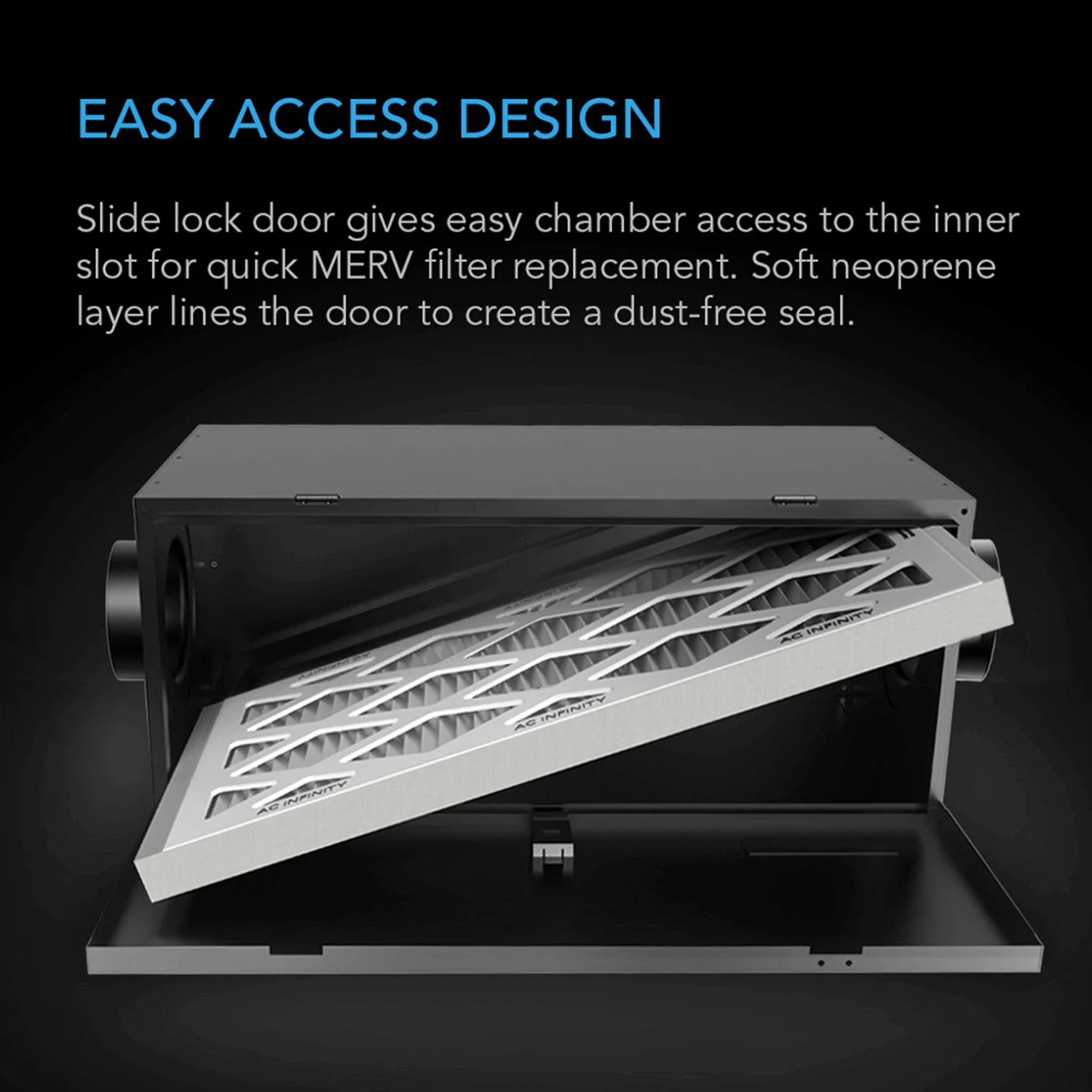

  • Low-Maintenance Design: Features a hinge-sealed door equipped with a slide lock which provides easy access to the inner chamber. The door is lined with a soft neoprene layer that securely holds the filter in place and prevents dust from entering.

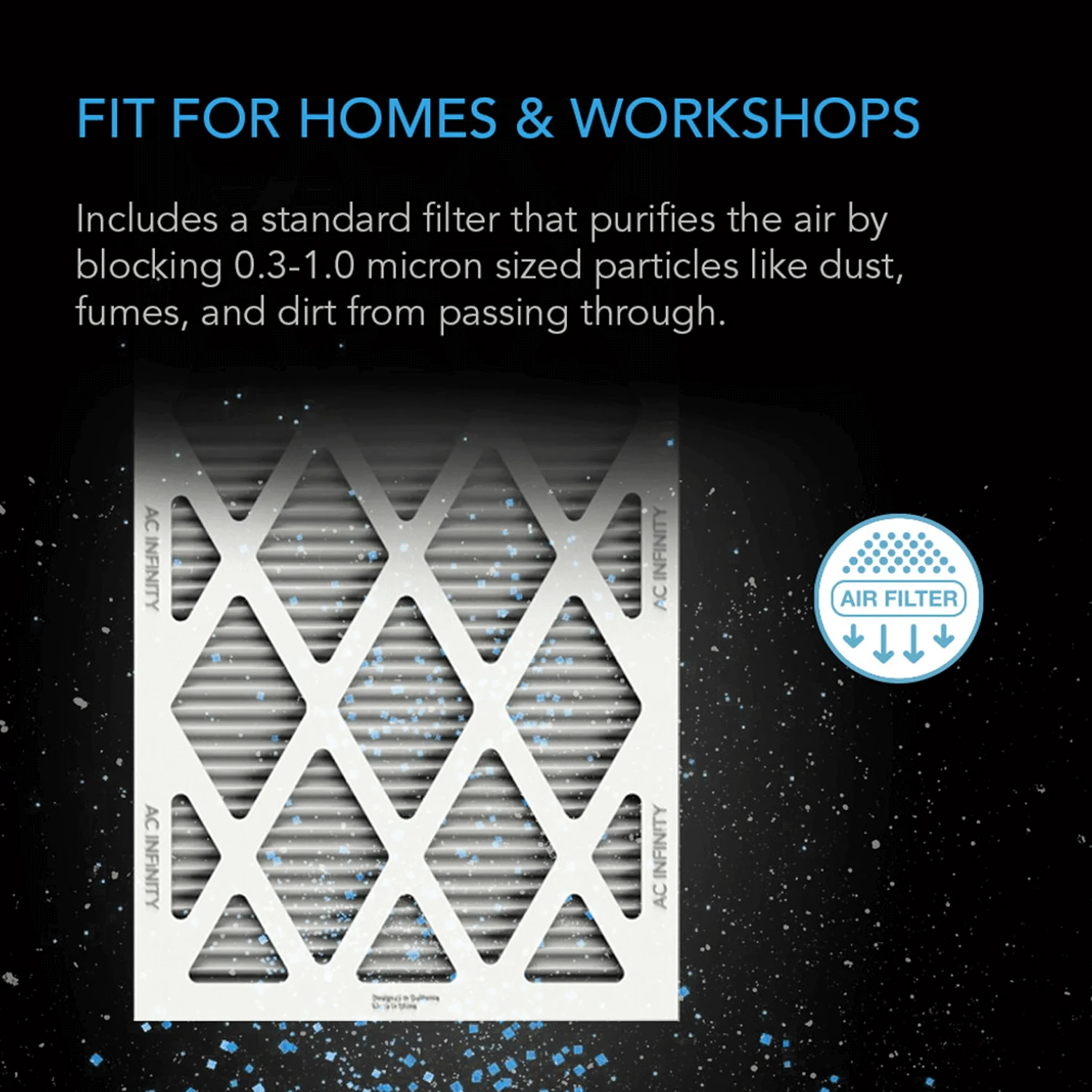

  • Effective Filtration: Accepts standard MERV filter replacements which slide smoothly into the inner chamber's filter slot. Included with the box is a high-efficacy pleated air filter capable of trapping 0.3-1.0 micron-sized particles such as dust, dirt, lint, and odor.

  • Product Dimension and Compatibility: Measures 22.51 x 11.57 x 13.93 inches. Fits 8-inch inline fans and enables a streamlined installation for high efficiency filtration in HVAC and grow applications. It accepts 14 x 20 x 1 inch filters, and has a maximum capacity of 1600 cubic feet per minute.

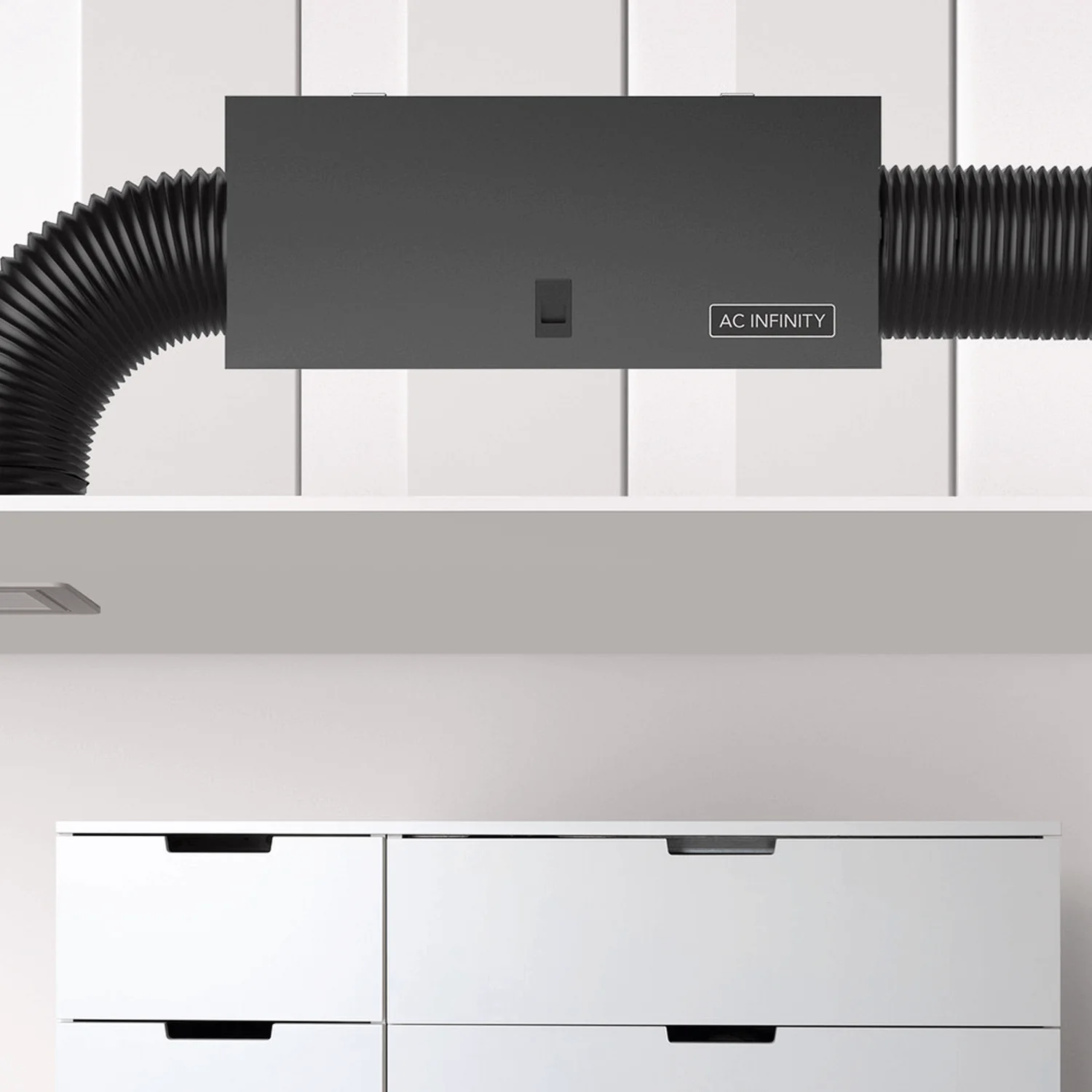

  • Recommended Use: Attaching the air filter box at the beginning of your ductwork can greatly reduce the number of suspended particles in your indoor air. For best results, it is recommended to use it with a high static pressure fan, such as the CLOUDLINE Series of duct fans.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Air Filter Box 8""
  • Product Model: AC-AFB8
  • UPC Code: 819137021716

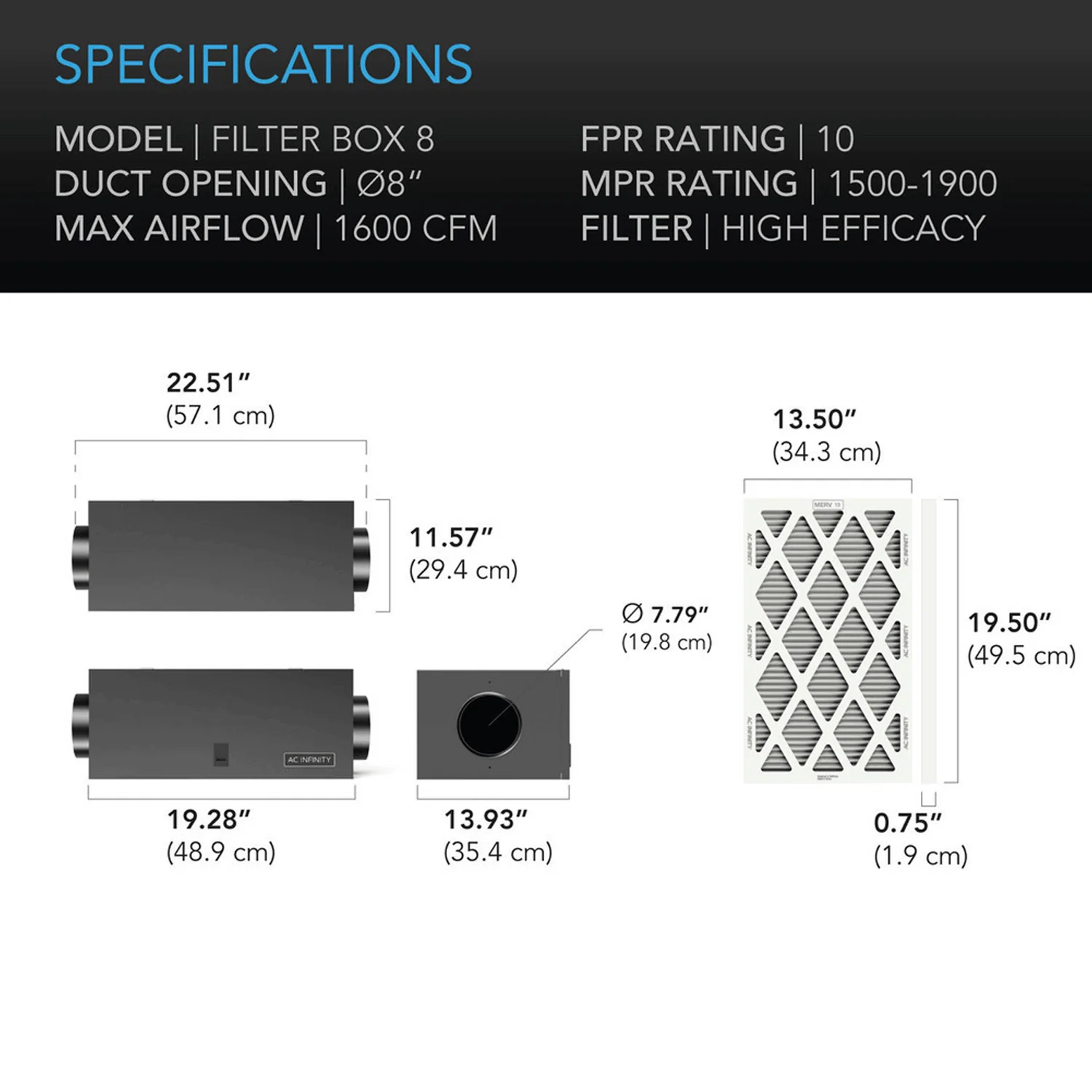

  • Product and Mounting Dimensions
  • Duct Opening Size: Approximately 7.79 inches
  • Total Dimensions: 22.51 x 11.57 x 13.93 inches
  • Flange Length: Approximately 3.23 inches

  • Product Performance and Technical Specs
  • Box Material: Steel
  • Flange Material: Aluminum
  • Finish: Matte Black
  • Filter Size: Accepts filters of 14 x 20 x 1 inches
  • Minimum Airflow Range: 402-604 cubic feet per minute
  • Maximum Airflow: 1600 cubic feet per minute
  • Compatible Fan Models: CLOUDLINE S8, CLOUDLINE T8
    • Data Sheet
  • Download the Product Manual: here
