AC Infinity Air Filtration Kit 4", Inline Fan with Speed Controller, Carbon Filter & Ducting Combo

Description

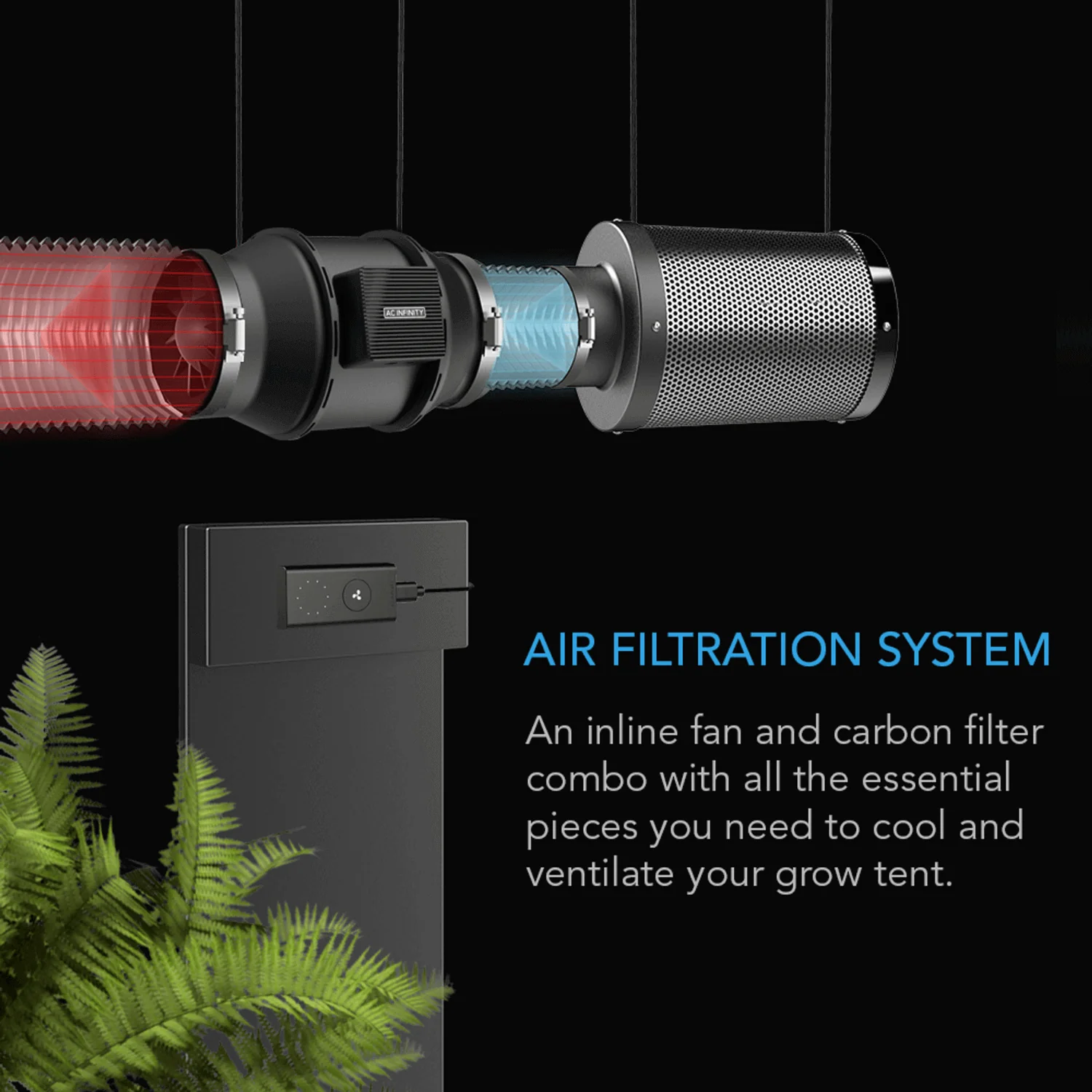

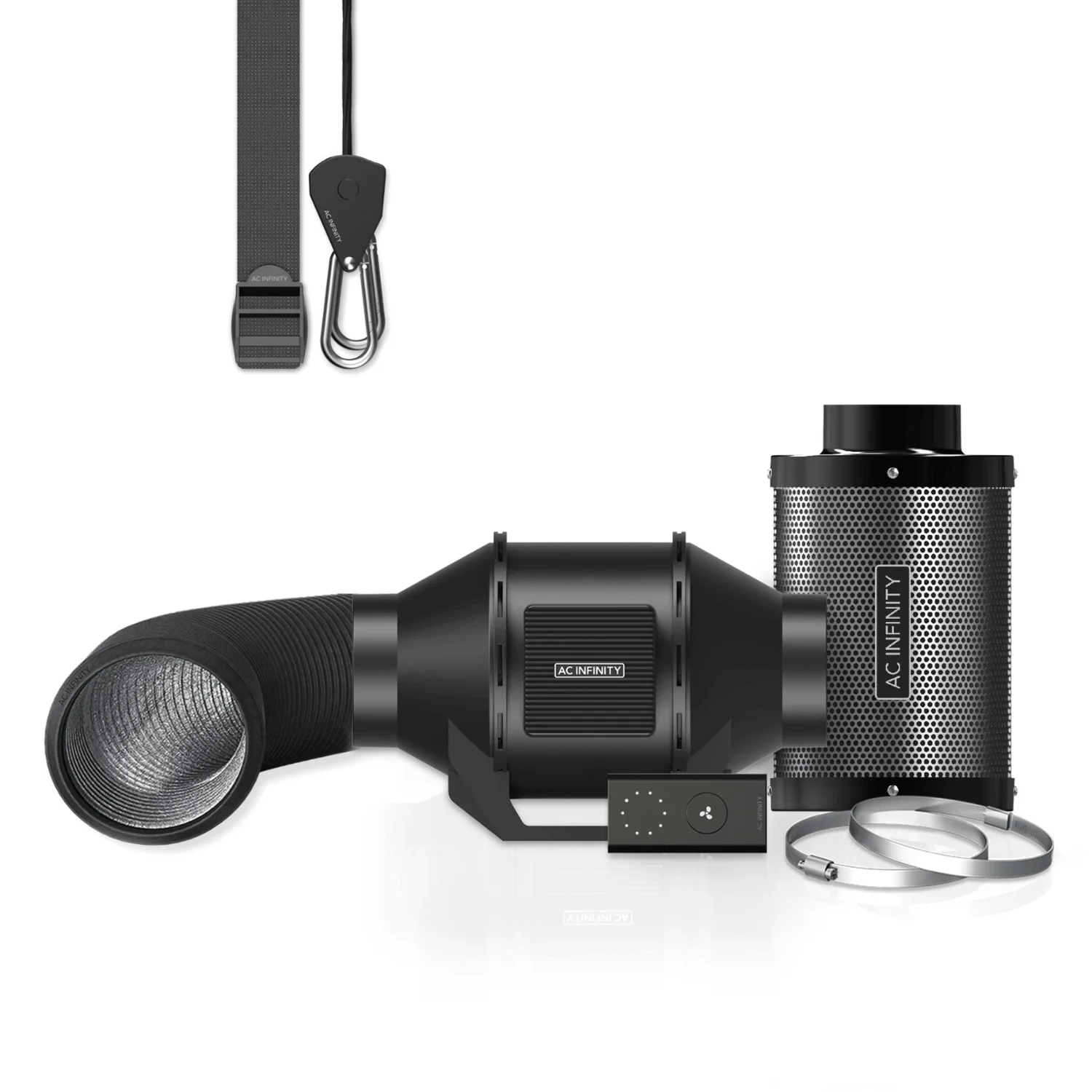

  • Air Filtration Kit: A comprehensive kit to cool, ventilate, and control odors in your grow space. It includes a CLOUDLINE inline fan with speed controller, carbon filter with prefilter cloth, and flexible four-layer ducting. It also contains accessories such as clamps, prefilter cloth, rope clip hangers, and hanging straps for easy installation.

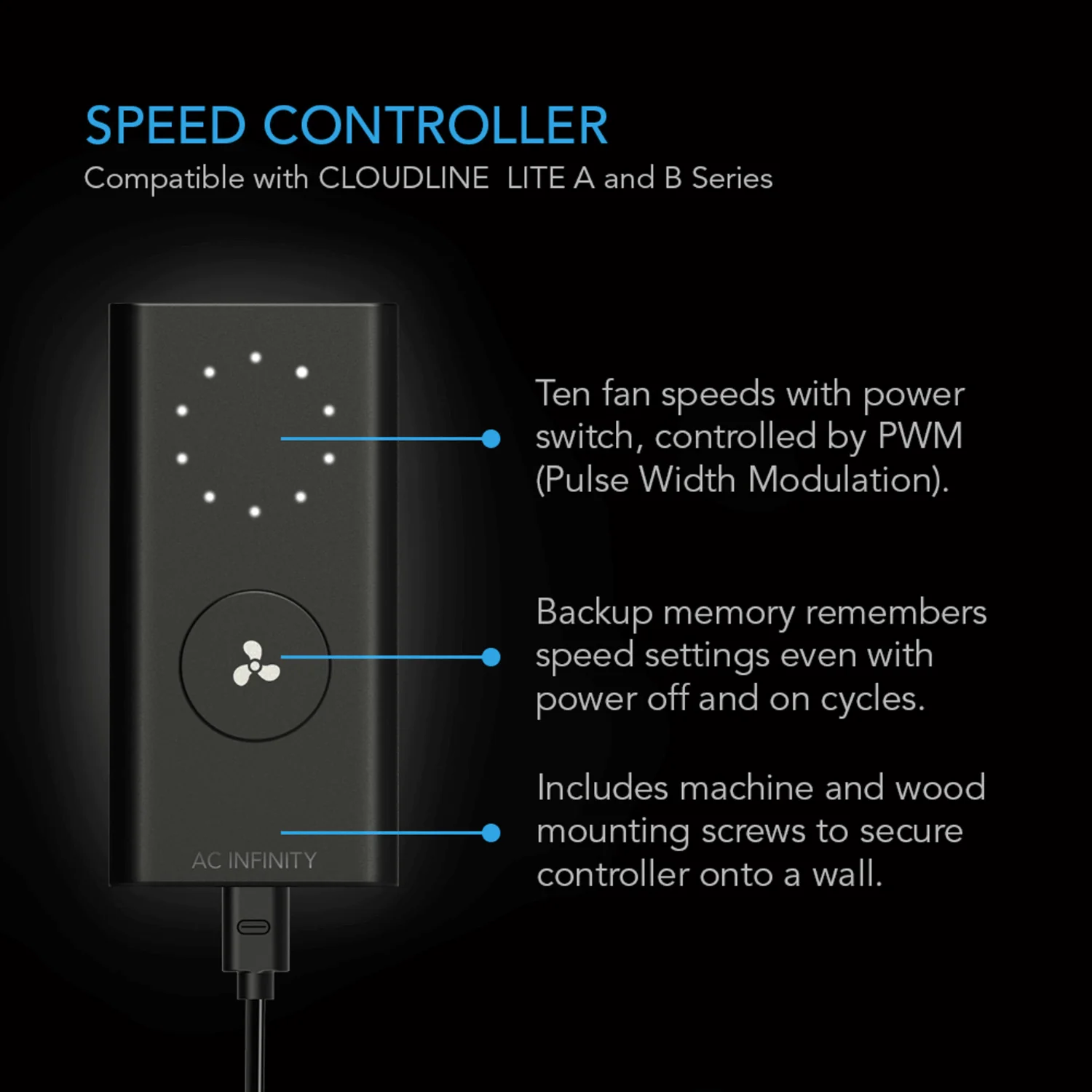

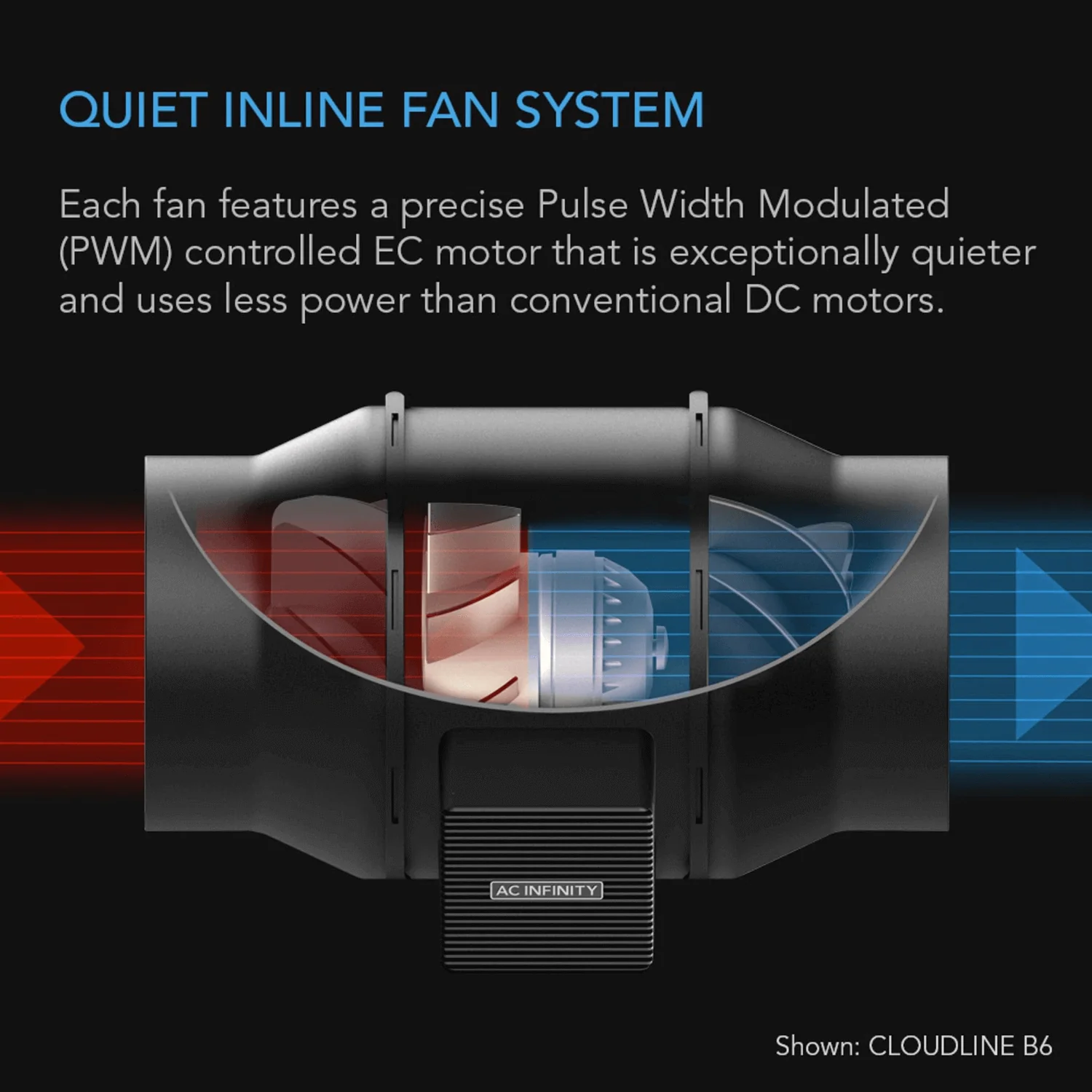

  • Highly Efficient Performance: The CLOUDLINE inline fan offers silent and high-performance airflow using a 10-speed fan controller, stator blades, and dual hydrodynamic wind circles. All these features aid in delivering excellent airflow even in restrictive applications. Additionally, the fan has an impressive 67,000-hour lifespan and is IP-44 rated for resistance against dust and splashing liquids.

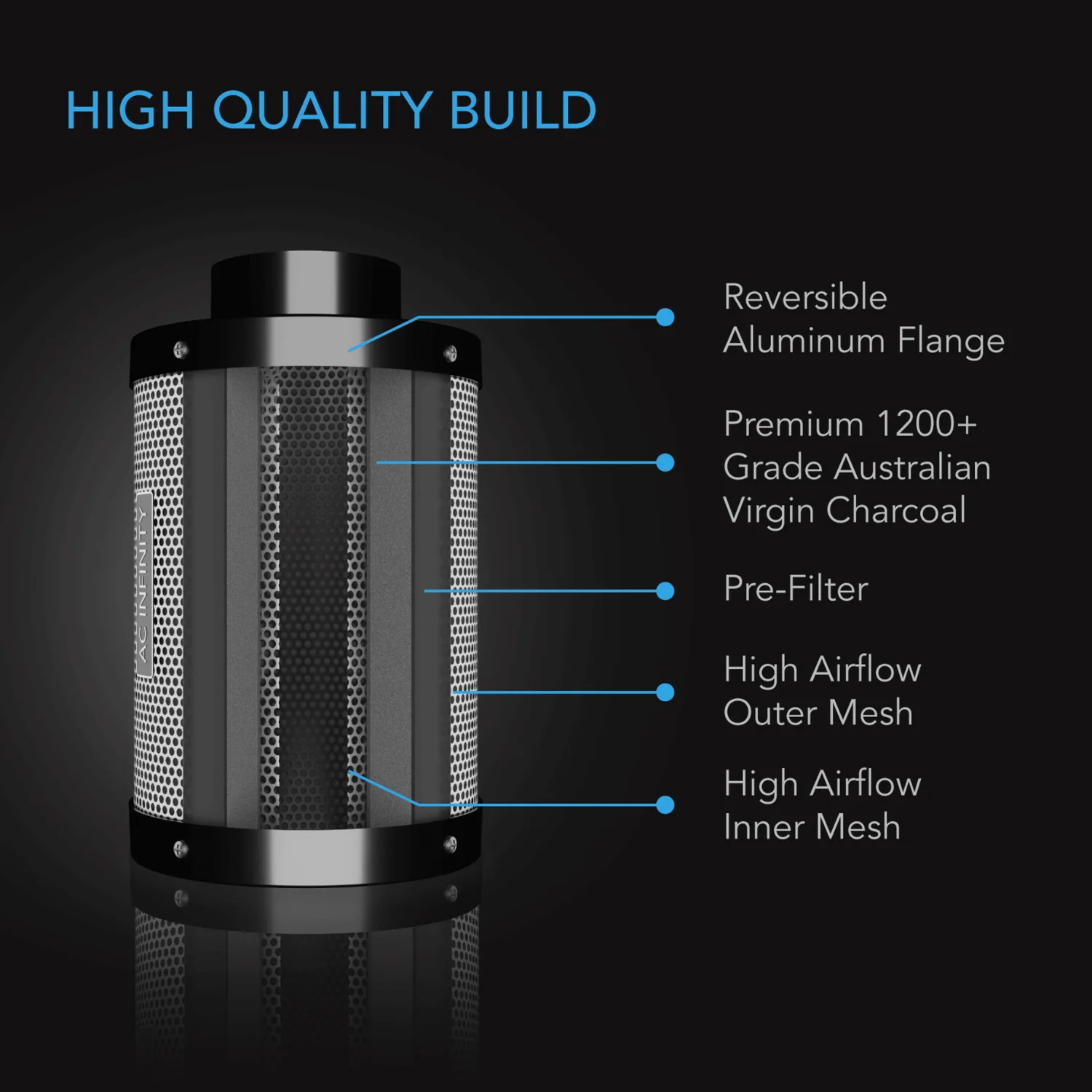

  • Premium Carbon Filter: The kit includes a carbon filter using a 38mm thick bed of Australian activated charcoal with an IAV rating of 1200+. This feature effectively absorbs odor molecules and prolongs the carbon filter's life. Furthermore, it includes prefilter cloths and reversible flanges for convenience.

  • Robust Four-Layer Ducting: The flexible ducting in the kit is designed for durability with four layers of protection to resist tears and leaks and a robust internal steel wire structure. It's also fire-resistant and offers 25 feet of customizable length.

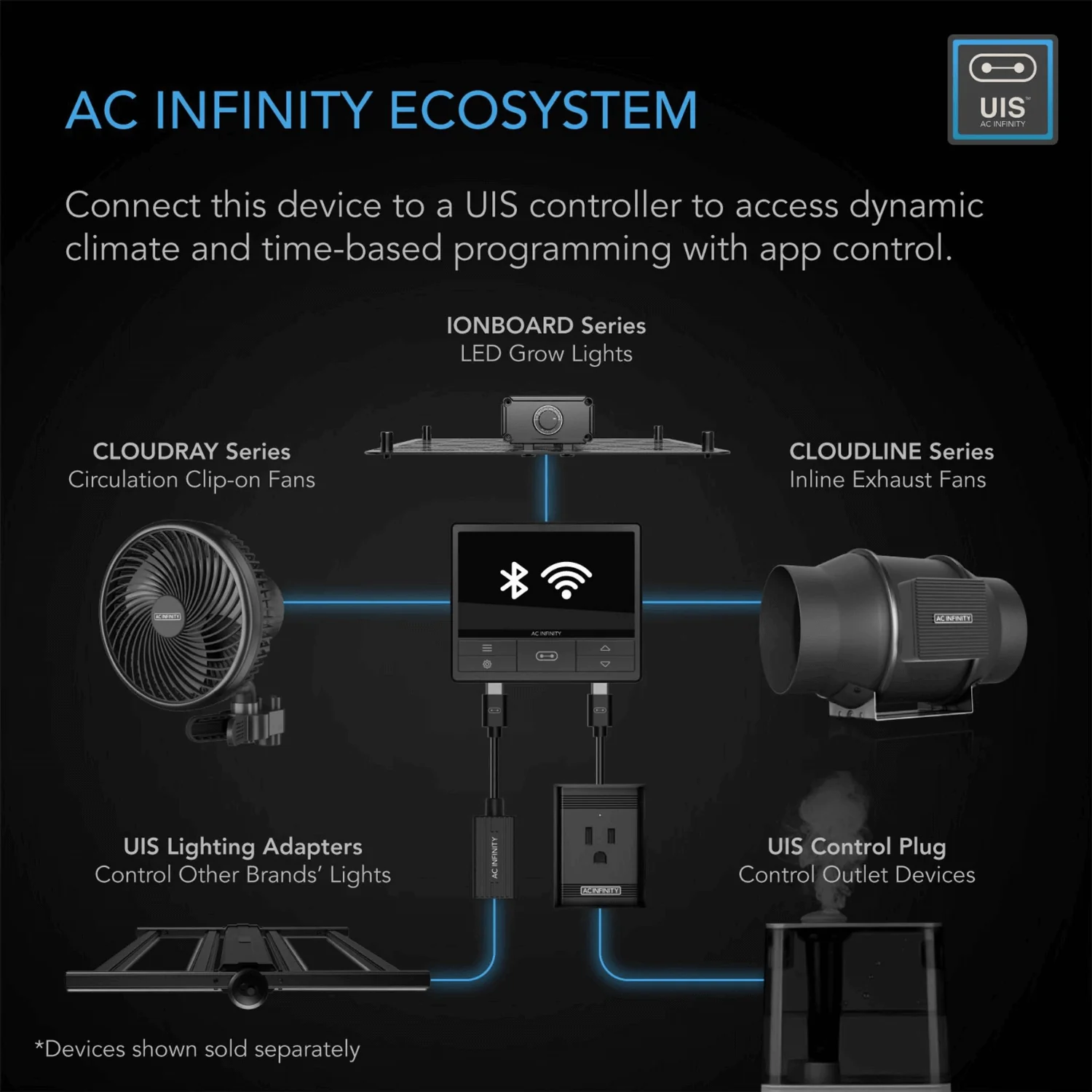

  • Complete Ventilation System: This kit includes everything necessary to ventilate your growth space efficiently. It eliminates the confusion of individual purchases and provides a quick setup. It's part of the UIS™ platform of grow devices and smart controllers, designed for an ideal environment. The kit's duct size is 4", and airflow capacity is 165 CFM, along with a low noise level of 29db.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Air Filtration Kit 4"
  • Product Model: AC-FKS4
  • UPC Code: 819137022065

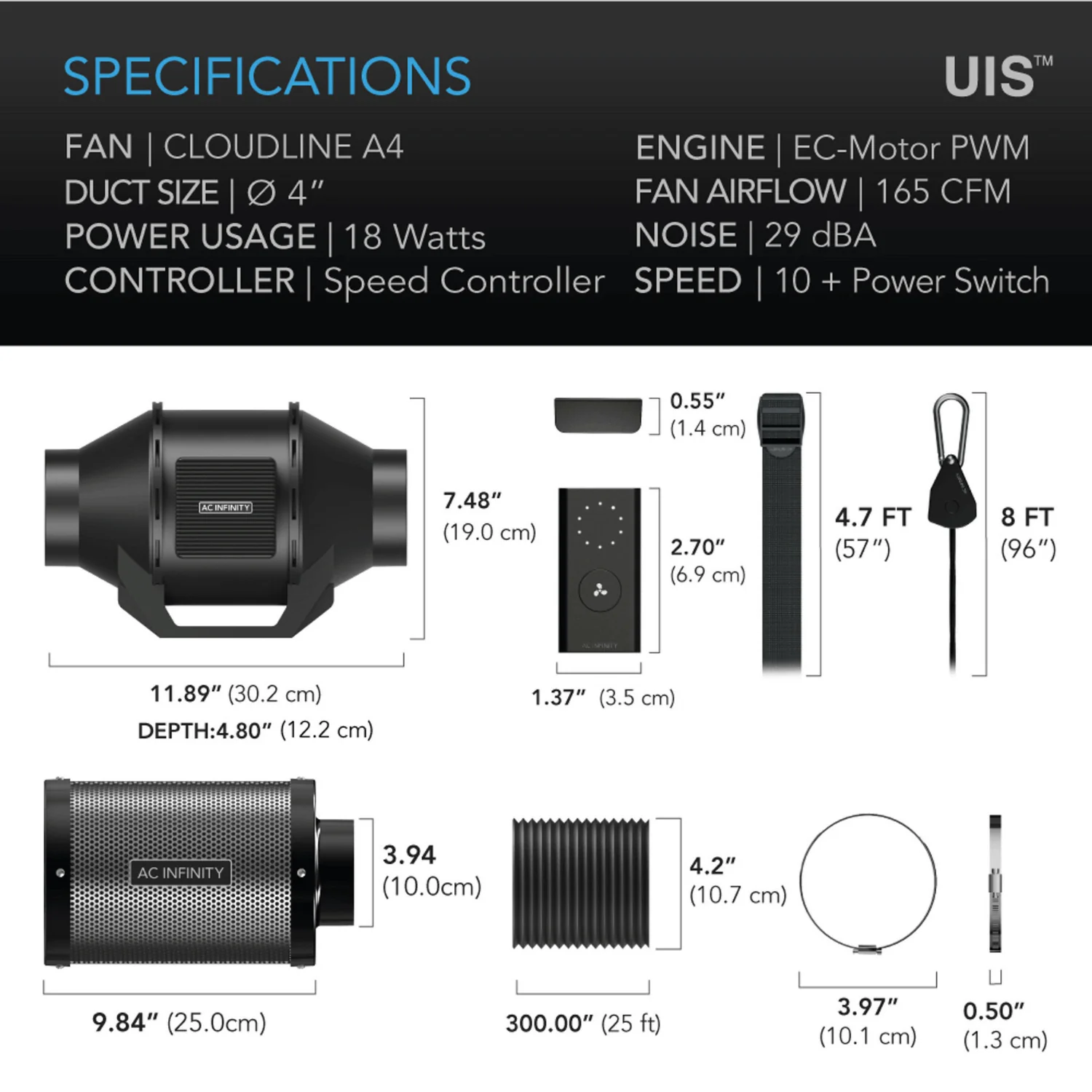

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 4"
  • Total Dimensions: 7.48 x 11.89 x 6.93 in.
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 in.
  • Screw Hole Size: Ø 0.197 in.
  • Cord Length to Controller: 72 in. (6 feet)
  • Cord Length to Plug: 72 in. (6 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 2.70 x 1.37 x 0.55 in.

  • Product Performance and Technical Specs - Fan Unit
  • Total Airflow (Fan Only): 165 CFM
  • Total Noise: 29 dBA
  • Max Speed: 2800 RPM
  • Static Pressure: 324 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 35 W
  • Average Power Usage: 18 W
  • Current: 0.55 A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours

  • Product and Mounting Dimensions - Carbon Filter
  • Duct Opening Size: 4"
  • Total Dimensions: 13.35 x 6.97 in.
  • Flange Length: 1.46 in.

  • Product Performance and Technical Specs - Carbon Filter
  • Flange Material: Aluminum
  • Mesh Material: Galvanized Steel
  • Carbon Type: Australian Virgin RC412
  • Carbon Grade: 1200+ IAV
  • Carbon Thickness: 38mm
  • Maximum Airflow: 210 CFM

  • Product Dimensions - Ducting
  • Ducting Size: 4 in.
  • Length: 300 in. (25 ft)

  • Product Performance and Technical Specs - Ducting
  • Outer Layer: PVC Thermoplastic
  • Inner Material: Aluminum Foil
  • Internal Structure: Spiral Steel-Wire
    • Data Sheet
  • Download the Product Manual: here
  • Download the CE Certification: here
  • Download the RoHS Certification: here
