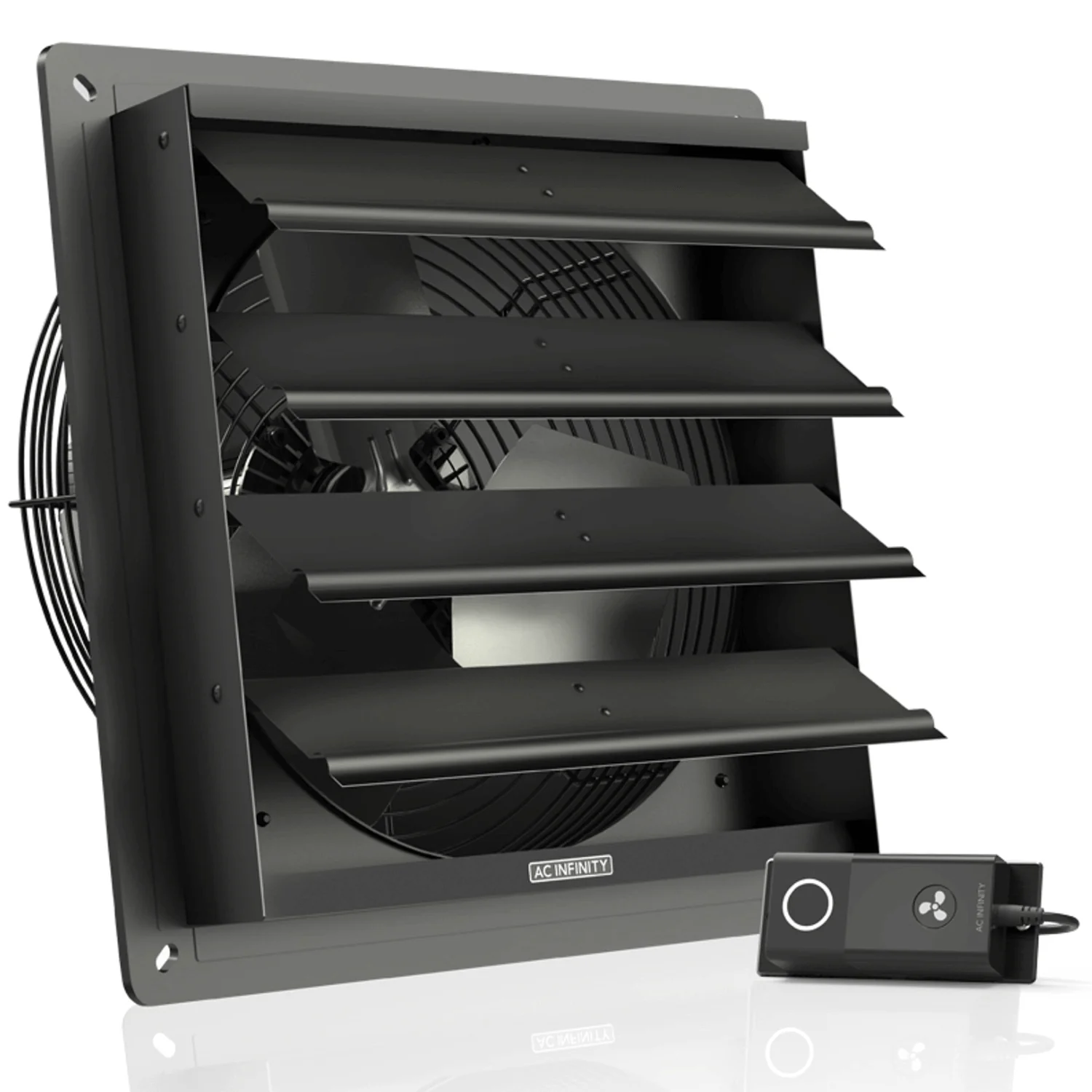

AC Infinity AIRLIFT S12, Shutter Exhaust Ventilation Fan 12", Speed Controller

Description

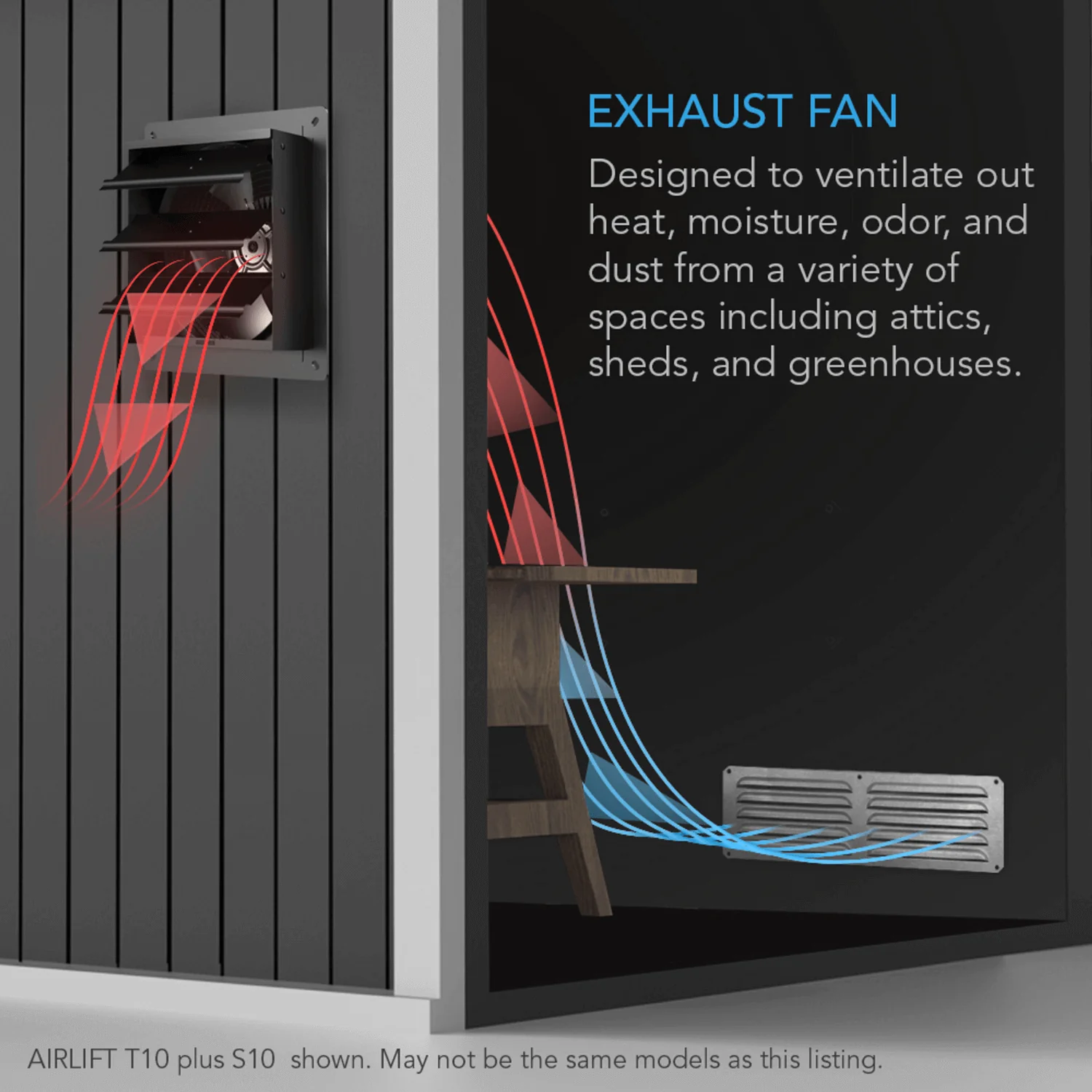

  • High-Airflow Exhaust Fan: This fan is designed to ventilate heat, moisture, odor, and dust from various spaces. It includes an 8-speed manual controller employing PWM (Pulse Width Modulation), steel shutters, aluminum blades, and achieves an IP-44 rating for liquid and dust resistance.

  • Dimension and Capacity: The 12” fan measures 15.75 x 15.75 x 8.14 inches, supporting an airflow of 830 CFM, noise level at 62 dBA, and is equipped with Dual Ball bearings.

  • Product Description: Ideal for cooling and ventilating greenhouses, garages, attics, workshops, and sheds, this high-airflow fan can automatically ward off heat, moisture, odor, and dust. It features an inline speed controller using PWM-technology, innovative EC-motor which maximizes airflow while reducing energy consumption and noise levels, and includes a mounting kit.

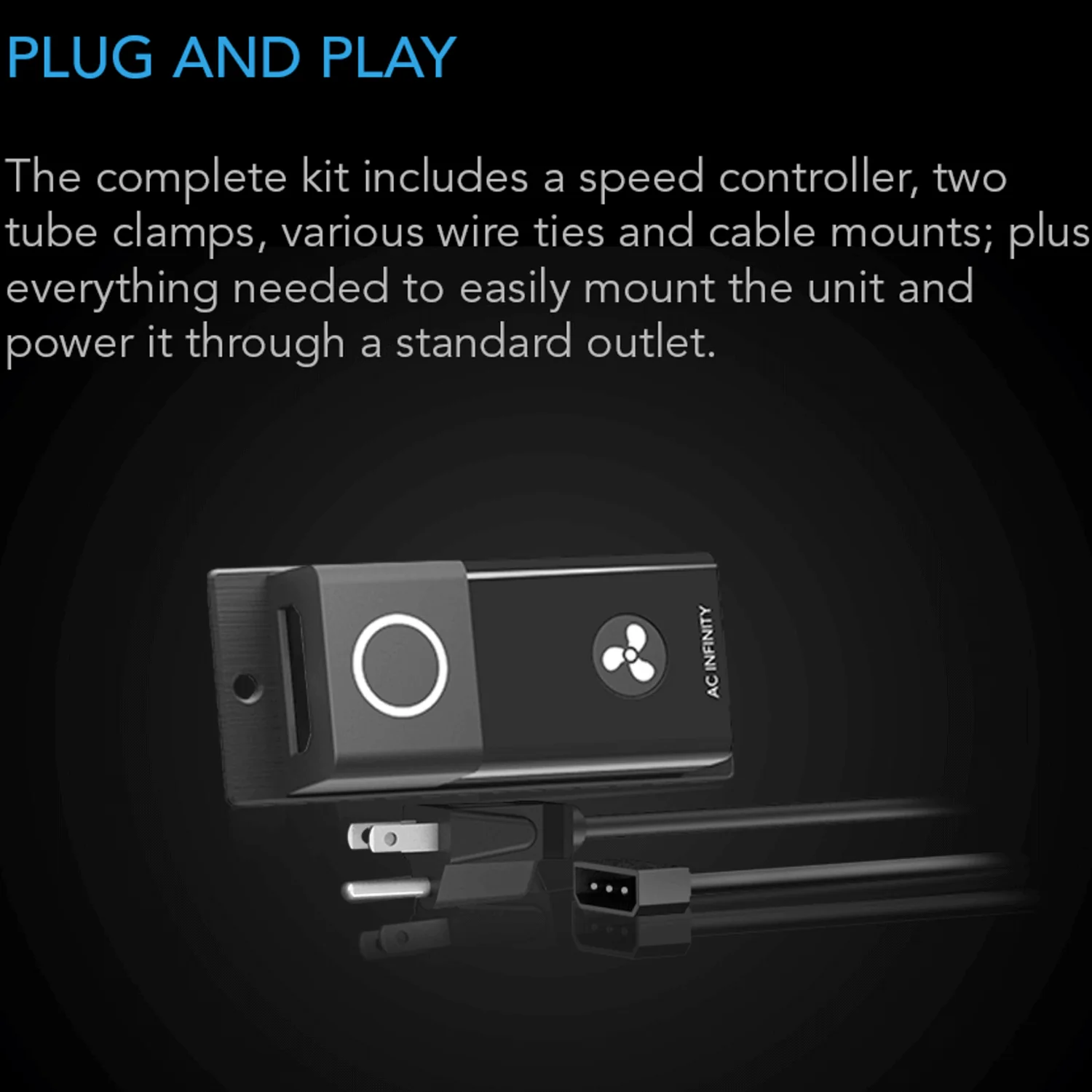

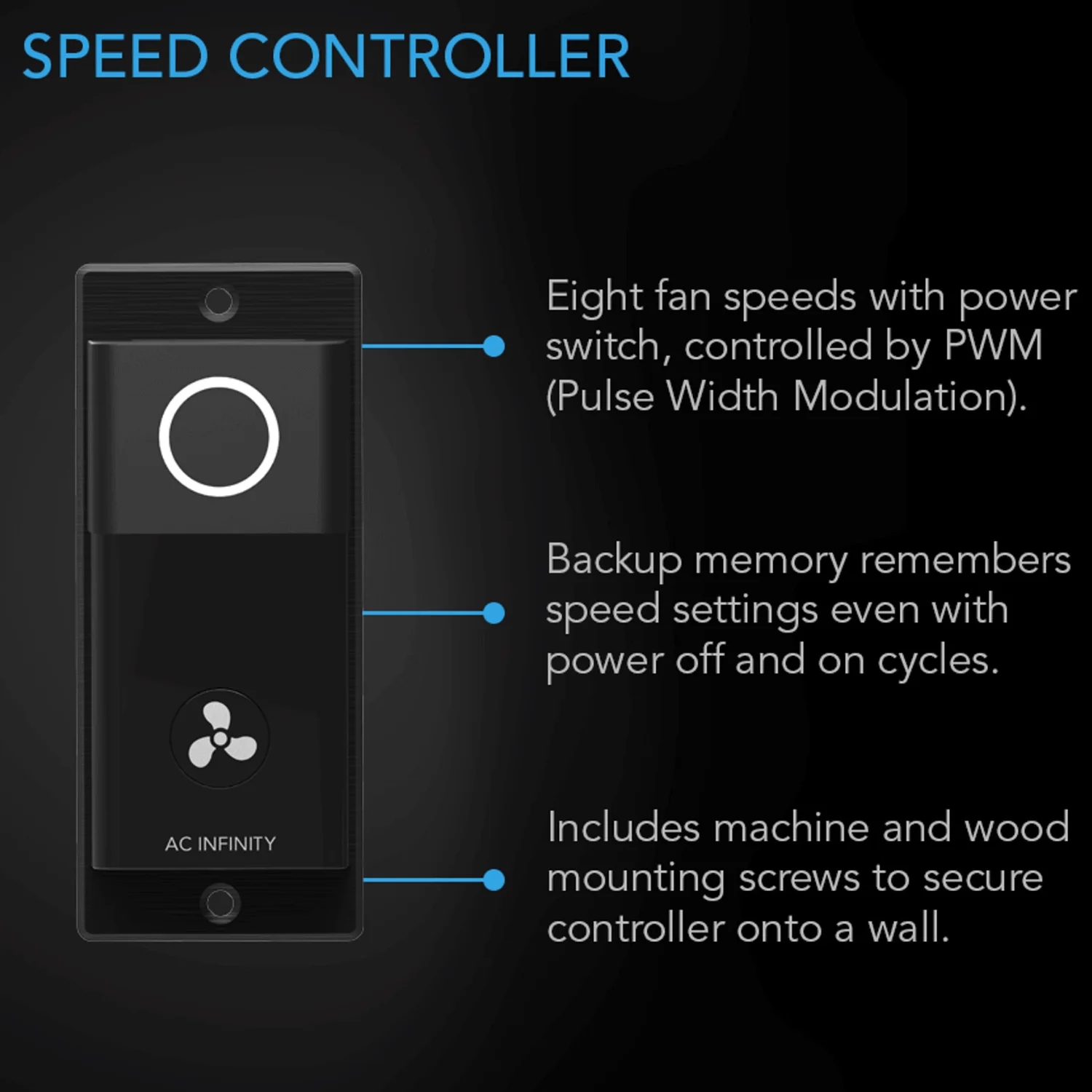

  • Precise Speed Controller: The inline speed controller helps adjust the fan’s speed for optimal noise and airflow levels in different settings. The EC-motor, controlled using PWM (Pulse Width Modulation), allows the fan to run smoothly at extremely low RPM speeds without creating motor noises and heat. It includes eight-speed options with a power switch, and a memory backup feature.

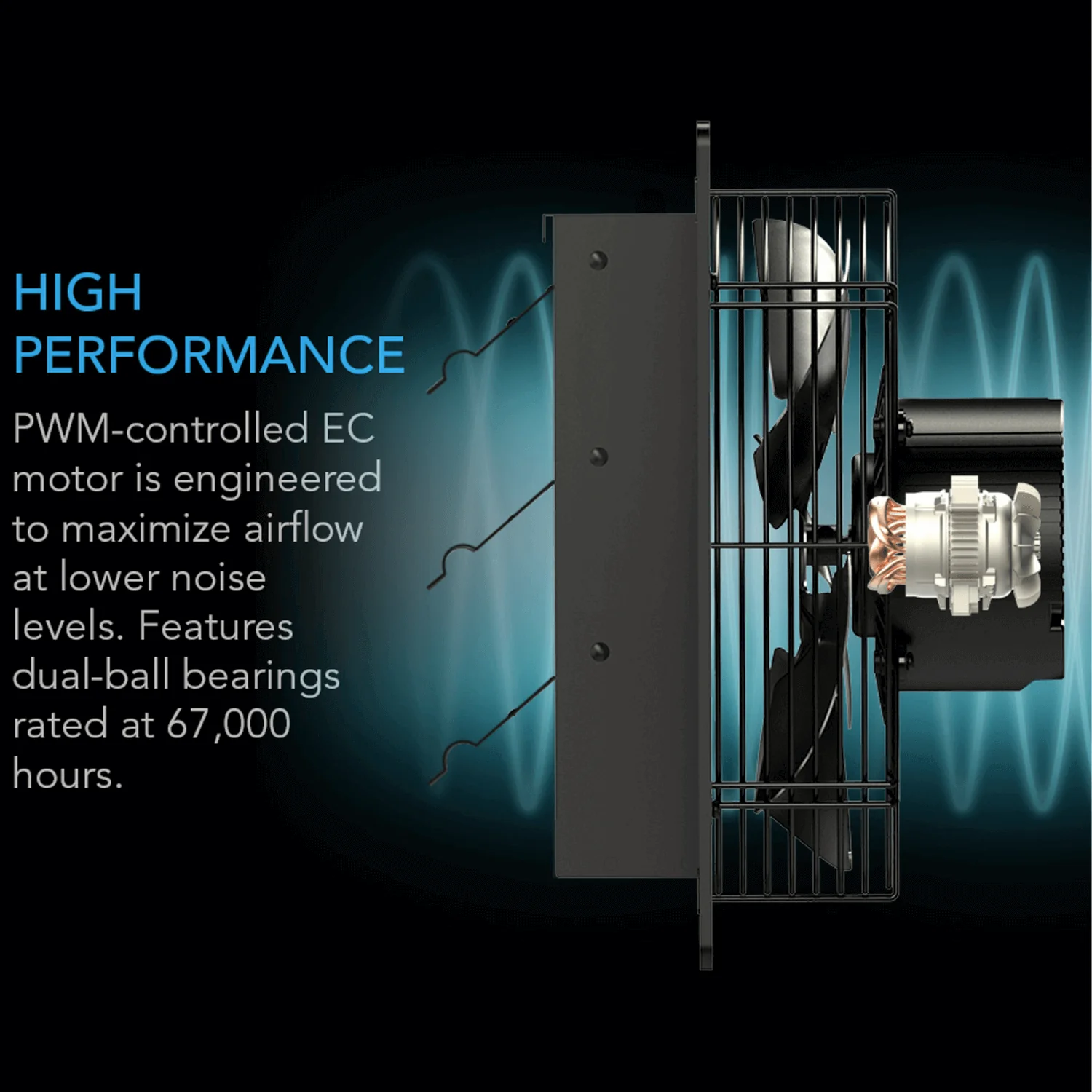

  • Heavy-duty Performance: This fan boasts weather and corrosion-resistant steel shutters which automatically close when not in use, and the blades and impeller are crafted from lightweight aluminum, weight-balanced for reduced vibrations. The fully-enclosed motor is permanently lubricated and houses dual-ball bearings with a 67,000-hour rating. The unit is IP-44 rated for high resistance to dust and liquids, ensuring performance even in harsh conditions.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRLIFT S12
  • Product Model: AC-ALS12
  • UPC Code: 819137021440

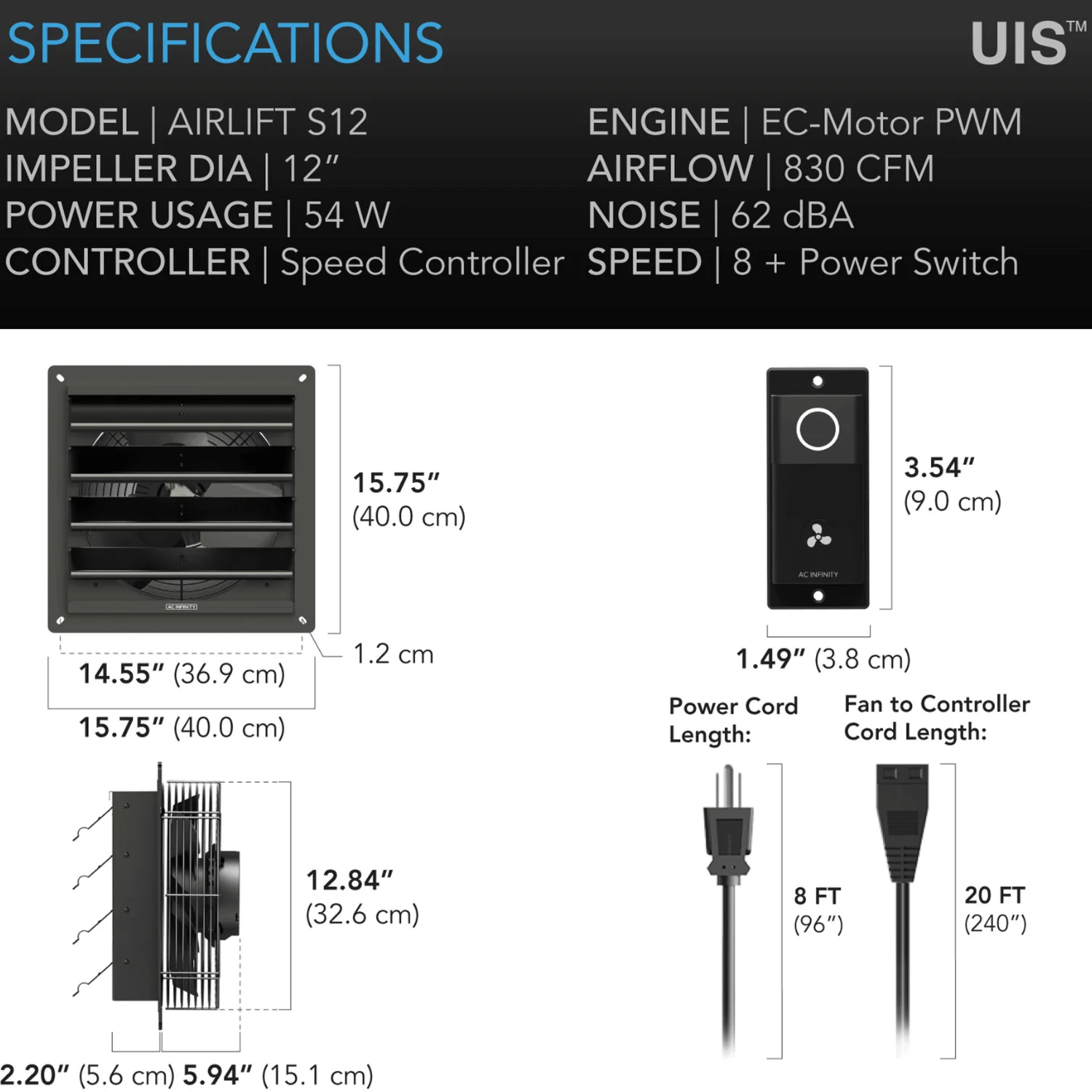

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 15.75 x 15.75 x 8.14 in. (33.0 x 33.0 x 20.7 cm)
  • Frontside Enclosure Dimensions: 13.38 x 13.38 x 2.20 in. (34.0 x 34.0 x 5.6 cm)
  • Required Mounting Hole: 13.54 x 13.54 in. (34.4 x 34.4 cm)
  • Hole to Hole Distance: 14.21 x 14.21 in. (36.1 x 36.1 cm)
  • Screw Hole Size: Ø 0.27 in. (Ø 0.7 cm)
  • Cord Length to Controller: 240 in. (20 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
  • Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)
  • Hole to Hole Distance: 2.87 in. (7.3 cm)
  • Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)
  • Cord Length to Plug: 96 in. (8 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 830 CFM
  • Total Noise: 62 dBA
  • Static Pressure: 73 Pa
  • Operating Voltage: 100-240V AC
  • Power: 54W
  • Current: 1.0A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
