AC Infinity AIRTAP T4, Quiet Register Booster Fan System, White, for 4" x 10" Registers

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

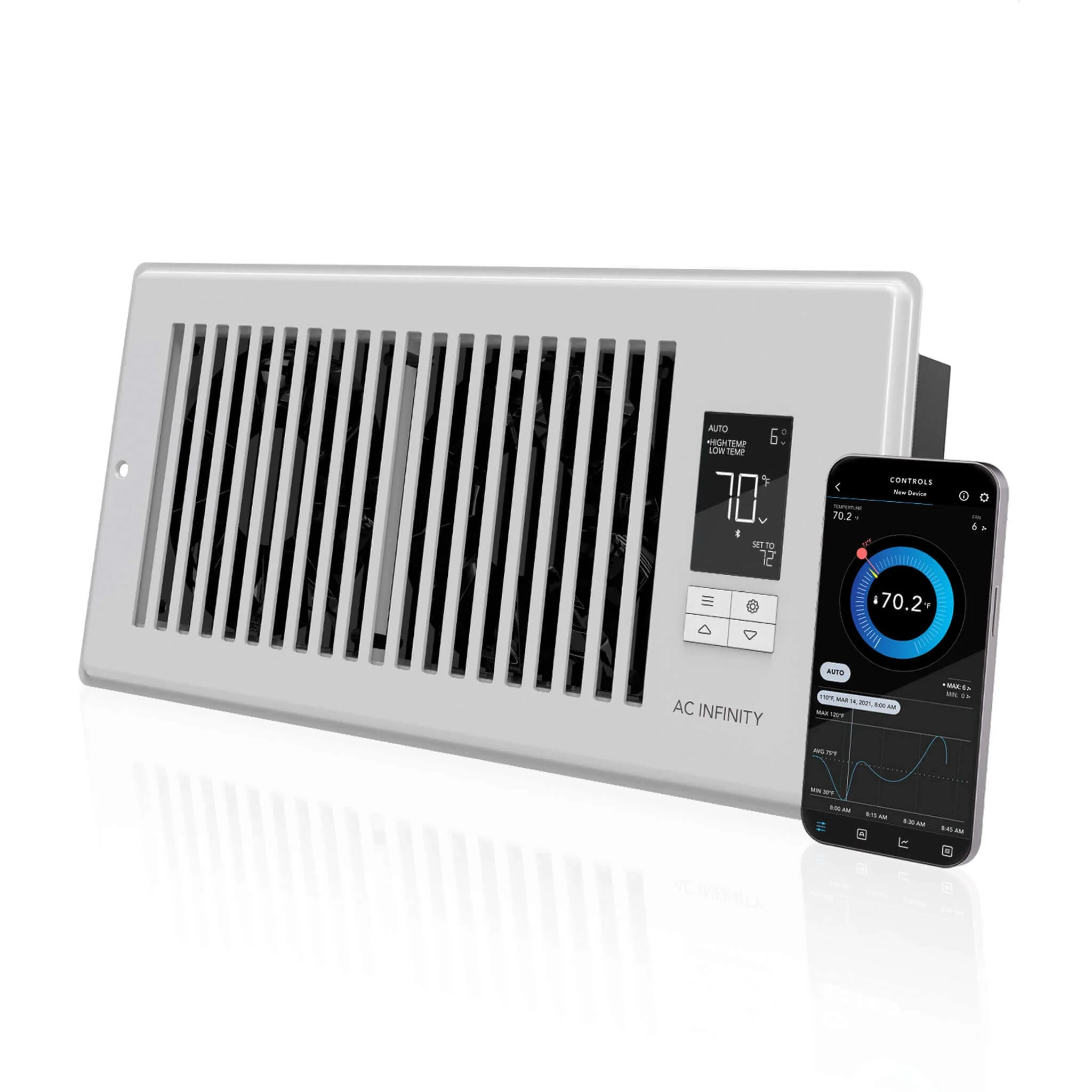

AC Infinity AIRTAP T4, Quiet Register Booster Fan System, White, for 4" x 10" Registers

Description

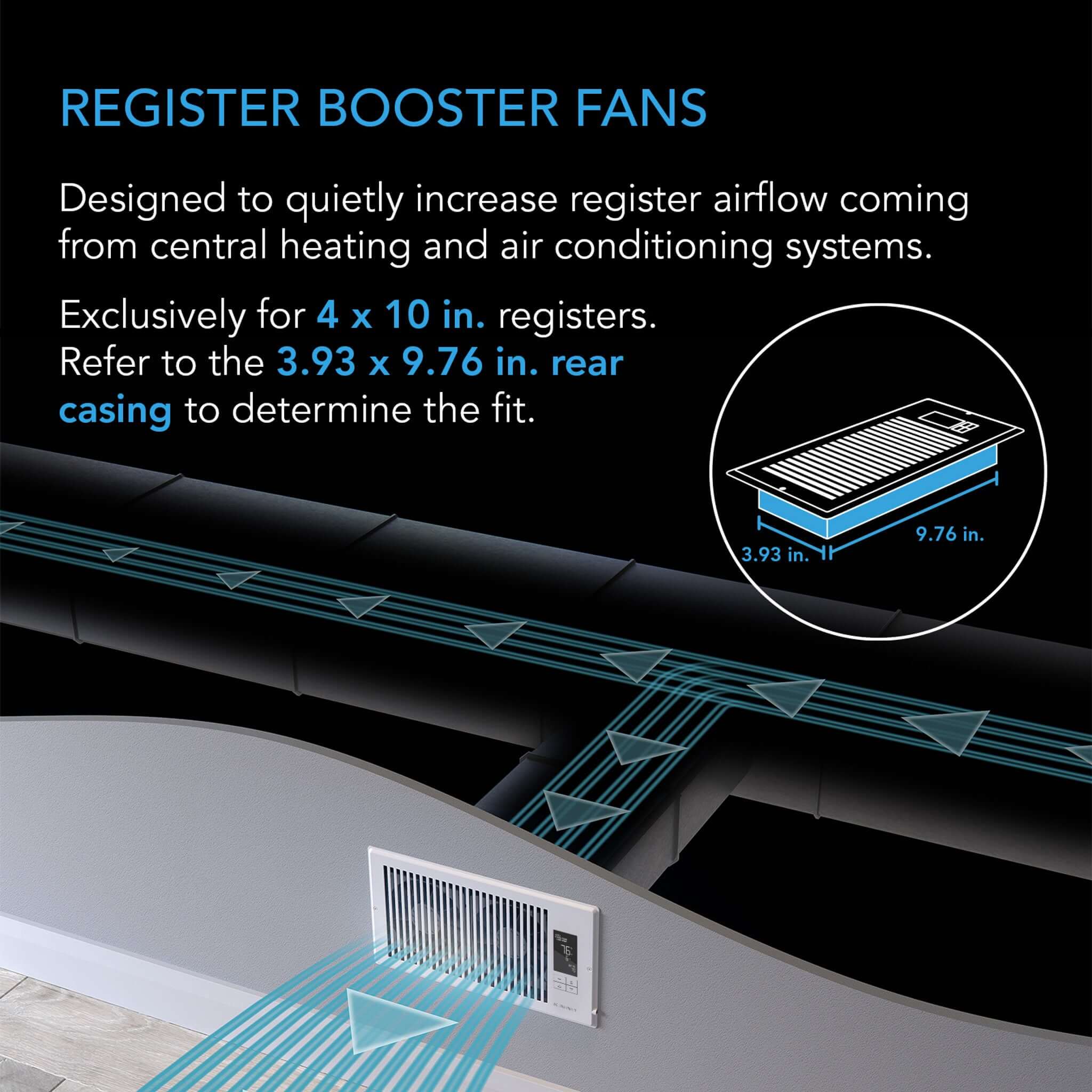

  • Register Fan Design: This fan is designed to boost and improve the existing airflow from your home's HVAC system register holes. The system is designed to heighten the output of warm or cool air from registers where the air flow tends to be weak, enhancing the comfort level in your rooms and reducing your energy costs.

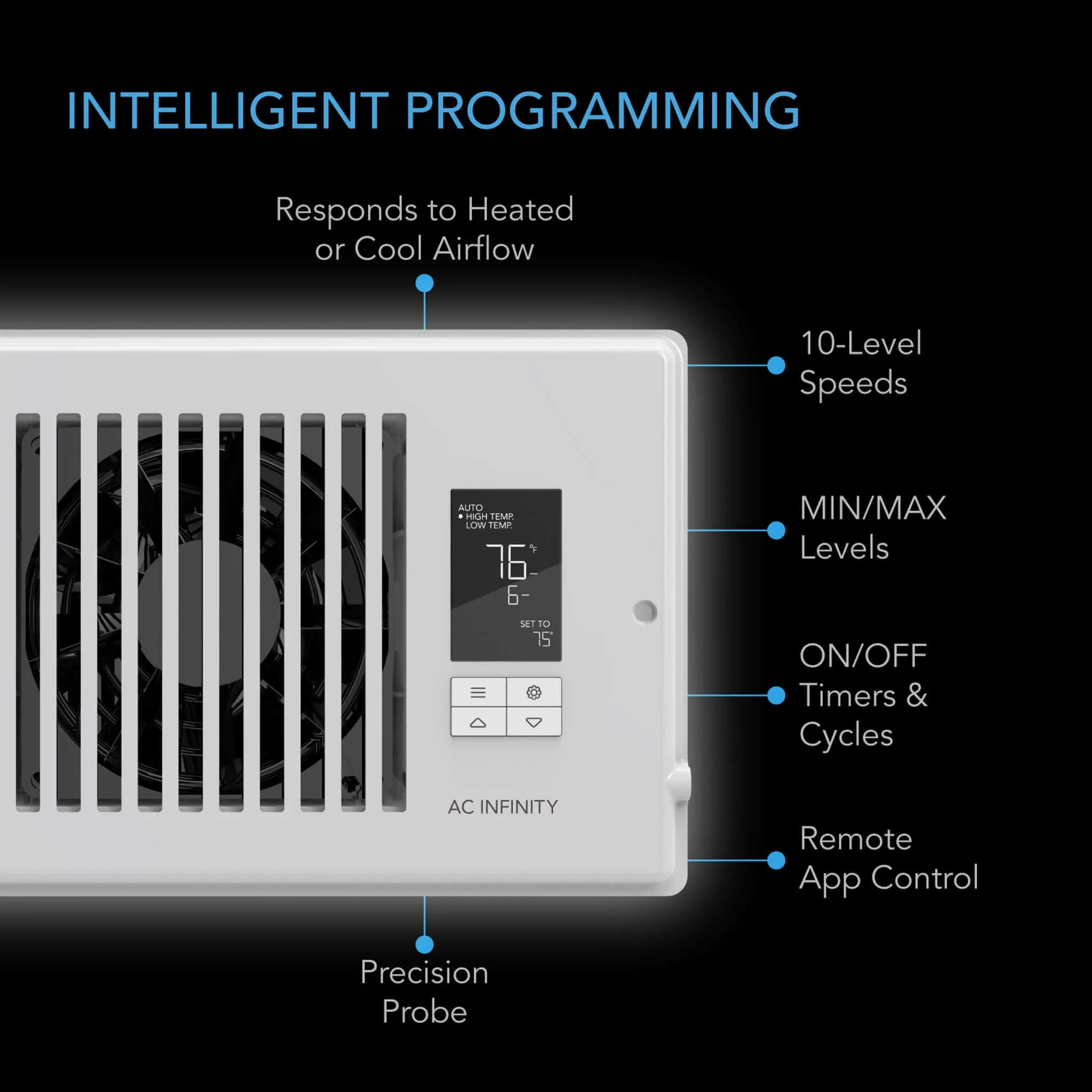

  • Smart Controller: Equipped with an onboard controller, this fan features 10-level speeds, heating and cooling triggers, as well as timer and cycle programming. You can further access these controls remotely by connecting to the AC Infinity app via Bluetooth, enabling automation capabilities wherever you are.

  • Premium Design: This fan system showcases a premium anodized aluminum frame, adorned with CNC-machined detailing, presenting a flush and clean appearance that gives a clean, aesthetic look to your register.

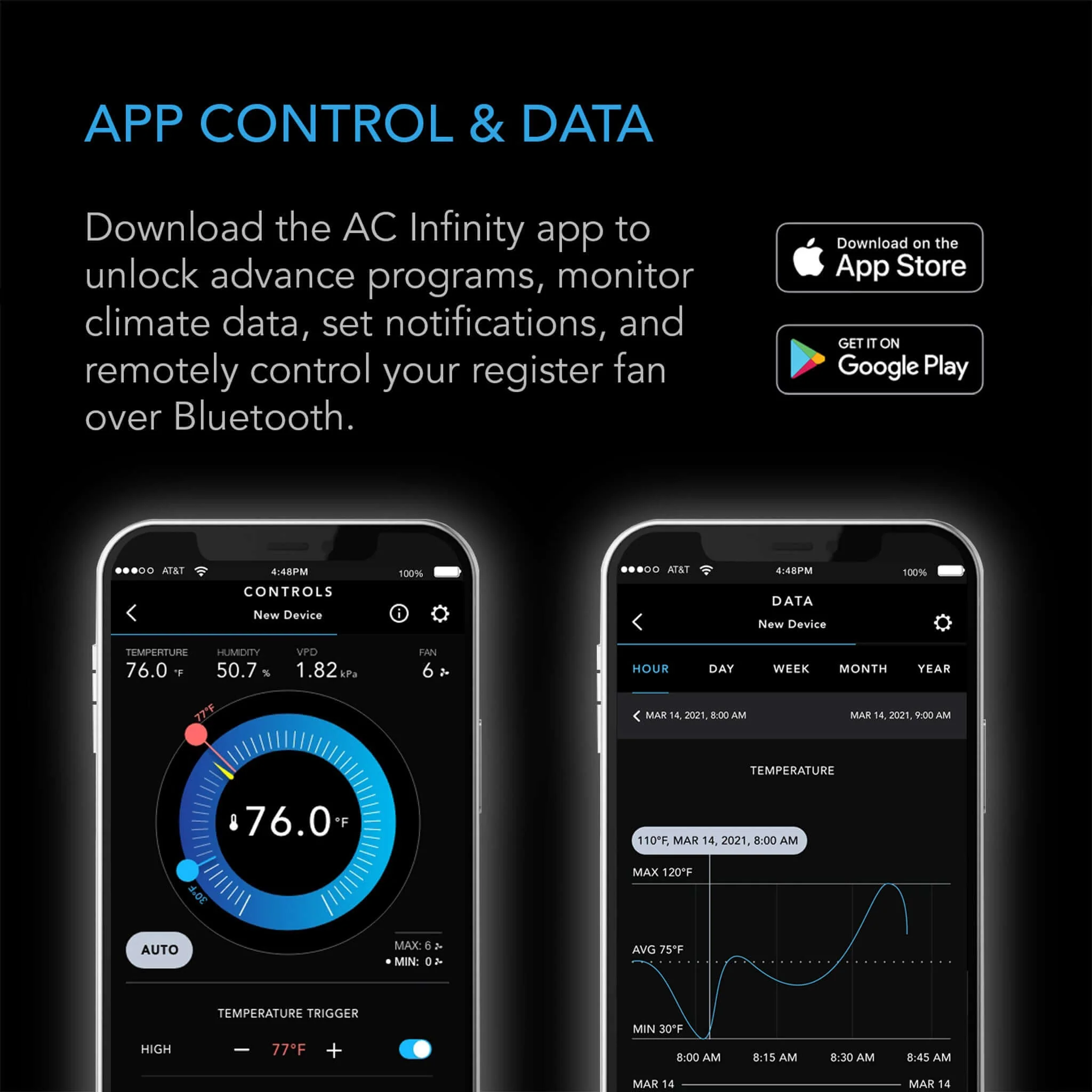

  • Intelligent Programming: It is intelligently programmed with active thermal monitoring, implementing temperature triggers to activate this fan when it crosses certain heating or cooling thresholds. The minimum baseline levels ensure that the fan continues to run at low speeds for consistent airflow. With the ability to securely connect to the AC Infinity app via Bluetooth, you can set alarms and notifications, view historical charts, and export CSV data.

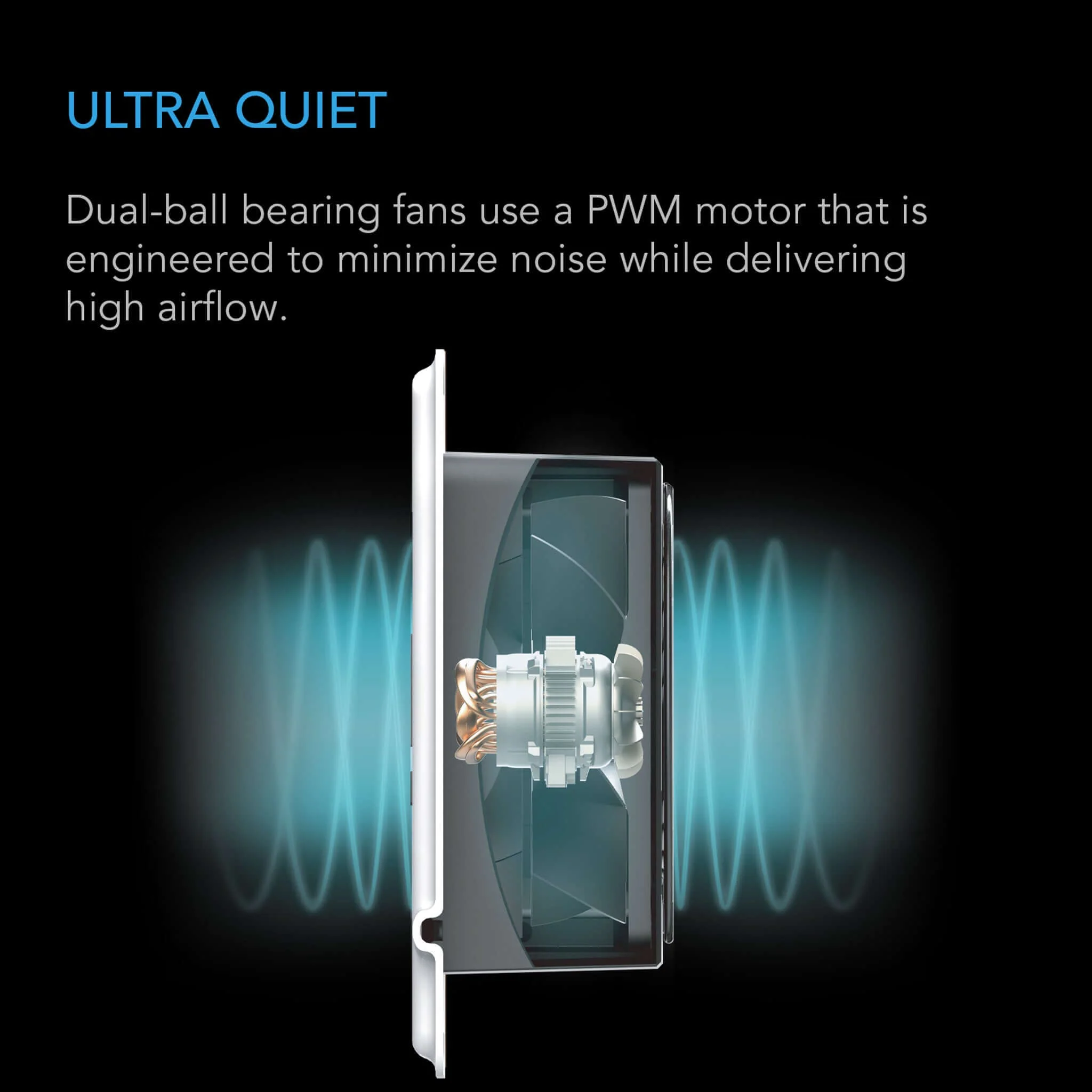

  • Heavy-duty Performance: The system employs a high-performance DC motor controlled via Pulse Width Modulation (PWM) technology. This enables the dual fans to operate at extremely low RPM speeds without producing motor or electromagnetic noise. The motor utilizes dual ball bearings rated at 67,000 hours and is certified by CE and RoHS. Please note, it's designed to fit ONLY 4 x 10 in registers and features an airflow rate of 130 CFM with a noise level of 17 Dba. The fan color is white.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRTAP T4, White
  • Product Model: AC-RBF4-W
  • UPC Code: 819137020245

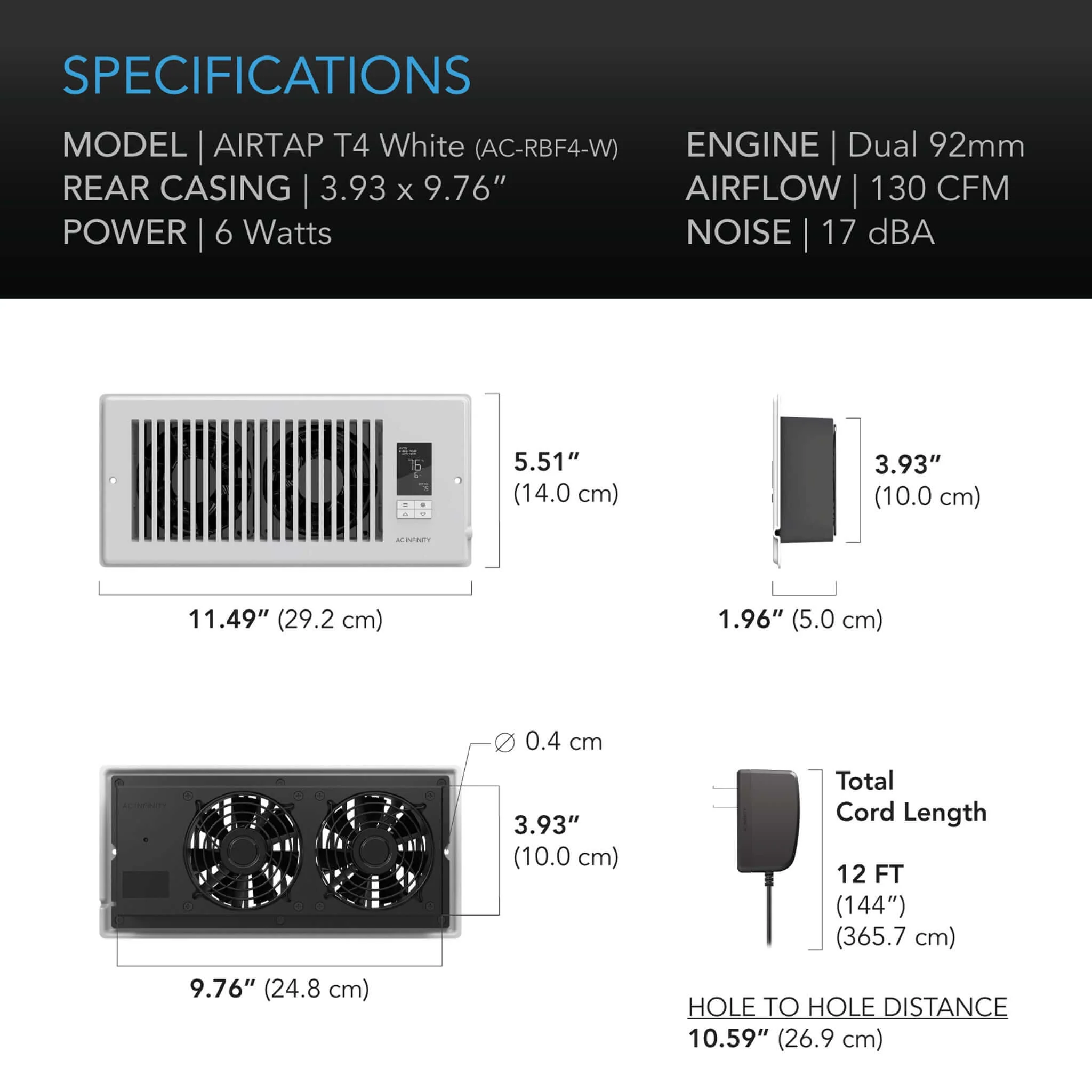

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 11.54 x 5.51 x 1.96 in. (29.3 x 14.0 x 5.0 cm)
  • Backside Enclosure Dimensions: 9.72 x 3.93 in. (24.7 x 10.0 cm)
  • Hole to Hole Distance: 10.55 inches (26.8 cm)
  • Screw Hole Size: Ø 0.197 in (Ø 0.4 cm)
  • Cord Length: 144 in. (12 feet)

  • Product Performance and Technical Specs
  • Fits Register Sizes: 4 x 10 in.
  • Design: White
  • Total Airflow: 130 CFM
  • Total Noise: 17 dBA
  • Static Pressure: 6.5 mm-H2O
  • Operating Voltage: 12V DC
  • Power: 6 W
  • Current: 0.4 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • $27.00

    Original: $89.99

    -70%
    AC Infinity AIRTAP T4, Quiet Register Booster Fan System, White, for 4" x 10" Registers—

    $89.99

    $27.00
