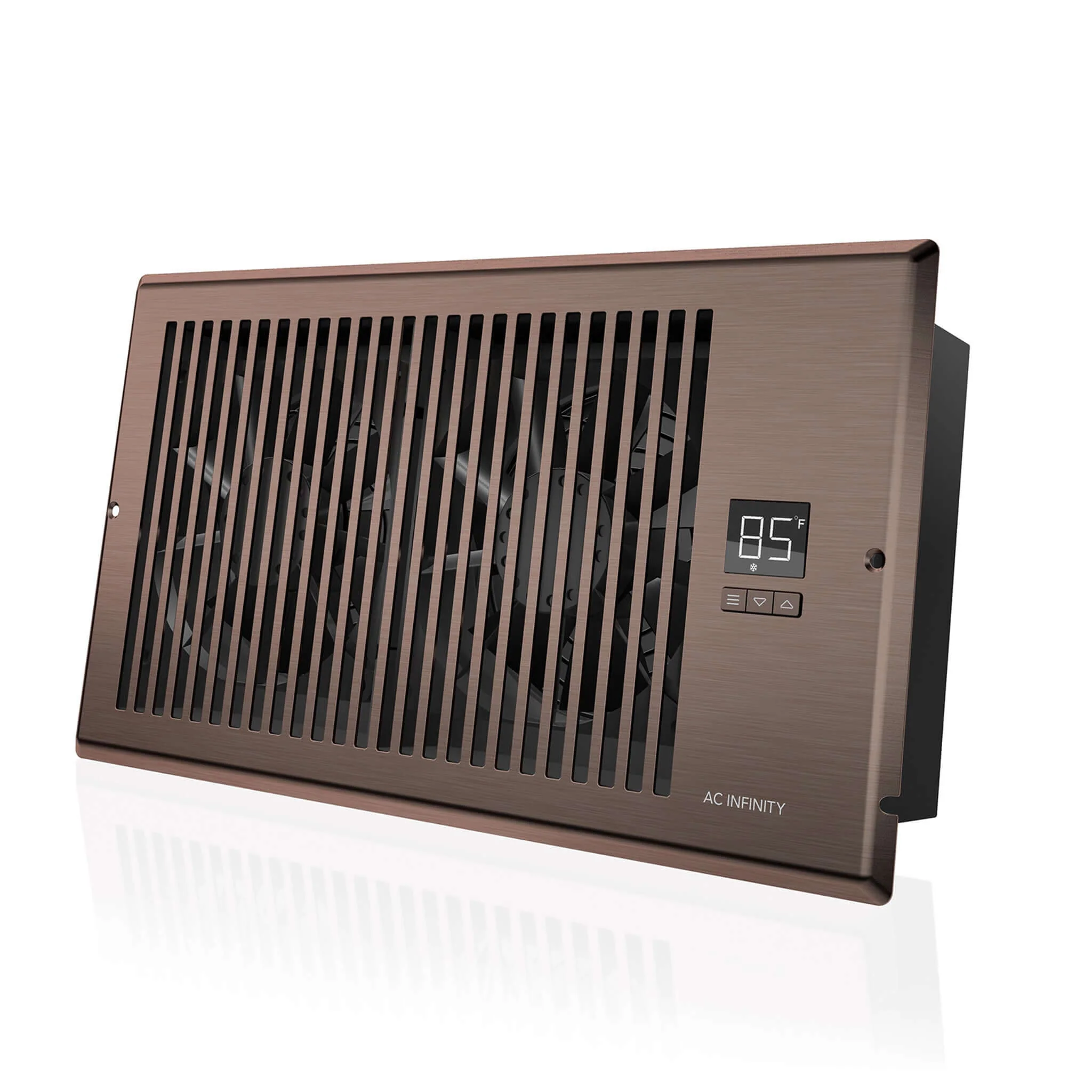

AC Infinity AIRTAP T6, Quiet Register Booster Fan System, Bronze, for 6" x 12" Registers

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

AC Infinity AIRTAP T6, Quiet Register Booster Fan System, Bronze, for 6" x 12" Registers

Description

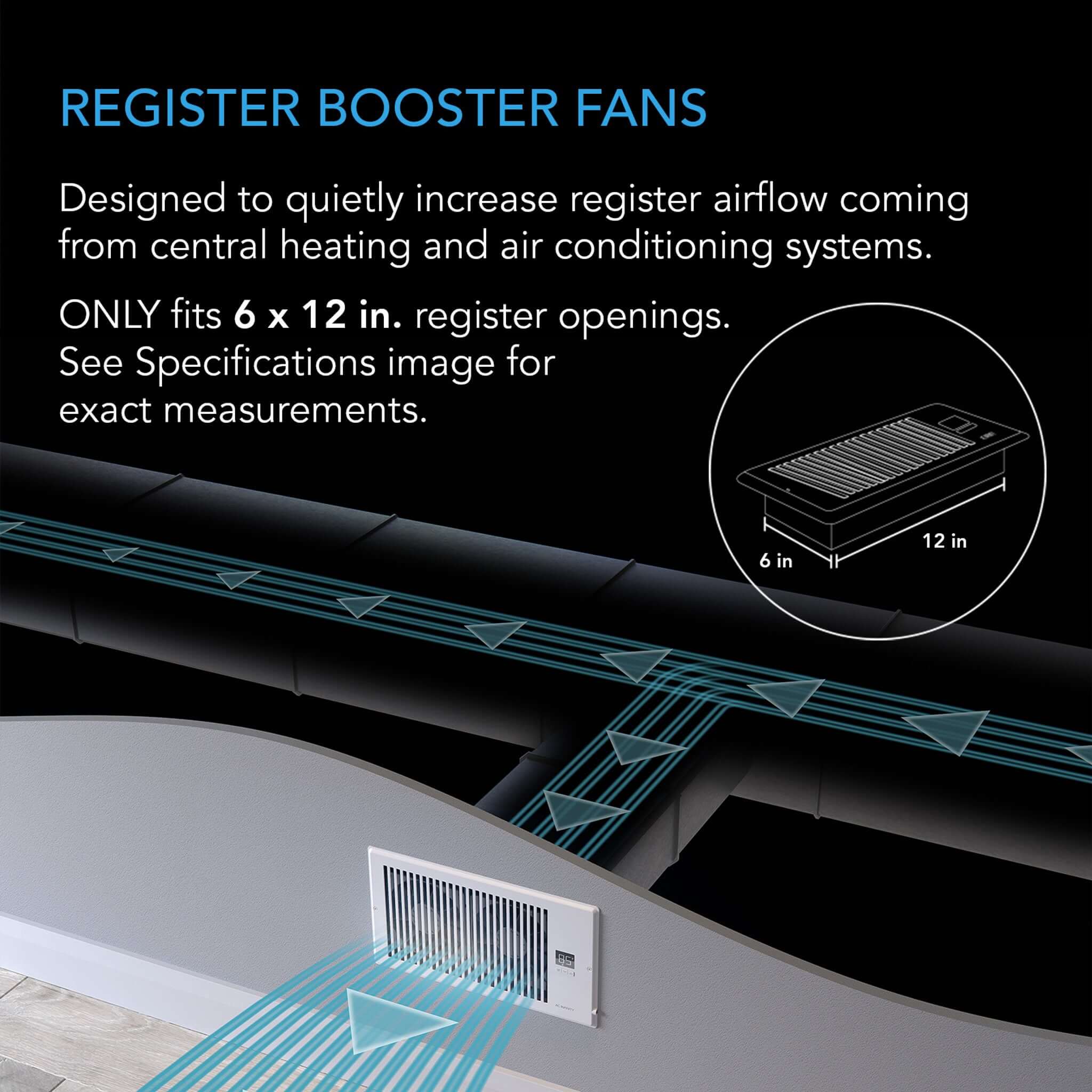

  • Quiet Fan System: This system has been designed to improve airflow from HVAC systems through wall and floor registers. It boasts of a programmable LCD controller equipped with a heating and cooling thermostat, along with automated fan speeds, resulting in increased room comfort and reduced energy costs.

  • Superior Build: The fan system dons a premium aluminum frame with CNC-machined detailing, all coated in a matte-white finish, rendering a professional look. Please note that it fits ONLY 6 x 12 in. registers and comes with a bronze color design.

  • Excellent Performance: Our system features stator-blade fans that deliver strong airflow, particularly from high static-pressure ductwork. The dual 120 mm engine, with an airflow capacity of 160 CFM, functions at a low noise level of 20 Dba.

  • Product Description: A tailored fan system, our product is intended to be mounted onto wall or floor registers for boosting airflow. It comes with an LCD display for smart thermostat control and customizable fan speeds. The fan system includes all the necessary hardware and a power supply required for secure installation onto an existing register opening and powering it through an outlet.

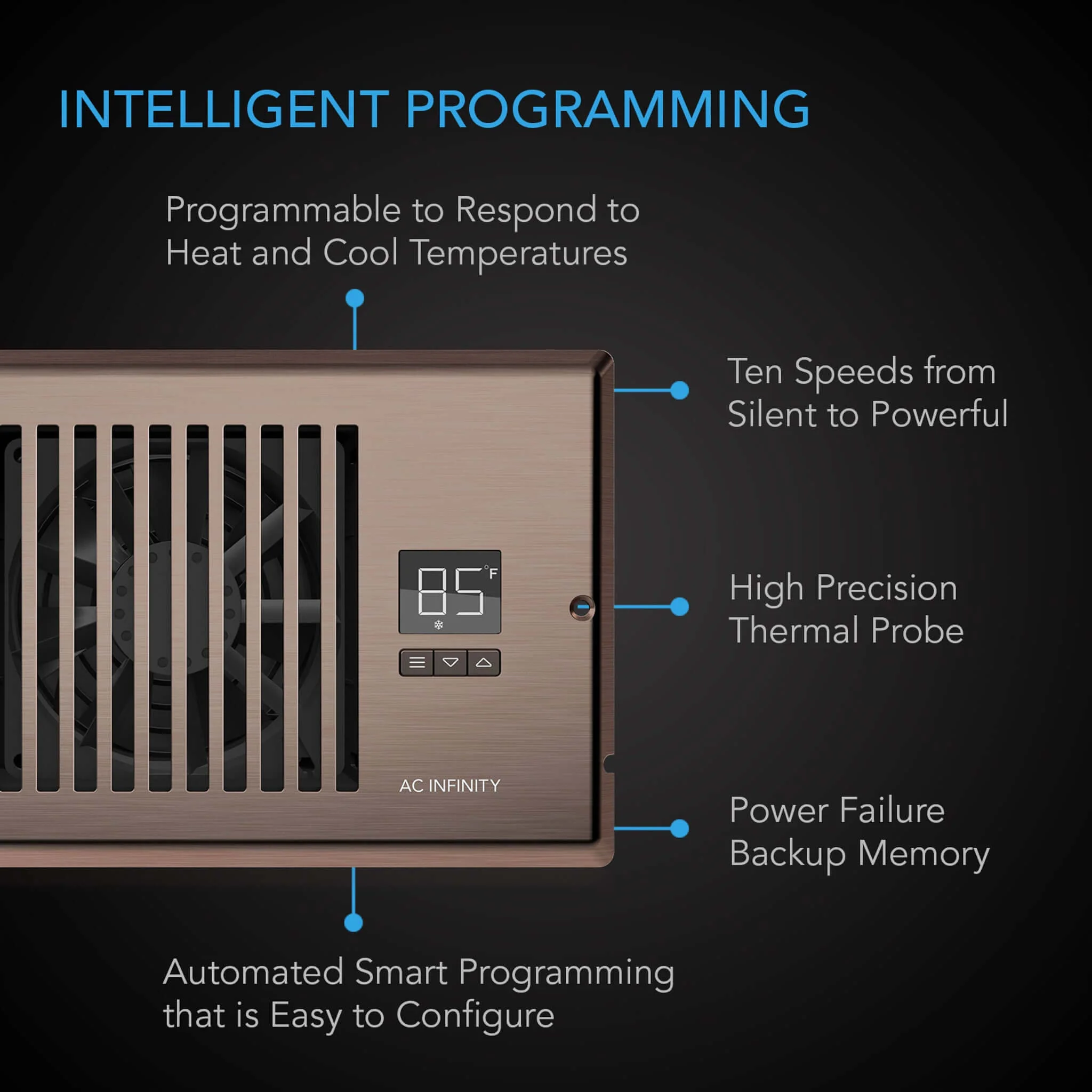

  • Intelligent Programming: The fan system is equipped with active thermal monitoring on the controller, which can trigger fans to operate for both set cooling and heating temperatures. For added convenience, the controller can also be set to run continuously at manually set speeds. It features a temperature display, easy power on-off, and backup memory.

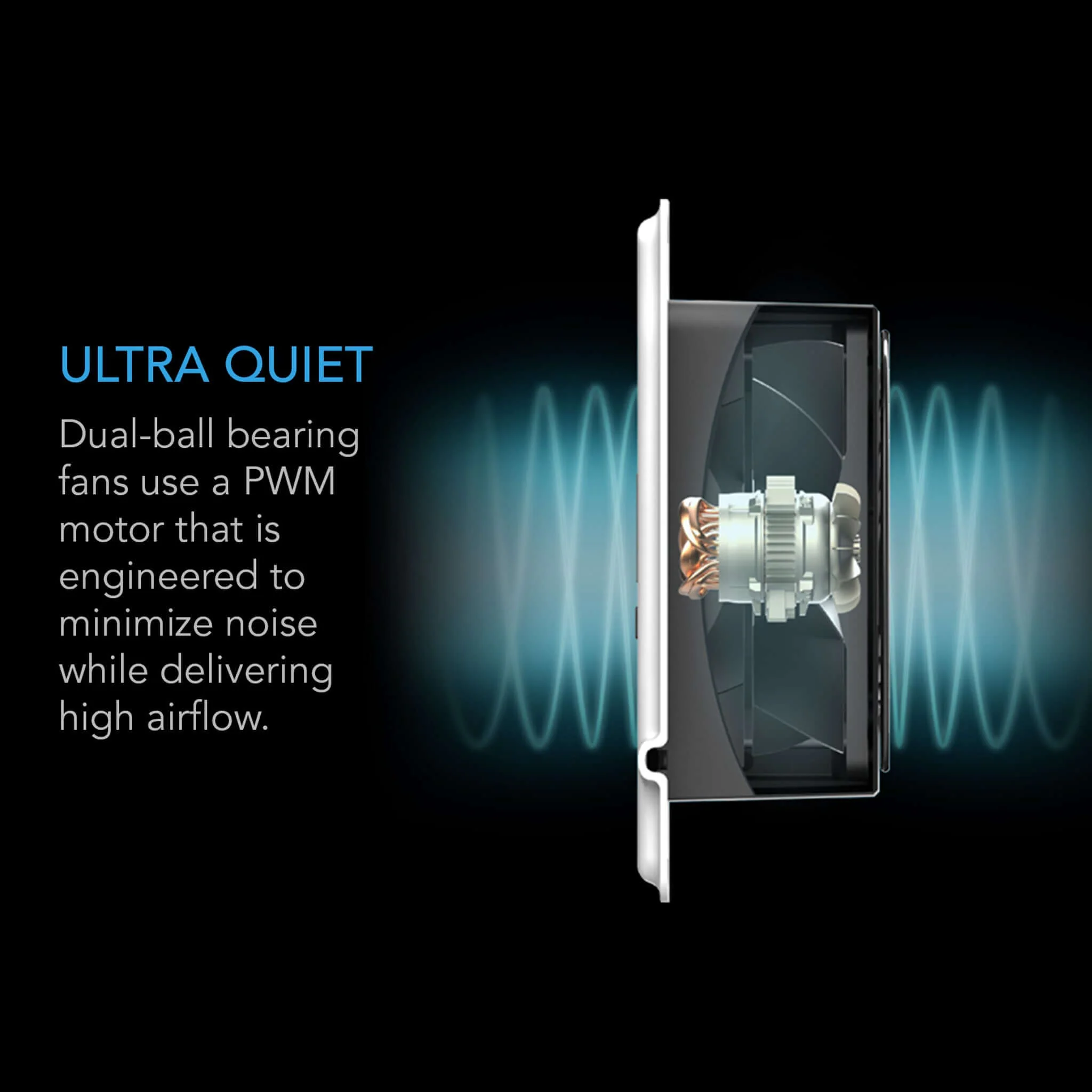

  • Stator-Blade PWM Fans: The system utilizes high-performance DC-motors that are controlled using Pulse Width Modulation (PWM), enabling the dual 92mm fans to operate smoothly at extremely low RPM speeds without generating motor or electromagnetic noises. Equipped with a stator-blade design, these fans are specialized for delivering airflow even in applications where air movement is being restricted. Certified by CE and RoHS, the fans' motor houses dual ball bearings that are rated for 67,000 hours and allow the fan system to be mounted horizontally or vertically.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRTAP T6, Bronze
  • Product Model: AC-RBF62-B
  • UPC Code: 819137020627

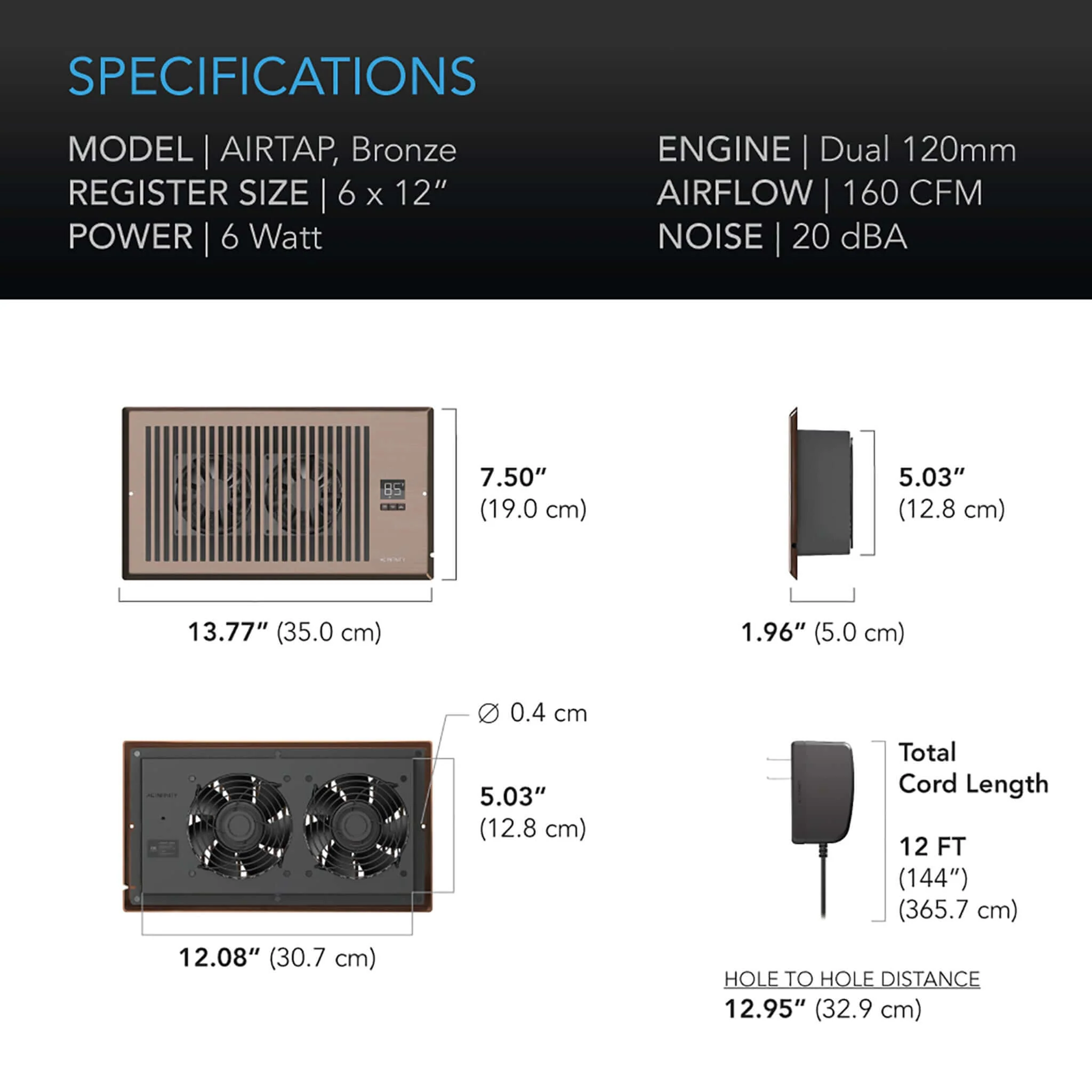

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.77 x 7.51 x 1.96 in. (35.0 x 19.1 x 5.0 cm)
  • Backside Enclosure Dimensions: 12.12 x 5.07 in. (30.8 x 12.9 cm)
  • Hole to Hole Distance: 12.95 in. (32.9 cm)
  • Screw Hole Size: Ø 0.197 in (Ø 0.4 cm)
  • Cord Length: 144 in. (12 feet)

  • Product Performance and Technical Specs
  • Fits Register Sizes: 6 x 12 in.
  • Design: Bronze
  • Total Airflow: 160 CFM
  • Total Noise: 20 dBA
  • Static Pressure: 6.5 mm-H2O
  • Operating Voltage: 12V DC
  • Power: 6 W
  • Current: 0.4 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • $89.99
