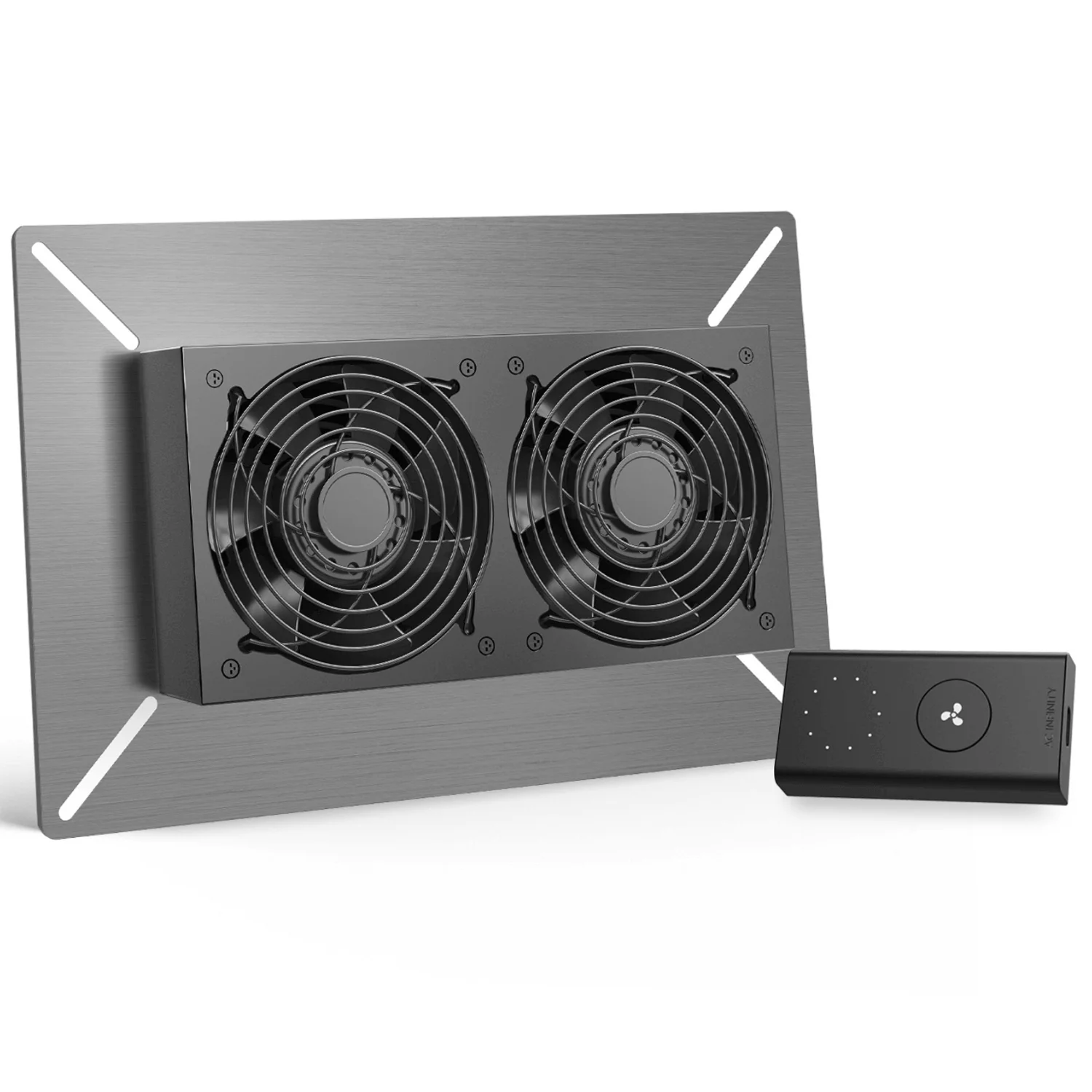

AC Infinity AIRTITAN S7, Crawlspace Fan with Speed Controller, 12-Inch

Description

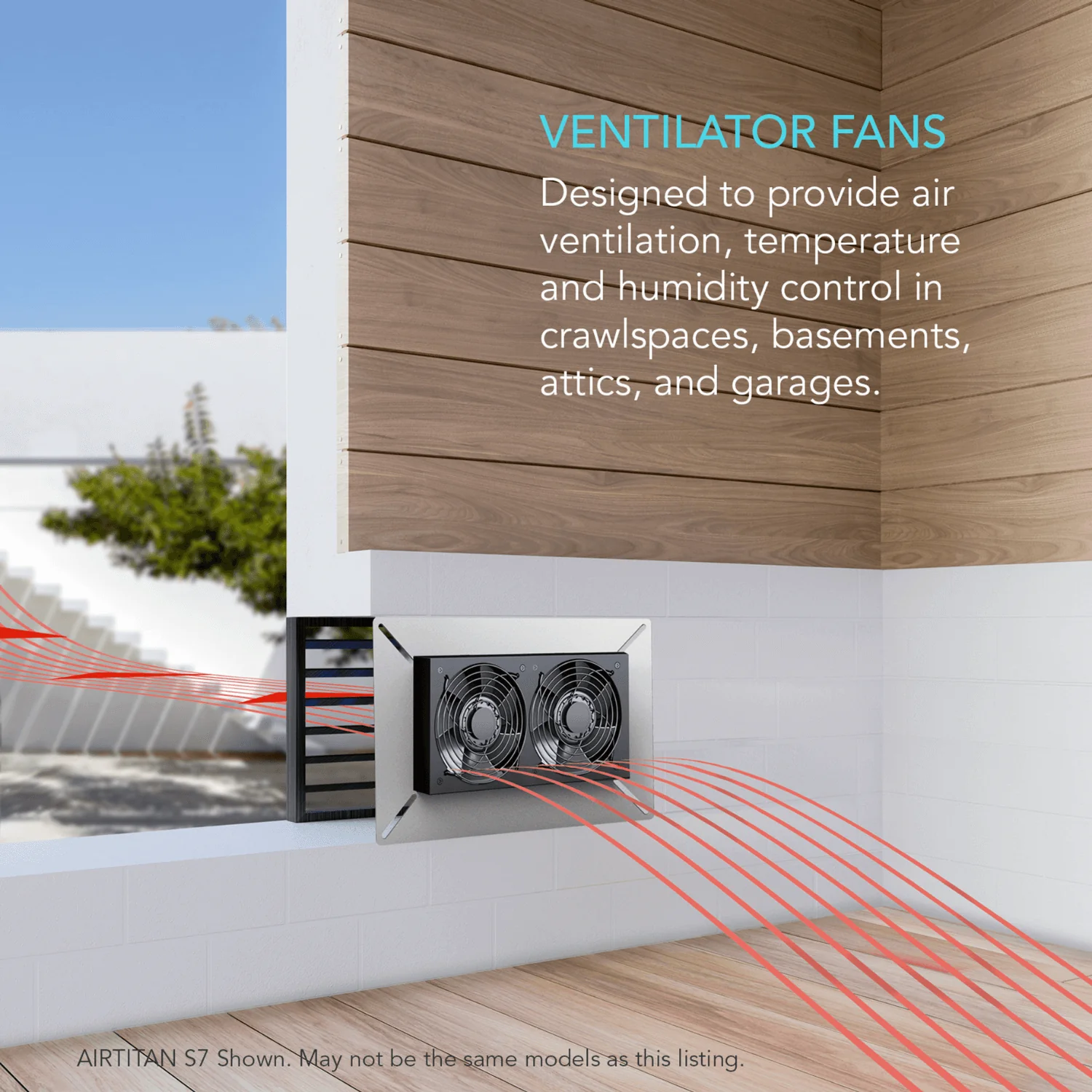

  • High-Airflow Fan: This fan is specifically designed to provide temperature and moisture control for crawl spaces and basements. It improves the environment by reducing humidity and expelling foul odors and stale air from your home.

  • Features: The fan comes with a 10-speed controller that includes a power switch and backup memory. It is conveniently designed with a 10 ft. extension cord. Furthermore, it boasts a heavy-duty anodized aluminum frame, making the fan resistant to liquids and dust. The dimensions of the unit are 13.9 x 9.0 x 1.6 in. With powerful airflow of 240 CFM, the fan operates at a noise level of 32 Dba and features Dual Ball Bearings.

  • Product Overview: This high-airflow ventilator fan is capable of regulating the temperature and humidity levels in various spaces like your crawlspace, basement, attic, and garage. Equipped with dual 120mm PWM-controlled fans, it excels in maximizing airflow at lower noise and power levels. The fans are encased in a corrosion-resistant stainless steel mounting frame offering added durability.

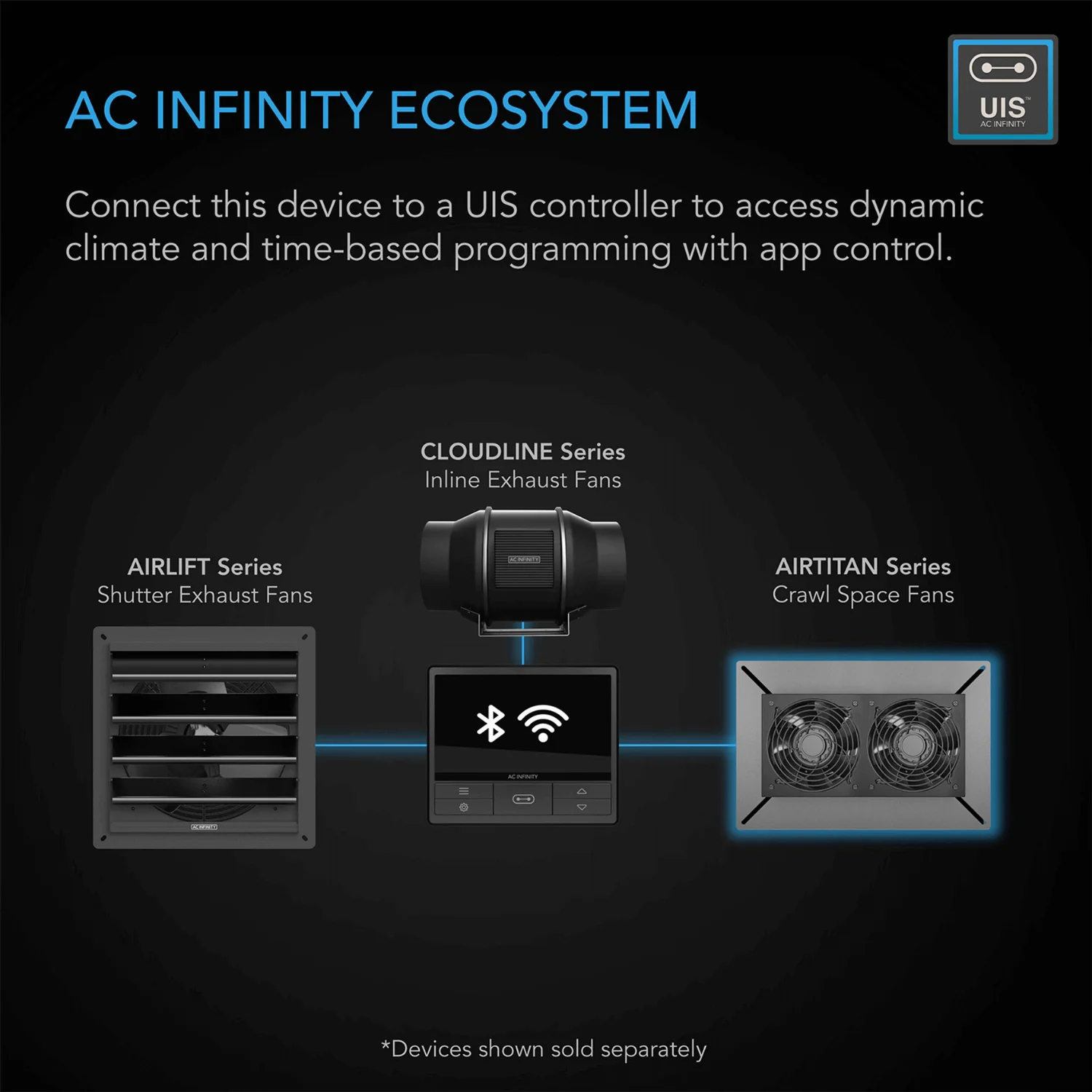

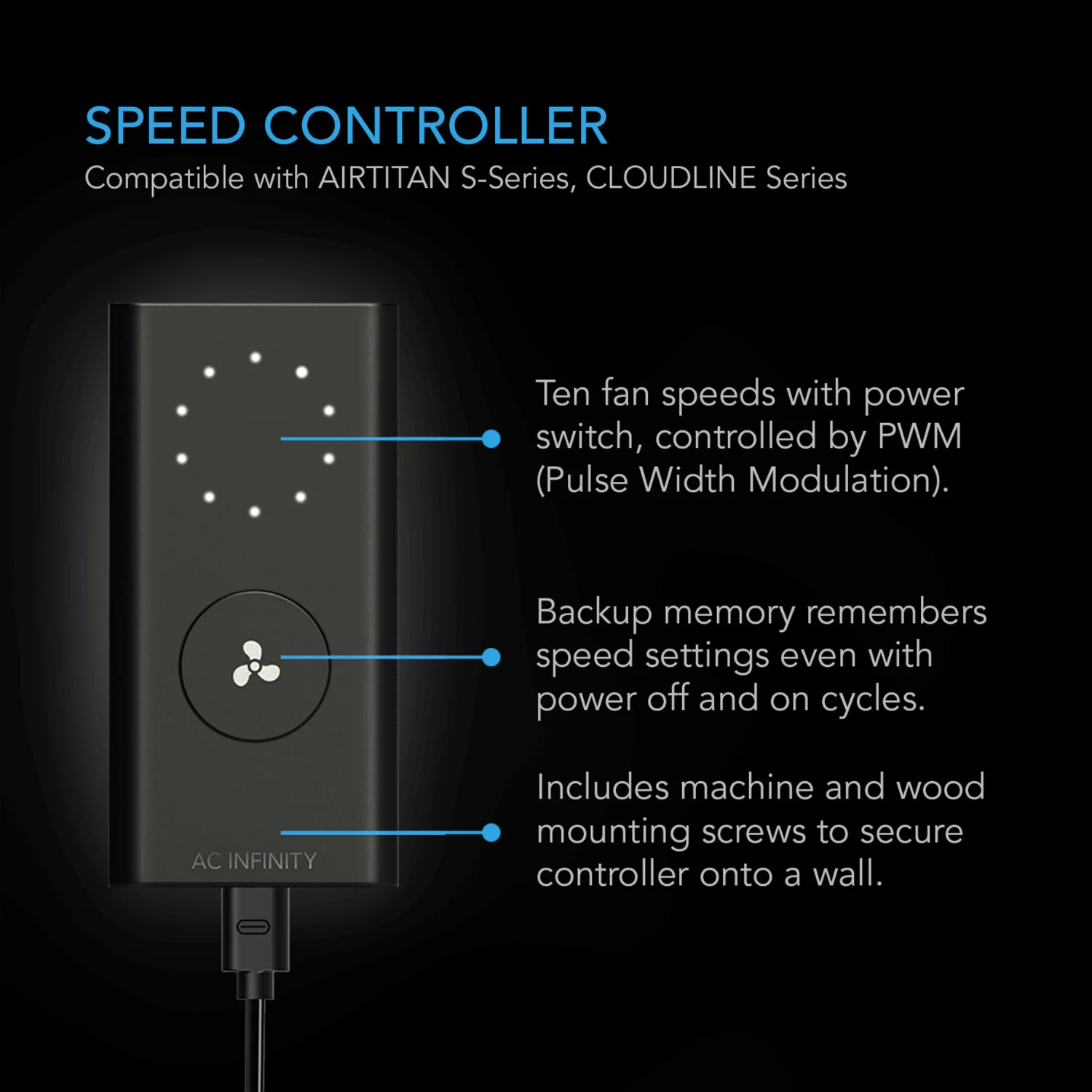

  • Speed Controller: The versatile speed controller allows you to adjust the fan's speed to optimal noise and airflow levels for various environments. It employs a DC motor which is accurately controlled using PWM (Pulse Width Modulation), ran at exceptionally low RPM speeds to diminish motor noise. Ten speed options are available with a power switch and backup memory. This model is compatible with Controllers 63, 67 (with UIS to Molex Adapter), and 69.

  • Heavy-Duty Performance: The fan system is housed in sturdy aluminum with spiral fan guards, thereby enhancing its longevity. Using a DC motor with PWM control, the fans maximize airflow whilst minimizing noise and power consumption. Additionally, the system uses dual-ball bearings with a life expectancy of 67,000 hours and has a IP-55 rating showing notable resistance to liquids and dust particles.

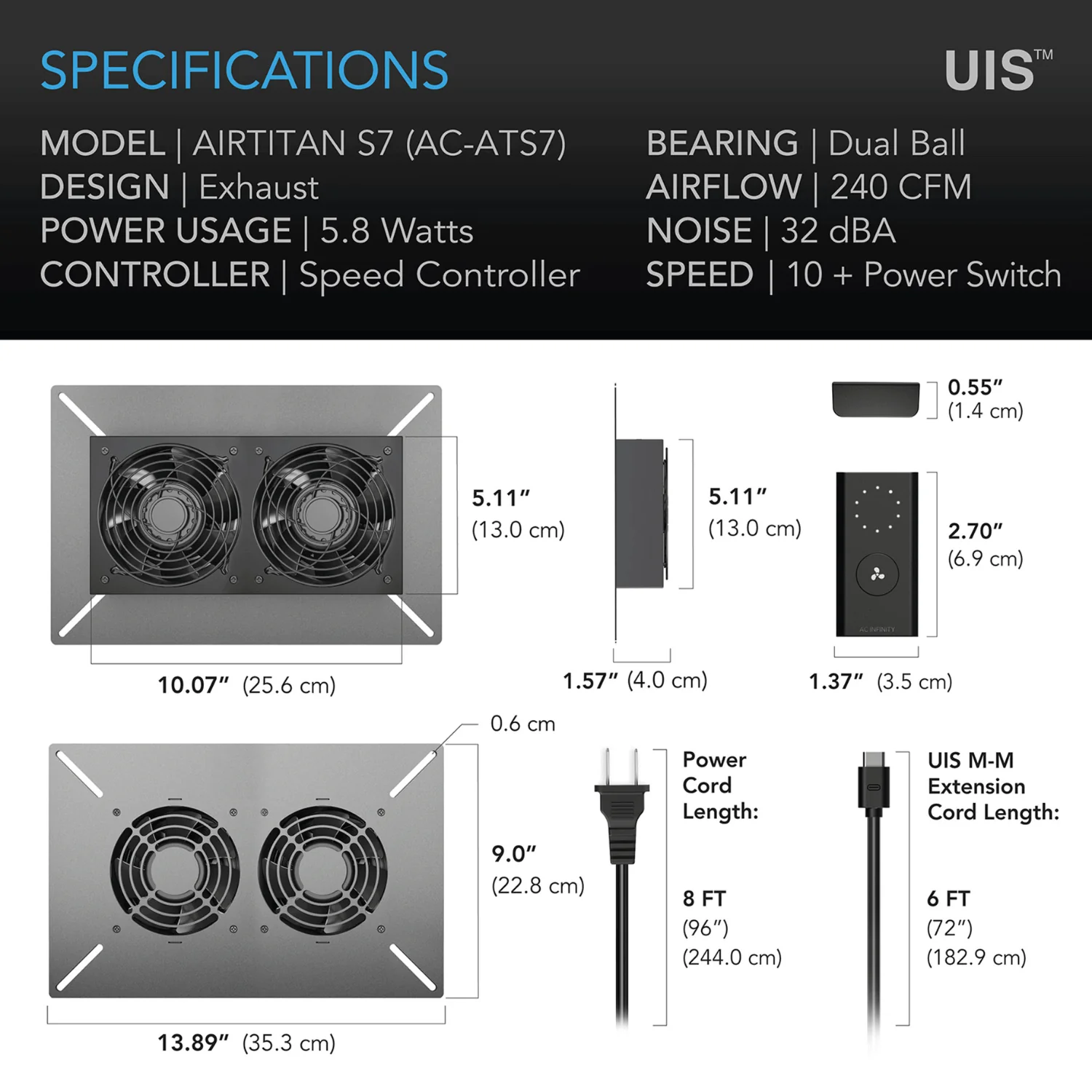

    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRTITAN S7
  • Product Model: AC-ATS7
  • UPC Code: 819137023734

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.89 x 9.00 x 1.57 in. (35.3 x 22.8 x 4.0 cm)
  • Backside Enclosure Dimensions: 5.11 x 10.07 in. (13.0 x 25.6 cm)
  • Power Cord Length: 96 in. (8 feet)
  • UIS Cord Length: 72 in. (6 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 240 CFM
  • Total Noise: 32 dBA
  • Static Pressure: 5.4 mm-H2O
  • Operating Voltage: 4 to 13.2V DC
  • Power: 5.8 W
  • Current: 0.2 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 14 to 158°F
  • Fan Bearings: Dual Ball
  • Life Expectancy: 50,000 Hours
  • Waterproof Rating: IP55
    • Data Sheets
  • Download the product manual: here
