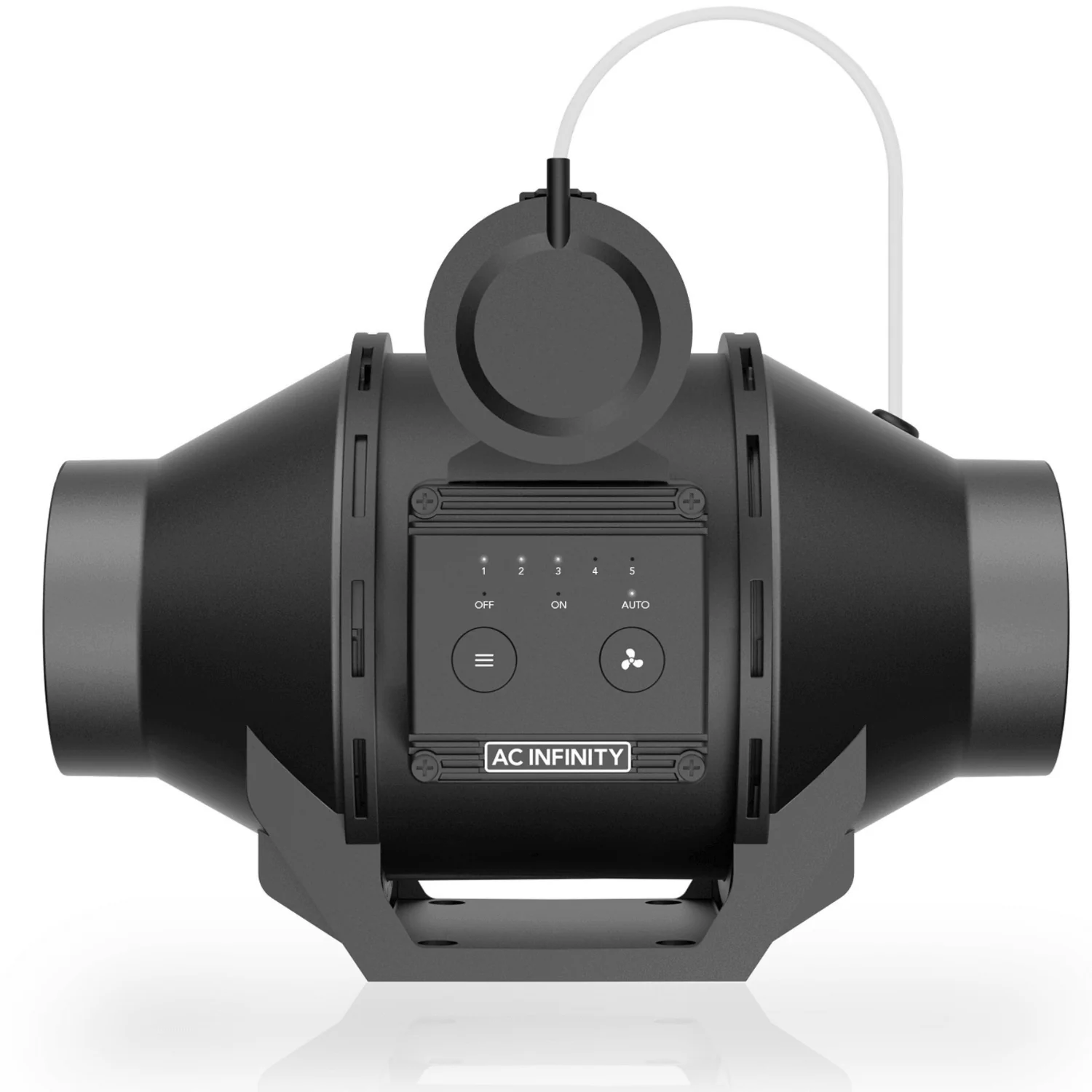

AC Infinity Automatic Booster Duct Fan, Inline Fan with Pressure Switch, 4-Inch

Description

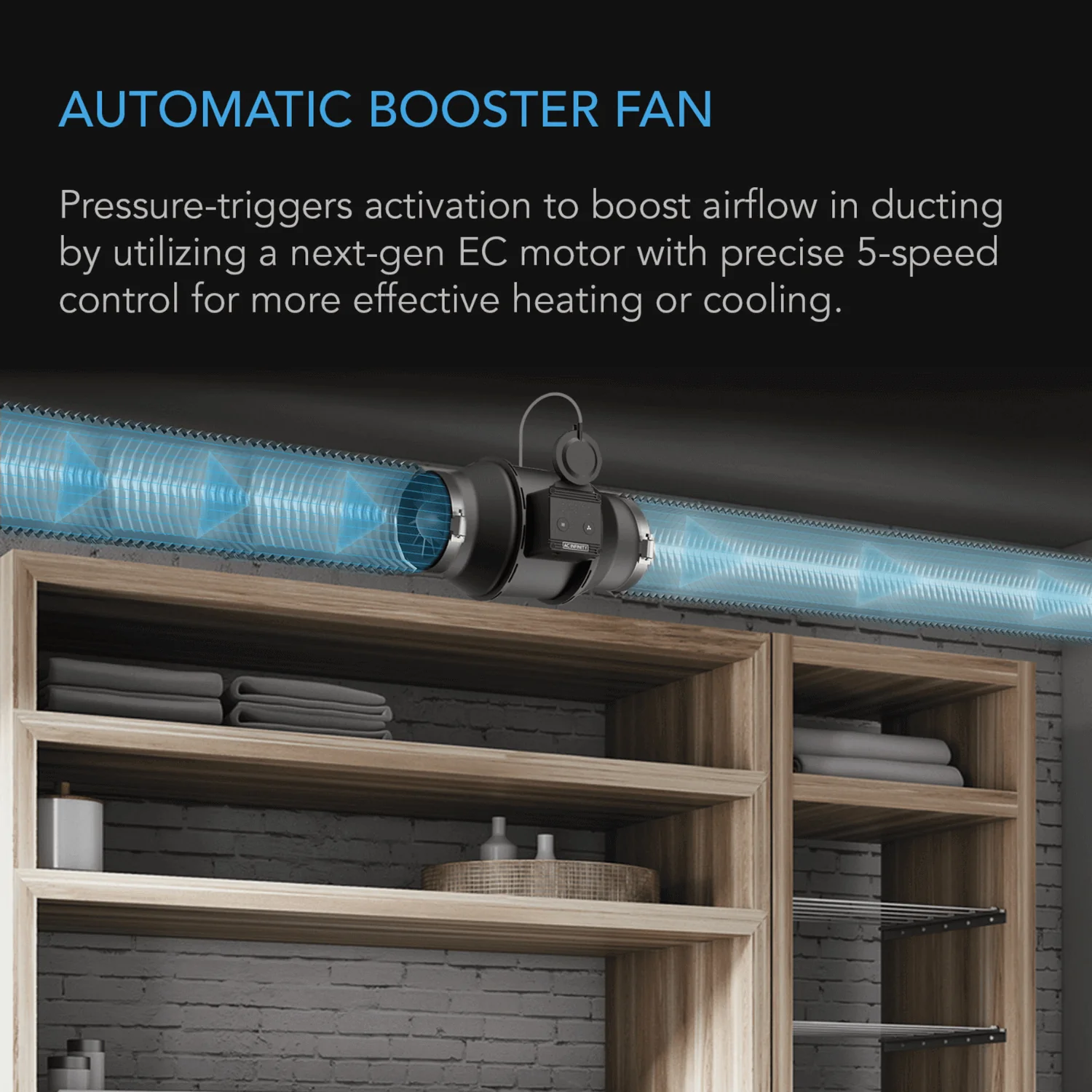

  • Inline Duct Fan: Designed to boost airflow in ducting and vent systems, ensuring effective delivery of heating or cooling. This automatic fan activates upon detecting pressure change, removing the need for manual adjustments.

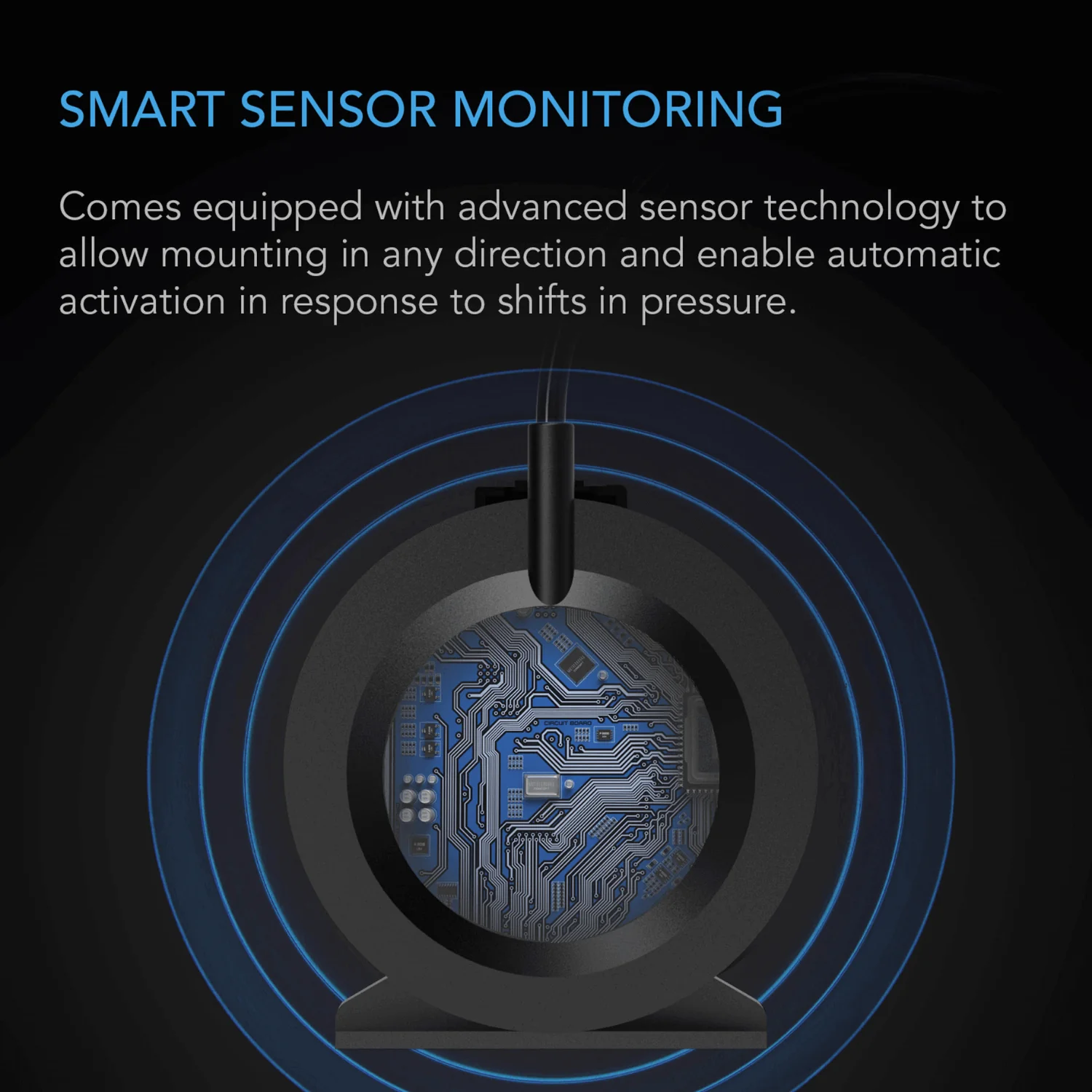

  • Differential Pressure Switch: This enables the fan to be mounted in any position to enhance directional airflow versatility. It senses changes in your ducting and operates the on/off activation automatically, making it versatile for extended ducting and other difficult-to-reach spaces.

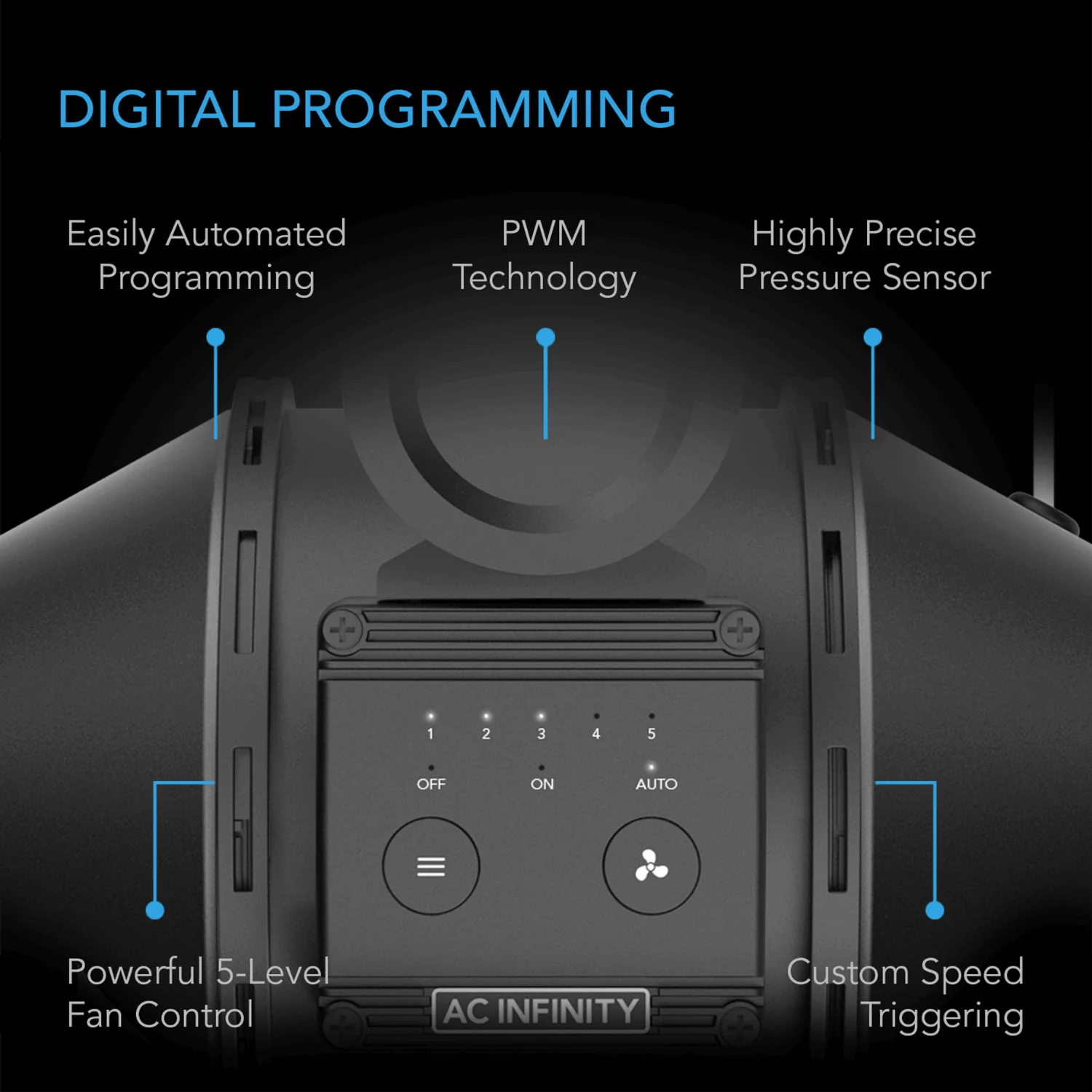

  • Features: The fan has five speed levels, powered by a PWM-controlled EC motor for more precise ventilation. It is sized for a 4" duct and provides an airflow of 230 CFM. It operates at a noise level of 60 dBA, using dual ball bearings. The dimensions are 11.88 x 9.11 x 9.25 inches.

  • Automatic Pressure Sensing: The fan switch provides automatic activation capabilities to enhance your heating or cooling on demand, by detecting pressure change in your ducting and activating when your home appliance is on.

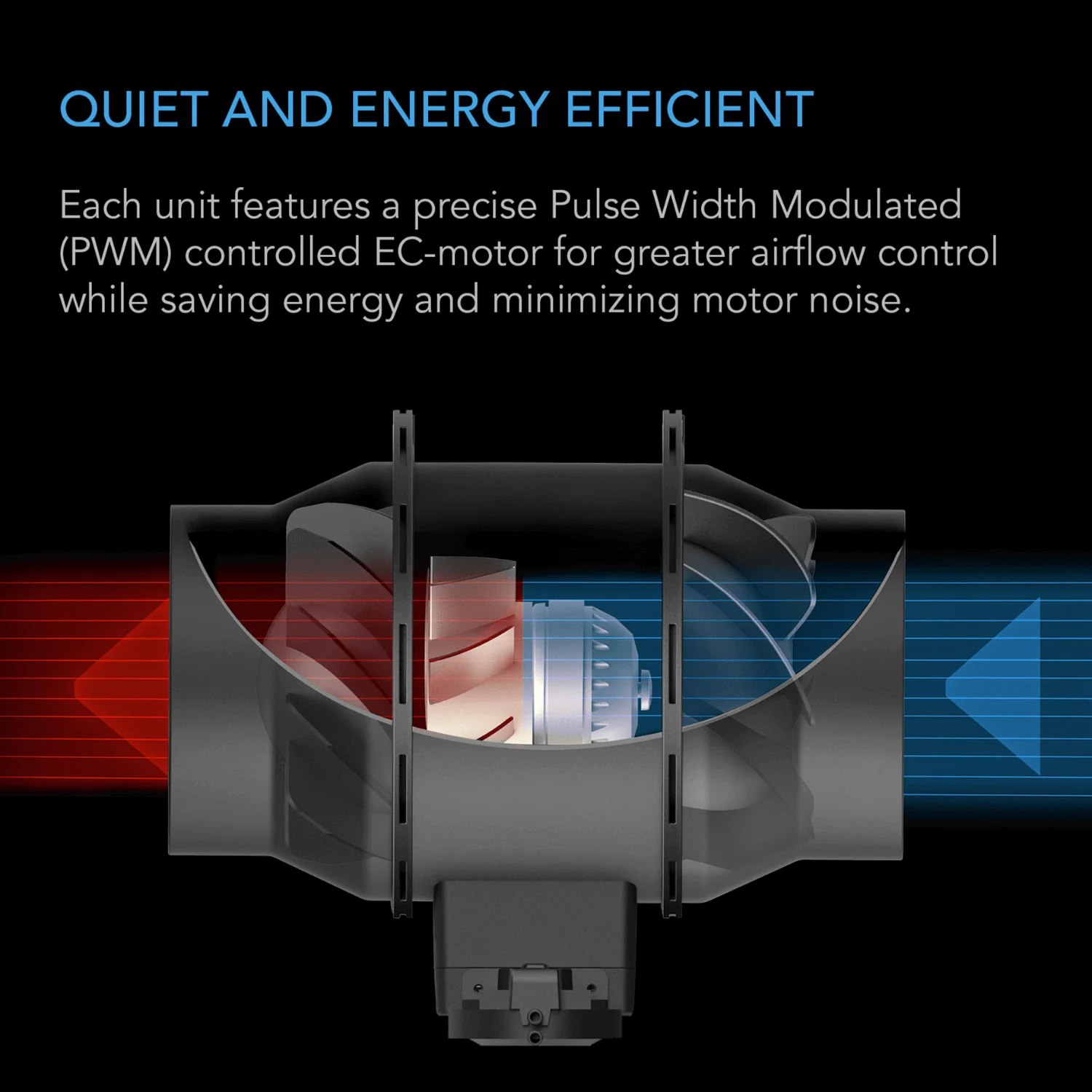

  • Quiet, Energy Efficient Design: The fan features a next-generation EC motor that powers quiet and energy-efficient performance. The motor is controlled with PWM technology to ensure smooth performance while minimizing heat and noise levels.

  • High Static Pressure Rating: The mixed flow design gives this booster fan a high static pressure rating to enhance airflow in applications with restricted air movement. It's suitable for both industrial settings and residential settings.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Automatic Duct Fan 4"
  • Product Model: AC-BFP4
  • UPC Code: 819137023789

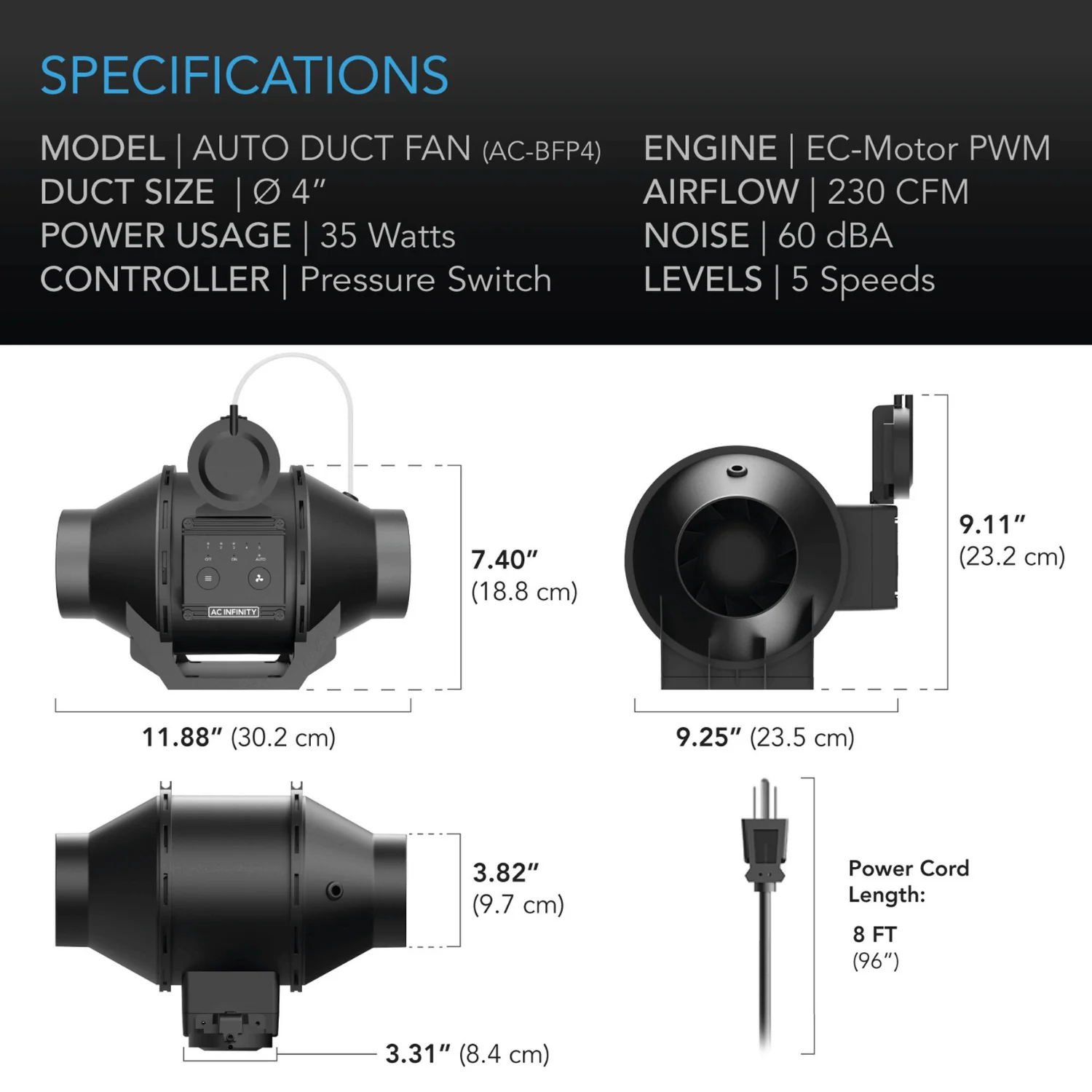

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 4"
  • Total Dimensions: 11.88 x 9.11 x 9.25 in. (30.2 x 23.2 x 23.5 cm)
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
  • Screw Hole Size: Ø 0.197 in. (Ø 0.5 cm)

  • Product Performance and Technical Specs
  • Total Airflow: 230 CFM
  • Total Noise: 60 dBA
  • Max Speed: 3000 RPM
  • Static Pressure: 248 Pa
  • Pressure Detection Range: 0-100 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 35 W
  • Current: 0.55 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
    • $124.99
    AC Infinity Automatic Booster Duct Fan, Inline Fan with Pressure Switch, 4-Inch—
    $124.99

    Product Information

    Shipping & Returns

    Description

    Description
  • Inline Duct Fan: Designed to boost airflow in ducting and vent systems, ensuring effective delivery of heating or cooling. This automatic fan activates upon detecting pressure change, removing the need for manual adjustments.

  • Differential Pressure Switch: This enables the fan to be mounted in any position to enhance directional airflow versatility. It senses changes in your ducting and operates the on/off activation automatically, making it versatile for extended ducting and other difficult-to-reach spaces.

  • Features: The fan has five speed levels, powered by a PWM-controlled EC motor for more precise ventilation. It is sized for a 4" duct and provides an airflow of 230 CFM. It operates at a noise level of 60 dBA, using dual ball bearings. The dimensions are 11.88 x 9.11 x 9.25 inches.

  • Automatic Pressure Sensing: The fan switch provides automatic activation capabilities to enhance your heating or cooling on demand, by detecting pressure change in your ducting and activating when your home appliance is on.

  • Quiet, Energy Efficient Design: The fan features a next-generation EC motor that powers quiet and energy-efficient performance. The motor is controlled with PWM technology to ensure smooth performance while minimizing heat and noise levels.

  • High Static Pressure Rating: The mixed flow design gives this booster fan a high static pressure rating to enhance airflow in applications with restricted air movement. It's suitable for both industrial settings and residential settings.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Automatic Duct Fan 4"
  • Product Model: AC-BFP4
  • UPC Code: 819137023789

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 4"
  • Total Dimensions: 11.88 x 9.11 x 9.25 in. (30.2 x 23.2 x 23.5 cm)
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
  • Screw Hole Size: Ø 0.197 in. (Ø 0.5 cm)

  • Product Performance and Technical Specs
  • Total Airflow: 230 CFM
  • Total Noise: 60 dBA
  • Max Speed: 3000 RPM
  • Static Pressure: 248 Pa
  • Pressure Detection Range: 0-100 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 35 W
  • Current: 0.55 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
