AC Infinity AXIAL 1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity AXIAL 1238, Muffin 120V AC Cooling Fan, 120mm x 120mm x 38mm

Description

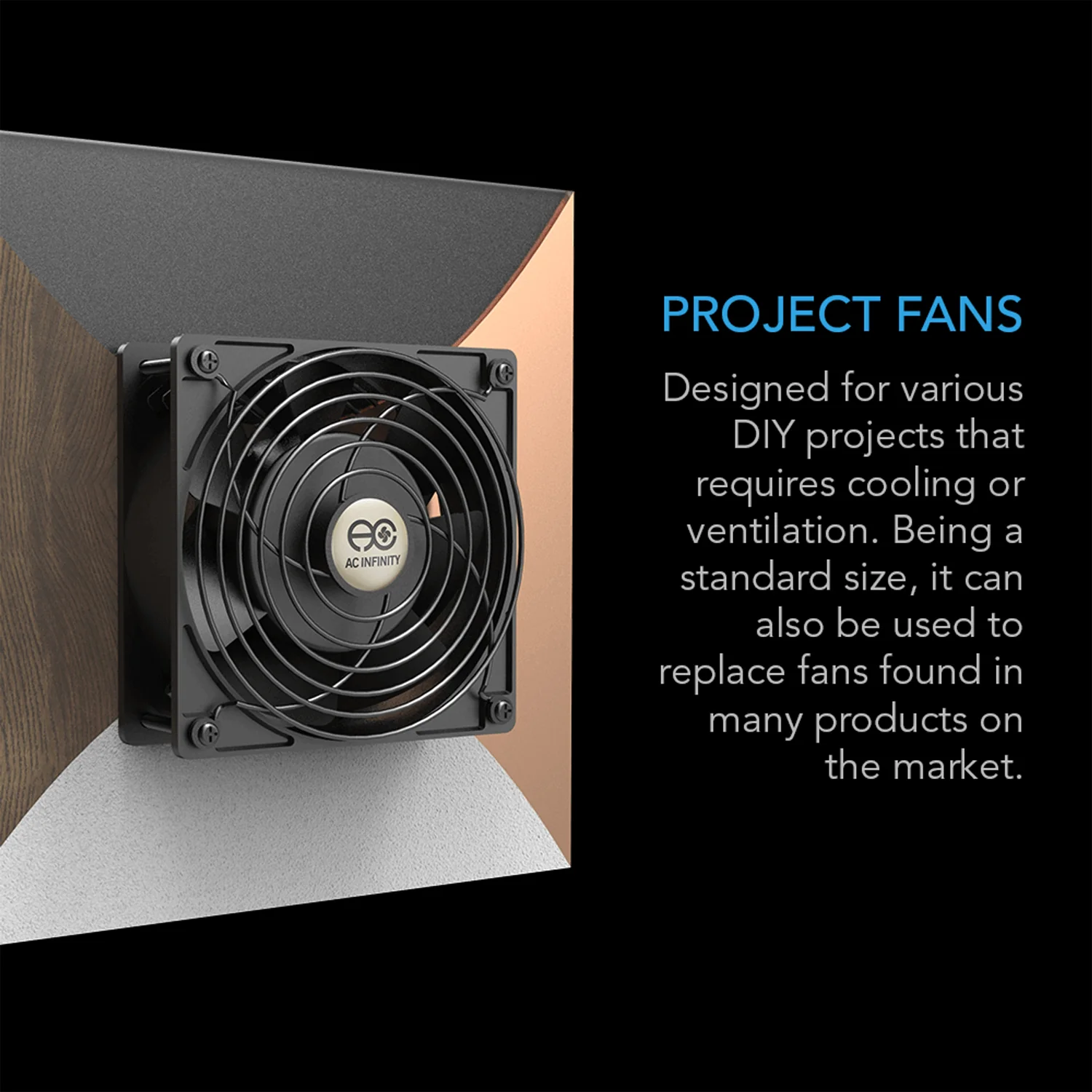

  • Designed for Cooling and Ventilation: This fan is specifically designed for projects that require cooling or ventilation. It can also be used as a replacement fan for various products, offering versatility and functionality.

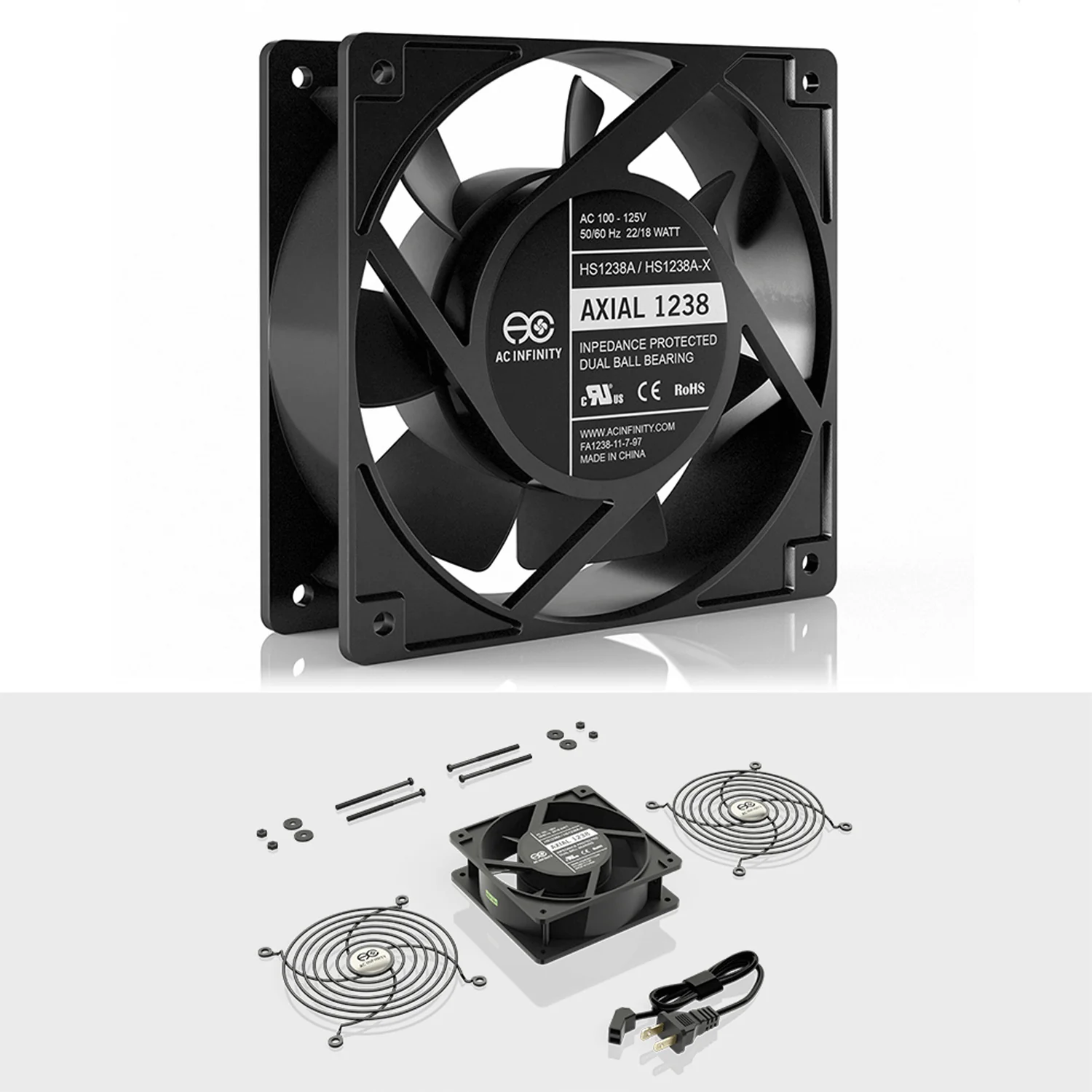

  • Included Components: The kit includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set. These components make installation and operation easy and convenient.

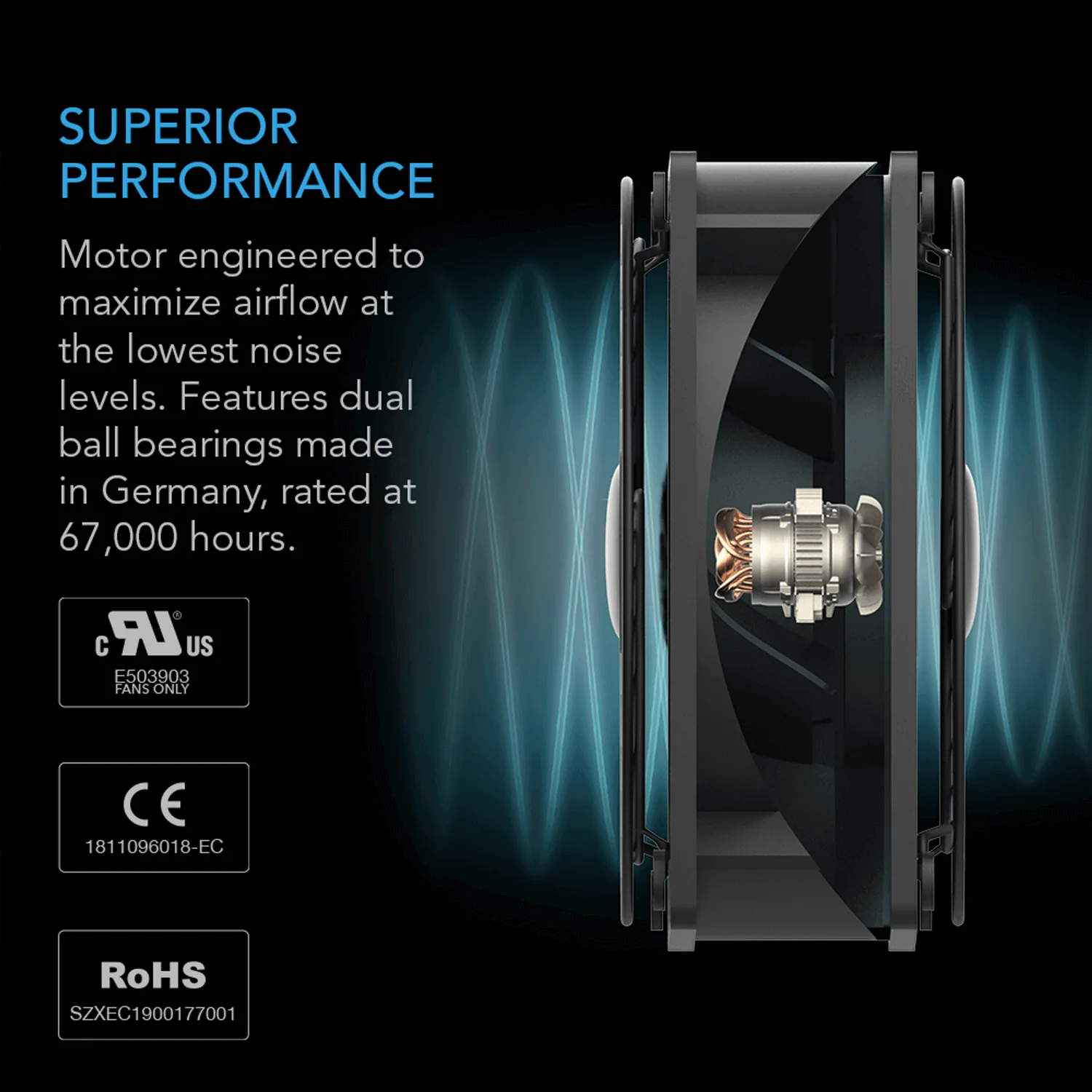

  • UL-Certified Fan: This fan has been certified by UL, ensuring its safety and quality. It features dual-ball bearings with a lifespan of 67,000 hours, guaranteeing long-lasting performance. The fan can be mounted in any direction, providing flexibility in installation.

  • High Speed: This model is designed to maximize airflow, making it suitable for applications where airflow is a priority. However, please note that it may generate more noise compared to other models, so it may not be suitable for noise-sensitive applications.

  • Specifications: This fan has dimensions of 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 in.), operates on 100 to 120V AC power, has an airflow rating of 110 CFM, produces a noise level of 47 dBA, and operates at a speed of 2600 RPM.

  • Heavy Duty Axial Fan Kit: This fan kit is designed for custom projects or as a replacement fan. It operates on 100 to 120V AC power and includes all the necessary components for easy installation and operation. The included 4-foot power cord can be easily attached to the fan's metal terminals, allowing it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires for connection to a wired AC power source. Additionally, the kit includes two 120 millimeter metal fan guards and a mounting screw set for added convenience.

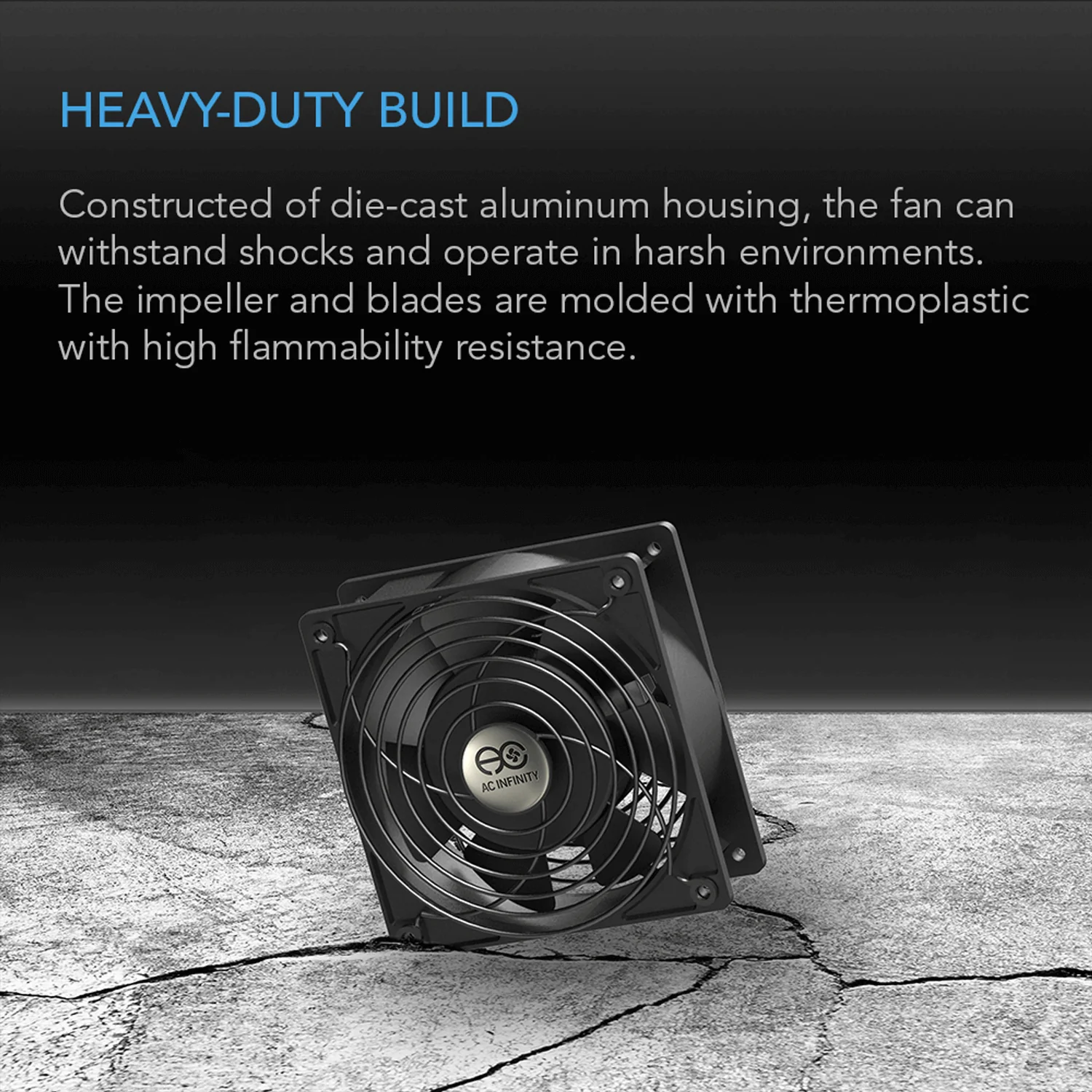

  • Heavy Duty Construction: The fan's housing is constructed of black die-cast aluminum, ensuring durability and performance even in harsh environments. The impeller and blades are molded with thermoplastic, providing high flammability resistance. The impedance protected motors contain windings with a higher resistance to heat during a rotor lock. Furthermore, the fan features long life dual ball bearings, allowing it to run continuously for 67,000 hours. It can also be mounted in any direction, offering versatility in installation.

  • Applications: This high-speed fan is suitable for applications where maximizing airflow is the main objective and a louder noise level is tolerable. It is commonly used in tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more. Additionally, it can be used as a replacement fan for various Samsung and Eaton servers and UPS systems due to its standard industrial size.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 1238
  • Product Model: HS1238A-X
  • UPC Code: 854759004181
  • ASIN: B009OWRMZ6

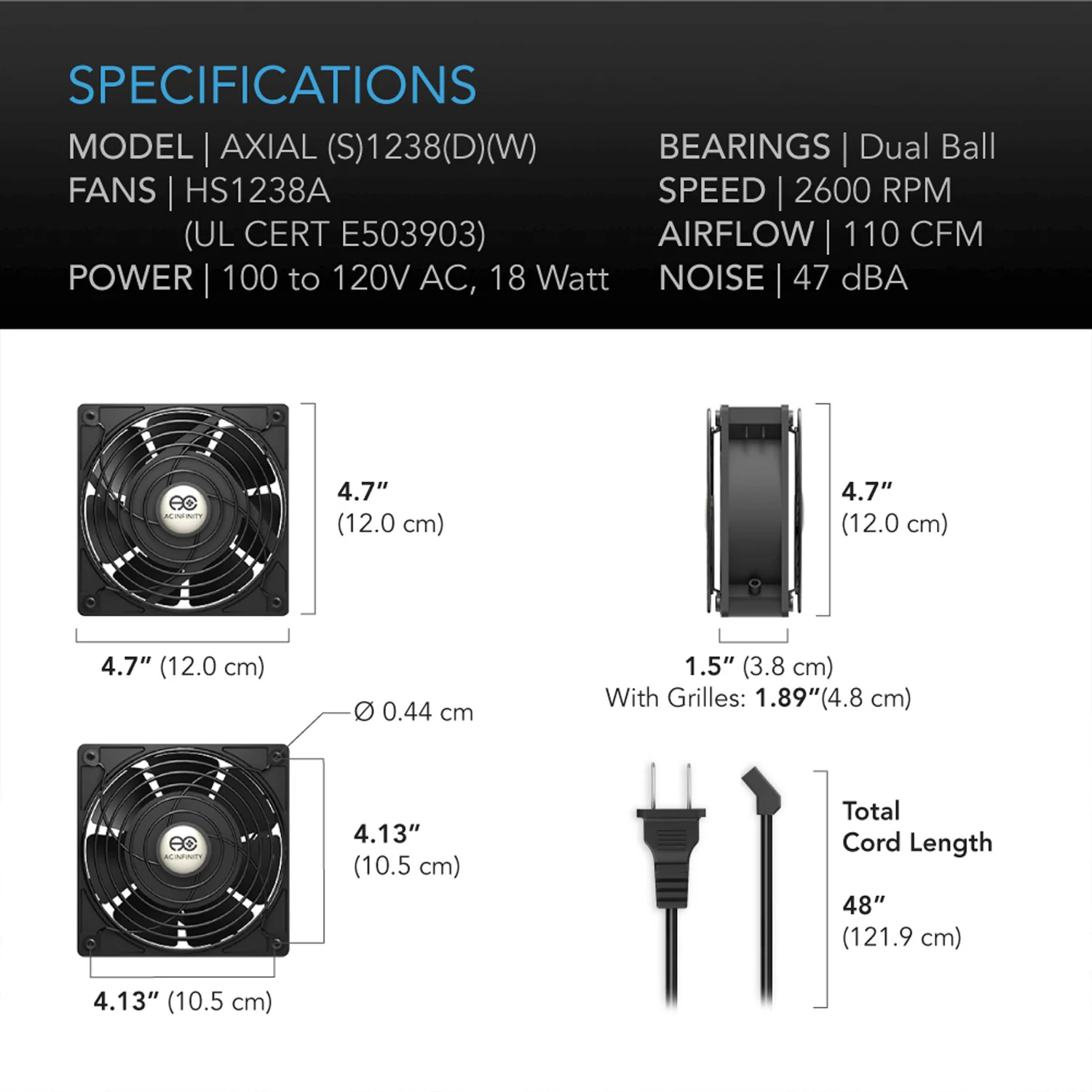

  • Product Dimensions:
  • Total Dimensions: 4.7 x 4.7 x 1.5 in. (12.0 x 12.0 x 3.8 cm)
  • Hole to Hole Distance: 4.13 x 4.13 in. (10.5 x 10.5 cm)
  • Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)
  • Cord Length: 48 in. (4 feet)

  • Product Performance and Technical Specs:
  • Fan Model: HS1238A
  • Total Airflow: 110 CFM
  • Total Noise: 47 dBA
  • Speed: 2600 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 18 W
  • Current: 0.16 A
  • Static Pressure: 9.1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
