AC Infinity AXIAL 1238W, 120V AC Muffin Fan with Wire-Leads Adapter, 120mm x 38mm High Speed

Description

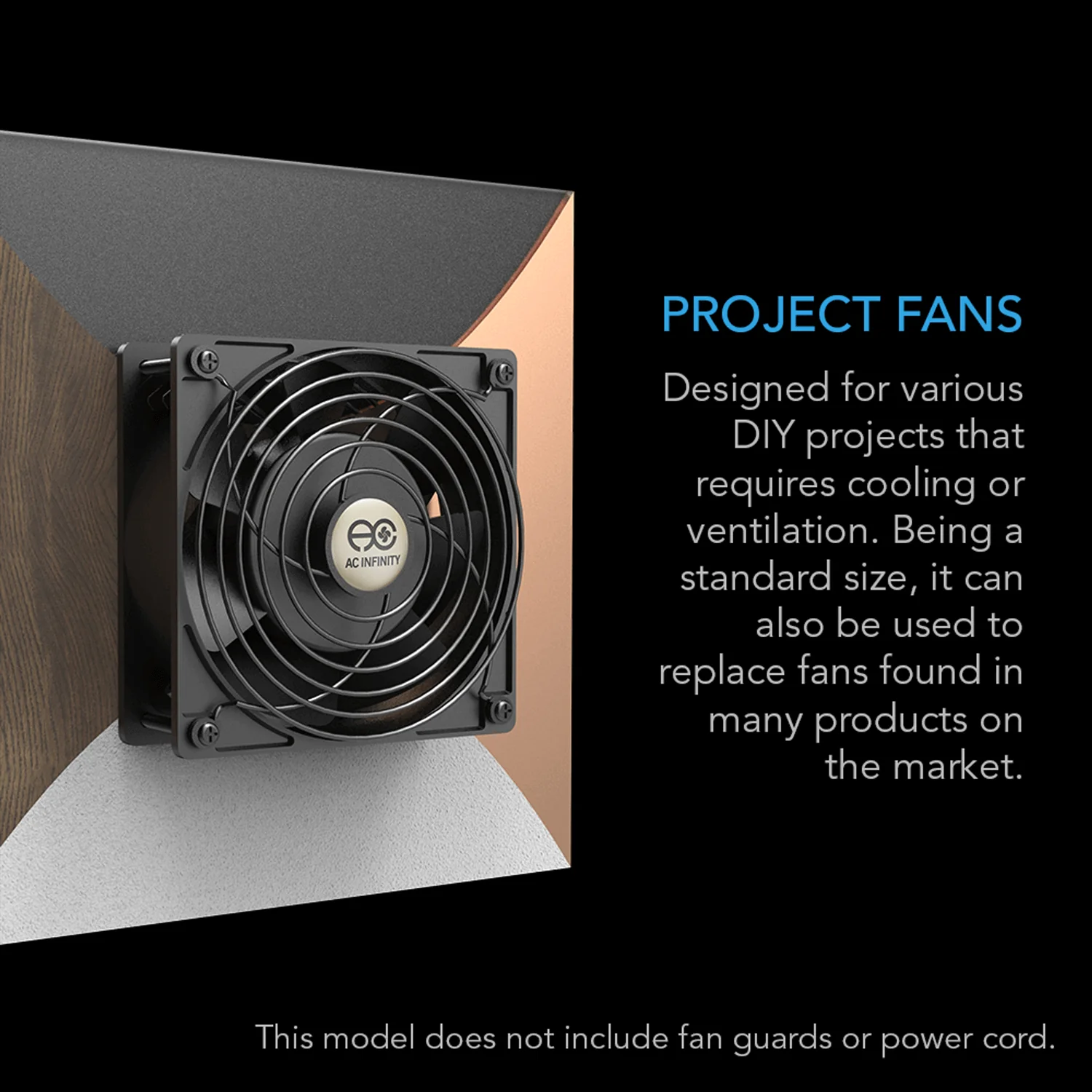

  • Designed for projects that require cooling or ventilation, or as a replacement fan for various products.

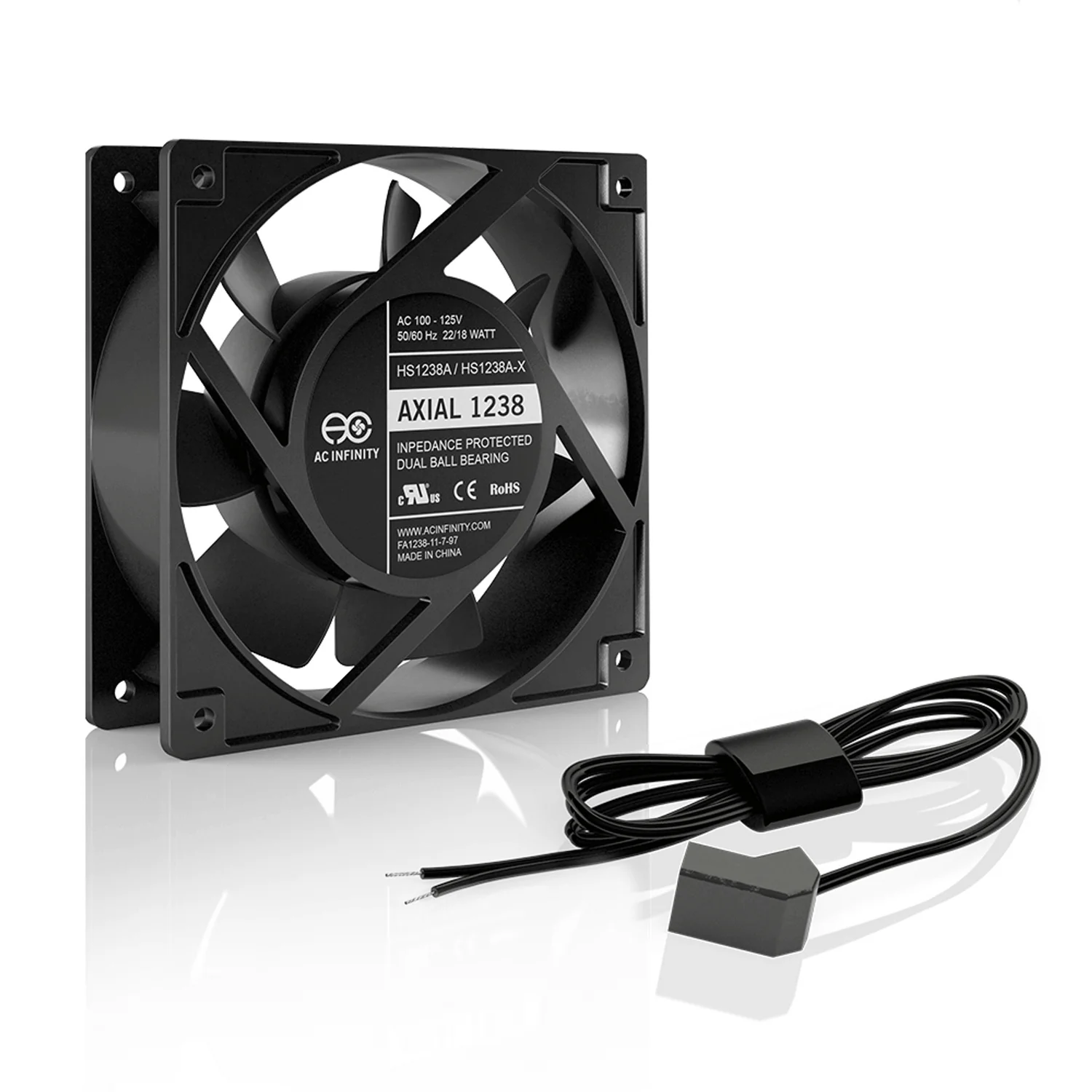

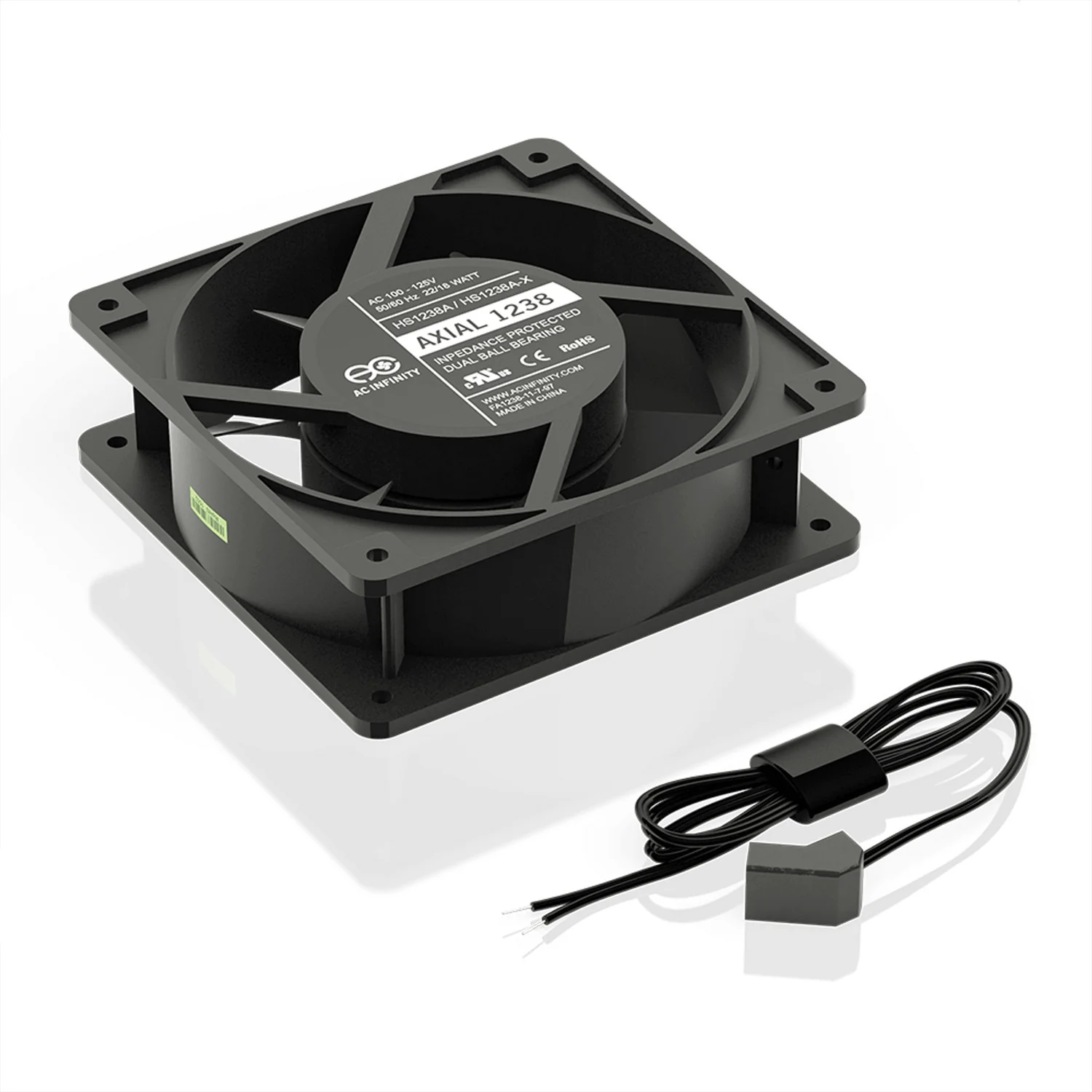

  • Terminal connectors are included, and it also comes with an optional wire-leads cord adapter. For the same kit with a plug cord and grilles, see model HS1238A-X.

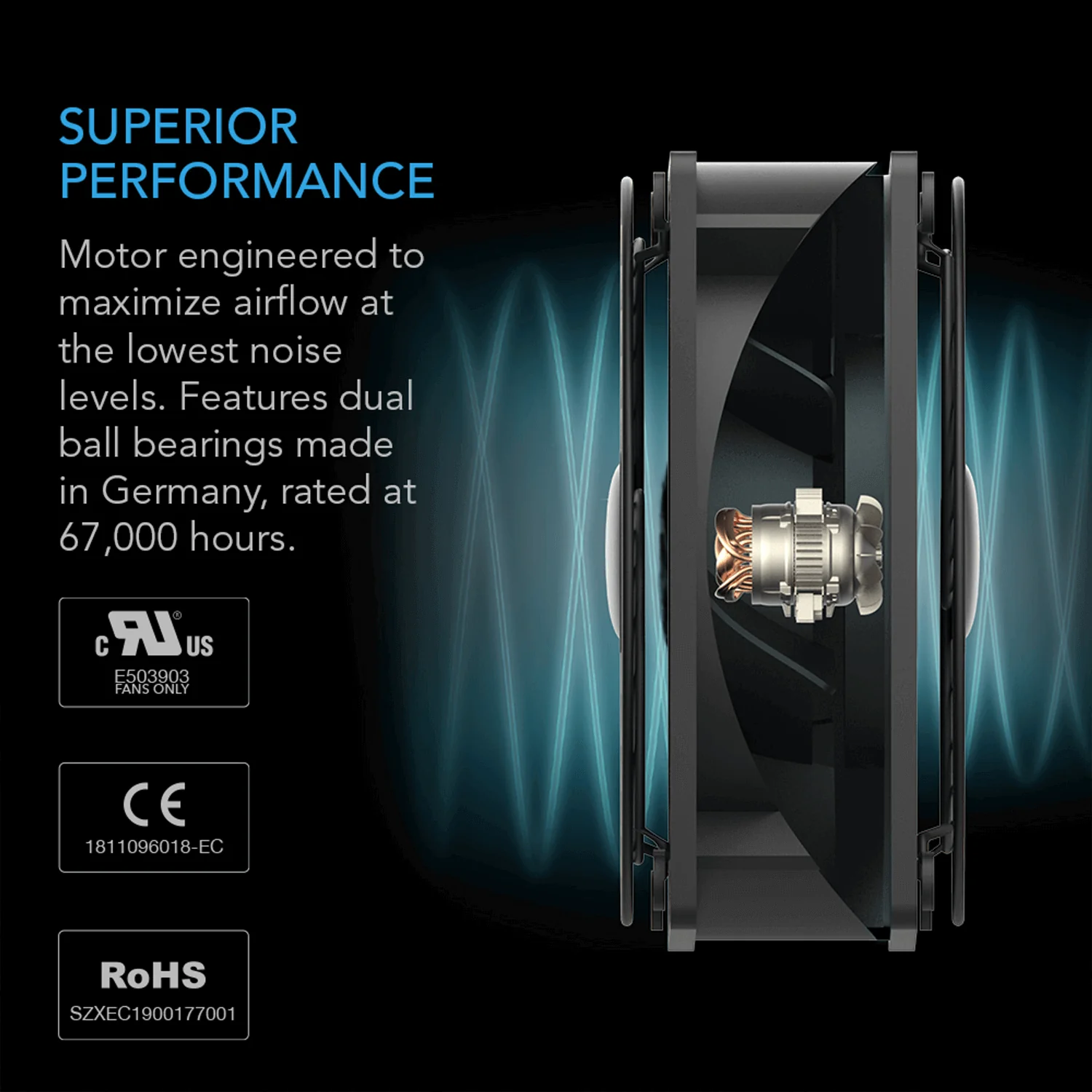

  • This UL-certified fan features dual-ball bearings and has a lifespan of 67,000 hours. It is capable of being mounted in any direction.
  • High Speed: This model is designed to maximize airflow and may be too loud for some applications.
  • Dimensions: 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 inches) | Voltage: 100 to 120V AC | Airflow: 110 CFM | Noise: 47 dBA | Speed: 2600 RPM

  • The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The high-speed 120 by 120 by 38 millimeter AC axial fan can be operated on 100 to 120V AC and is housed in a die-cast aluminum with thermoplastic blades. It has long-life dual ball bearings, allowing the fan to run continuously for 67,000 hours and can be mounted in any direction. It comes with terminal connectors but can be converted to AC wire-leads with the included power cord adapter. Please note that fan guards or a plug cord are not included, and for those options, please refer to model HS1238A-X. The AC Infinity axial fan is UL recognized under certificate E503903, and is also CE and RoHS certified.

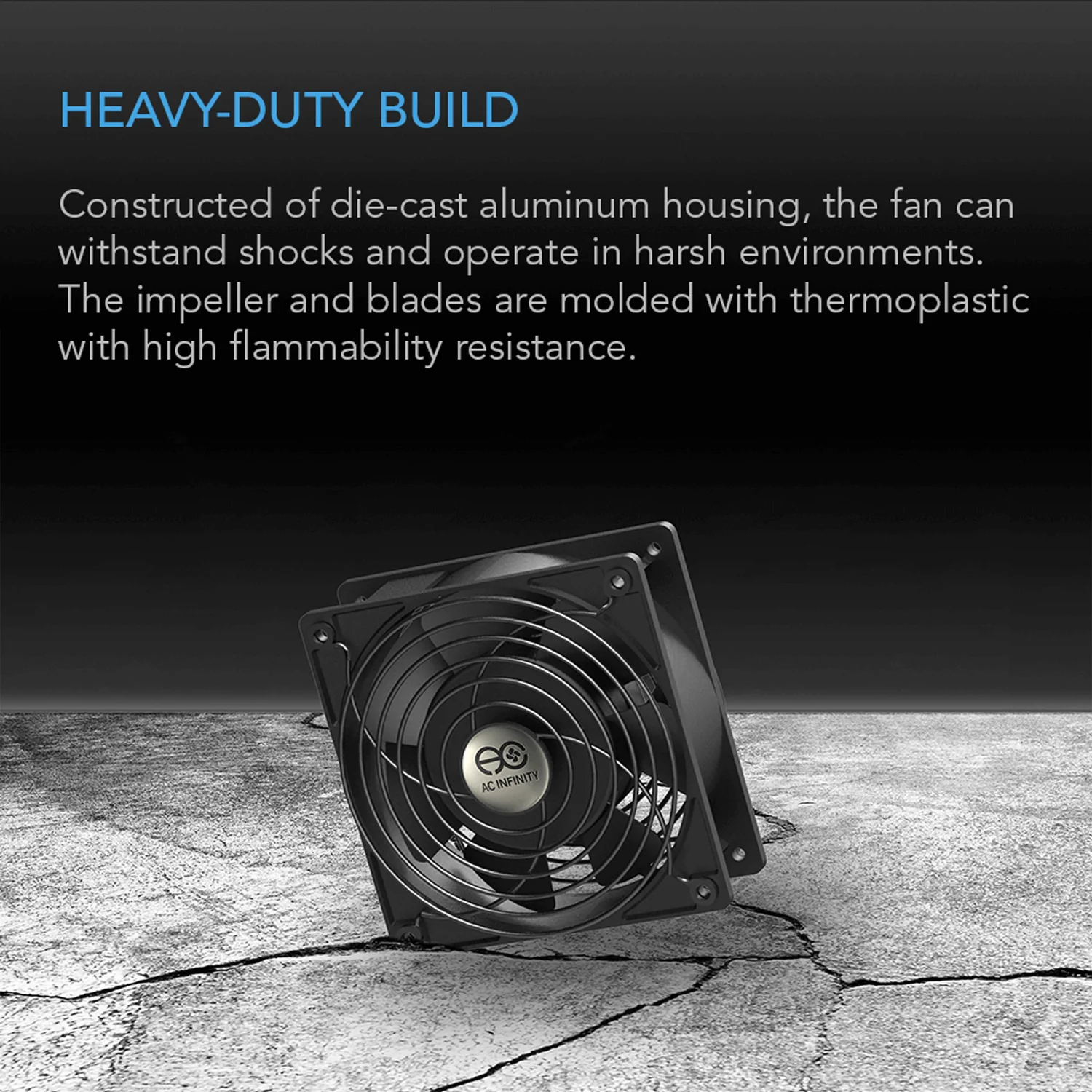

  • The fan's housing is constructed of die-cast aluminum painted black, making it able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic and meet UL 94 standards for resistance to flammability. The impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock.

  • This high-speed fan is suitable for applications where maximizing airflow is the main objective and a higher noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, and arcade systems, among others. Due to its standard industrial size, it can be used as a replacement fan in various Samsung and Eaton servers and UPS systems.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity
  • Product Model: HS1238A-W
  • UPC Code: 854759004280
  • ASIN: B004YTSB7C

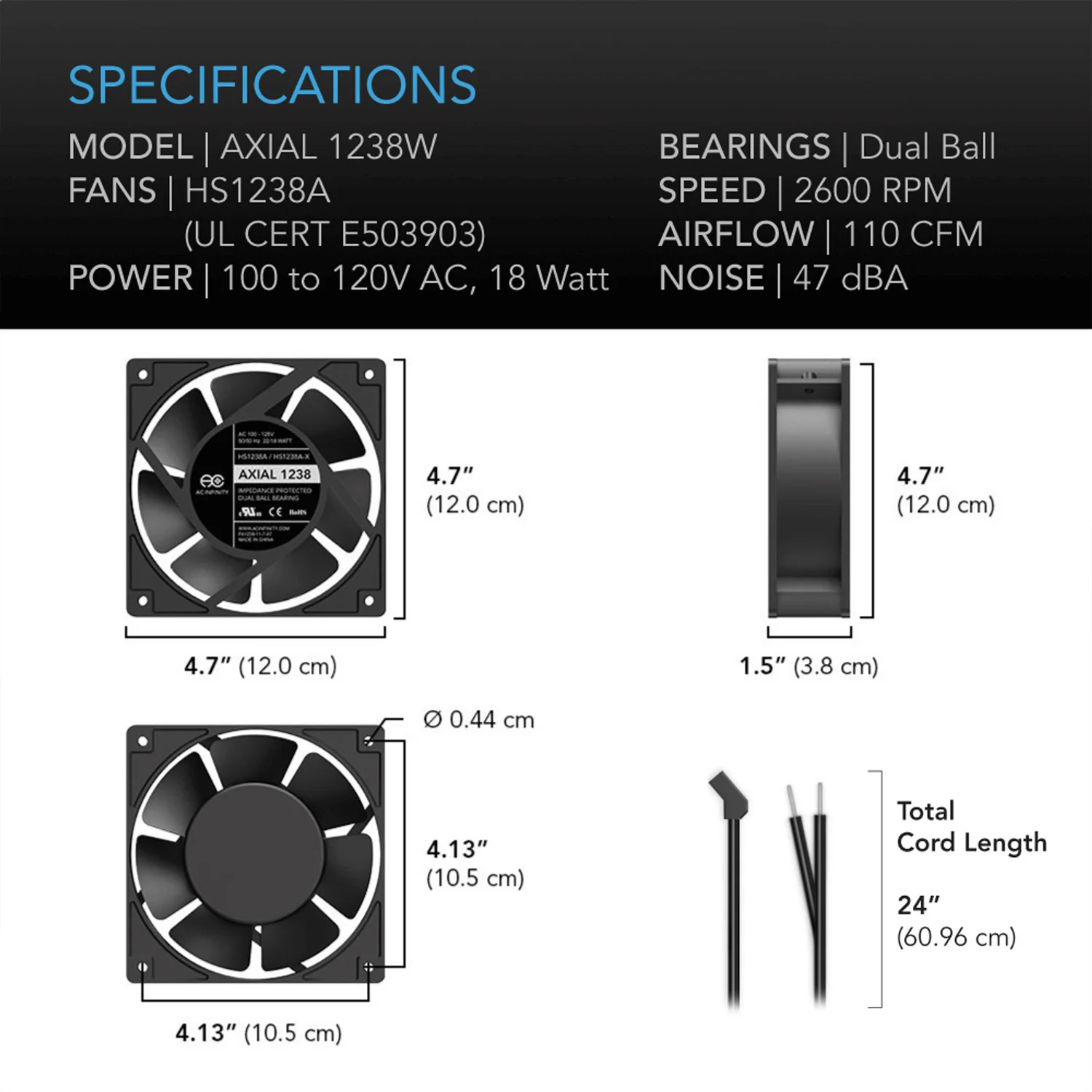

  • Product Dimensions
  • Total Dimensions: 4.7 x 4.7 x 1.5 in. (120 x 120 x 38 mm)
  • Hole to Hole Distance: 4.13 x 4.13 in. (104.8 x 104.8 mm)
  • Screw Hole Size: Ø 0.17 in. (Ø 4.3 mm)

  • Product Performance and Technical Specs
  • Fan Model: HS1238A
  • Total Airflow: 110 CFM
  • Total Noise: 47 dBA
  • Speed: 2600 RPM
  • Operating Voltage: 100-120V AC
  • Power: 18 W
  • Current: 0.06 A
  • Static Pressure: 9.1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
