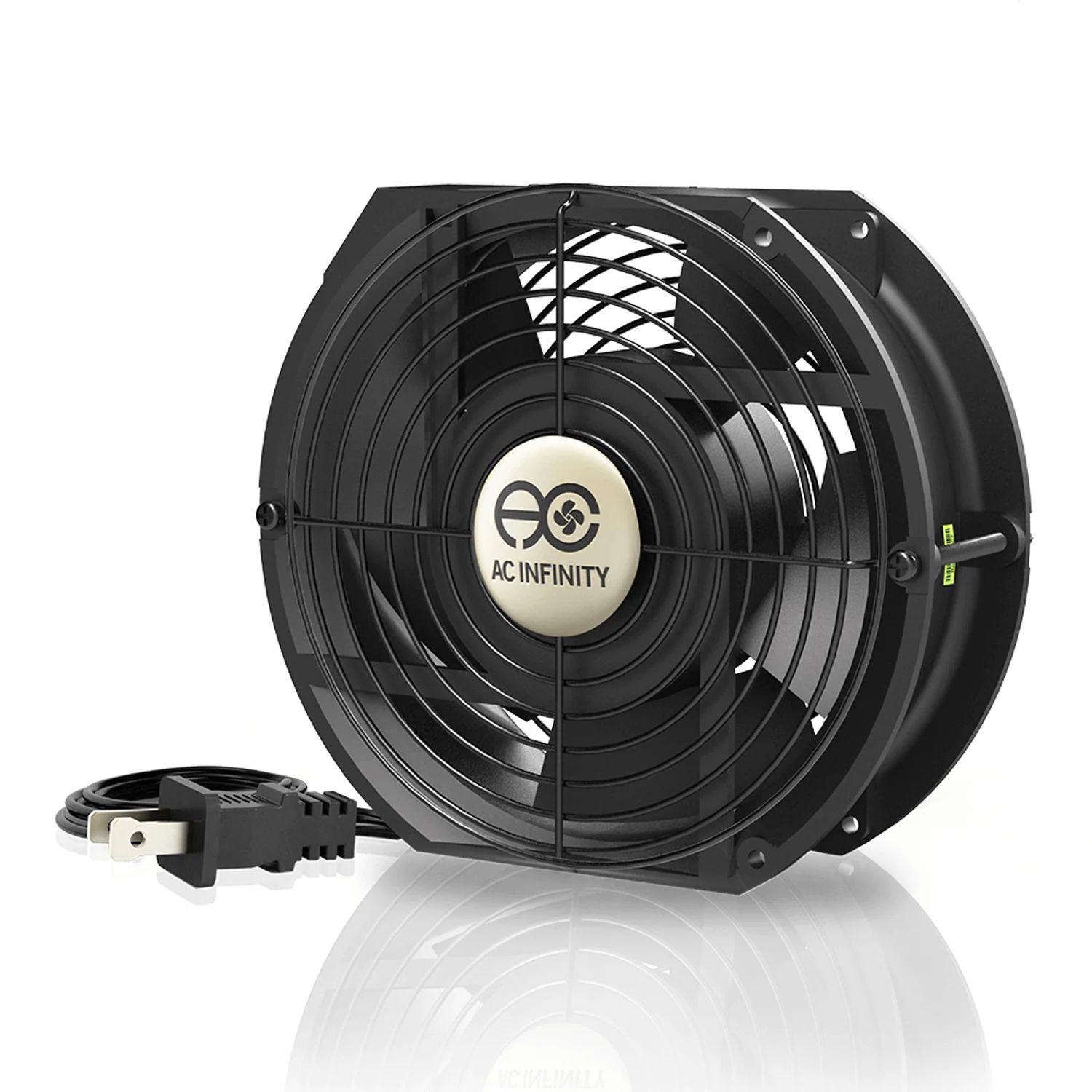

AC Infinity AXIAL 1751, Muffin 120V AC Cooling Fan, 172mm x 150mm x 51mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

AC Infinity AXIAL 1751, Muffin 120V AC Cooling Fan, 172mm x 150mm x 51mm

Description

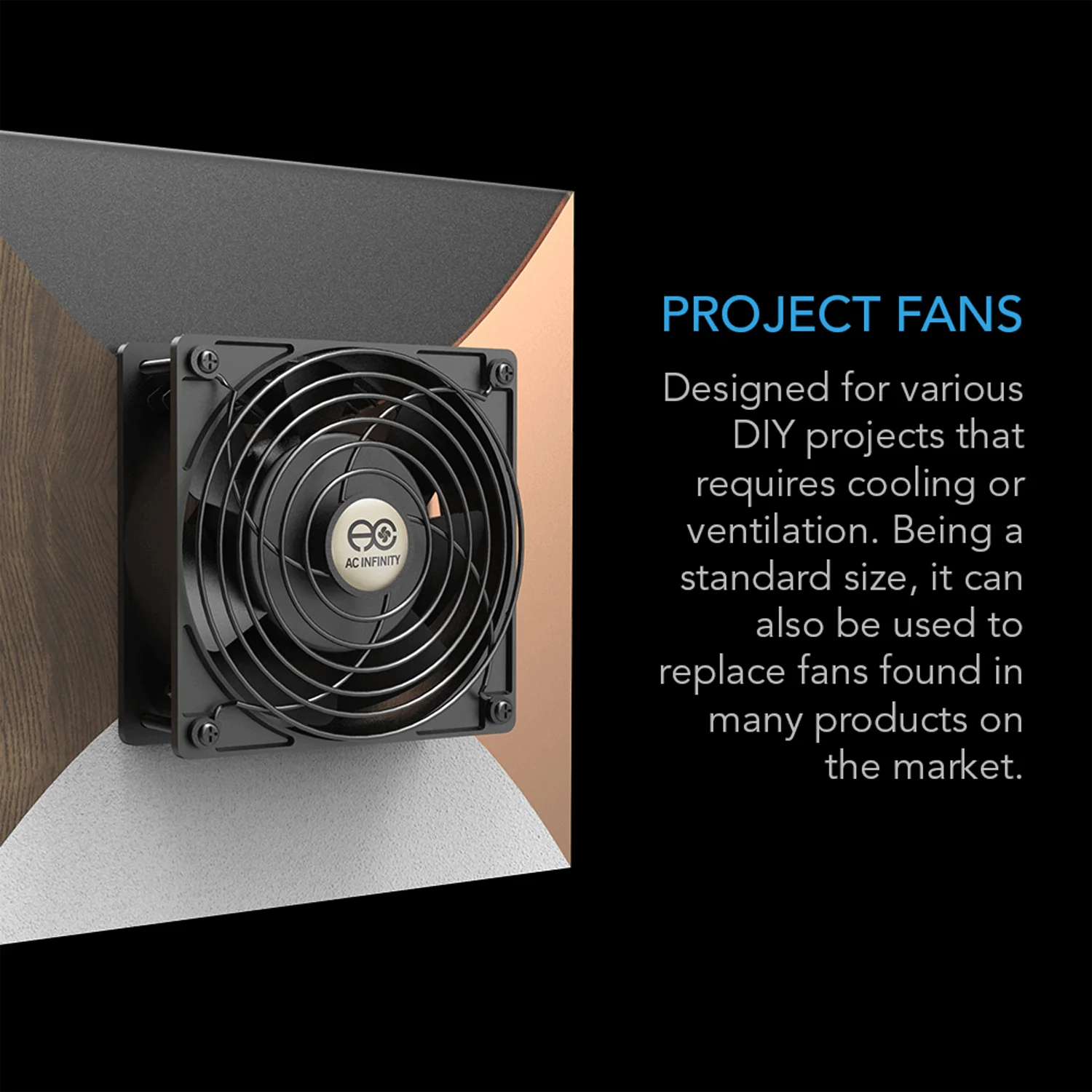

  • Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

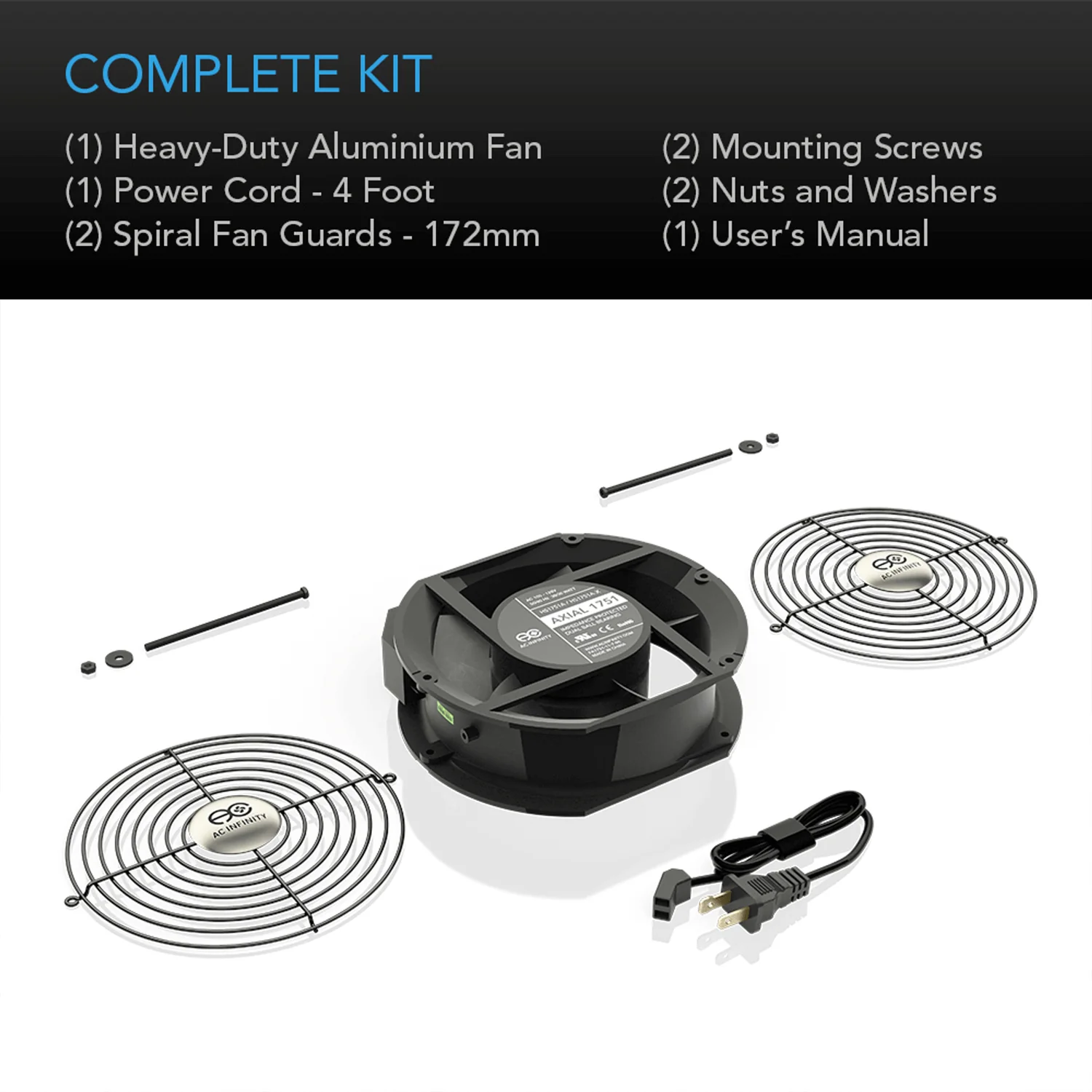

  • Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.
  • UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
  • High Speed: This model is designed to maximize airflow and may be too loud for some applications.
  • Dimensions: 172 x 150 x 51 mm (6.8 x 5.9 x 2 in.)
  • Power: 100 to 120V AC
  • Airflow: 211 CFM
  • Noise: 52 dBA
  • Speed: 2800 RPM

  • The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. The kit also includes two 172-millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.

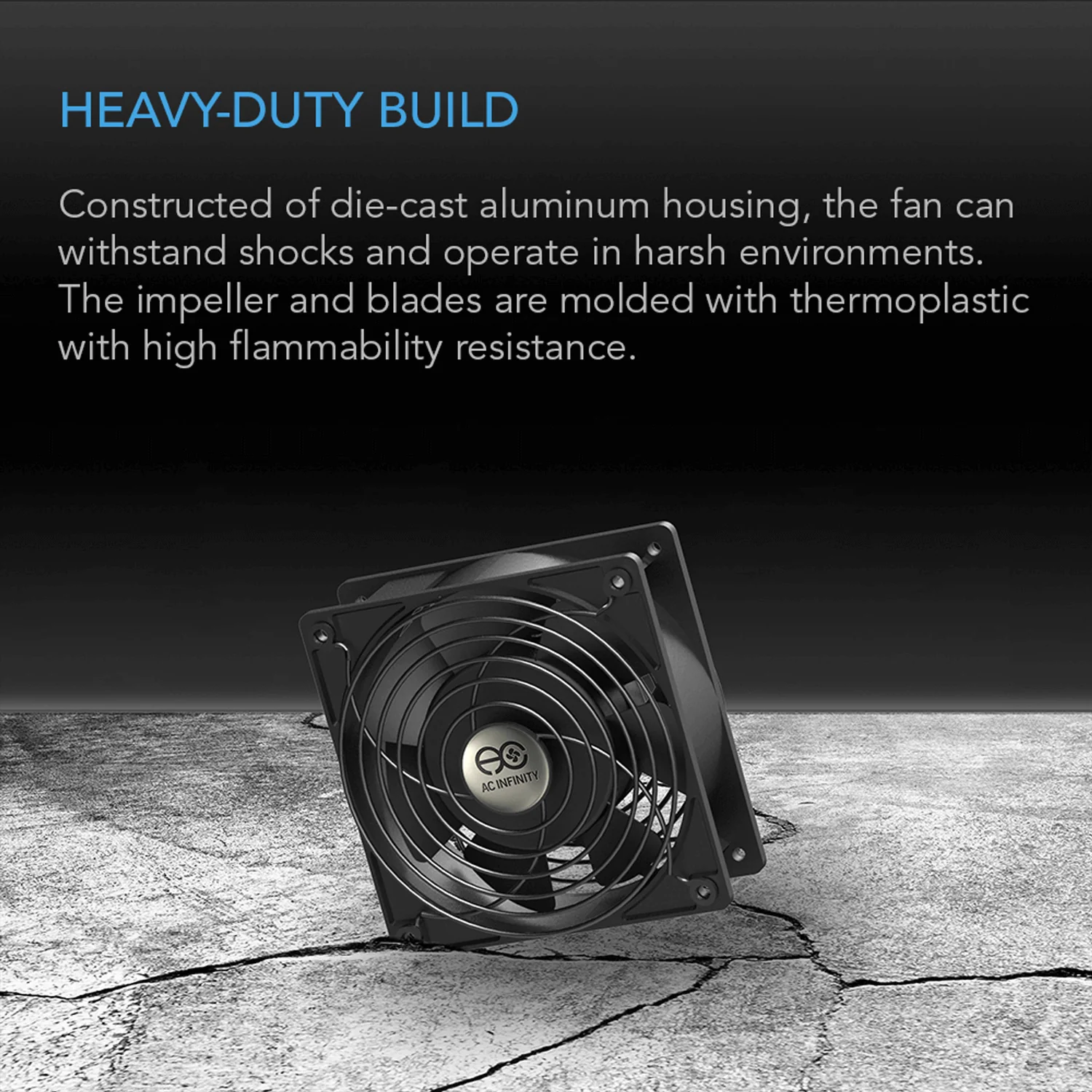

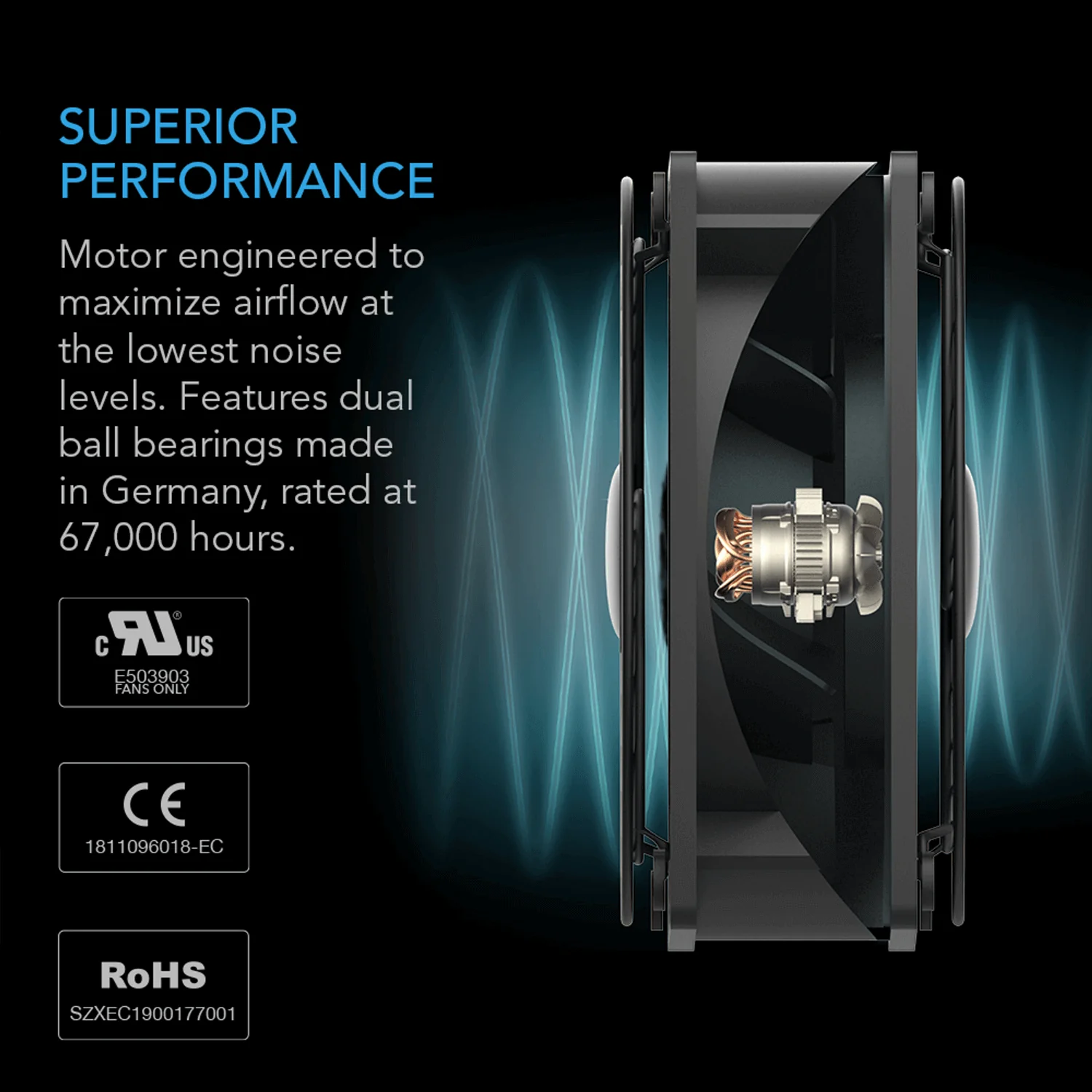

  • The fan's housing is constructed of die-cast aluminum painted black and is able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic, which has a high resistance to flammability. The impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock. With long-life dual ball bearings, the fans can be run continuously for 67,000 hours and mounted in any direction.

  • This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 1751
  • Product Model: HS1751A-X
  • UPC Code: 854759004303

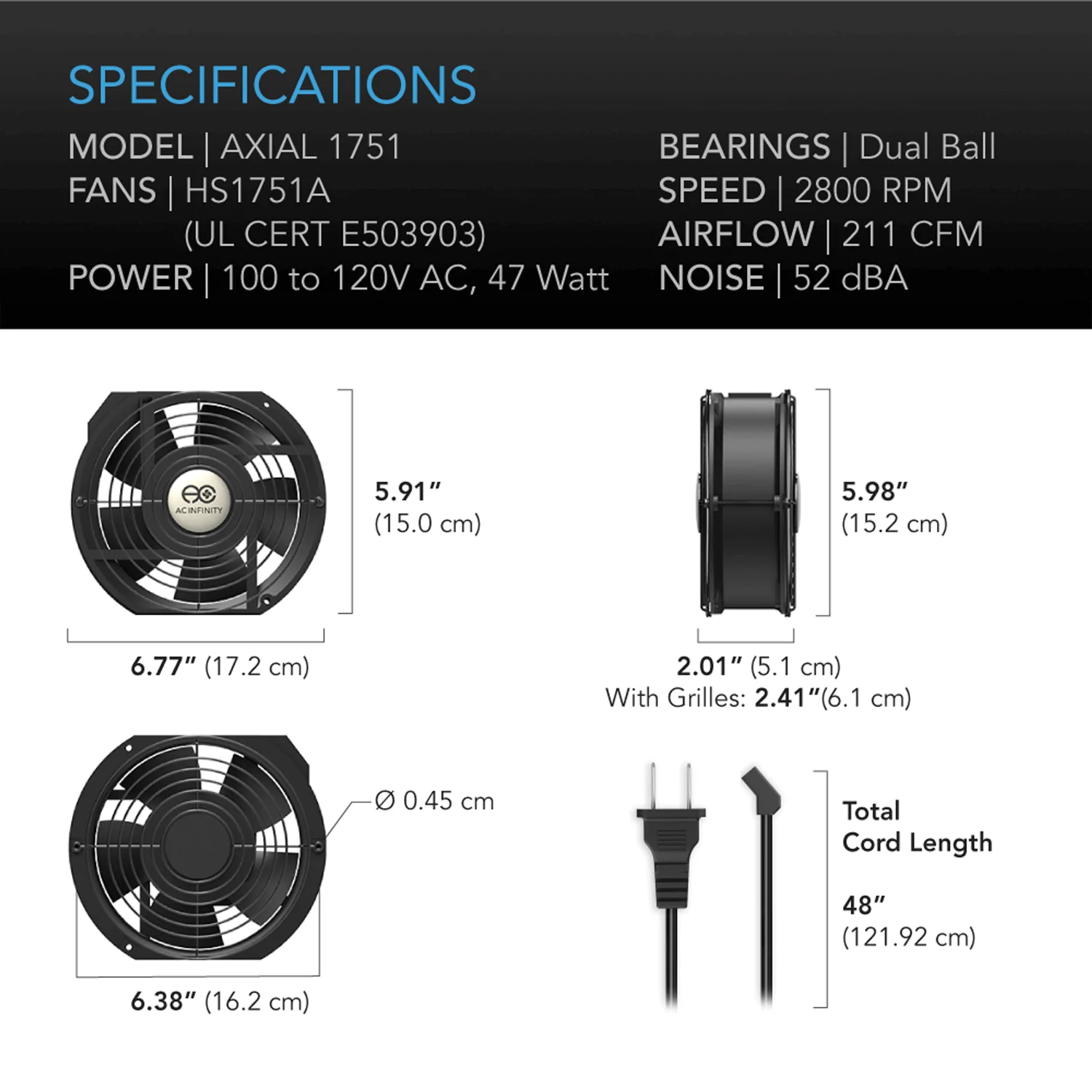

  • Product Dimensions
  • Total Dimensions: 6.8 x 5.9 x 2.0 in. (172 x 150 x 51 mm)
  • Hole to Hole Distance: 6.38 in. (16.2 cm)
  • Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)
  • Cord Length: 48 in. (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: HS1751A
  • Total Airflow: 211 CFM
  • Total Noise: 52 dBA
  • Speed: 2800 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 47 W
  • Current: 0.4 A
  • Static Pressure: 13.7 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
