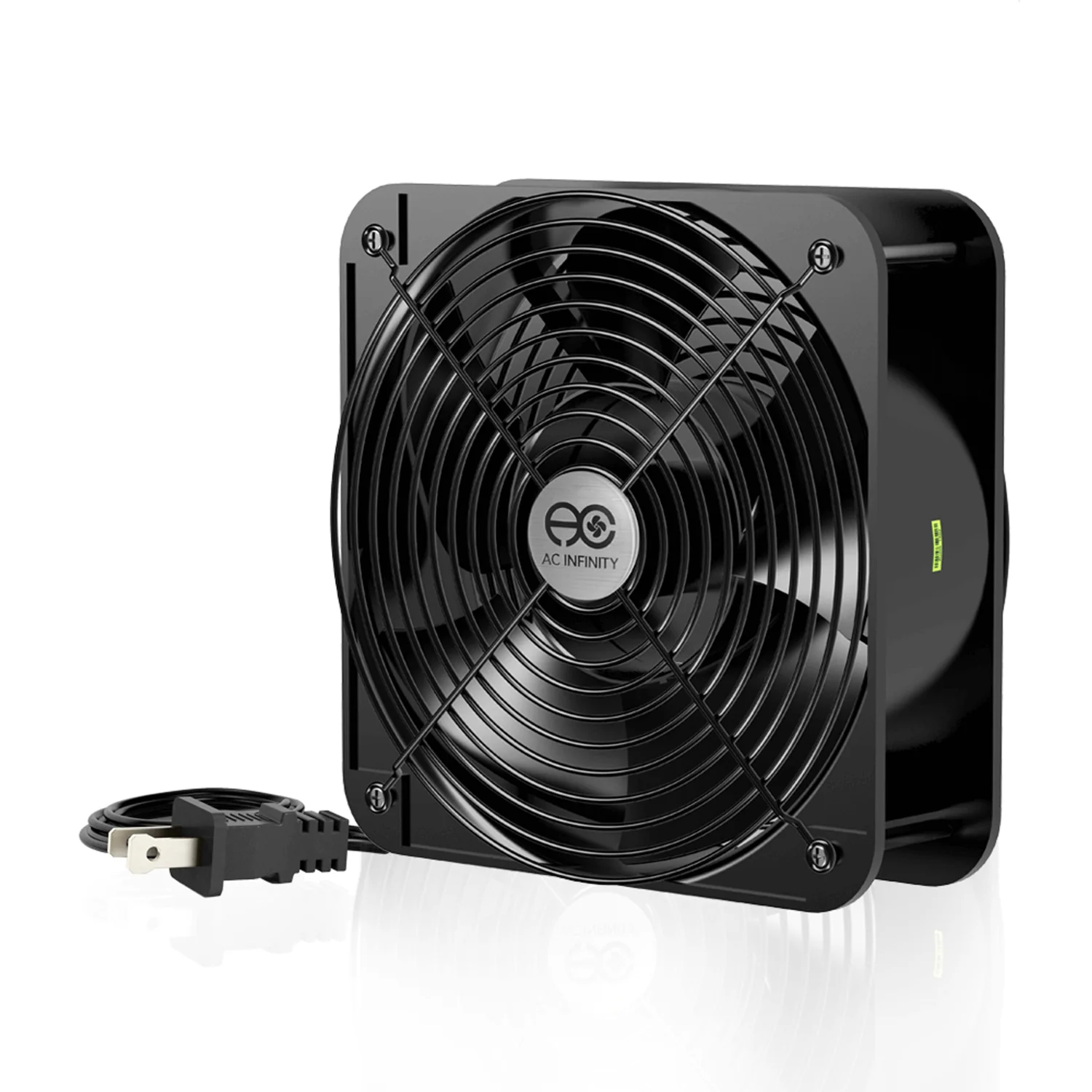

AC Infinity AXIAL 2060, Muffin 120V AC Cooling Fan, 200mm x 200mm x 60mm

Description

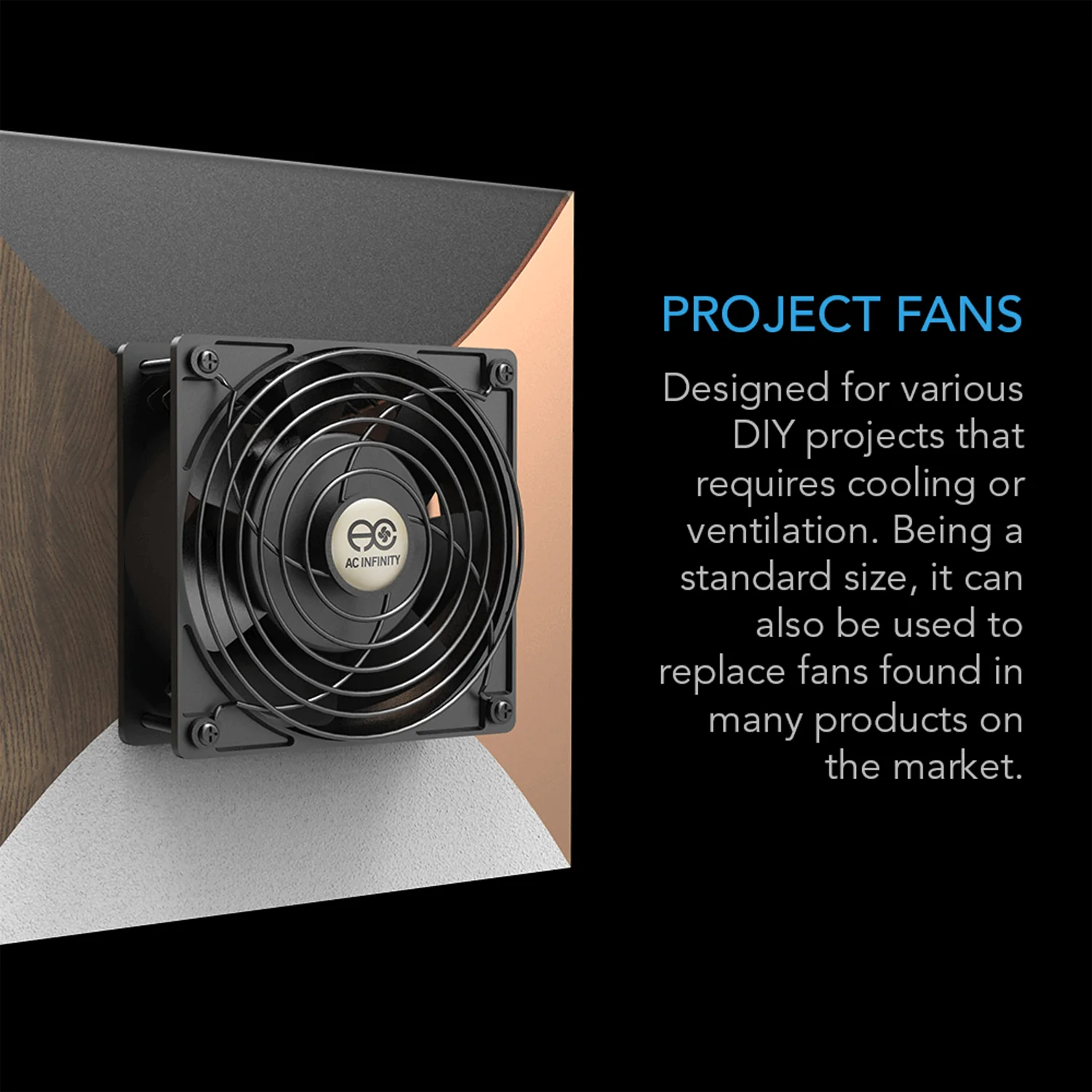

  • Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

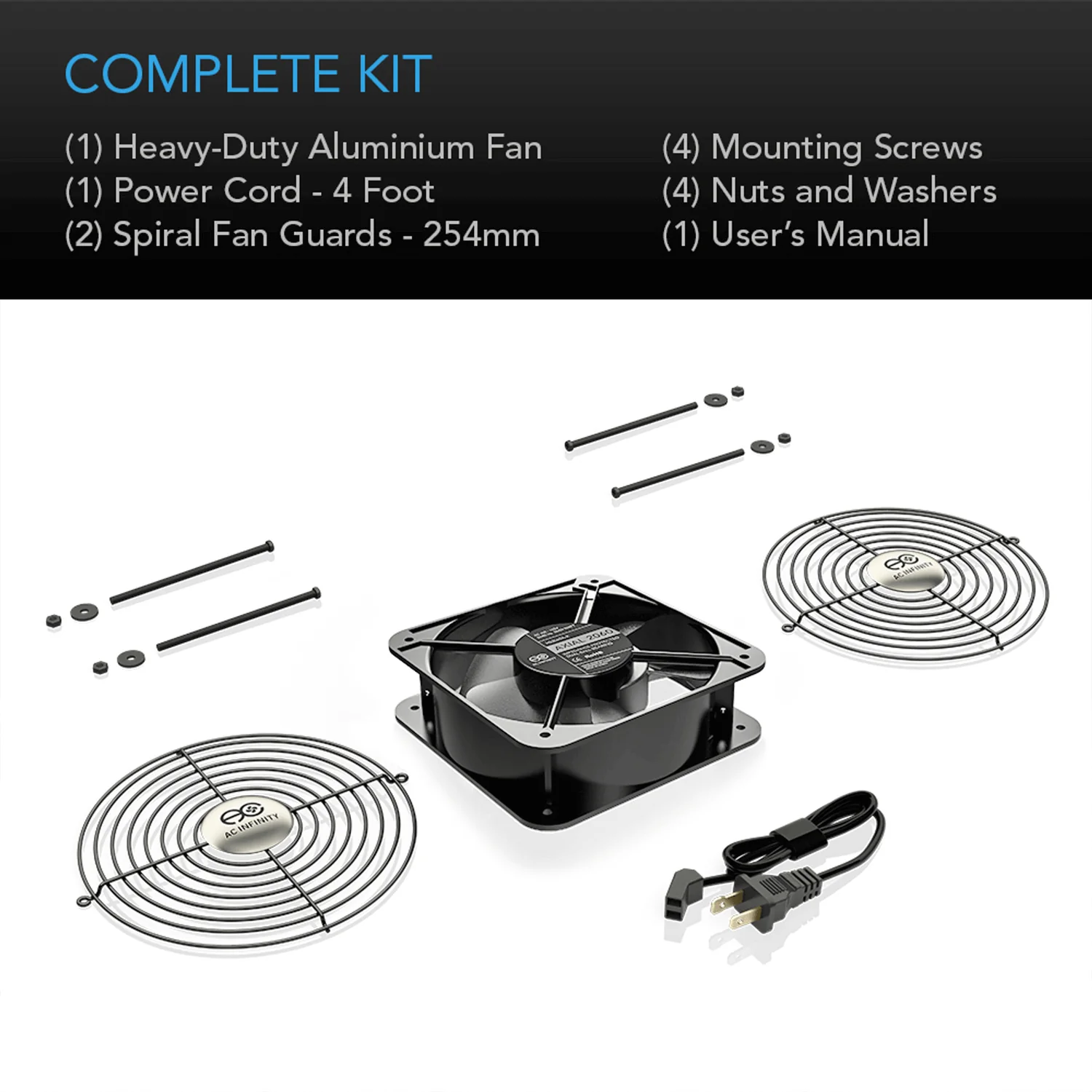

  • Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and a mounting screw set.
  • The dual-ball bearings have a lifespan of 67,000 hours and allow the fans to be laid flat or stand upright.
  • High Speed: This model is designed to maximize airflow and may be too loud for some applications.
  • Dimensions: 200 x 200 x 60 mm (7.87 x 7.87 x 2.36 in.) | Power: 100 to 120V AC | Airflow: 425 CFM | Noise: 65 dBA | Speed: 3200 RPM

  • The heavy duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4 foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. The kit also includes two 200 millimeter metal fan guards and a mounting screw set.

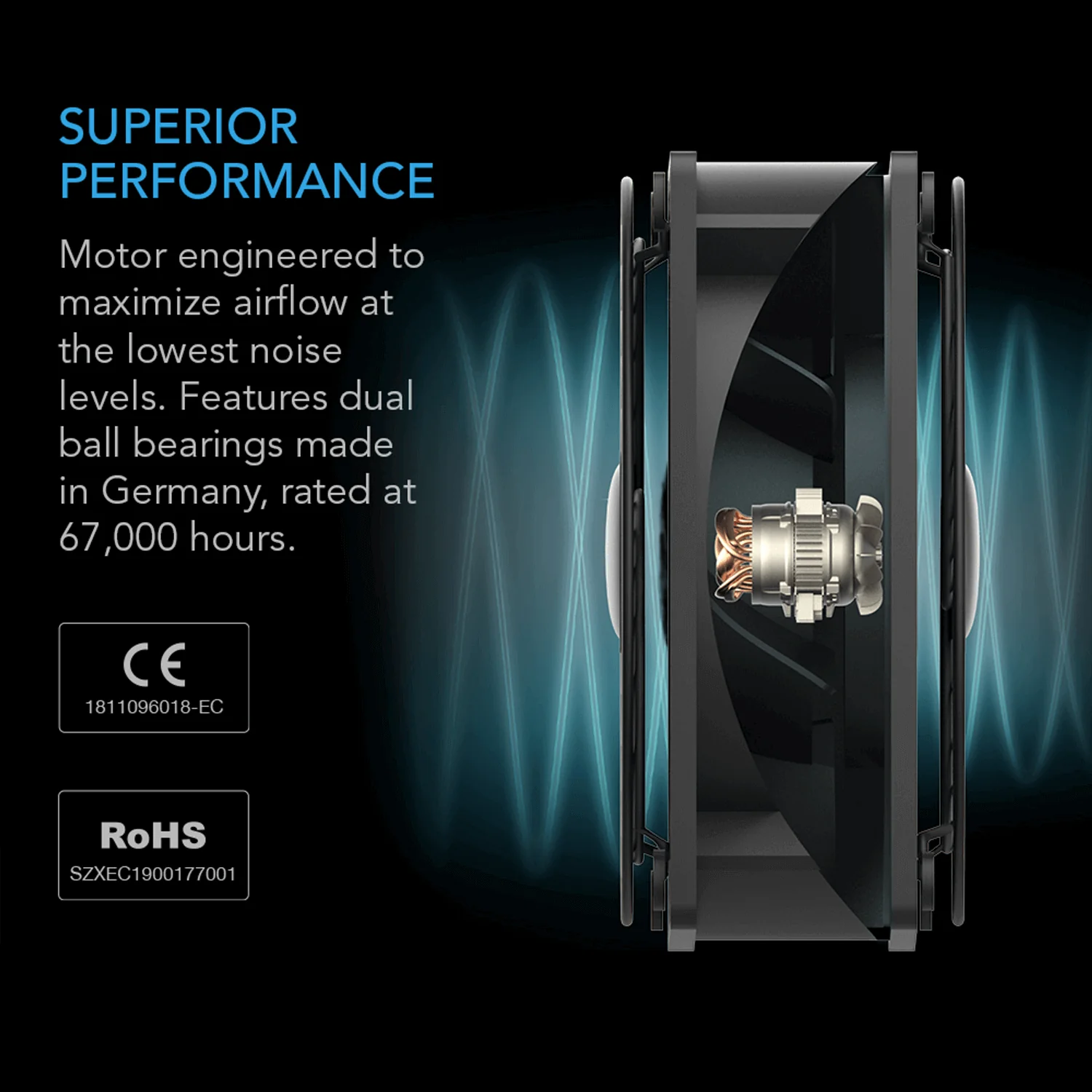

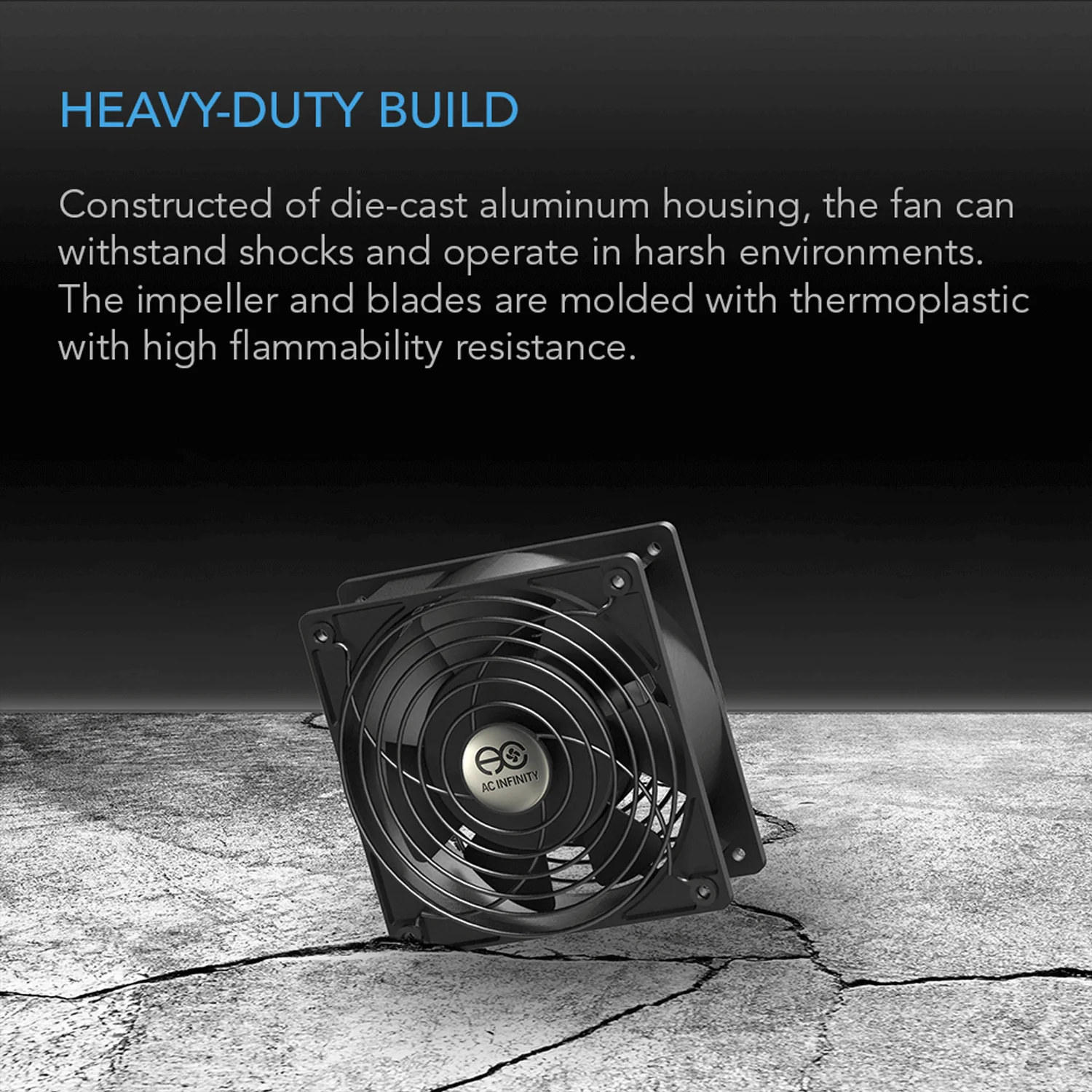

  • The fan's housing is constructed of die-cast aluminum painted black, enabling it to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic, which has a high resistance to flammability. The impedance protected motors contain windings that have a higher resistance to heat during a rotor lock. Additionally, the fans contain long life dual ball bearings and can be run continuously for 67,000 hours. They can be mounted in any direction.

  • This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Some popular uses include tanning beds, LED signs, server racks, industrial machinery, and arcade systems. Additionally, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 2060
  • Product Model: HS2060A-X
  • UPC Code: 819137021402

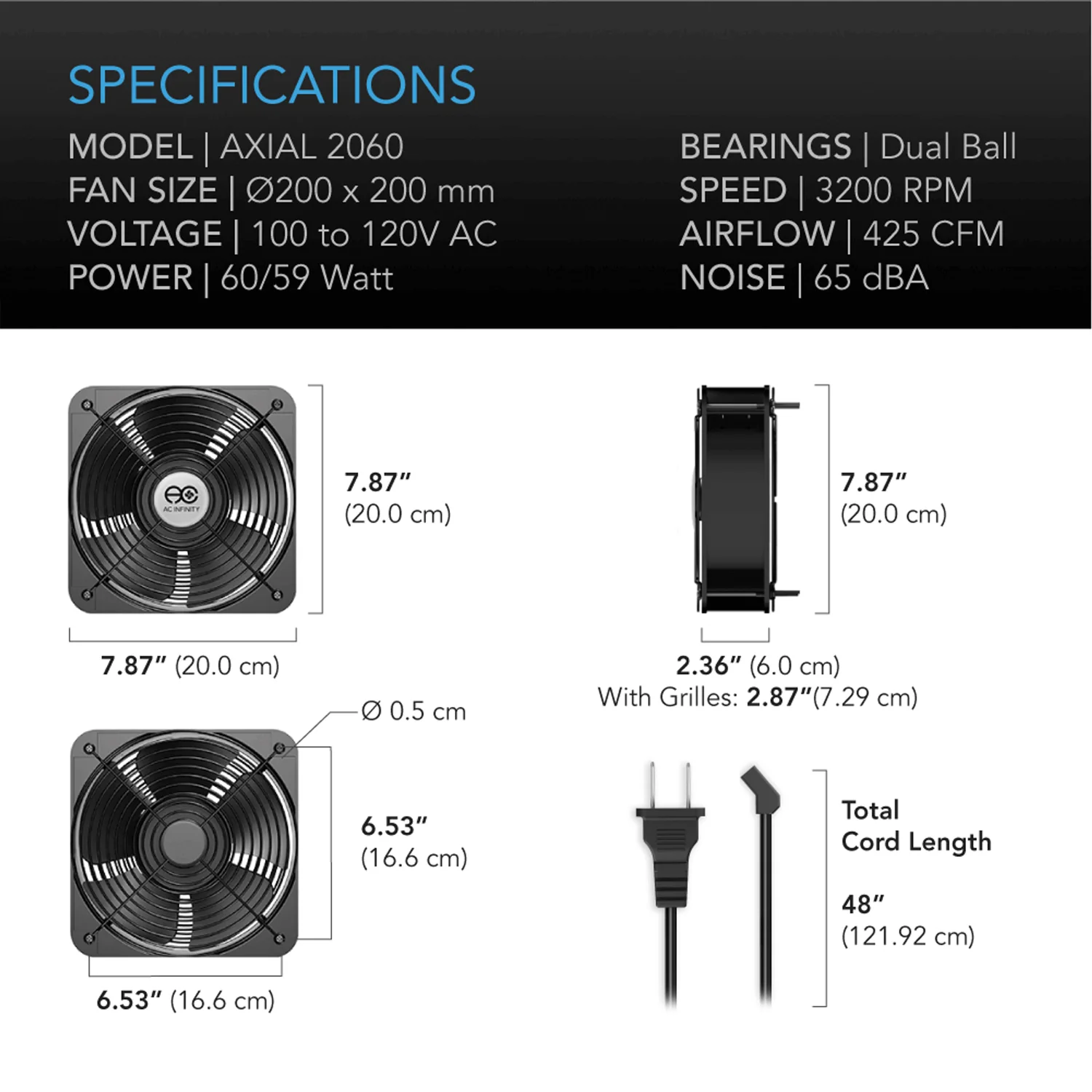

  • Product Dimensions
  • Total Dimensions: 7.87 x 7.87 x 2.36 in. (20.0 x 20.0 x 6.0 cm)
  • Hole to Hole Distance: 6.53 x 6.53 in. (16.6 x 16.6 cm)
  • Screw Hole Size: Ø 0.19 in. (Ø 0.5 cm)
  • Cord Length: 48 in. (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: HS2060A
  • Total Airflow: 425 CFM
  • Total Noise: 65 dBA
  • Speed: 3200 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 60 W
  • Current: 0.85 A
  • Static Pressure: 17.0 mm-H2O
  • Operating Humidity: 20 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
