AC Infinity AXIAL 2589, Muffin 120V AC Cooling Fan 10", 254mm x 89mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

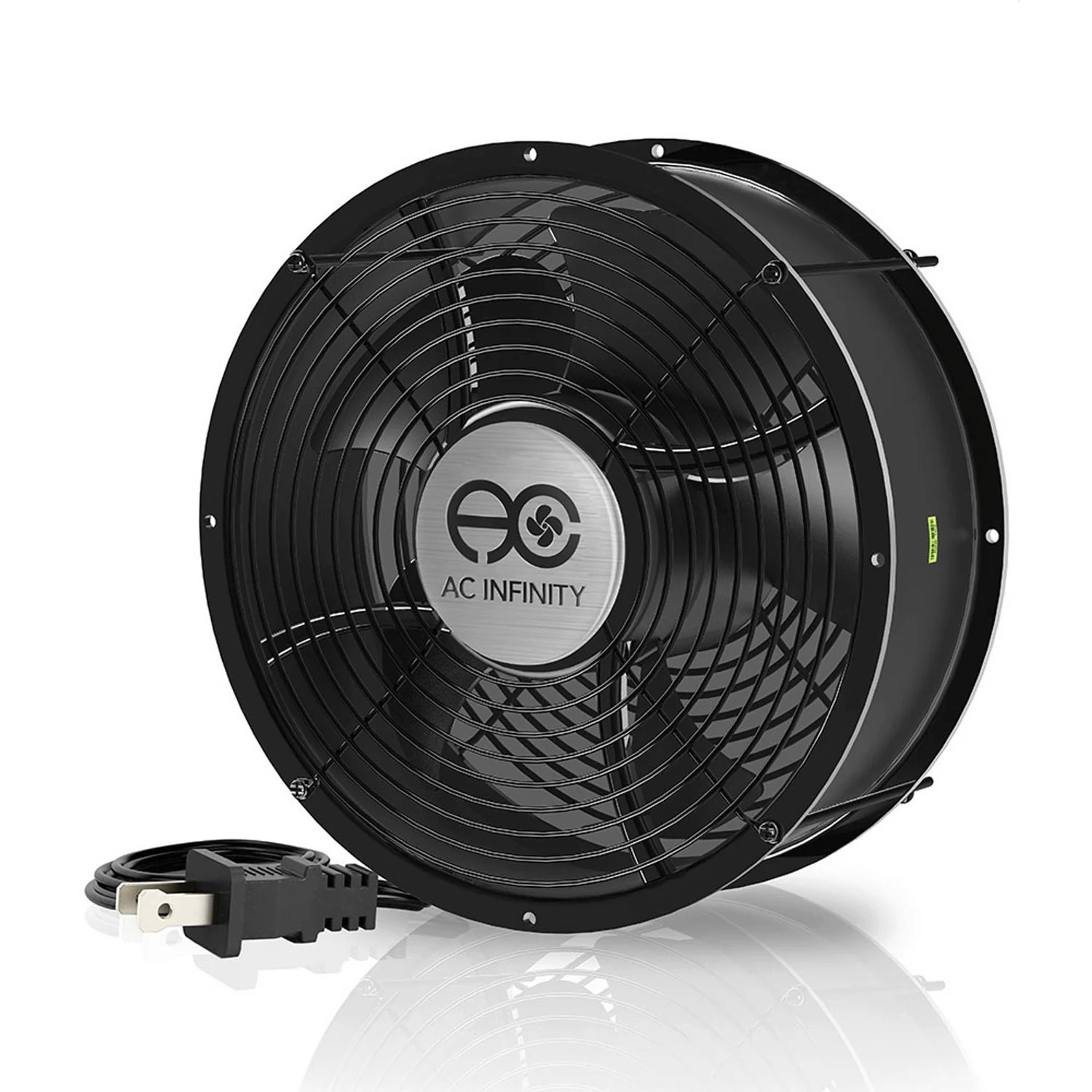

AC Infinity AXIAL 2589, Muffin 120V AC Cooling Fan 10", 254mm x 89mm

Description

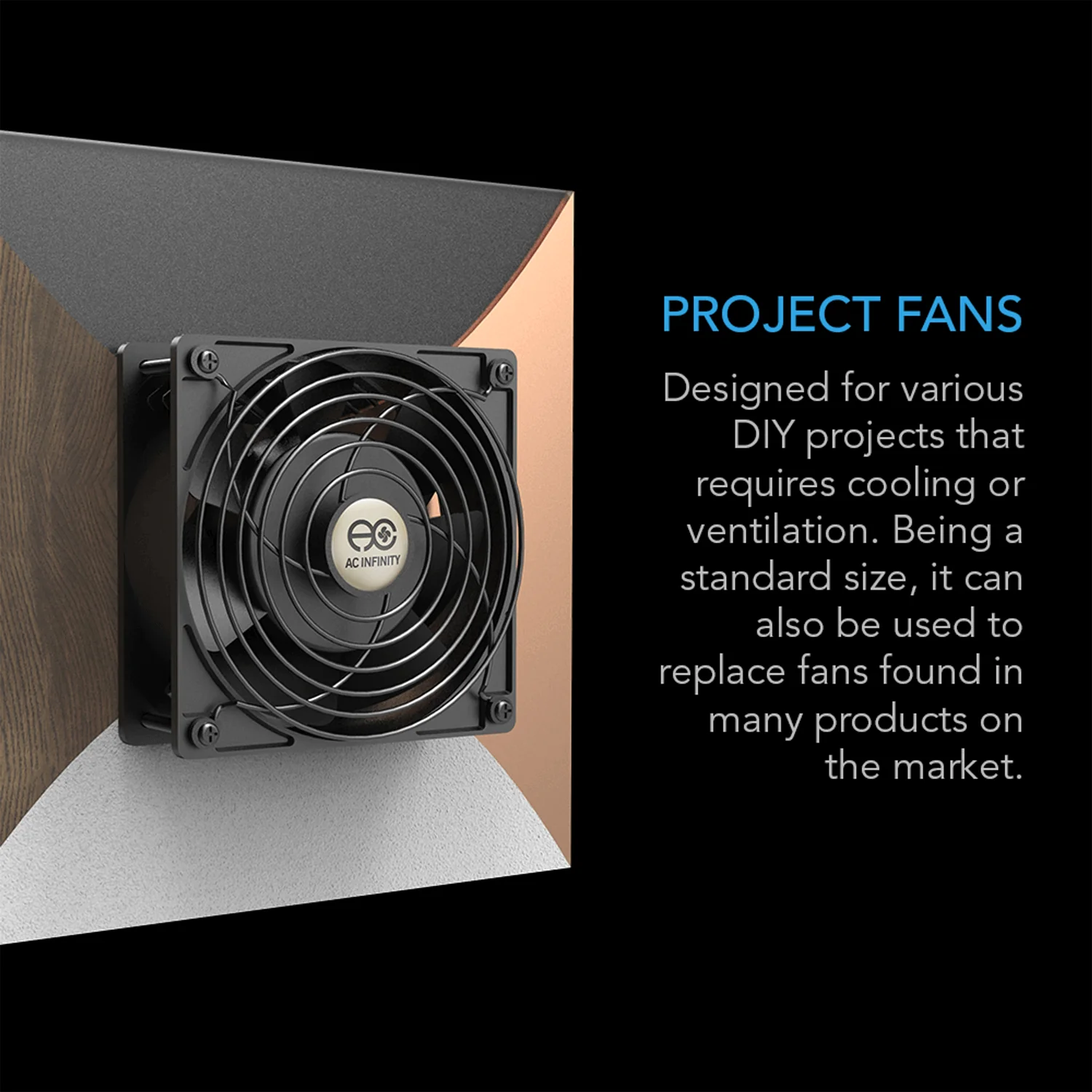

  • Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

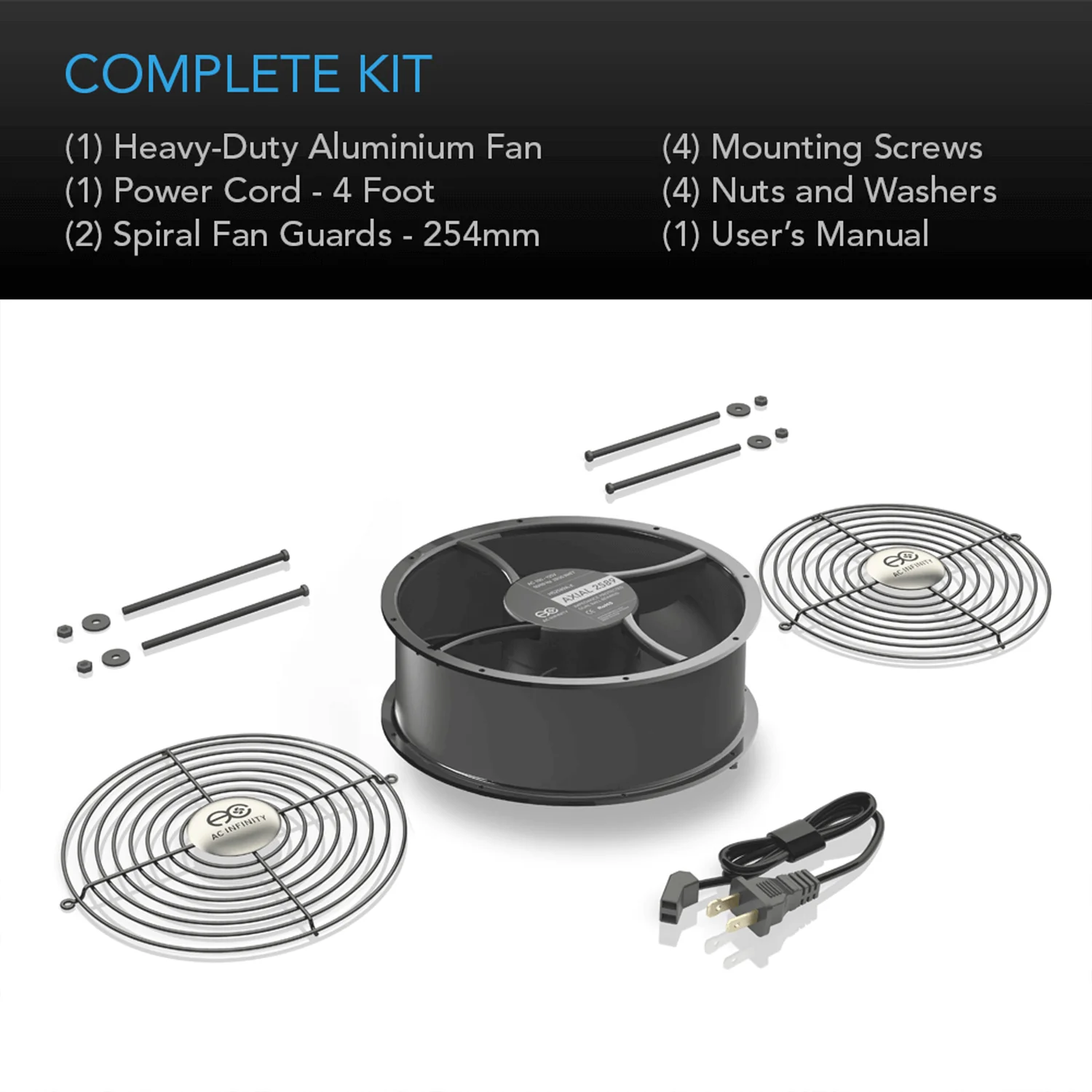

  • Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.
  • The dual-ball bearings have a lifespan of 67,000 hours and allow the fans to be laid flat or stand upright.
  • High Speed: This model is designed to maximize airflow and may be too loud for some applications.
  • Size: Ø254 x 89mm (Ø10 x 3.5 in.) | Voltage: 100 to 120V AC | Airflow: 550 CFM | Noise: 50 dBA | Speed: 1700 RPM

  • The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount and power it through a wall outlet.
  • Includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet.
  • The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source.
  • Also includes two 254 millimeter metal fan guards and a mounting screw set.
  • The AC Infinity axial fan is CE and RoHS certified.

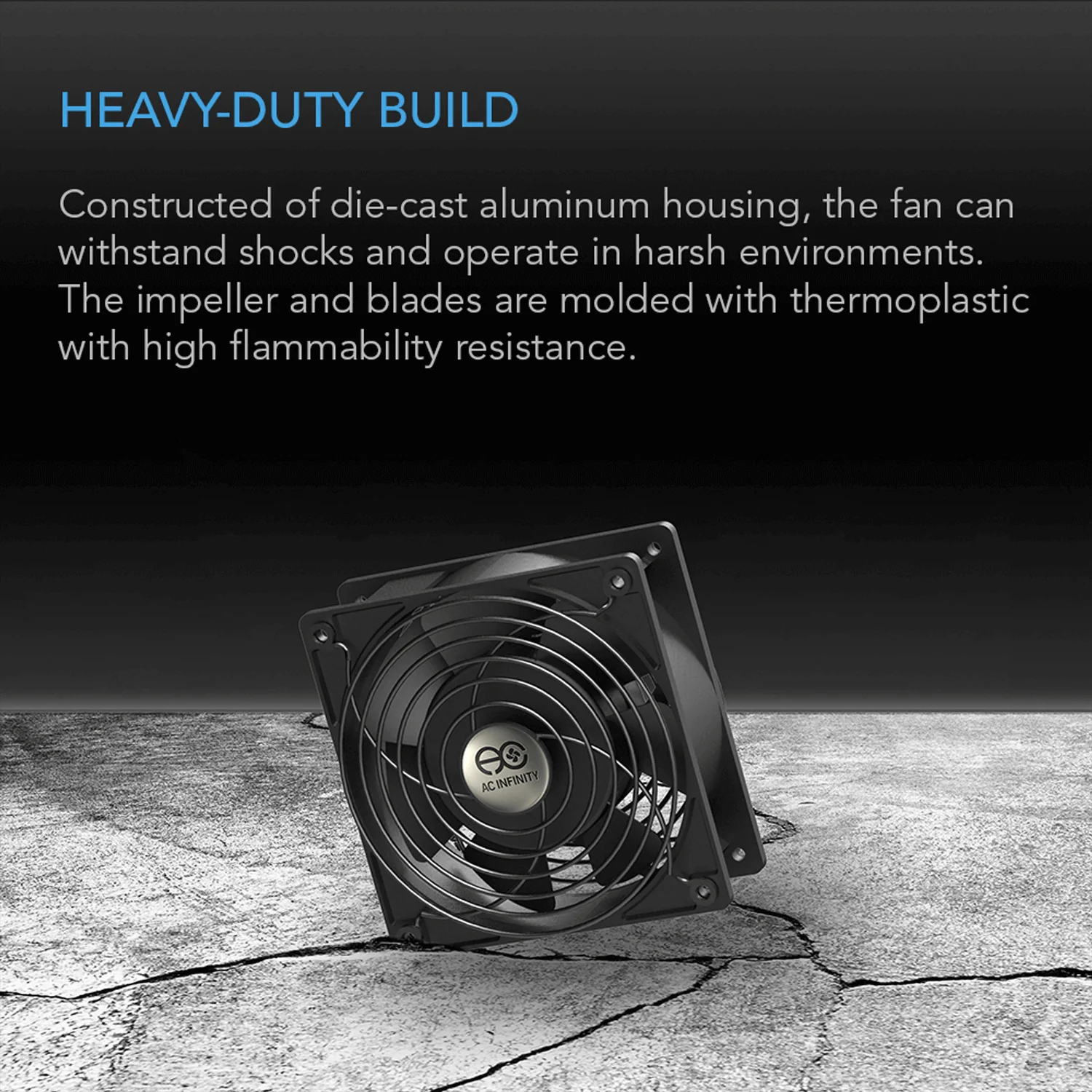

  • The fan's housing is constructed of die-cast aluminum painted black and is able to perform well in harsh environments and withstand shocks.
  • Its impeller and blades are molded with thermoplastic, which have a high resistance to flammability.
  • Impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock.

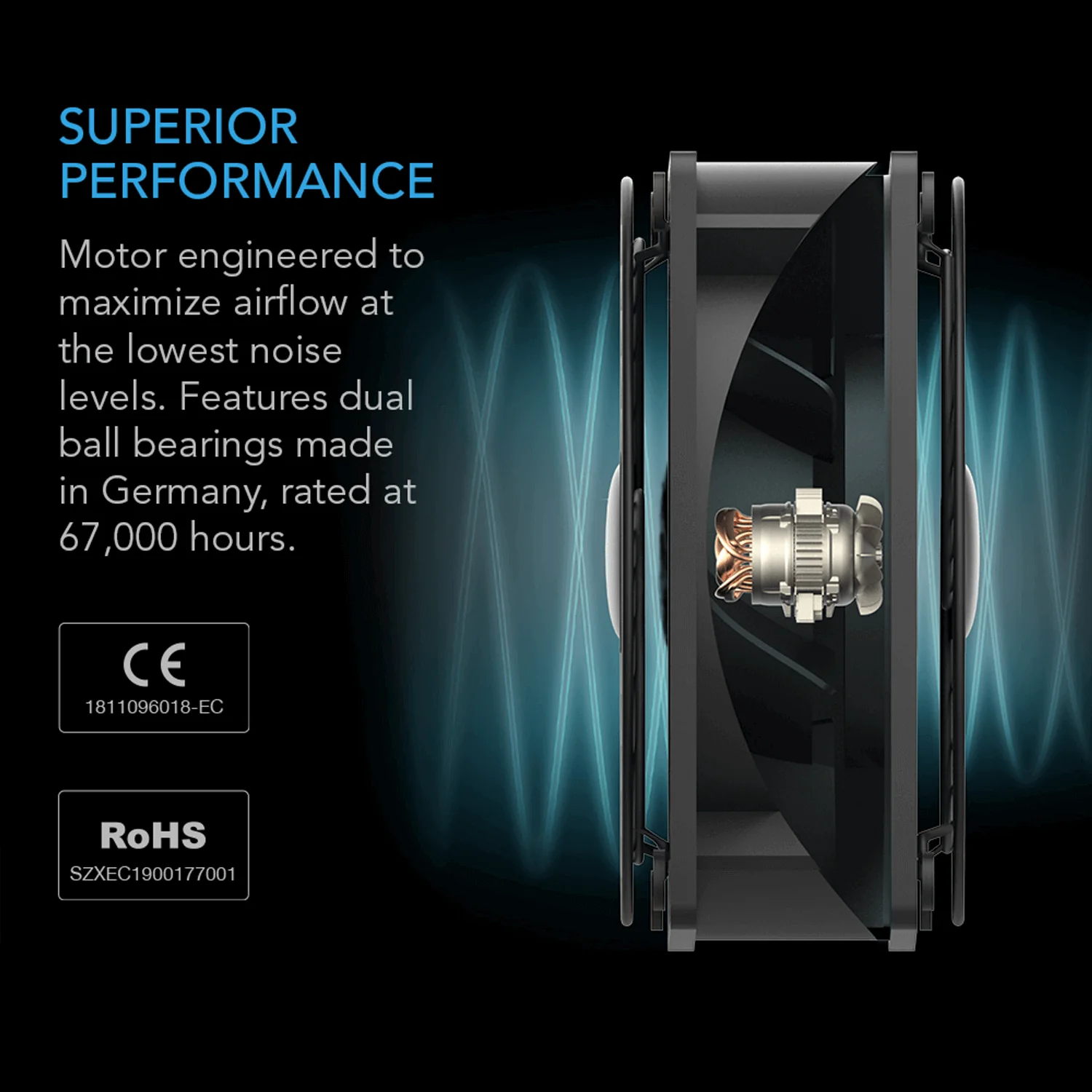

  • Containing long-life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.

  • This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable.
  • Popular uses include tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more.
  • Because this is a standard industrial-sized fan, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.

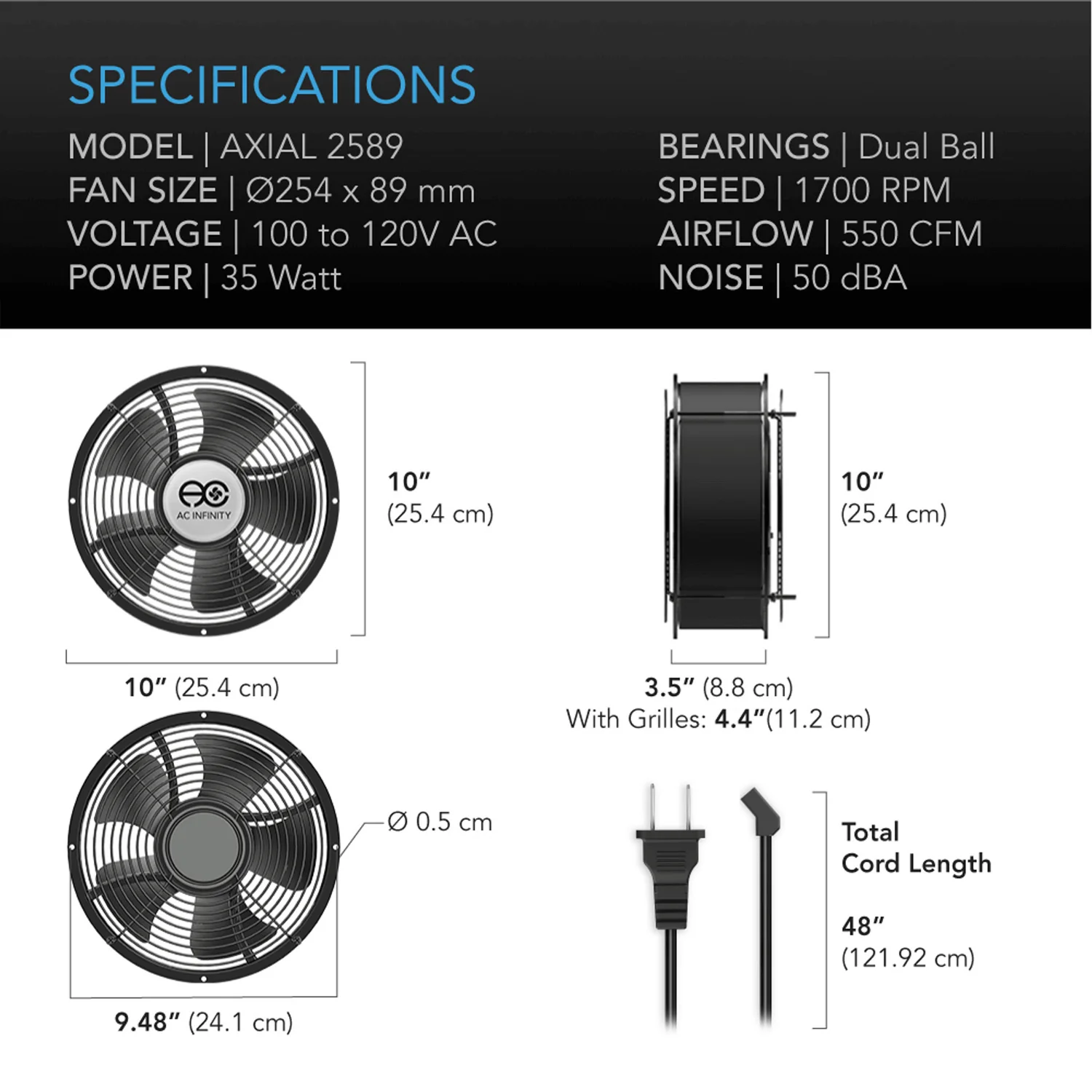

    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 2589
  • Product Model: HS2589A-X
  • UPC Code: 819137020894

  • Product Dimensions
  • Total Dimensions: Ø254 x 89mm (Ø10 x 3.5 in.)
  • Hole to Hole Distance: 9.48 in. (24.1 cm)
  • Screw Hole Size: Ø0.17 in. (Ø0.4 cm)
  • Cord Length: 48 in. (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: HS2589A
  • Total Airflow: 550 CFM
  • Total Noise: 50 dBA
  • Speed: 1700 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 47 W
  • Current: 0.3 A
  • Static Pressure: 13.7 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
