AC Infinity AXIAL 8038, Muffin 120V AC Cooling Fan, 80mm x 80mm x 38mm, Low Speed

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity AXIAL 8038, Muffin 120V AC Cooling Fan, 80mm x 80mm x 38mm, Low Speed

Description

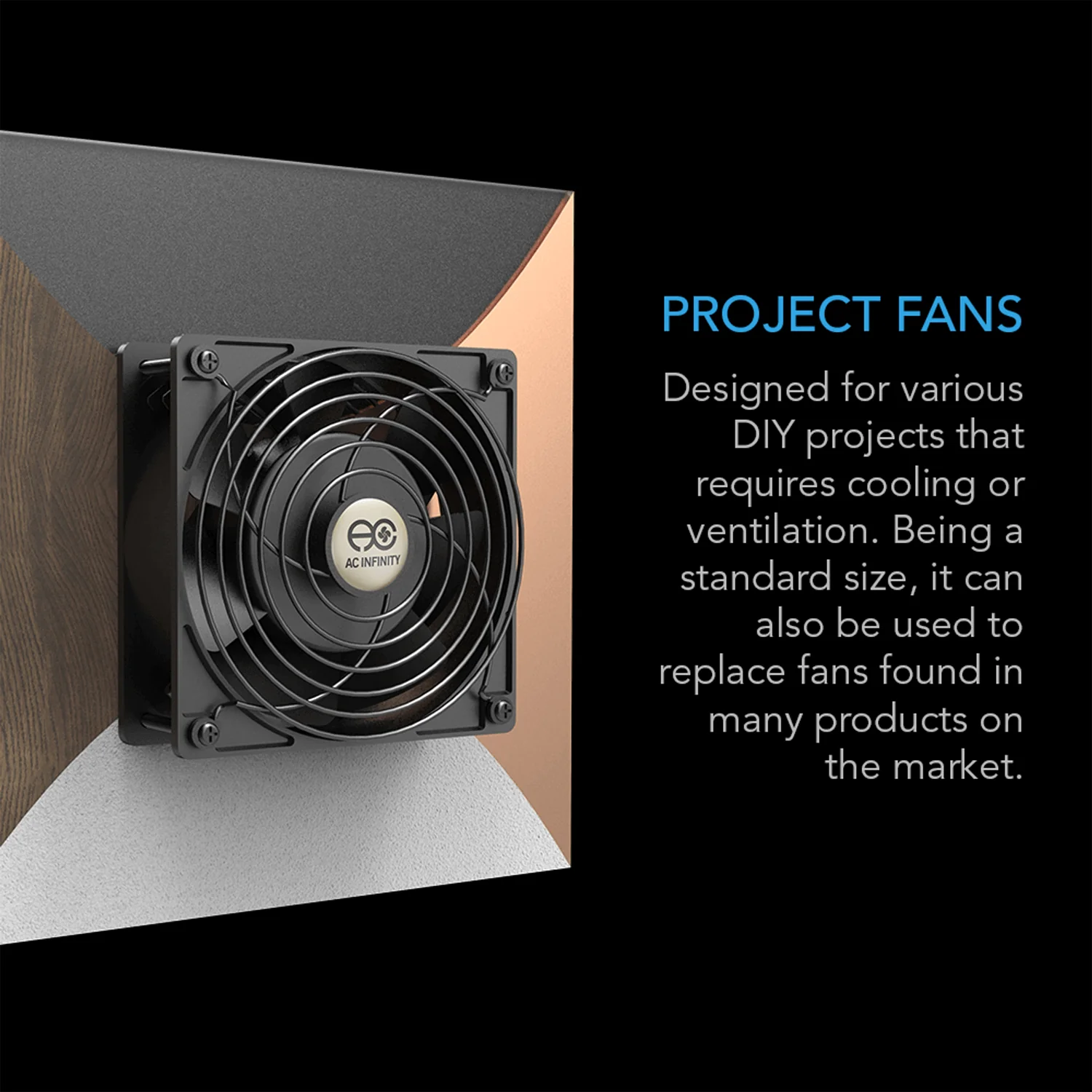

  • Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

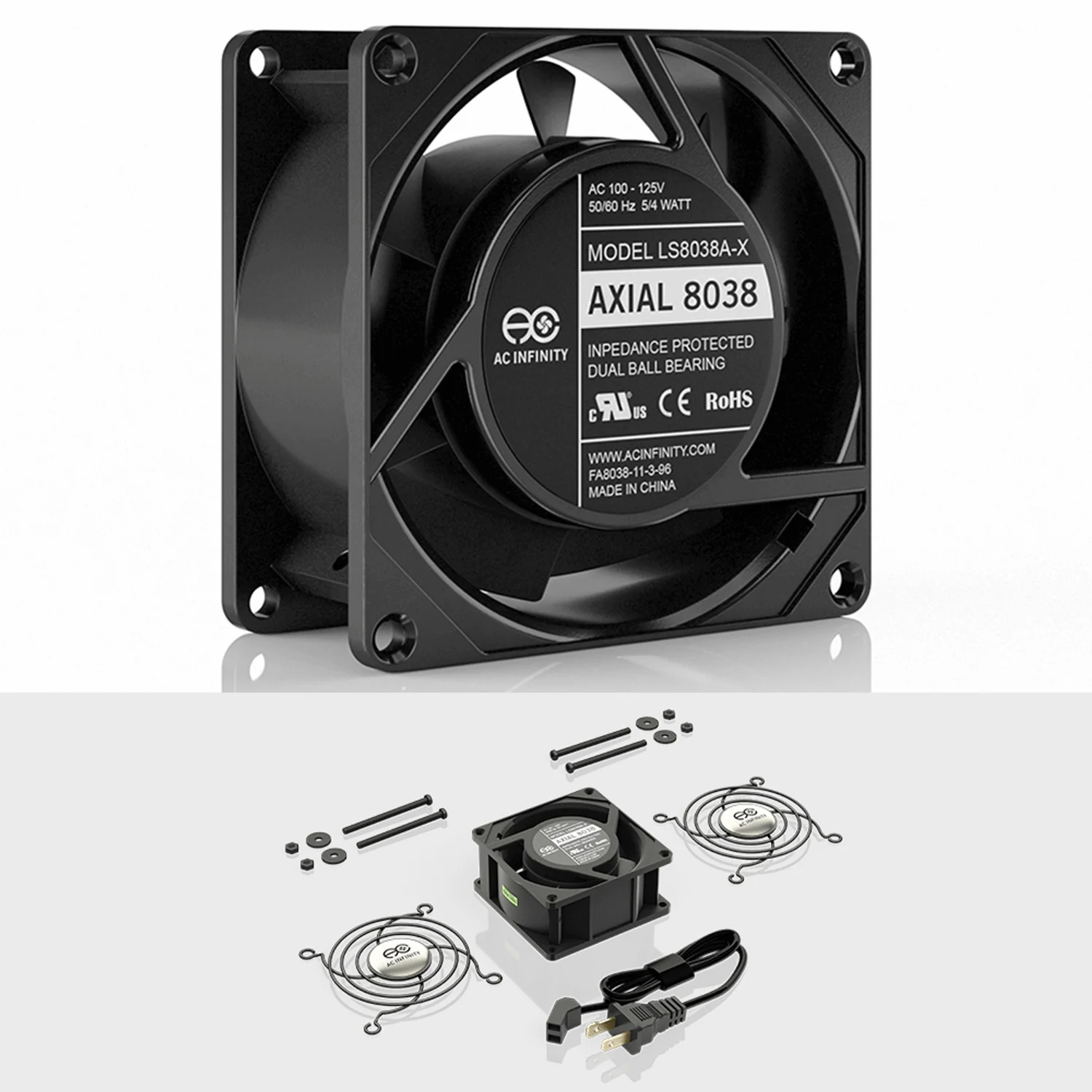

  • Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.
  • UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
  • Low Speed: Has a lower noise and airflow rating than high-speed models.
  • 80 x 80 x 38 mm (3.2 x 3.2 x 1.5 in.) | 100 to 125V AC | Airflow: 23 CFM | Noise: 28 dBA | Speed: 2000 RPM

  • The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 80-millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903, and also CE and RoHS certified.

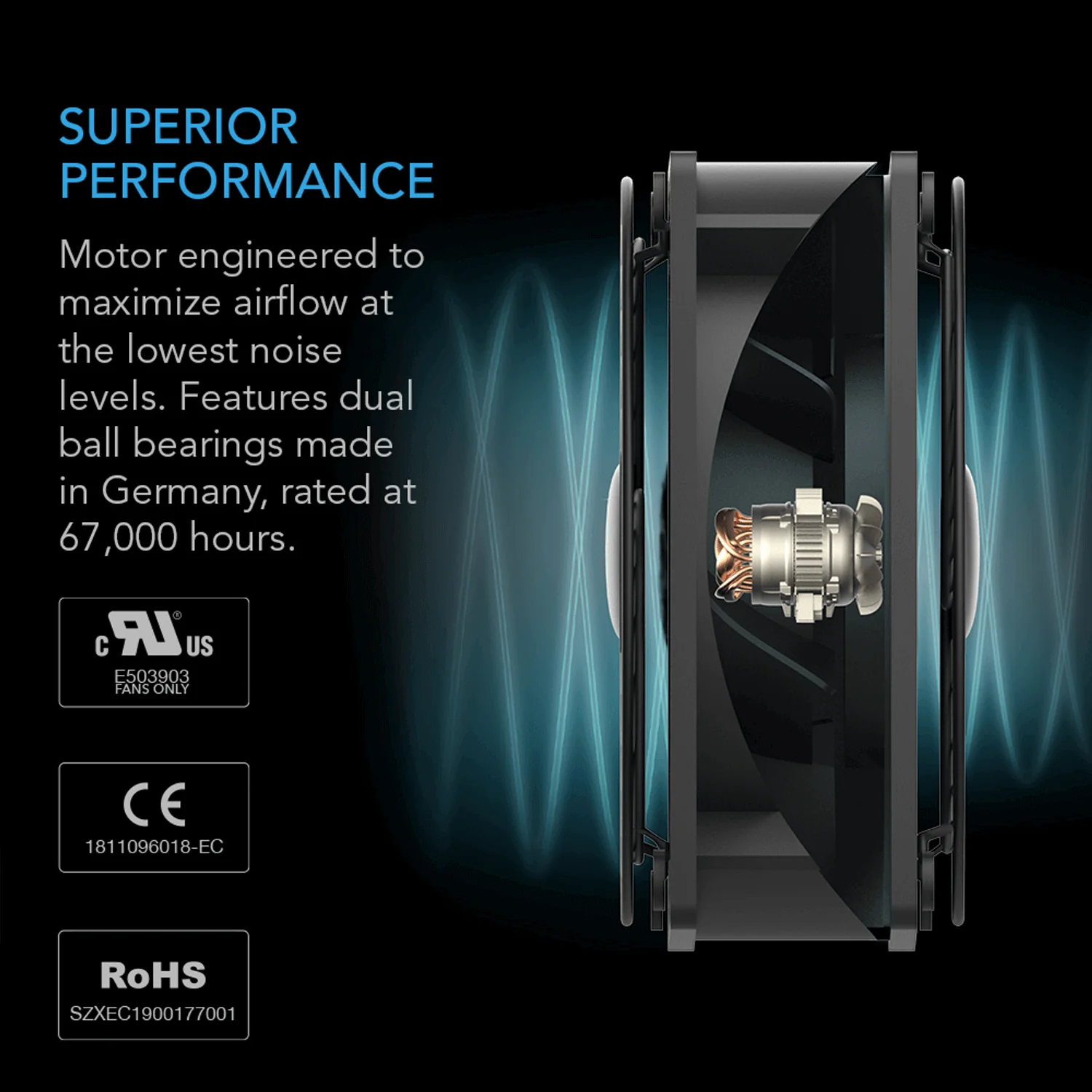

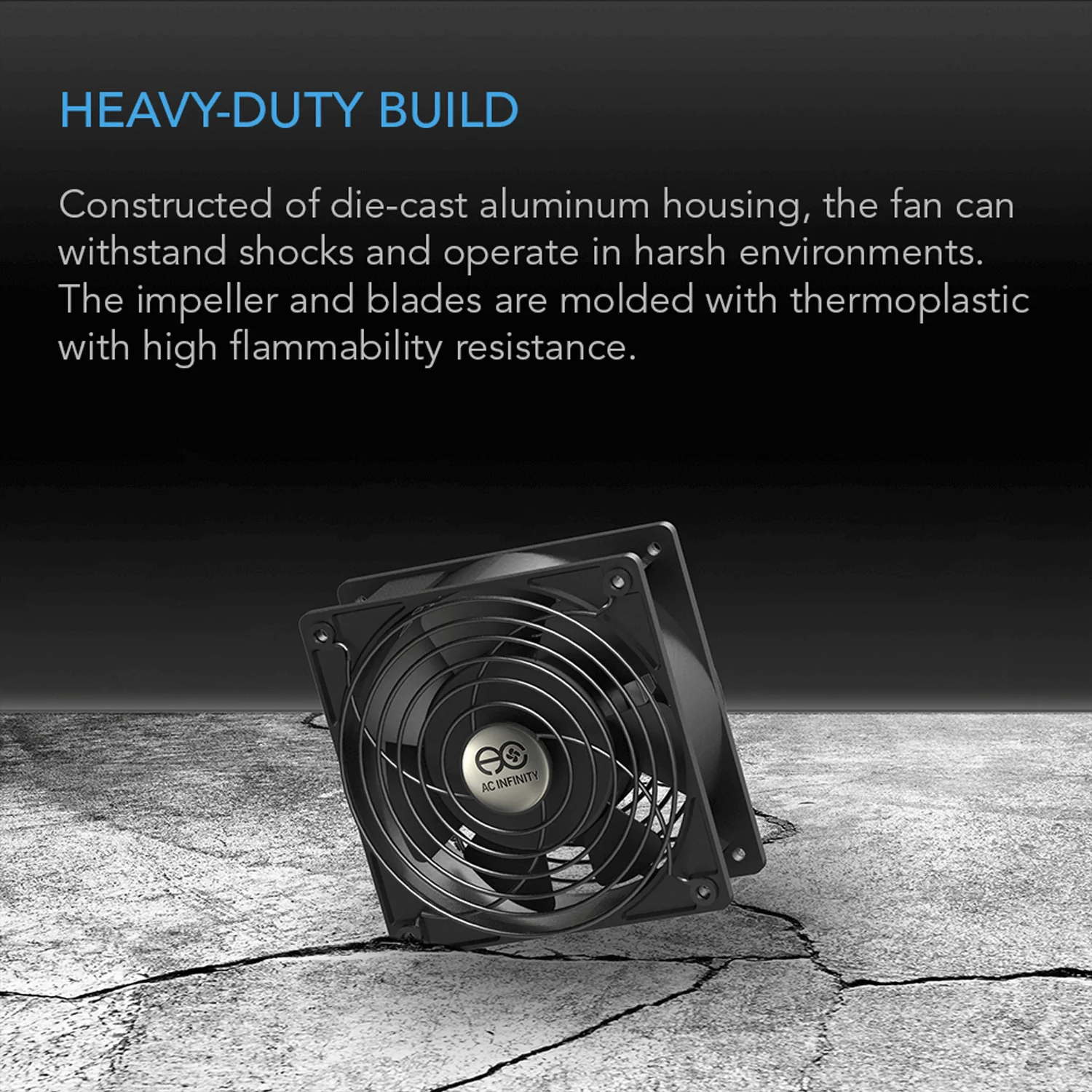

  • The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contain windings that have a higher resistance to heat during a rotor lock. Containing long-life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.

  • This low-speed fan is suitable for applications that require a lower noise level and can accept weaker airflow. Popular uses include theater cabinets, woodstove heaters, room-to-room doorways, amplifiers, kegerators, and more. Because this is a standard industrial-size fan, it can be used to replace fans found in various electronics and machinery.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 8038
  • Product Model: LS8038A-X
  • UPC Code: 854759004273

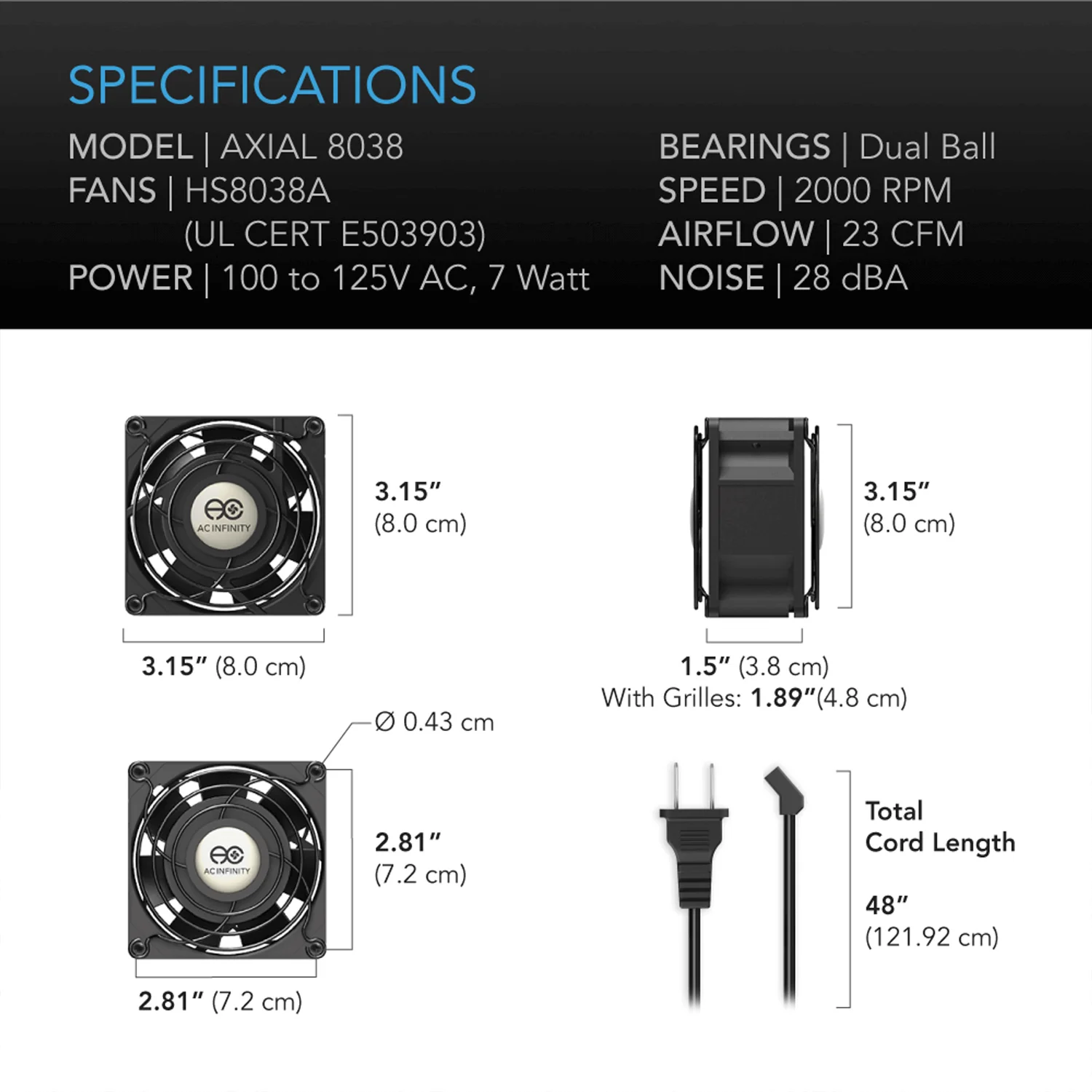

  • Product Dimensions
  • Total Dimensions: 3.15 x 3.15 x 1.5 in. (8.0 x 8.0 x 3.8 cm)
  • Hole to Hole Distance: 2.81 x 2.81 in. (7.2 x 7.2 cm)
  • Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)
  • Cord Length: 48 in. (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: LS8038A
  • Total Airflow: 23 CFM
  • Total Noise: 28 dBA
  • Speed: 2000 RPM
  • Operating Voltage: 100 to 125V AC
  • Power: 7 W
  • Current: 0.06 A
  • Static Pressure: 4.4 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
    • $36.99
