AC Infinity AXIAL 9225, Muffin 120V AC Cooling Fan, 92mm x 92mm x 25mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

AC Infinity AXIAL 9225, Muffin 120V AC Cooling Fan, 92mm x 92mm x 25mm

Description

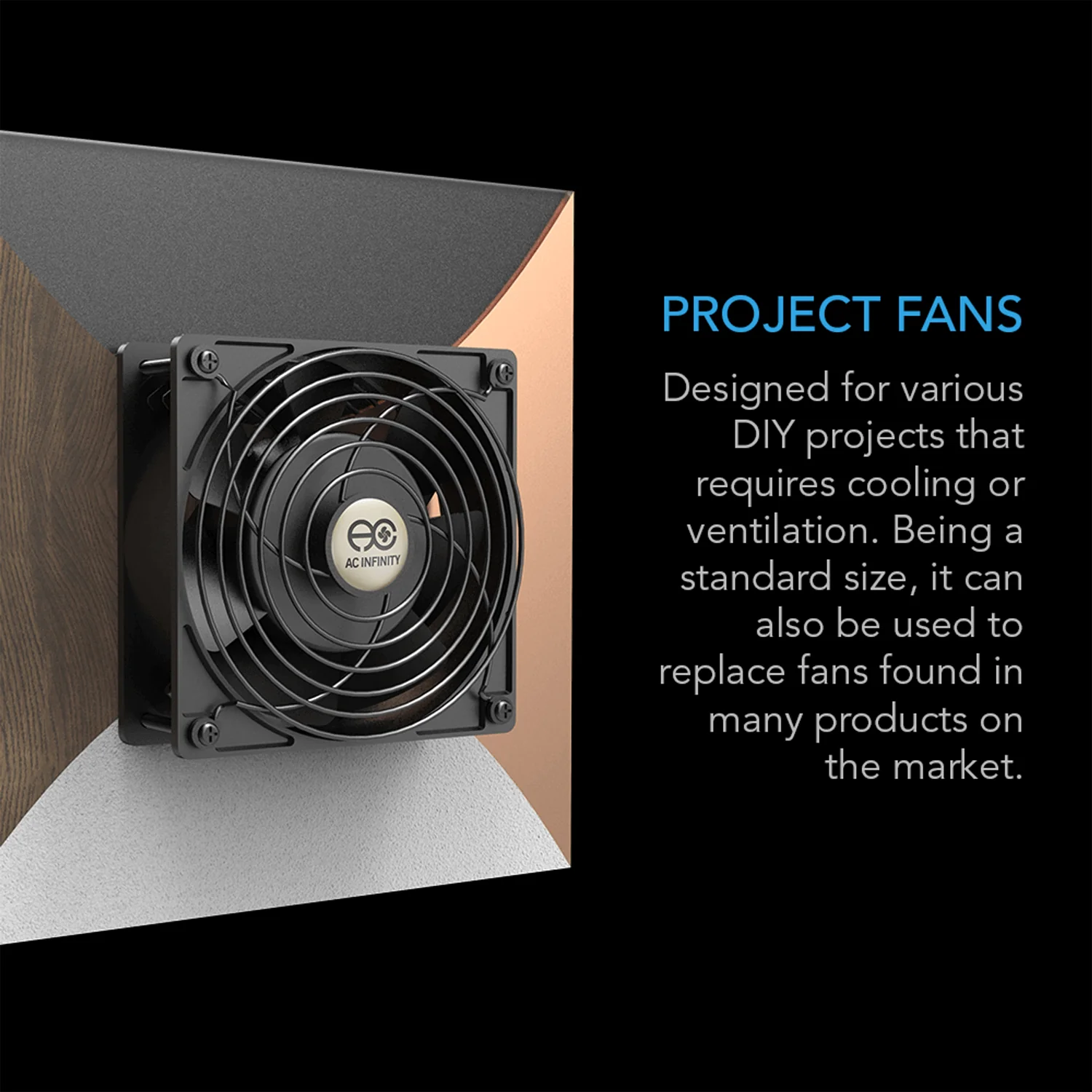

  • Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

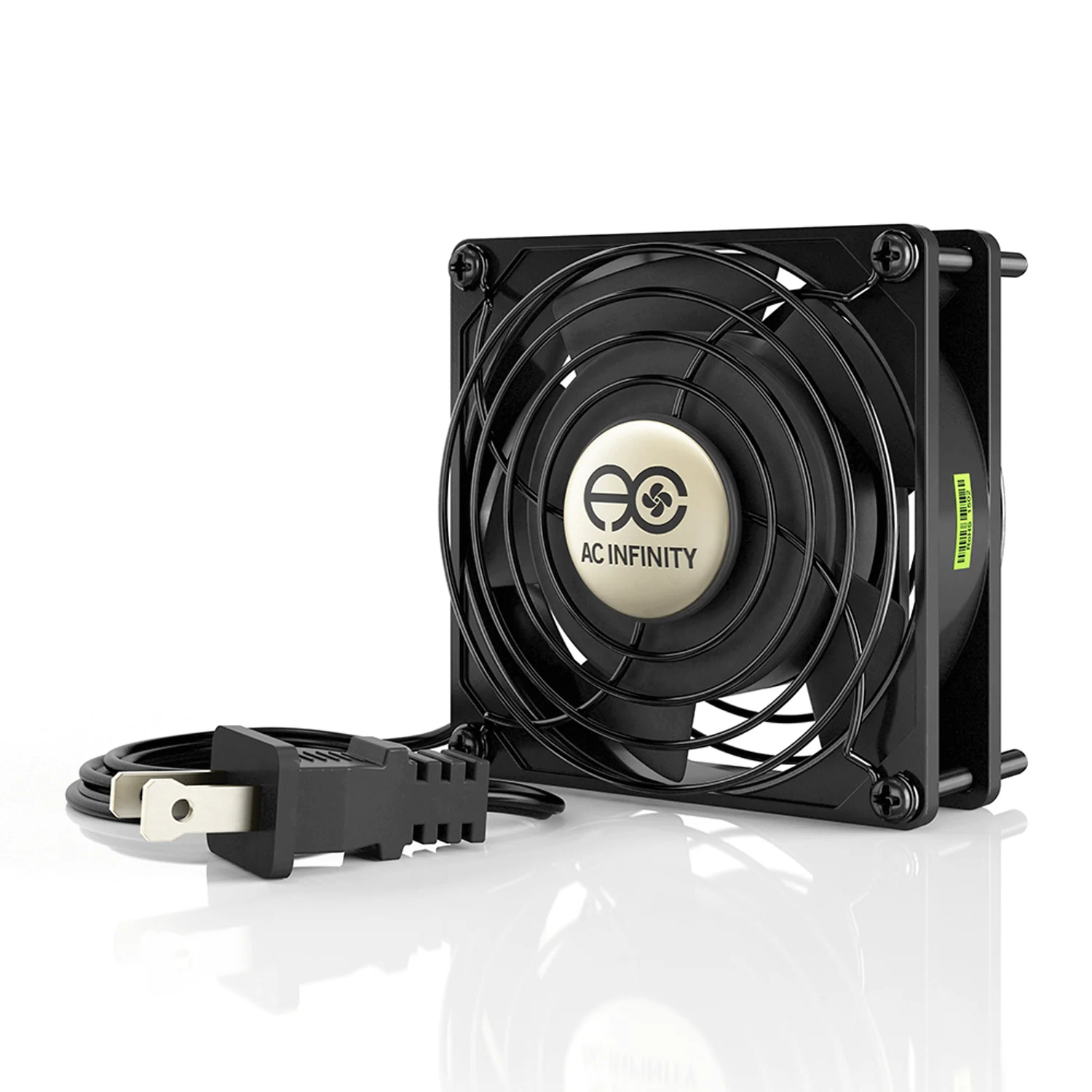

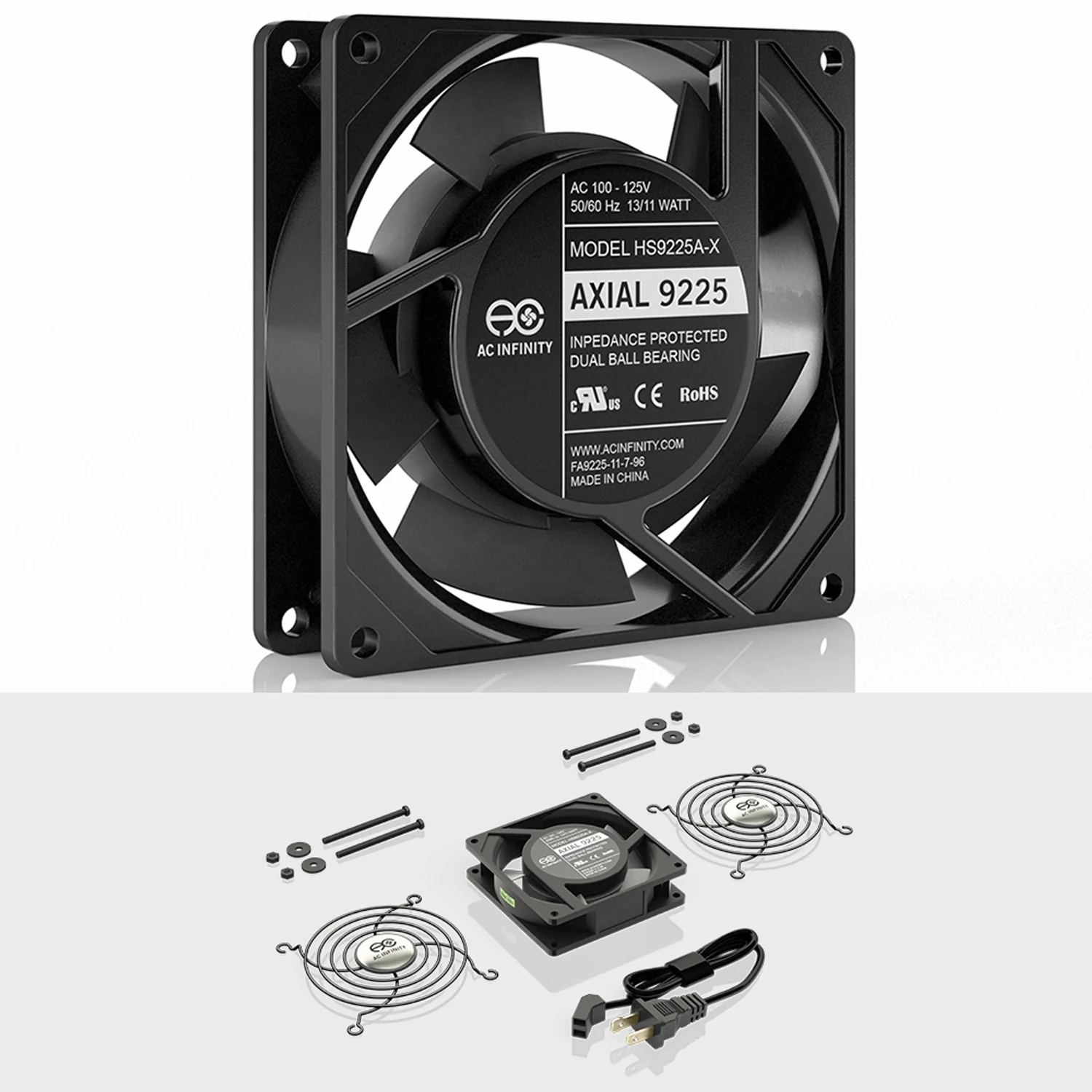

  • Includes a heavy-duty aluminum fan with a power plug cord, two fan guards, and a mounting screw set.
  • UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.
  • High Speed: This model is designed to maximize airflow and may be too loud for some applications.
  • 92 x 92 x 25 mm (3.6 x 3.6 x 1.5 in.) | 100 to 120V AC | Airflow: 37 CFM | Noise: 37 dBA | Speed: 2900 RPM

  • The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. It also includes two 92 millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.

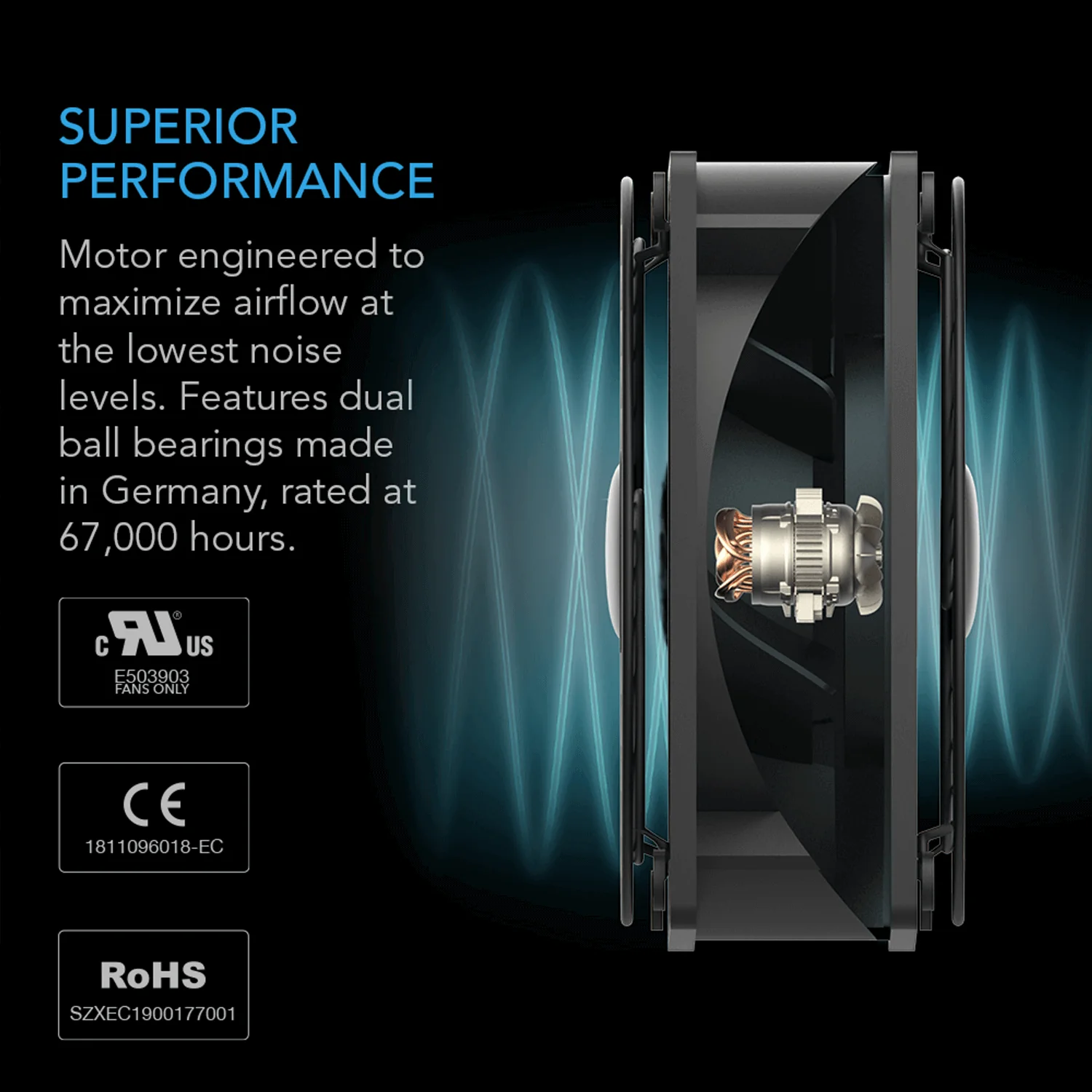

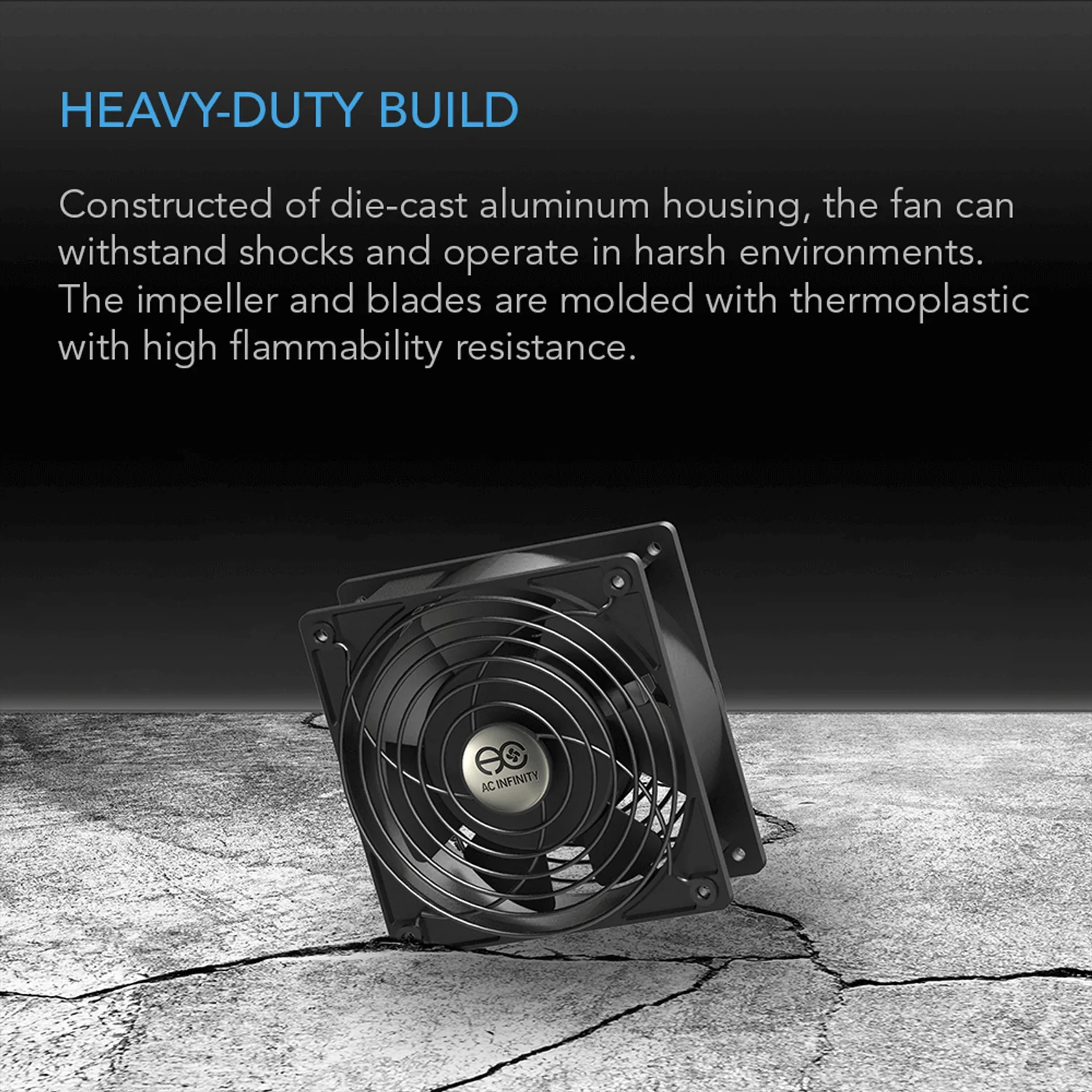

  • The fan's housing is constructed of die-cast aluminum painted black and is able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic, which have a high resistance to flammability. Impedance protected motors contain windings that have a higher resistance to heat during a rotor lock. The fans contain long-life dual ball bearings, allowing them to run continuously for 67,000 hours and be mounted in any direction.

  • This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include casino machines, chicken coops, industrial machinery, arcade systems, and more. Because this is a standard industrial-size fan, it can be used to replace fans found in various electronics and machinery.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL 9225
  • Product Model: HS9225A-X
  • UPC Code: 854759004228

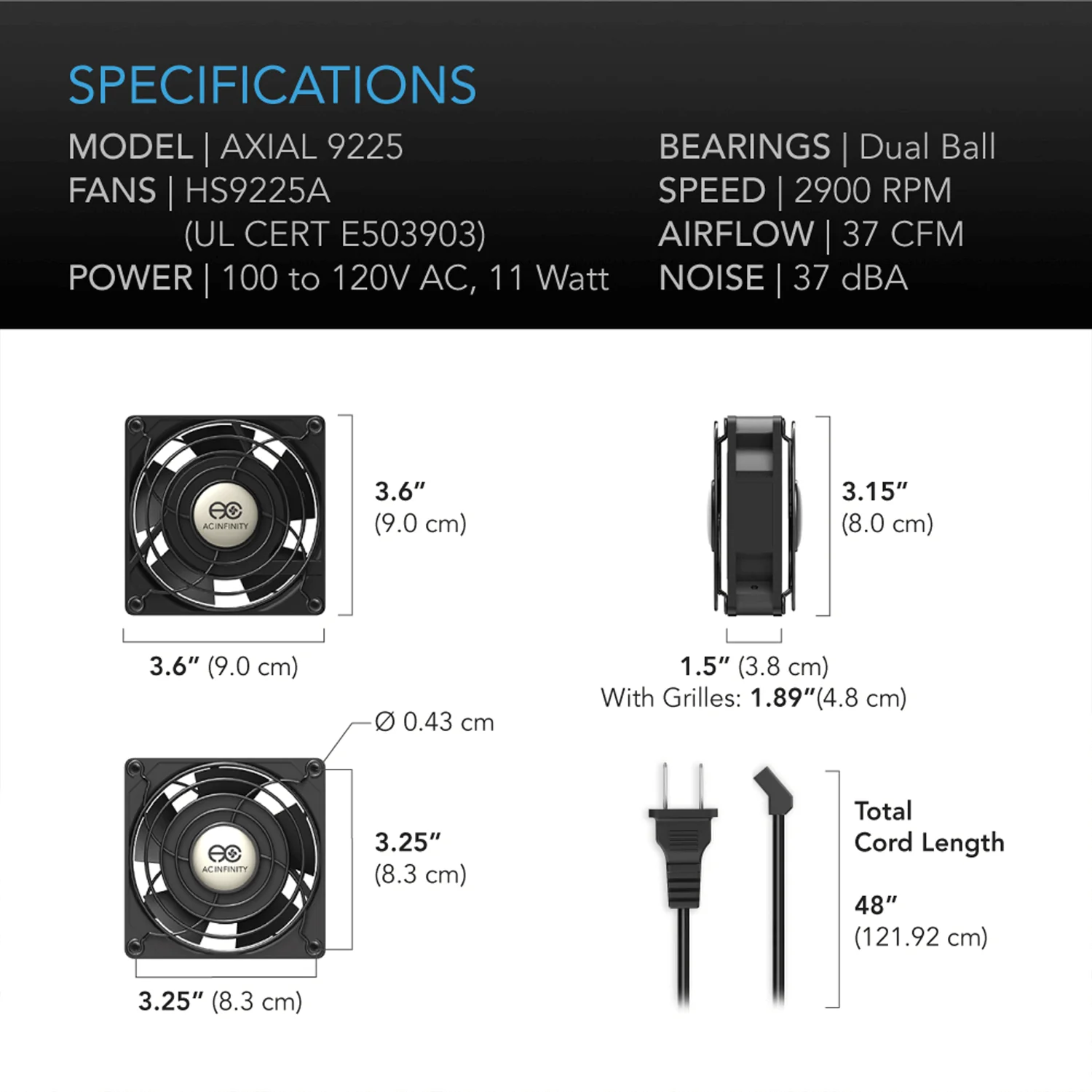

  • Product Dimensions
  • Total Dimensions: 3.6 x 3.6 x 1 in. (9.0 x 9.0 x 2.5 cm)
  • Hole to Hole Distance: 3.25 x 3.25 in. (8.3 x 8.3 cm)
  • Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)
  • Cord Length: 48 in. (4 feet)

  • Product Performance and Technical Specs
  • Fan Model: HS9225A
  • Total Airflow: 37 CFM
  • Total Noise: 37 dBA
  • Speed: 2900 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 11 W
  • Current: 0.1 A
  • Static Pressure: 6.4 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
    • $35.99
