AC Infinity AXIAL S1238D, Muffin 120V AC Cooling Fan, Dual 120mm x 120mm x 38mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity AXIAL S1238D, Muffin 120V AC Cooling Fan, Dual 120mm x 120mm x 38mm

Description

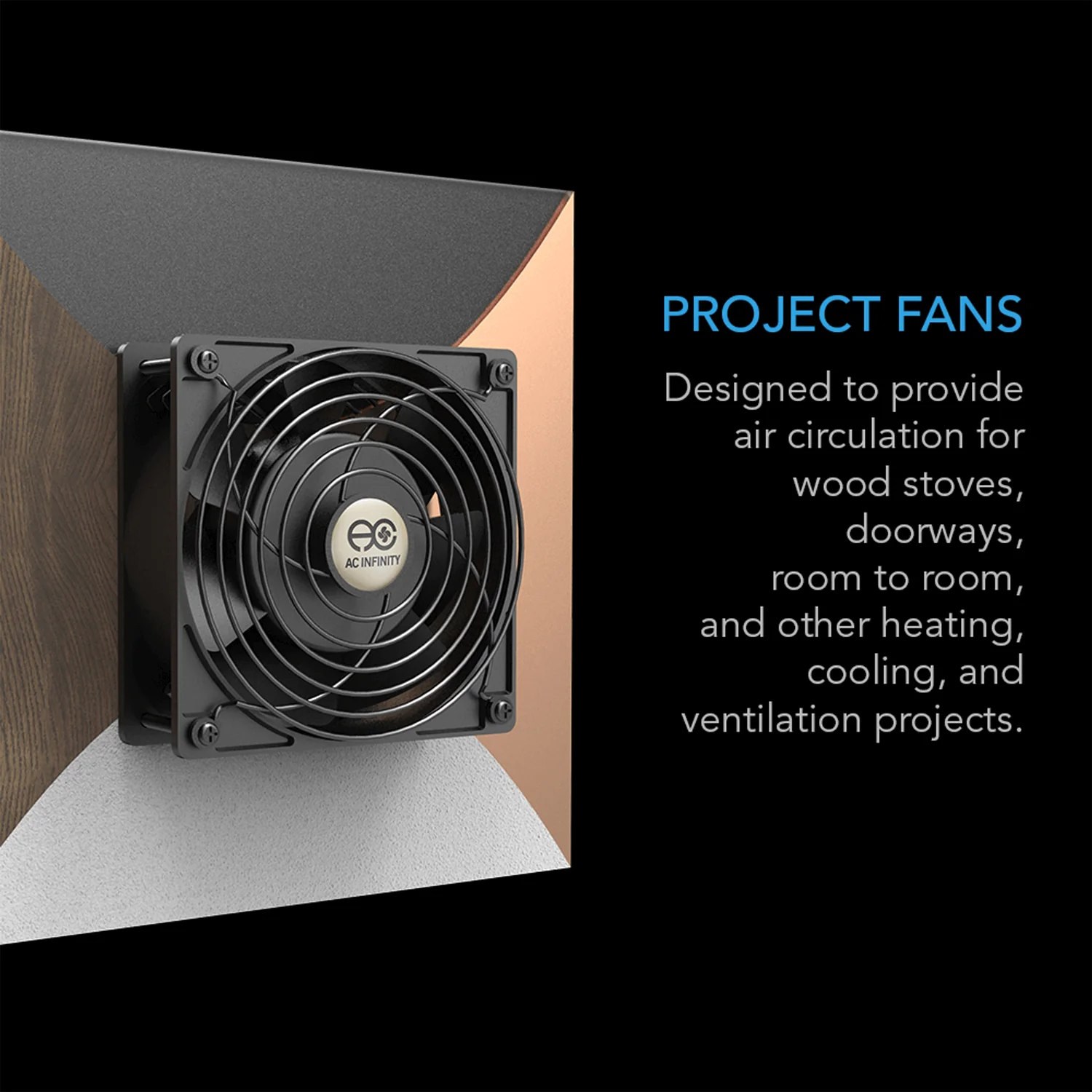

  • High Airflow Fans: These fans are designed for a variety of applications, including doorway, wood stoves, room-to-room, fireplace, and circulation projects. The kit features a fan speed controller, allowing you to optimize airflow and noise levels based on your needs.

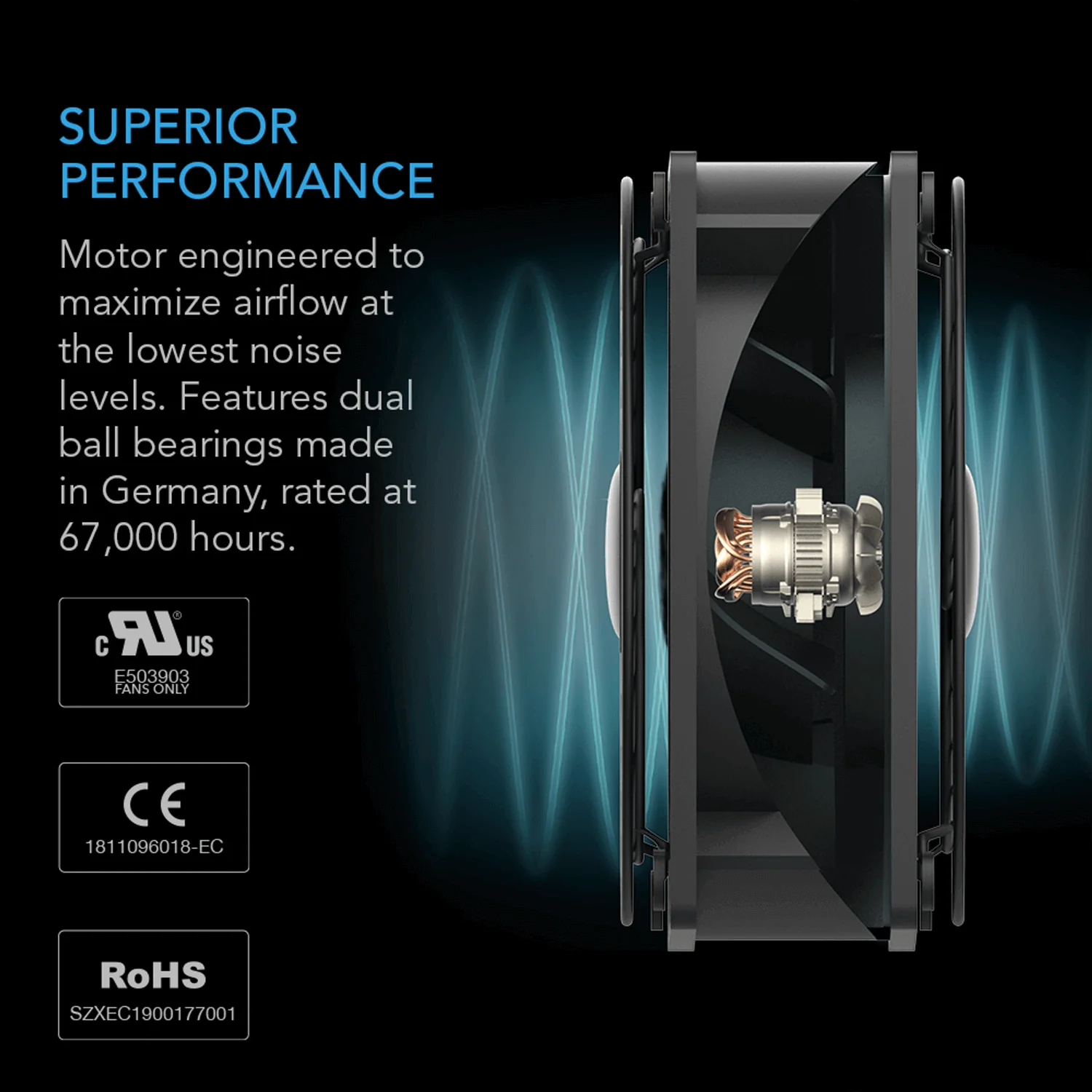

  • UL-Certified Fan: With dual-ball bearings and a lifespan of 67,000 hours, this fan can be mounted in any direction. Each fan measures 4.7 x 4.7 x 1.5 inches and offers an airflow of 40 to 110 CFM while producing a noise level of 21 to 47 dBA.

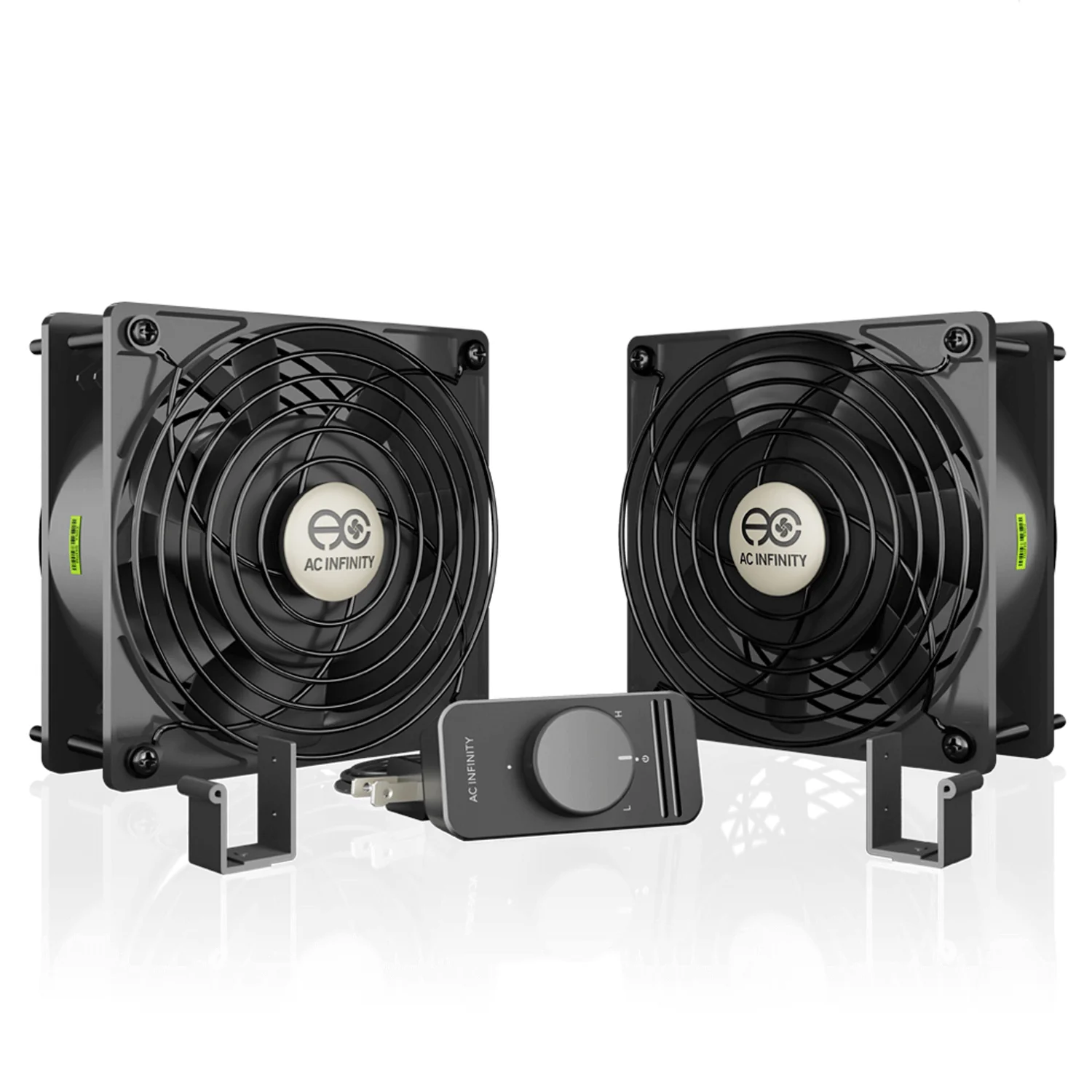

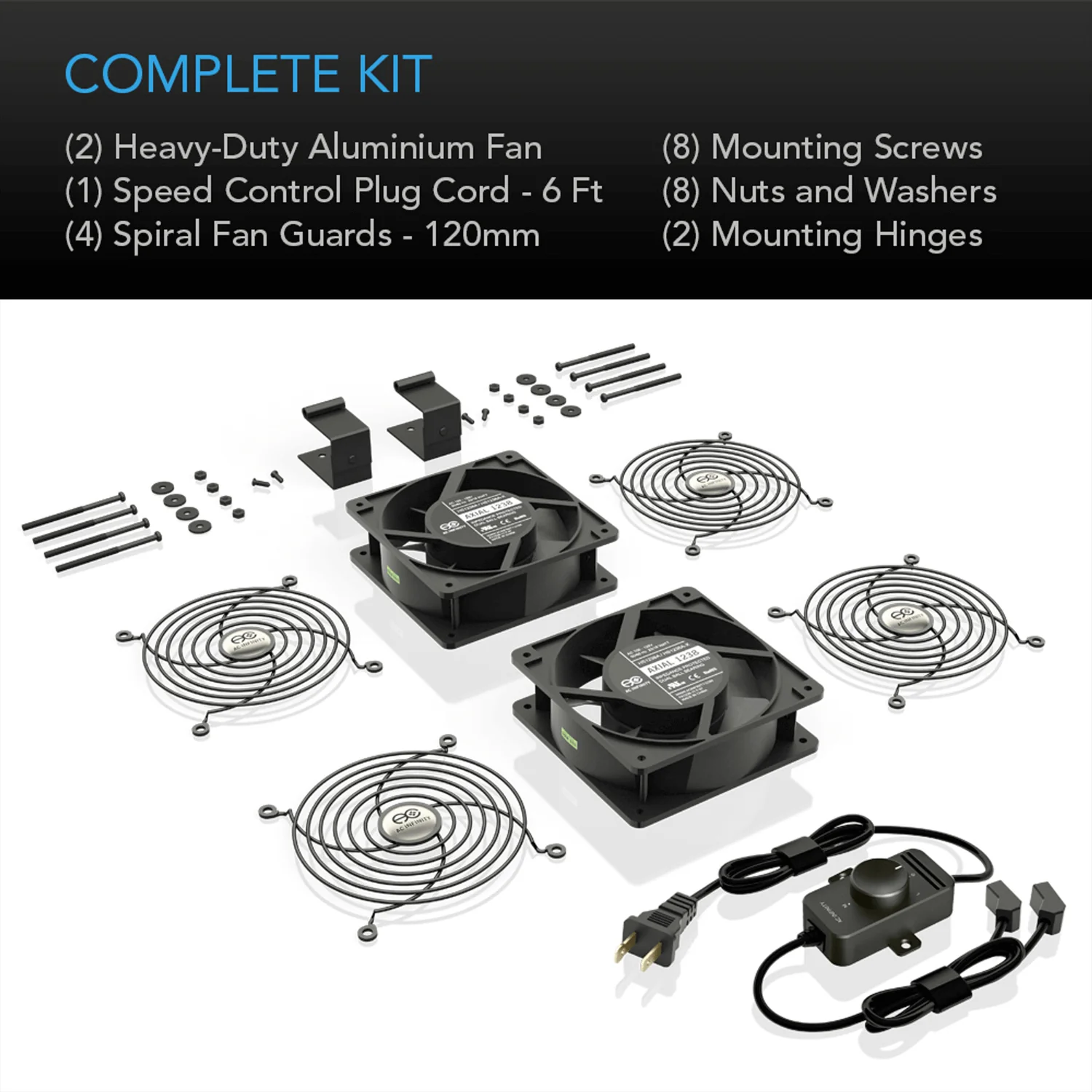

  • Complete Kit: This kit includes heavy-duty aluminum fans, wire guards, mounting screws, swivel brackets, and a power cord. Also, it includes two fans, four grilles, a power plug cord with an inline speed controller, two swivel bracket set, and eight wall-mounting screws with nuts. The cord length is 6 feet, with an additional 4 feet between each fan.

  • Product Description: This high airflow dual fan kit allows you to control ventilation and air circulation for various DIY projects. The kit includes swivel brackets and wall-mounting equipment to match various applications. The dual fans, bearing an UL certificate E503903 and also CE and RoHS certified, have a 67,000-hour lifespan and can be mounted in any orientation.

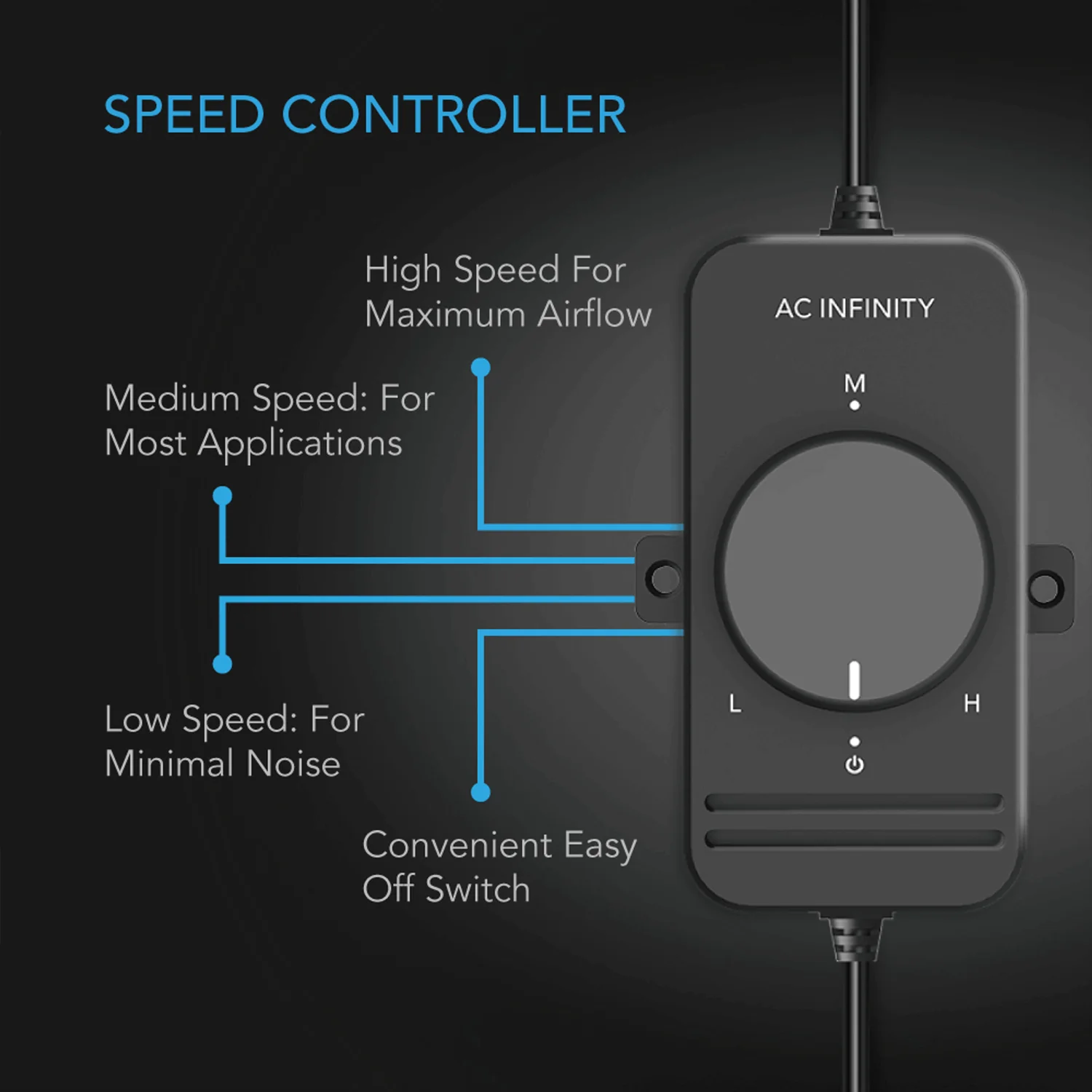

  • Speed Controller: Each kit features a controller on the power cord, enabling you to switch the fans on and off and adjust their speed. The fans' airflow and noise levels can be optimized for your application or used to enhance air movement in certain situations.

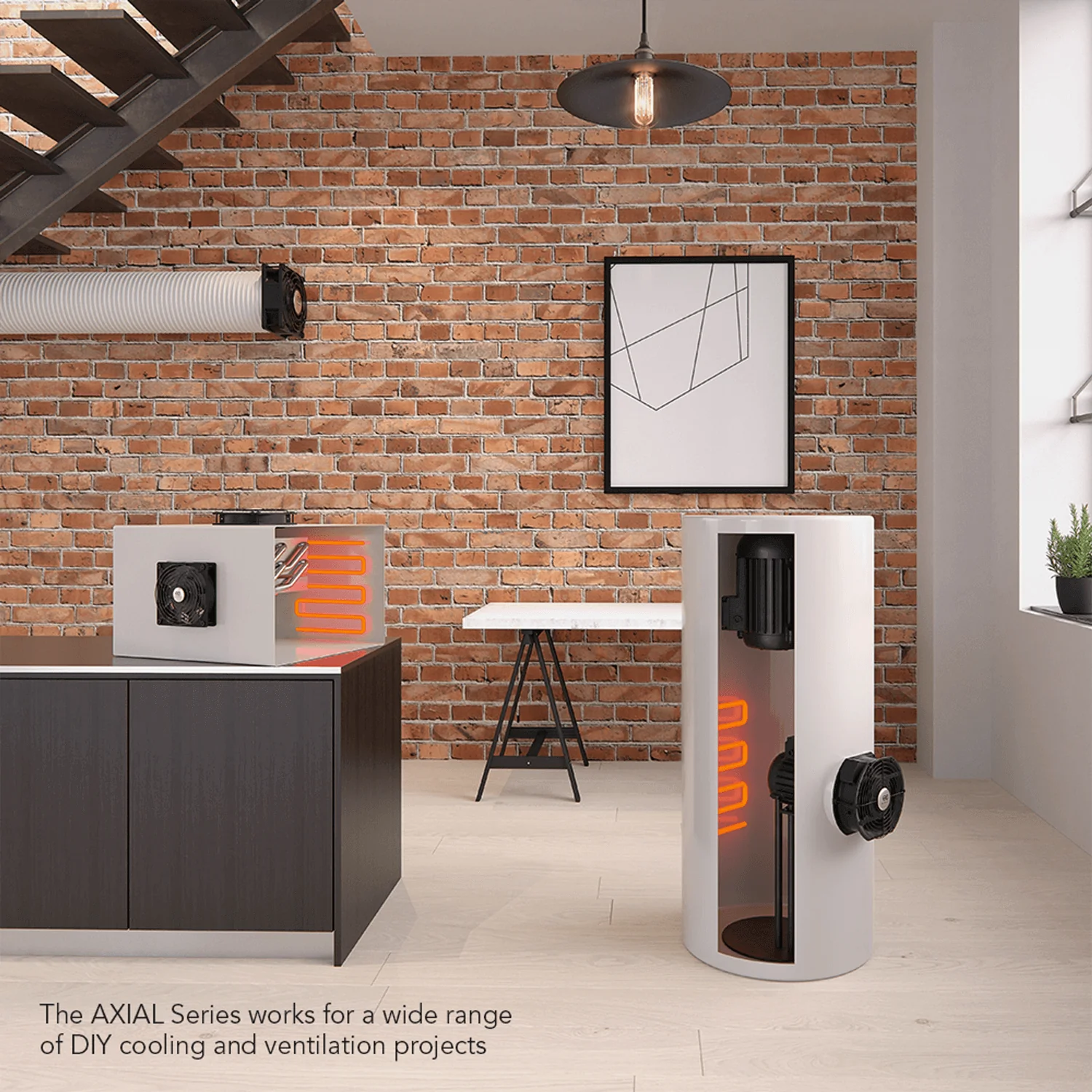

  • Applications: The fan kit is popular for cooling, heating, and air circulation in a wide range of applications, including various DIY projects for doorways, room transitions, fireplaces, stoves, and cabinets. The presence of both swivel bracket mounts and wall-mounting hardware makes the kit ideal for multiple settings.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AXIAL S1238D
  • Product Model: AI-1238SCXD
  • UPC Code: 819137020085

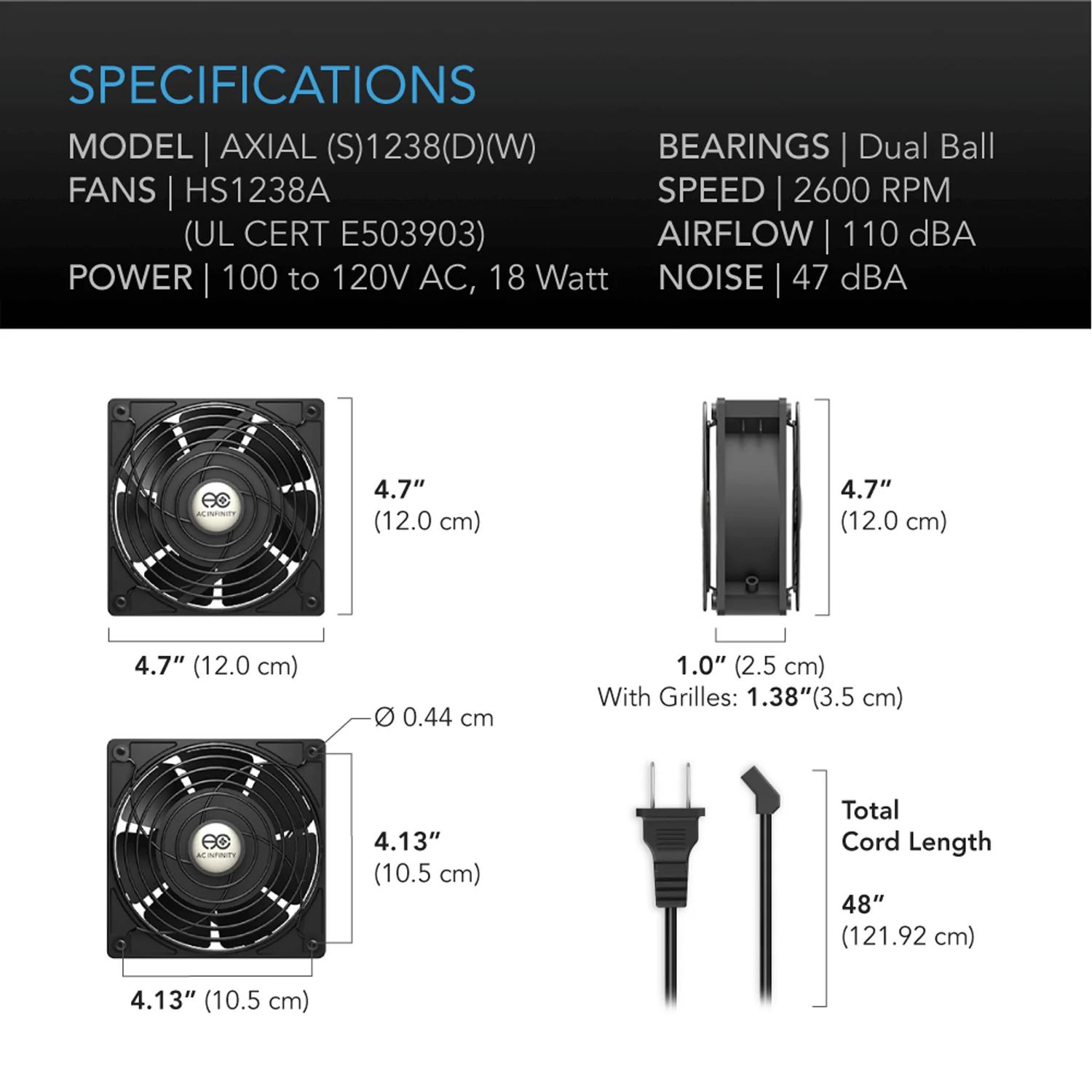

  • Product Dimensions (per fan)
  • Total Dimensions: 4.7 x 4.7 x 1.5 inches
  • Hole to Hole Distance: 4.13 x 4.13 inches
  • Screw Hole Size: Diameter 0.17 inches
  • Cord Length: 72 inches (6 feet) / between fans 48 inches (4 feet)

  • Product Performance and Technical Specs (per fan)
  • Fan Model: HS1238A
  • Number of Fans: 2
  • Total Airflow: 40 to 110 CFM
  • Total Noise: 21 to 47 dBA
  • Speed: 700 to 2600 RPM
  • Operating Voltage: 100 to 120V AC
  • Power: 18 W
  • Current: 0.16 A
  • Static Pressure: 9.1 mm-H2O
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
    • Data Sheet
  • Download the Product Manual: here
