AC Infinity CLOUDLINE LITE A4, Quiet Inline Fan with Speed Controller, 4-Inch

Description

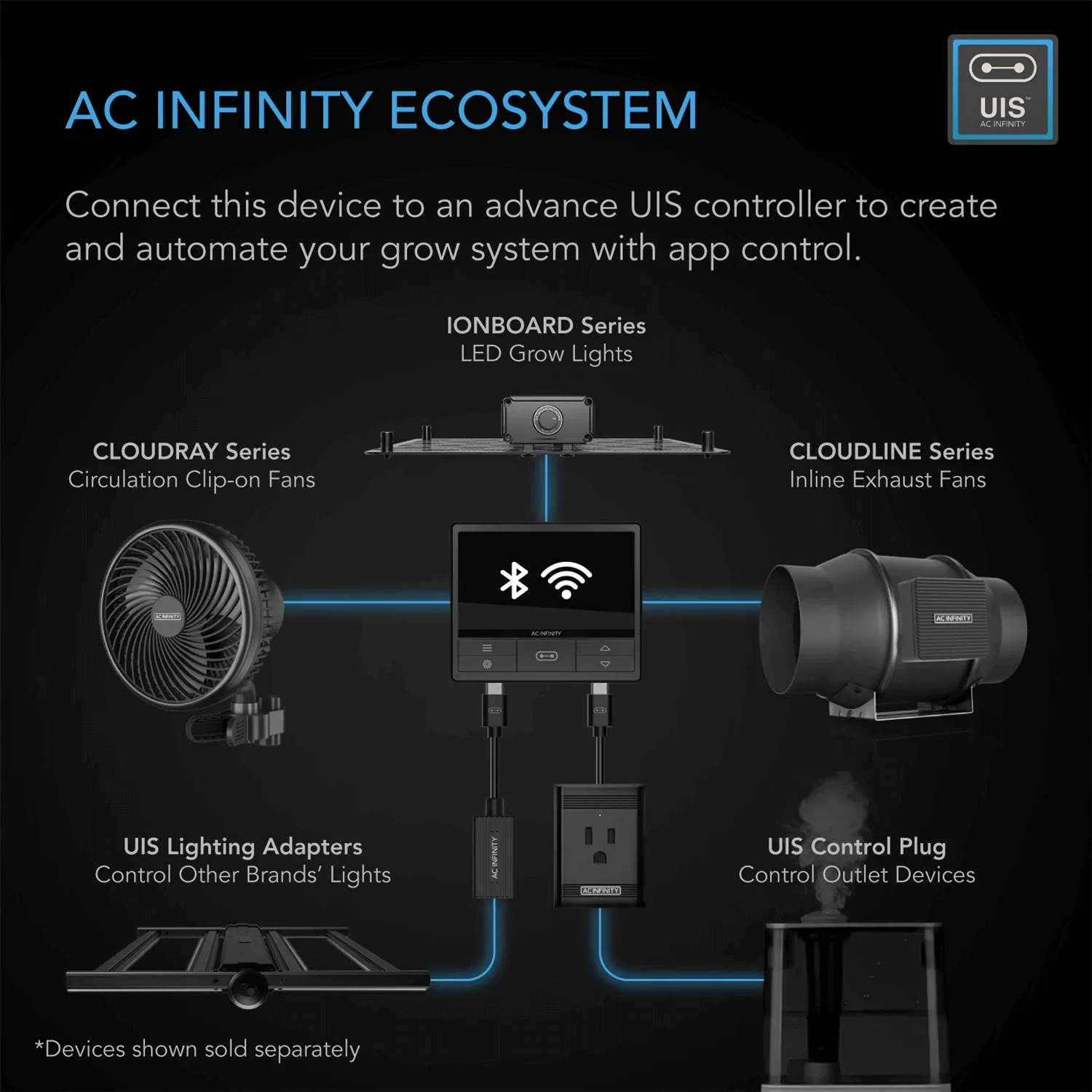

  • High Quality Ventilation System: This product is designed to ventilate grow tents, exhaust odors, transfer heating/cooling to rooms, and cool AV closets quietly. It includes a wired 10-speed fan controller and is compatible with all CLOUDLINE Series smart controllers.

  • Performance: Using mixed flow design with an EC-powered motor, this fan operates very quietly and efficiently. With a duct size of 4”, the fan has powerful airflow of 165 CFM and low noise of 29dBA.

  • Product Description: This inline fan system combines core innovations and premium build quality of the CLOUDLINE Series, providing excellent value. Designed to cool grow tents, rooms, and closets, while providing ventilation for various air circulation and exhaust projects. Its detachable motor box allows for easy cleaning and maintenance. The complete kit includes one inline fan unit, one speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware.

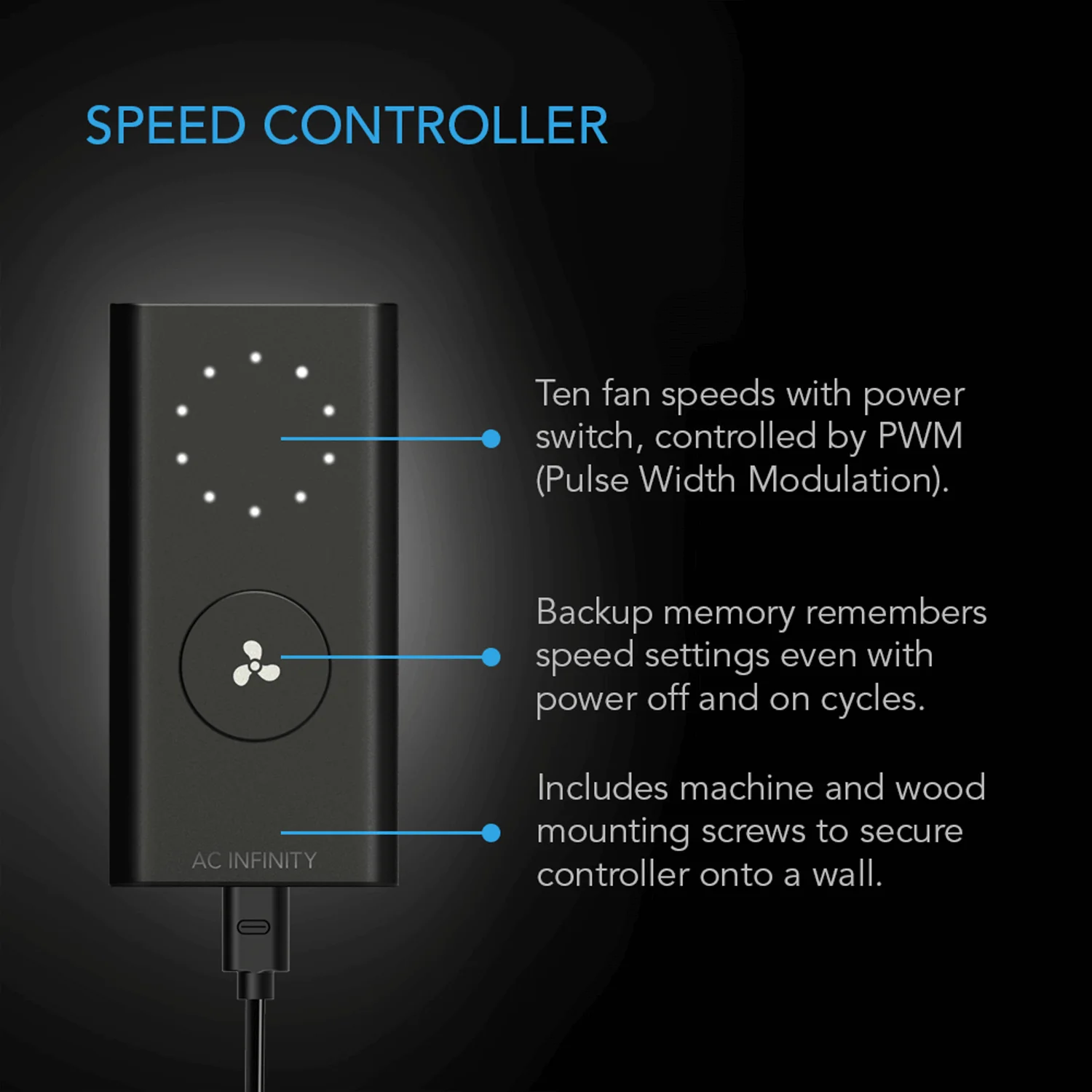

  • Precise Speed Controller: The speed controller allows you to optimize the fan speed for different noise and airflow levels. Equipped with a precise EC-motor, this fan can run smoothly at extremely low RPM speeds without generating motor noise. It comes with ten speed options, a power switch, and backup memory. The model is fully compatible with a number of smart controllers.

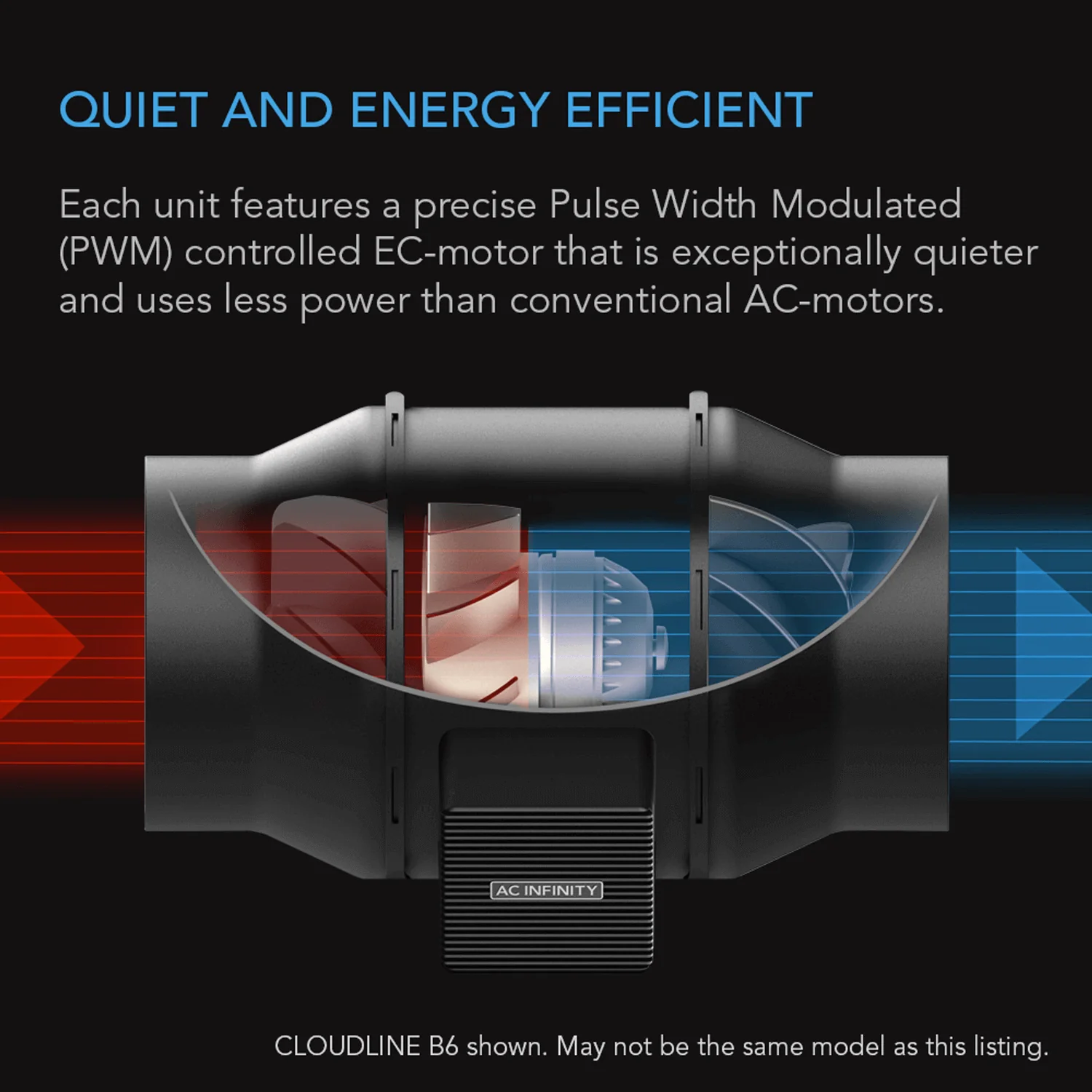

  • Quiet and Energy Efficient Design: The inline fan features a mixed flow design and dual hydrodynamic wind circles, allowing it to deliver airflow even in applications where air movement is restricted. The unit, equipped with dual ball bearings rated at 67,000 hours, can be mounted anywhere. The product is also IP44 rated to be highly resistant to dust and liquids, ensuring it performs well even in harsh environments.

  • Applications: This quiet inline fan system is perfect for providing cooling and ventilation in grow tents and rooms. With its low noise and advanced control features, it is suitable for bathroom and attic settings, as well as cooling AV equipment rooms, closets, racks, and cabinets.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDLINE A4
  • Product Model: AI-CLA4
  • UPC Code: 819137021747

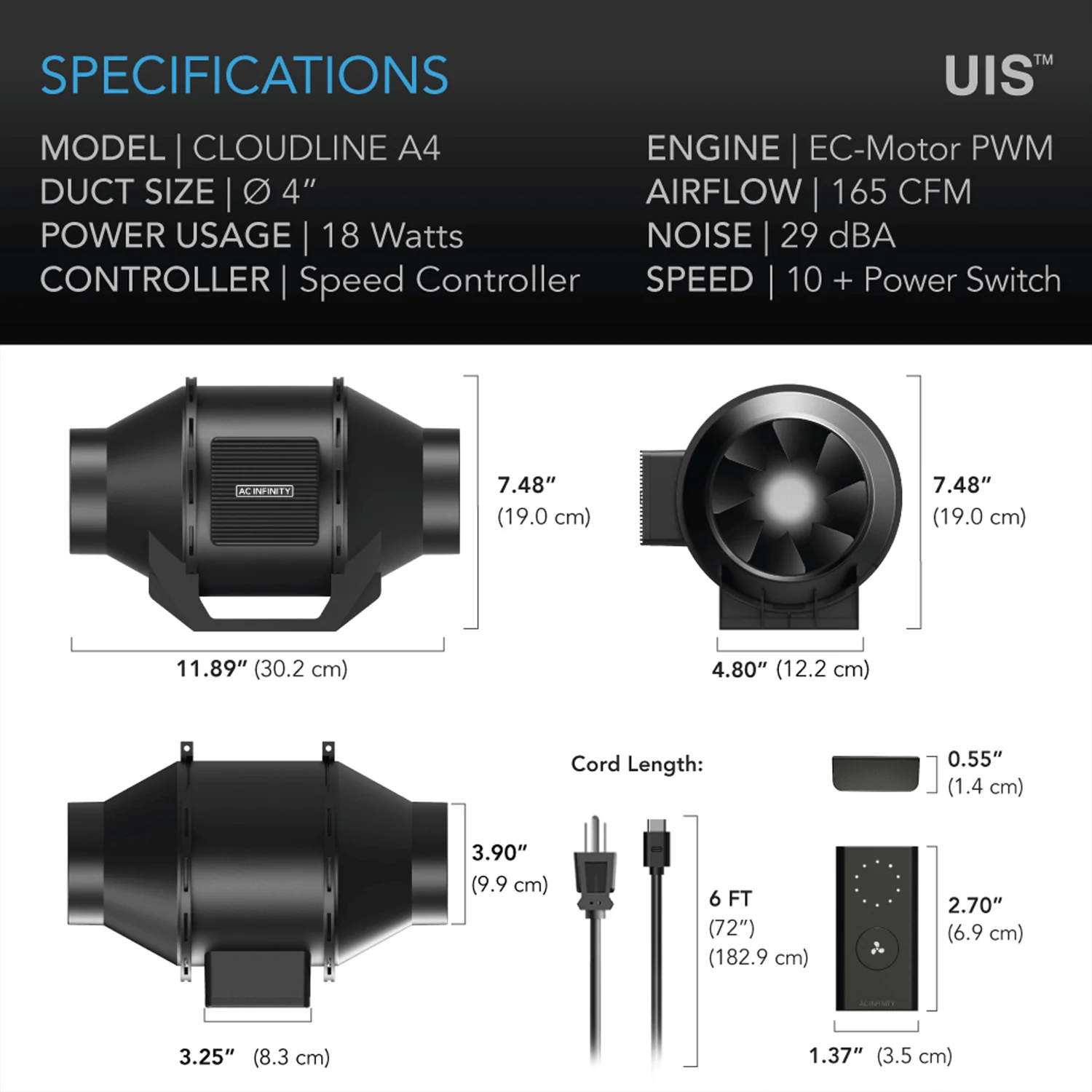

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 4"
  • Total Dimensions: 7.48 x 11.89 x 6.93 in.
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 in.
  • Screw Hole Size: Ø 0.197 in.
  • Cord Length to Controller: 72 in. (6 feet)
  • Cord Length to Plug: 72 in. (6 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 in.

  • Product Performance and Technical Specs
  • Total Airflow: 165 CFM
  • Total Noise: 29 dBA
  • Max Speed: 2800 RPM
  • Static Pressure: 324 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 35 W
  • Average Power Usage: 18 W
  • Current: 0.55 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the IC Certification: here
  • Download the RoHS Certification: here
  • Download the ETL Certification: here
