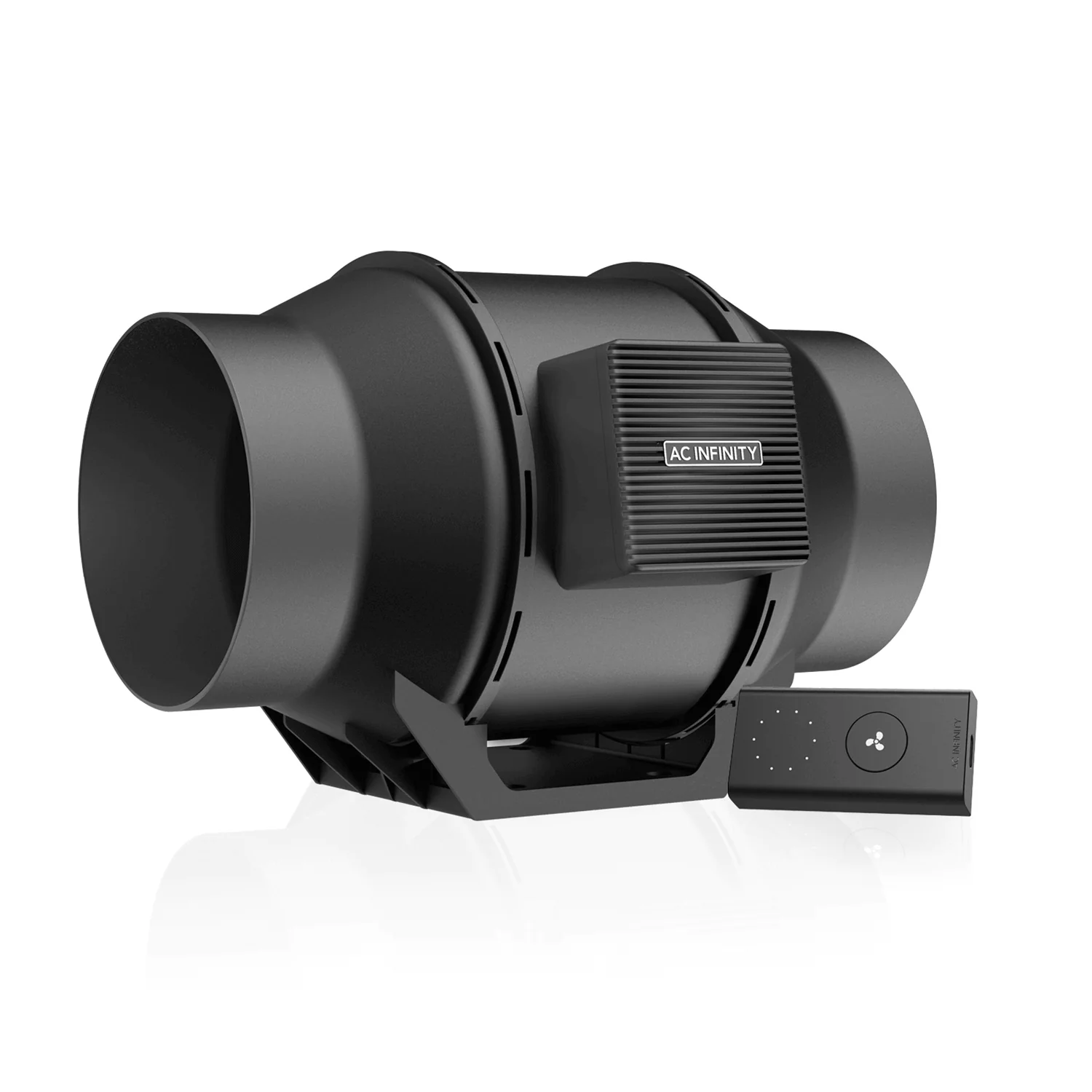

AC Infinity CLOUDLINE LITE A6, Quiet Inline Fan with Speed Controller, 6-Inch

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity CLOUDLINE LITE A6, Quiet Inline Fan with Speed Controller, 6-Inch

Description
  • Design and Purpose: This Inline fan is designed to quietly ventilate grow tents, exhaust odors, transfer heating/cooling to rooms, and cool AV closets. It boasts the same build quality and innovations as the CLOUDLINE Series, provided in a value package.

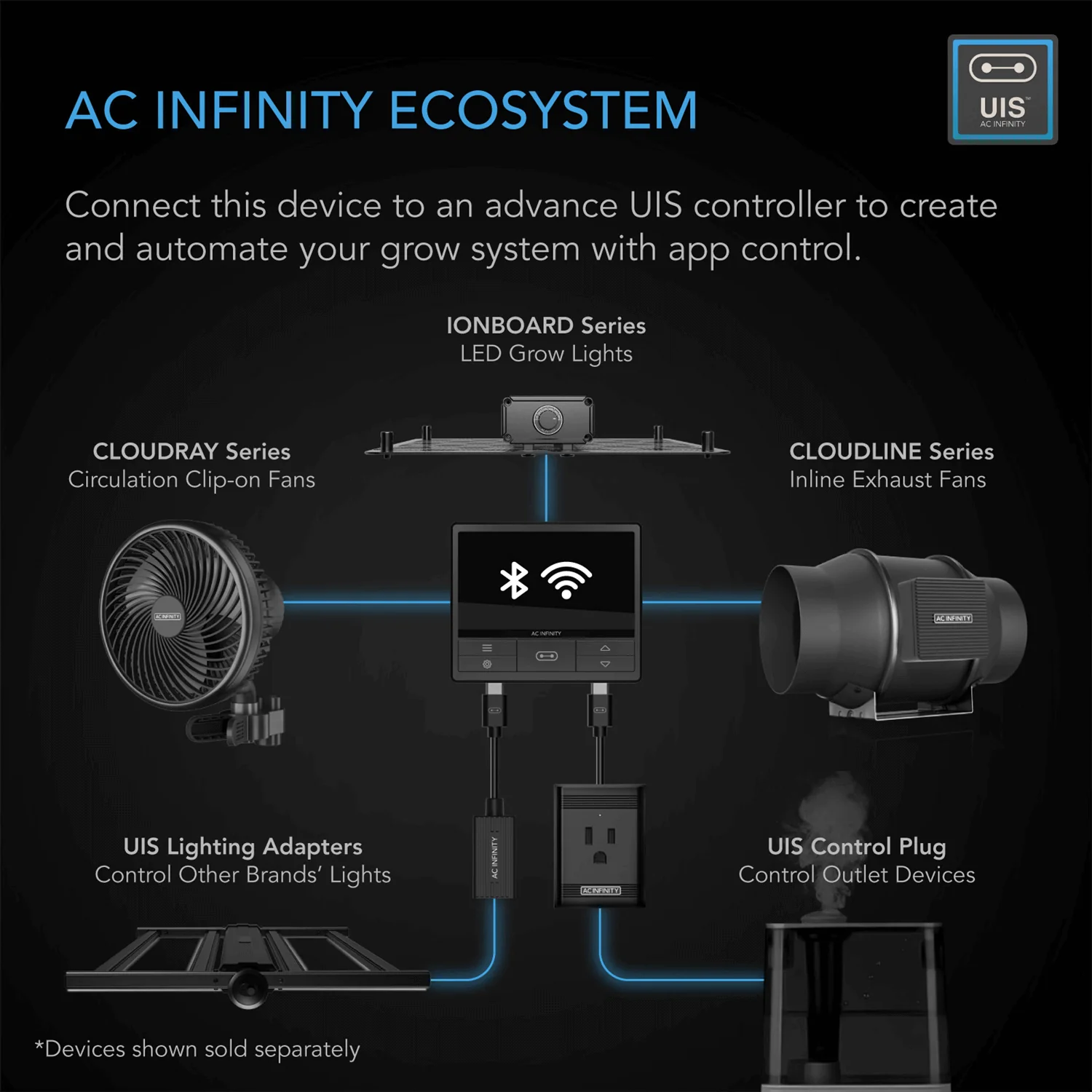

  • Included Items: The packaging includes a wired 10-speed fan controller and is compatible with all CLOUDLINE Series smart controllers. Kit also includes one inline fan unit, one speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware.

  • Performance: With a mixed flow design combined with an EC-powered motor, it ensures quiet and energy-efficient performance. Despite its high static pressure applications, the duct fan maintains airflow. Detachable motor box for easy cleaning and maintenance. The airflow rate is 352 CFM with a noise level at 34 dBA.

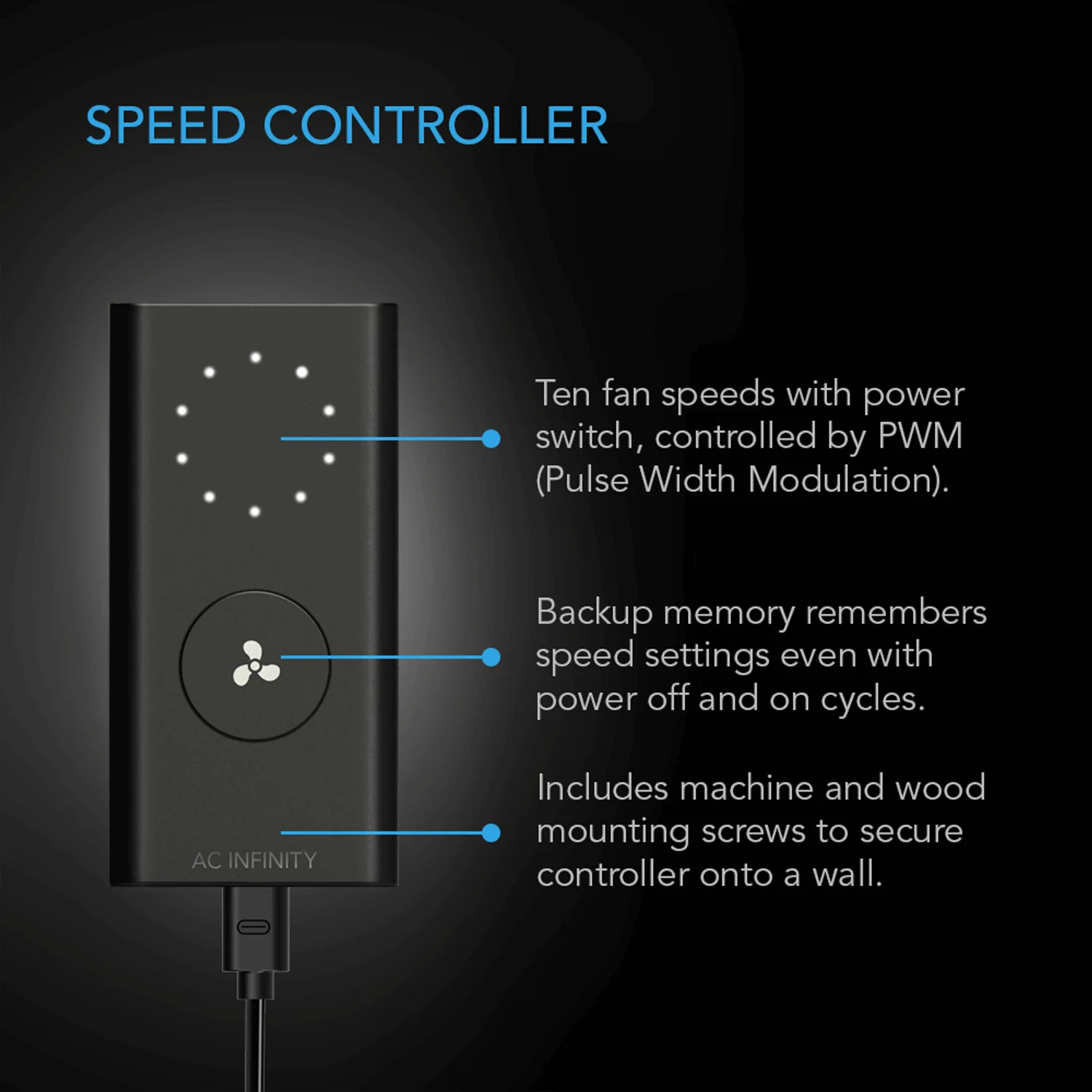

  • Precise Speed Controller: The speed controller allows the duct fan's speed to be set to optimal noise and airflow levels for various environments. The EC-motor runs smoothly at extremely low RPM speeds without generating motor noise. It has power switch and backup memory with ten speed options.

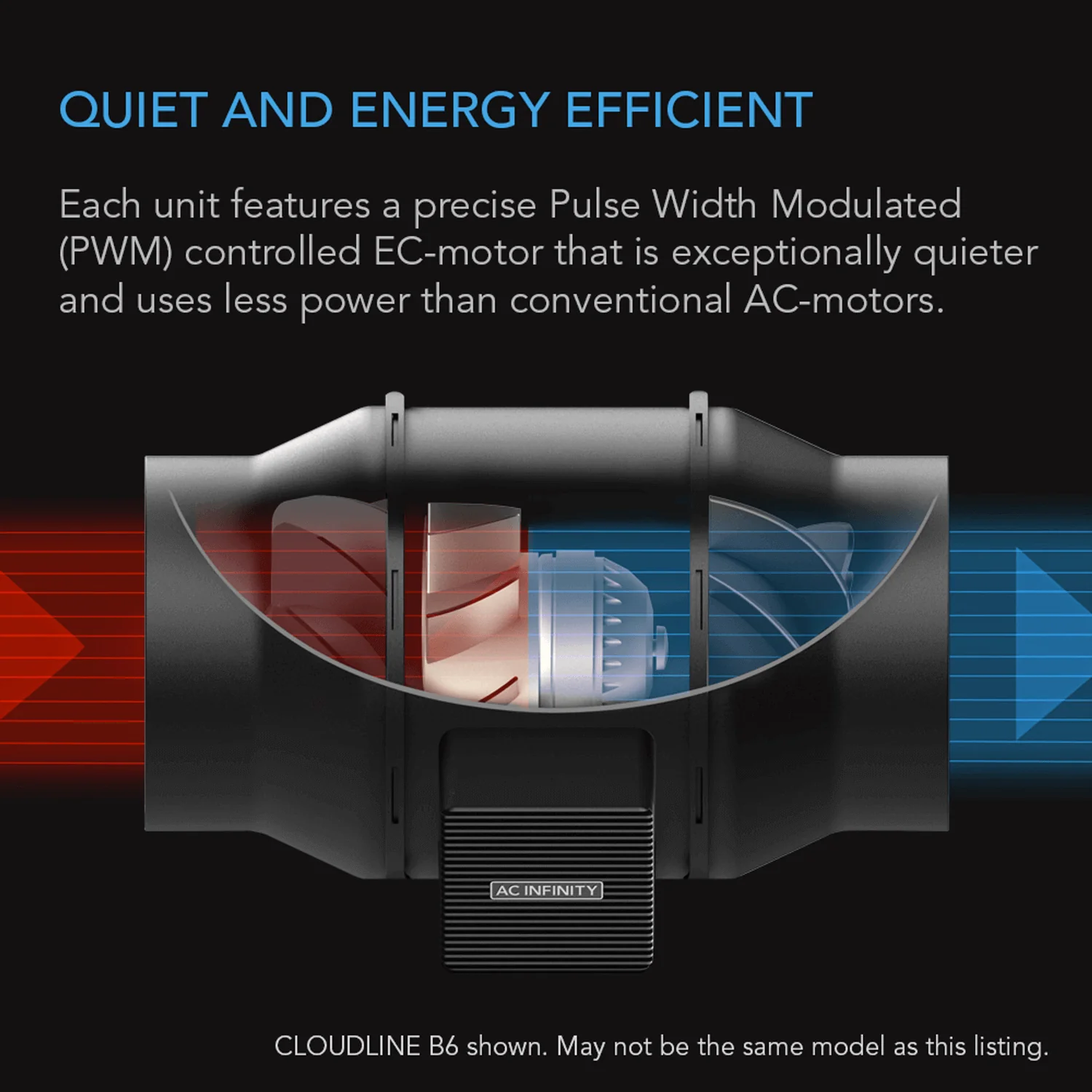

  • Quiet and Energy Efficient Design: The inline fan utilizes a mixed flow design using a stator blade and dual hydrodynamic wind circles. This accounts for its high static pressure rating, enabling it to provide airflow even when air movement is restricted. It uses dual ball bearings rated at 67,000 hours, making it mountable in any direction. It also features a plastic mounting base to reduce fan vibration noise. The unit is IP44 rated for high resistance to dust and liquids.

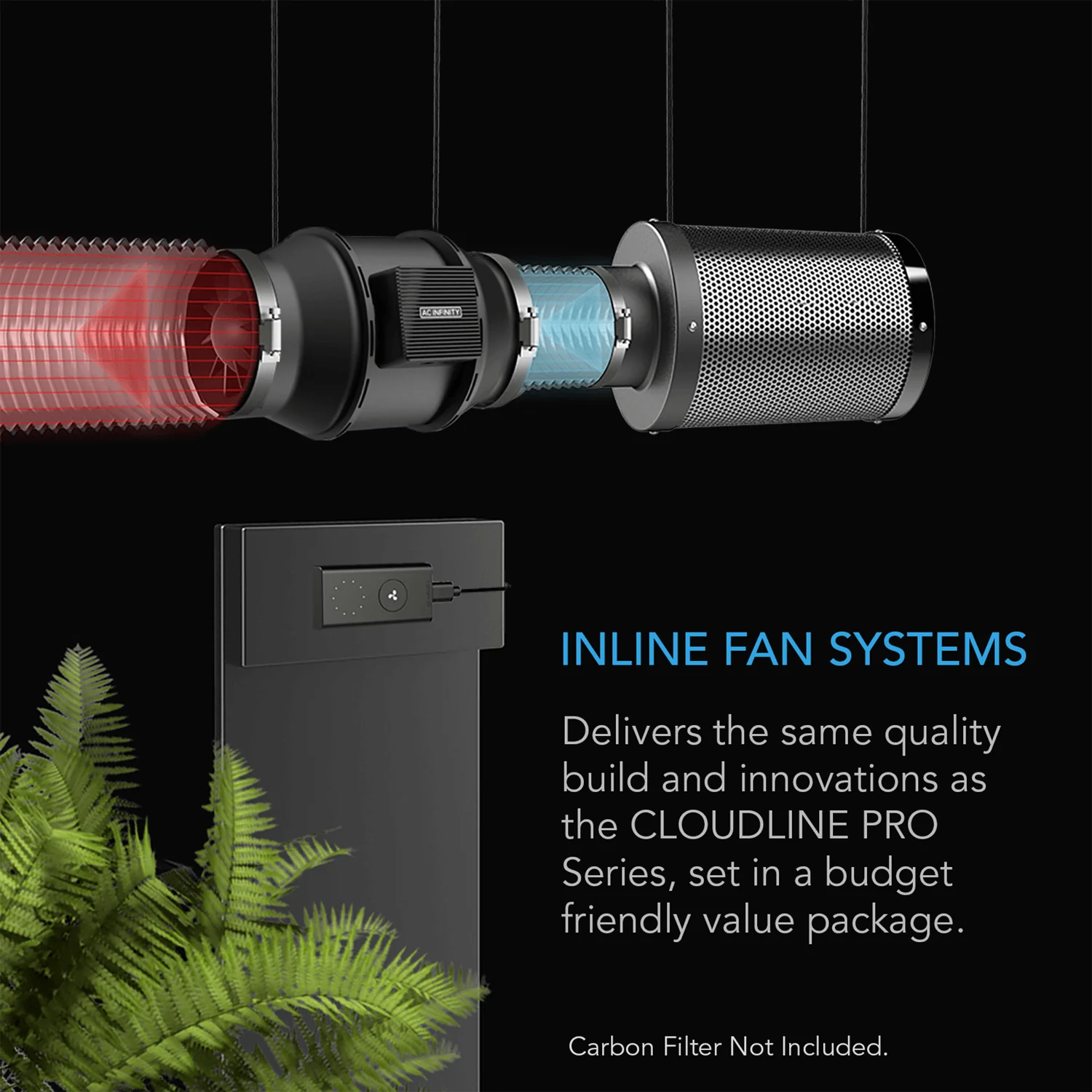

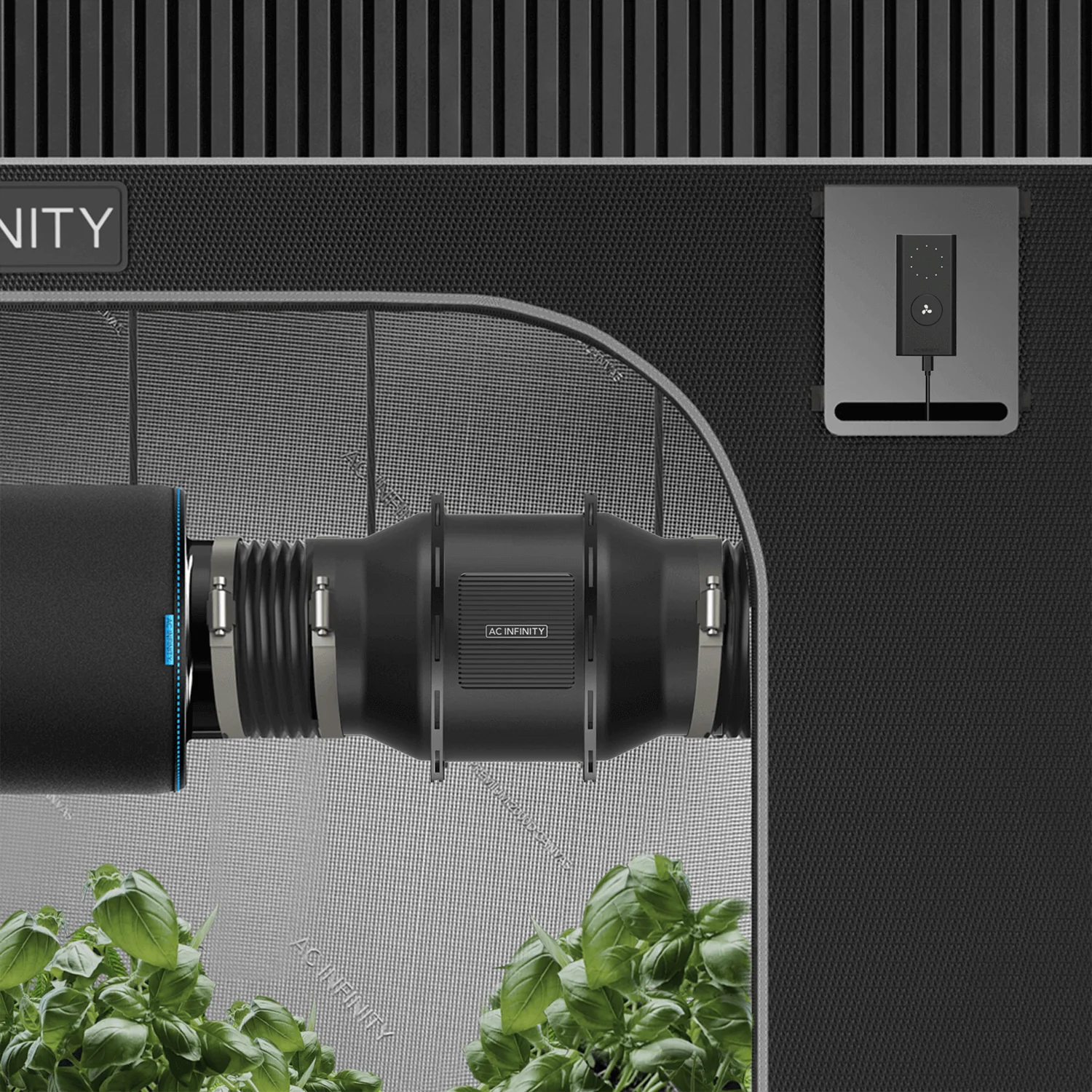

  • Applications: This quiet inline fan system is primarily found in hydroponic grow tents and rooms to provide cooling and ventilation. Its low noise and advanced control features make it ideal for bathroom and attic settings. In addition, it serves well in cooling AV equipment rooms, closets, racks, and cabinets.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDLINE A6
  • Product Model: AI-CLA6
  • UPC Code: 819137021754

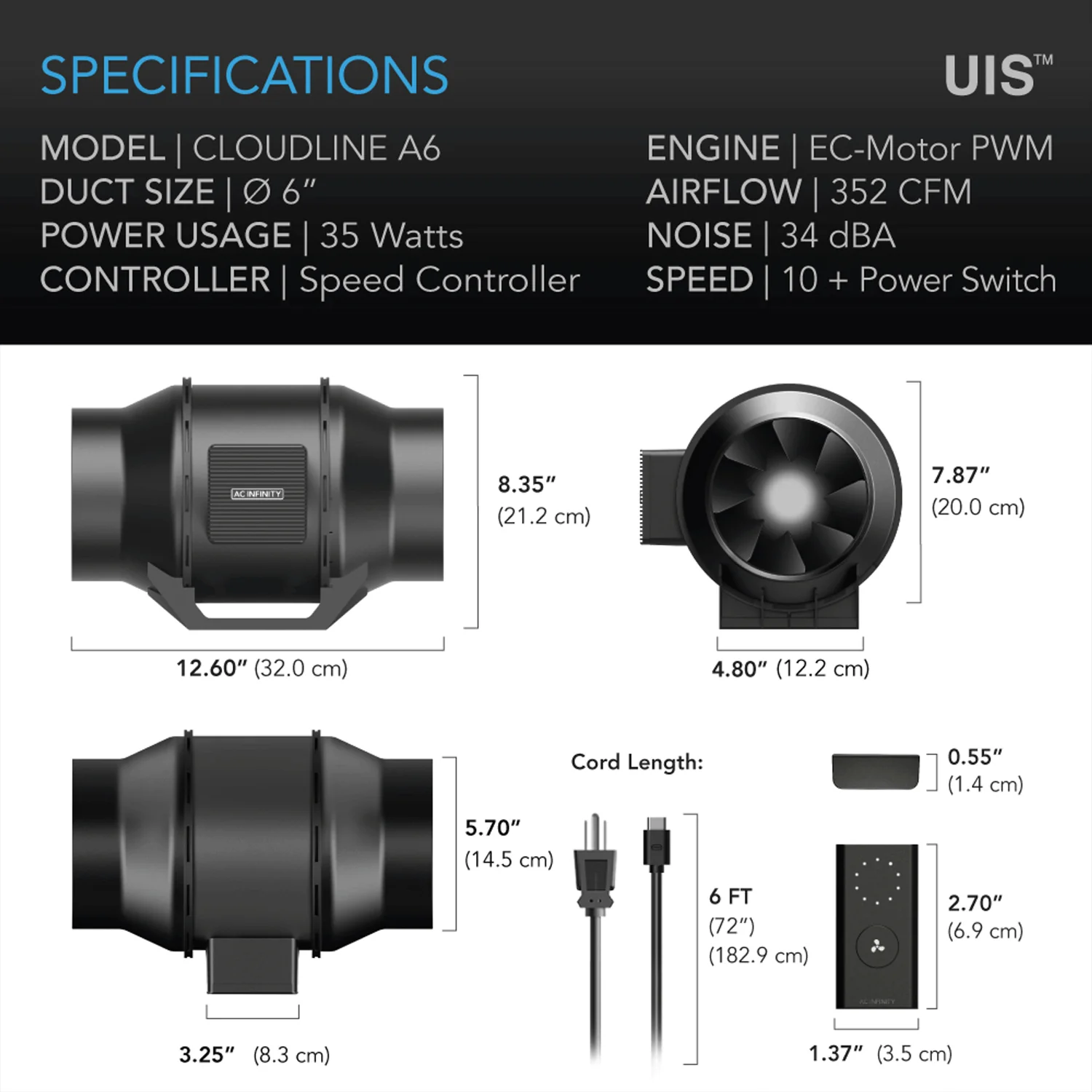

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 6 inches
  • Total Dimensions: 7.87 x 12.60 x 8.35 inches
  • Mounting Hole-To-Hole Distance: 3.15 x 2.36 inches
  • Screw Hole Size: Diameter is 0.236 inches
  • Cord Length to Controller: 72 inches (6 feet)
  • Cord Length to Plug: 72 inches (6 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 2.70 x 1.37 x 0.55 inches

  • Product Performance and Technical Specs
  • Total Airflow: 352 CFM
  • Total Noise: 34 dBA
  • Static Pressure: 394 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 65 W
  • Average Power Usage: 35 W
  • Current: 0.95 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the IC Certification: here
  • Download the RoHS Certification: here
  • Download the ETL Certification: here
