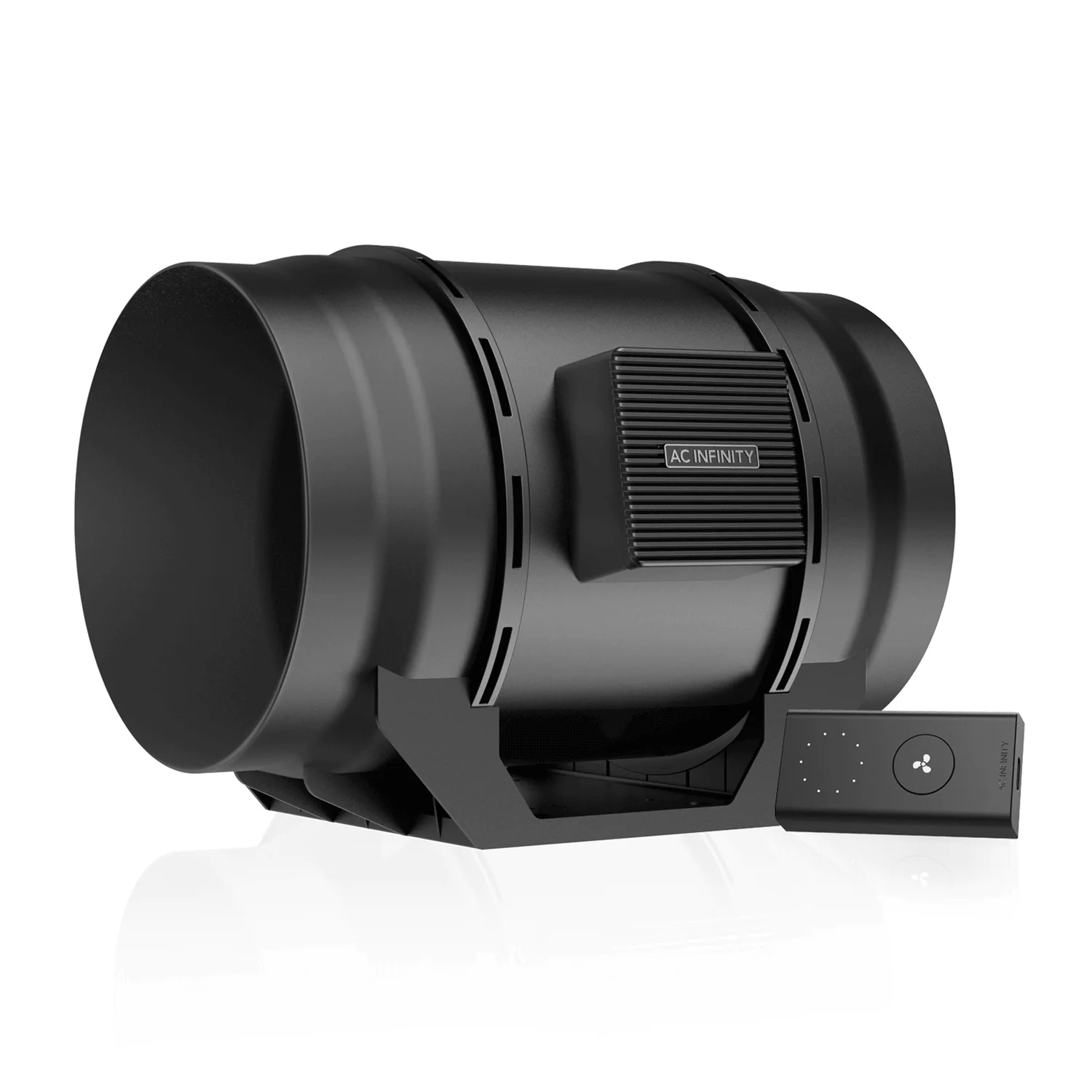

AC Infinity CLOUDLINE LITE A8, Quiet Inline Fan with Speed Controller, 8-Inch

Description

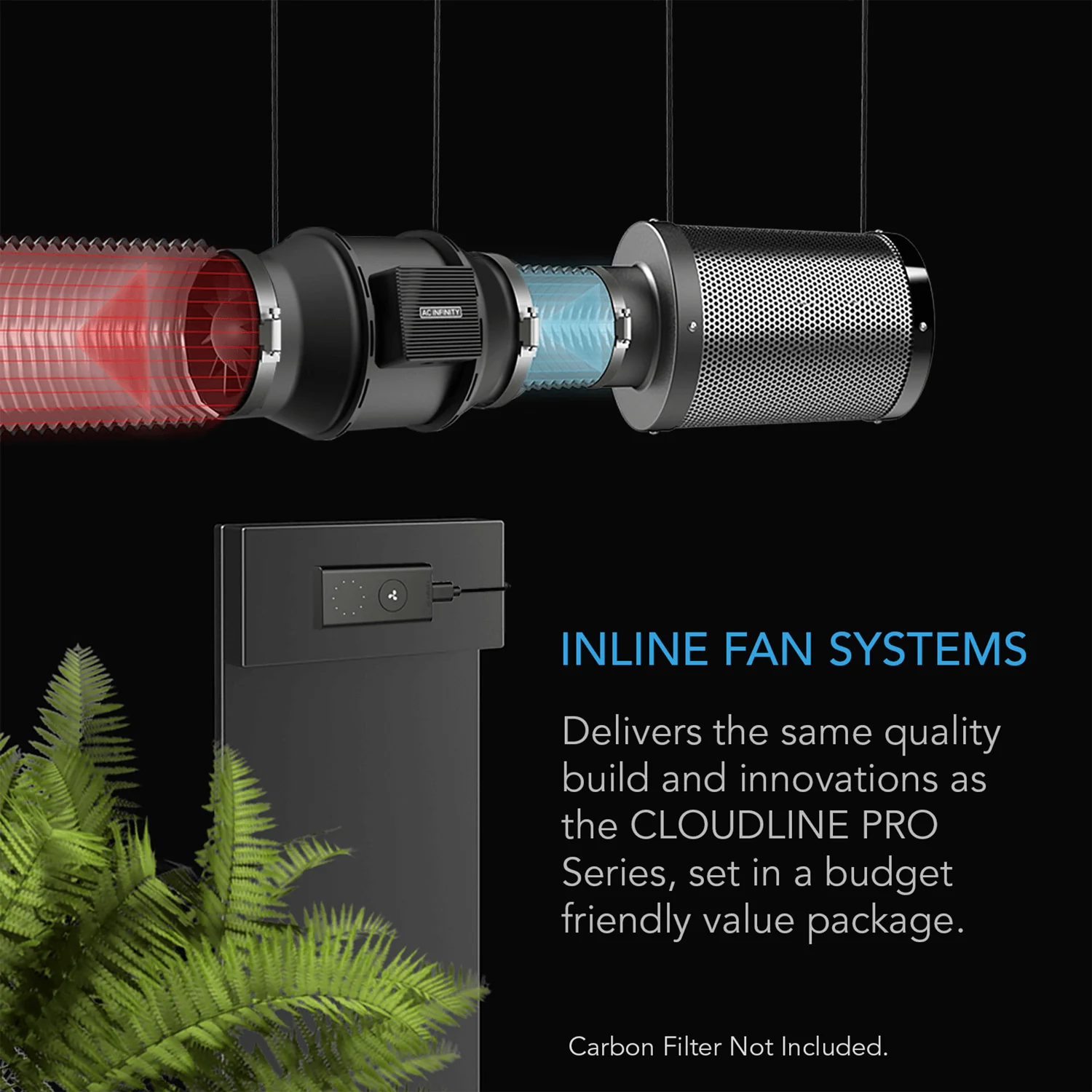

  • Designed for Quiet Ventilation: This product is designed to quietly ventilate grow tents, exhaust odors, transfer heating/cooling to rooms, and cool AV closets. It offers the same quality and innovations as the CLOUDLINE Series in a value-packed package.

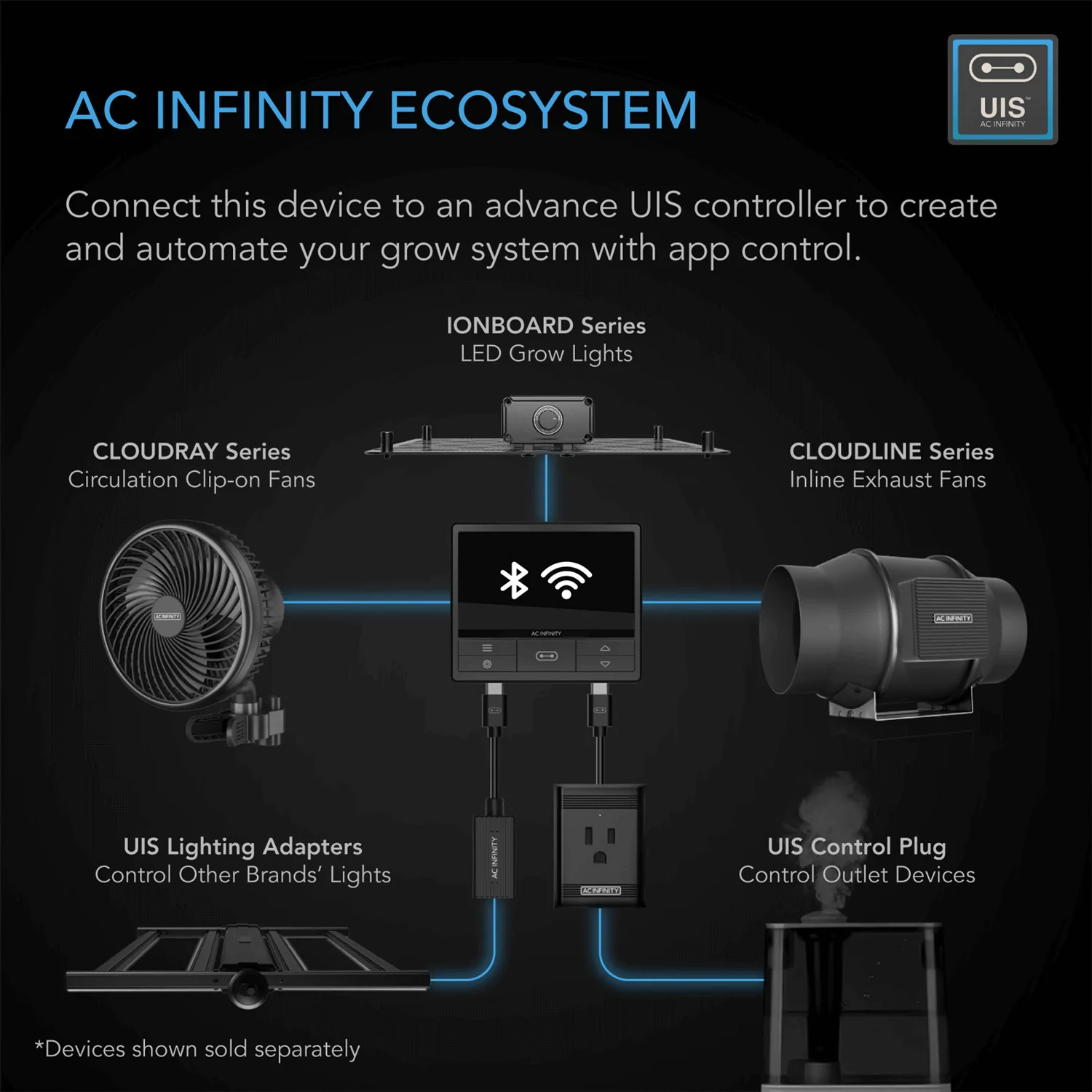

  • Includes 10-Speed Fan Controller: The package includes a wired 10-speed fan controller. It's also compatible with all CLOUDLINE Series smart controllers.

  • Efficient Mixed Flow Design: The fan features a mixed flow design combined with an EC-powered motor. This configuration provides quiet and energy-efficient performance. The fan's dimensions are 12.2 x 10 x 9.4 inches. Airflow rate is 724 CFM and the noise level is 42 dBA. It comes with dual ball bearings.

  • Product Description: This inline fan system consolidates the premium build quality and core innovations of the CLOUDLINE series to deliver a value package. It has an inline mixed-flow design, allowing it to maintain airflow even in high static pressure applications. The motor box, containing the fan's impeller and blades, can be detached from the mounted frame for effortless cleaning and maintenance. The complete kit includes an inline fan unit, a speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware.

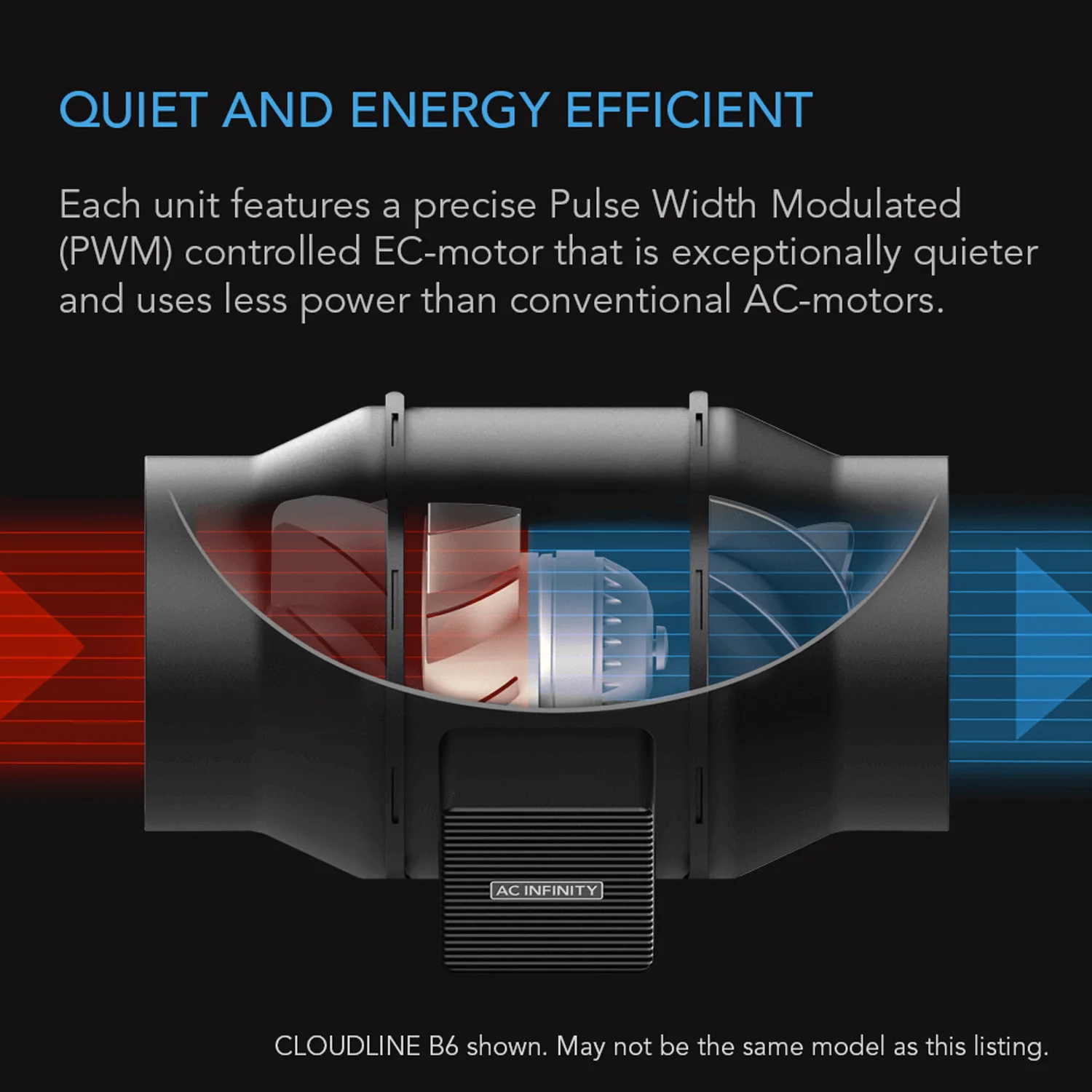

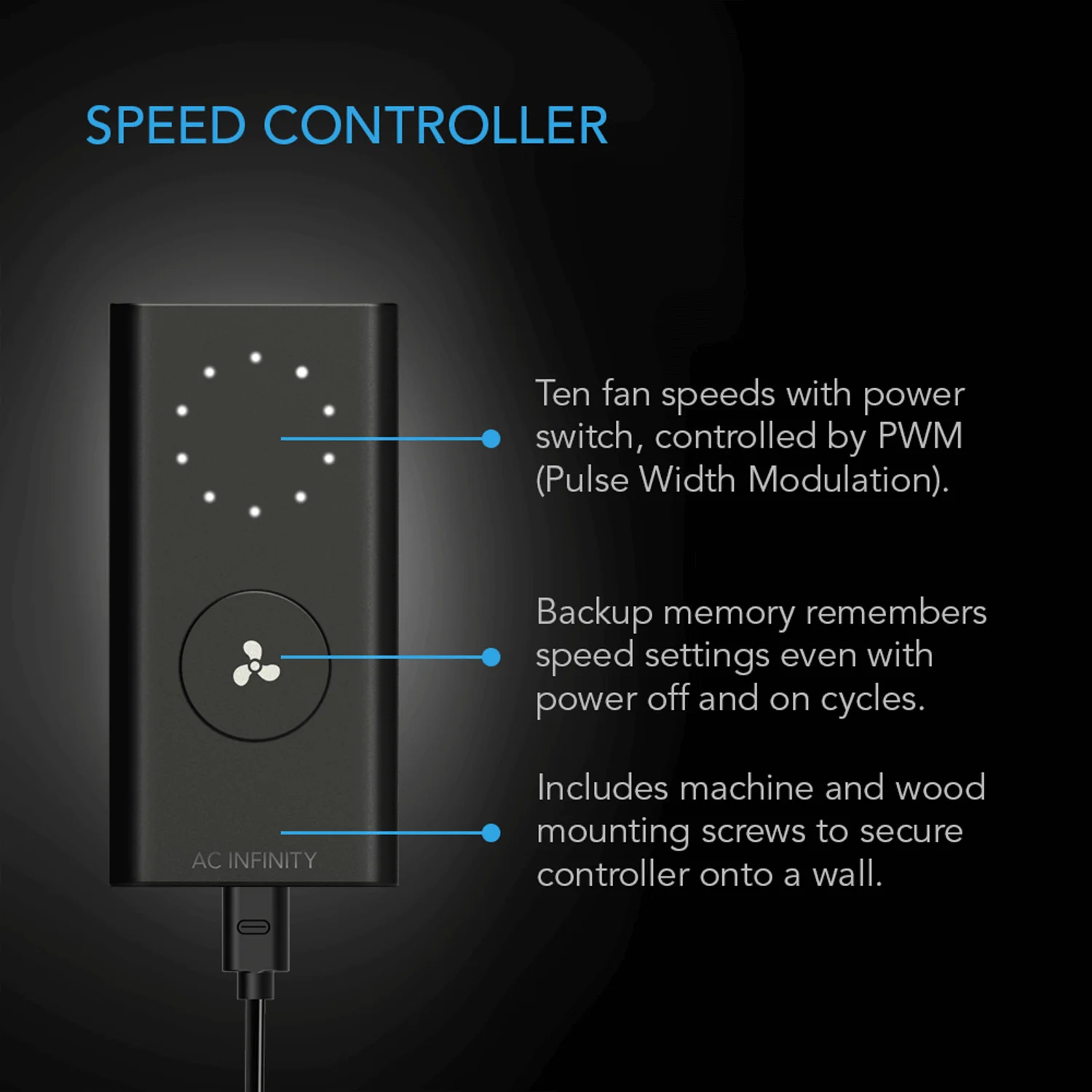

  • Precise Speed Controller: The speed controller allows you to set the duct fan's speed to optimal noise and airflow levels for various environments. The fan is equipped with the same EC-motor as the CLOUDLINE Series, precisely controlled using PWM (Pulse Width Modulation). This enables it to run smoothly at extremely low RPM speeds without generating motor noise. The controller offers ten speed options with a power switch and backup memory.

  • Quiet and Energy Efficient: The inline fan features a mixed flow design using a stator blade and dual hydrodynamic wind circles. This design enables it to deliver airflow even where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours, allowing the duct fan to be mounted in any direction. The fan also comes with a plastic mounting base to reduce noise caused by vibration. The unit has an IP44 rating, indicating high resistance to dust and liquids, making it perform well in harsh environments.

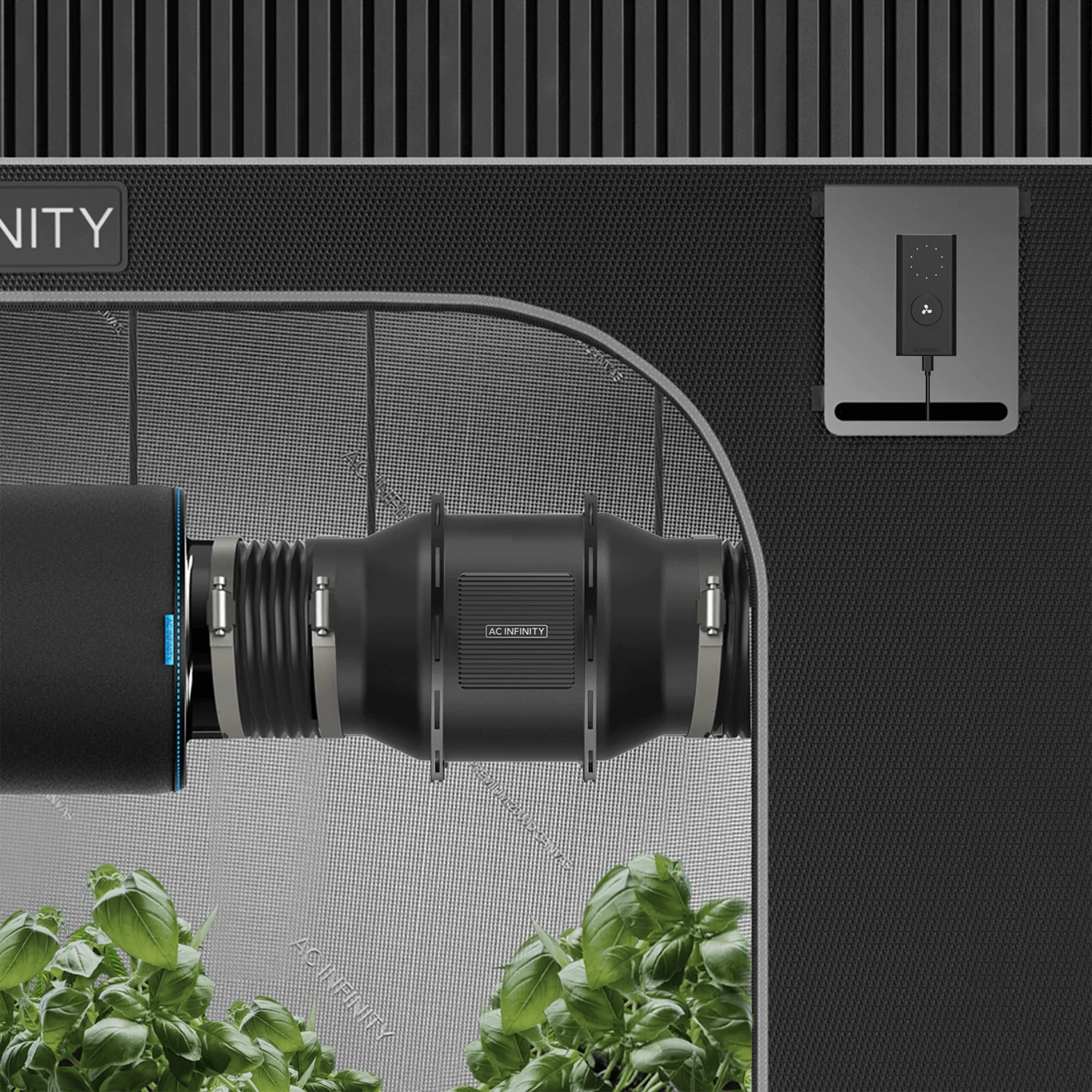

  • Applications: This quiet inline fan system is commonly found in hydroponic rooms for the cooling and ventilation of plants. Its low noise and advanced control features also make it suitable for use in bathrooms, attics, and for cooling AV equipment rooms, closets, racks, and cabinets.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDLINE A8
  • Product Model: AI-CLA8
  • UPC Code: 819137021761

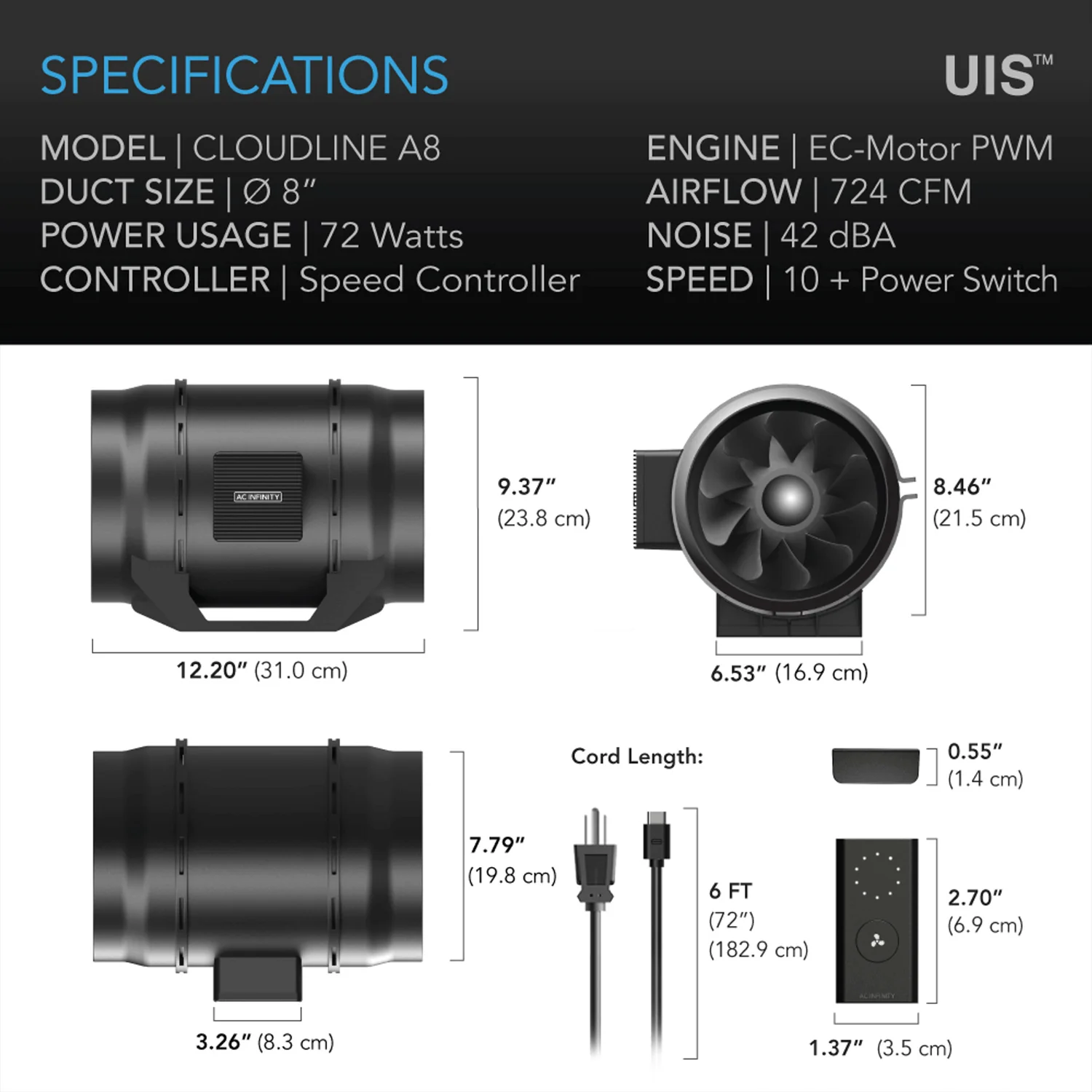

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 8 inches
  • Total Dimensions: 12.20 x 10 x 9.37 inches
  • Mounting Hole-To-Hole Distance: 3.54 x 1.96 inches
  • Screw Hole Size: Ø 0.217 inches
  • Cord Length to Controller: 72 inches (6 feet)
  • Cord Length to Plug: 72 inches (6 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 2.70 x 1.37 x 0.55 inches

  • Product Performance and Technical Specs
  • Total Airflow: 724 CFM
  • Total Noise: 42 dBA
  • Static Pressure: 746 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 190 W
  • Average Power Usage: 72 W
  • Current: 2.80 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the IC Certification: here
  • Download the RoHS Certification: here
  • Download the ETL Certification: here
