AC Infinity CLOUDLINE S8, Quiet Inline Duct Fan System with Speed Controller, 8-Inch

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity CLOUDLINE S8, Quiet Inline Duct Fan System with Speed Controller, 8-Inch

Description

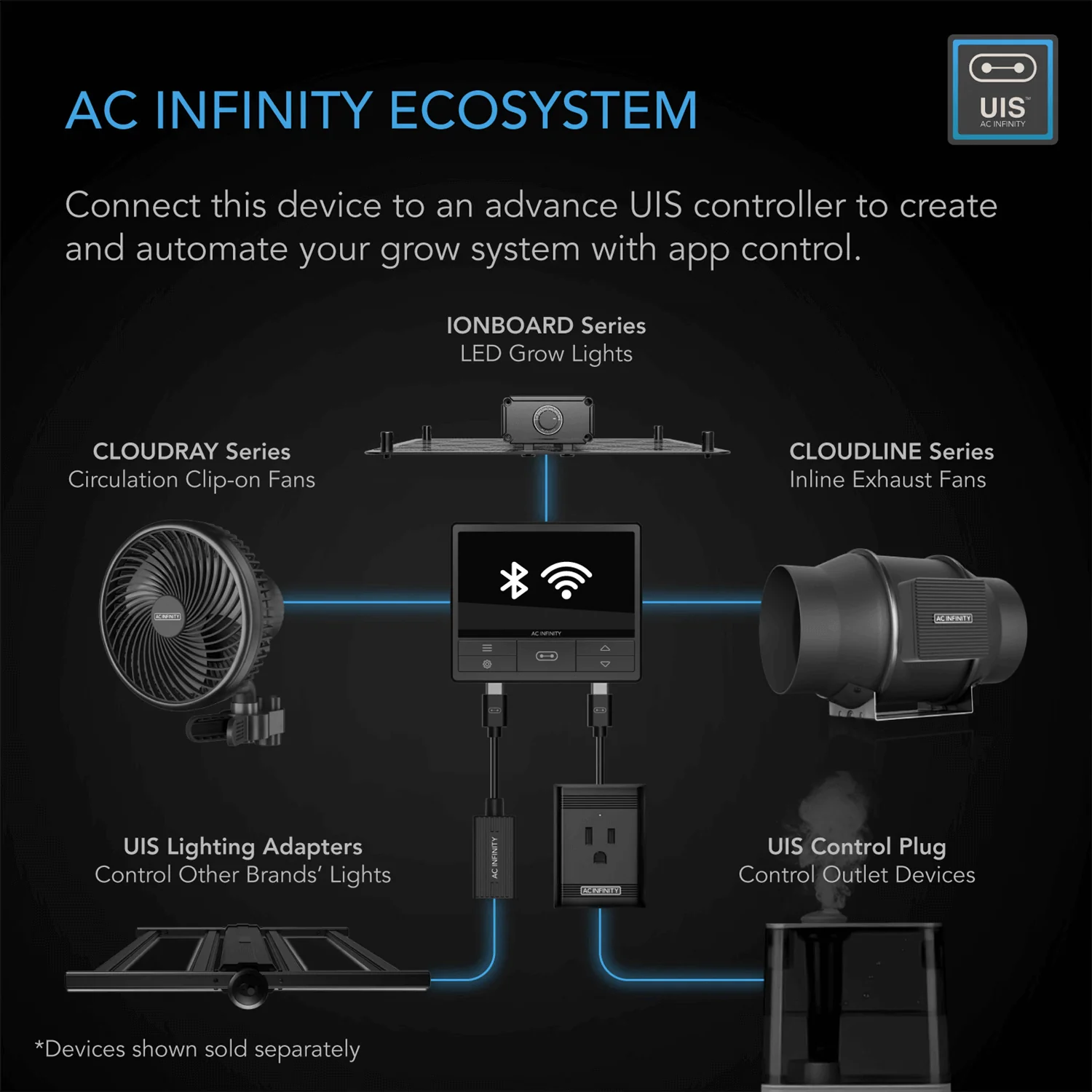

  • Quiet and Efficient Design: This product is intended to quietly ventilate grow areas, transfer heating/cooling to rooms, circulate fresh air, and cooling AV closets. It comes with a wired 10-speed fan controller and is also compatible with all UIS controllers with intelligent programming.

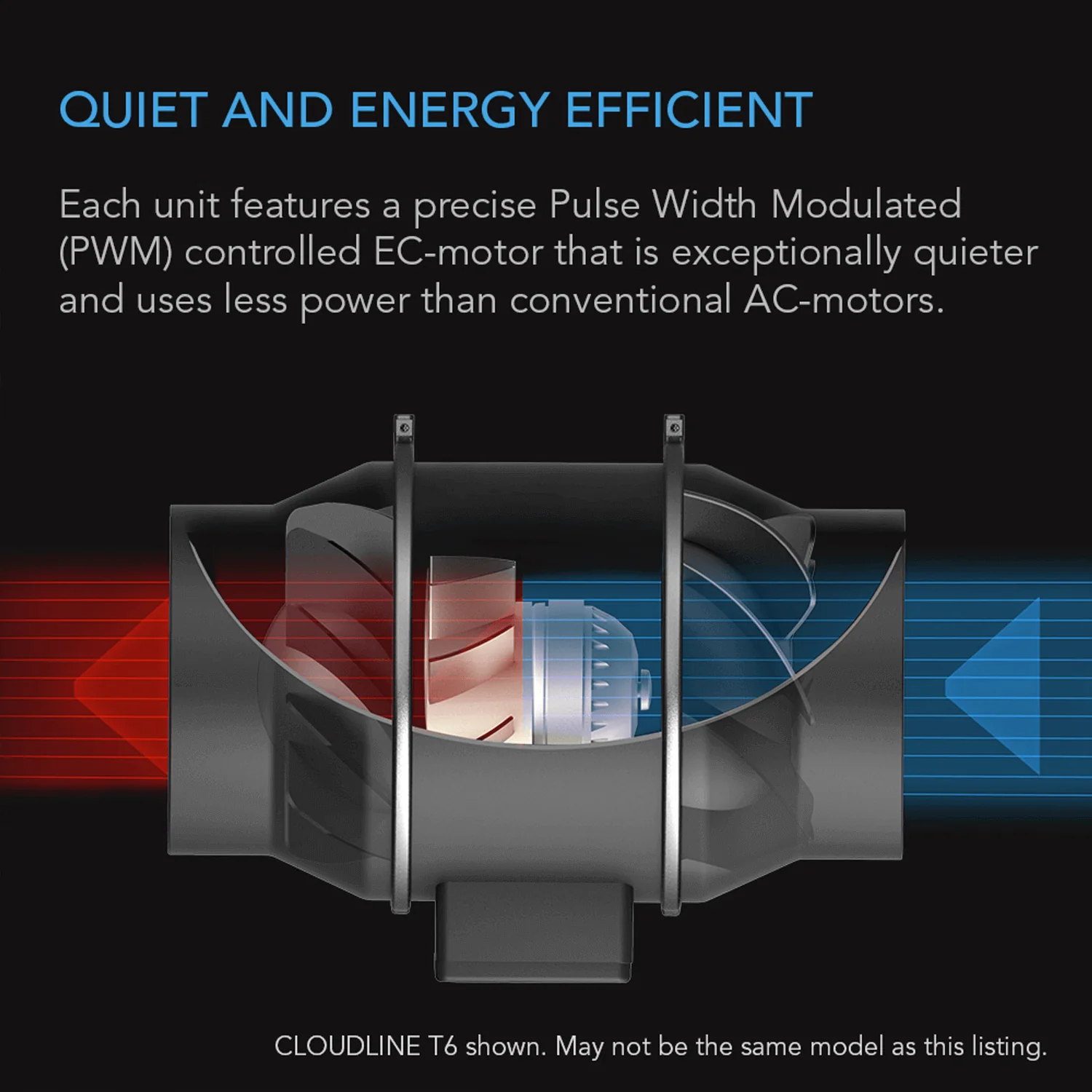

  • Energy-Efficient Performance: Thanks to its PWM-controlled EC motor, it provides quiet and energy-efficient performance, producing minimum heat and noise. The mixed flow design with a stator blade and hydrodynamic wind circles enables airflow delivery even in high-resistance areas.

  • Specific Product Features: The duct size is 8 inches, and the dimensions are 8.5 x 11.9 x 9.2 inches. It delivers an airflow of 807 CFM and produces a noise level of 39 dBA. It is also equipped with durable dual ball bearings.

  • Product Description: This smart inline duct fan is designed to silently ventilate grow rooms, boost heating/cooling in rooms, circulate fresh air, and cool AV closets. It comes with a smart controller that connects to multiple UIS devices and features dynamic climate and time-based programming.

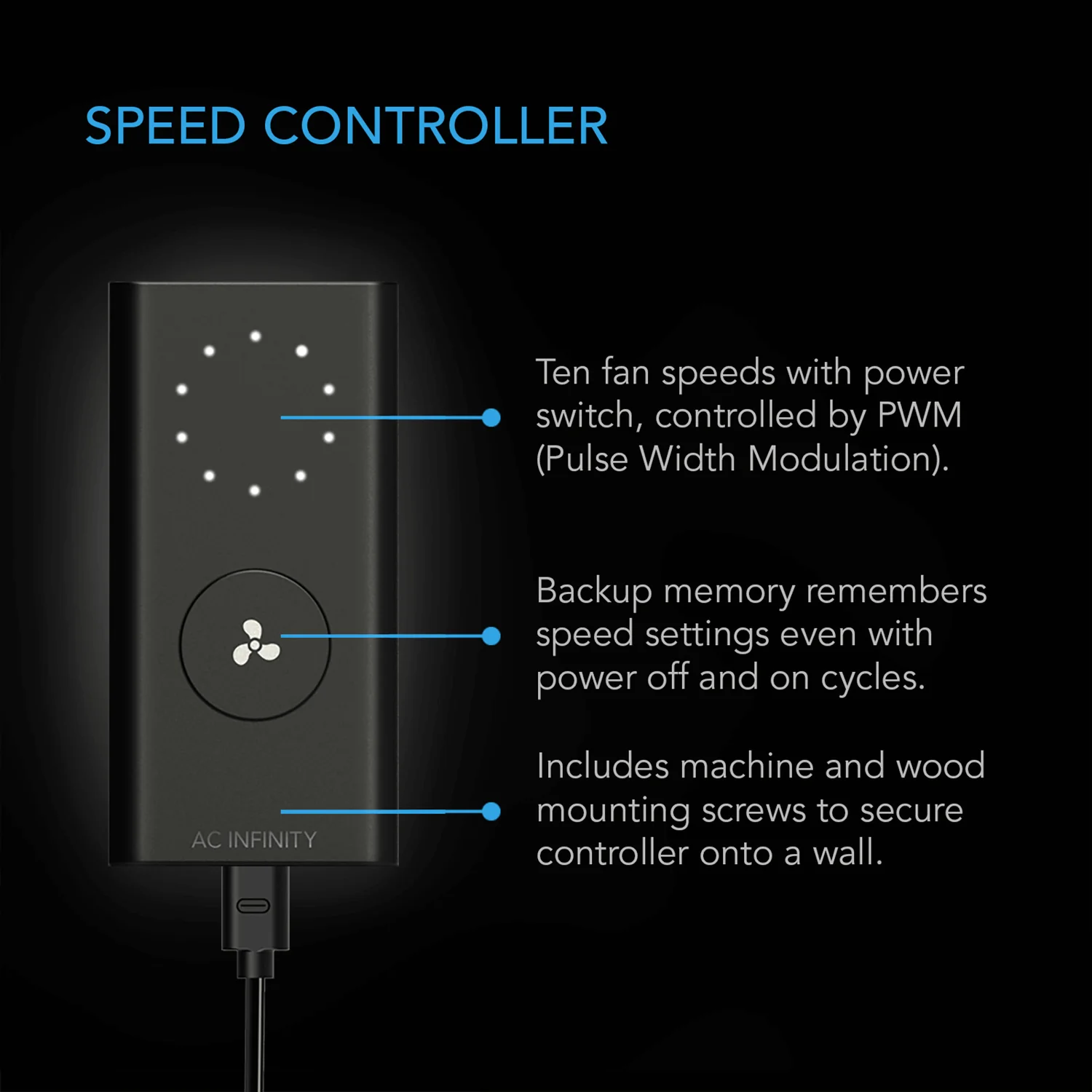

  • Precise Speed Controller: The controller lets you set the duct fan’s speed at ten different levels to achieve optimal noise and airflow in varying environments. It is backed up by a cutting-edge EC motor that uses Pulse Width Modulation (PWM) for precise control. The controller also features a backup memory that retains the last speed setting if power is cut off.

  • Quiet and Energy-Efficient Design: The duct fan uses a mixed-flow design with a stator blade and dual hydrodynamic wind circles, enabling it to maintain airflow even in restrictive applications. The 67000-hour rated dual ball bearings allow you to mount the duct fan unit in any direction. The unit is also IP44 rated, being highly resistant to dust and liquids, and performs well in harsh conditions.

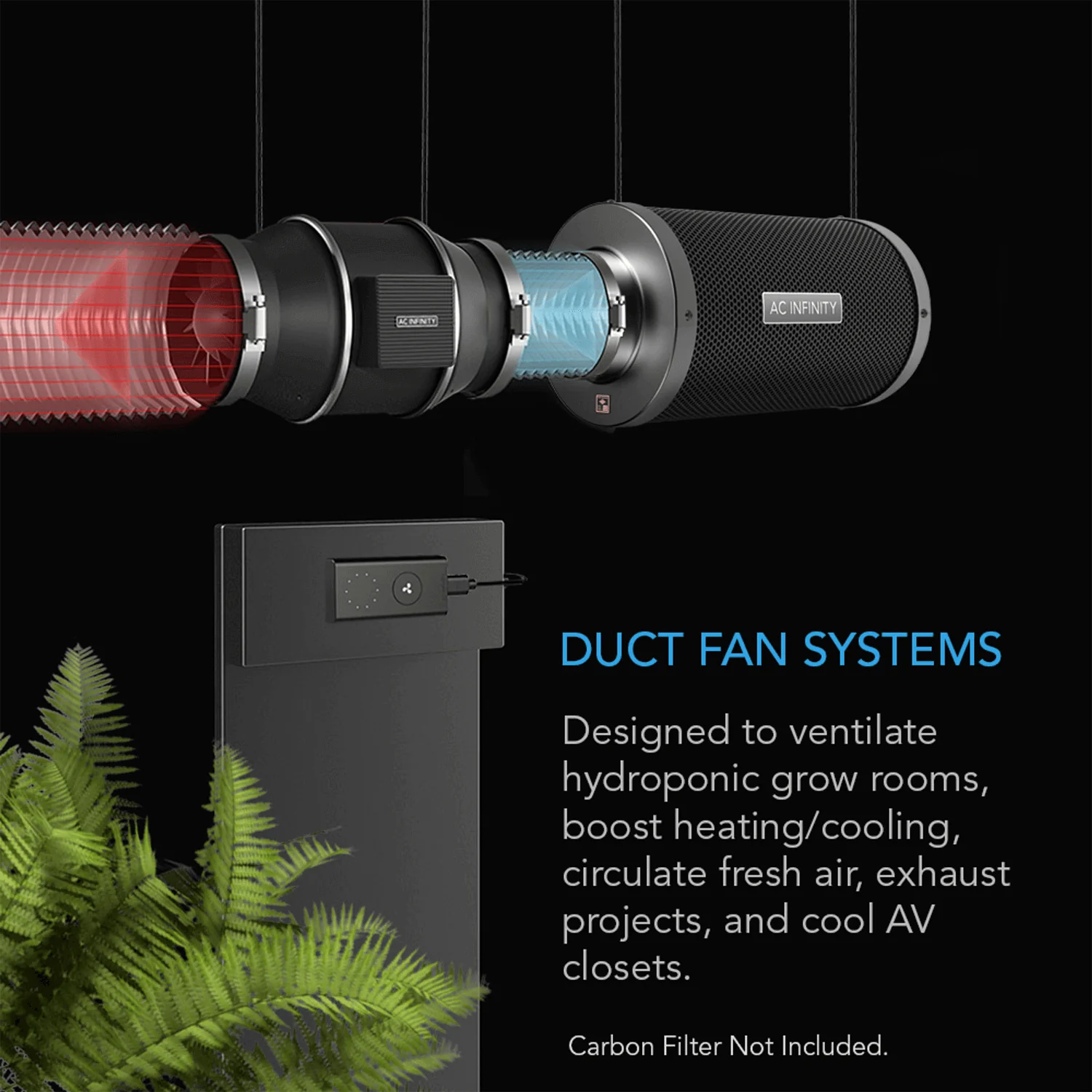

  • Applications: This quiet duct fan system is versatile, being popular for cooling AV equipment rooms, closets, racks, cabinets due to its low noise and advanced control features. It’s also used in various air circulation and ventilation projects like exhausting bathrooms and attics, and other installations.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDLINE S8
  • Product Model: AI-CLS8
  • UPC Code: 819137020849

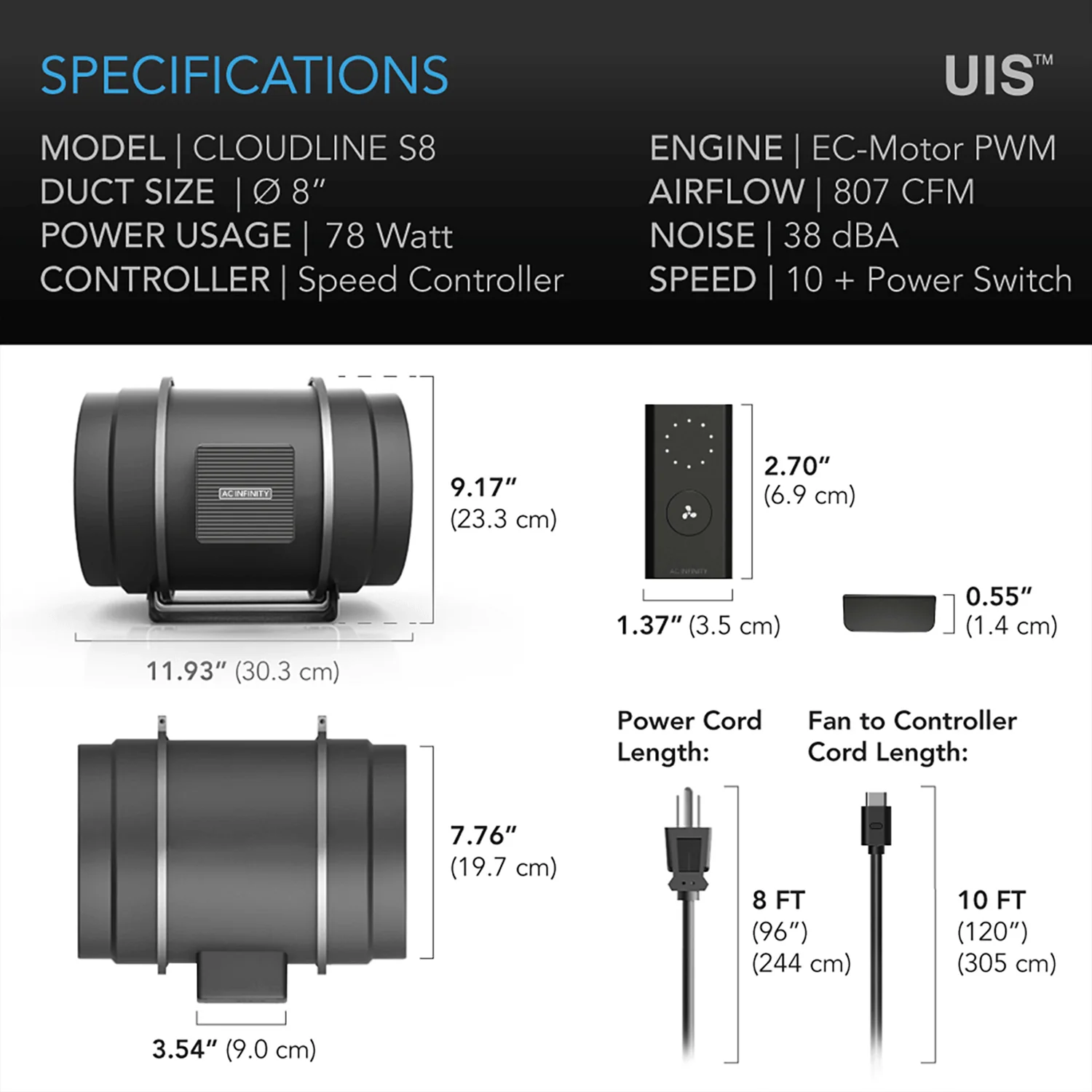

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 8 inches
  • Total Dimensions: 8.54 x 11.89 x 9.17 inches
  • Mounting Hole-To-Hole Distance: 3.94 x 3.70 inches
  • Screw Hole Size: 0.217 inches diameter
  • Cord Length to Controller: 120 inches (10 feet)
  • Cord Length to Plug: 96 inches (8 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 inches

  • Product Performance and Technical Specs
  • Total Airflow: 807 CFM
  • Total Noise: 39 dBA
  • Static Pressure: 746 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 180 W
  • Average Power Usage: 78 W
  • Current: 2.3 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the IC Certification: here
  • Download the RoHS Certification: here
  • Download the ETL Certification: here
  • Download the SAA Certification: here
  • Download the CE Certification: here
    • $164.99
    AC Infinity CLOUDLINE S8, Quiet Inline Duct Fan System with Speed Controller, 8-Inch—
    $164.99

    Product Information

    Shipping & Returns

    Description

    Description
  • Quiet and Efficient Design: This product is intended to quietly ventilate grow areas, transfer heating/cooling to rooms, circulate fresh air, and cooling AV closets. It comes with a wired 10-speed fan controller and is also compatible with all UIS controllers with intelligent programming.

  • Energy-Efficient Performance: Thanks to its PWM-controlled EC motor, it provides quiet and energy-efficient performance, producing minimum heat and noise. The mixed flow design with a stator blade and hydrodynamic wind circles enables airflow delivery even in high-resistance areas.

  • Specific Product Features: The duct size is 8 inches, and the dimensions are 8.5 x 11.9 x 9.2 inches. It delivers an airflow of 807 CFM and produces a noise level of 39 dBA. It is also equipped with durable dual ball bearings.

  • Product Description: This smart inline duct fan is designed to silently ventilate grow rooms, boost heating/cooling in rooms, circulate fresh air, and cool AV closets. It comes with a smart controller that connects to multiple UIS devices and features dynamic climate and time-based programming.

  • Precise Speed Controller: The controller lets you set the duct fan’s speed at ten different levels to achieve optimal noise and airflow in varying environments. It is backed up by a cutting-edge EC motor that uses Pulse Width Modulation (PWM) for precise control. The controller also features a backup memory that retains the last speed setting if power is cut off.

  • Quiet and Energy-Efficient Design: The duct fan uses a mixed-flow design with a stator blade and dual hydrodynamic wind circles, enabling it to maintain airflow even in restrictive applications. The 67000-hour rated dual ball bearings allow you to mount the duct fan unit in any direction. The unit is also IP44 rated, being highly resistant to dust and liquids, and performs well in harsh conditions.

  • Applications: This quiet duct fan system is versatile, being popular for cooling AV equipment rooms, closets, racks, cabinets due to its low noise and advanced control features. It’s also used in various air circulation and ventilation projects like exhausting bathrooms and attics, and other installations.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDLINE S8
  • Product Model: AI-CLS8
  • UPC Code: 819137020849

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 8 inches
  • Total Dimensions: 8.54 x 11.89 x 9.17 inches
  • Mounting Hole-To-Hole Distance: 3.94 x 3.70 inches
  • Screw Hole Size: 0.217 inches diameter
  • Cord Length to Controller: 120 inches (10 feet)
  • Cord Length to Plug: 96 inches (8 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.34 x 2.95 x 0.51 inches

  • Product Performance and Technical Specs
  • Total Airflow: 807 CFM
  • Total Noise: 39 dBA
  • Static Pressure: 746 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 180 W
  • Average Power Usage: 78 W
  • Current: 2.3 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheet
  • Download the Product Manual: here
  • Download the IC Certification: here
  • Download the RoHS Certification: here
  • Download the ETL Certification: here
  • Download the SAA Certification: here
  • Download the CE Certification: here
