AC Infinity CLOUDWAY S10, Whole House EC Fan, 1200 CFM, Energy Efficient with Wireless Controller

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

AC Infinity CLOUDWAY S10, Whole House EC Fan, 1200 CFM, Energy Efficient with Wireless Controller

Description

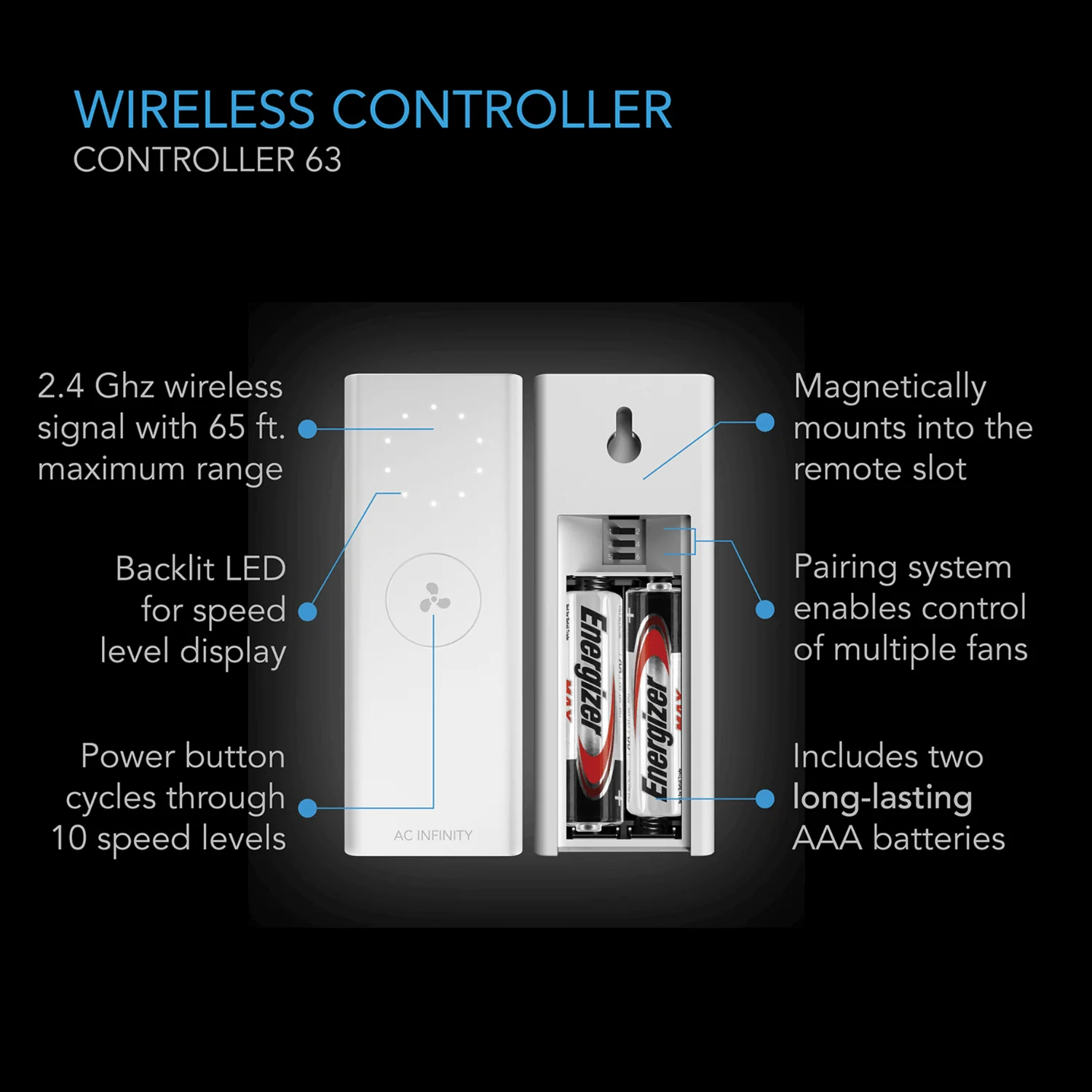

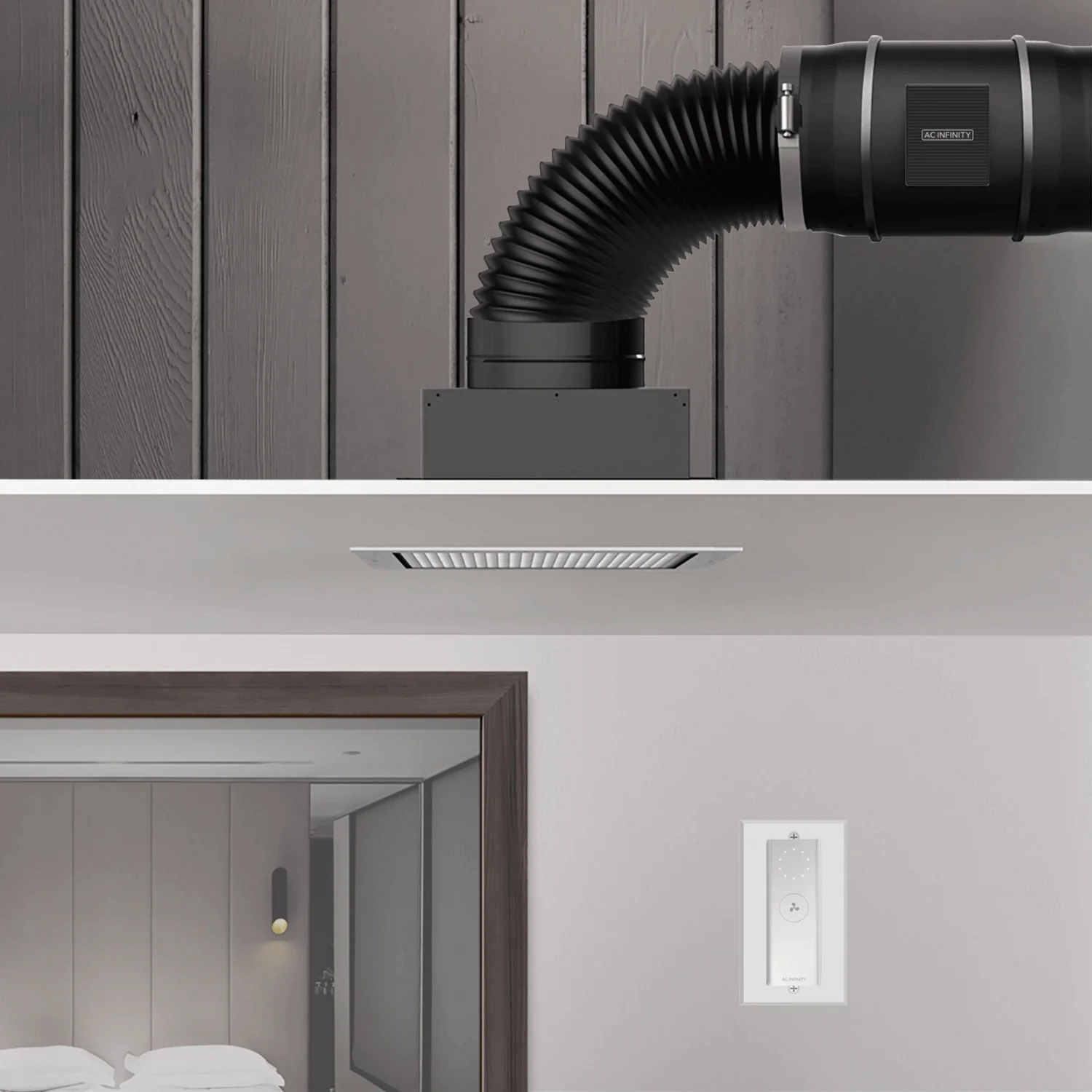

  • Whole House Attic Fan: This fan is designed to cool and ventilate entire homes by exhausting hot air from indoor spaces. It utilizes a 10-speed wireless controller with backup memory, remotely adjusting fan speed and optimizing airflow. The system features 2-door shutters with a damper that blocks attic air from entering living spaces when the fan is not in use.

  • Key Specifications: The duct size is 10 inches. The dimensions are 9.8 x 15.1 x 11.3 inches. It delivers an airflow of 1201 CFM with a noise level of 48 dBA. It incorporates dual ball bearings for smooth operation.

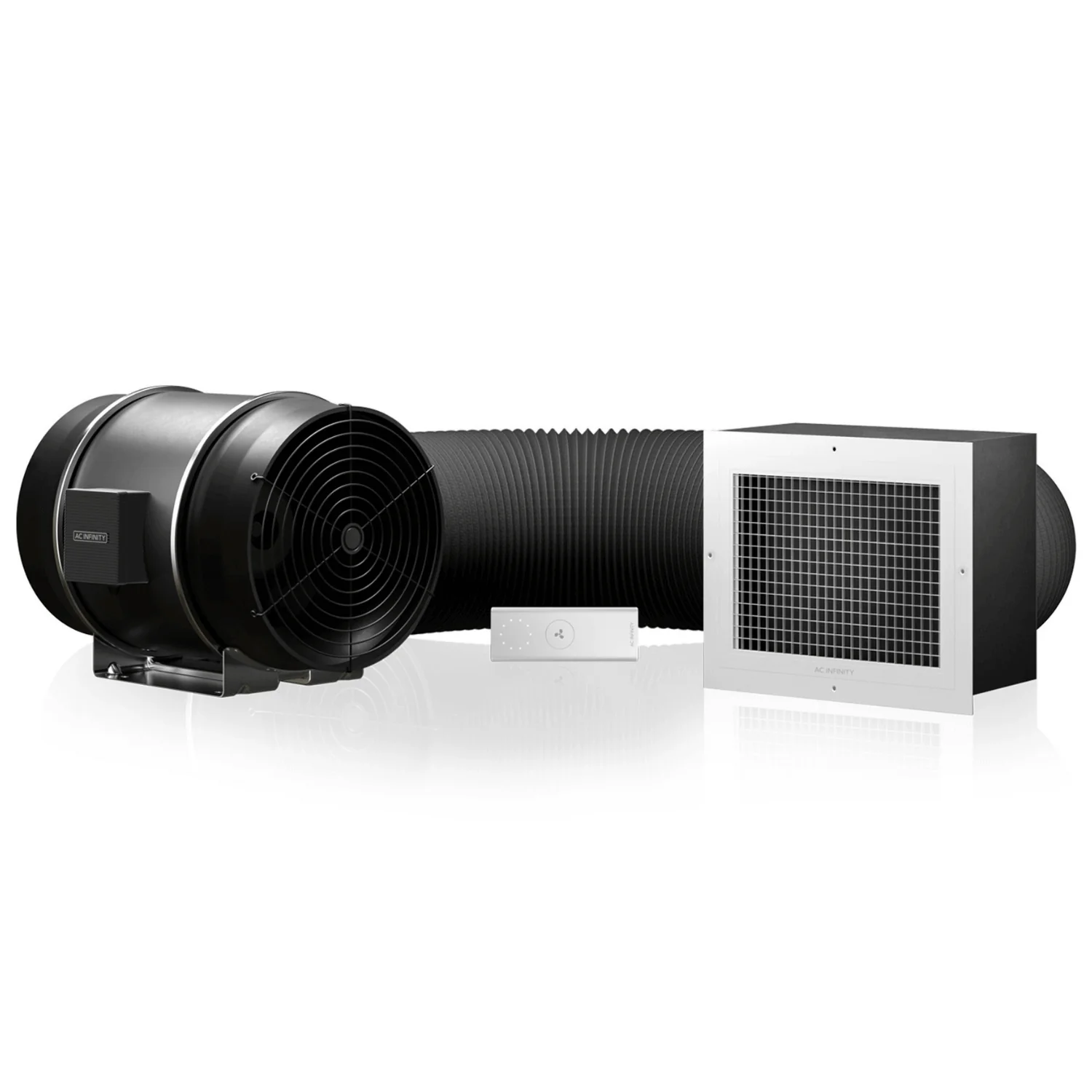

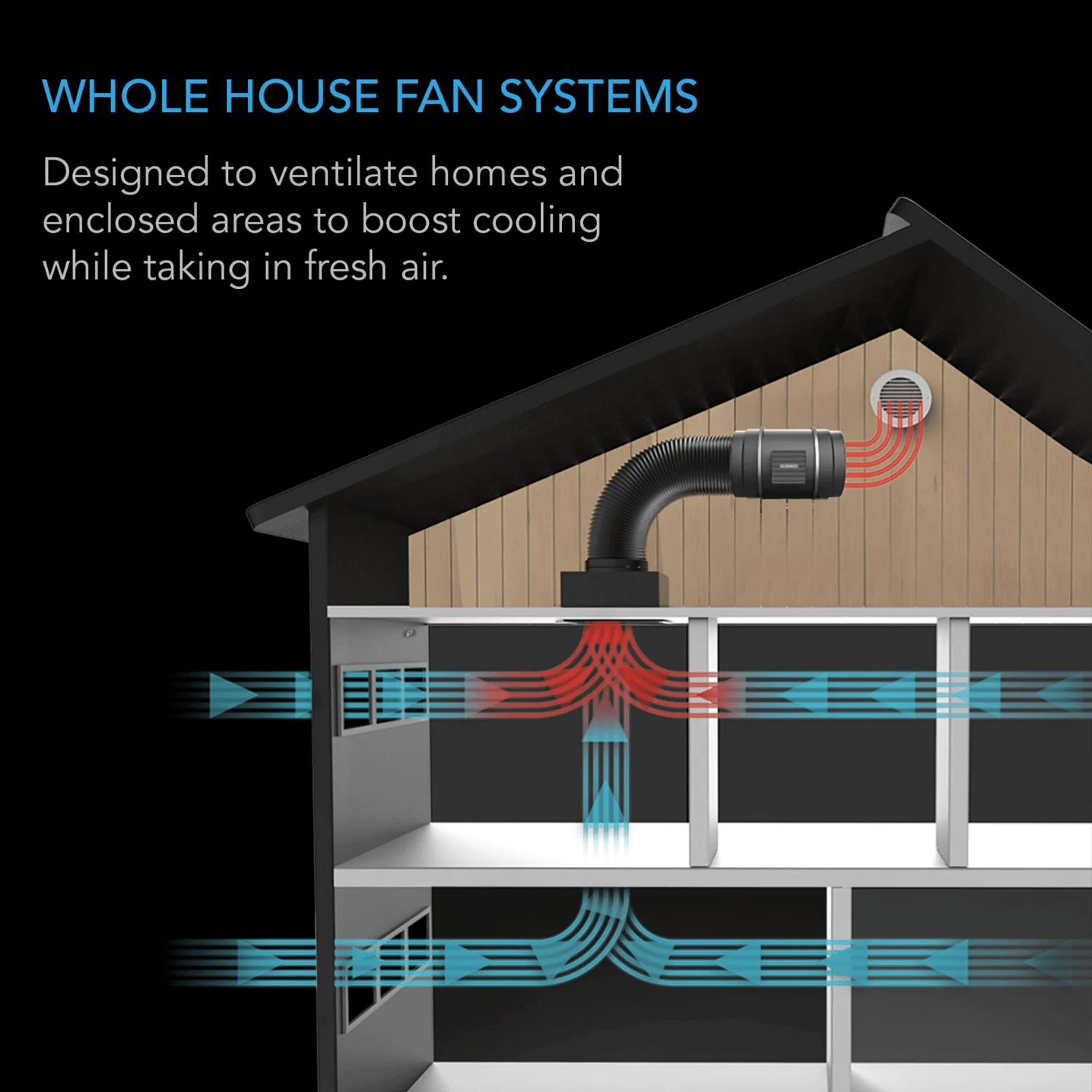

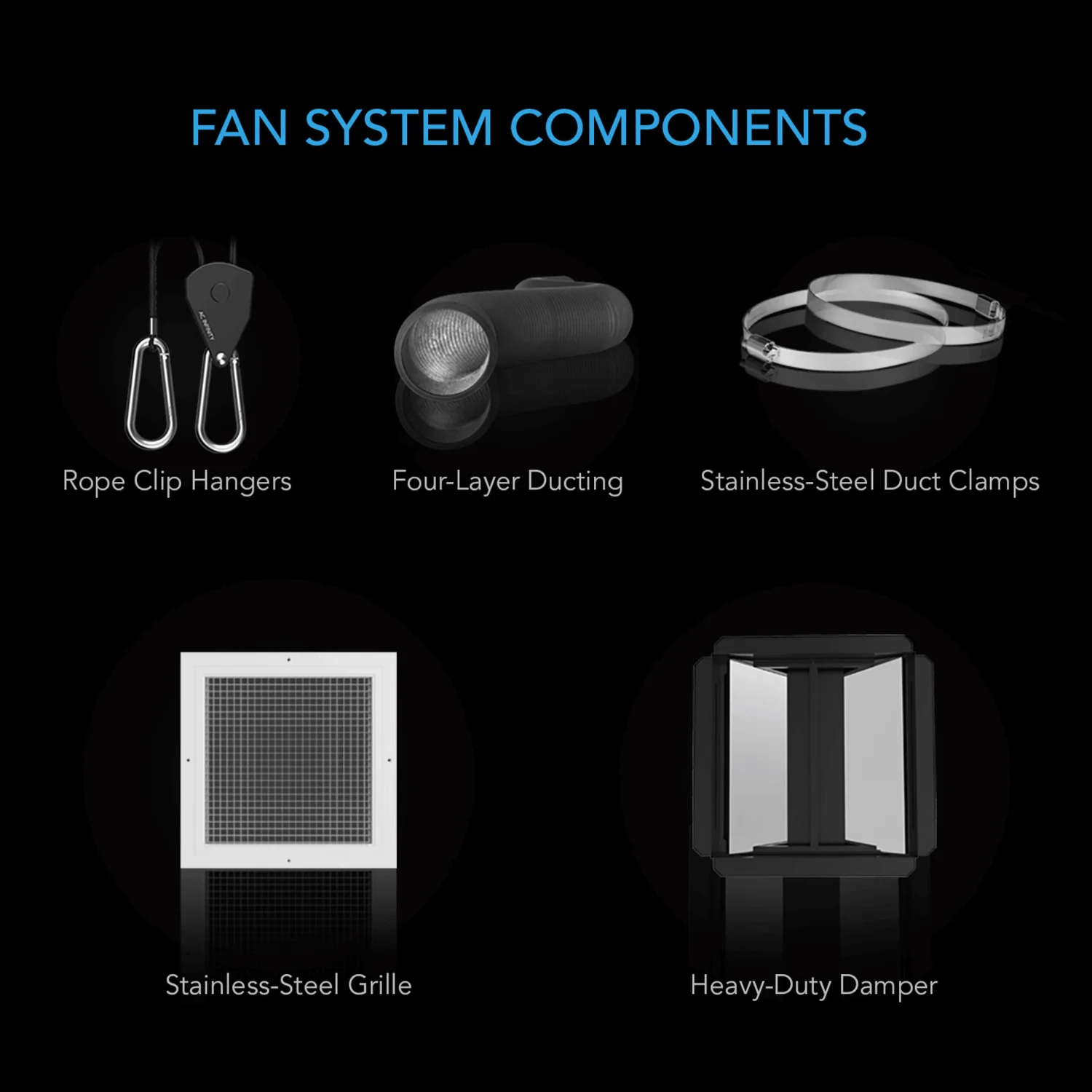

  • Product Description: This whole house fan system exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. A wireless fan remote controls each attic fan that can adjust the fan speed in up to 10 levels. Optimizing cooling and noise levels from anywhere in your home is easy and convenient. The fan uses an EC motor that allows it to run efficiently and quietly. This kit includes 4-layer ducting, stainless steel duct clamps and grille, along with a 2-door shutter.

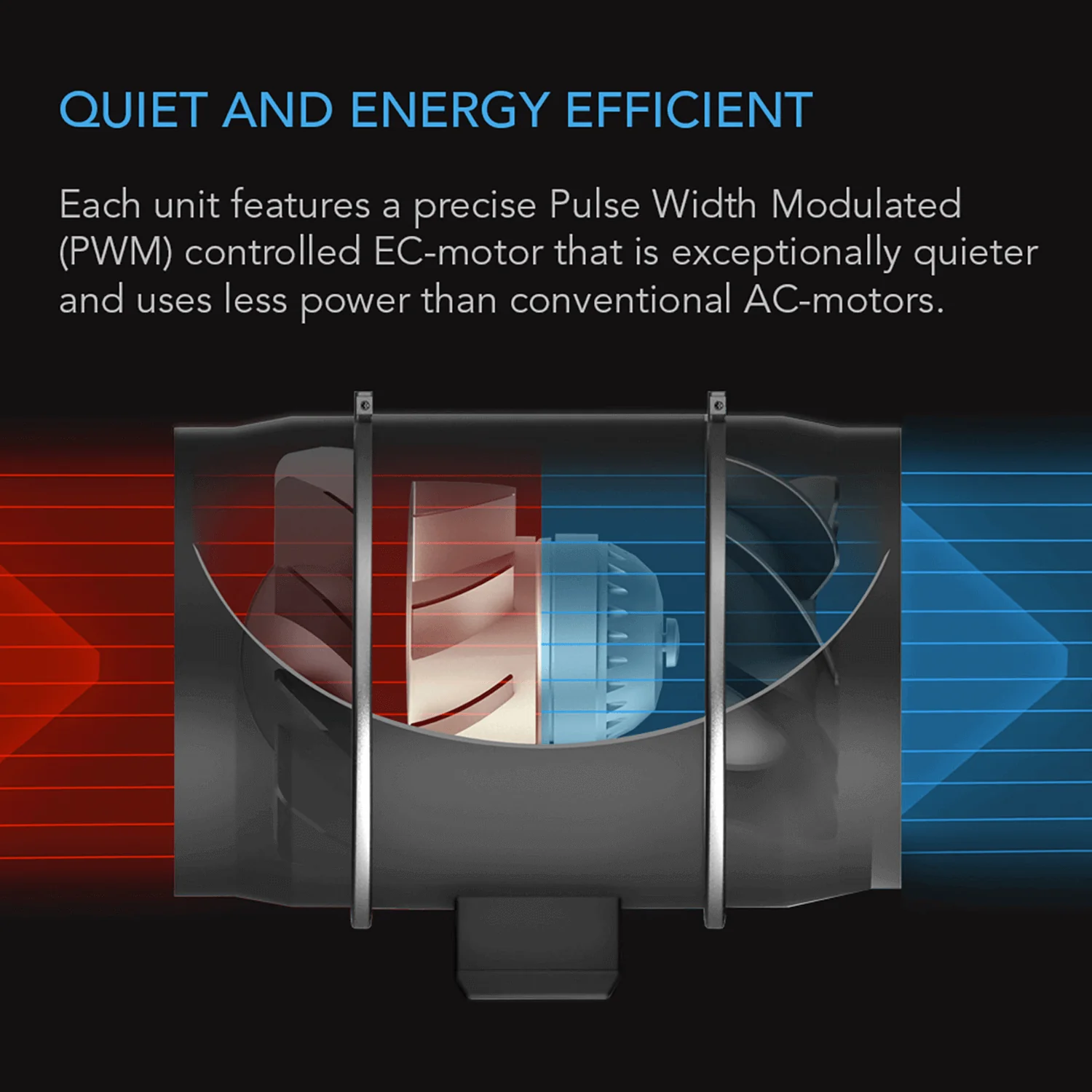

  • Next-Gen EC Motor: Using cutting-edge technology, this fan features an Electronically Commutated (EC) motor that is digitally controlled with precise electronic pulses. PWM technology ensures quiet operation while allowing speed control from 0 to 100%, without generating excess heat or noise. Furthermore, EC motors prove to be cost-effective in the long run with double lifespan and 40% more energy efficiency than AC motors.

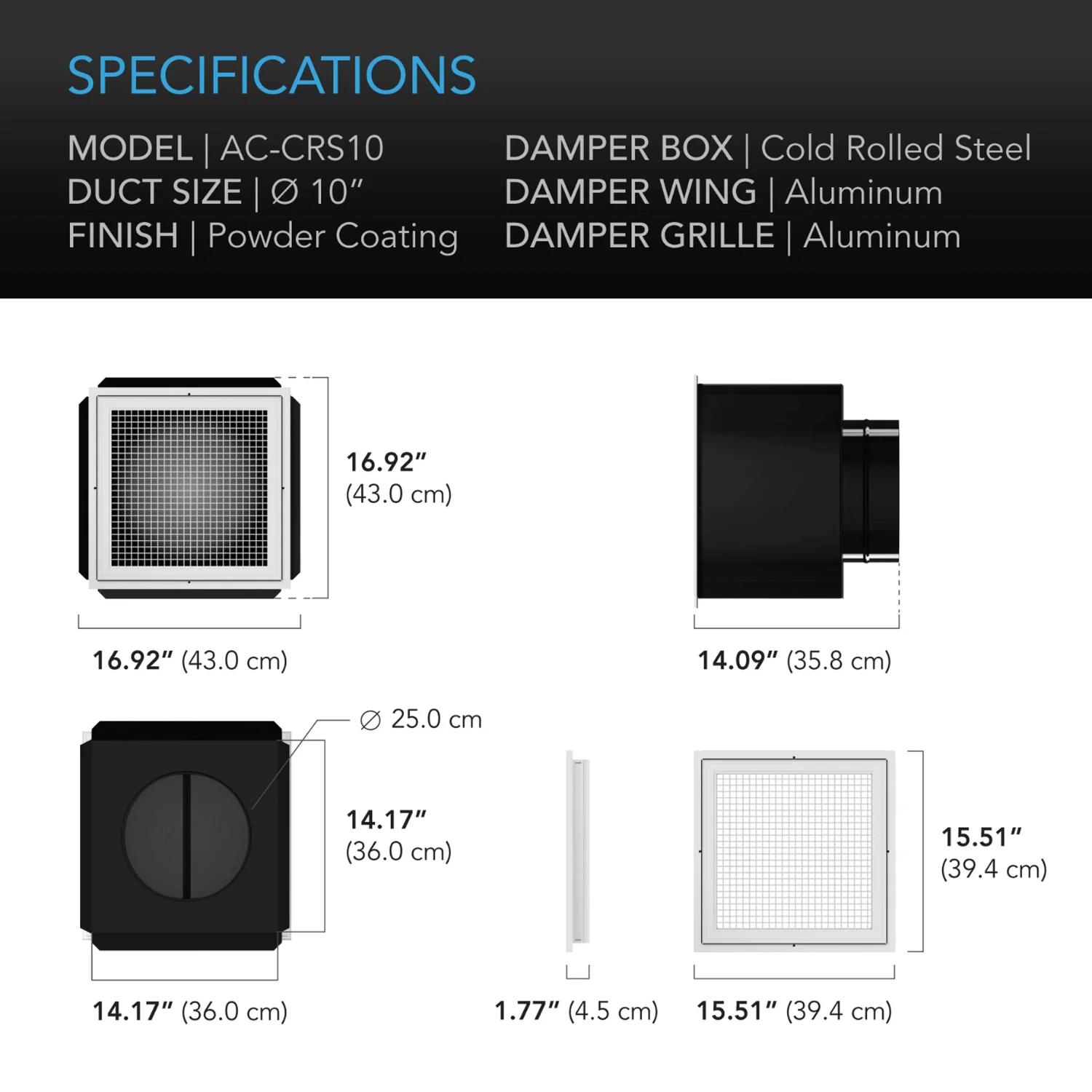

  • Efficient Performance: This attic fan offers efficient performance with a continuous run lifespan of 50,000 hours, facilitated by dual ball bearings that allow omnidirectional mounting. An IP-44 rating ensures resistance against dust and moisture, allowing the fan to perform in most humid environments. Lastly, the insulated damper with gravity-fed shutters closes the opening when the fan is not in use, keeping attic air from entering your home.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDWAY S10
  • Product Model: AC-CRS10
  • UPC Code: 819137023031

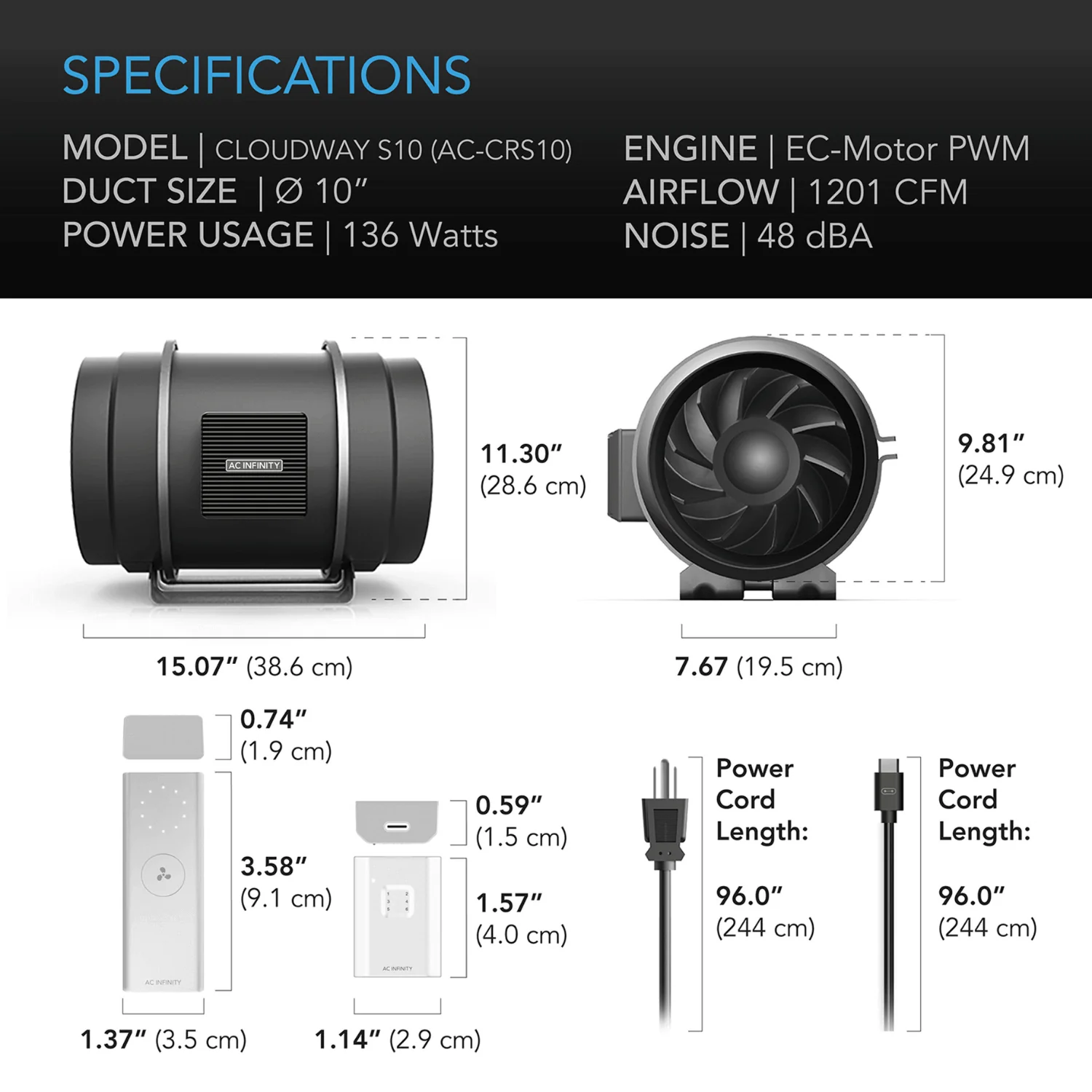

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 10 inches
  • Duct Tube Length: 5 feet
  • Total Dimensions: 9.81 x 15.07 x 11.30 inches (24.9 x 38.6 x 28.6 cm)
  • Mounting Hole-To-Hole Distance: 5.90 x 5.90 inches (15.0 x 15.0 cm)
  • Screw Hole Size: Ø 0.472 inches (Ø 1.2 cm)
  • Cord Length to Controller: 240 inches (20 feet)
  • Cord Length to Plug: 96 inches (8 feet)

  • Product and Mounting Dimensions - Controller
  • Controller Dimensions: 3.59 x 1.37 x 0.75 inches (9.1 x 3.5 x 1.9 cm)
  • Receiver Dimensions: 1.14 x 1.57 x 0.59 inches (2.9 x 4.0 x 1.5 cm)
  • Mounting Hole Size: Ø 0.25 inches (Ø 6.5 mm)

  • Product Performance and Technical Specs
  • Total Airflow: 1201 CFM
  • Total Noise: 48 dBA
  • Static Pressure: 352 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 250 W
  • Average Power Usage: 136 W
  • Current: 2.7 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Wall Adapter Input: 100 to 120V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • Life Expectancy: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
  • Download the RoHS Certification: here
    • $449.00
    AC Infinity CLOUDWAY S10, Whole House EC Fan, 1200 CFM, Energy Efficient with Wireless Controller—
    $449.00

    Product Information

    Shipping & Returns

    Description

    Description
  • Whole House Attic Fan: This fan is designed to cool and ventilate entire homes by exhausting hot air from indoor spaces. It utilizes a 10-speed wireless controller with backup memory, remotely adjusting fan speed and optimizing airflow. The system features 2-door shutters with a damper that blocks attic air from entering living spaces when the fan is not in use.

  • Key Specifications: The duct size is 10 inches. The dimensions are 9.8 x 15.1 x 11.3 inches. It delivers an airflow of 1201 CFM with a noise level of 48 dBA. It incorporates dual ball bearings for smooth operation.

  • Product Description: This whole house fan system exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. A wireless fan remote controls each attic fan that can adjust the fan speed in up to 10 levels. Optimizing cooling and noise levels from anywhere in your home is easy and convenient. The fan uses an EC motor that allows it to run efficiently and quietly. This kit includes 4-layer ducting, stainless steel duct clamps and grille, along with a 2-door shutter.

  • Next-Gen EC Motor: Using cutting-edge technology, this fan features an Electronically Commutated (EC) motor that is digitally controlled with precise electronic pulses. PWM technology ensures quiet operation while allowing speed control from 0 to 100%, without generating excess heat or noise. Furthermore, EC motors prove to be cost-effective in the long run with double lifespan and 40% more energy efficiency than AC motors.

  • Efficient Performance: This attic fan offers efficient performance with a continuous run lifespan of 50,000 hours, facilitated by dual ball bearings that allow omnidirectional mounting. An IP-44 rating ensures resistance against dust and moisture, allowing the fan to perform in most humid environments. Lastly, the insulated damper with gravity-fed shutters closes the opening when the fan is not in use, keeping attic air from entering your home.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: CLOUDWAY S10
  • Product Model: AC-CRS10
  • UPC Code: 819137023031

  • Product and Mounting Dimensions - Fan Unit
  • Duct Size: 10 inches
  • Duct Tube Length: 5 feet
  • Total Dimensions: 9.81 x 15.07 x 11.30 inches (24.9 x 38.6 x 28.6 cm)
  • Mounting Hole-To-Hole Distance: 5.90 x 5.90 inches (15.0 x 15.0 cm)
  • Screw Hole Size: Ø 0.472 inches (Ø 1.2 cm)
  • Cord Length to Controller: 240 inches (20 feet)
  • Cord Length to Plug: 96 inches (8 feet)

  • Product and Mounting Dimensions - Controller
  • Controller Dimensions: 3.59 x 1.37 x 0.75 inches (9.1 x 3.5 x 1.9 cm)
  • Receiver Dimensions: 1.14 x 1.57 x 0.59 inches (2.9 x 4.0 x 1.5 cm)
  • Mounting Hole Size: Ø 0.25 inches (Ø 6.5 mm)

  • Product Performance and Technical Specs
  • Total Airflow: 1201 CFM
  • Total Noise: 48 dBA
  • Static Pressure: 352 Pa
  • Voltage: 100-240V AC
  • Frequency: 50/60Hz
  • Max Power Draw: 250 W
  • Average Power Usage: 136 W
  • Current: 2.7 A
  • Power Connector Type: US Plug (NEMA 1-15 Type-A)
  • Wall Adapter Input: 100 to 120V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Ingress Protection: IP 44
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • Life Expectancy: 67,000 Hours
  • Fan Quality Approvals: CE, RoHS
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
  • Download the RoHS Certification: here
