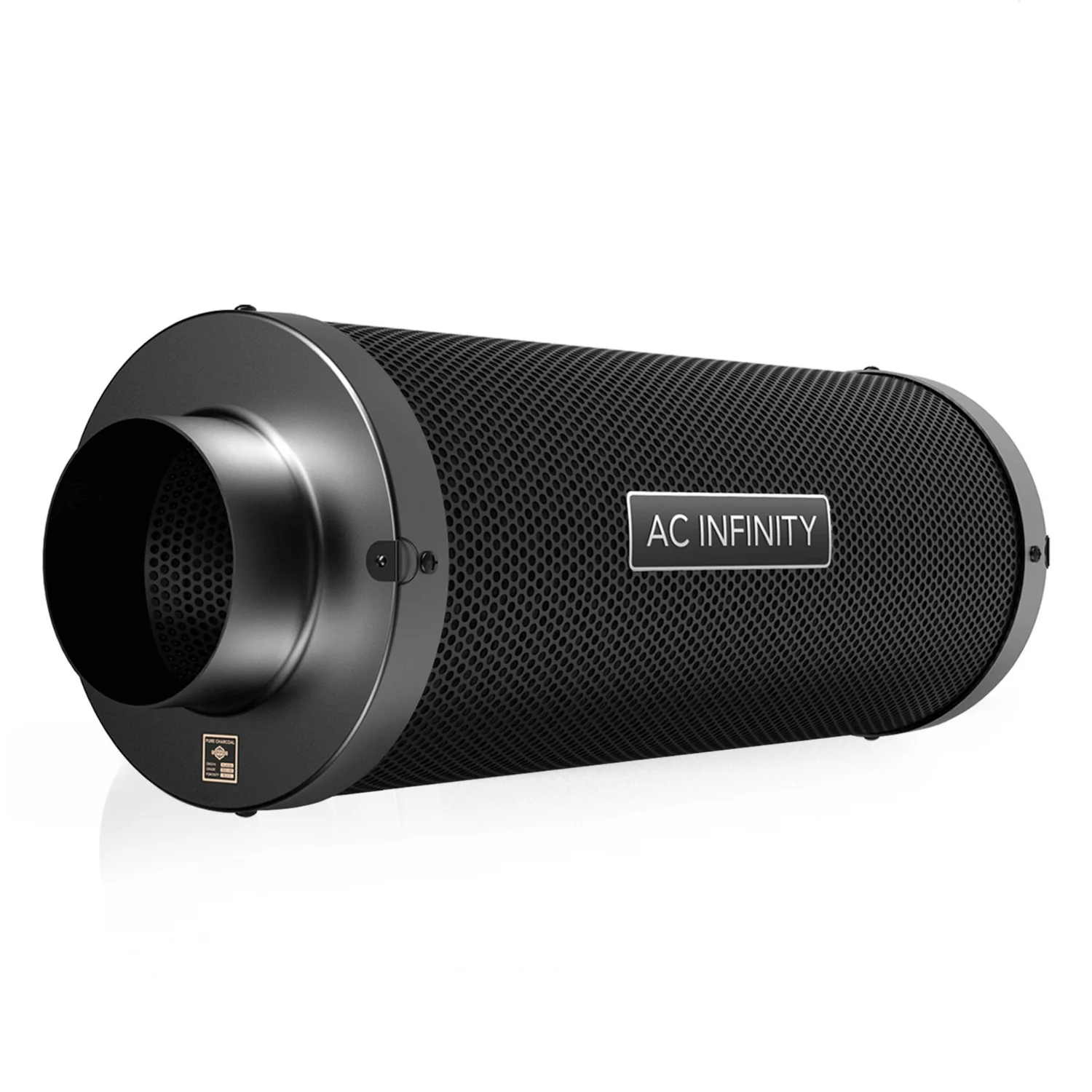

AC Infinity Duct Carbon Filter XL, Australian Charcoal, Extra Large, 8-Inch

Description

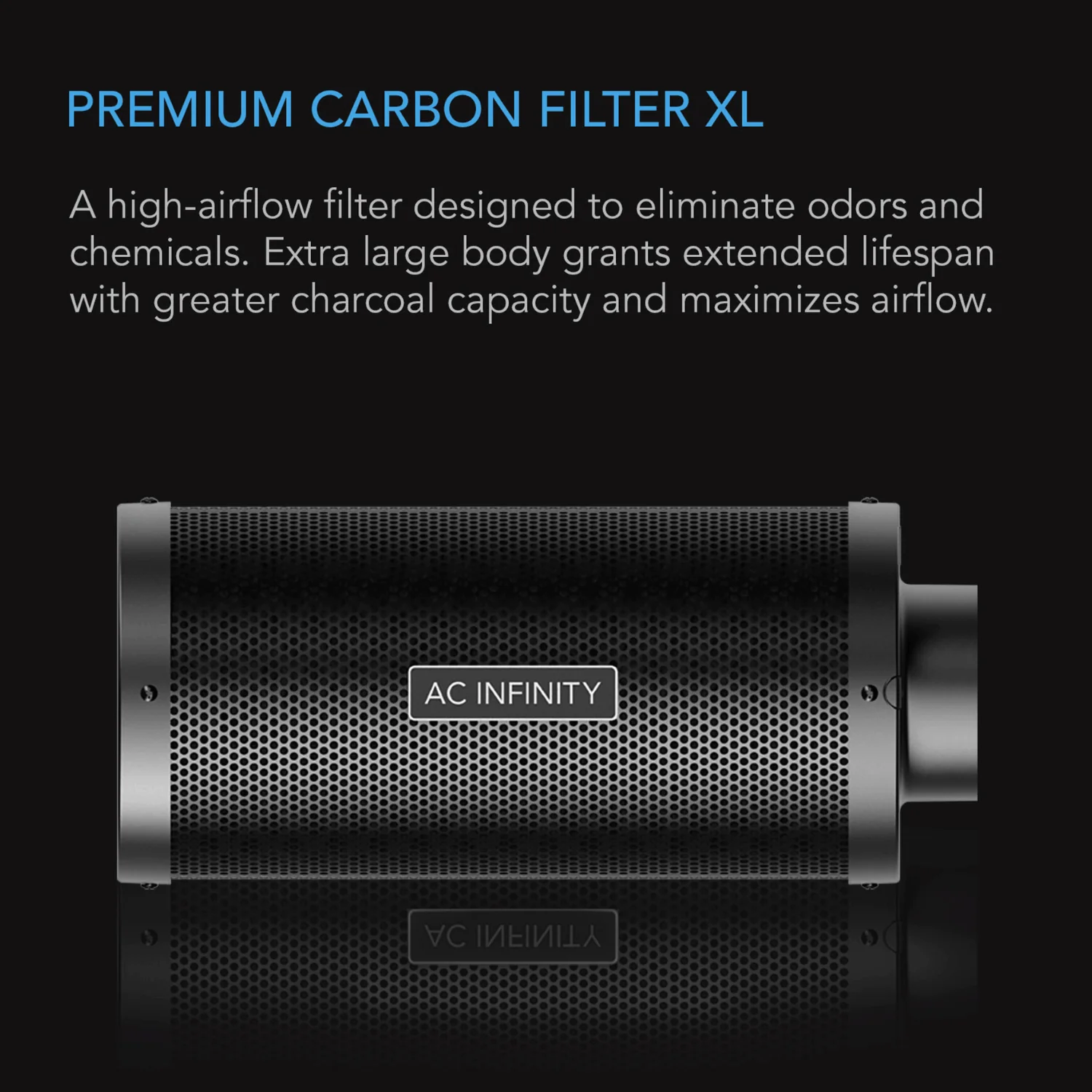

  • Odor and Chemical Eliminator: Formulated to remove odors and chemicals prevalent in grow tents and hydroponics rooms. It leverages premium-grade Australian charcoal for improved adsorption and enhanced lifespan.

  • Extra-Large Size: The sizable design includes a large carbon bed for increased lifespan and optimal airflow. This kit also comes with two pre-filter cloths and two rope hangers. Constructed with aluminum flanges and stainless-steel meshing for extra durability.

  • Product Specifications: The duct opening measures 8 inches, with a length of 23 inches. The airflow rating is 930 CFM, using Australian RC412 activated carbon rated at 1200+ IAV. The thickness of the unit is 38mm.

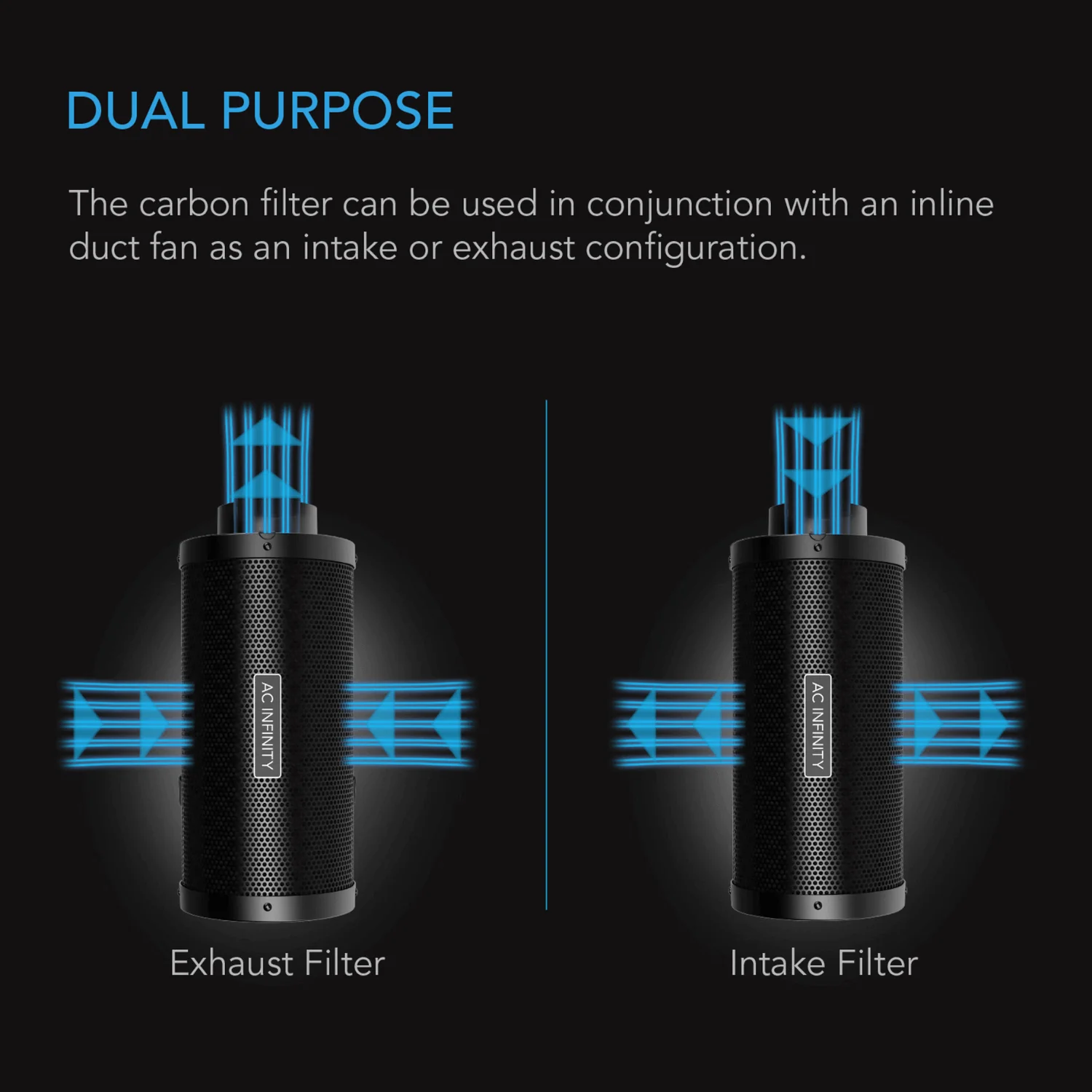

  • Product Description: This inline duct filter is designed to remove odours and chemicals. It is best used in hydroponics structures, grow rooms, kitchens, areas with heavy usage of aromatic substances, and other ventilation projects. The filter comprises a premium-grade Australian Virgin charcoal bed. Its larger size allows for an increased capacity of activated carbon, extending its lifespan, and optimizing airflow.

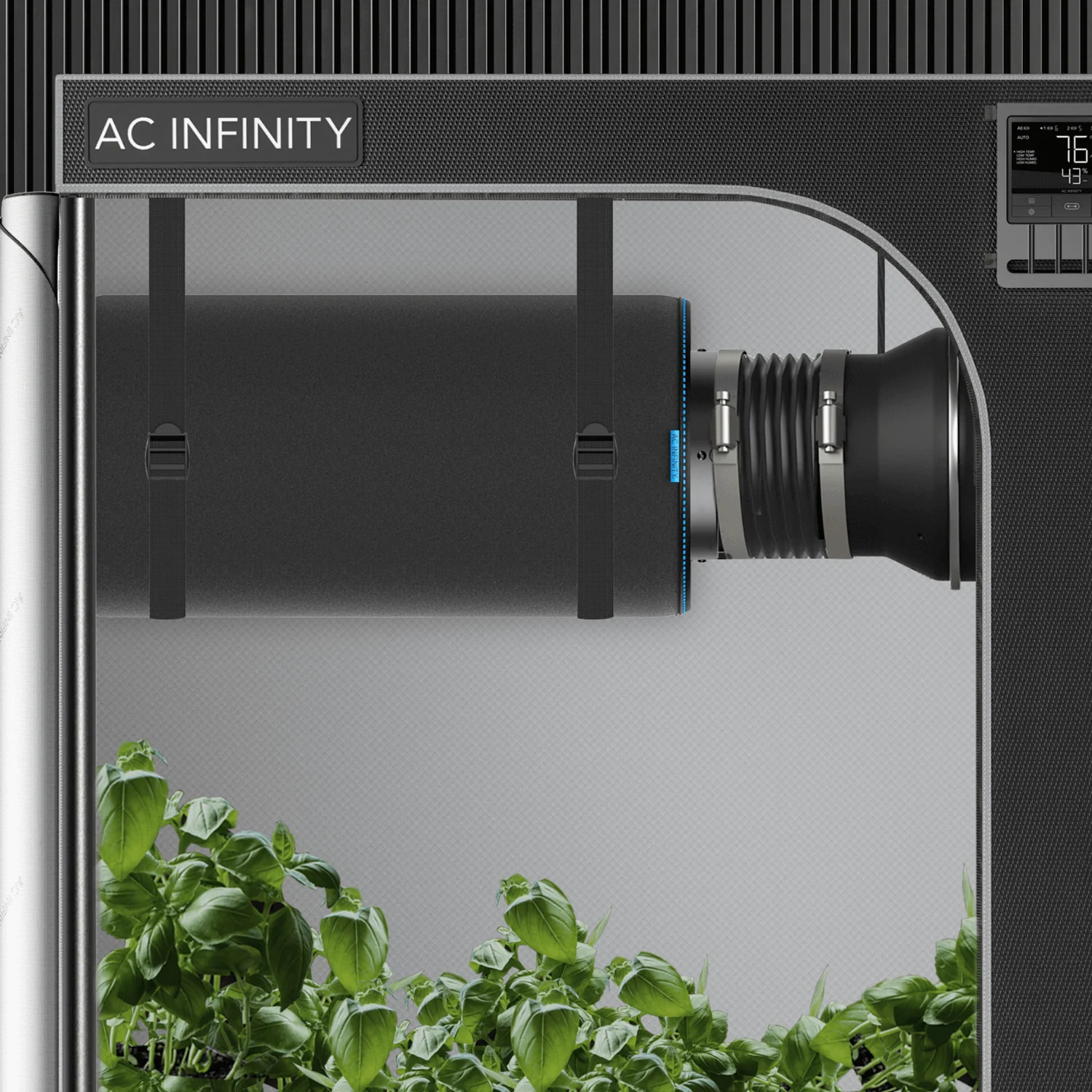

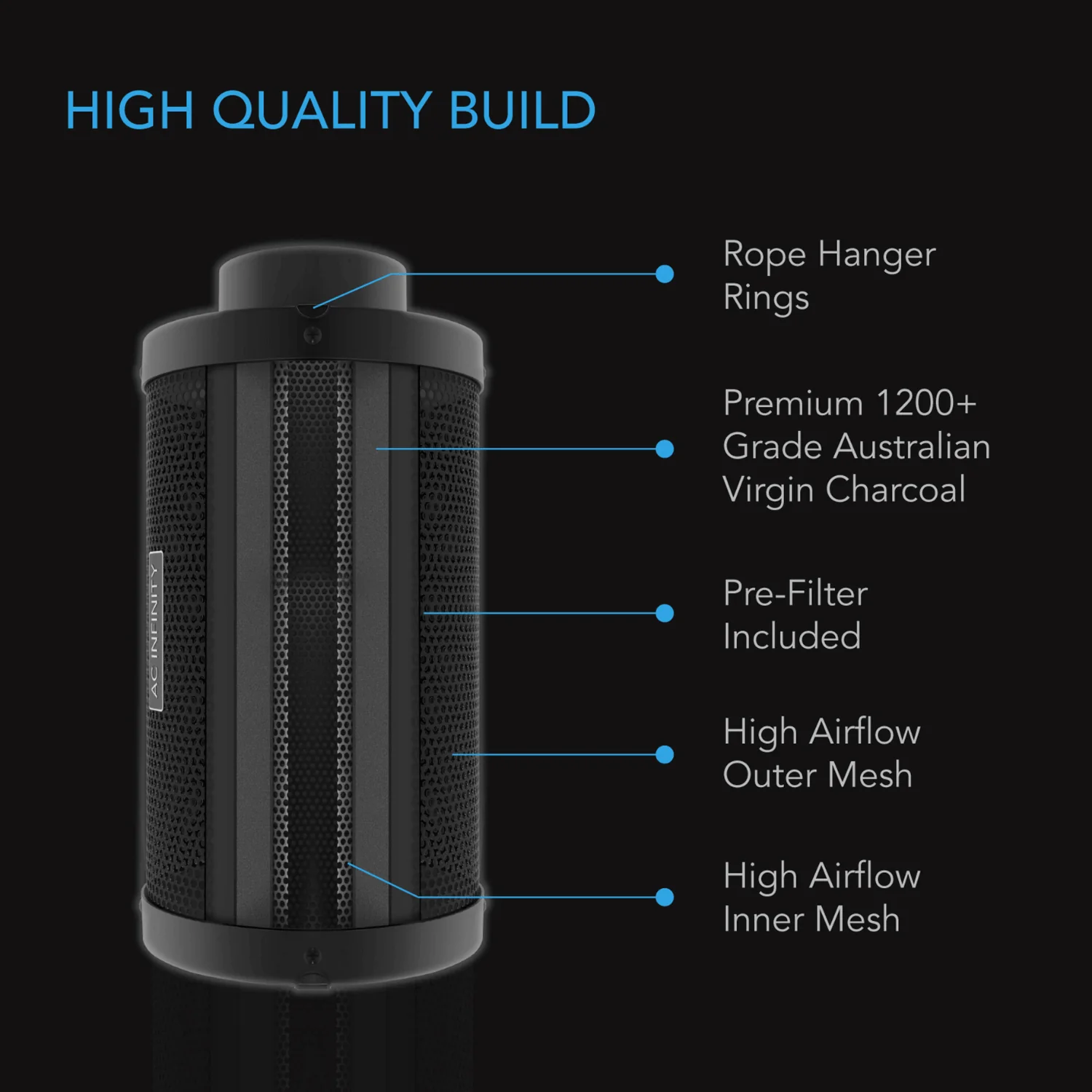

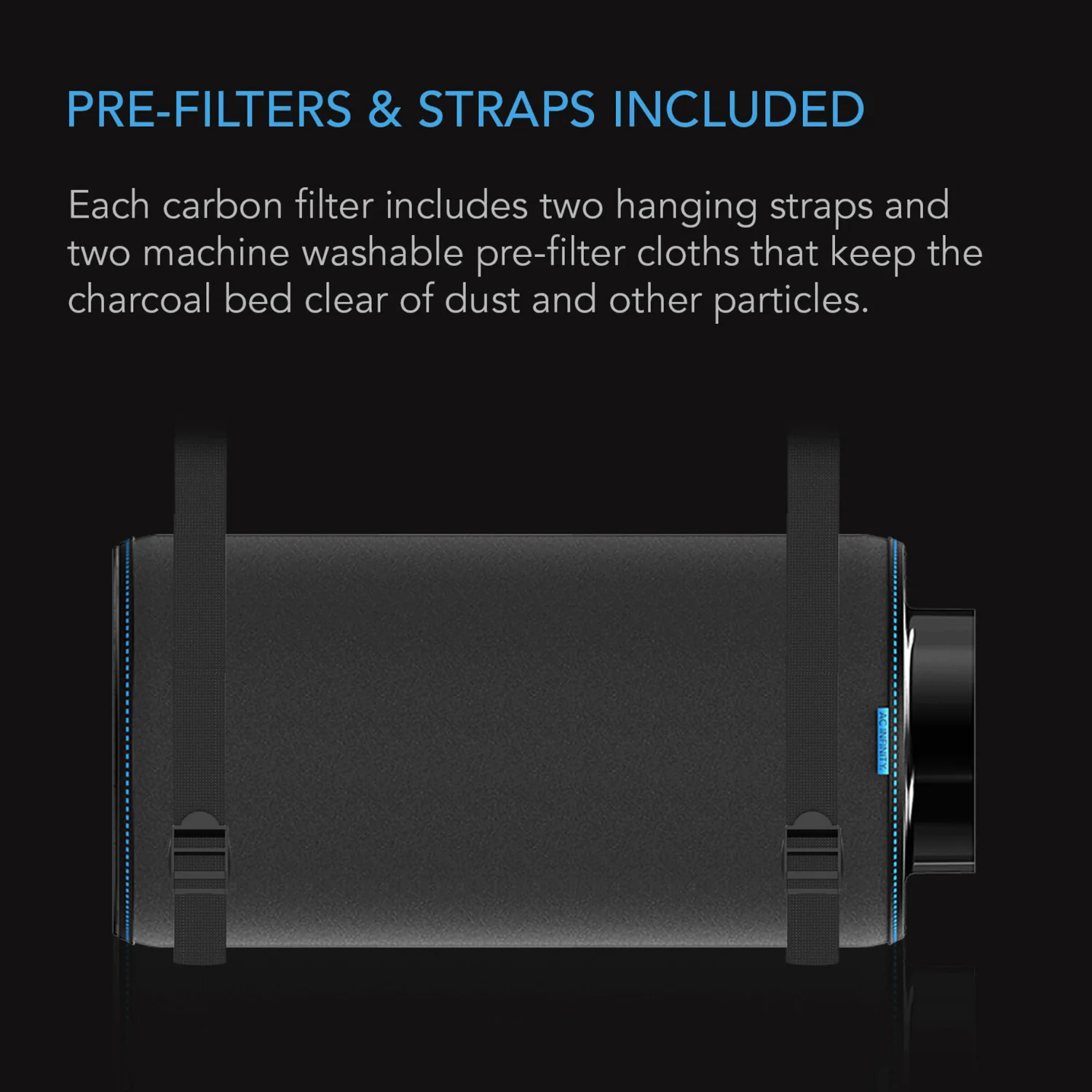

  • Detailed Construction: The heavy-duty build includes aluminum flanges and dual-sided stainless-steel mesh. The unit features flanges with hooks that can be used with rope hangers to suspend the filter onto room support beams. The package comes with two machine-washable pre-filter cloths to manage carbon residue, and two rope clips hangers to suspend the extra-large carbon filter above ground.

  • Premium Grade Carbon: Each carbon filter features a premium-grade Australian Virgin charcoal bed with a rating of 1200+ IAV. The unit achieves a charcoal bed thickness of 38mm and wider mesh openings due to its high microporosity and surface area rating. These factors allow for a higher adsorption rate sans restricting free airflow, extending the carbon filter’s lifespan by up to 33%.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: Duct Carbon Filter 8" XL
  • Product Model: AC-DCF8-XL
  • UPC Code: 819137023024

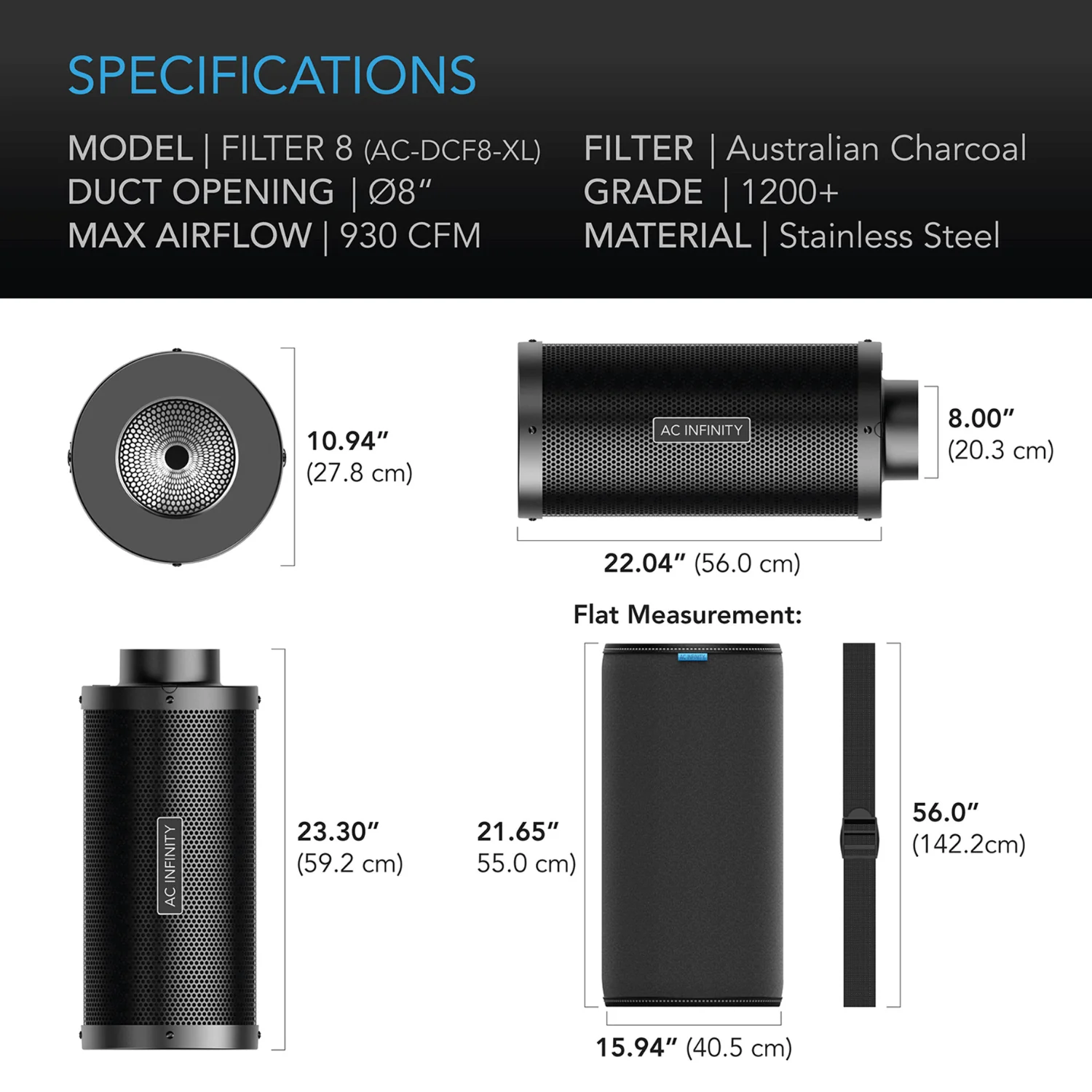

  • Product and Mounting Dimensions
  • Duct Opening Size: 8"
  • Total Dimensions: 23.30 x 10.94 in. (59.2 x 27.8 cm)
  • Flange Length: 1.46 in. (3.7 cm)

  • Product Performance and Technical Specs
  • Flange Material: Aluminum
  • Mesh Material: Galvanized Steel
  • Carbon Type: Australian Virgin RC412
  • Carbon Grade: 1200+ IAV
  • Carbon Thickness: 38 mm
  • Maximum Airflow: 930 CFM
    • Data Sheet
  • Download the Product Manual: here
    • $132.99
    AC Infinity Duct Carbon Filter XL, Australian Charcoal, Extra Large, 8-Inch—
    $132.99
