AC Infinity Fan Speed Controller for AC Axial Muffin Fans, Dual

Description

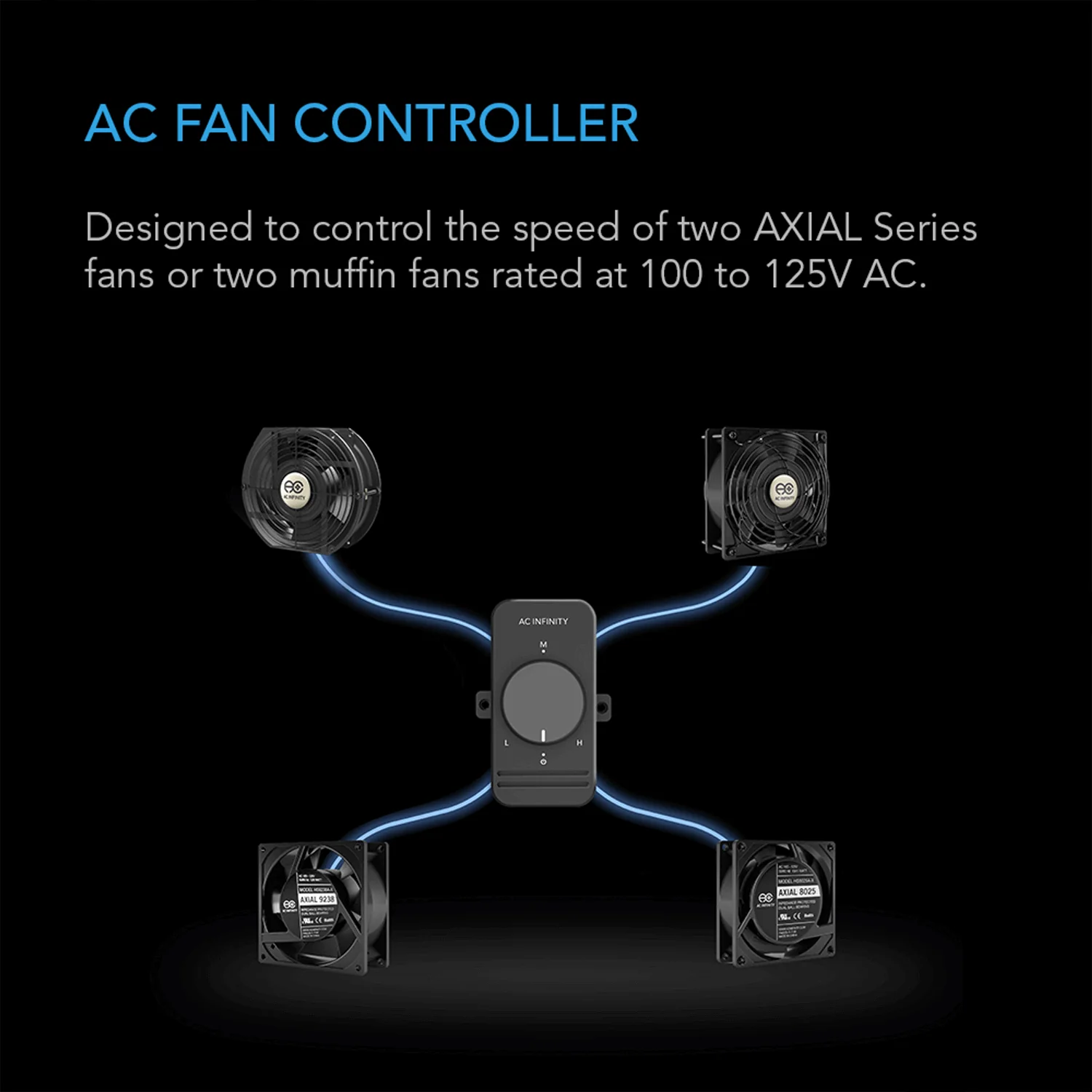

  • Designed to Control AC Axial Muffin Fans: This fan speed controller is specifically designed to control the speed of AC axial muffin fans rated at 100 to 125V AC. With this controller, you can adjust your fan's speed to optimize the airflow and noise for your specific application.

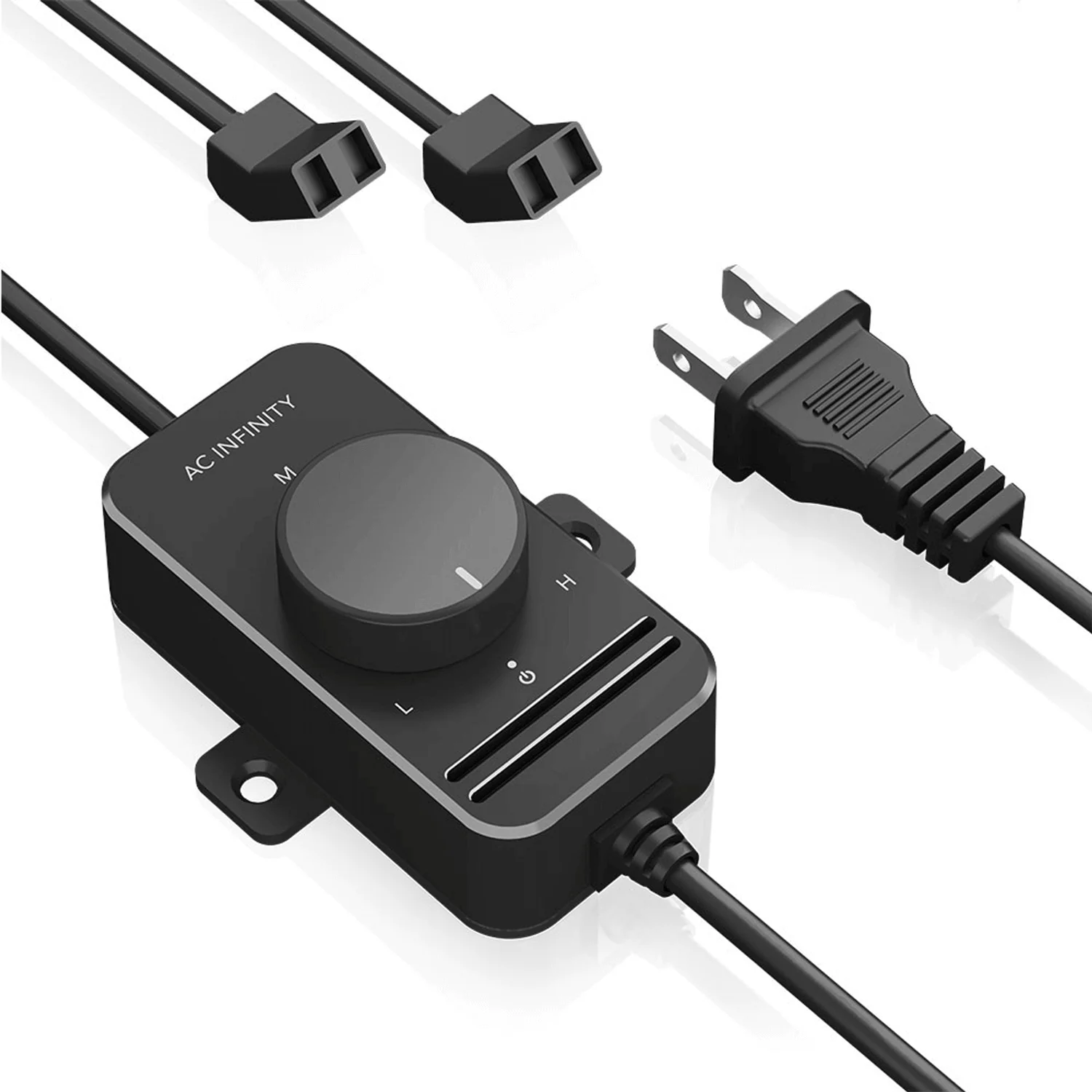

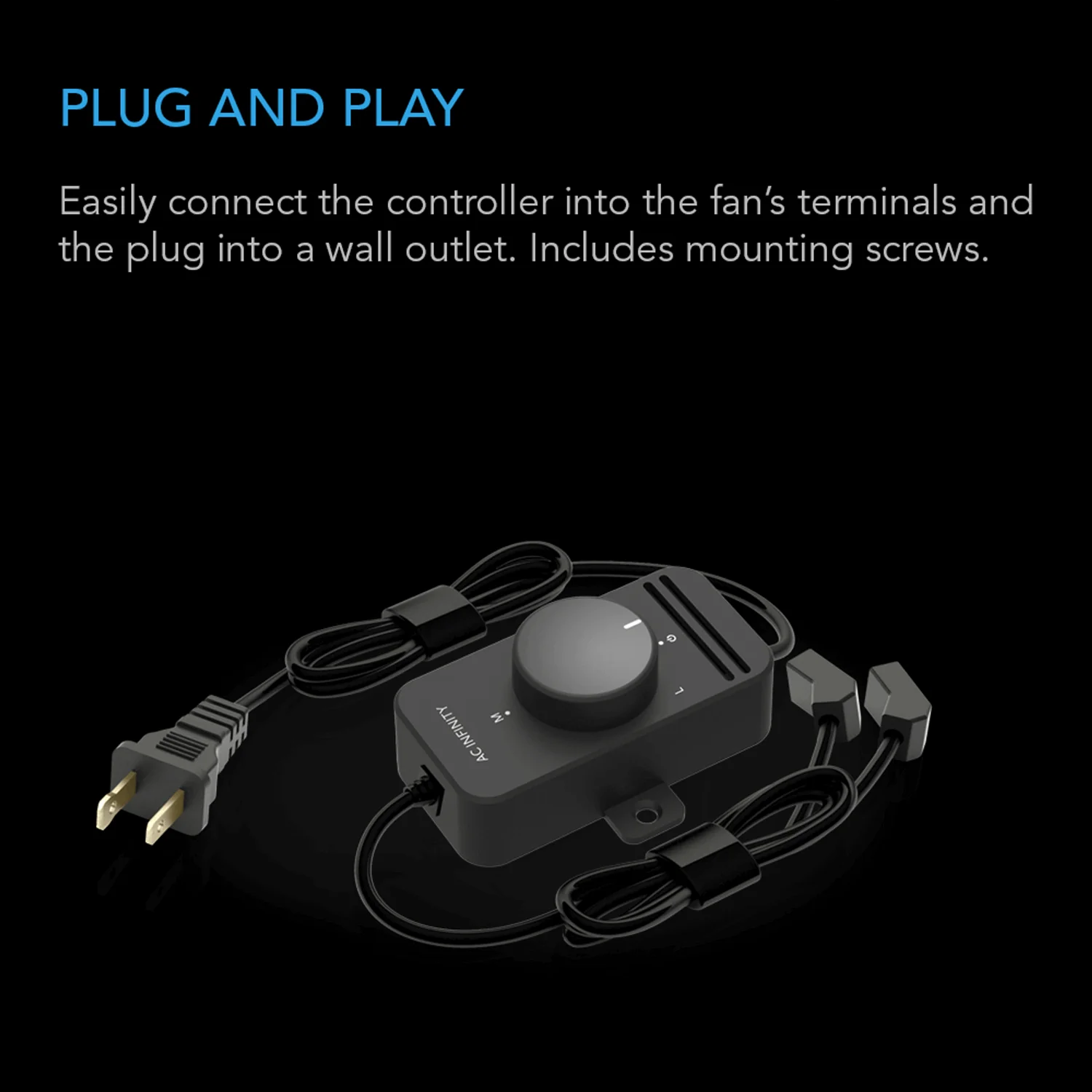

  • Features Connectors and Wall-Mount Screws: The controller includes connectors that can be easily attached to two muffin fan's terminals. This allows for a convenient and secure connection. Additionally, the controller comes with wall-mount screws so you can easily secure it onto a flat surface.

  • Length and Power Information: The cord length of this controller is 6 feet, plus an additional 4 feet between the two fan connectors. It has a power rating of 50W or 0.4A and is designed for use with input voltage of 100 to 125V AC.

  • The fan speed controller is designed for use with AC Infinity AXIAL series fans and other muffin AC fans rated 100 to 125V AC. This controller allows you to enable speed control for your axial muffin fans, which are commonly used in DIY projects requiring cooling and ventilation. These fans come in various sizes, including 80mm, 92mm, 120mm, and 172mm.

  • The cord length of the controller is 6 feet, with an additional 4 feet length between the two fan connectors. The cord contains two fan connectors that can be attached to muffin fans with 2-pin terminal connectors. Please note that compatible fans without terminal connectors may need to be hardwired for use with this controller.

  • The speed controller range may be limited on fans that have a capacitor or high wattage rating. The power plug of the controller can be easily plugged into standard wall outlets. Additionally, the controller includes optional wall-mount wood screws to securely mount it onto a flat surface.

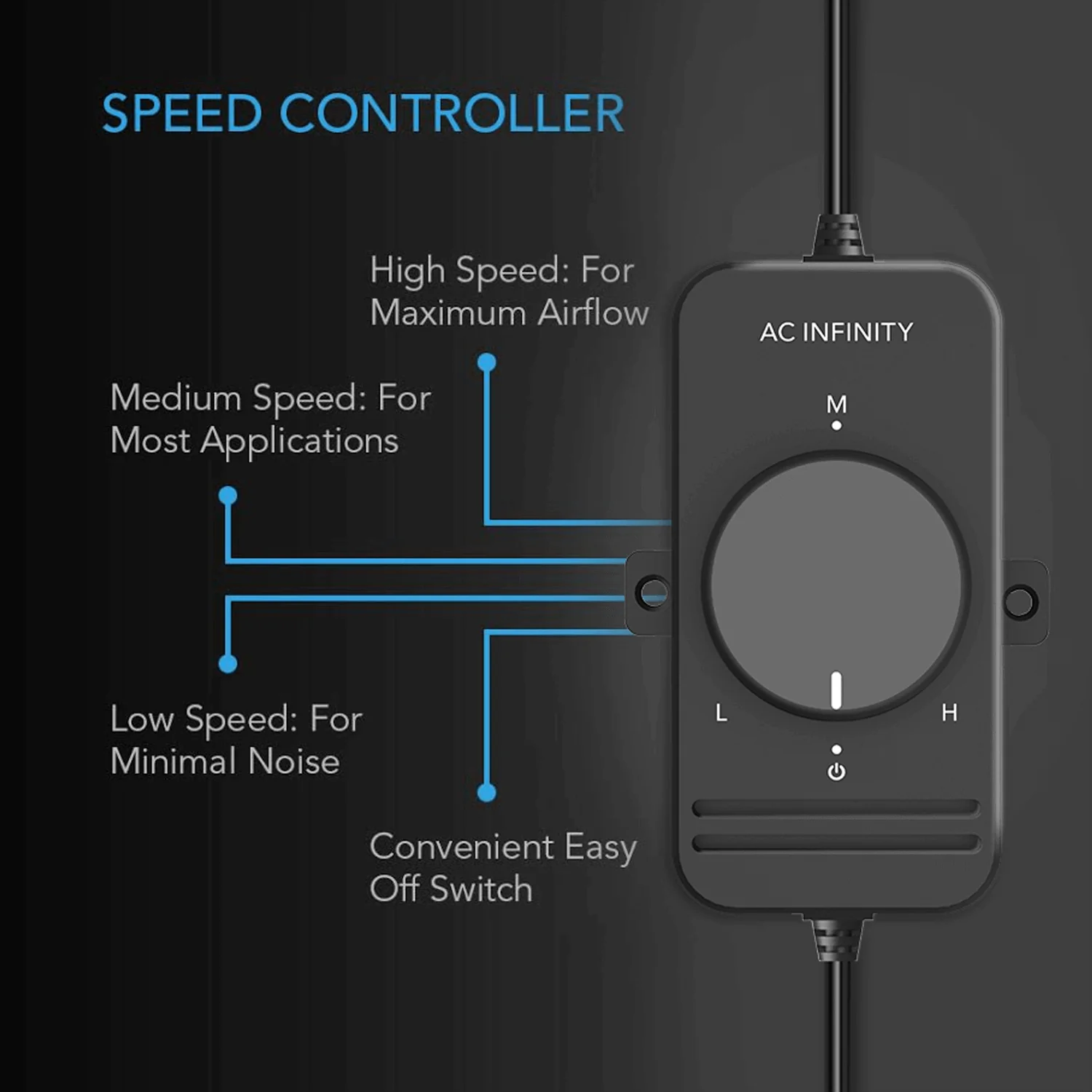

    • Speed Controller
  • The inline variable-speed controller allows you to turn the fan on and off, as well as control its speed. Simply turn the knob on the controller to optimize the fan's airflow and noise levels for your specific application. This allows you to easily respond to situations that may require more or less air movement.

  • The fan controller is compatible with AC Infinity AXIAL series fans and other muffin AC fans rated 100 to 125V AC. Axial muffin fans are commonly used in a wide range of cooling, heating, and air circulation applications. This includes various DIY projects involving doorways, room-to-room ventilation, fireplaces, stoves, and cabinets.

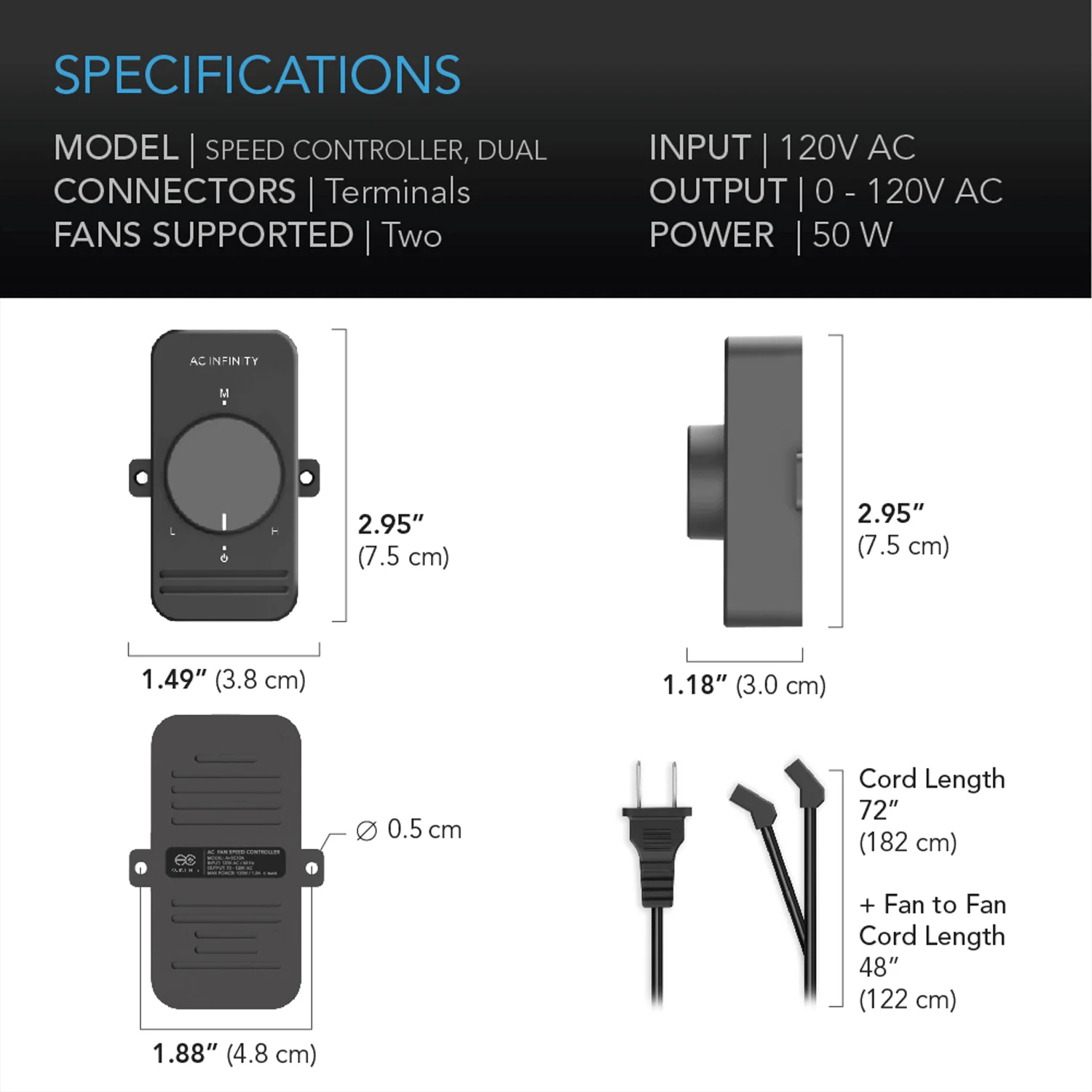

    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity
  • Product Name: AC Fan Speed Controller, Dual
  • UPC Code: 819137020399
  • Product Model: AI-SC72DC

  • Product Dimensions
  • Total Dimensions: 2.9 x 1.5 x 1.2 in. (7.5 x 3.8 x 3 cm)
  • Total Cord Length: 120 Inches (10 Feet)
  • Controller to Power Plug: 36 Inches (3 Feet)
  • Controller to Fan Connector 1: 36 Inches (3 Feet)
  • Fan Connector 1 to Connector 2: 48 Inches (4 Feet)

  • Product Performance and Technical Specs
  • Fans Controlled: 2
  • Voltage Input: 100-125V AC 50/60 Hz
  • Voltage Output: 70-125V AC
  • Power: 50W
  • Amperage: 0.4A
  • Cord Rating: SPT 105°C 300 Volts
  • Fan Connectors: Terminal 2-Pin
  • Power Plug: NEMA 1-15P Power Plug
  • CE Certification (Whole Product)
  • Installation Manual PDF
    • Data Sheet
  • Download the CE Certification: here
