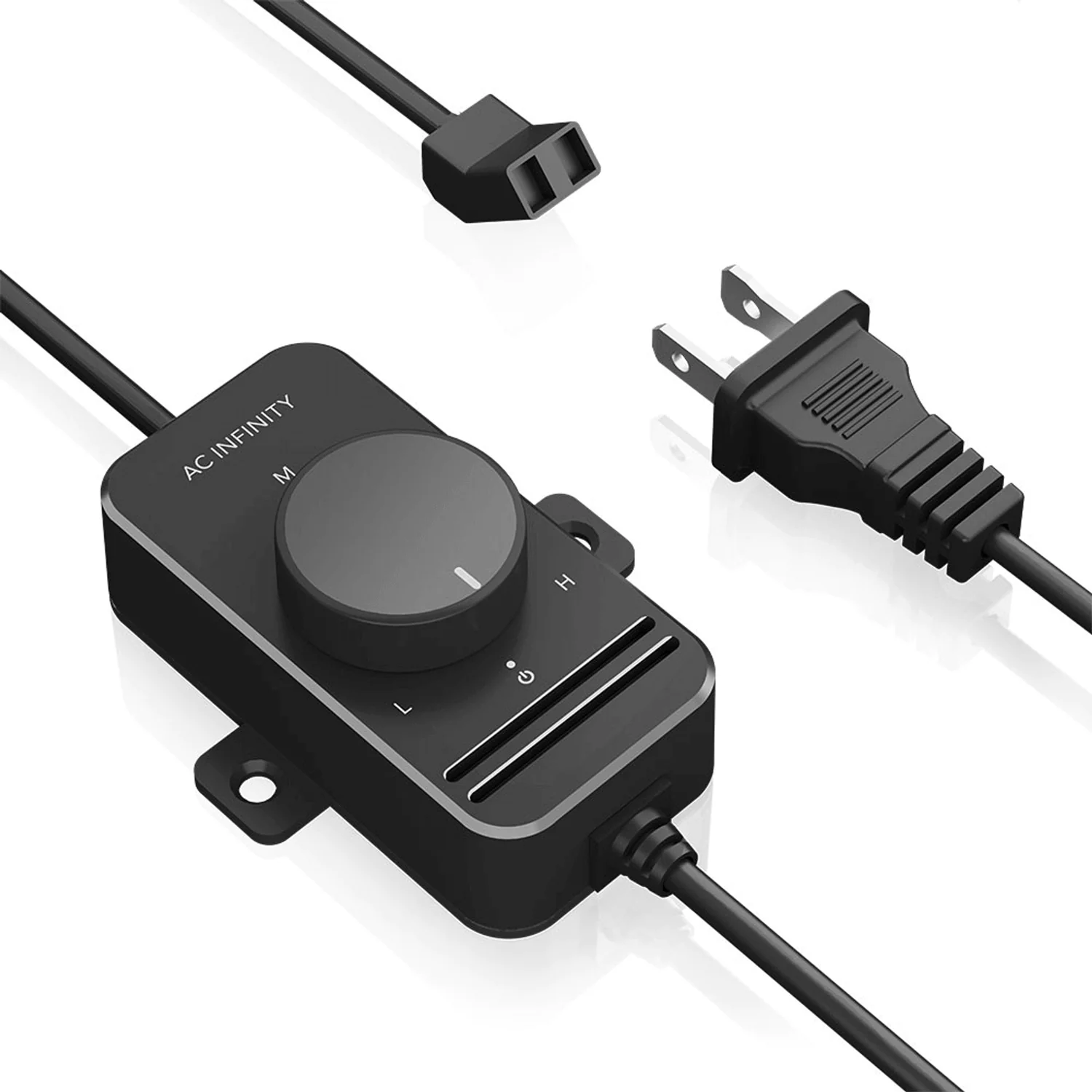

AC Infinity Fan Speed Controller for AC Axial Muffin Fans, Single

Description
  • Designed to Control Fan Speed: This fan speed controller is specifically designed for AC axial muffin fans rated at 100 to 125V AC. It allows you to adjust the speed of your fan to optimize airflow and reduce noise according to your specific application.

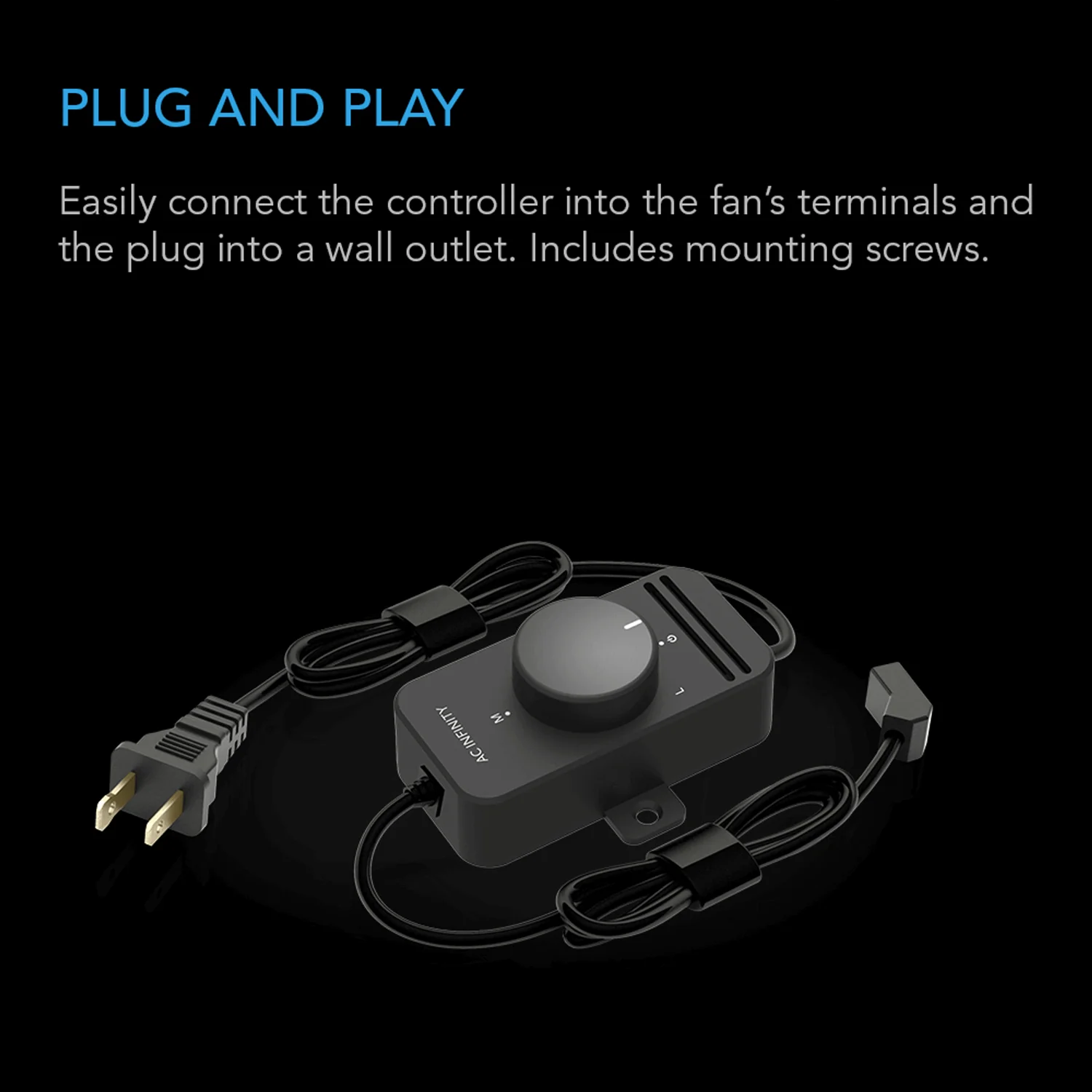

  • Easy Installation: The controller features connectors that can be easily attached to the terminals of one muffin fan. Additionally, it comes with wall-mount screws so you can securely attach it to a flat surface.

  • Product Specifications: The length of the cord is 6 feet, and the power consumption is 50W or 0.4A. The input voltage range is 100 to 125V AC, and the output voltage range is 0 to 125V AC.

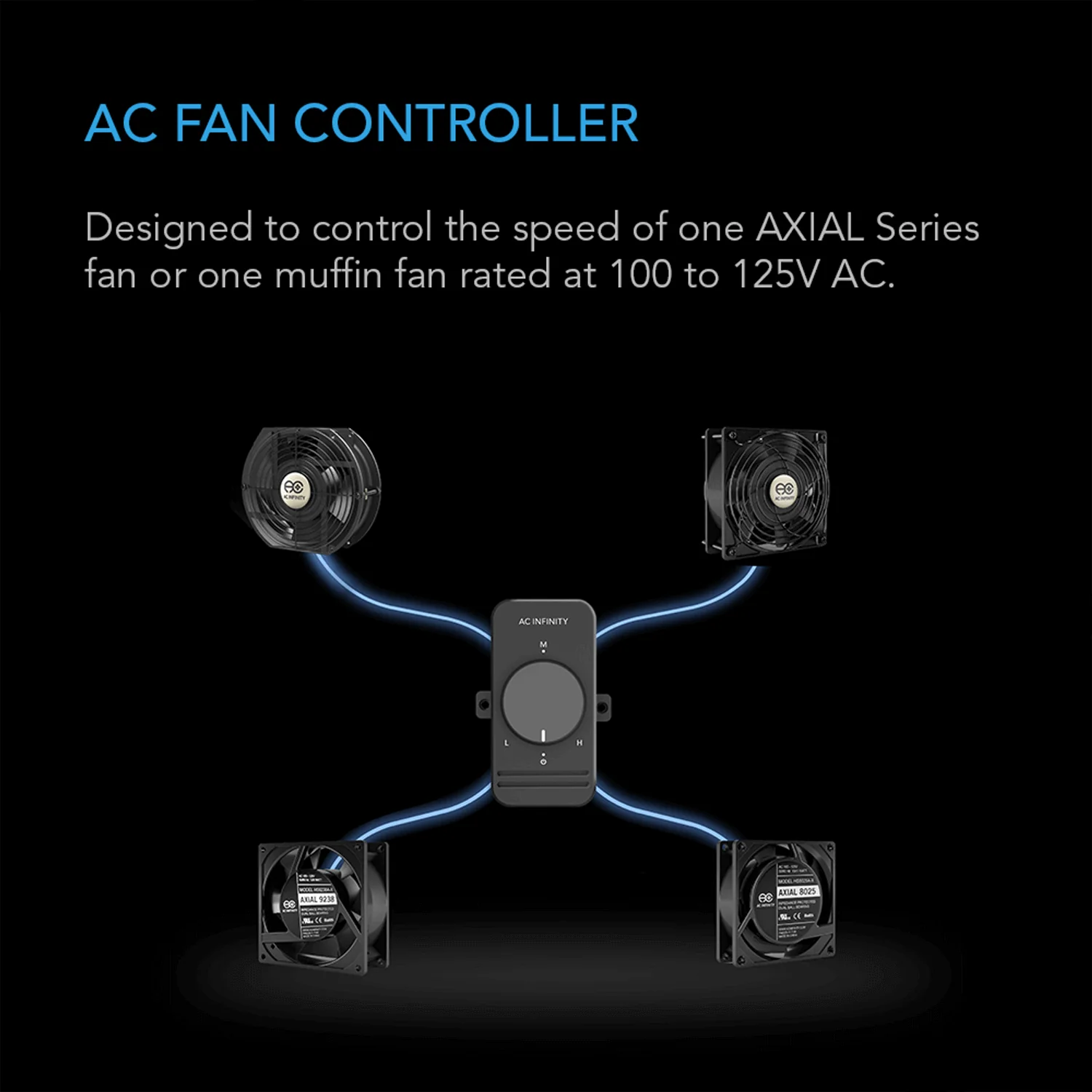

  • Product Description: This fan speed controller is designed for use with AC Infinity AXIAL series fans and other muffin AC fans rated 100 to 125V AC. It enables precise speed control, making it ideal for cooling and ventilation DIY projects. It is compatible with various fan sizes, including 80mm, 92mm, 120mm, and 172mm.

  • Usage and Compatibility: The controller's cord is equipped with a fan connector that can be easily attached to muffin fans with 2-pin terminal connectors. For fans without terminal connectors, hardwiring may be required. Please note that the speed control range may be limited for fans with capacitors or high wattage ratings. The power plug is designed to be compatible with standard wall outlets. The controller also includes optional wall-mount screws for secure installation on a flat surface.

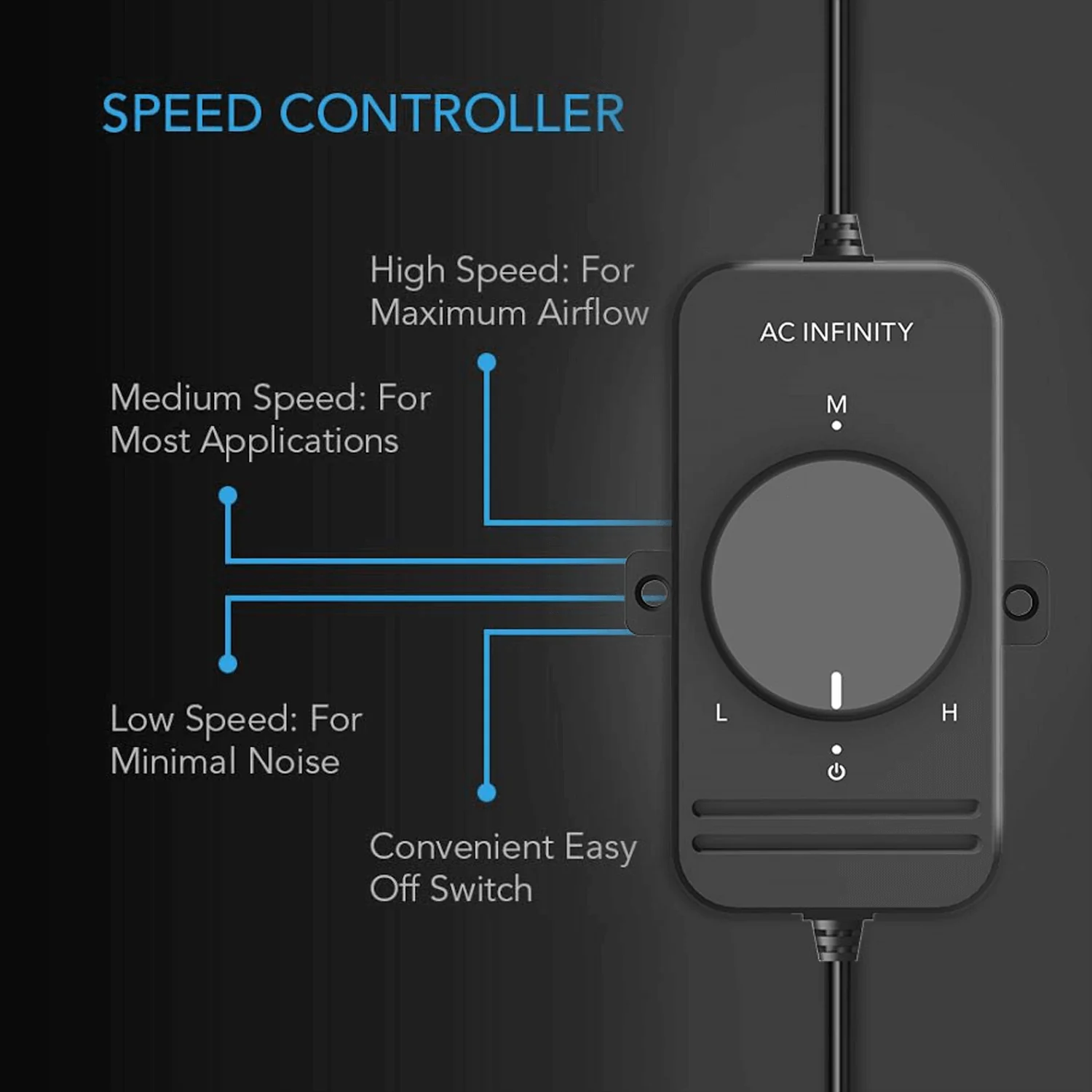

  • Variable Speed Control: The inline controller allows you to turn the fan on and off and adjust its speed. By simply turning the knob, you can optimize the airflow and noise levels of the fan to suit your specific needs. It is also responsive to changes in air movement requirements.

  • Wide Range of Applications: The fan controller is compatible with AC Infinity AXIAL series fans and other muffin AC fans rated 100 to 125V AC. It is commonly used in cooling, heating, and air circulation applications. Whether you need to enhance airflow in doorways, between rooms, near fireplaces, stoves, or cabinets, this controller is suitable for various DIY projects.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity
  • Product Name: AC Fan Speed Controller, Single
  • UPC Code: 819137020382

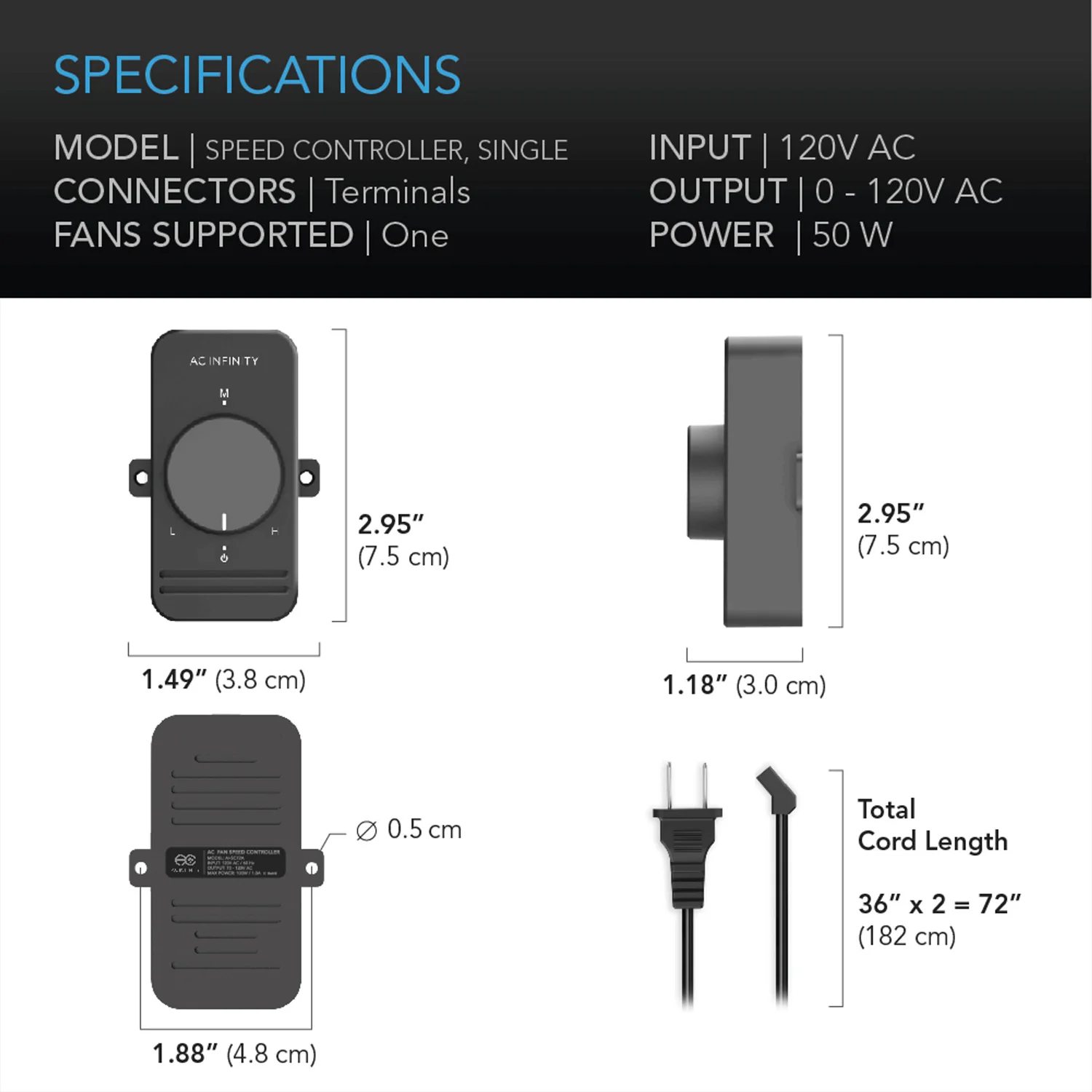

  • Product Dimensions
  • Total Dimensions: 2.9 x 1.5 x 1.2 in. (7.5 x 3.8 x 3 cm)
  • Total Cord Length: 72 Inches (6 Feet)
  • Fan Connector to Controller: 36 Inches (3 Feet)
  • Controller to Power Plug: 36 Inches (3 Feet)

  • Product Performance and Technical Specs
  • Fans Controlled: 1
  • Voltage Input: 100-125V AC 50/60 Hz
  • Voltage Output: 0-125V AC
  • Power: 50W
  • Amperage: 0.4A
  • Cord Rating: SPT 105°C 300 Volts
  • Fan Connectors: Terminal 2-Pin
  • Power Plug: NEMA 1-15P Power Plug
  • CE Certification (Whole Product)
  • Installation Manual PDF
    • Data Sheet
  • Download the CE Certification: here
    • $22.99
