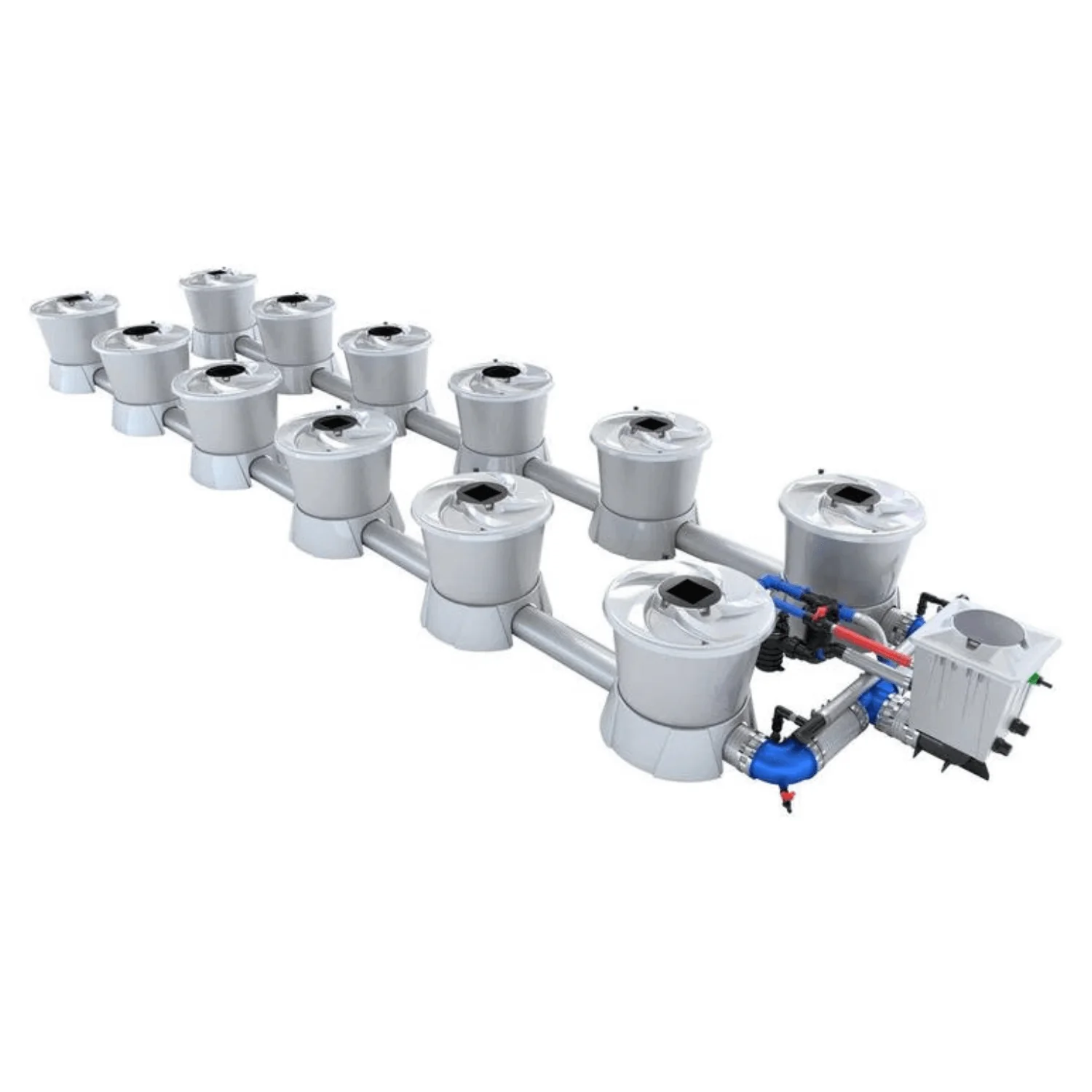

ALIEN Hydroponics V-SYSTEM 12 Pot 2 Row Kit

Description

Key V-SYSTEM Benefits

Direct nutrient distribution: The V-SYSTEM allows for direct distribution of nutrients to your plants, ensuring optimal growth and vitality.

Maximum oxygen saturation: Utilising a unique system, the V-SYSTEM can achieve maximum oxygen saturation which promotes faster, healthier plant growth.

Vortex fluid motion: The V-SYSTEM uses a vortex fluid motion to efficiently deliver nutrients and oxygen to your plants.

Naturally aspirated and No heat transferred: The V-SYSTEM operates in a natural, aspirated manner without any heat transfer, promoting healthier growth in a controlled environment.

Supports large plants: The V-SYSTEM supports growth for all kinds of plants, including particularly large species.

Pots and system completely drain: The pots and system can be thoroughly drained to ensure a clean, healthy growth environment.

Prevents root clogging and No air pump needed: The V-SYSTEM is designed to prevent root clogging and doesn't require an air pump, thereby reducing maintenance and setup efforts.

Made in Britain: V-SYSTEM products are made with exceptional British quality and craftsmanship.

Key V-SYSTEM Features:

15 gallon (58L) V-POT: Each V-SYSTEM comes with a suitably large 15-gallon pot for growing a variety of plants.

Water fill line and Total-drainage bases: The V-SYSTEM includes a clear water fill line and total-drainage bases to ensure an ideal hydration environment.

Venturi injectors and Inspection Covers: With Venturi injectors and Inspection Covers, the system allows optimum control of your growing process.

5" spiral tubing and 5" Dual-Flow™ fittings: The V-SYSTEM comes with sturdy 5-inch spiral tubing and Dual-Flow fittings, guaranteeing a steady and efficient nutrient flow.

Integrated filtration and T304 Stainless clamps: The V-SYSTEM features integrated filtration and durable T304 Stainless clamps, ensuring long-lasting and reliable performance.

Heavy-duty components and Push-fit feed connections: Built with heavy-duty components and easy push-fit feed connections, the V-SYSTEM is made to last through multiple growing cycles.

JET-STREAM® Vortex™ pump: The integrated JET-STREAM Vortex pump ensures a powerful, consistent flow of nutrients and water to your plants.

Specifications

Product Name: V-SYSTEM 12 Pot 2 Row Kit

Technical Information

Number of pots: 12

Number of rows: 2

Kit total fluid volume: 195.5 gallons (740 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 13' 4.2" (160.2 inches / 4070 mm)

Width: 3' 11.2" (47.2 inches / 1200 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

Wattage: 750 watts

Flow Rate: 3963 gal/hr (15000 L/hr)

Recommended water chiller minimum capacity: 264 gallons (1000 L)

Data Sheet

Download the instruction manual: here

Download the technical drawing: here

Kit Contents

The V-SYSTEM 12 Pot 2 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

12 x V-Pot 58L

12 x V-Pot Base

12 x V-Pot Lid

12 x V-Pot Lid Inspection Cover

12 x Square Net Pot

12 x V-Pot Clip

12 x Air Filter for V-SYSTEM Venturi, 6mm

12 x Silencer for Venturi

12 x Venturi Fitting

12 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

12 x Venturi Inlet Fitting for 22mm Pipe

13 x Nut 5"

13 x Washer 5" Green Silicone

30 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

2 x DM Push-Fit Elbow 22-15mm V-SYSTEM

2 x DM Push-Fit Elbow 22mm V-SYSTEM

10 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

3 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

12 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

3 x Pipe 40mm Silver 1 Meter Spiral

13 x Pipe 5" Silver Spiral 80cm

1 x Tee 5" Barbed

10 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Short

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Right 40mm

28 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

8 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

3 x Silicone Grease - Food Grade
