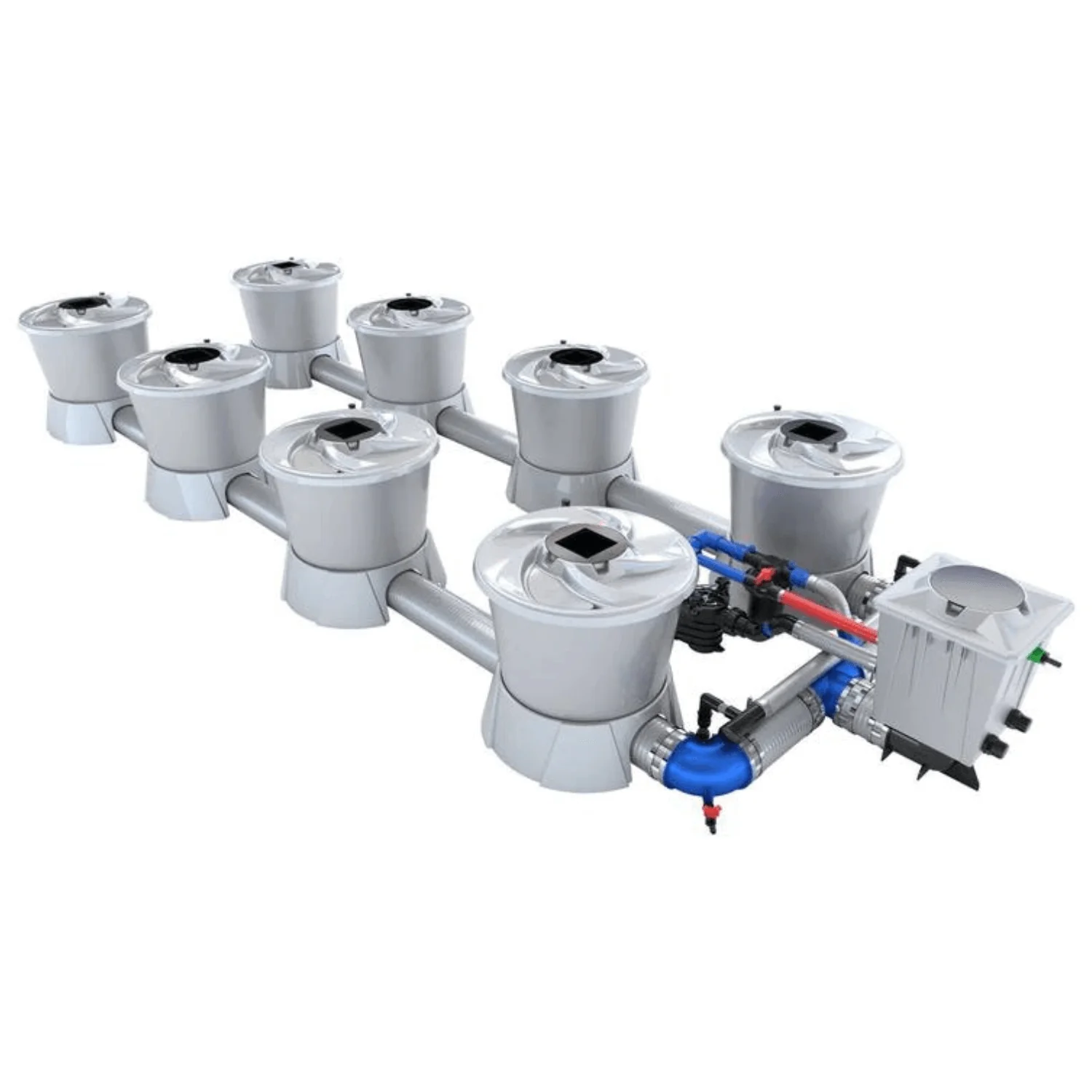

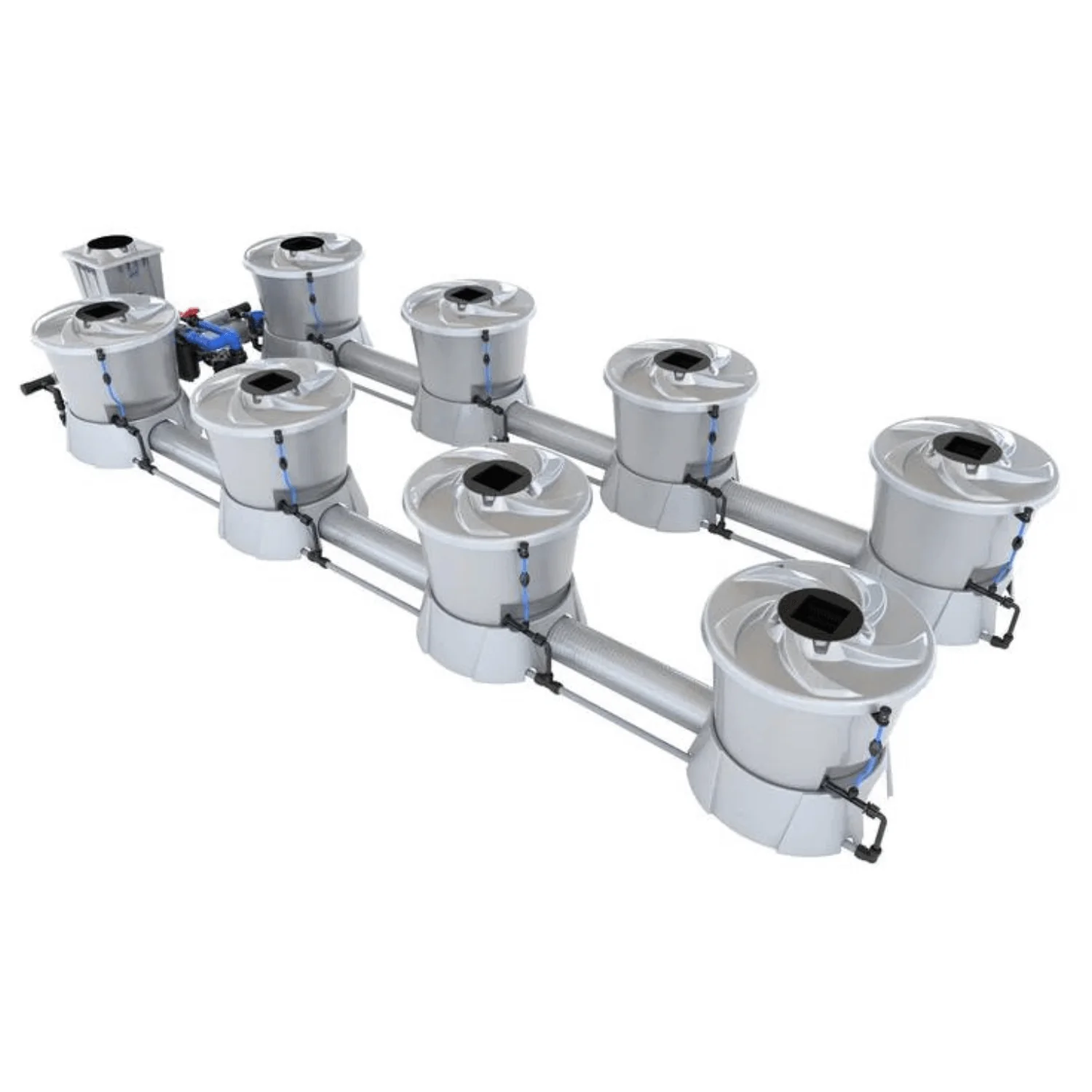

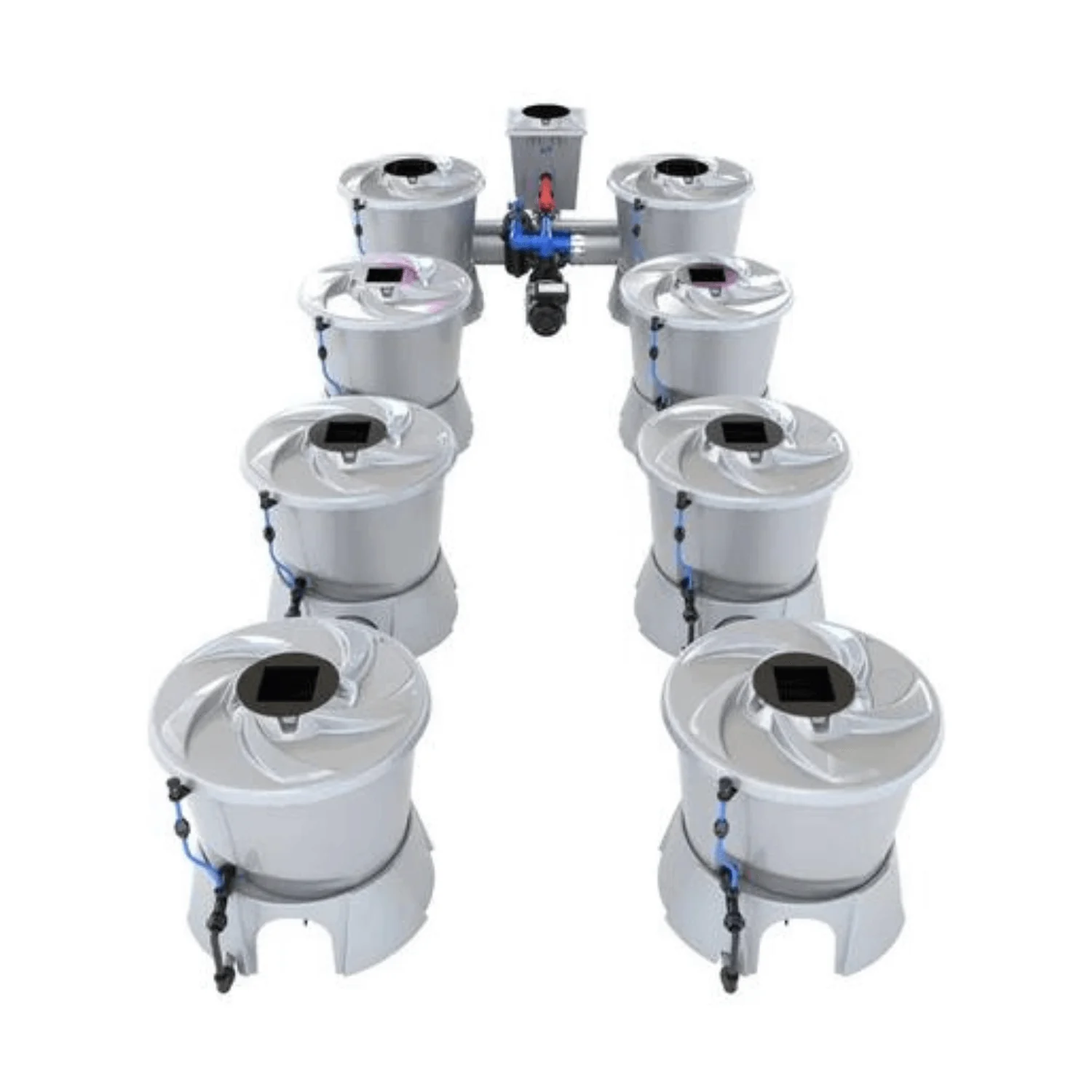

ALIEN Hydroponics V-SYSTEM 8 Pot 2 Row Kit

Description

Key V-SYSTEM Benefits: The system offers direct nutrient distribution, maximum oxygen saturation, and needs no air pump. It doesn't transfer heat and utilizes vortex fluid motion. It is naturally aspirated and supports large plants. The system and pots completely drain which helps prevent root clogging. This product is made in Britain.

Key V-SYSTEM Features: The system includes features like a 15 gallon (approximately 60 quart) V-POT, a water fill line, total-drainage bases, and Venturi injectors. There are inspection covers, 5-inch spiral tubing, and 5-inch Dual-Flow™ fittings. Integrated filtration, T304 stainless clamps, heavy-duty components, and push-fit feed connections provide a robust, durable system. A JET-STREAM® Vortex™ pump is also included.

Specifications

V-SYSTEM 8 Pot 2 Row Kit

Technical Information

Number of pots: 8

Number of rows: 2

Kit total fluid volume: 129.2 gallons (approximately 489 liters)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 8' 3.6" (99.6 inches or approximately 2530 mm)

Width: 3' 11.2" (47.2 inches or approximately 1200 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

Wattage: 370 watts

Flow Rate: 3487 gallons per hour (13200 liters per hour)

Recommended water chiller minimum capacity: 198 gallons (approximately 750 liters)

Data Sheet

Download the instruction manual: here

Download the technical drawing: here

Kit Contents

The V-SYSTEM 8 Pot 2 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

8 x V-Pot 58L

8 x V-Pot Base

8 x V-Pot Lid

8 x V-Pot Lid Inspection Cover

8 x Square Net Pot

8 x V-Pot Clip

8 x Air Filter for V-SYSTEM Venturi, 6mm

8 x Silencer for Venturi

8 x Venturi Fitting

8 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

8 x Venturi Inlet Fitting for 22mm Pipe

9 x Nut 5"

9 x Washer 5" Green Silicone

22 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

2 x DM Push-Fit Elbow 22-15mm V-SYSTEM

2 x DM Push-Fit Elbow 22mm V-SYSTEM

6 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

3 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

8 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

3 x Pipe 40mm Silver 1 Meter Spiral

9 x Pipe 5" Silver Spiral 80cm

1 x Tee 5" Barbed

6 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Long

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Right 40mm

20 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

8 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

2 x Silicone Grease - Food Grade
