Benchtop 1 Micron Refinement Filter

Benchtop 1 Micron Refinement Filter

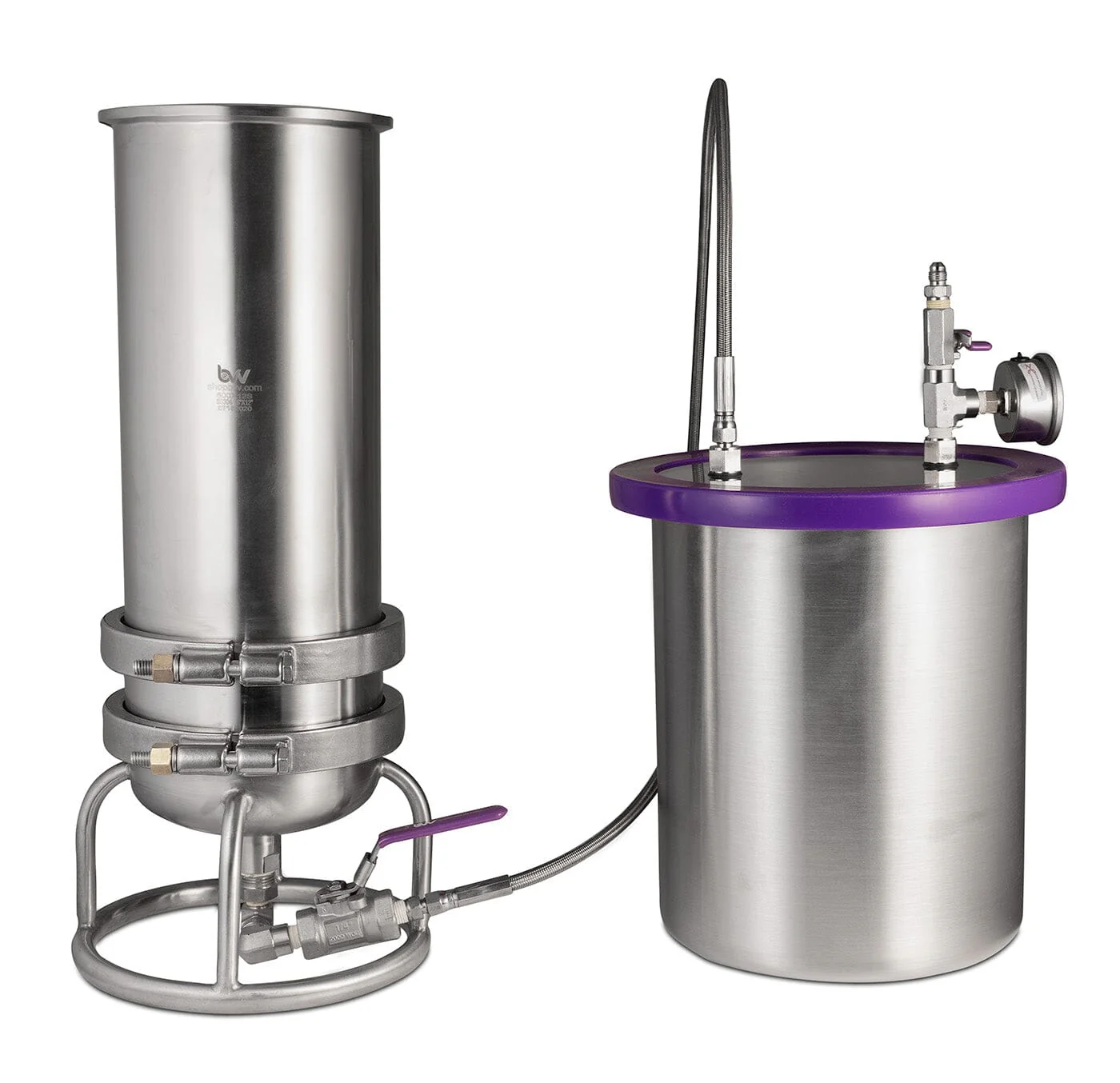

Eliminate suspended particles with ease with our 1-micron Refinement filters. Complete with our 1-micron Dutch Weave sintered disk filter plate, these refinement filters provide complete retention of the filter paper,making it impossible for particulate to bypass the paper. Made from the highest-quality 304 stainless steel parts, these benchtop refinement filters are infinitely more robust than your typical porcelain Buchner funnels. They pair nicely with diaphragm vacuum pumps or our spark-free vacuum pumps paired with a cold trap.

Processing Power

• Funnel Capacity: 5.5 Liters/1.45 Gallons
• Collection Capacity: 11.35 Liters/3 Gallons

Specifications

• 6"x12" Funnel Body
• 6" 1um Dutch Weave Sintered Disk

• 6" Hemispherical Ring stand
• 1/4" Full Bore Ball valve  with 1/4" JIC Drain port
• 3 Gallon Stainless Steel Collection Base with Glass Lid
• Back Mount Vacuum Gauge

• 1/4" JIC Butterfly Vacuum Valve
• 2.5UM 180MM Ashless Filter Paper
• Nitrile BUNA-N gaskets
