Bluelab pH Controller Wi-Fi

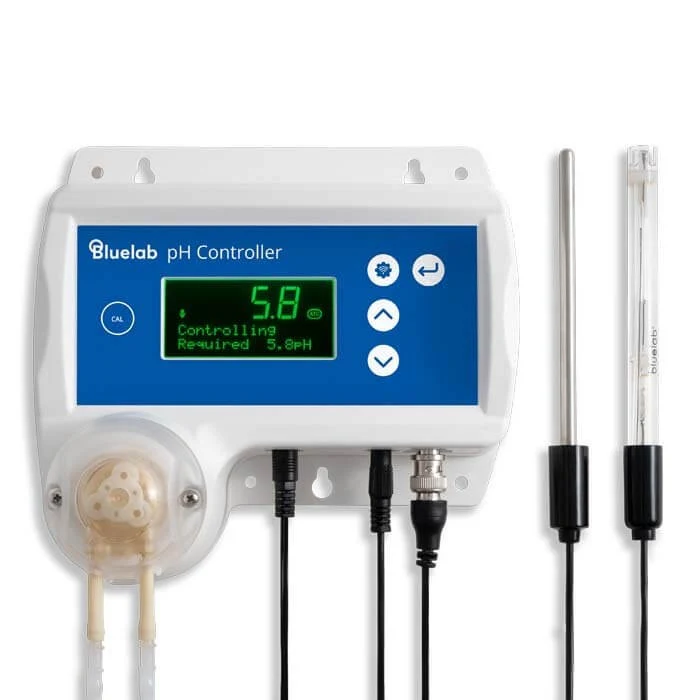

Product image 1

Bluelab pH Controller Wi-Fi

24/7 control of your reservoir pH anywhere, anytime from your phone

  • Built-in Wi-Fi (with option to disable)
  • View and control on your mobile phone, visit Edenic.io for more information
  • Safety lockouts prevent excessive dosing
  • Auto-resume dosing after power loss
  • Precision dosing of pH adjuster with the built-in Bluelab peristaltic pump
  • Controls pH in the up (alkali) or down (acid) direction
  • High/low alarms to alert you when parameters are out of range
  • Dosing routine allows for effective mixing before next dose
  • 2-m/6-ft cable lengths for best positioning and viewing
  • Variable speed pump built in. Maximum 120 ml/min (4.06 fl oz)
Product Tagline Set and automatically maintain pH levels in reservoirs. Auto-dose pH up or down.
Technical Specification

Automatic Temperature Compensation: Yes, if temperature probe is in same solution as pH probe
Operating Environment: 0 – 50 ̊C  /  32 – 122 ̊F
Measurement Resolution: 0.1 pH
Measurement Range: Control: 0.1 – 13.9 pH. single direction (up or down). Measure: 0 - 50 °C / 32 - 122 °F
Measurement Accuracy: ± 0.1 pH
Calibration: Two or three point, pH 7.0 & pH 4.0 and/or pH 10.0 calibration
Power: International power supply. Replacement Power Supply can be purchased separately.
CE Compliance: Yes
FCC Compliance: Yes
RoHS Compliance: Yes
Warranty: 2-YEARS
Country of Origin: New Zealand

Dose Rate: Up to 120 ml per minute (Adjustable).
Screen Display Languages: English; Deutsch; Espan҃ol; Français; Nederlands

Other specifications: As a guide, Bluelab recommends the following maximum concentration for commonly used acids and alkalines;
Peristaltic Pump tubing (PharMed BPT)
Nitric Acid <35%, Phosphoric Acid <85%, Sulfuric Acid <30%, Citric Acid <60%, Potassium Hydroxide <60%, Potassium Carbonate Concentrated, Potassium Silicate <60%.

The chemical concentrations stated above are a guide. Variations in temperature, pressure, or UV exposure may cause tubing failure which could lead to serious injury if proper safety precautions are not followed. For this reason, it is recommended that the tubing be tested with the desired chemical in the specific application to determine suitability. No warranty (neither express or implied) is given that the information in these tables is accurate or complete or that any material is suitable for any purpose.
More Product Information

BCTPHC02 User Manual - English

support.bluelab.com/bluelab-ph-controller-wi-fi
Product Features / Benefits

Compatible with Edenic by Bluelab software
Remote monitoring and control, history reporting and instant alarm notifications in one easy-to-use app. Manage your growing environment from where you'd like, when you like.

Control and measure pH and temperature
Precision dosing of pH adjuster with the in-built peristaltic pump.
Adjustable alarms and dosing lockouts to prevent overdosing or running dry.

Automate pH dosing
Set and maintain a consistent pH level in a reservoir.
Easy to programme - set your pH target and let the Bluelab pH Controller do the rest.
