Borosilicate Tri-Clamp Sight Glass Kit

Borosilicate Tri-Clamp Sight Glass Kit

***Note:(Only comes with 1 sight glass.)

FOR 2" Version please see our upgraded sight glass NESG200

3 piece borosilicate sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the borosilicate glass disc, Viton or Silicone gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 800 (pending 3rd party peer review). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures.

***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip.

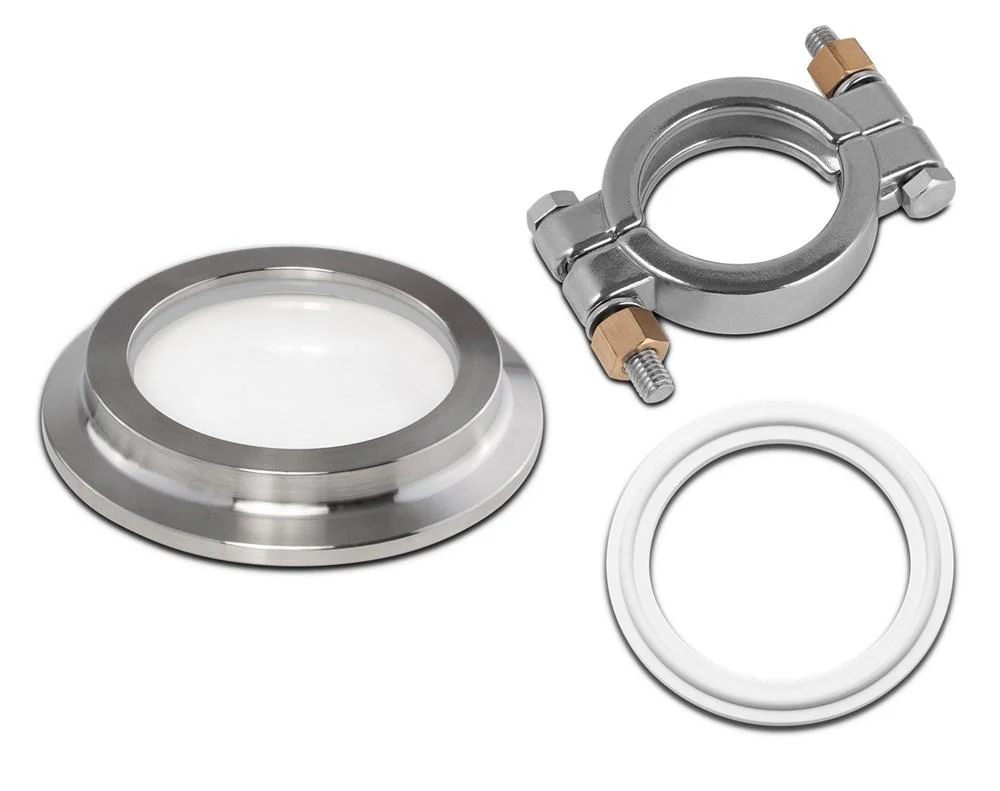

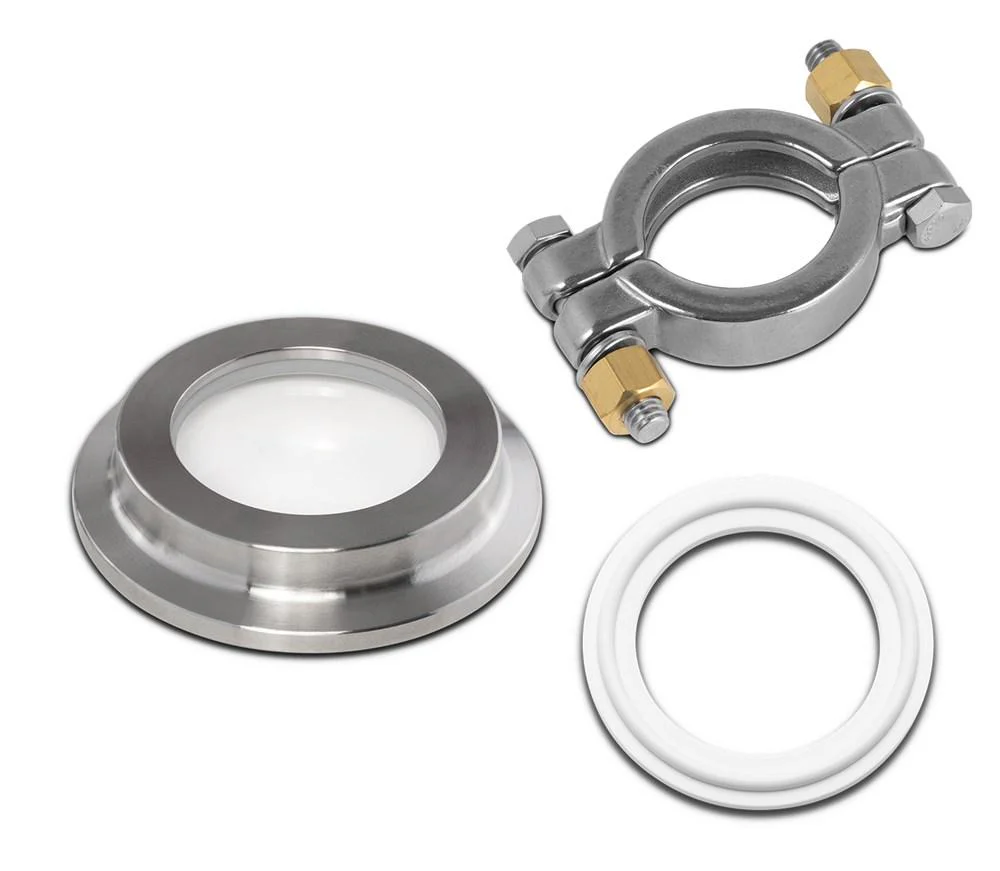

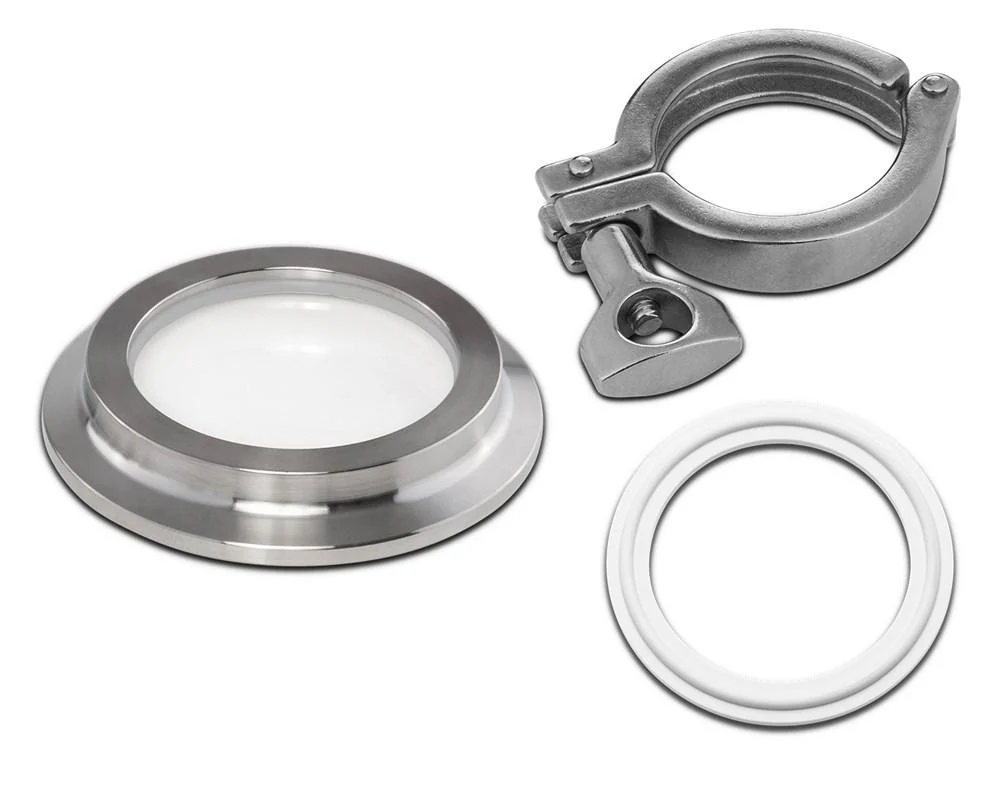

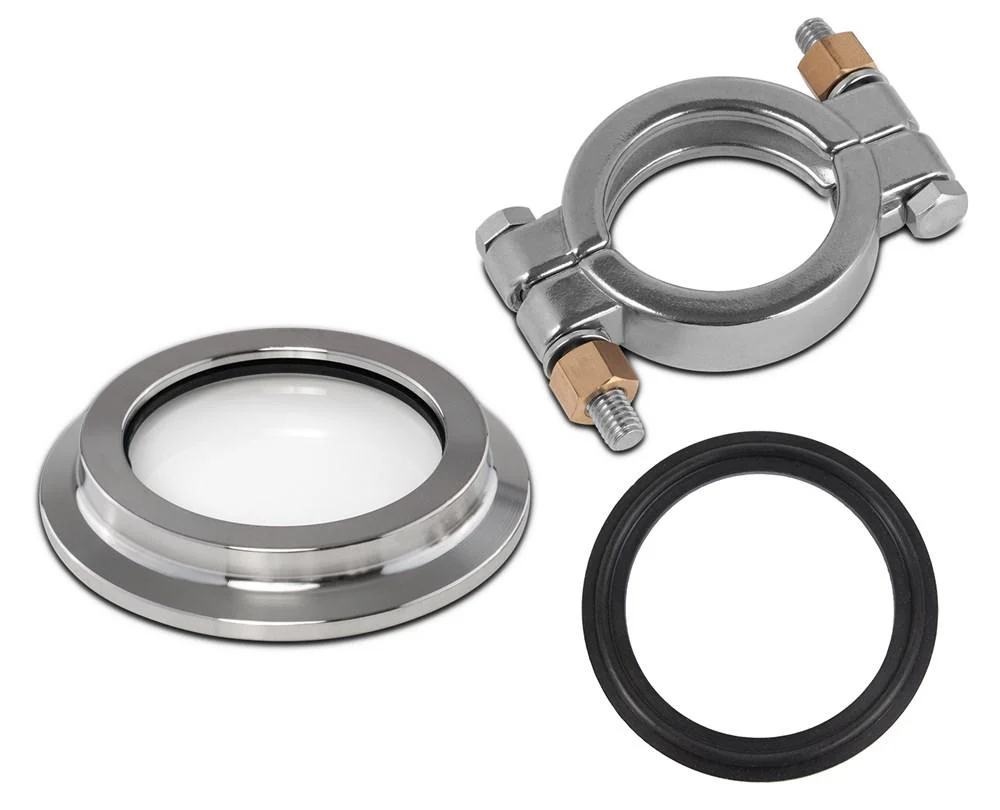

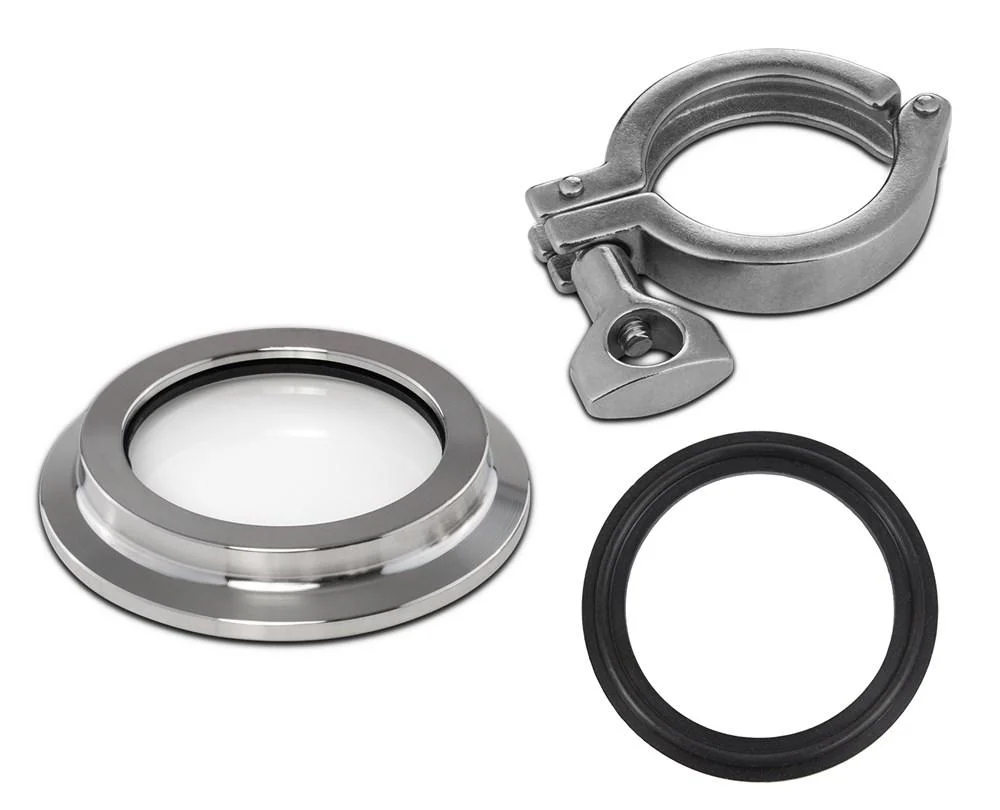

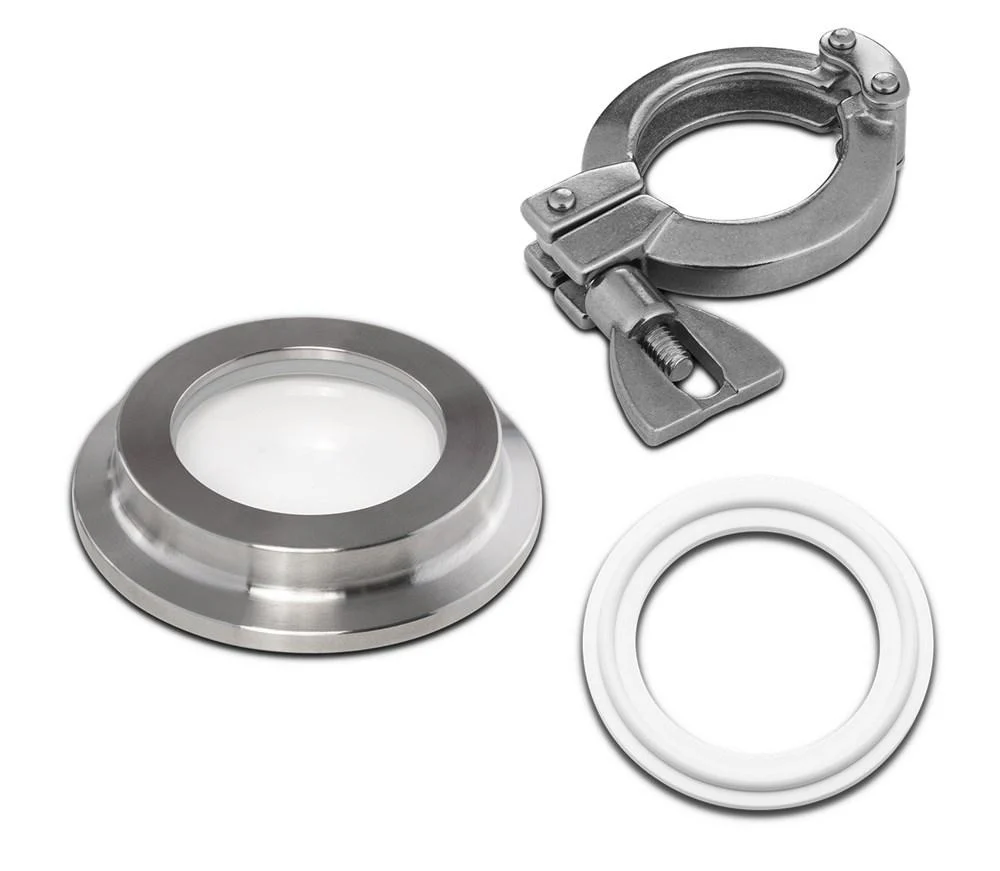

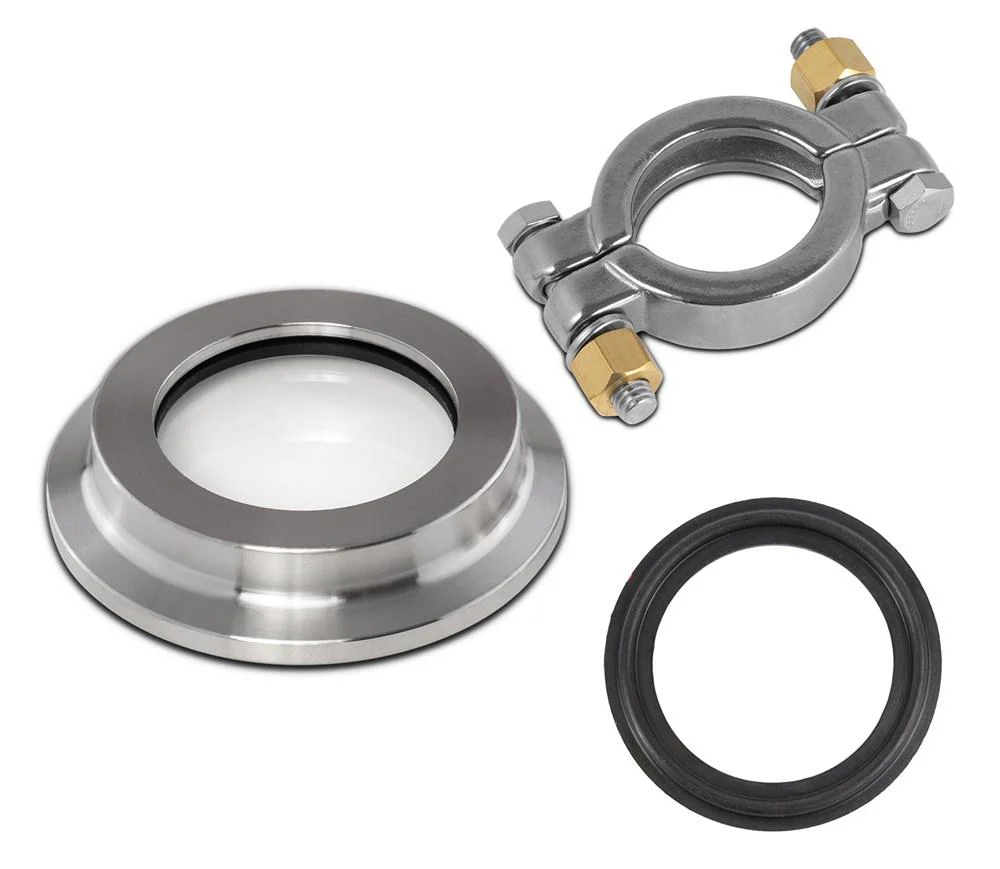

This Kit Includes the Following:

• 1x - BVV Borosilicate Tri-Clamp Sight Glass
• 1x - Standard Pressure Clamp or High Pressure Clamp
• 1x - BUNA-N Gasket or Silicone Gasket

Sight Glass Specifications:
Ferrule Material	304 Stainless Steel
Glass Material	BOROFLOAT
Gasket Material	Viton(FKM) or Silicone
Connection Type(s)	Tri-Clamp
PSI Rating	800 (pending peer review)
