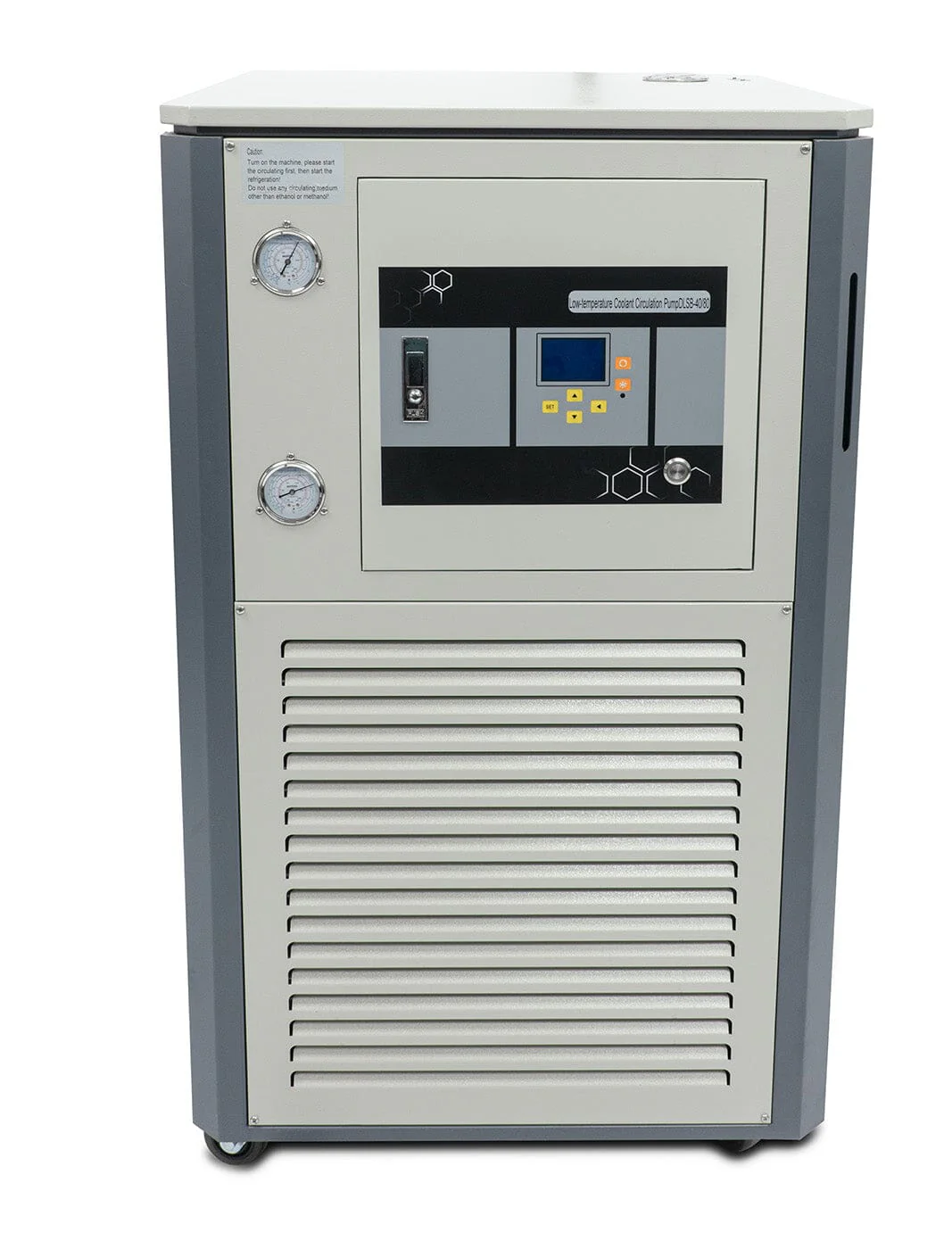

BVV -80C Chiller - 220v/60hz

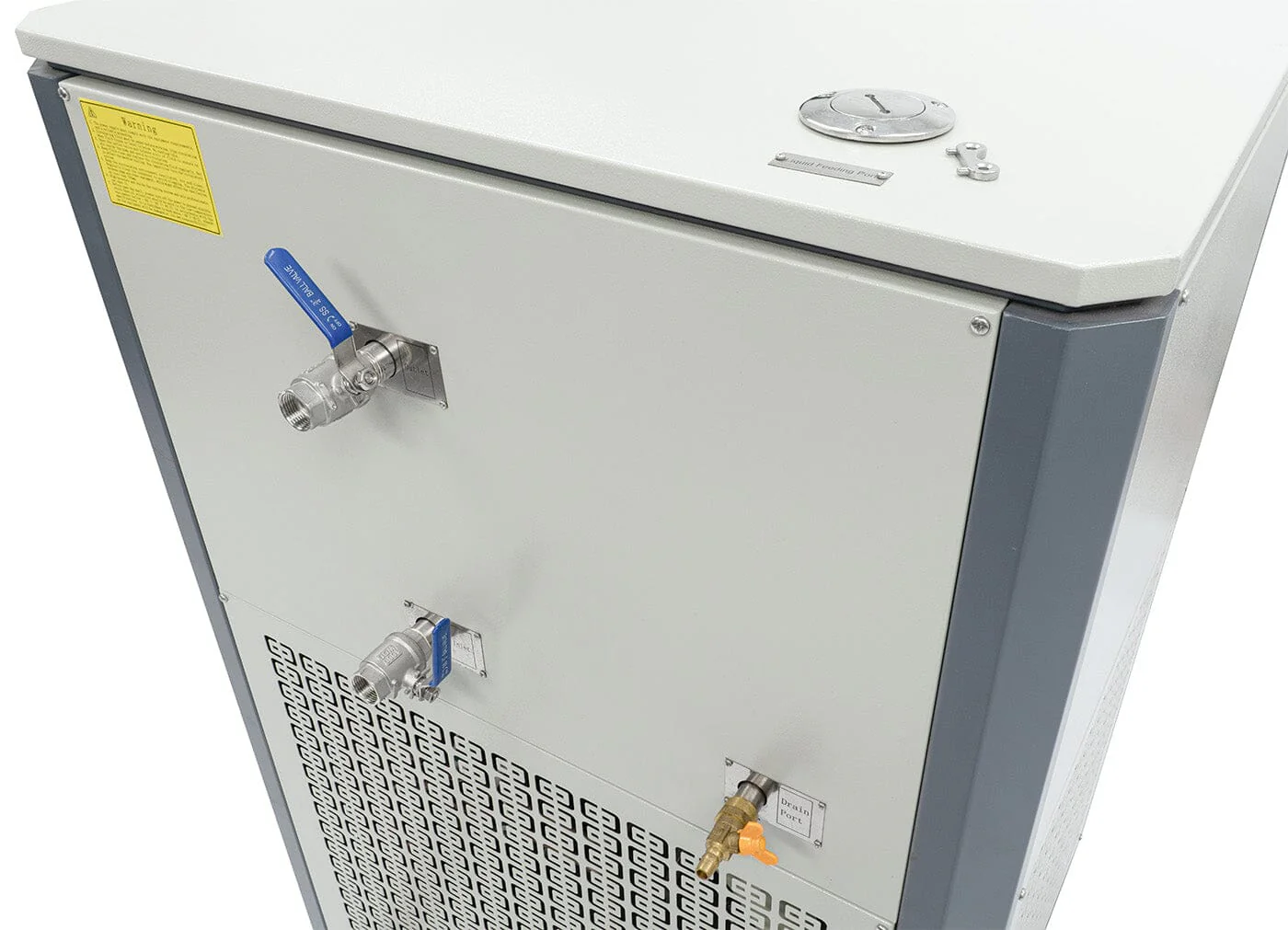

 This recirculating chiller is great for low temperature applications. With the a powerful pump it is able to circulate fluid while at -80°C. The chiller includes valves for the inlet and outlet port with 3/4" FNPT connections. The chiller also includes two barbs to adapt to 5/8" tubing, along with 2M of insulated silicone tubing.



Technical Data	3 Phase	Single Phase
Reservoir:	10L	10L
Flow:	35L/min	35L/min
Lift:	12m	12m
Refrigerant:	R404/R23	R404/R23
Low Temperature:	-80℃	-80℃
Cooling capacity:	8048~1260W	7665~1200W
@30°C	8048W	7665W
@0°C	6021W	5735W
@-40°C	4326W	4120W
@-80°C	1260W	1200W
Max. Input Current:	17 amps	24 amps
Power supply:	220V/60Hz/3Φ	220V/60Hz/1Φ
Circulator	Low-temperature Coolant Circulation Pump	Low-temperature Coolant Circulation Pump
