BVV Compression 10" Tri-Clamp x (2) 2" Tri-Clamp x (1) 1.5" TriClamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid

BVV Compression 10" Tri-Clamp x (2) 2" Tri-Clamp x (1) 1.5" TriClamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid

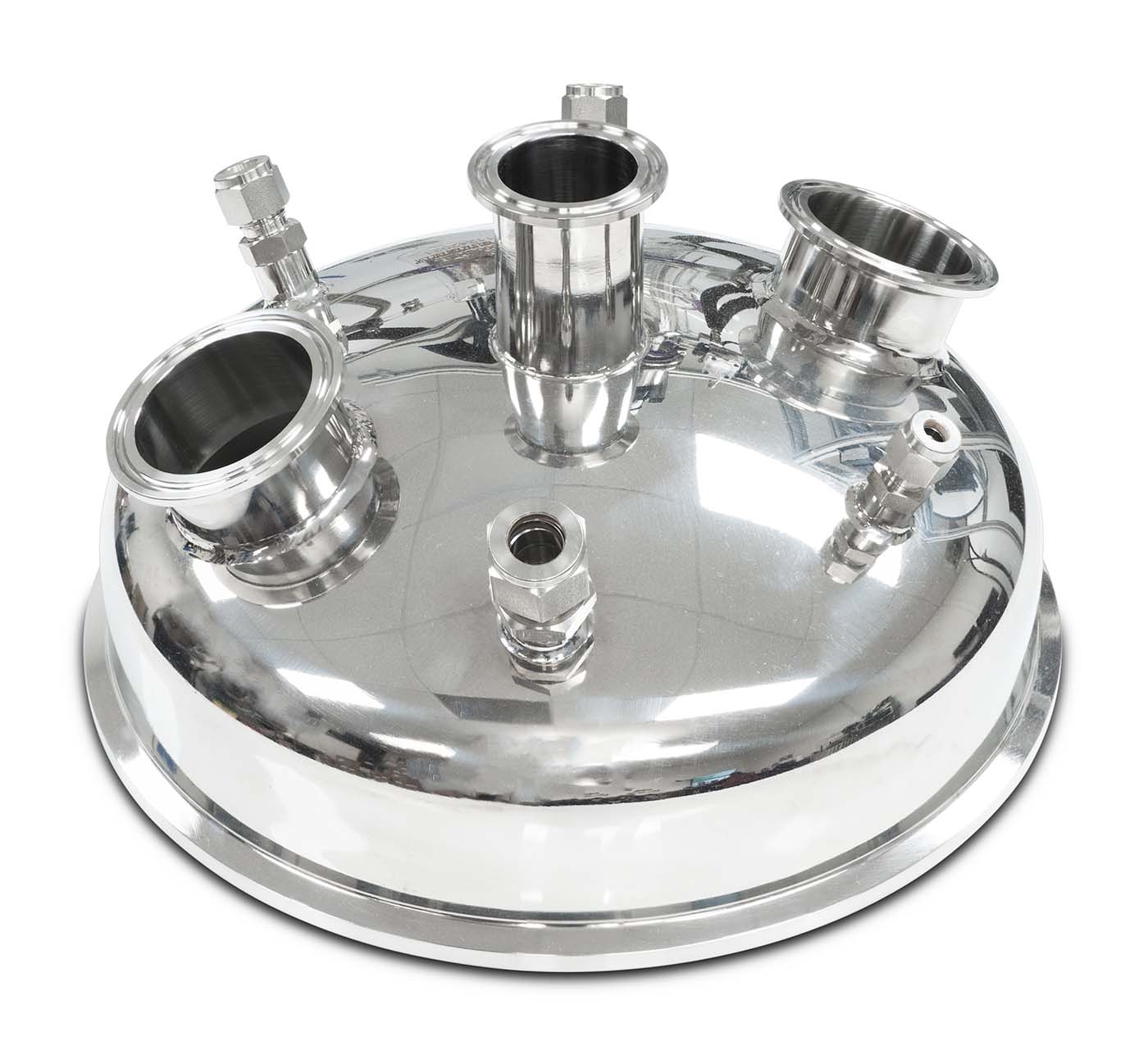

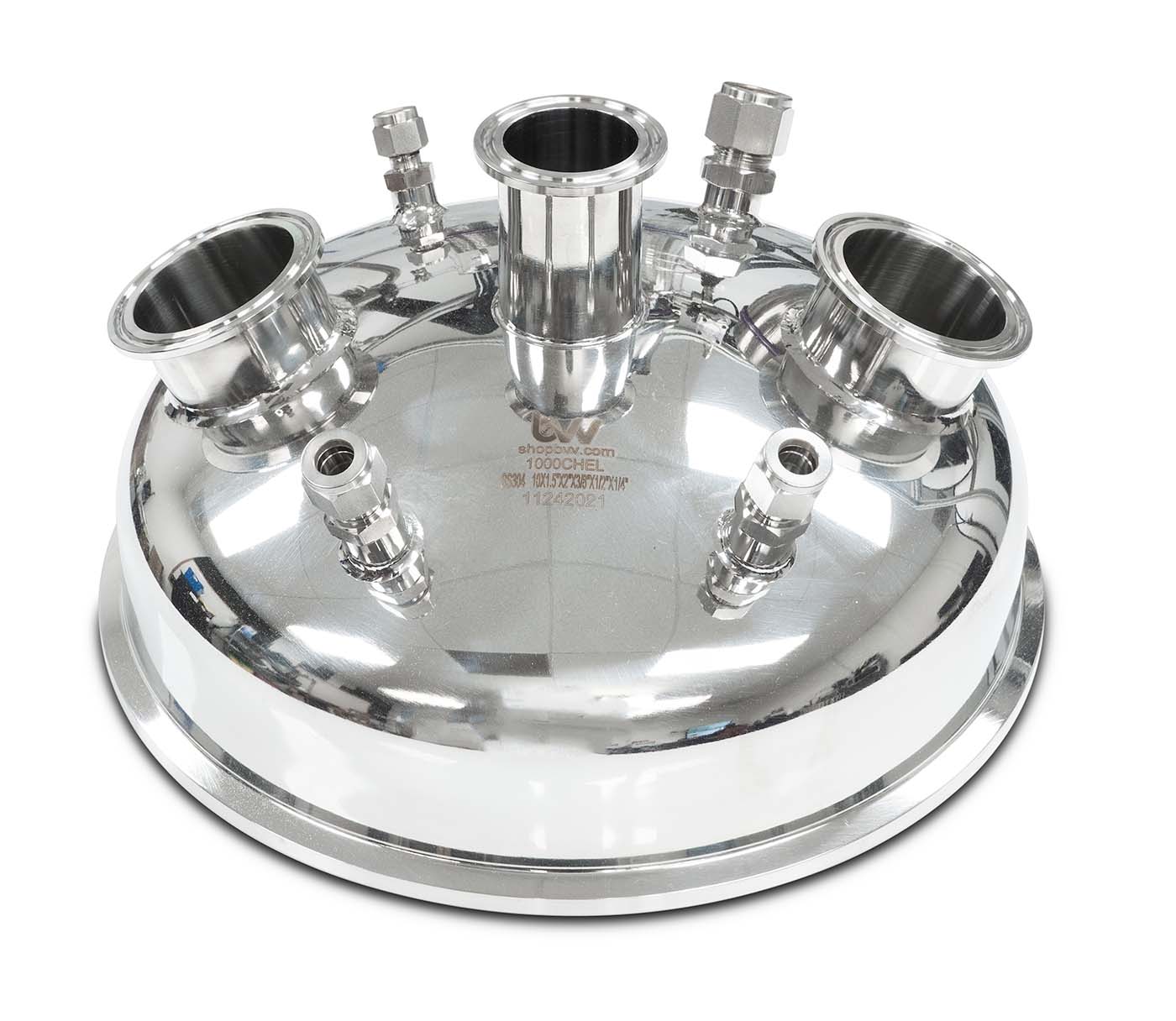

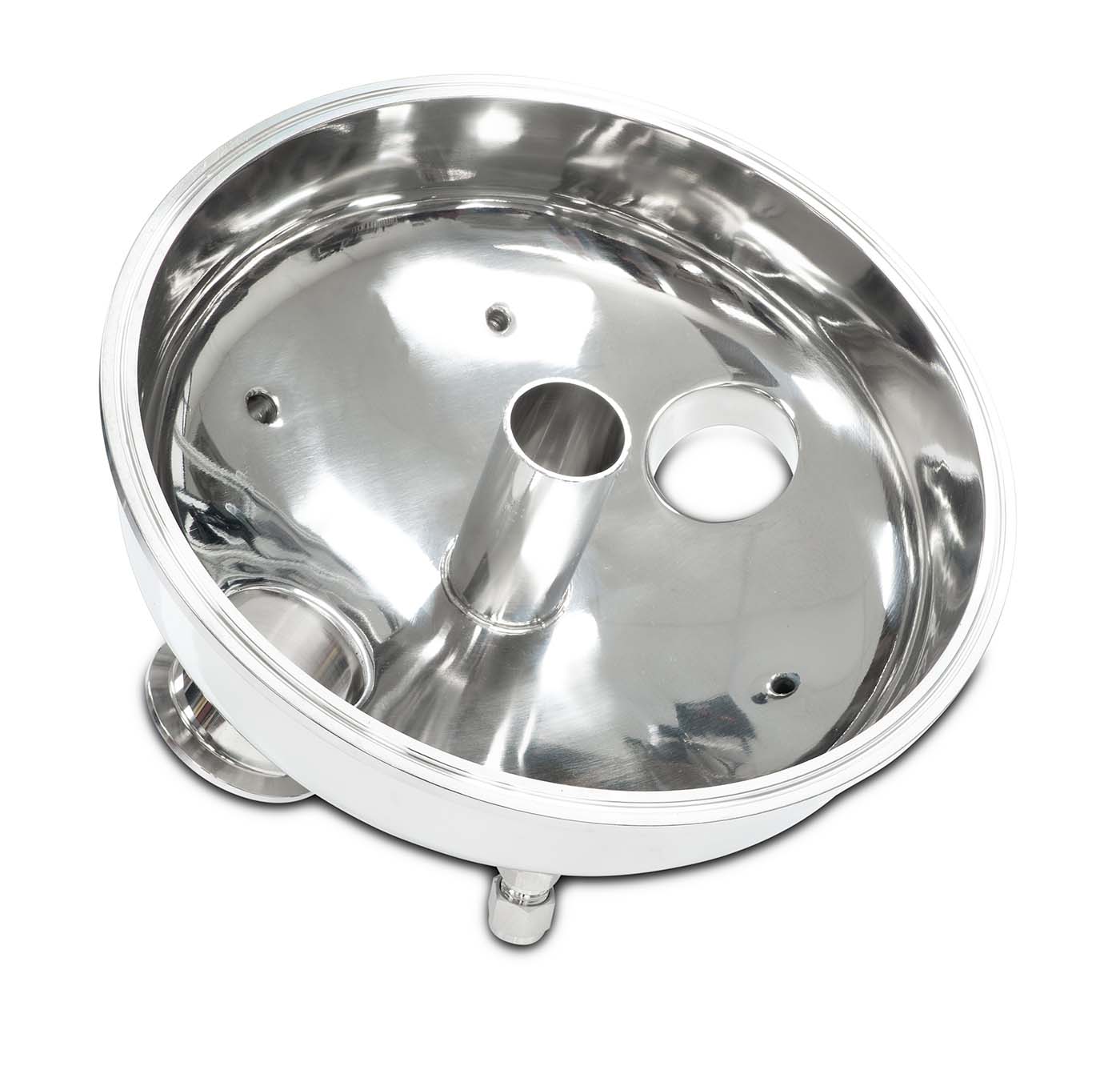

This End Cap comes with (4) Compression connections and (2) 1.5" and (1) Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a tube stub connection to the (1) 1/4", (2) 3/8", and (1) 1/2" port on a Tri-Clamp lid and the Tri-Clamp Connections. These 7 connections are welded on a 10" Hemispherical Tri-Clamp End Cap.



Specifications
Material:	304 Stainless Steel
Connection Types:	(2) 2" and (1) 1.5" Tri-Clamp with 3" Tube Extension Below Lid on Center Tri-Clamp Port
	10" Tri-Clamp
	(1)1/4", (2) 3/8" and (1)1/2" Female Compression Connections
Standard:	3A
