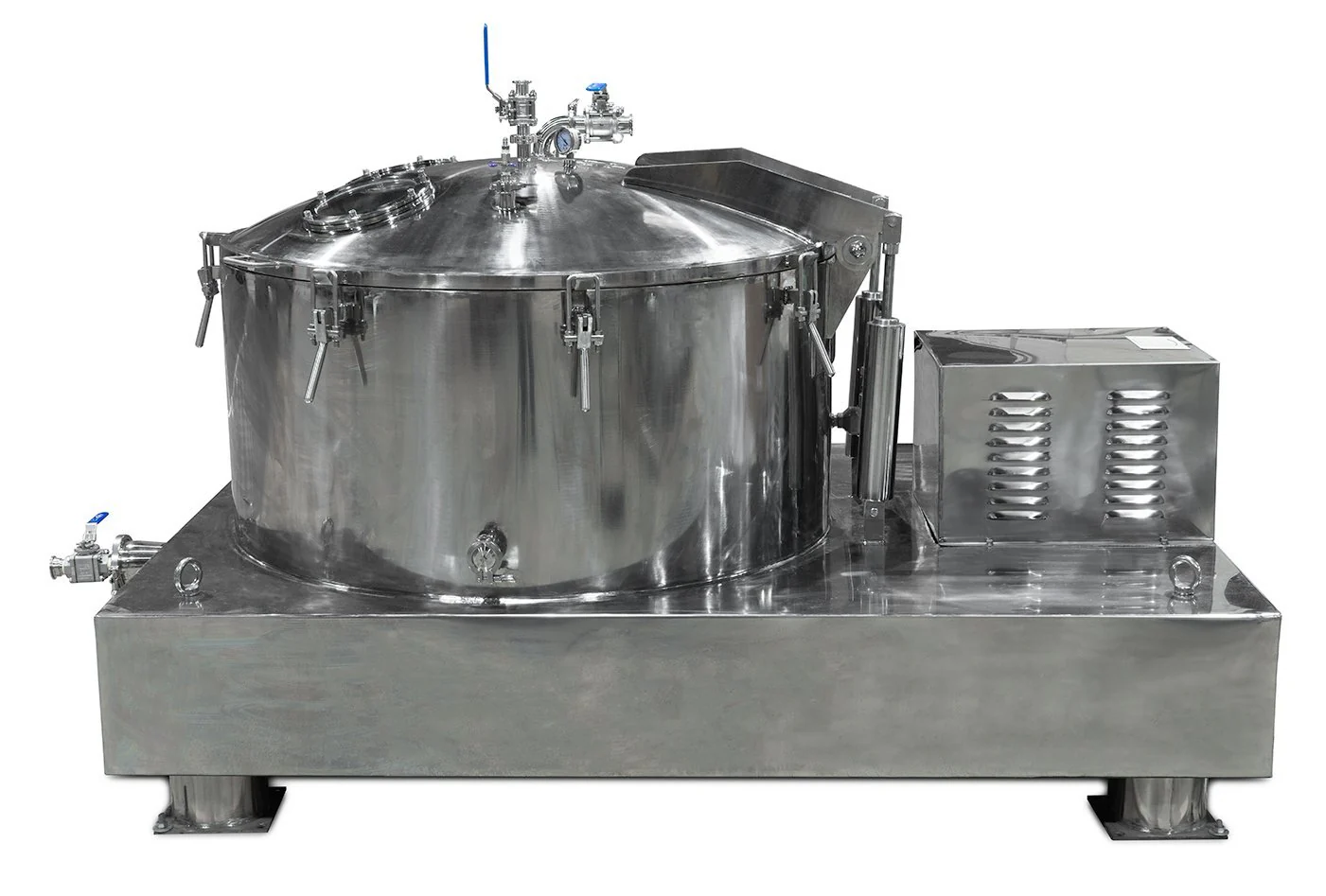

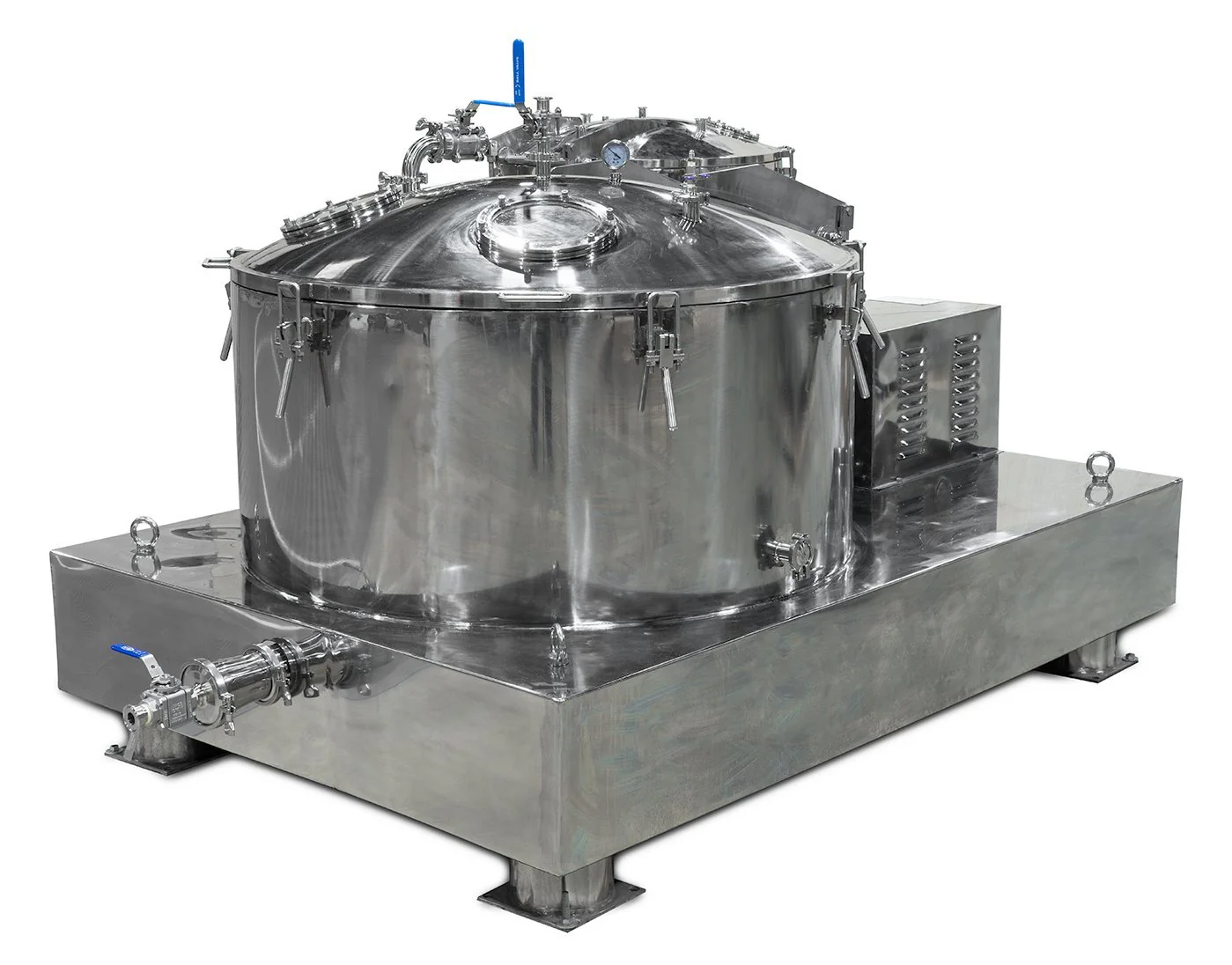

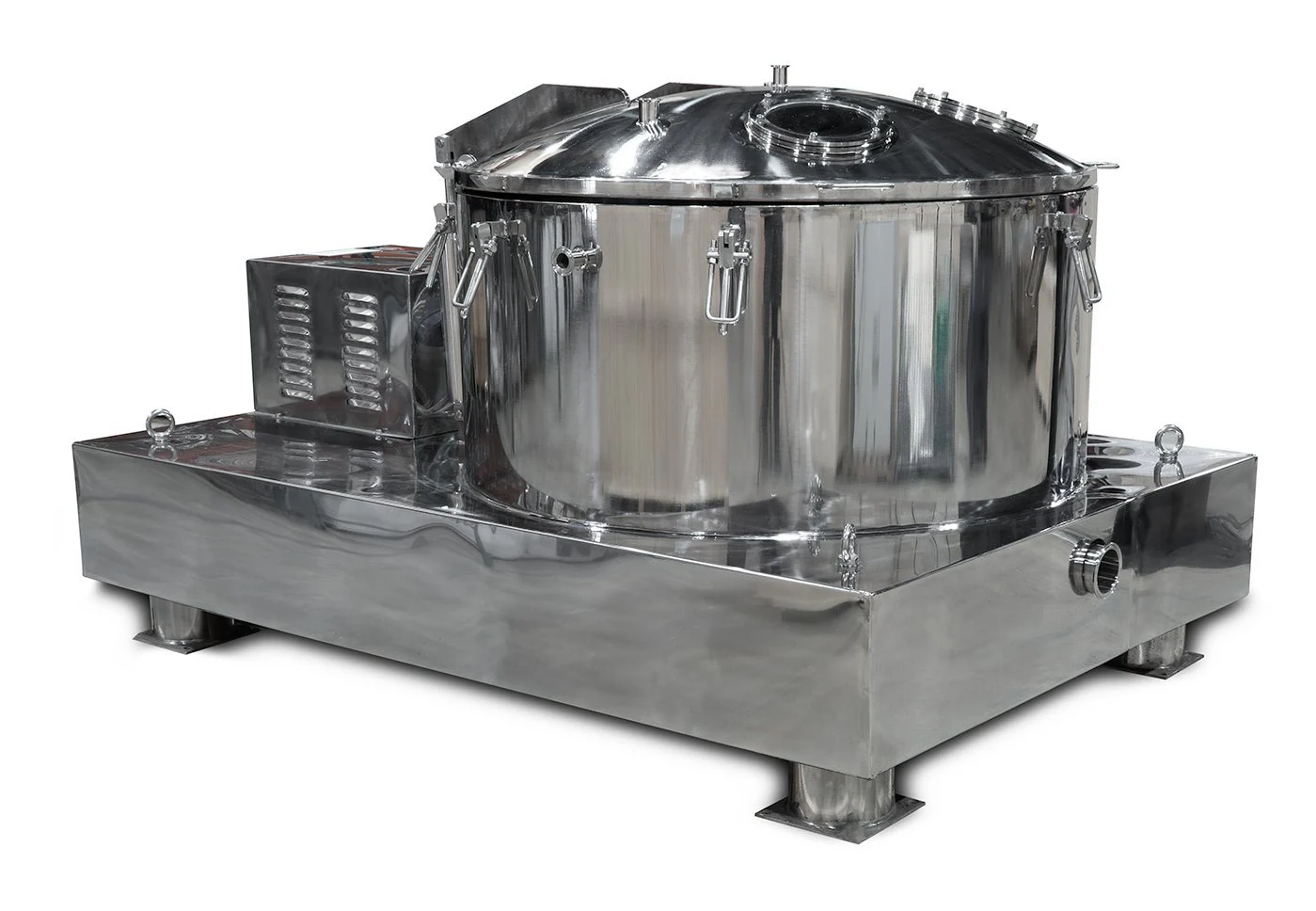

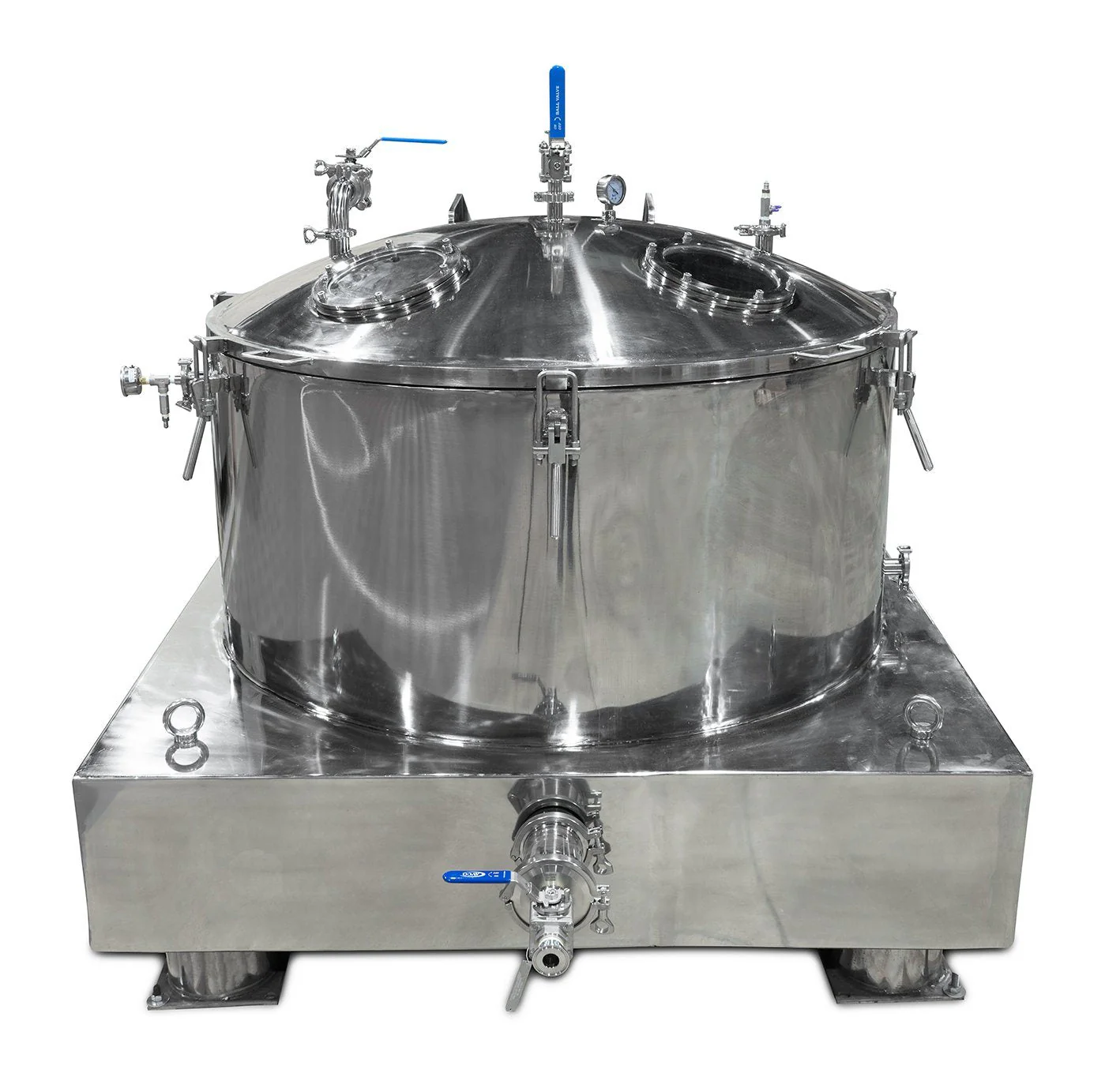

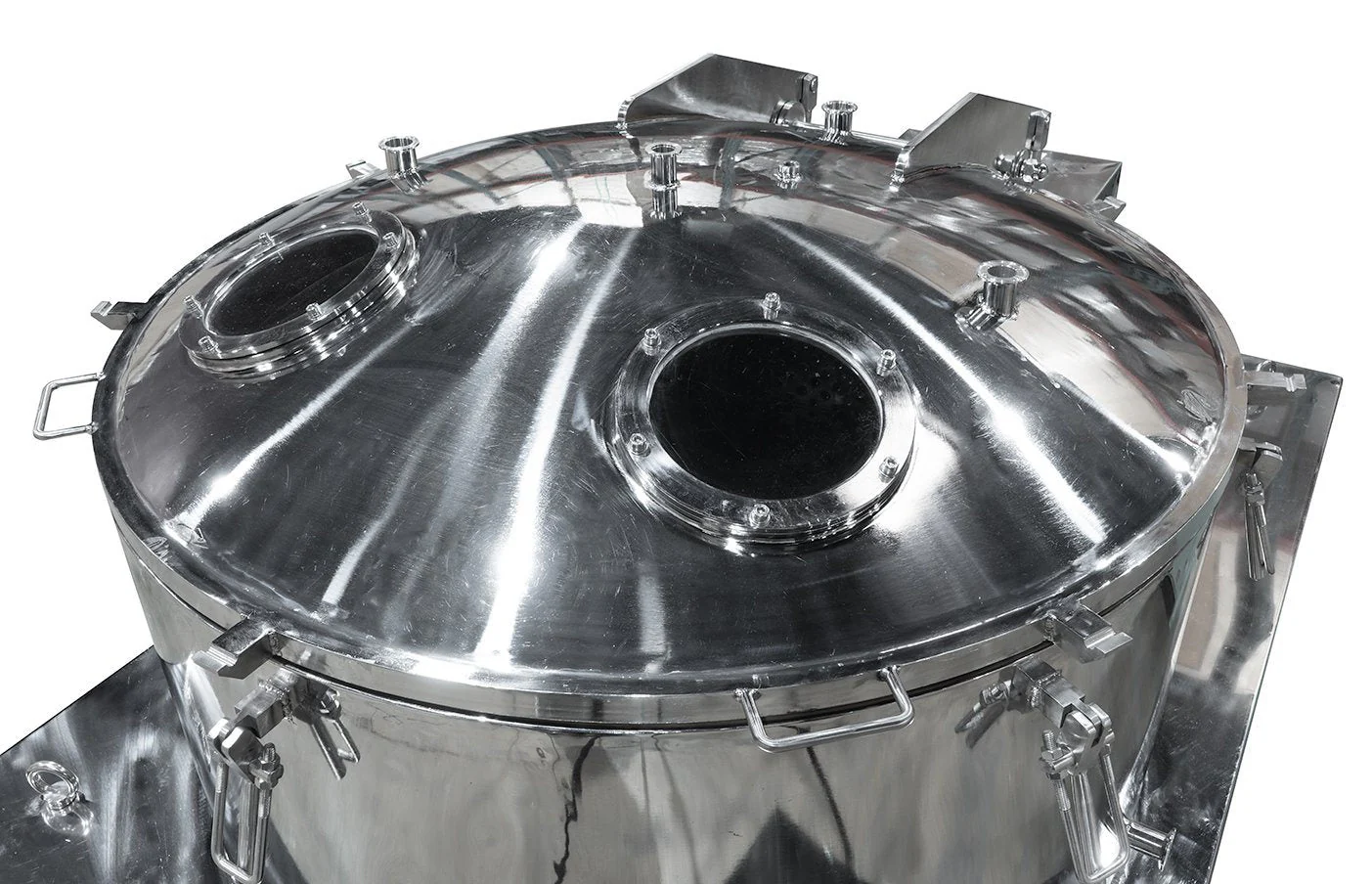

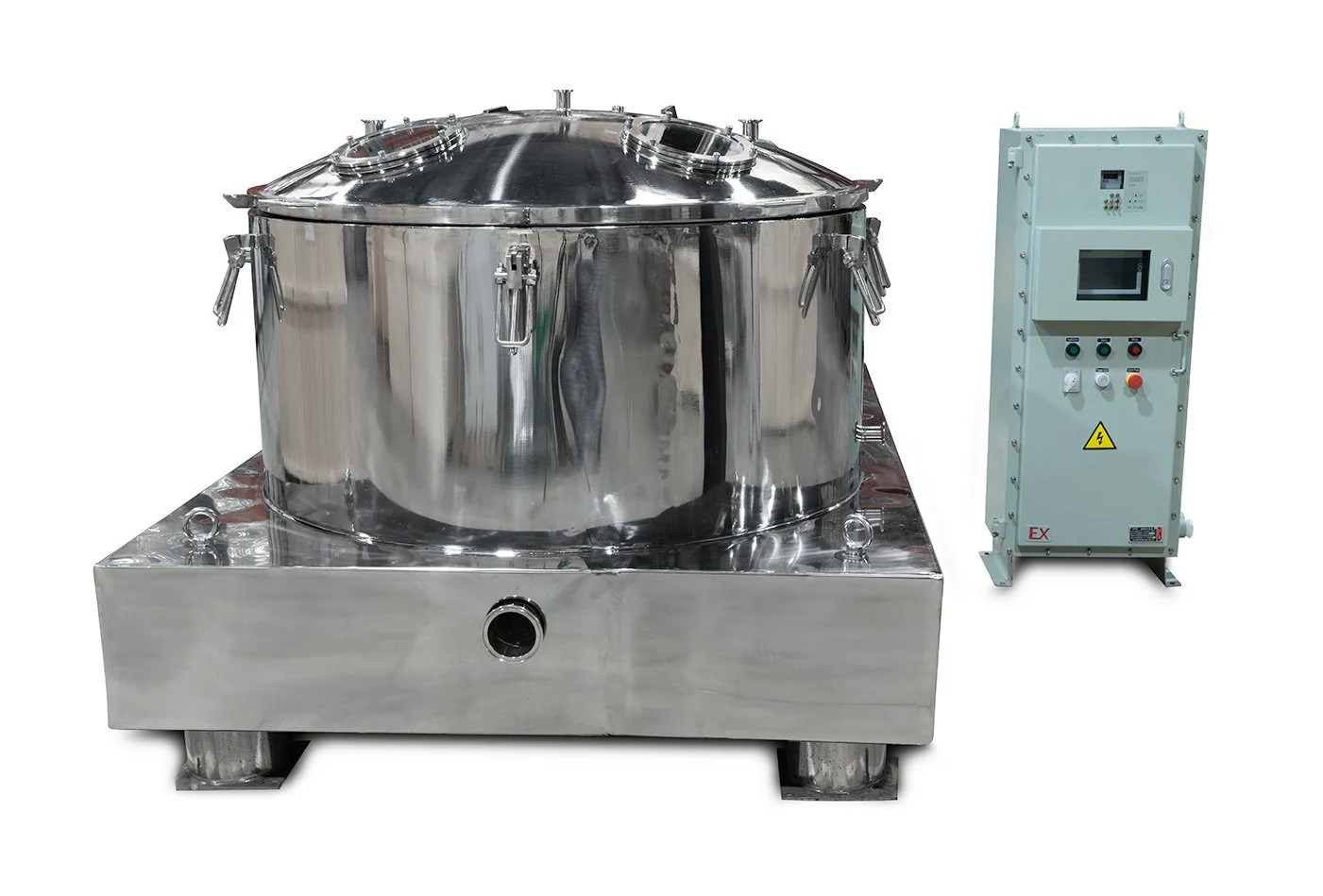

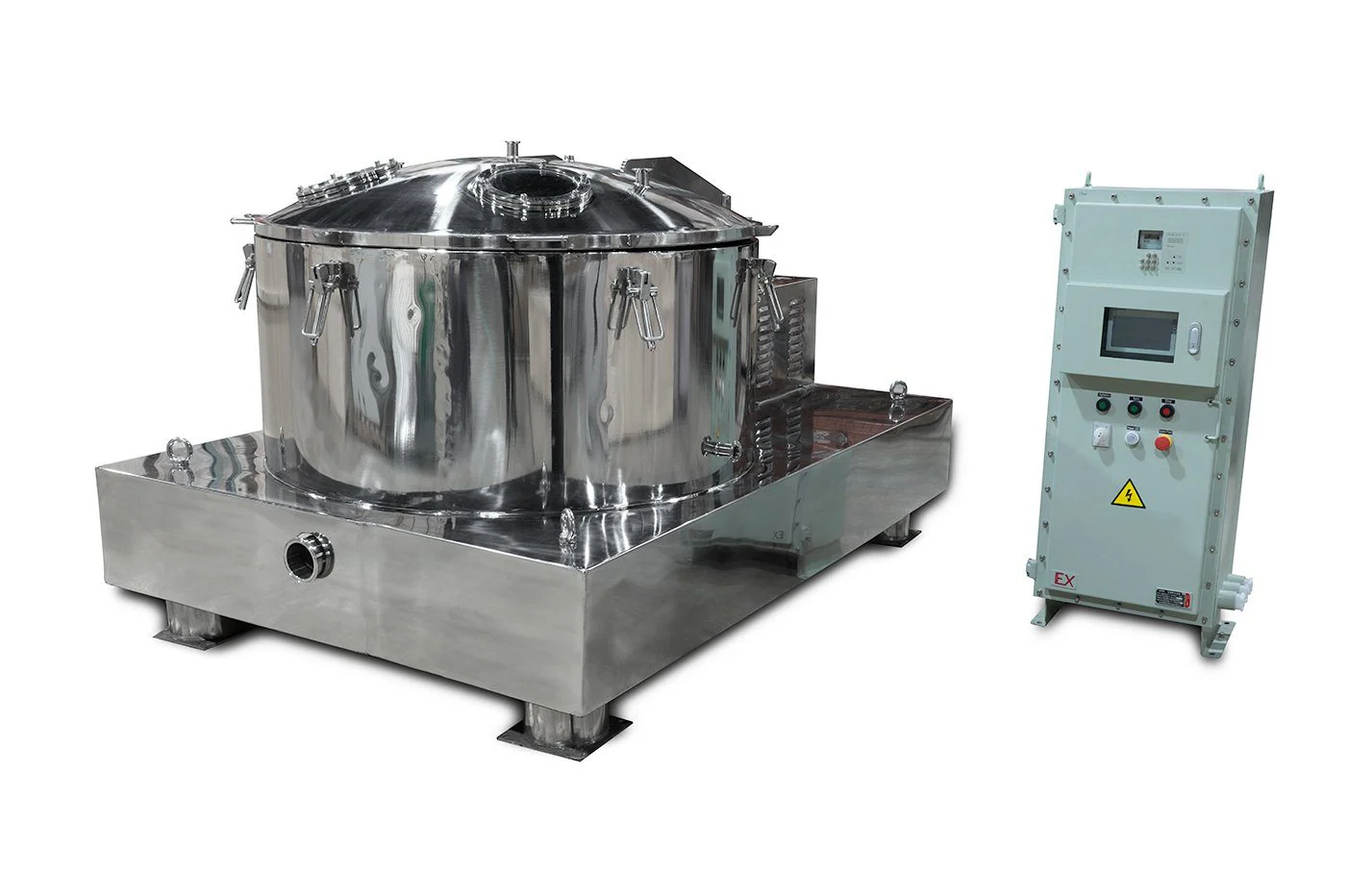

Certified 280L Jacketed Stainless Steel Centrifuge with Explosion Proof Motor and Siemens Controller - 85LB Max Capacity

Certified 280L Ethanol Wash/Dry Centrifuge

NOTE: This item currently has a 2 week lead time.

 Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.

Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift to lift it and will also ship via freight only.

Key Features:

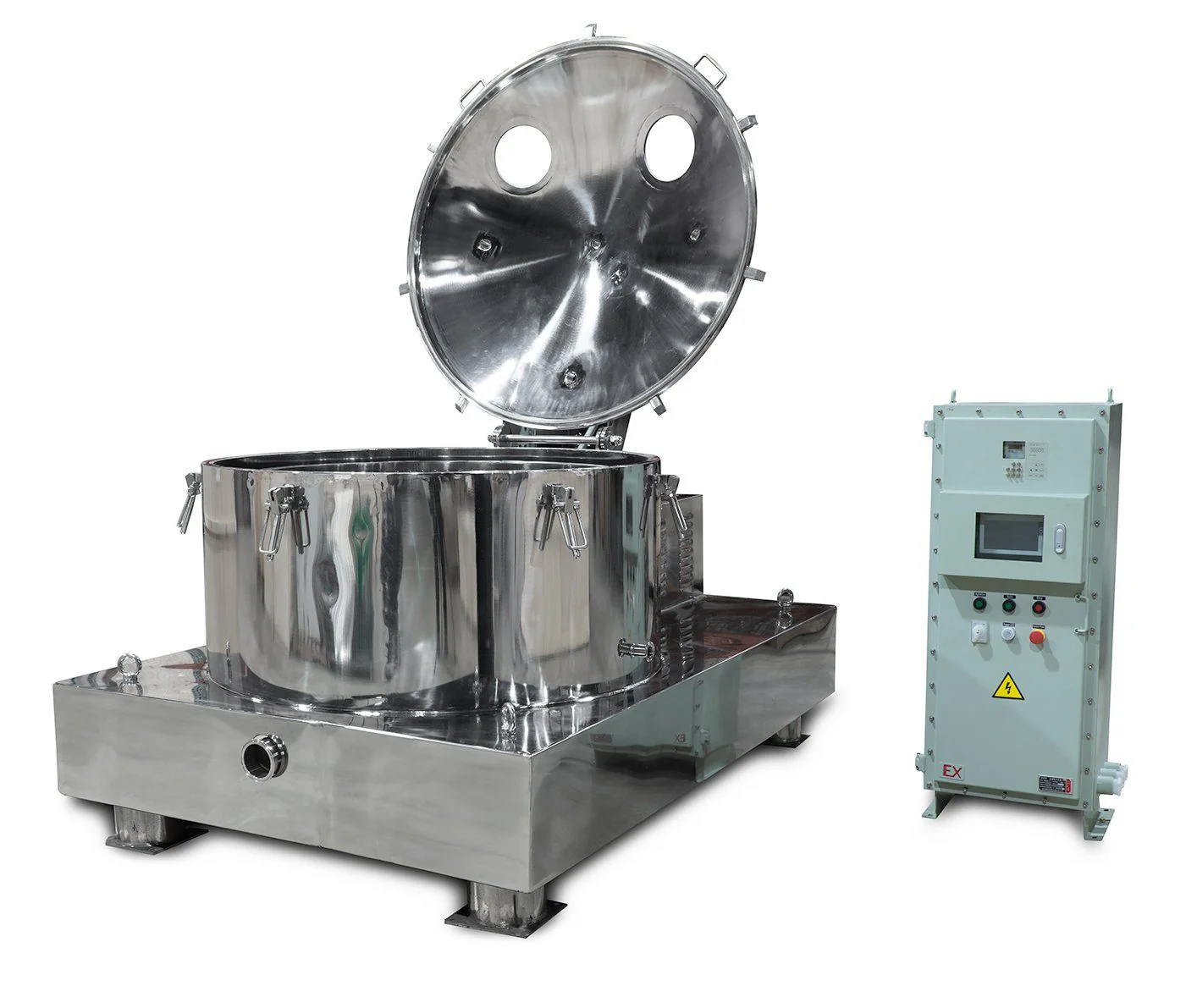

• Siemens Touch Screen Controller

• Explosion Proof Controller Housing and Motor
• Agitation and Spin Dry Modes
• Max 1000 RPM with Gradual Speed Stepping
• 559 Separation Factor
• Multiple Connection Ports/Sizes
• High Polish Stainless Steel Components
• Shock absorbing legs

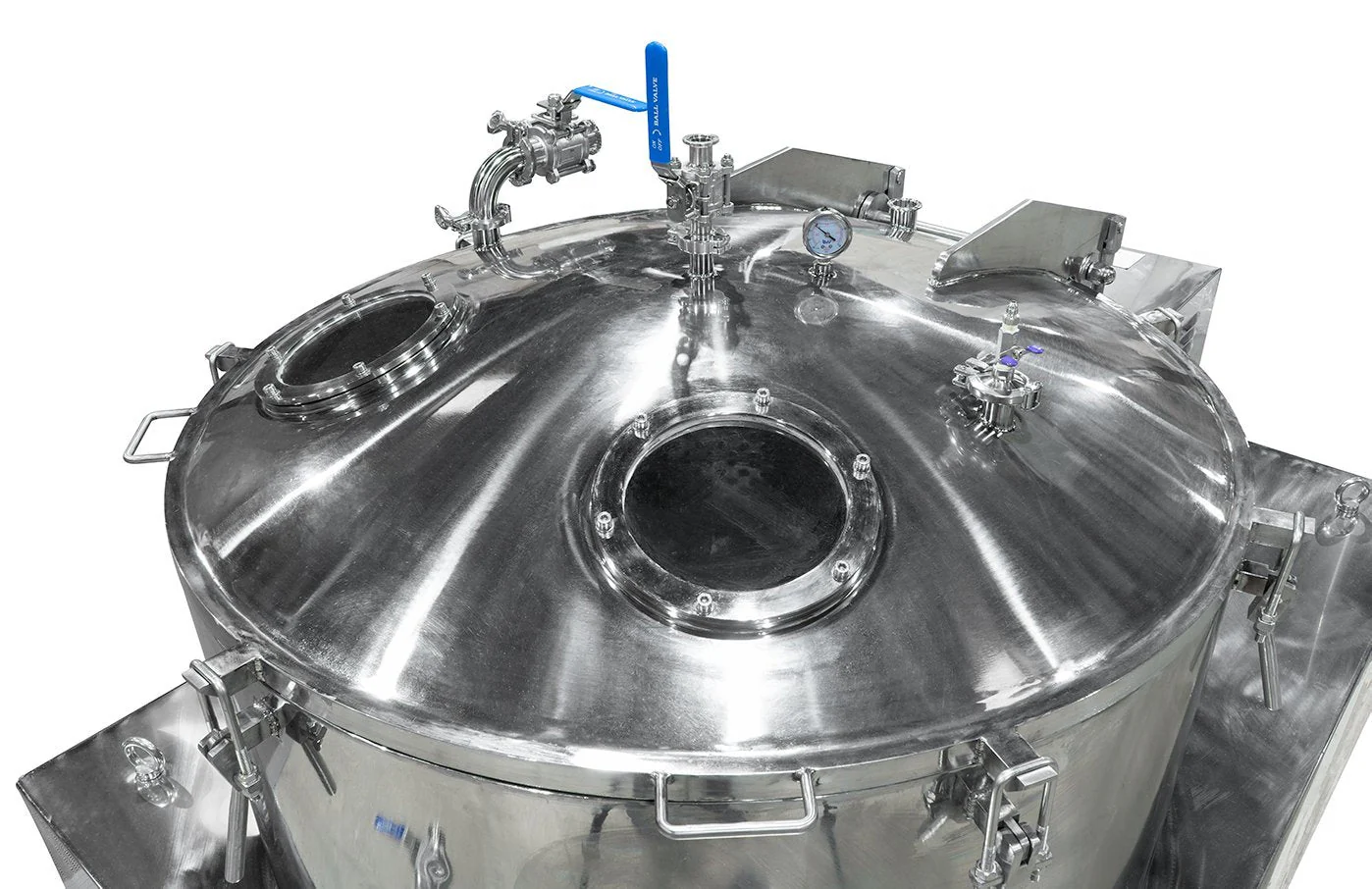

• Vacuum Jacket with Two 1" Tri-Clamp Fittings

• Pre-wired and Tested for Easy Installation

*BVV Centrifuges are now available certified by PRV Engineers. Field visits/verification letters are an additional $4,000 + travel expenses.*

Specifications
Capacity	280L

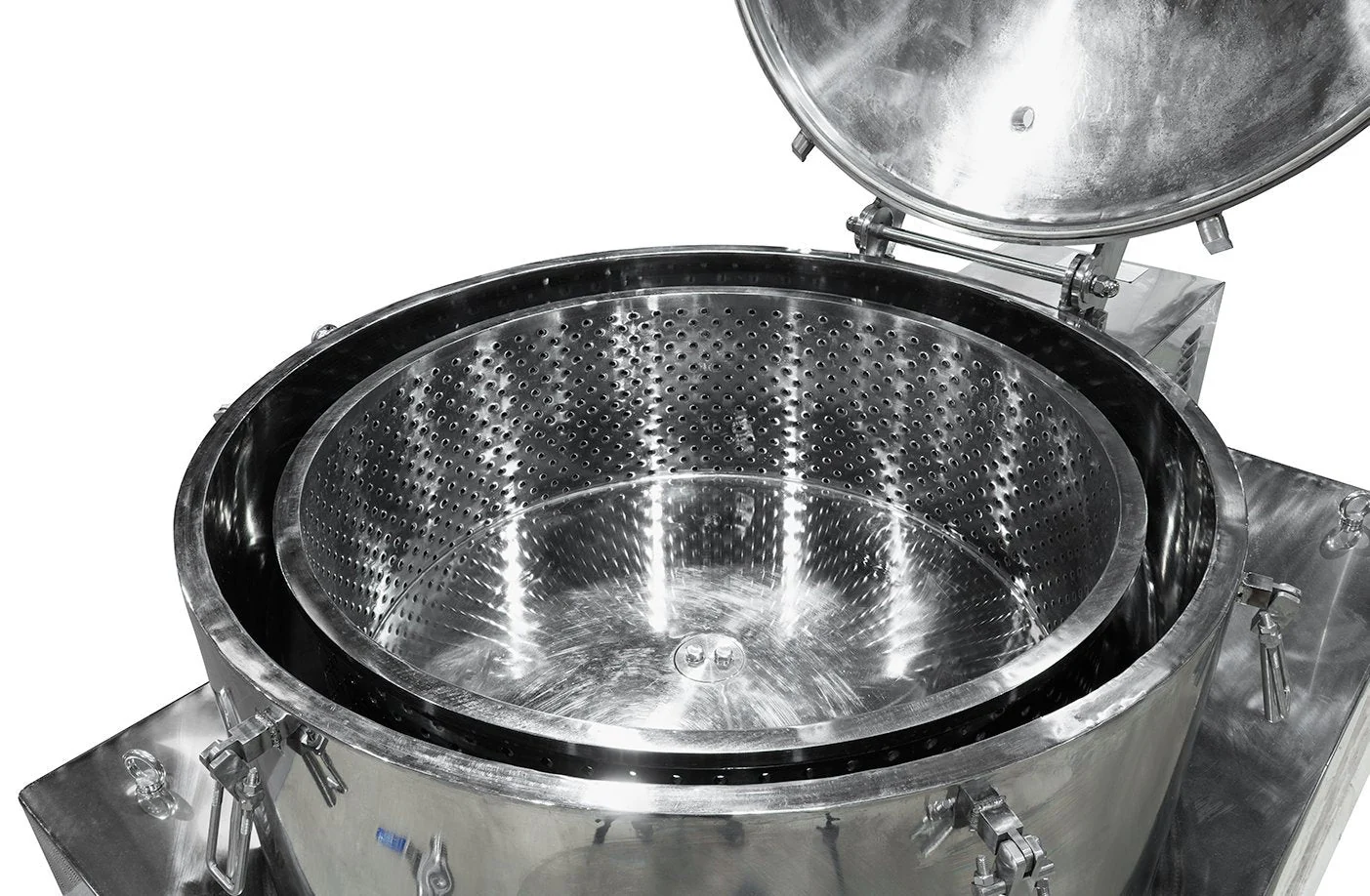

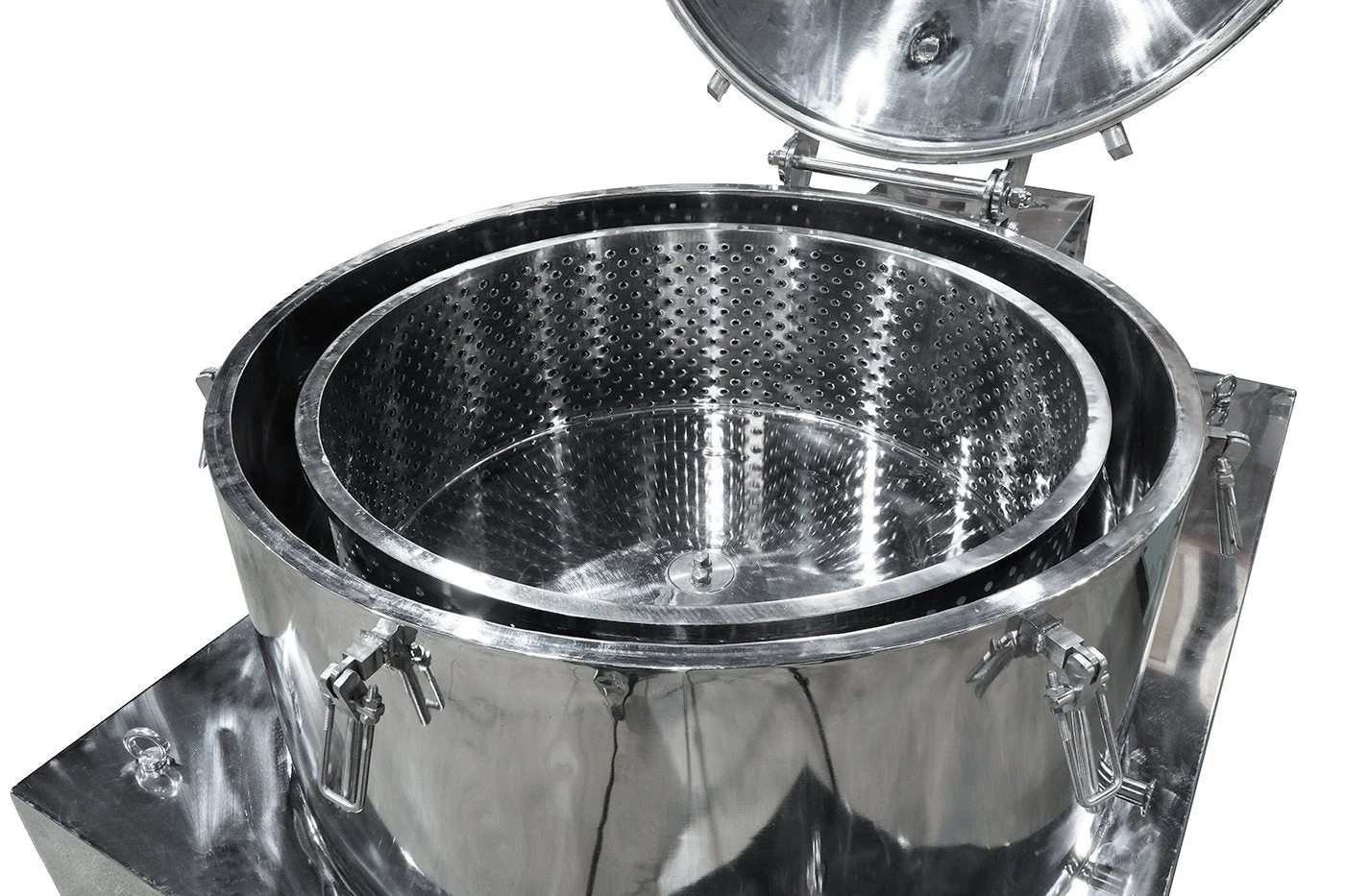

Drum Dimensions	39.4" (1000mm) Diameter x 14.17" (360mm)
Speed	0-1000r/min
Weight	4,188lbs (1900KG)
Exterior Dimensions	59.06" x 82.68" x 45.28"  (1500x2100x1150mm)
Material	304 Stainless Steel
Motor Power	11KW Explosions Proof - 220v 60Hz 3 Phase
