Color Remediation Column CRC w/ Bypass

Color Remediation Column w/ Bypass

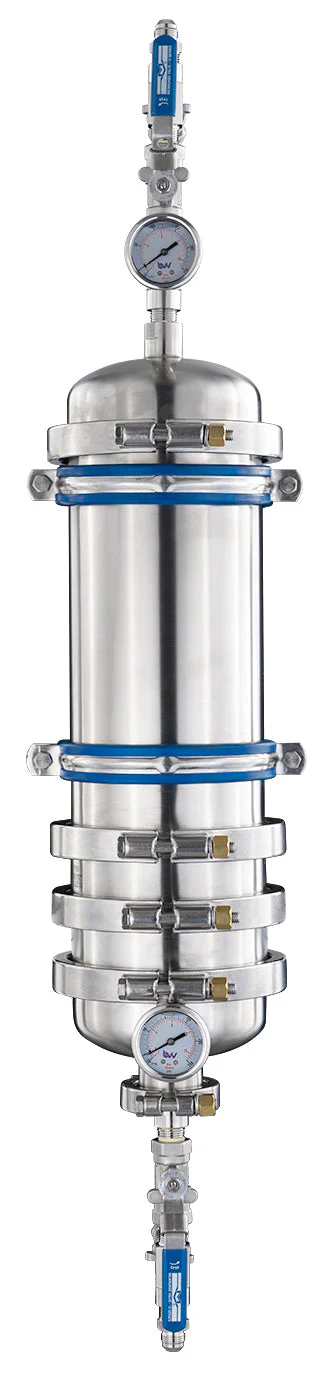

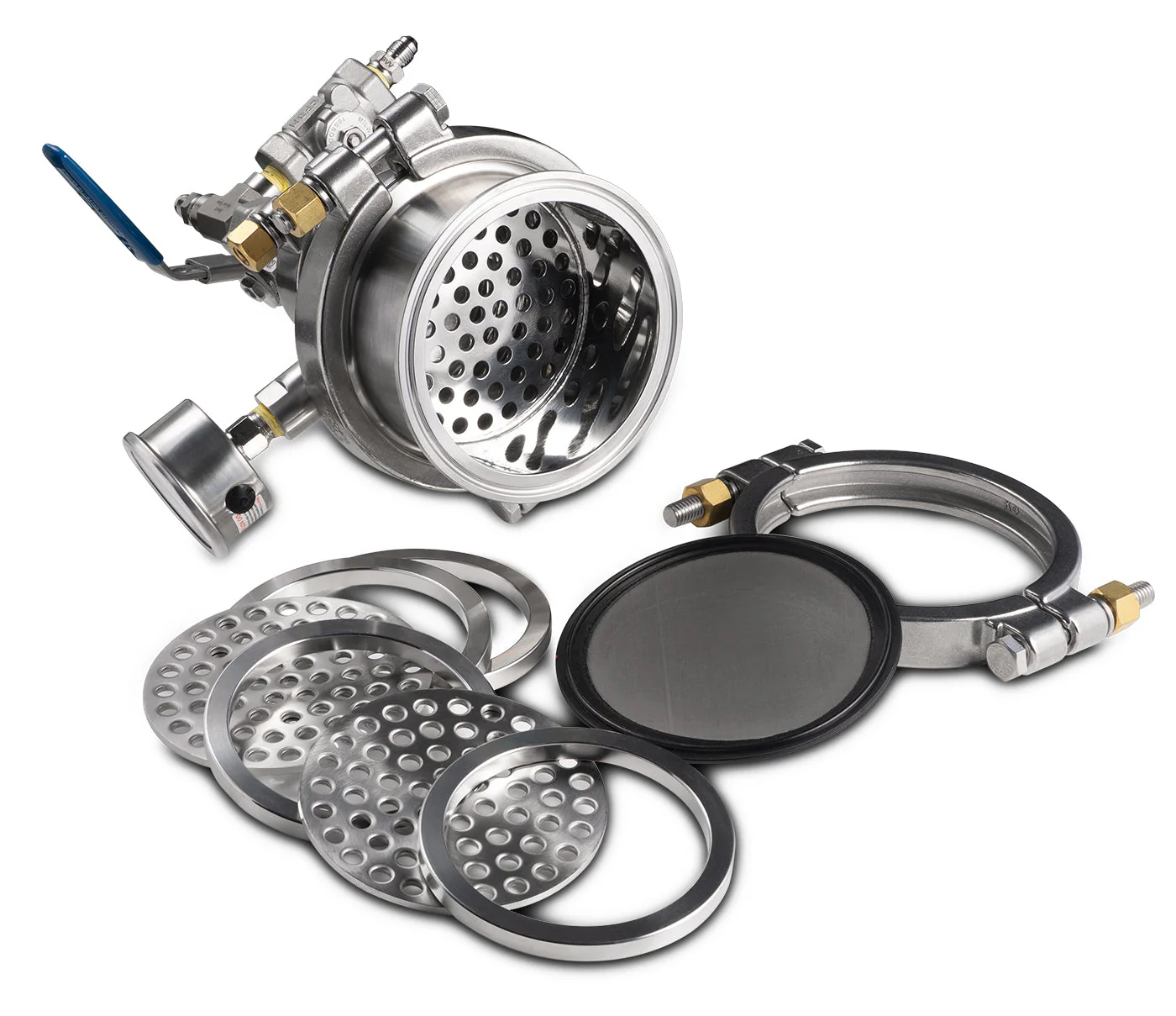

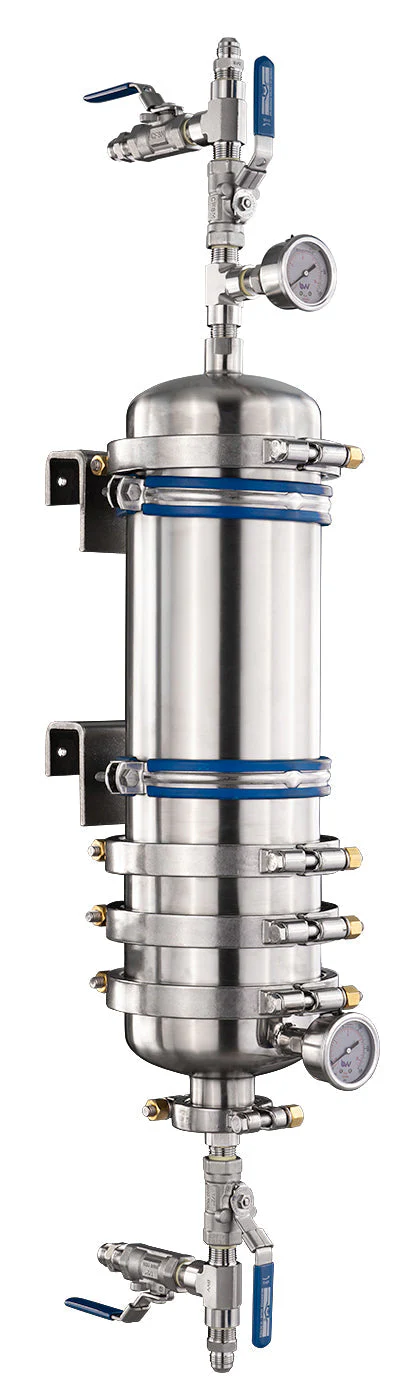

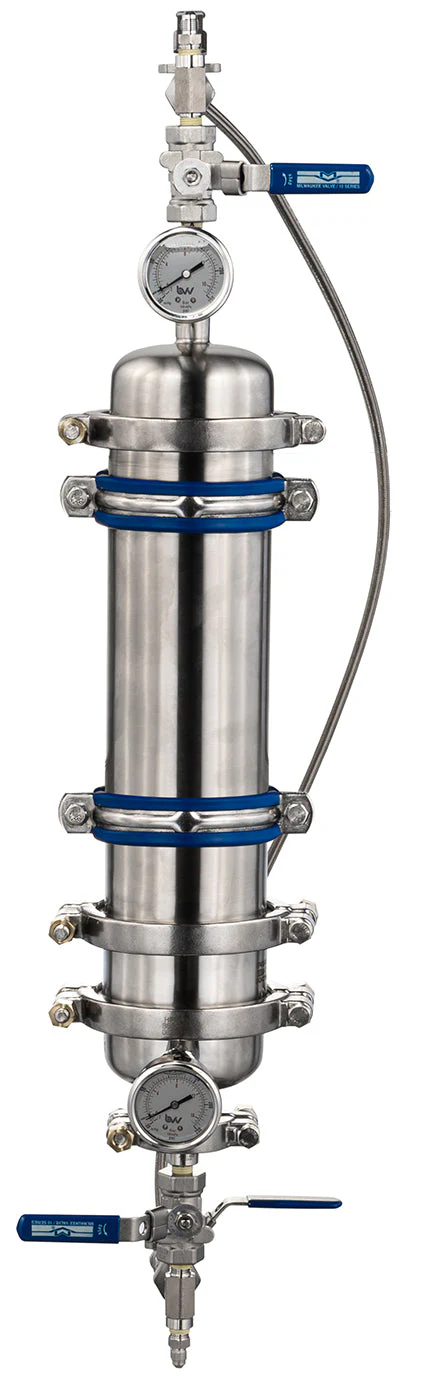

The CRC is a secondary column used as a filtration cartridge for hydrocarbon and ethanol extraction systems. Filter medias are packed in the column above a triple filtration stack, which aids in the removal of impurities from extracted oils. The CRC features a bypass path, allowing the operator to skip the column in case of a clog.

The color remediation process is made simple by bundling the cartridge with the needed filter medias. We have paired the unit with suggested media, supplied in the proper ratio, and a standard operating procedure. The included procedure takes all the guesswork out of filtration, delivering the desired results the first try.

Our CRC comes available with 1/4",3/8", and 1/2" MJIC connections, your choice of a 3",4", and 6" diameter spool with a 12" height, and rack mounting brackets standard to accommodate systems of any size.

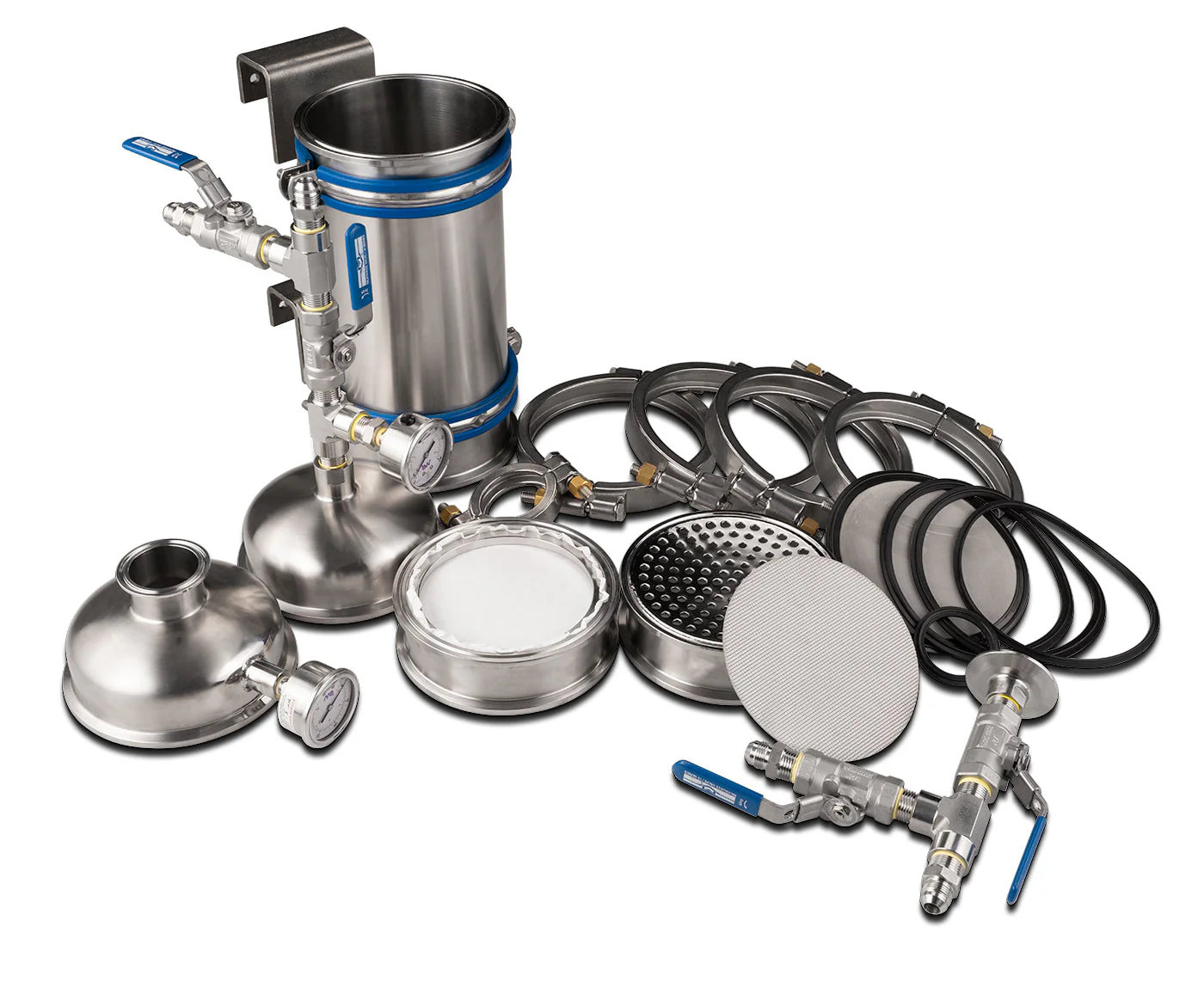

This Kit Includes:

• Color Remediation Column
• Rack Mounting Brackets
• 100 pack of 8 and 20-micron filter papers
• 1000g of Activated Alumina
• 1000g  of Silica 60A
• 1000g  of Pure-Flo® B80  (81, 5000, 6000 or Color Bleach)*Substitutes
• 1000g of Celite®545
• Instruction Manual
