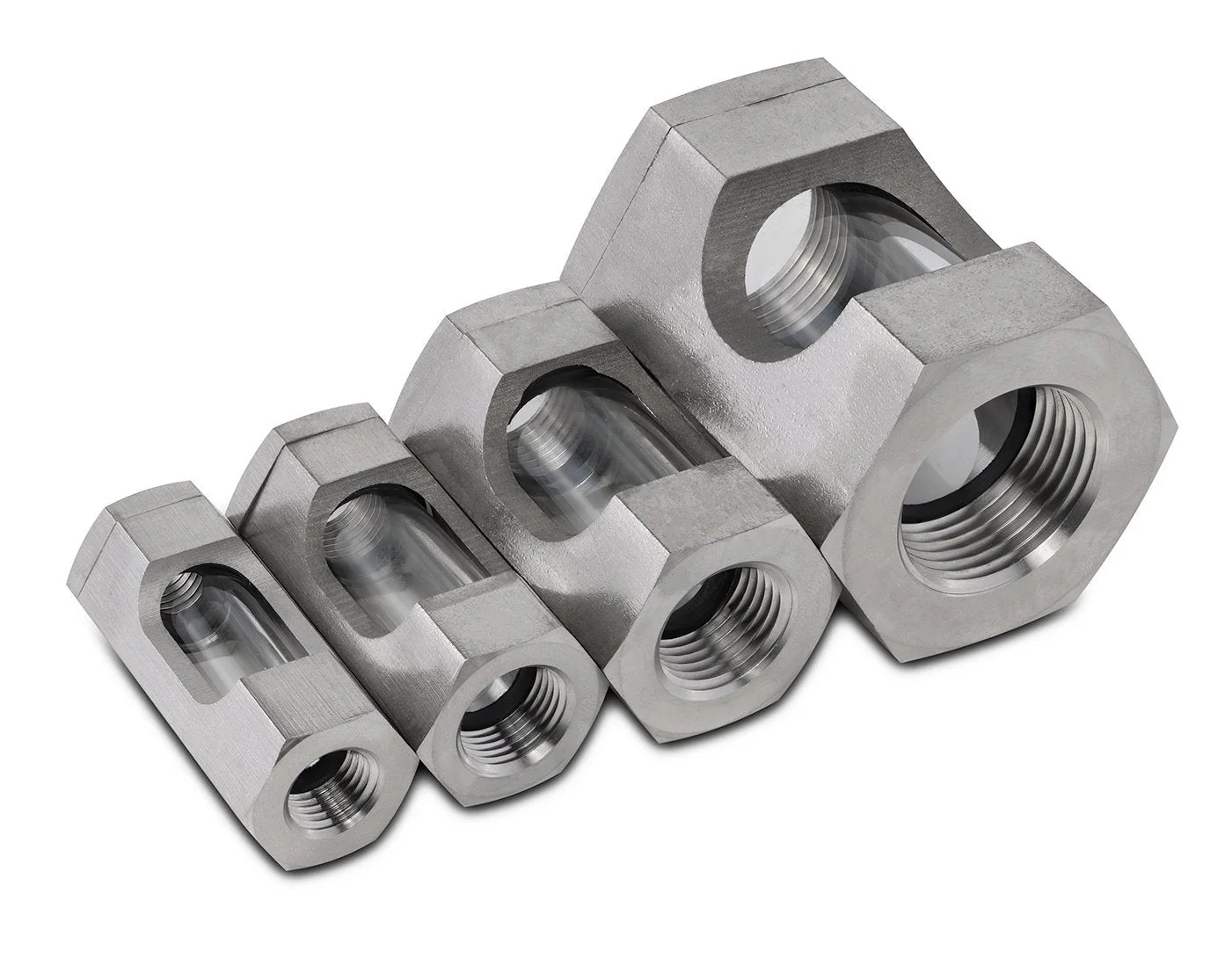

Compact In-line Sight Glass Female NPT Stainless Steel (Flow Sight)
The body of the flow sight is 304 stainless steel. The glass sight has a pressure tight, solid gasket design with Viton seals. The unit tolerates temperatures up to 180° F. The maximum recommended pressure is 125 PSI.
BVV™ FNPT Stainless Steel Sight Glass - Data Sheet
| Specifications | 1/4" | 3/8" | 1/2" | 1" |
|---|---|---|---|---|
| Body Material | 304 Stainless Steel | |||
| Gasket Material | Viton | |||
| Length | 2-3/16" | 2-1/4" | 2-1/2" | 2-7/8" |
| Width | 7/8" | 1" | 1-1/4" | 2" |
| Viewing Port Size | 1" | 1-1/8" | 1-3/16" | 1-1/4" |
| PSI Rating | 150 | 150 | 100 | 100 |
Select NPT Size
From $24.90
Original: $83.00
-70%Compact In-line Sight Glass Female NPT Stainless Steel (Flow Sight)—
$83.00
$24.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The body of the flow sight is 304 stainless steel. The glass sight has a pressure tight, solid gasket design with Viton seals. The unit tolerates temperatures up to 180° F. The maximum recommended pressure is 125 PSI.
BVV™ FNPT Stainless Steel Sight Glass - Data Sheet
| Specifications | 1/4" | 3/8" | 1/2" | 1" |
|---|---|---|---|---|
| Body Material | 304 Stainless Steel | |||
| Gasket Material | Viton | |||
| Length | 2-3/16" | 2-1/4" | 2-1/2" | 2-7/8" |
| Width | 7/8" | 1" | 1-1/4" | 2" |
| Viewing Port Size | 1" | 1-1/8" | 1-3/16" | 1-1/4" |
| PSI Rating | 150 | 150 | 100 | 100 |
