Diffusion Pump Flange Kit for ULK-04A

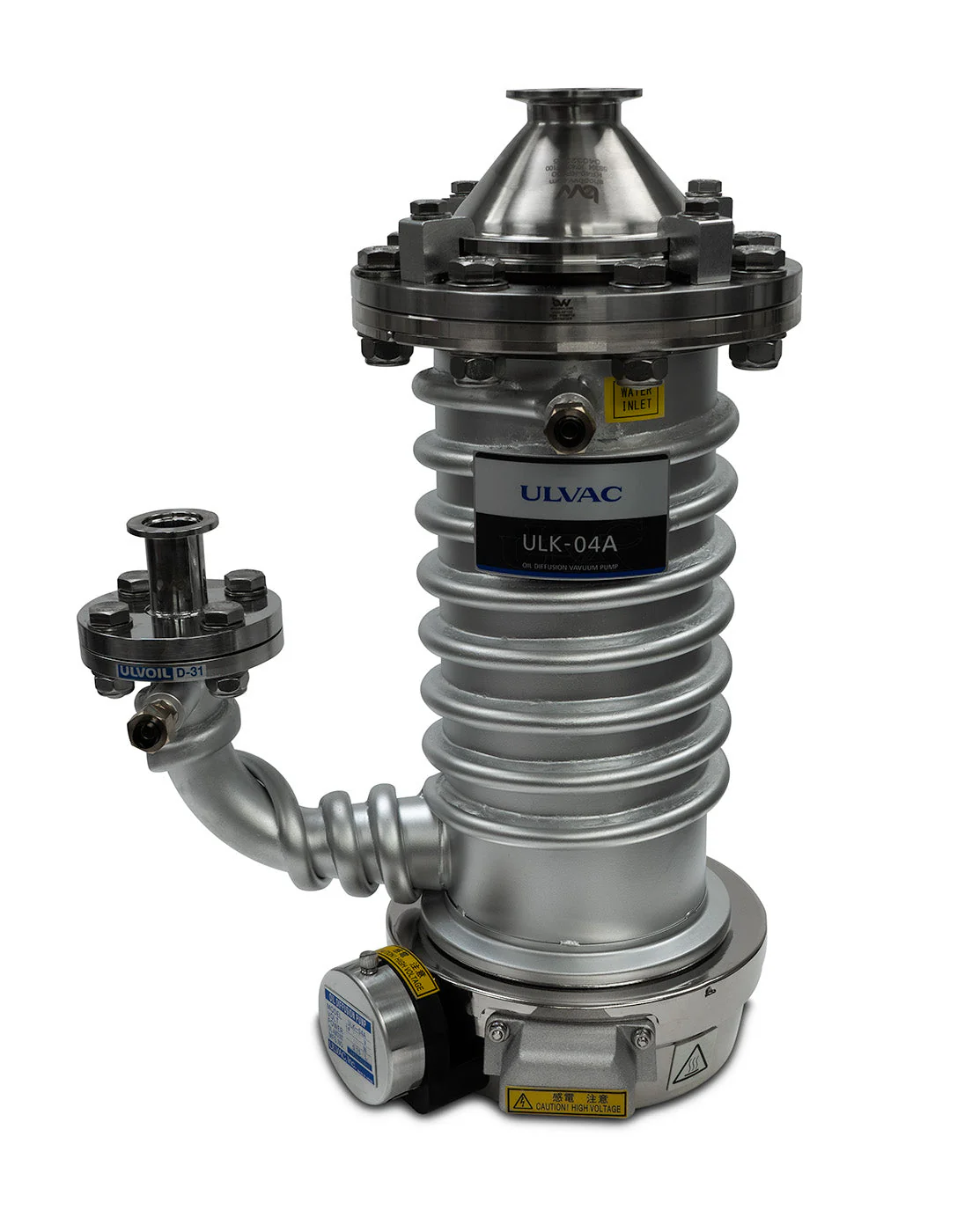

This stainless steel flange kit will convert intake and exhaust connections on your ULVAC ULK-04A* diffusion pump to a KF vacuum system. This kit includes the flanges shown, along with all the stainless steel hardware needed to attach all the parts to the diffusion vacuum pump.

Intake Size: KF-40 (NW-40)

Exhaust Size: KF-25 (NW-25)

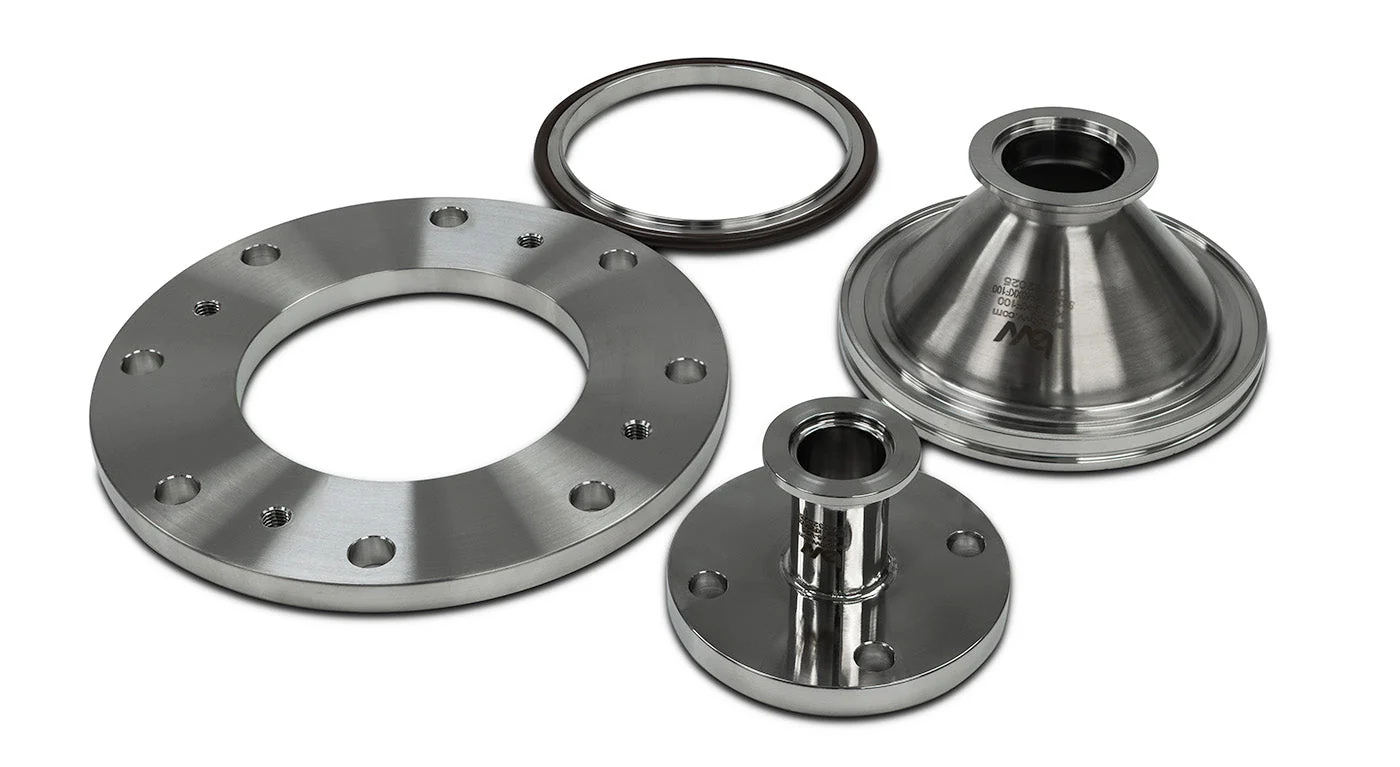

Included:

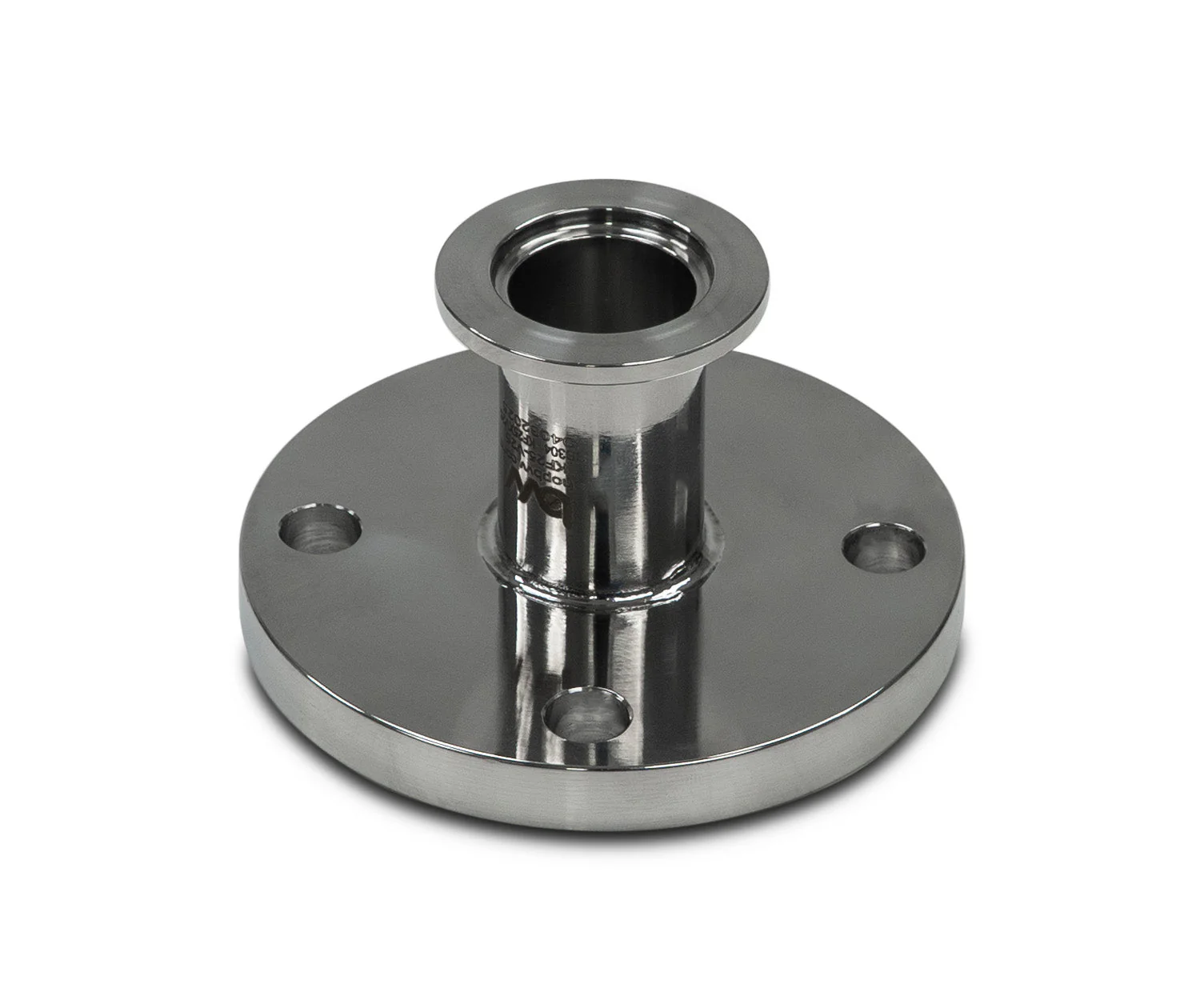

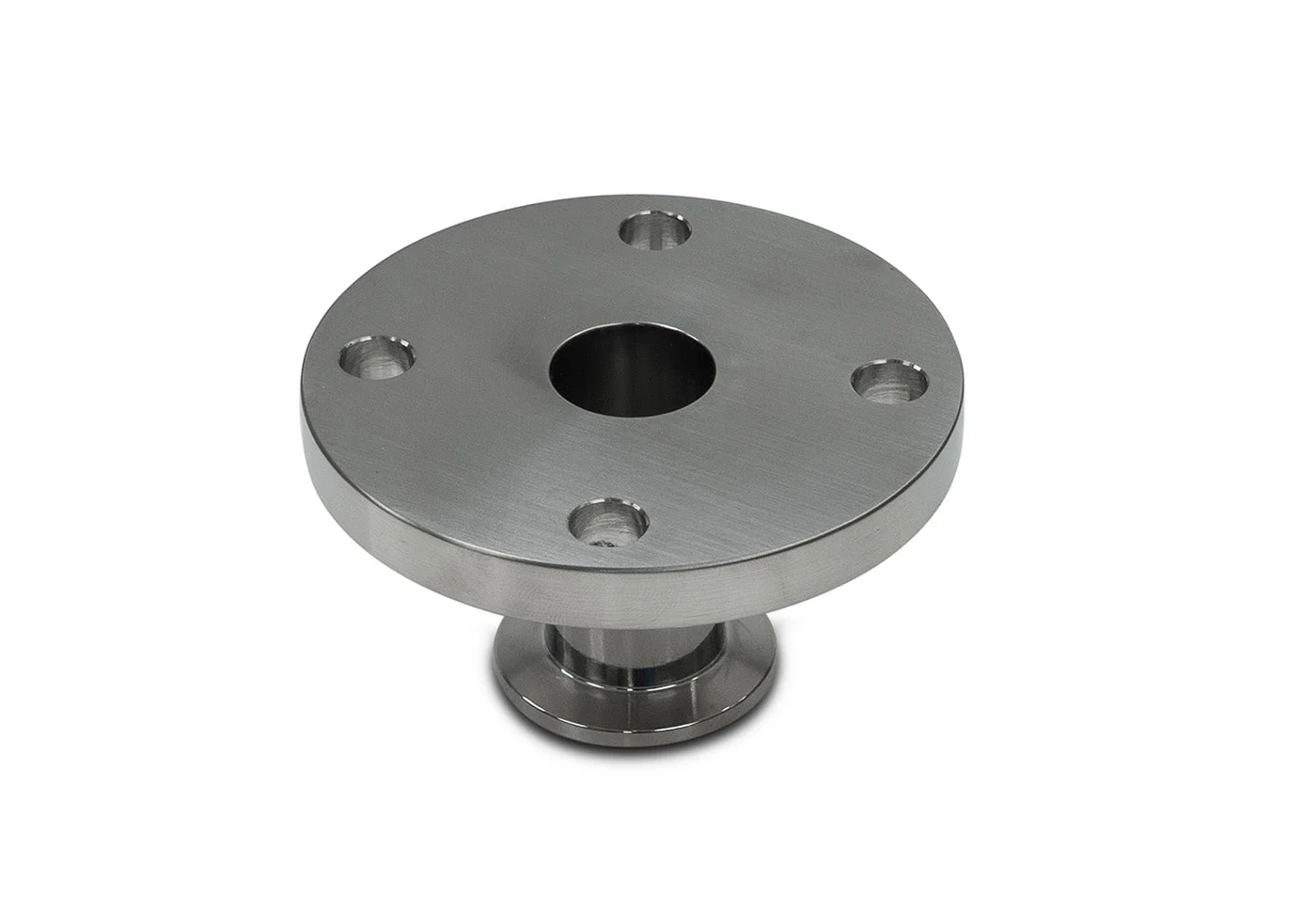

• V25 - KF-25 Adapter (Exhaust)

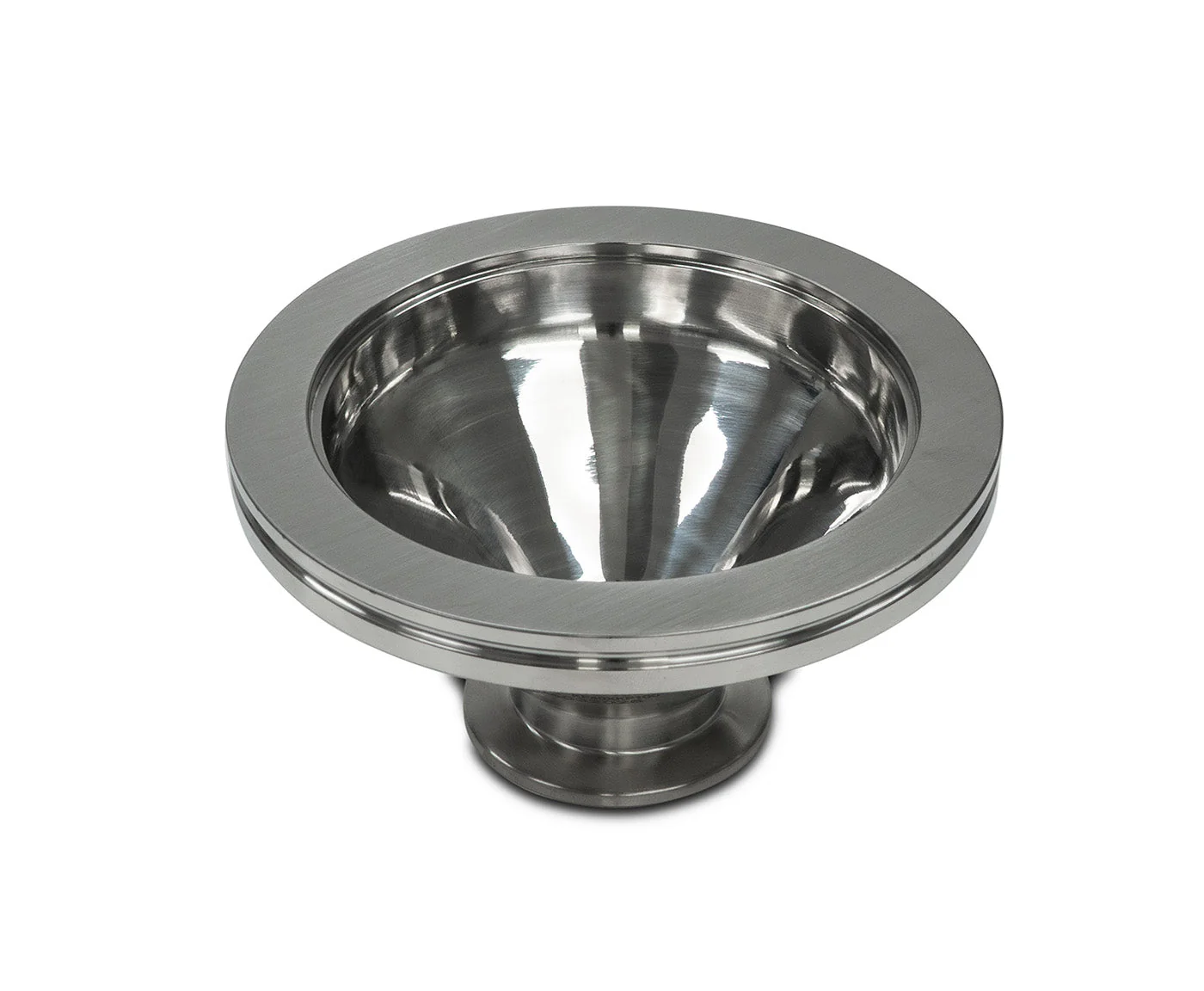

• V100 - KF-100

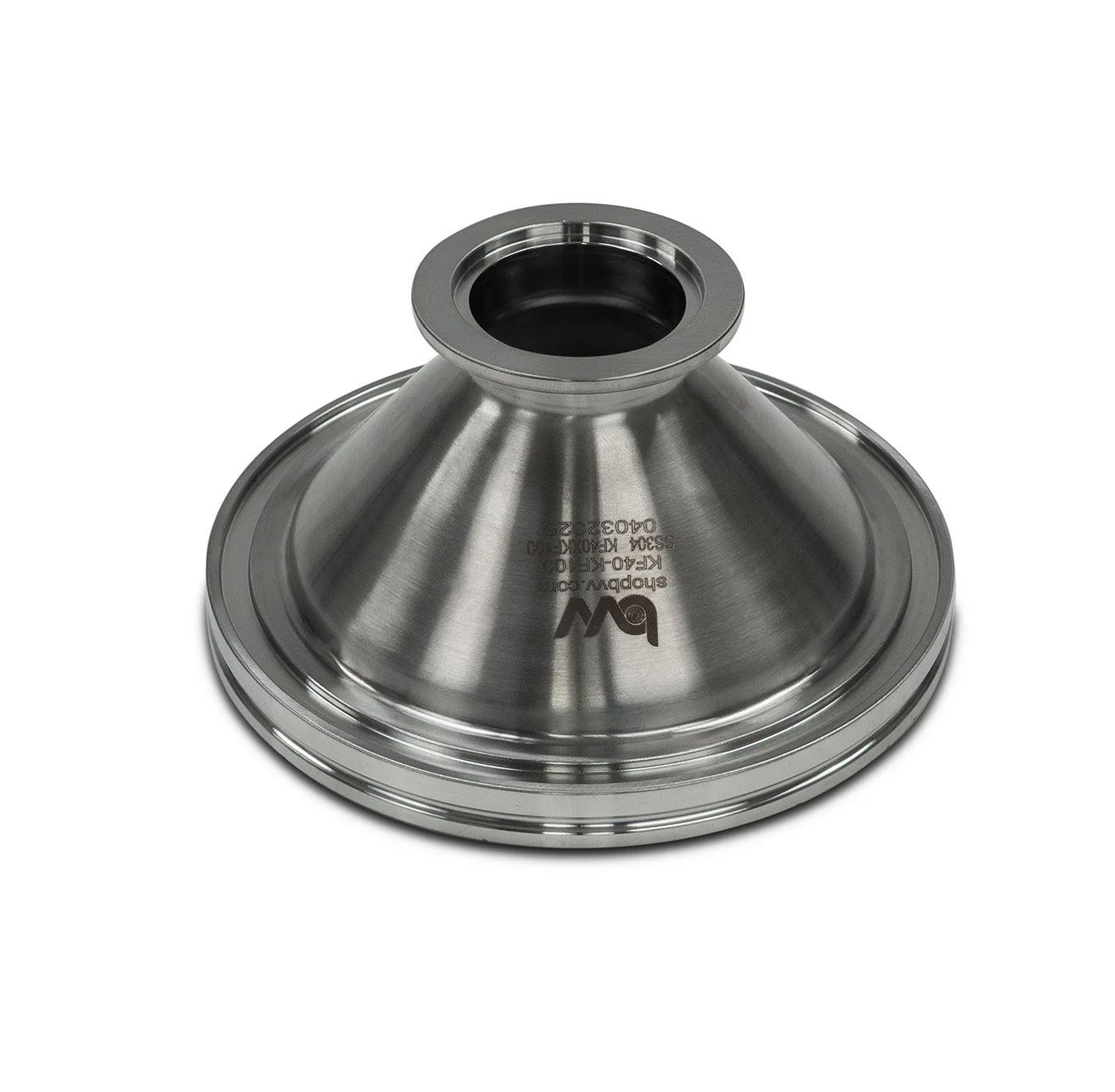

• KF-100 - KF-40
• KF-100 O-Ring
• 4x KF-100 Clamp bolts
• 4x M10 Bolts
• 4x M10 Nuts
• 8x M10 Washers
• 8x M12 Bolts
• 8x M12 Nuts
• 16x M12 Washers



*Pump is not included
