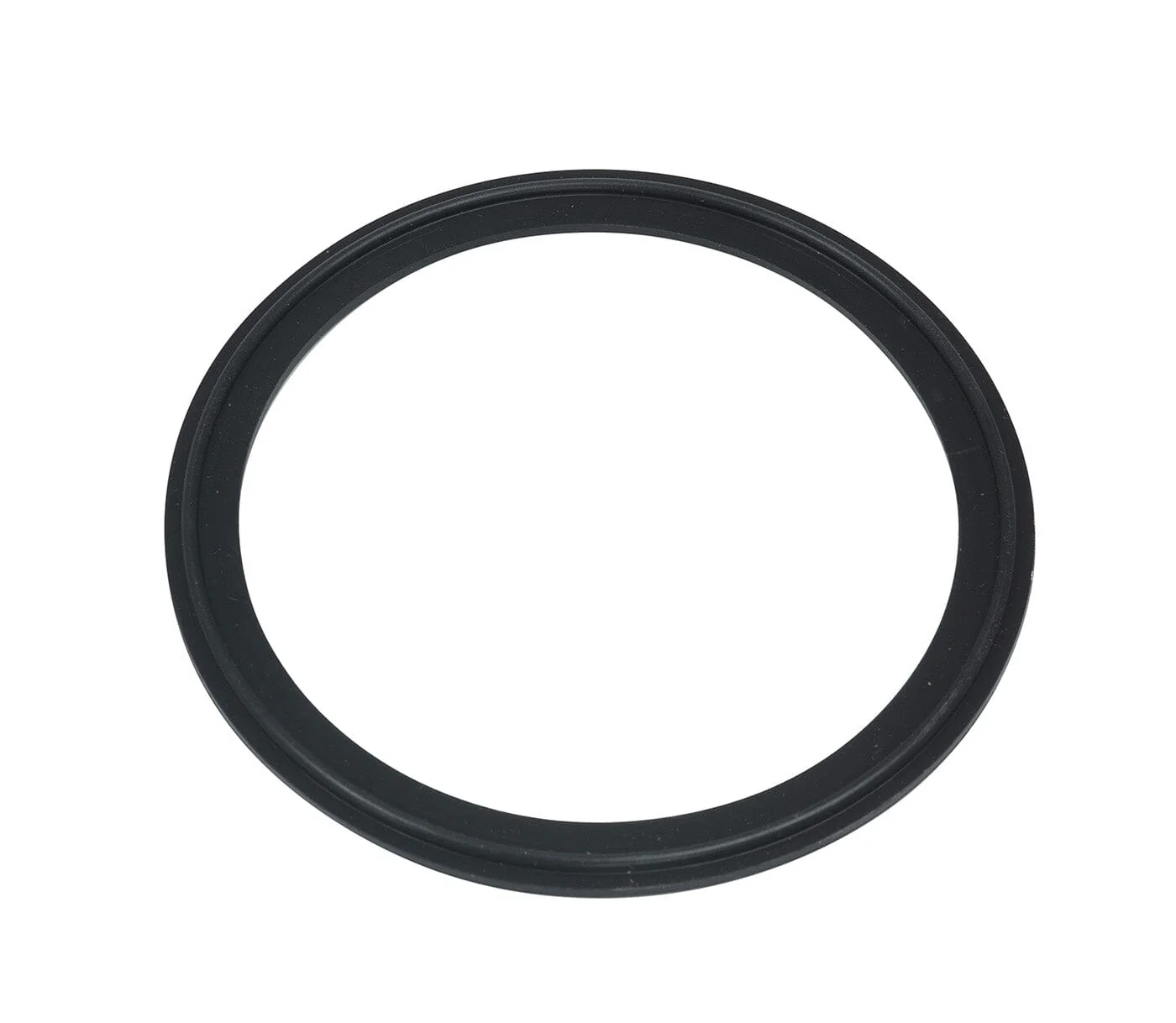

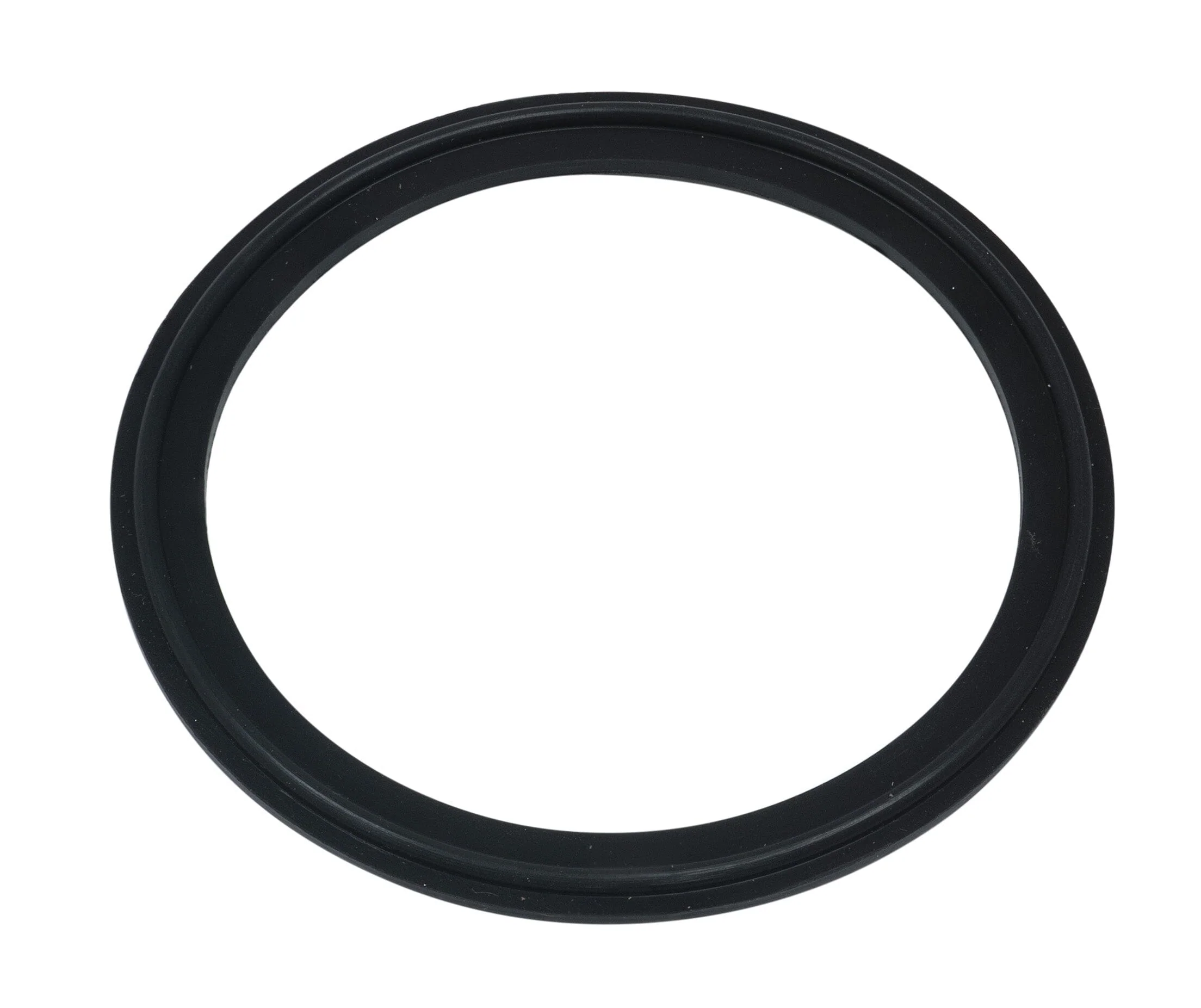

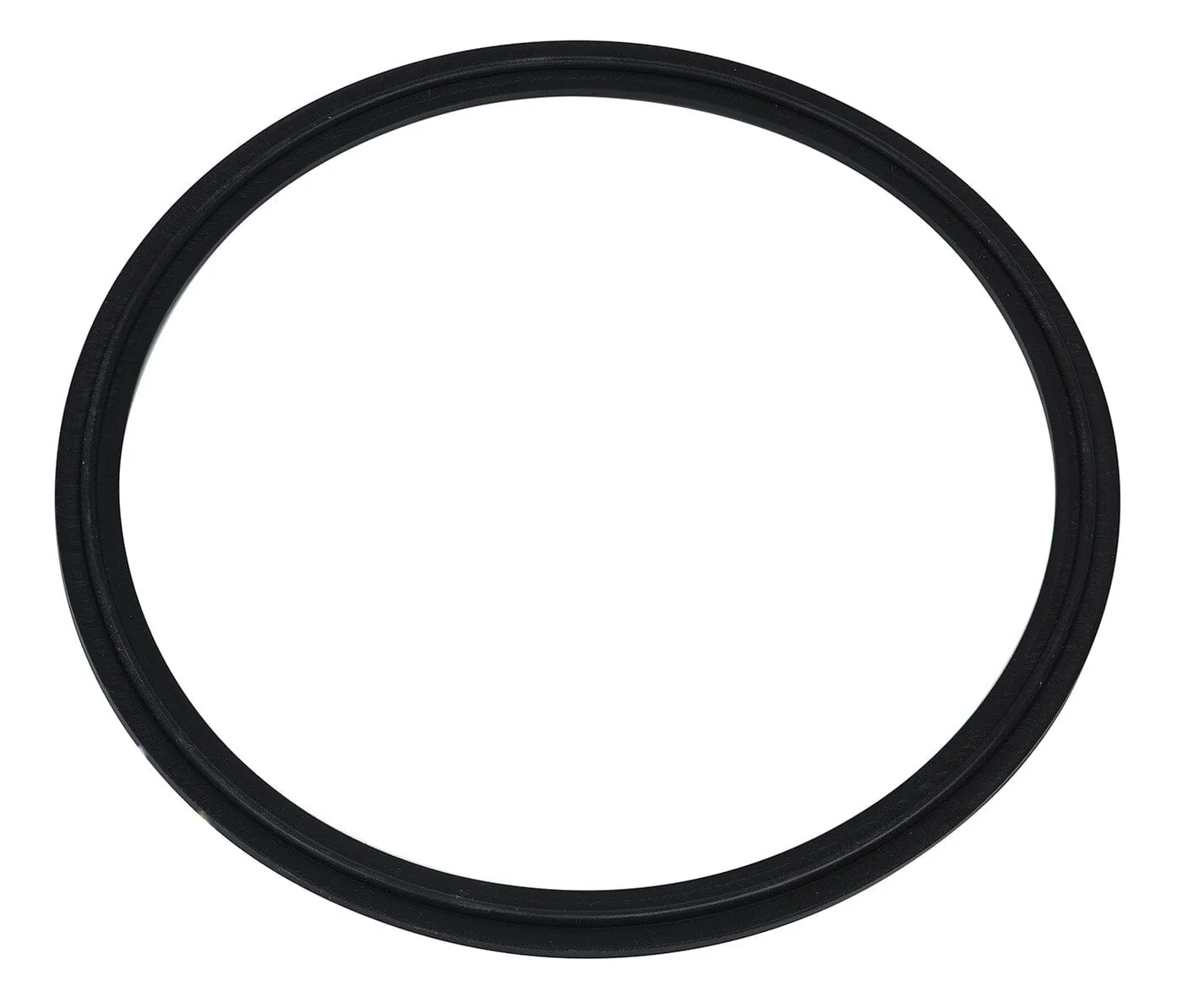

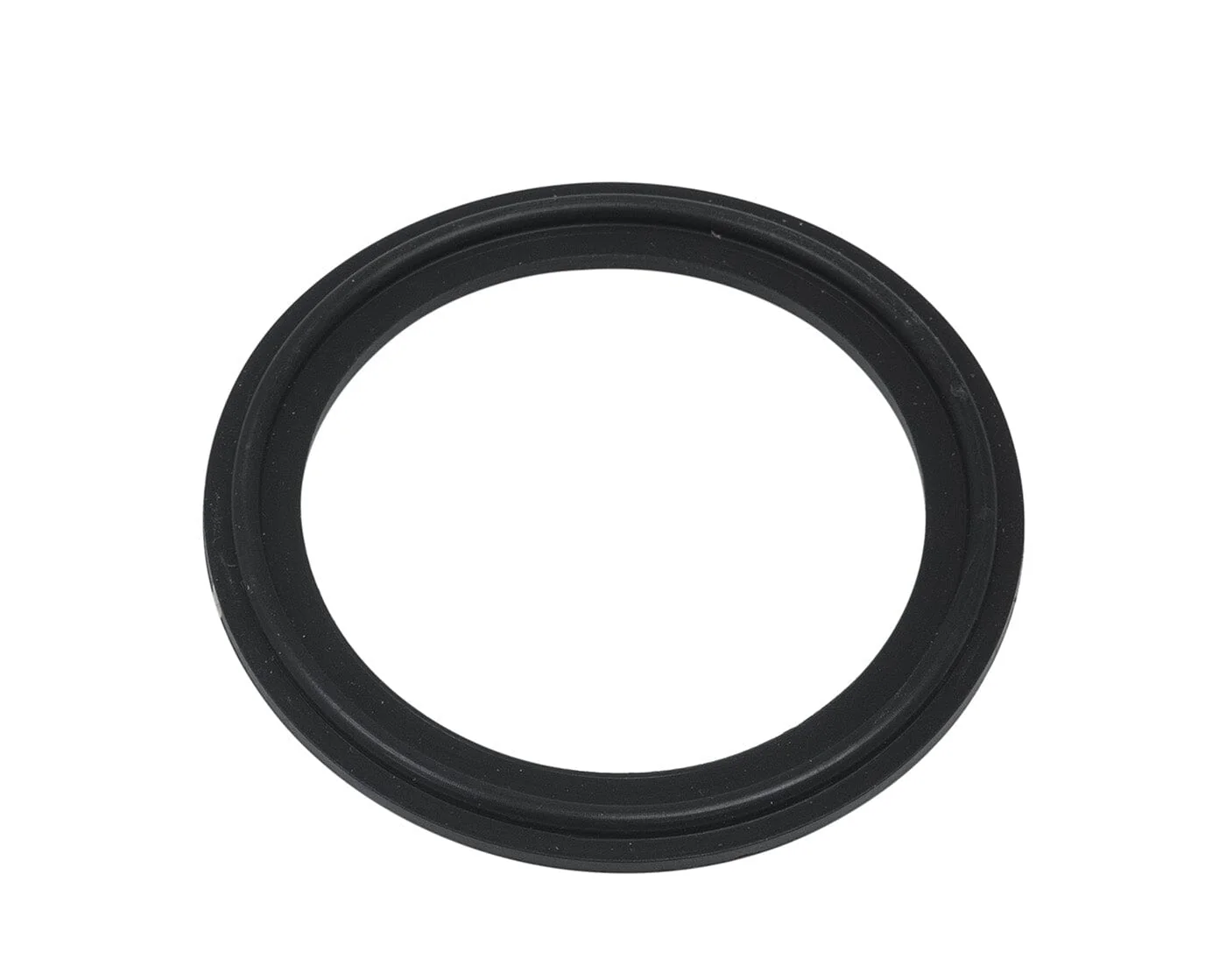

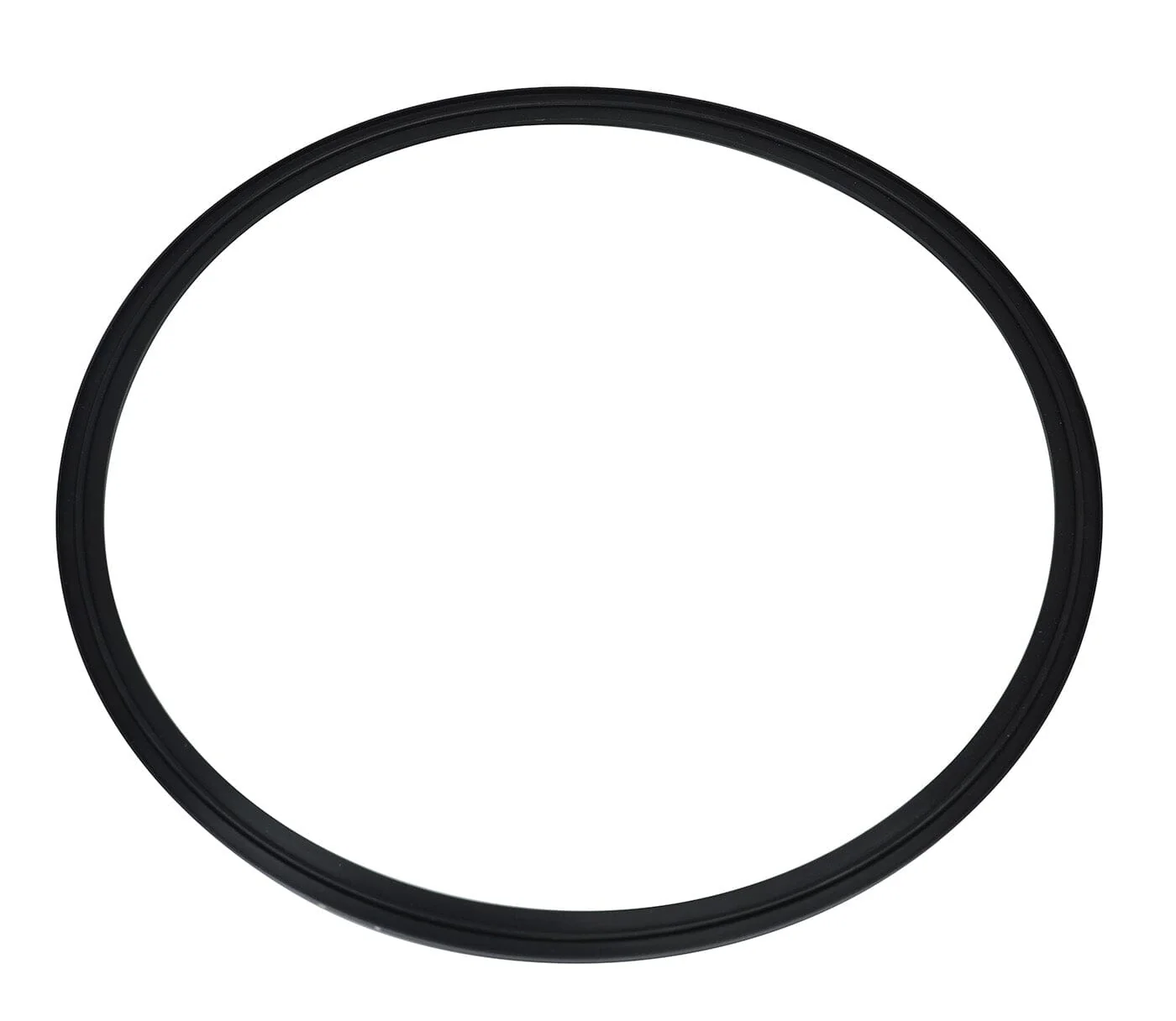

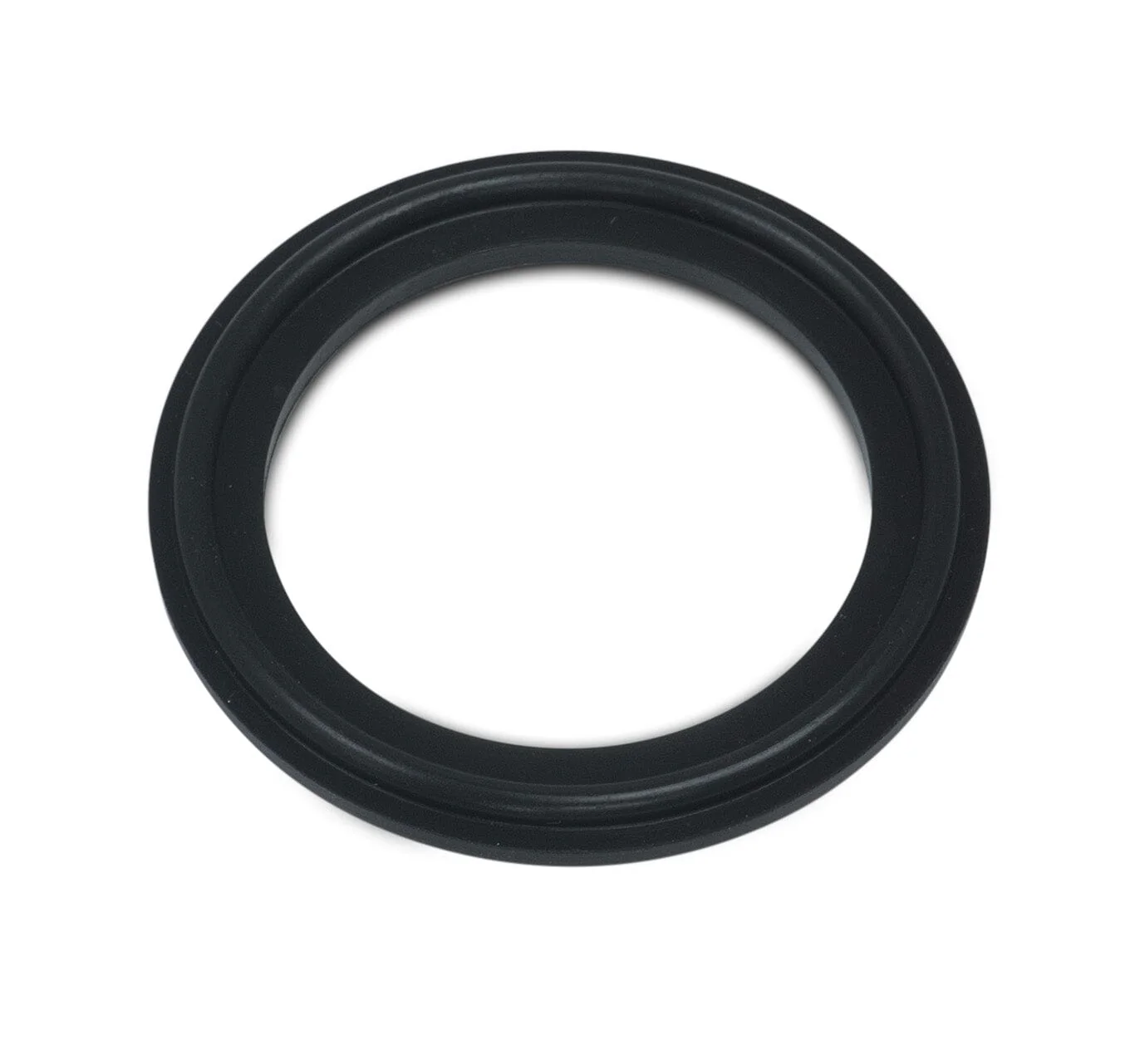

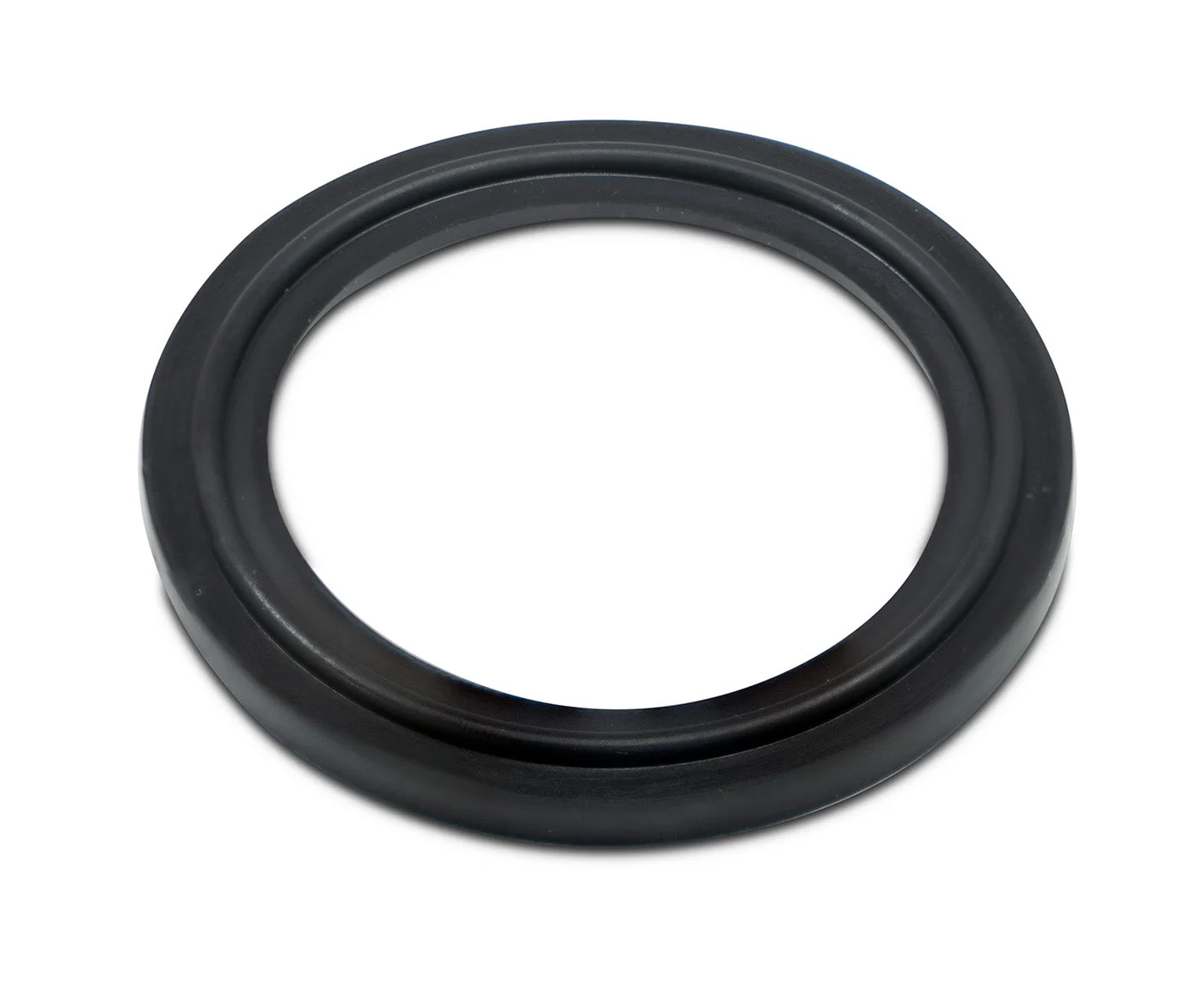

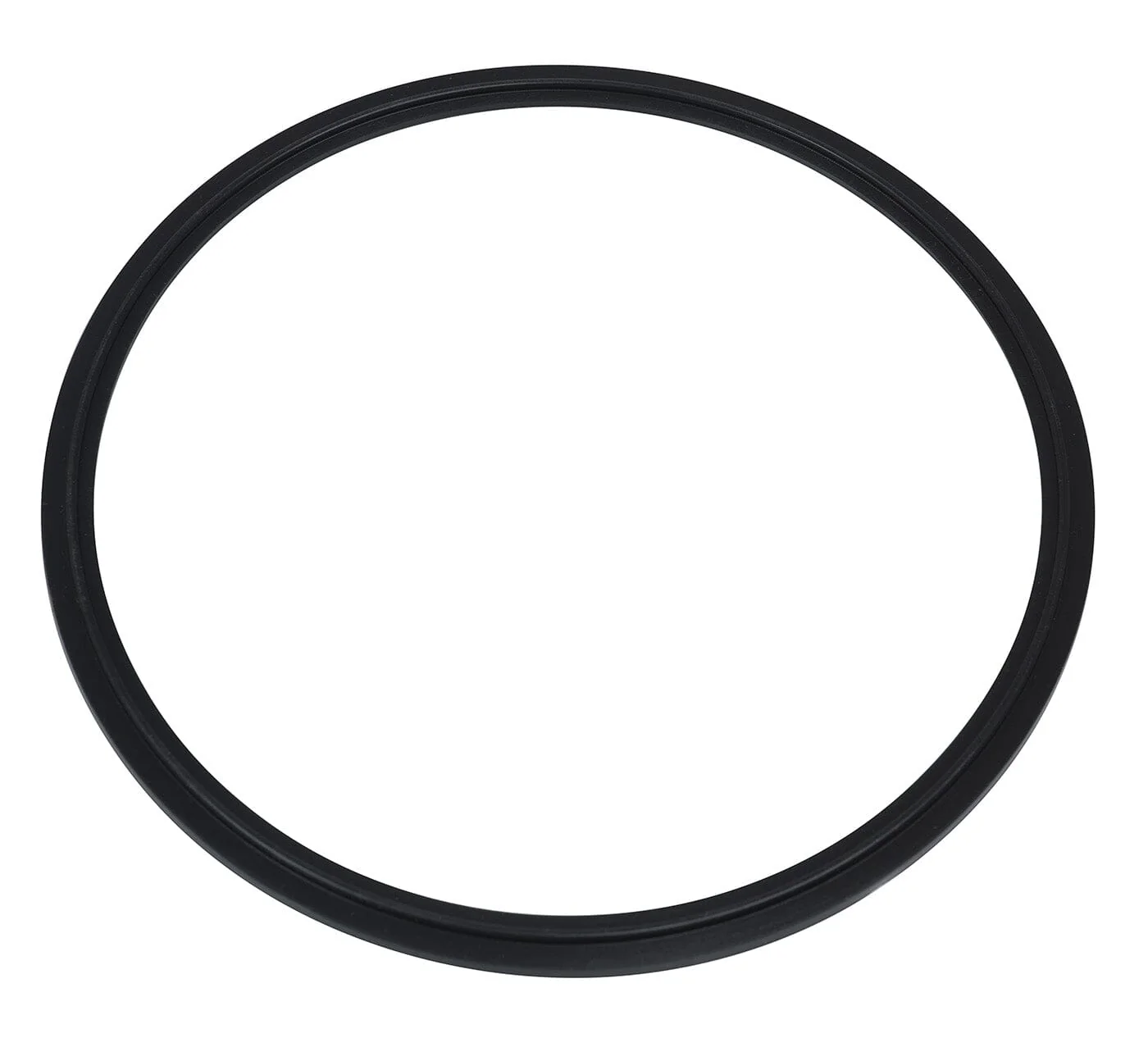

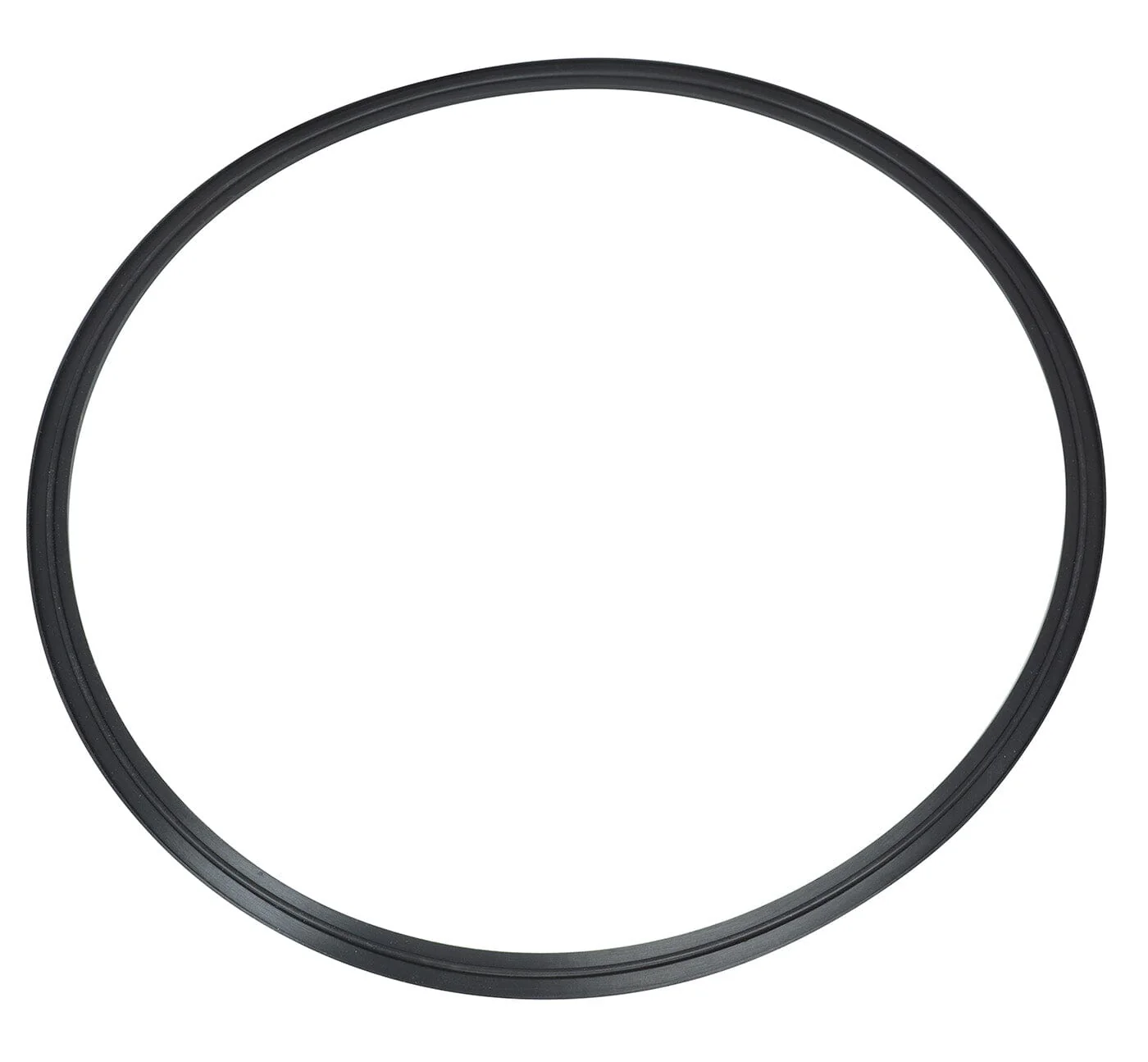

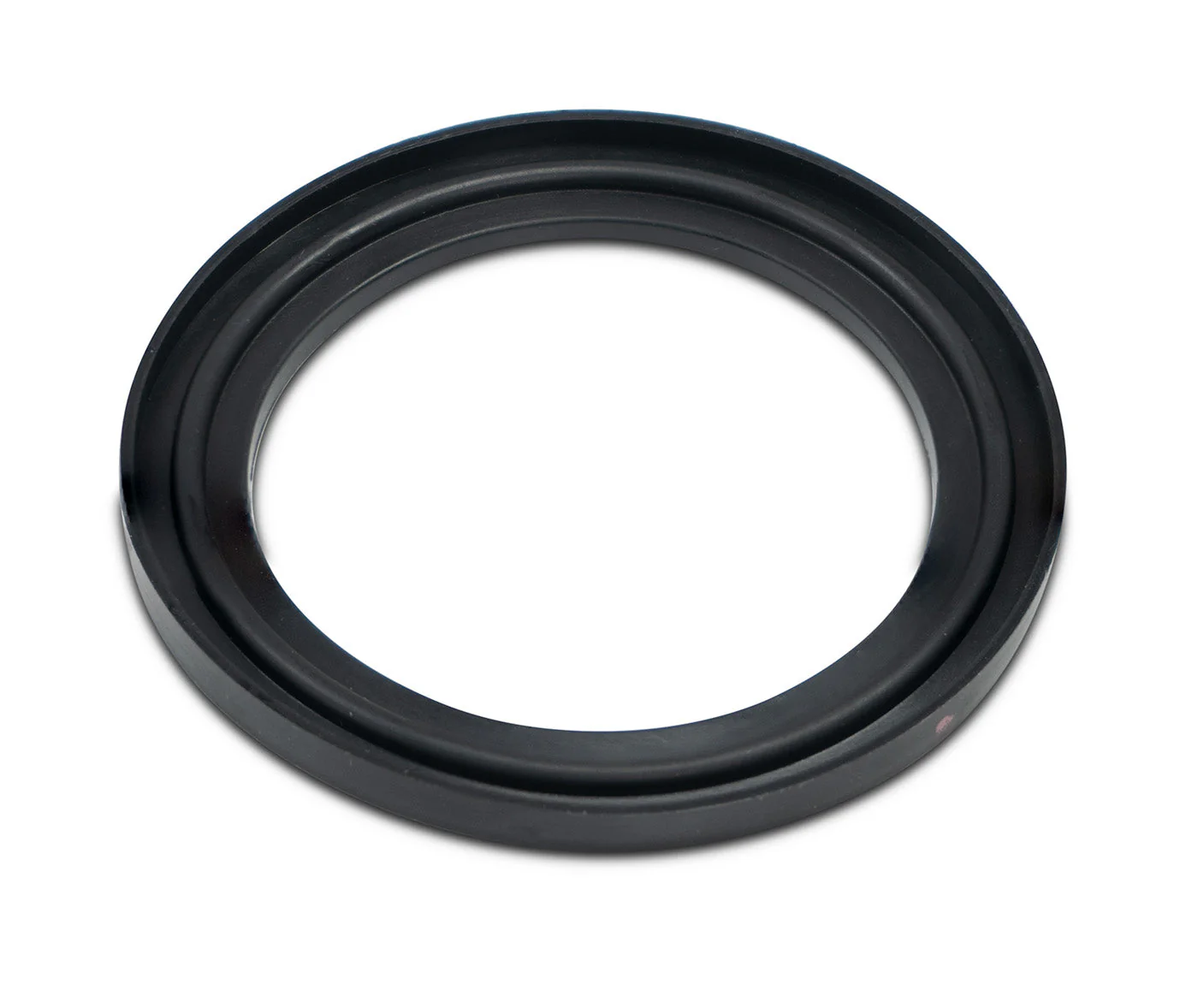

FKM Viton Tri-Clamp Gaskets
FKM Viton Tri-Clamp Gaskets
Fluoroelastomer (FKM) gaskets are a great option for using higher temperatures in a closed-loop system or other steps of the extraction process including filtration and decarbing. FKM offers an excellent chemical compatibility with numerous solvents.
FKM Gaskets offer a higher temperature rating and better chemical compatibility than Buna rubber.
Key Features:
- High-temperature range
- Better compressibility and springiness
- Excellent resistance to butane and propane
- Better tear resistance
- Better chemical resistance
- USP Certified
- FDA CFR 177.2600 – Rubber and Rubber-Like Material for Repeated Use/Contact with Food.
- FDA CFR 177.1550 – Fluorocarbon Resins for Repeated Use/Contact With Food, Dairy & Pharmaceutical Products.

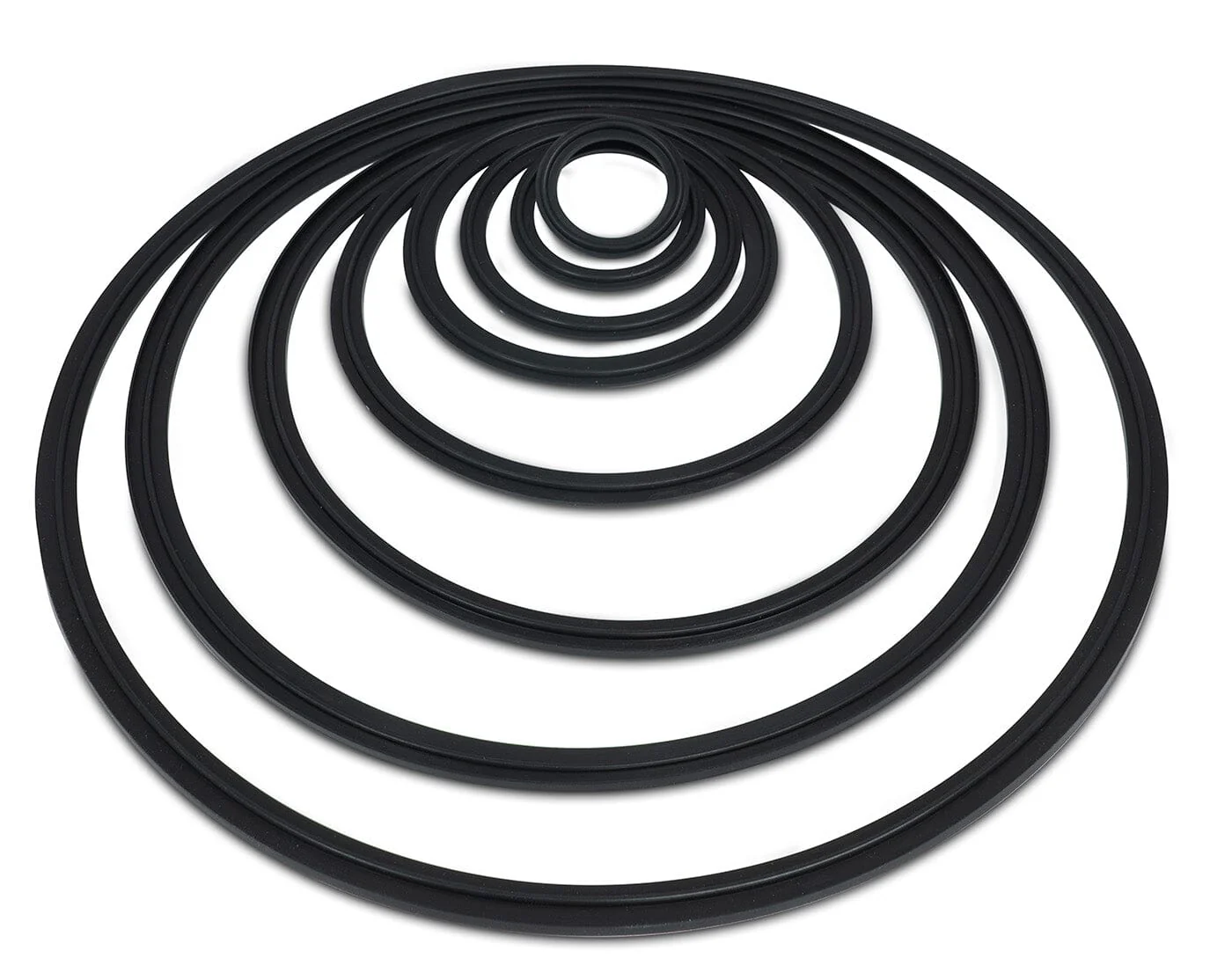

Sizes Available:
- 1.5"
- 2"
- 3"
- 4"
- 6"
- 8" - easy on flanged
- 10" - easy on flanged
- 12" - easy on flanged
| Technical Specifications: | ||
|---|---|---|
| Material: | Viton (FKM) | |
| Color: | Black | |
| Connection Type: | Tri-Clamps | |
| Conformance: | FDA Compliant / Meets 3A Standards | |
| Thermal Properties: |
-Low Temperature Range | -49°F |
| -Minimum For Continuous Use (Static) | -15°F | |
| -Brittle Point | -49°F | |
| -High Temperature Range | +400°F | |
| -Maximum for Continuous Use (Static) | +400°F | |
| Gas Permeability: | Excellent | |
| Chemical Compatibility: | ||
|---|---|---|
| Butane | A - Excellent | |
| Propane (liquified) | A - Excellent | |
| Alcohols: | -Amyl | A - Excellent |
| -Benzyl | A - Excellent | |
| -Butyl | A - Excellent | |
| -Diacetone | D - Severe Effect | |
| -Ethyl | A - Excellent | |
| -Hexyl | C - Fair | |
| -Isobutyl | B - Good | |
| -Isopropyl | A - Excellent | |
| -Isopropyl | A - Excellent | |
| -Methyl | C - Fair | |
| -Octyl | B - Good | |
| -Propyl | A - Excellent | |
BVV is not responsible if incompatible chemicals, solvents, or operating temperatures are used in the user's system.
