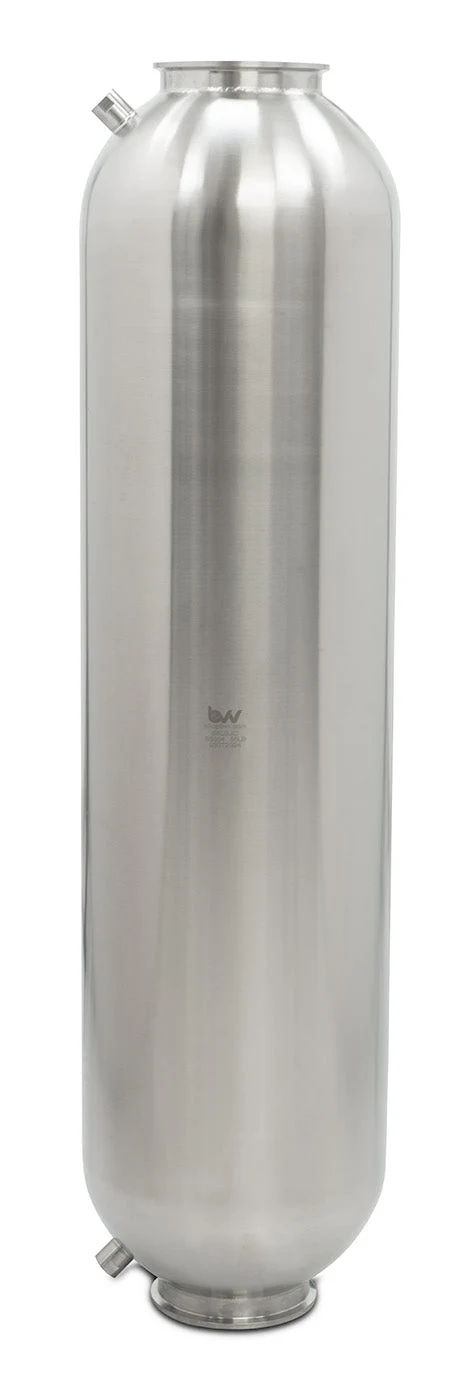

Jacketed Collection Column (6in Tri clamps)

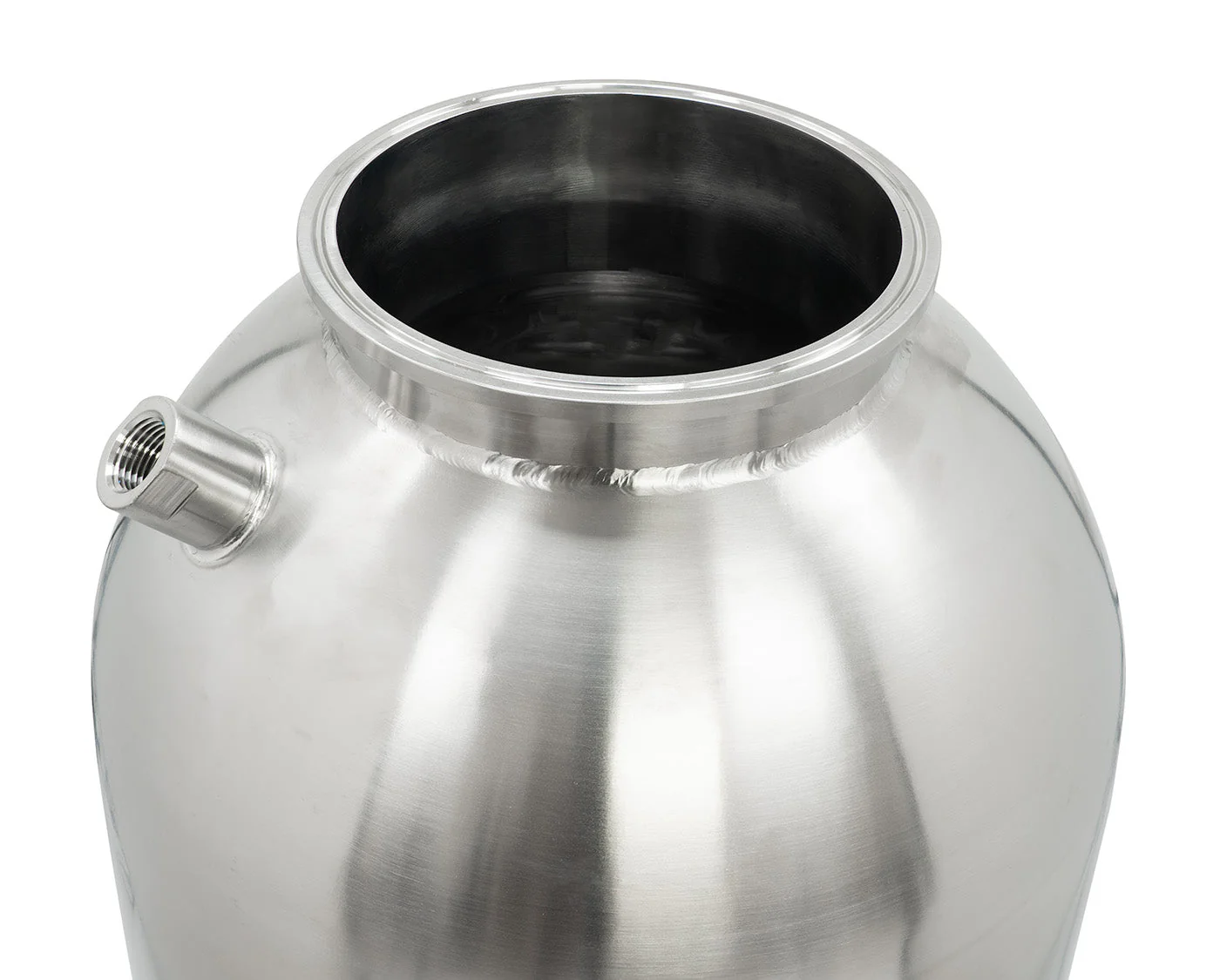

This column can be used as a collection or solvent vessel for a larger rack mounted extractor. The top and bottom tri clamp size are 6" to allow for a higher pressure rating on the entire vessel. The jacket of the vessel is baffled and has 1/2" NPT ports to run fluid through for good temperature control. This column is intended to hold 55lbs of hydrocarbon solvent, it can be rack mounted with 12" pipe hangers.
Max Pressure: 300psi @70°F (dependent on clamp used)
Material: 304 Stainless Steel
Capacity: 55 Liters
Height: 48"
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This column can be used as a collection or solvent vessel for a larger rack mounted extractor. The top and bottom tri clamp size are 6" to allow for a higher pressure rating on the entire vessel. The jacket of the vessel is baffled and has 1/2" NPT ports to run fluid through for good temperature control. This column is intended to hold 55lbs of hydrocarbon solvent, it can be rack mounted with 12" pipe hangers.
Max Pressure: 300psi @70°F (dependent on clamp used)
Material: 304 Stainless Steel
Capacity: 55 Liters
Height: 48"
