Large 1-Micron Refinement Filter

Large 1-Micron Refinement Filter

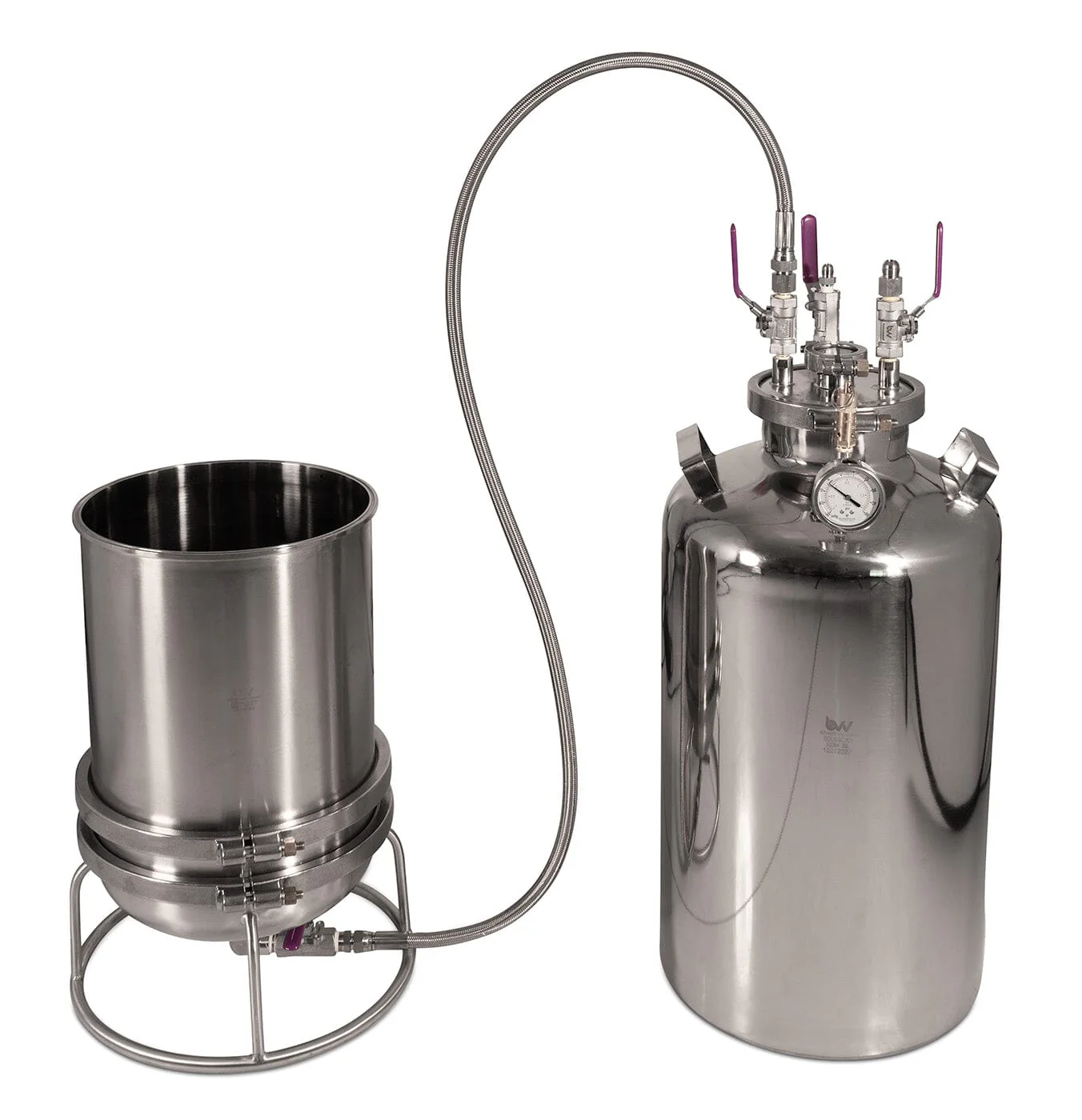

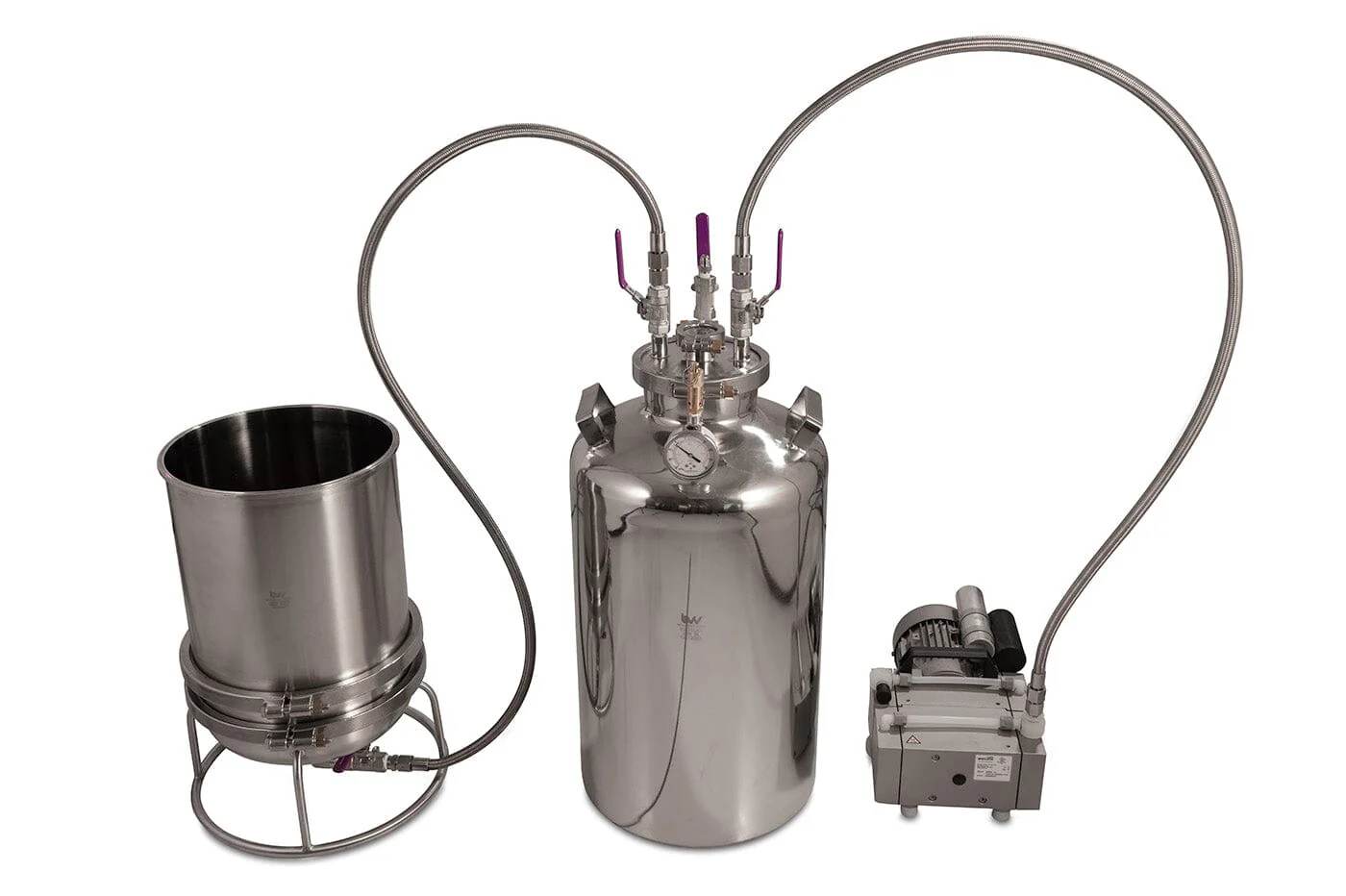

Filter large volumes of solutions with ease with our  Large 1-micron Refinement filter. complete with our 1-micron Dutch Weave sintered disk these refinement filters provide complete retention of the filter paper making it impossible for suspended particles to bypass the filter paper. Made from the highest quality 304 stainless steel parts this large refinement filter is built to last making it a great alternative to polypropylene filter trolleys. Our Large 1-Micron Refinement filter is available as a complete kit with and without the a Welch BTpro100 Diaphragm Pump.

Processing Power

• Funnel Capacity: 22.24 Liters/5.88 Gallons
• Collection Capacity: 50 Liters/13.2 Gallons

Specifications

• 12"x12" Funnel Body
• 12" 1um Dutch Weave Sintered Disk

• 12" Hemispherical Ring stand
• 1/2" JIC Drain Valve
• 50L  Stainless Steel Carboy Collection base
• -30Hg  Vacuum Gauge

• 1/2" JIC Vacuum Port
• 3/8" JIC Diptube Valve
• 1/4" JIC Butterfly Accessory Valve
• 350MM Ashless Filter Paper
• Silicone Gaskets
