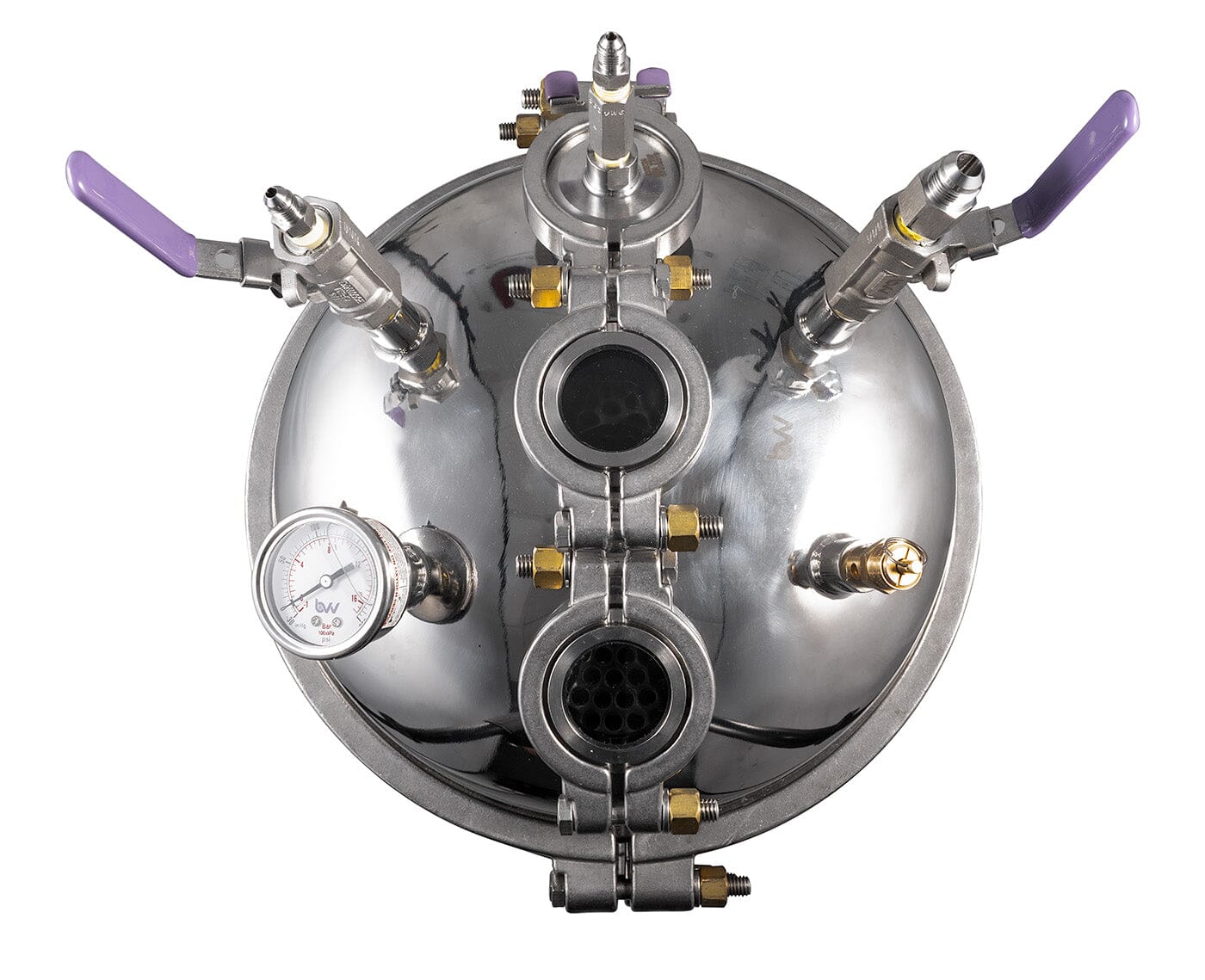

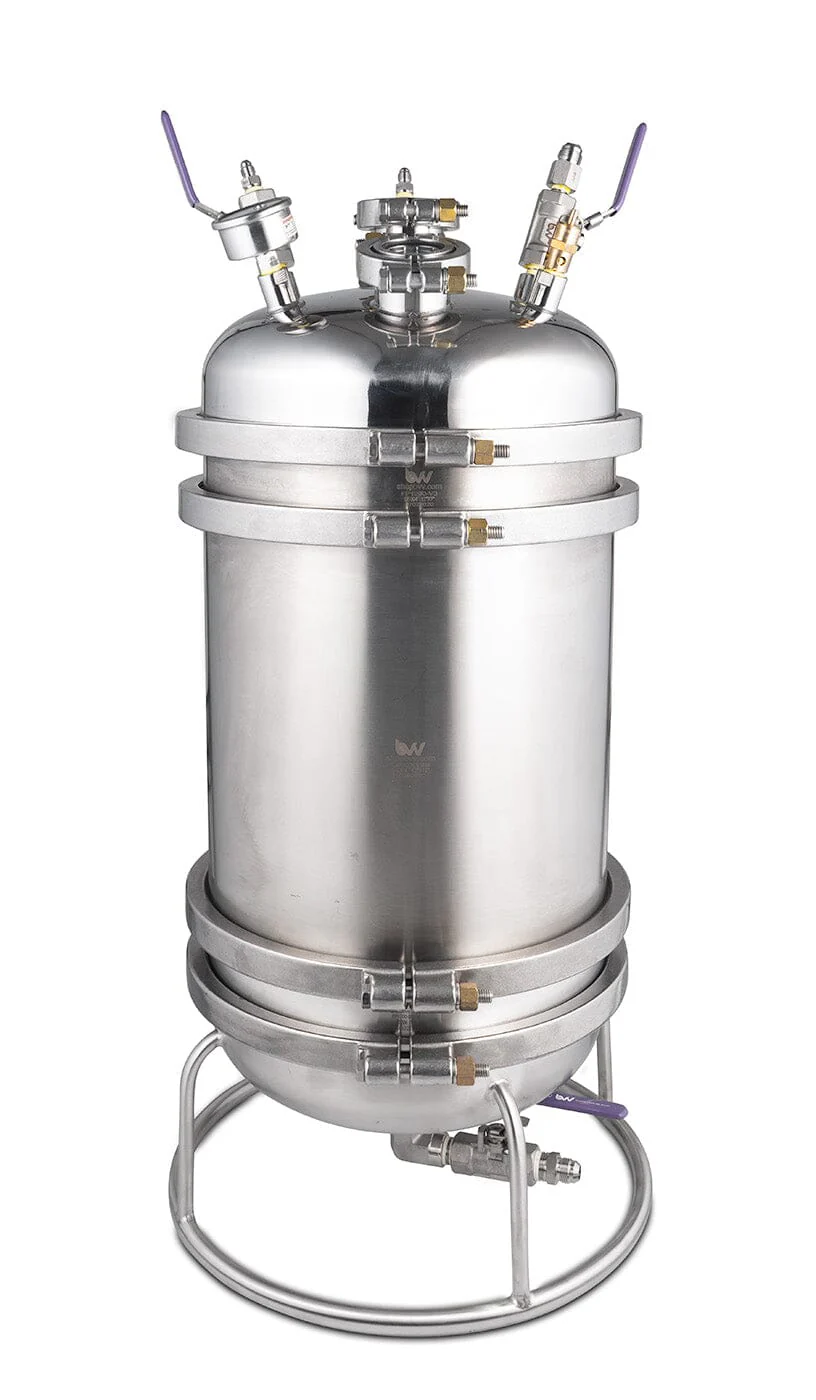

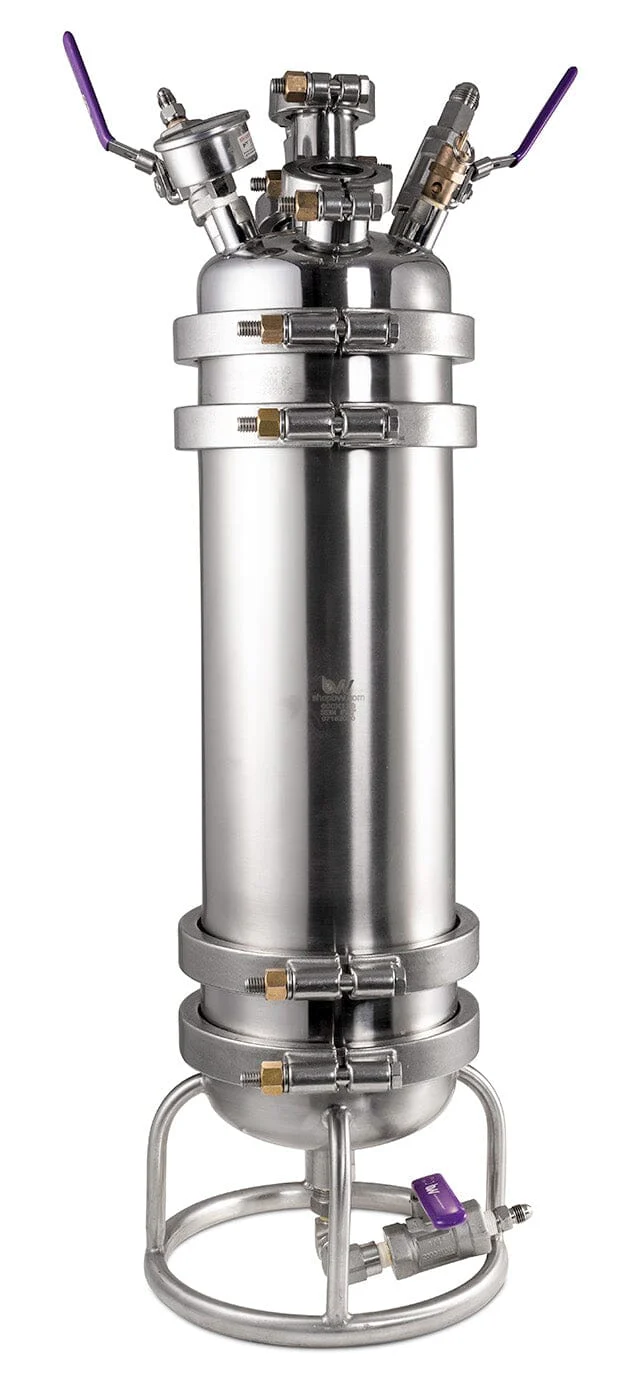

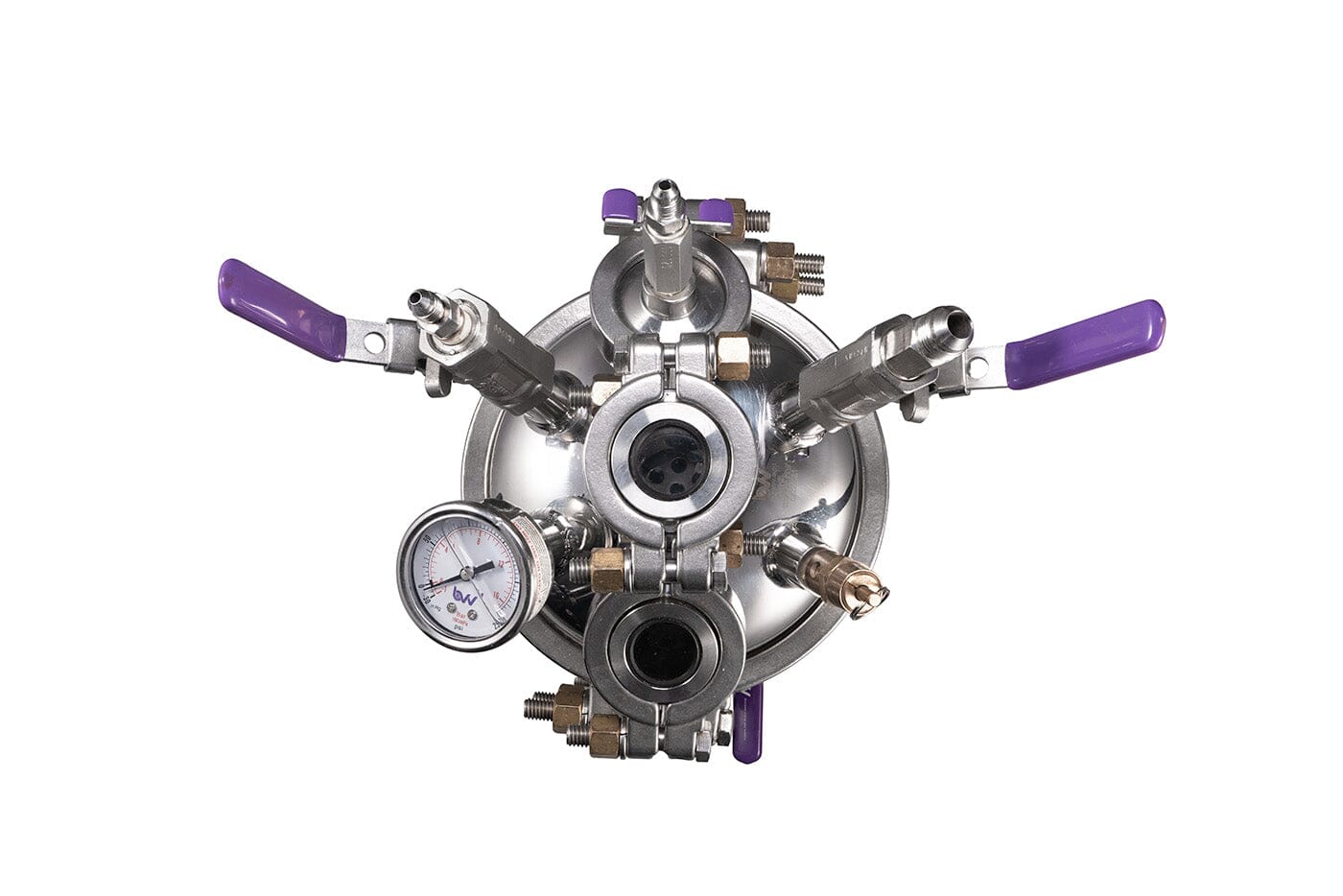

Nitrogen Pressure Filter

Nitrogen Pressure Filter

Is vacuum filtration bottlenecking your processing? Filter faster with BVV's Nitrogen assisted pressure filters.  Designed for versatility our prebuilt pressure filters come complete with our 1 micron Dutch Weave Sintered disk for ultra-fine filtration. Process continuous or batch-style solutions in half the time compared to most vacuum filtration applications.

Specifications

• 6"x12" or 12"x12" filtration body

• 1um  Dutch Weave Sintered disc
• Filter Plate Retention Ring
• Fast Flow Filter paper Included
• Solvent dispersal plate
• 2X Borosilicate Sight Glasses
• 1X 125 PSI ASME Safety Valves
• 1X -30hg-250PSI Compound Pressure Gauges
• 1X 1/2" JIC Lid Valve
• 2X 1/4" JIC Lid Valves
• 1X JIC Drain Valve (6NPS: 1/4" 12NPS: 1/2" JIC)
• Maximum Pressure Rating: 125PSI
