PhotonTek Extension Cable 5m LED Driver Remote

Product image 1
Product image 2

PhotonTek Extension Cable 5m LED Driver Remote

Description

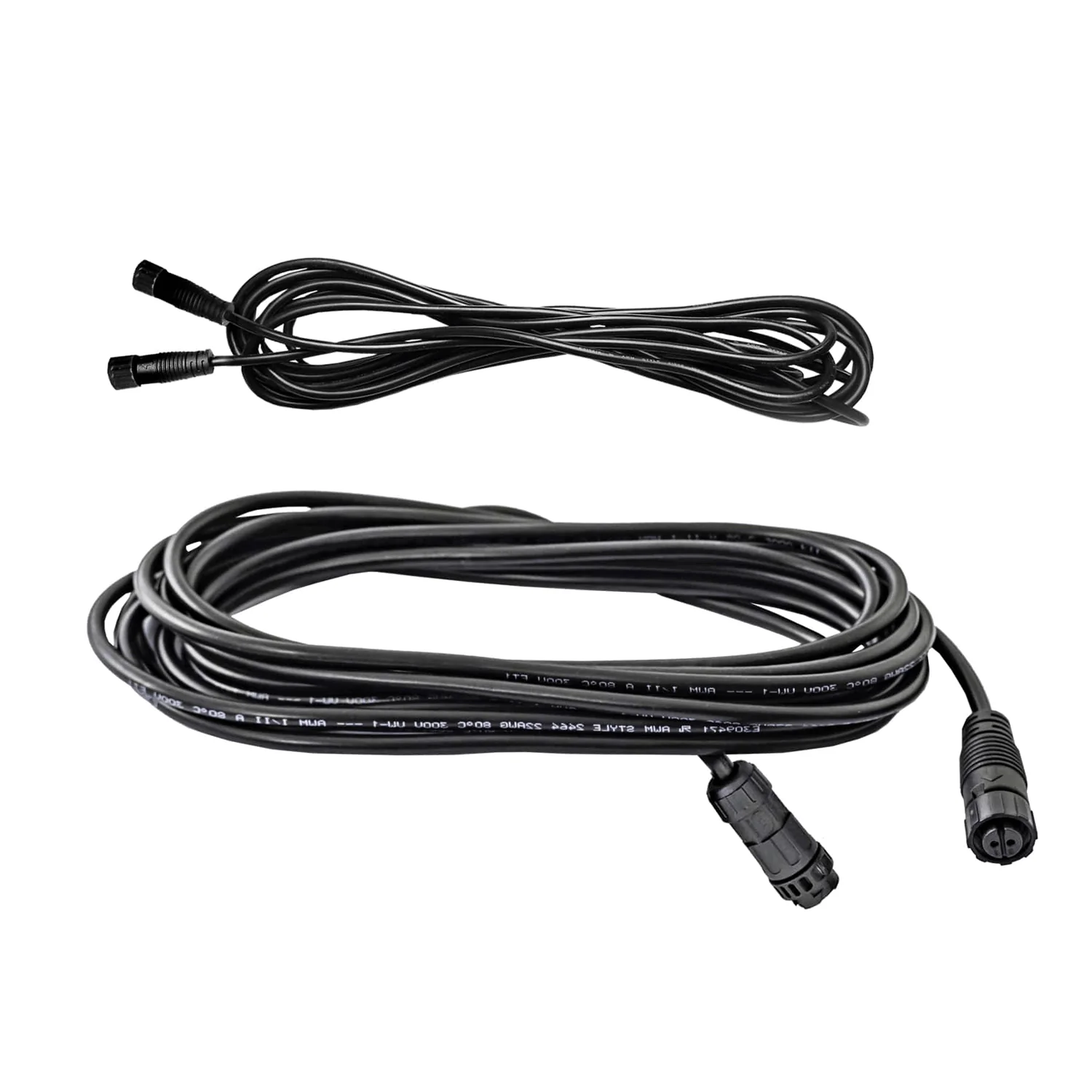

  • Dependable Extension Cables: These two 16ft (approx. 5m) long Extension Cables are built to provide a stable connection between the PhotonTek driver and LED fixture, particularly when the driver is located remotely from the fixture. Composed of two elements, these cables negate any interference during operation.

  • Power Cable for LED Driver: The M19-2 Self-locking male and female injection molding with 16ft (approx. 5m) extension cable adds flexible control. The wire gauge of the cable is UL SJTW 2x16AWG 300V 221ºF.

  • Durability and Safety Measures: The cable can withstand a voltage of 500 VAC at 2mA for 3 seconds without breakdown or leakage. It boasts an insulation resistance of 100M?@100V and a temperature resistance of 221ºF. Suitable for working temperatures between -4ºF and 221ºF and storage temperatures between -13ºF and 221ºF. Complies with RoHS standards.

  • Extension Dimming Cable for LED Driver: The second cable in the pair is the M12 Self-locking male and female injection molding with 16ft (approx. 5m) extension cable for dimming function. This cable possesses a wire gauge specification of UL 21996 3×22AWG 300V 221ºF VW-1.

  • Durability and Safety Measures: Like the power cable, this dimming cable can withstand a voltage of 500 VAC at 1mA for 3 seconds without any breakdown or leakage. The insulation resistance equals 100M?@100V, and the cable ensures temperature resistance up to 221ºF. The working and storage temperature ranges are the same as the power cable, running from -4ºF to 221ºF and -13ºF to 221ºF respectively. This product also complies with RoHS standards.
    • $30.00

    Original: $99.99

    -70%
    PhotonTek Extension Cable 5m LED Driver Remote—

    $99.99

    $30.00

    Product Information

    Shipping & Returns

    Description

    Description
  • Dependable Extension Cables: These two 16ft (approx. 5m) long Extension Cables are built to provide a stable connection between the PhotonTek driver and LED fixture, particularly when the driver is located remotely from the fixture. Composed of two elements, these cables negate any interference during operation.

  • Power Cable for LED Driver: The M19-2 Self-locking male and female injection molding with 16ft (approx. 5m) extension cable adds flexible control. The wire gauge of the cable is UL SJTW 2x16AWG 300V 221ºF.

  • Durability and Safety Measures: The cable can withstand a voltage of 500 VAC at 2mA for 3 seconds without breakdown or leakage. It boasts an insulation resistance of 100M?@100V and a temperature resistance of 221ºF. Suitable for working temperatures between -4ºF and 221ºF and storage temperatures between -13ºF and 221ºF. Complies with RoHS standards.

  • Extension Dimming Cable for LED Driver: The second cable in the pair is the M12 Self-locking male and female injection molding with 16ft (approx. 5m) extension cable for dimming function. This cable possesses a wire gauge specification of UL 21996 3×22AWG 300V 221ºF VW-1.

  • Durability and Safety Measures: Like the power cable, this dimming cable can withstand a voltage of 500 VAC at 1mA for 3 seconds without any breakdown or leakage. The insulation resistance equals 100M?@100V, and the cable ensures temperature resistance up to 221ºF. The working and storage temperature ranges are the same as the power cable, running from -4ºF to 221ºF and -13ºF to 221ºF respectively. This product also complies with RoHS standards.
