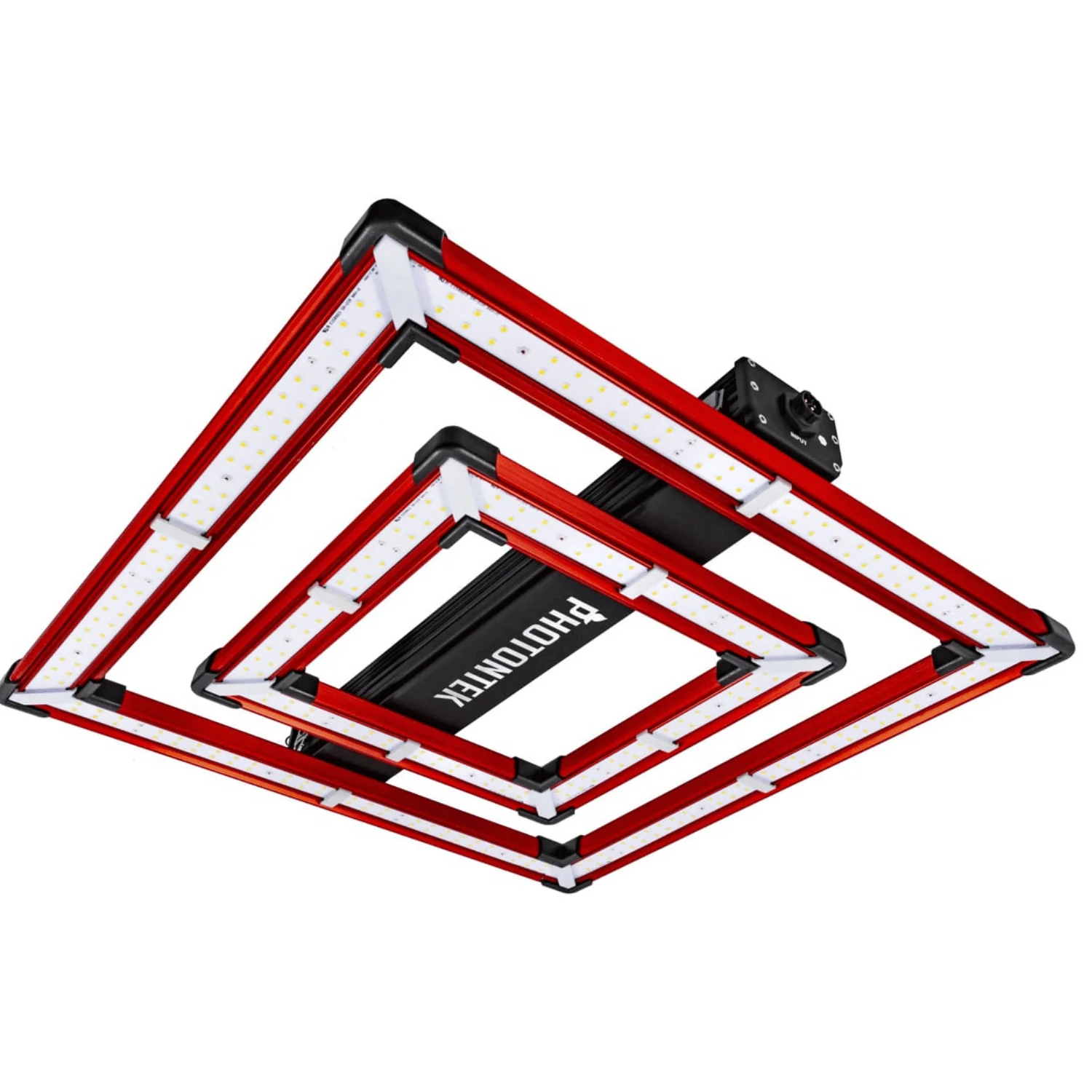

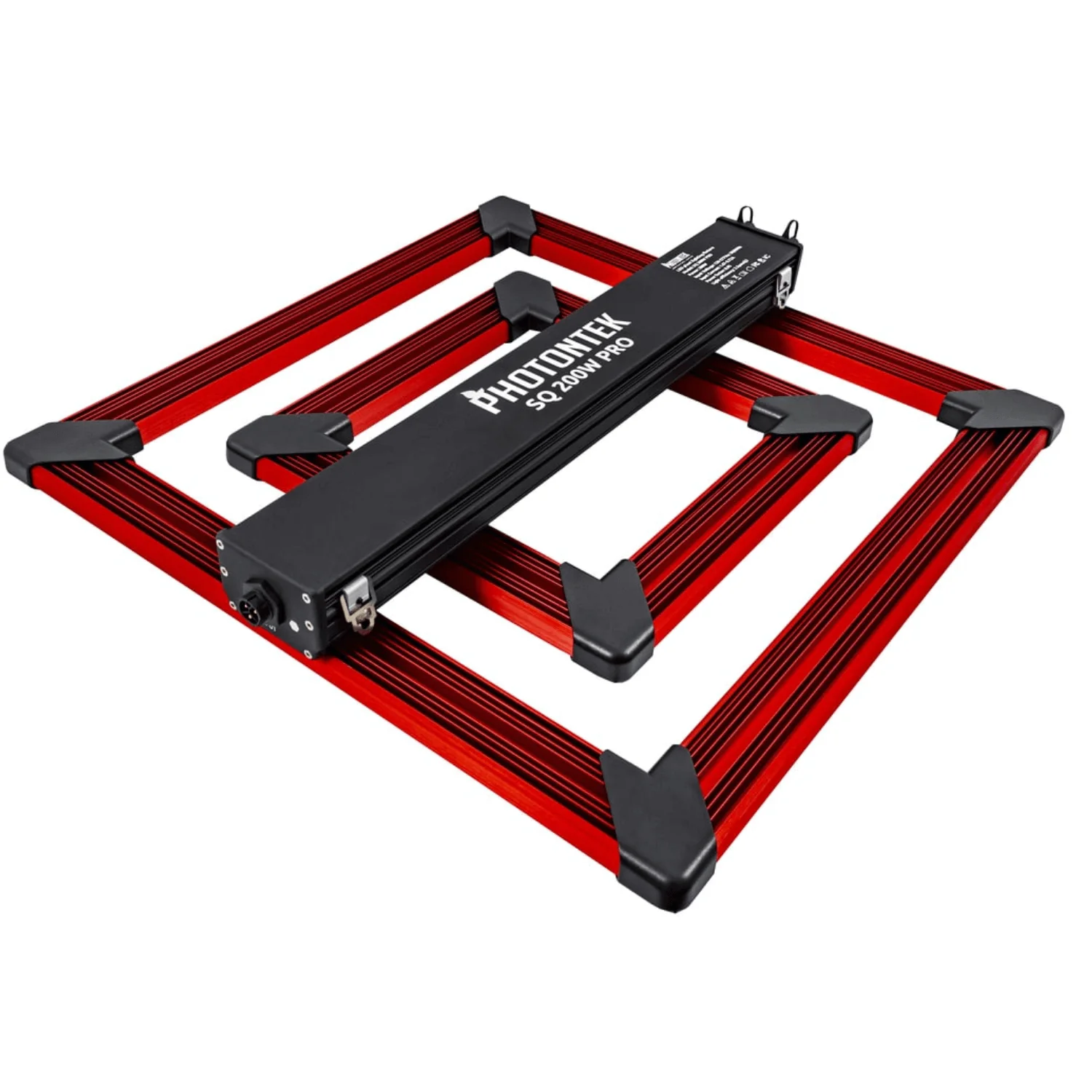

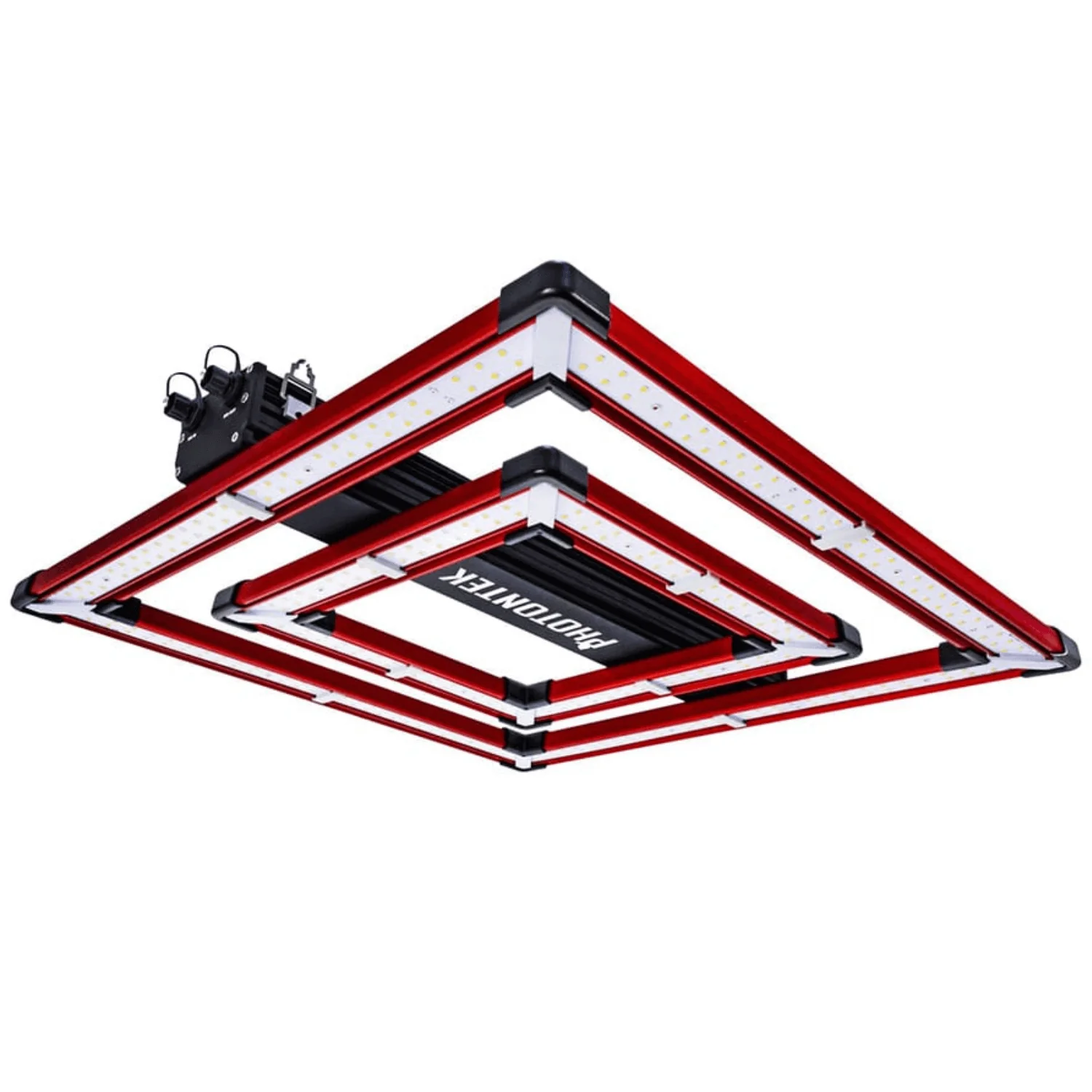

PhotonTek SQ200W LED Grow Light

Description

Introduction of SQ200W Pro Full-Spectrum LED: P-Tek is excited to introduce the new SQ200W Pro Full-Spectrum LED. This exquisite design is primarily for compact spaces, delivering superior light spectra and very high PPFD levels with low wattage.

Exceptional Coverage: The SQ200W Pro grow light offers impressive coverage of up to 2.6’x2.6’. It's perfect for home-grow, grow tents, grow rooms, and all sorts of indoor cultivations.

Quality Assurance: P-TEK's LED fixtures utilize only the best materials and components, delivering dependable and safe light. These fixtures have industry-leading performance thanks to a well-balanced full spectrum light, high intensity PPFD, and a balanced square shape bar design.

SQ200W Pro LED: This product shines with its robust features and high-quality components. It produces high PPF output levels of 508 µmol/s, and a Photon Efficacy or fixture efficiency of 2.5 µmol/J. It creates homogeneous light spread when placed closely to the crop canopy, making it ideal for 2.6’x2.6’ indoor grow areas.

SQ Pro Line: The exceptional performance of the SQ Pro line hails from its square shape LED bar design. It comprises the latest generation top bin White, Red and Far Red diodes, and top-notch P-Tek controllable drivers. The LED bars feature a thin layer of clear glue that allows higher light transmittance of 99% without light loss, giving it an IP65 rating, an extended lifespan, and additional corrosion resistance.

Heat Management: The SQ200W Pro array provides a uniform spread of light at a short distance from the crop ensuring excellent penetration without hotspots and excess heat. Use of advanced heat sink and passive natural convection has allowed elimination of a fan, reducing noise output and improving lifespan.

Full-Spectrum: This grow light LED is designed for all grow cycles, from propagation to vegetation and flowering. It can be dimmed to adjust PPFD levels without losing efficiency.

More Control: The SQ200W Pro LED fixture can be externally controlled with a P-TEK Digital Lighting Controller featuring light timing, automated dimming (1% increments), temperature safety control, and Sunrise & Sunset Mode for up to 100 fixtures per controller.

Universal Control Systems Compatibility: P-Tek Pro LED Fixtures are fully controllable with the P-Tek Digital Controller or any other Control System using a 0-10V output signal. Even with a Universal Controller sporting an RJ port interface, you can still use our LEDs by using a signal converter RJ to 0-10V control adaptor.

Specifications

Product Code: PTEKLED023

Efficacy: 2.5 µmol/J

PPF: 508 µmol/s

Input Voltage: 120-277V, 50-60Hz

Input Power (100%): 205W

Input Current (100%): 1.76A (120V); 0.9A (230V); 0.75A (277V)

Footprint: Up to 2.6’x2.6’

Waterproof: IP65

Lifetime: 60,000 hrs

Light Distribution: 120°

Light Source: Higher Spec White, Red & Far Red Diodes

Dimmable: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)

External Control: With P-Tek Digital Controller

Weight: 8.82 Lbs

Dimensions: 20.65’’x20.65’’x2.82’’

Spectrum: Full Spectrum

BTU: 703 BTUs/h

Data Sheets

Download the product manual: here

Download the spec sheet: here

Download the CSA Certificate: here

Download the IC Report: here

Download the FCC Report: here

Download the Certification Letter: here
