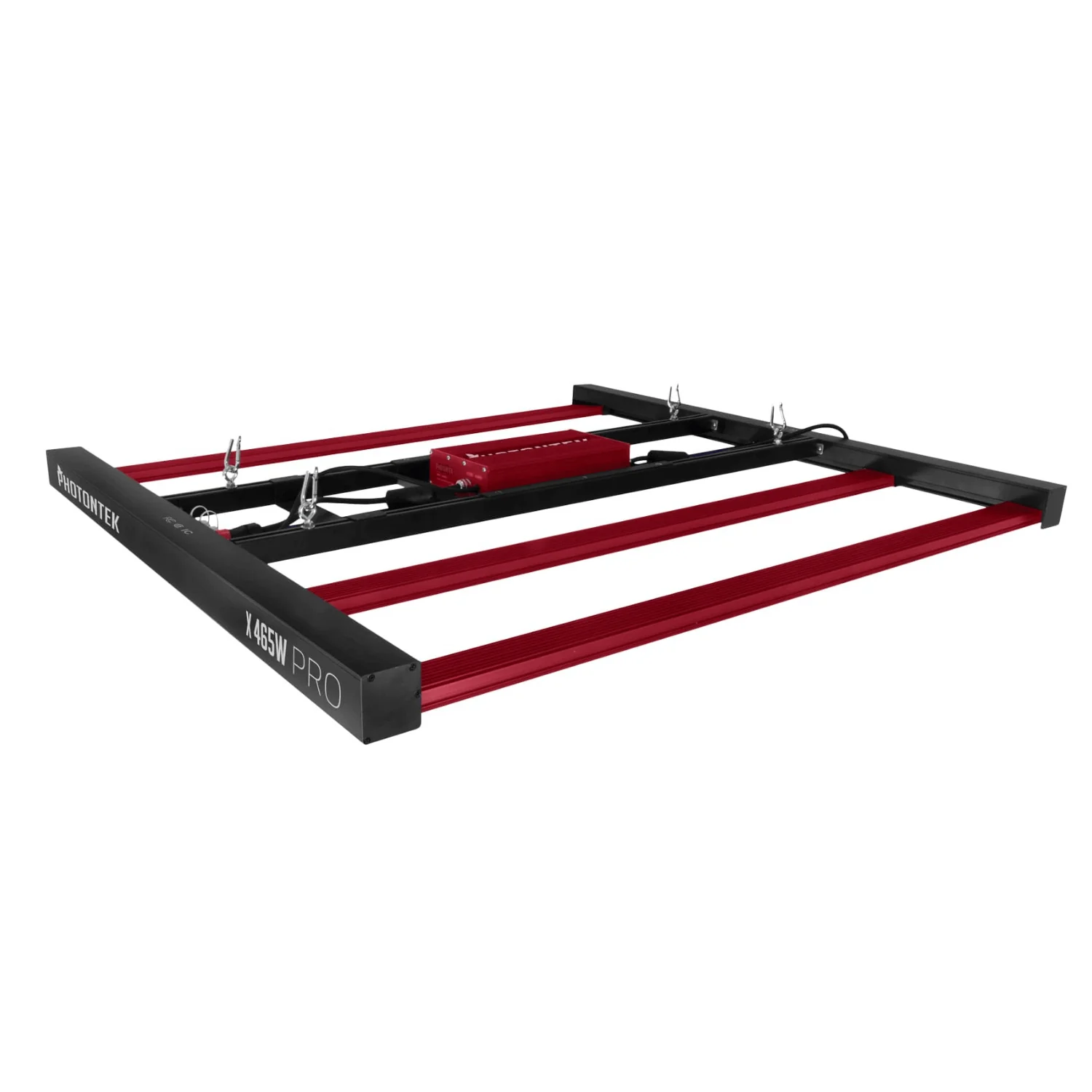

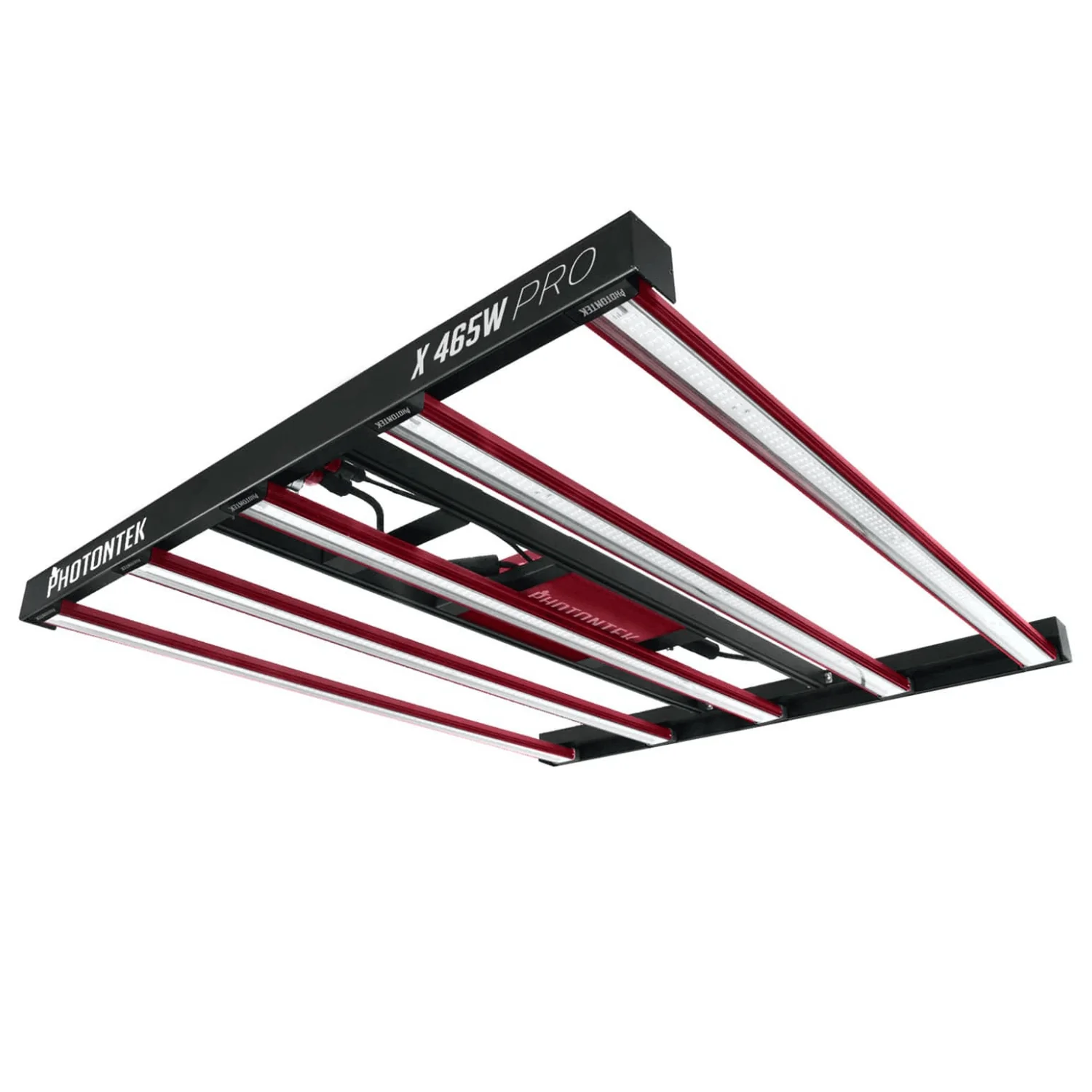

PhotonTek X 465W Pro LED Grow Light

Description

X 465W Pro LED is a perfect solution for home-grow, grow tents, grow rooms and all kinds of indoor cultivations.

Only the highest-grade materials and components are used in PHOTONTEK’s LED fixtures. Delivering safe, dependable light PHOTONTEK fixtures have industry leading performance. By perfectly balancing a high quality, full spectrum light with highest intensity PPFD delivered through a multi-bar, Linear design. PHOTONTEK Creates the ultimate ceiling of light for the entire plant growth cycle, making these LEDs the smartest option for a higher and faster return on investment.

This dynamic, highly efficient and low powered LED fixture configuration, with five 93W LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.

Choose to run anything from a single light bar to the full 5 line-up at any intensity you need by simply adding or removing the desired amount using the fixtures’ innovative smart and easy, click-magnet design. The driver can also be detached from the fixture and used away from the fixture for your convenience.

In addition, the X 465W PRO LED fixture can be externally controlled with a P-TEK Digital Lighting Controller featuring light timing, automated dimming, temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.

Universal Control Systems Compatibility. P-Tek Pro LED Fixtures can be fully controlled with either the P-Tek Digital Controller or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.

Producing a total PPF output of 1256 umol/s and a Photon Efficacy (fixture efficiency) of 2.7 umol/J, X 465W Pro LED creates a homogeneous light spread at close distance from the crop canopy, resulting in outstanding results when used in indoor multi-layer cultivation systems, grow rooms and tents.

When compared to regular similar wattage High Pressure Sodium solutions the P-TEK X 465W PRO LED can achieve 30-40% less HVAC capacity and increased yields of up to 30-60%.

The X 465W PRO LED is built using high quality and durable PHOTONTEK drivers and top bin LEDs generating an optimized full-spectrum light source ideal for veg and flowering stages.

The X 465W Pro is designed with both vegetative and flowering growth periods in mind and the LED may be dimmed, allowing you to adjust PPFD levels produced without losing efficiency.

PhotonTek is a pioneer of the revolutionary Activ-Adapt, magnetic LED light bar technology, for the ultimate modular design.

Specifications

Efficacy: 2.7 umol/J

PPF: 1256 umol/s

Input Voltage: 120-270V

Driver: 465W 120V-277V with Twist Lock capability

Power Consumption: 465W

Footprint: 3.3’ x 3.3’ – 4’ x 4’

Waterproof: IP65

Lifetime: 60 000 Hrs

Light Distribution: 120°

Light Source: Osram & Lumileds Diodes

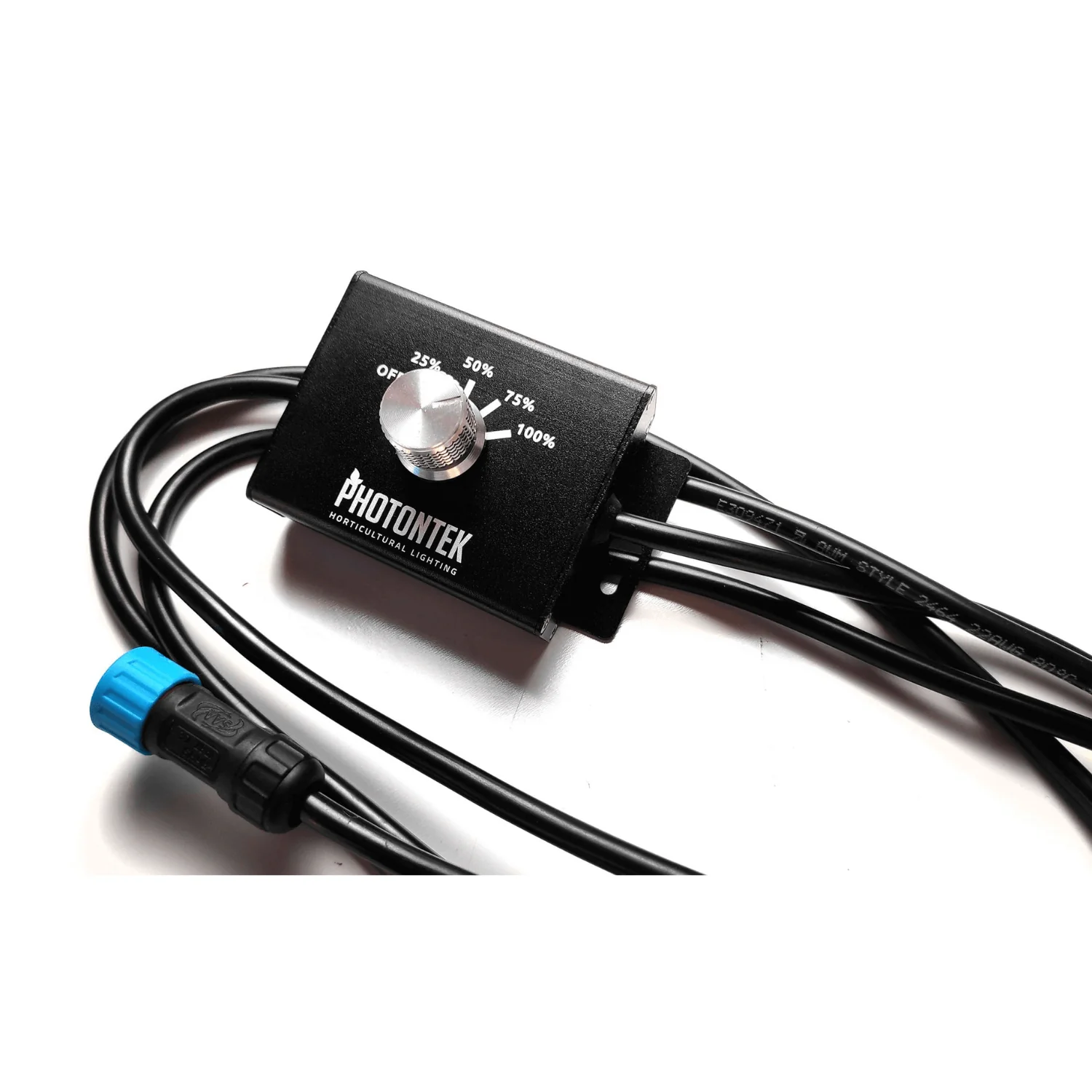

Dimmable: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)

External Control: With P-TEK Digital Controller

Weight: 24.25 Lbs

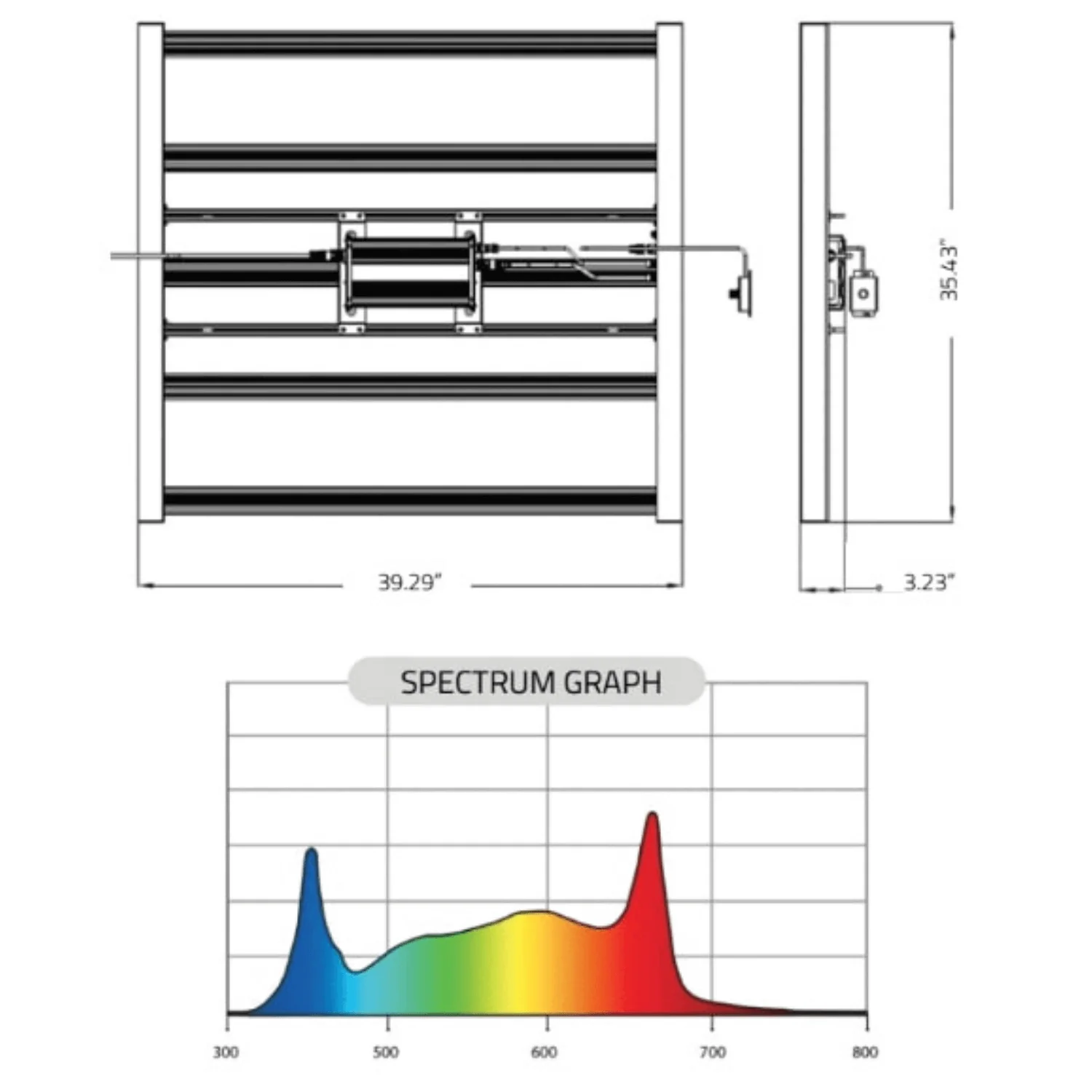

Dimensions: 39.29” x 35.43” x 2.92”

Spectrum: Full Spectrum

BTU (With Driver Attached): 1706 BTUs/h

BTU (With Driver Remote): 1586 BTUs/h

Highest Market Fixture Efficacy: 2.7 umol/J

High PPF output for high intensity: 1256 umol/s

Lowest $/umol

World Class Diodes & Drivers

Optimized Full-Spectrum

Detachable Driver

Fully Dimmable

External Control with P-TEK Digital Controller

Interchangeable Magnet LED Bars

User Friendly & Easy Set-Up

5 Year Warranty

Data Sheets

Download the product manual: here

Download the spec sheet: here

Download the CSA Certificate: here

Download the X and XT Range CSA Certificate: here

Download the IC Certification: here

Download the IC Report: here

Download the FCC Report: here

Package Contents

5 x P-TEK 93W Full-Spectrum Magnet LED Bars

1 x P-TEK 465W Driver with Connecting Cables

1 x LED Structure with Connecting Cables

1 x Power Cables (NEMA 5-15P Plug for 120V)

1 x 0-10V Light Dimmer + Velcro

2 x Metal Cable Hangers

1 x Manual
